RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Yorkshire, RAF Acaster Malbis.

Details

OS Ref: SE576435
You can use the Ordnance Survey 'Get a Map' and follow the instructions. Copy and paste the map reference.




RAF Acaster Malbis, Yorkshire.

00-00-00

Information

Yorkshire, RAF Acaster Malbis.

Details



RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Plan of the airfield site and all the dispersed sites.

Details

Situated south of the A64 below York, I drove from Copmanthorpe junction south to the huts I found were near the village and not part of the airfield but were RAF style Laing huts.


Ground crew.





Oxford cockpit.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Laing Hut.

Details

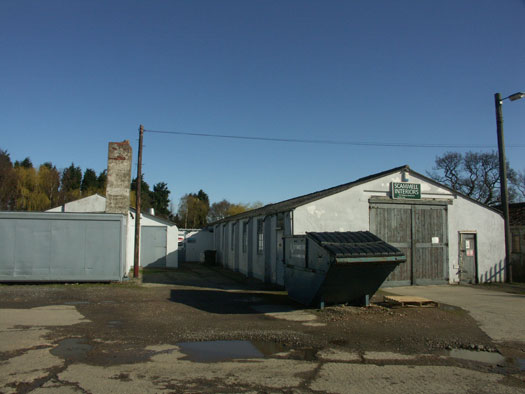

I found these huts back near the village and they may have nothing to do with the airfield.
History : Laing huts were first designed in 1940 and made of timber framed, plaster board and covered in tarred felt sheeting. Inside was just plaster board. The roof is corrugated asbestos. This small camp has about 5/6 huts left and some have been re-clad with modern materials.


Plan possibly a supply camp?.


Plan of a Laing hut.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

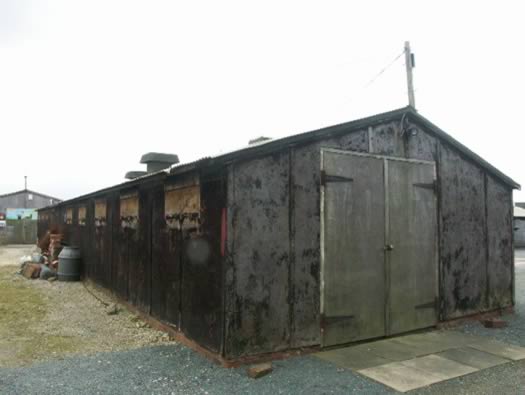

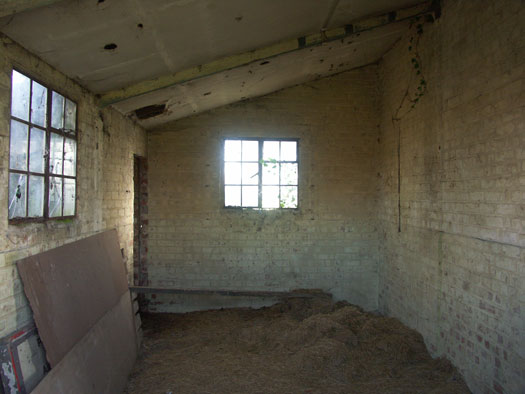

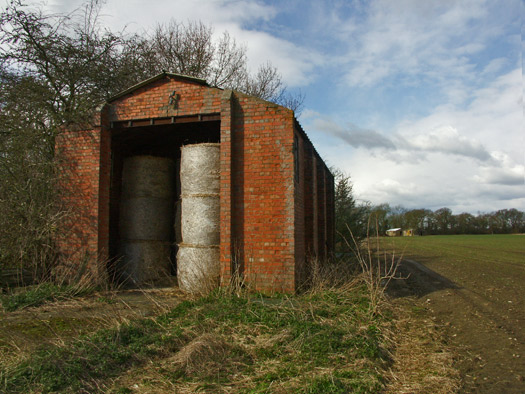

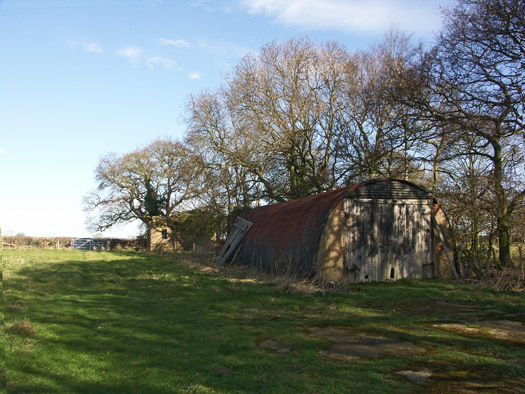

Another hut and it looks as if these have been used for chickens and now as small factory units.

Details

History : RAF Acaster Malbis opened in 1942 as a fighter station for No.12Group, Fighter Command and a satellite to RAF Church Fenton as a fighter base for one squadron. The first unit to arrive was No.601 with American Airacobras, not a very popular aircraft at all. They proved useless and were discarded in favour of Spitfires by March 1942.


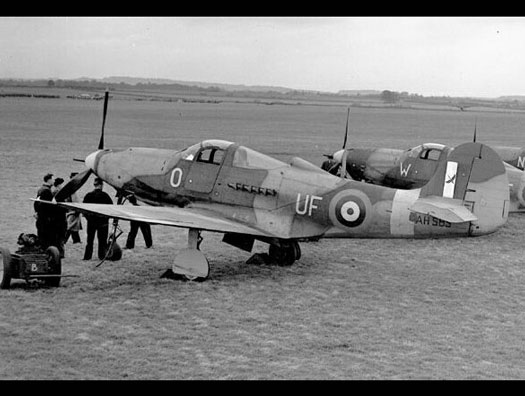

Airacobras with 601Sqn.


Airacobras with 601Sqn.


Spitfire replacement.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Site 10 'Quarters'.

Details

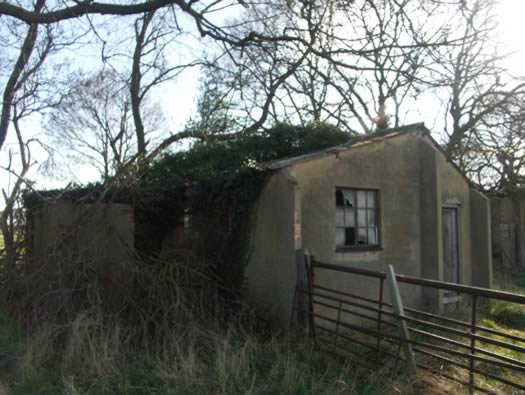

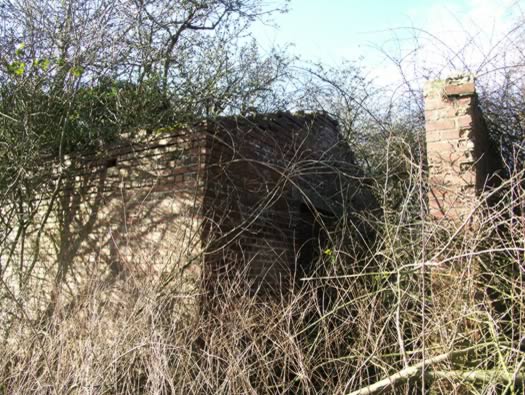

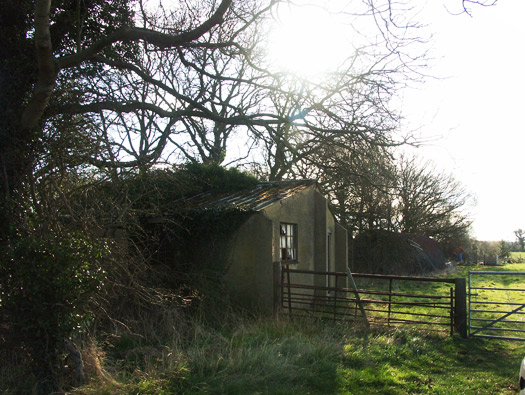

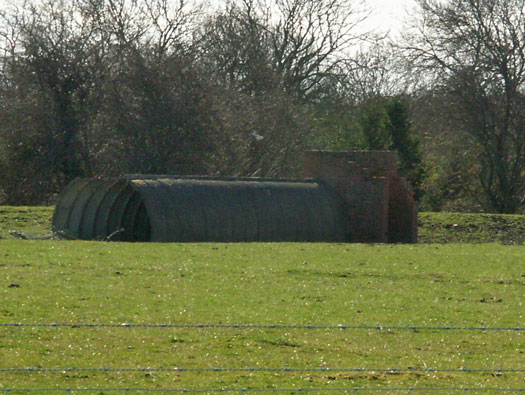

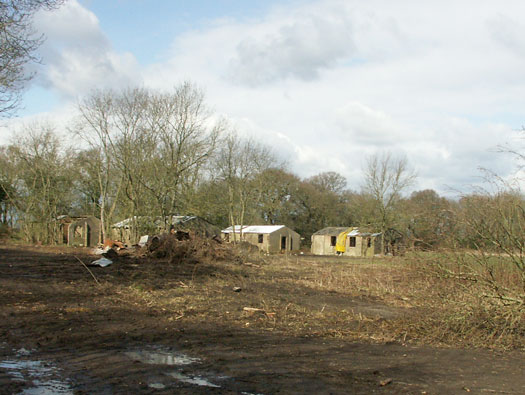

Picket post of this small domestic site with several huts remaining.


Plan of the site today. I see from the air photo that the field 'B' across the road from where I took this photo also had some huts and a roadway, now all removed?


Site plan 10 quarters.


RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Picket Post with attached Toilet site 10.

Details

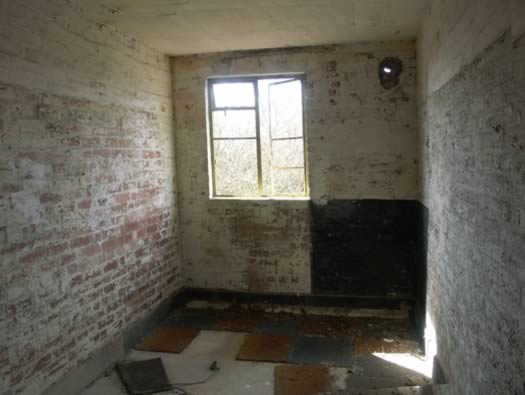

7900/40(14509/41) attached on the left of this picket post is a small toilet block.

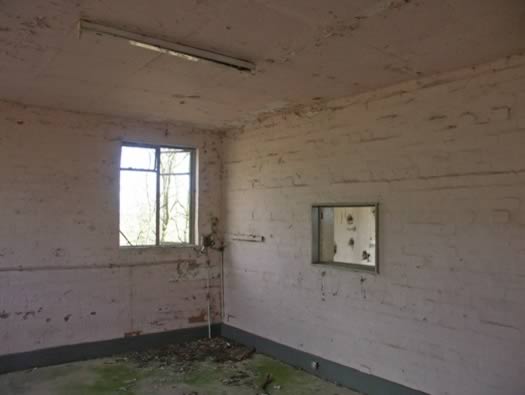

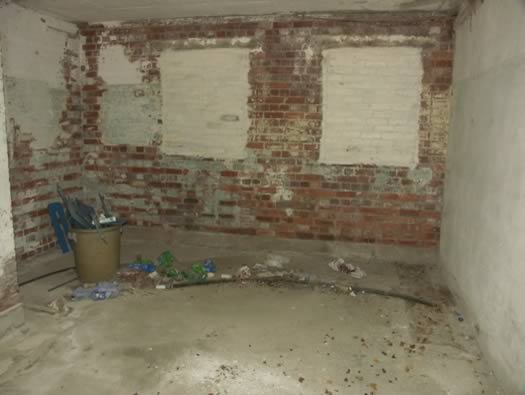

Inside the main room.




RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Latrines Officers. A standard Latrine block 9026/41 found on all wartime airfields with a door in each end and a urinal and toilet one side and two toilets the other.

Details

Some additional details will go here


Plan of a 9026/41 latrines, there could be several combinations for urinals, Elsan buckets or flush toilets.







RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

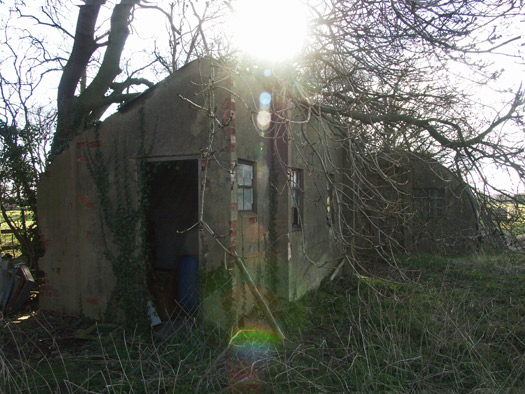

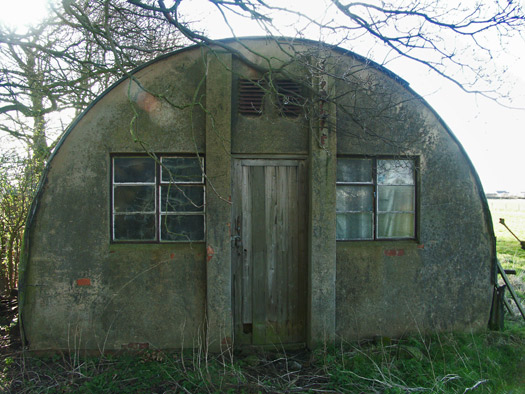

Nissen Hut Quarters Officers.

Details




Plan of a Nissen hut.


Iron stove usually there were two to a standard Nissen hut.




RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Nissen Hut Quarters Officers.

Details

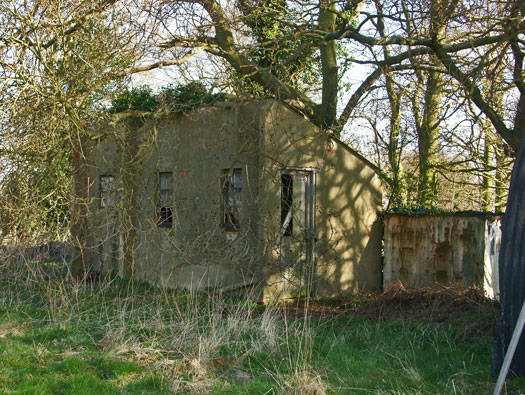

This one is arraigned with a brick face, door, two windows and an air vent. There are many combinations that can have been used with this type of hut, wooden ends or just open for general storage.


Nissen hut internals.


Site 10 plan.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

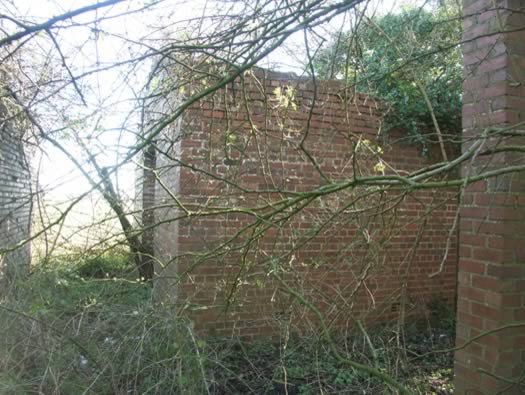

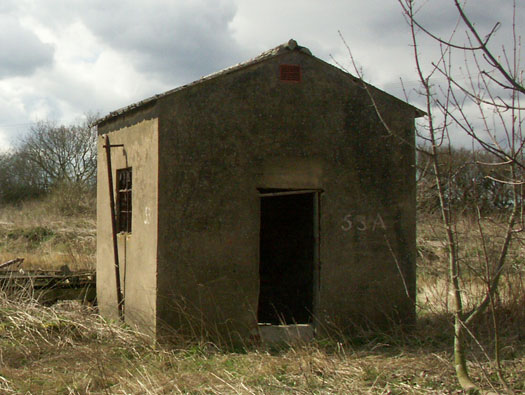

Sub Station (Electrical).

Details

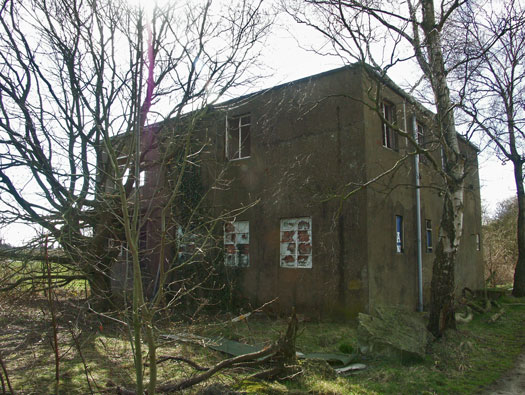

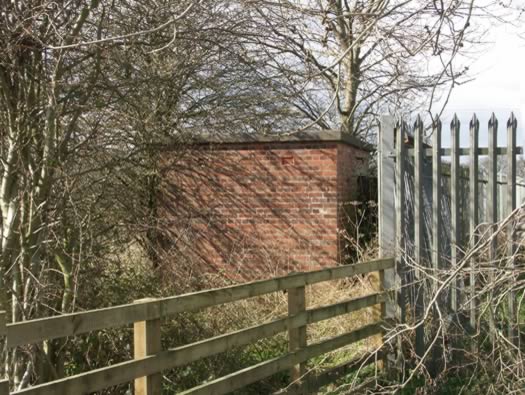

A protected electrical substation with a pitched roof and blast walls.

History : April 1942 Acaster Malbis was turned over to 21Group Flying Training Command as No.15 (Pilot) Advanced Flying Unit with Oxfords.


Oxford training.


Crews under training.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Sub Station (Electrical).

Details

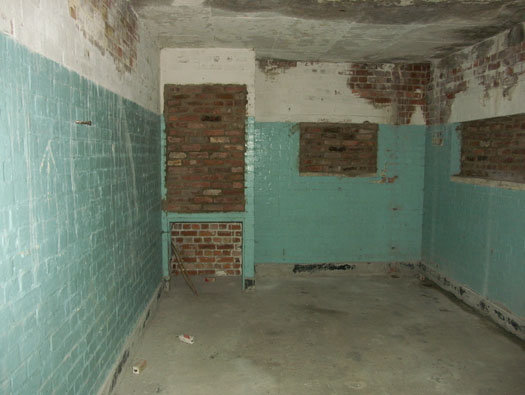

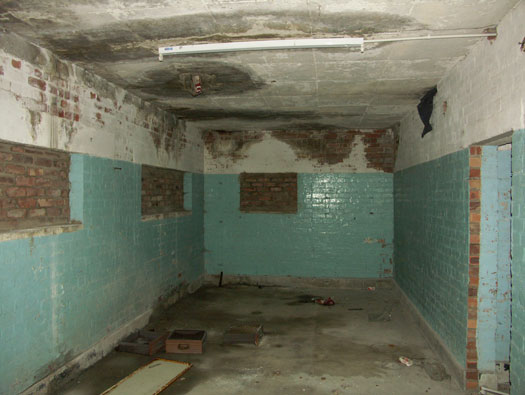

Inside there are two ducts sunk into the floor running L/R and set into the walls are four vents with adjustable covers.


One of the vents.


Plan.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Sub Station (Electrical)

Details

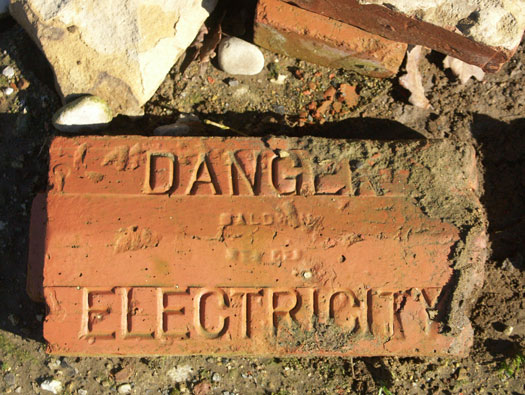

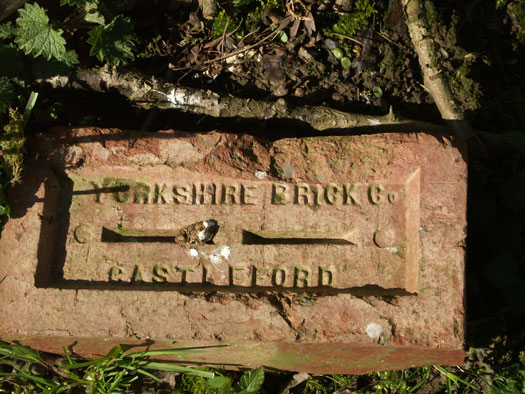

Aa Yorkshire Brick from Castletown.


The yellow square is the sub station.


Plan of 1942 airfield with six fighter pens and five Blister hangars.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

25Yrd Machine Gun Range.

Details

Set behind this house is the 25yd machine gun range now a garden.


The butts are in the red square.


25yd range from above.


Plan of a rifle range.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

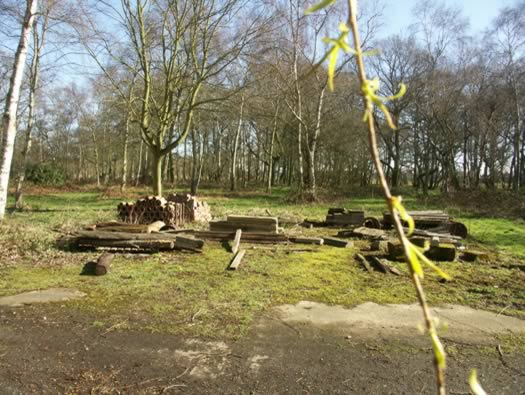

Technical Site.

Details

History : in 1943 all flying ceased and the airfield was re built as an 'A' class heavy bomber station. This included three runways, two T2 & one B1 hangar, 12 dispersed sites and a perimeter track with 36 of the later spectacle aircraft dispersals.


The yard circled in white and where I parked to walk the airfield.


On the original airfield it was designed as a fighter base with six double pens and that meant it could hold one squadron of 12 aircraft.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Crew Rest, Locker & Drying Rooms.

Details

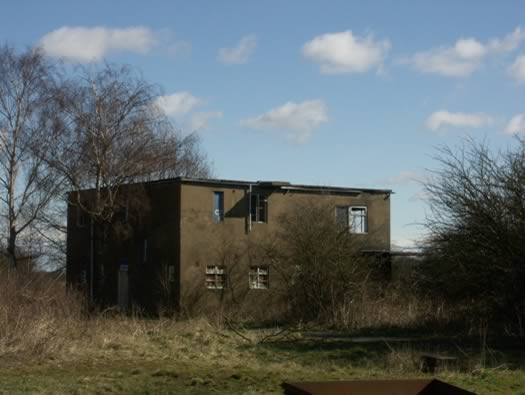

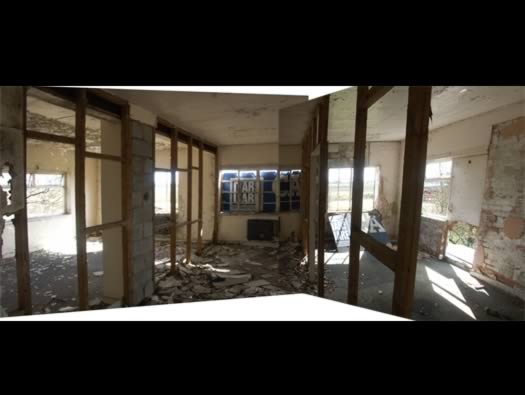

Crew, restroom, locker & drying room 1191/43 a building where pilots and crew could hang all their flying clothing in a heated room.


Crew, restroom, locker & drying room 1191/43.


Bomber crew.


History : Local Halifax training squadrons used Acaster Malbis.

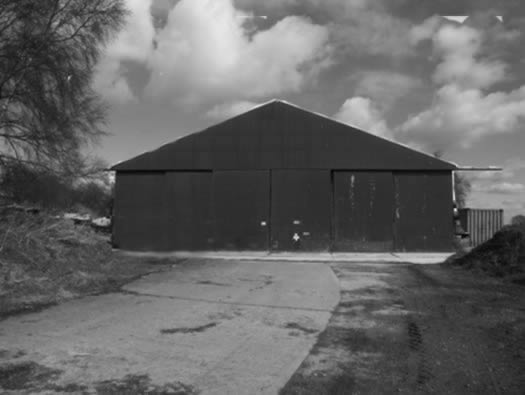

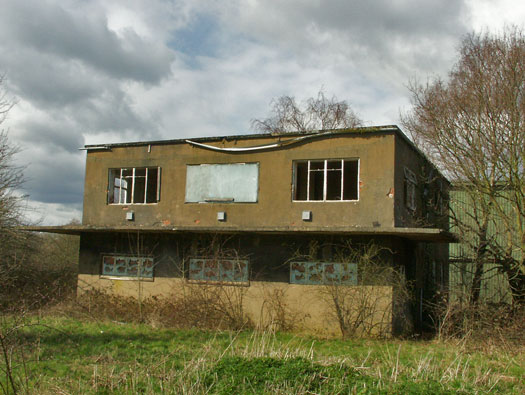

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

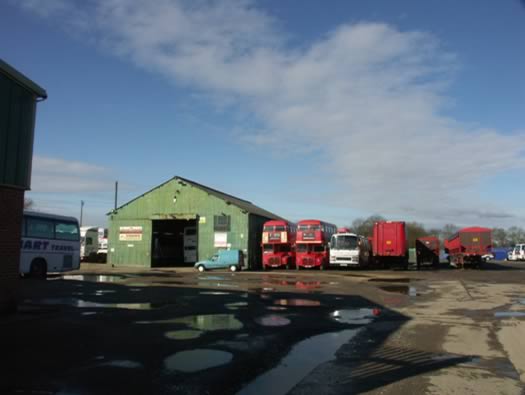

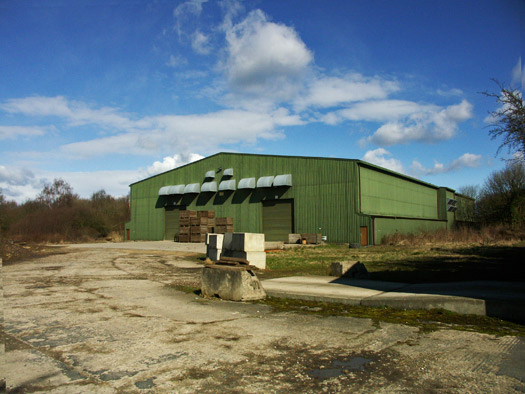

MT Shed.

Details

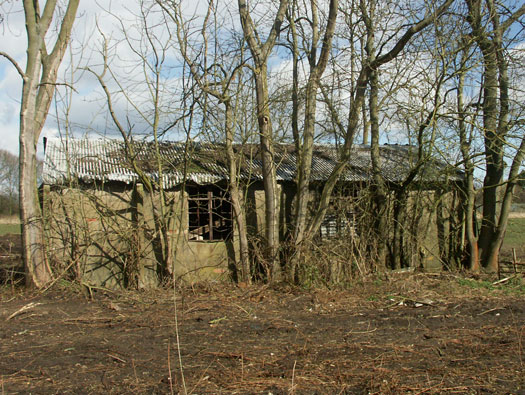

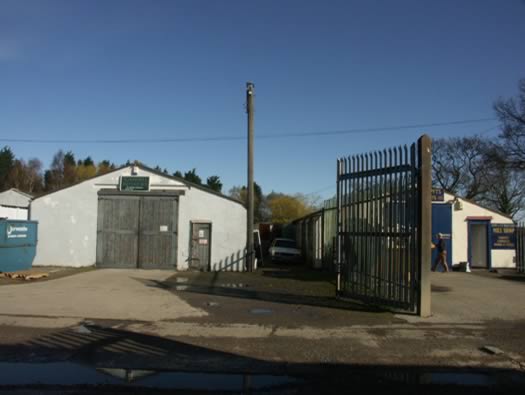

Marston sheds could be clad with tin (as in this one), asbestos sheeting and brick. A very flexible building. Portable easy to dismantle & assemble. This one is NOT on the plan and may have been moved here at a later date?


Marston Shed at RAF Enstone.


Another Marston shed.


Inside one.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Perimeter Track.

Details

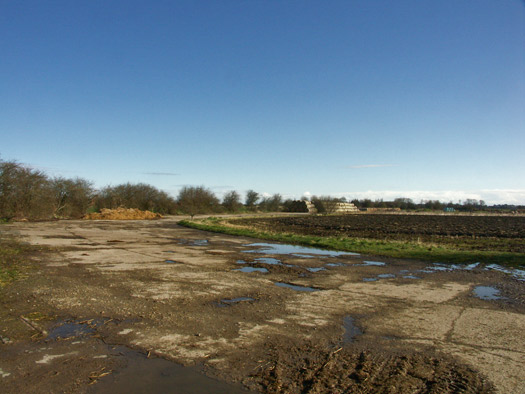

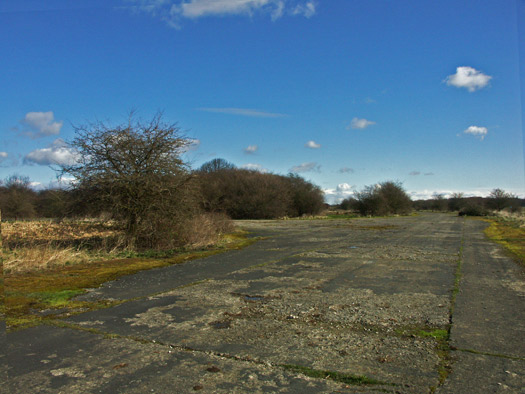

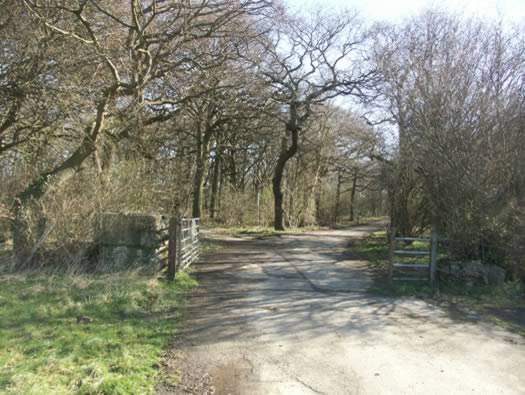

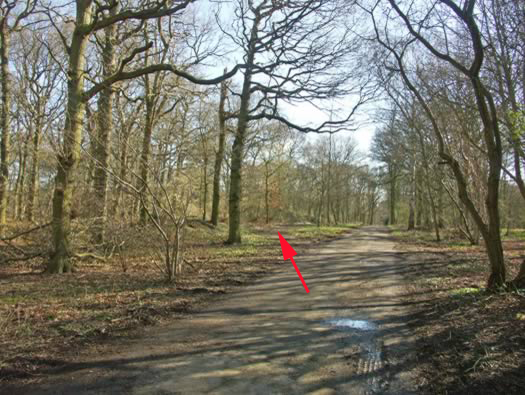

I walked the perimeter track in a clockwise direction.

History : The only problem here is that the airfield was built on low lying land close to a river which creates fog on too many occasions. This caused many flying accidents and the airfield was never used as an operational base. Several local airfields used Acaster Malbis as a training field by.


Oxford crew.


Image Caption

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

NW/SE Runway heading 16

Details

150ft wide.


Image Caption


Three runways 150 feet wide.


Airfield construction.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

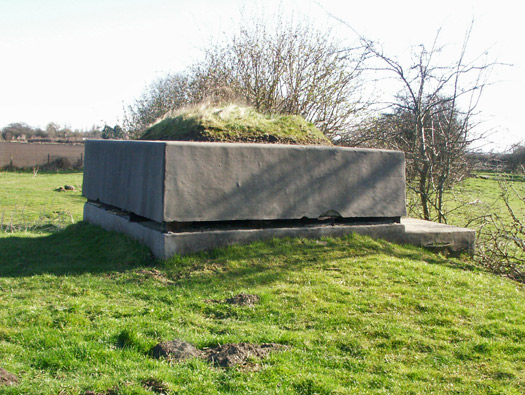

Battle Head Quarters.

Details

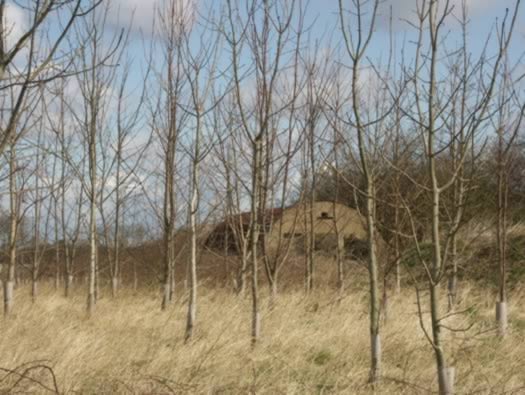

In the event of an attack by paratroopers the airfield defence commander would go straight here and run the battle via his viewing slits, his telephones and his runners to deliver messages.


Home Guard


Fallschirmjaeger.


Plan of a battle HQ.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

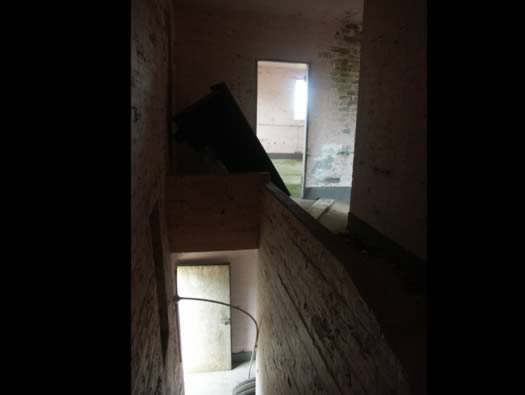

Battle Head Quarters.

Details

Battle HQ 11008/41.

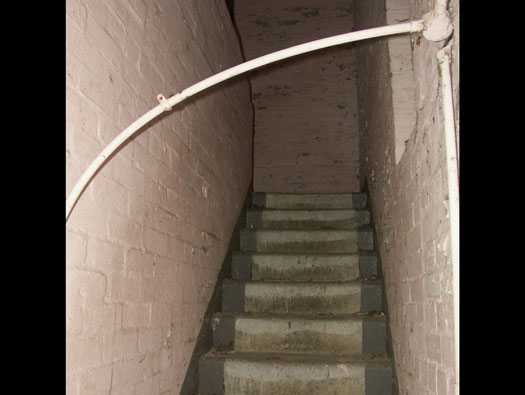

The stairs and passage.


Escape man hole cover.

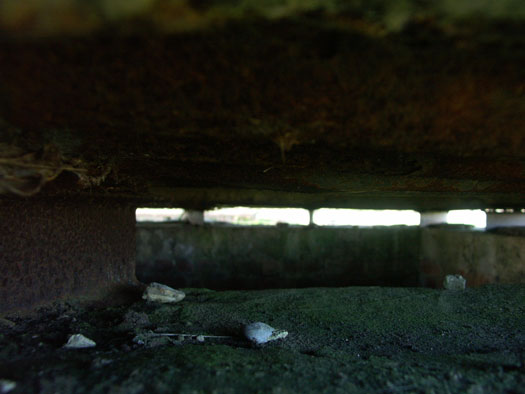

View through the cupola.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Petrol Installation Aviation.

Details

In this northern corner the Petrol Instillation Aviation 72000gal 13022A/42.


Inside a pump house.


Fuel tanks.


USAAF tanker bowser fuelling up at an RAF P.I.A.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Petrol Installation Aviation.

Details




AEC Matador fuel bowser.


RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

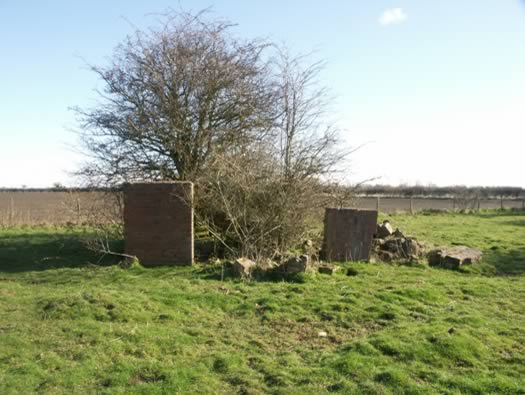

Sub Station (M&E Plinth).

Details

Mechanical & Electrical Plinth to transform high voltage electricity down to the power used in this area This was used to power the fuel pumps in the bulk fuel installation and the several huts in this area.


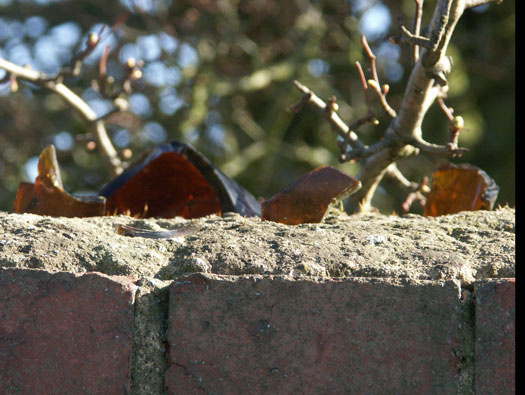

Glass set into cement around the top of M&E plinths as a security measure.

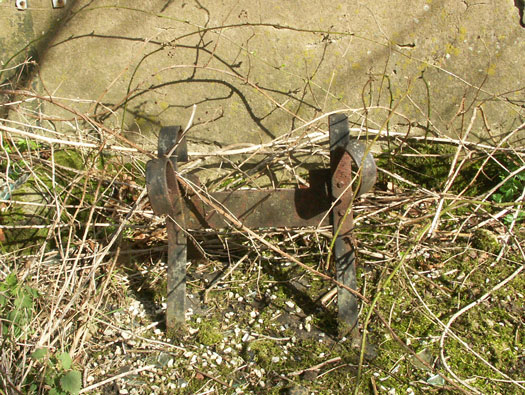

Gate hinge on an M&E plinth.


Plinth gate design.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Perimeter Track North Side.

Details

North side.


X on the plan.


History : W/O Bertram Pinner DFM (pictured) received his investiture notification whilst at RAF Station Acaster Malbis (holding unit) 27th October 1945.


Lancaster's moving around a perimeter track.

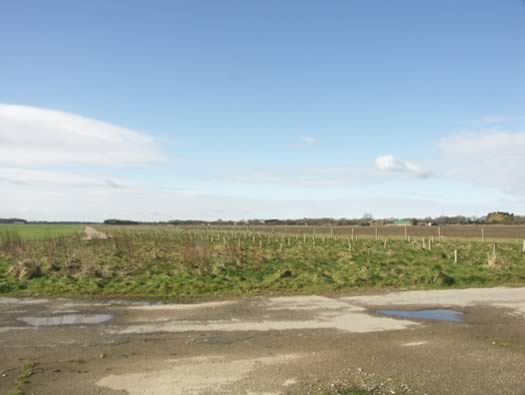

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

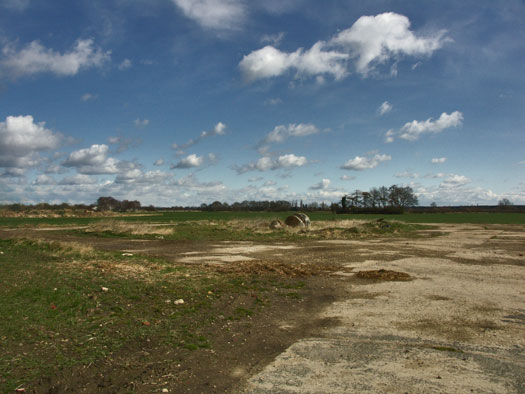

Main Runway heading 22.

Details

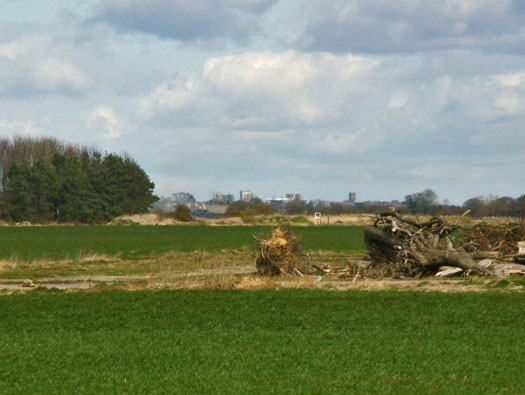

Trees have been planted on the runway now so it will soon be woodland.


Perimeter track running around to the wood and the bomb store.


Lancaster's taking off.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

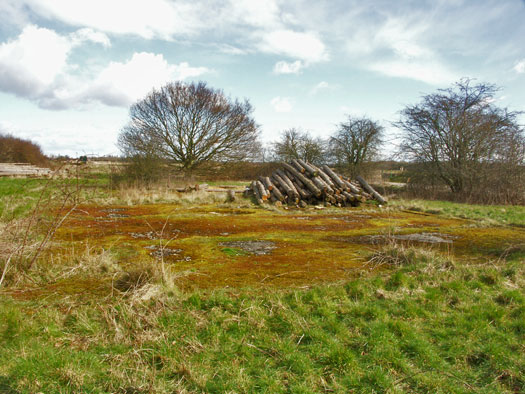

Brick Slit Trench.

Details

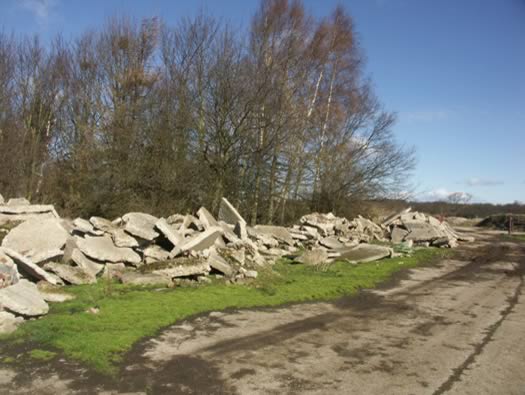

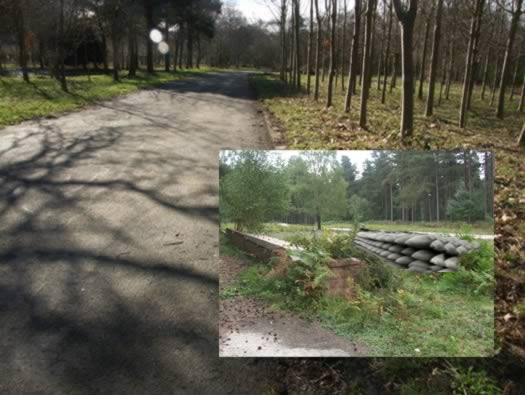

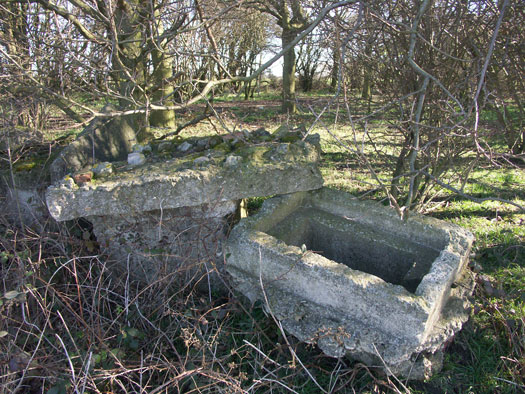

This is the first part of the woodland, a barrier of concrete drains from the runways bars a small entrance into the wood where there is a road way, a small square bomb store and two brick slit trench defences.

History : These defences must have been part of the earlier airfield of 1940 vintage when defences were put in against the threat of German parachutists. By the time the second airfield was being built that threat had gone.


Concrete drains removed from the runways.


The red line is the roadway.


Small bombs on trolley.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

1940's 'L' Trench.

Details

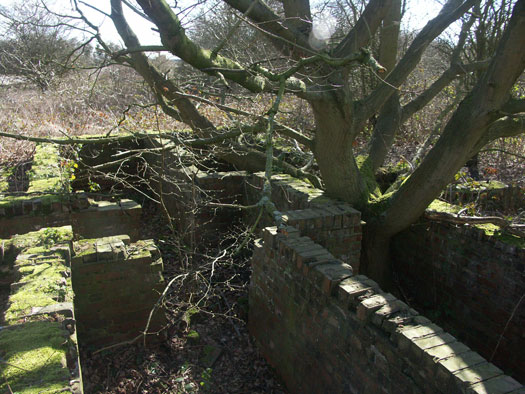

These trenches may have been part of the pre 1942 bomb store.


Another view.


1940's plan.


Home guard defence.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Fuzed & Spare Bomb Store.

Details




Fuzed & Spare bomb store.


An earth travis running around the store with access for the road to come through.


A fused bomb store at RAF Keevil.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Main entrance off the Perimeter Track to the Bomb Store.

Details

A full 'A' class bomb store with four main storage areas and three fuzing points.


Airfield plan.


Plan of the bomb store.


Bomb train loading.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Roadway to Fuzing Points.

Details

There were 2 fuzing points along the entrance track on the right and on the left an A.I.S. Laboratory.


Jane type I.A.S Laboratory [54 on plan] 6211/43 steel. Aeronautical Inspection Service inspectors to check I presume quality. 'They were a nit picking bunch of job's worth at 16MU- most of them incapable of checking what they were tasked to do', from Aix.


140 - Fuzing point building, Nissan, Ultra heavy 7900/42 -4176/43.
142 - Fuzing point bldgs, Nissen, heavy light, 4773/41.
144 - Sea marker & flame float store, Nissen, 12725/41.
145 - Small Arms Ammu. [aircraft] store, Nissen, 12725/41.
146 - Component store, Temp. Brick, 4733,42.
54 - A.I.S. Lab., Steel (corrugated iron), 6211/43.


Fuzing point building, Nissan, Ultra heavy.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

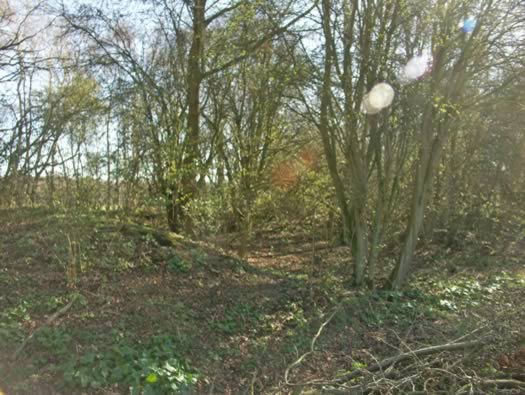

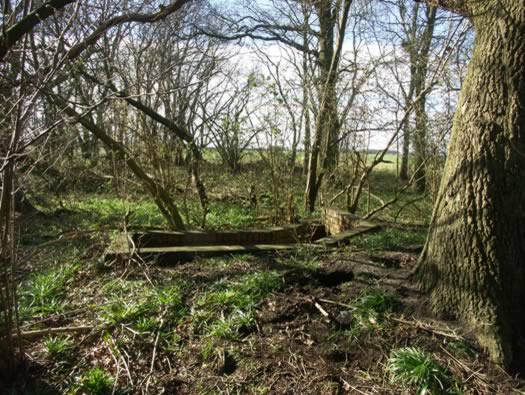

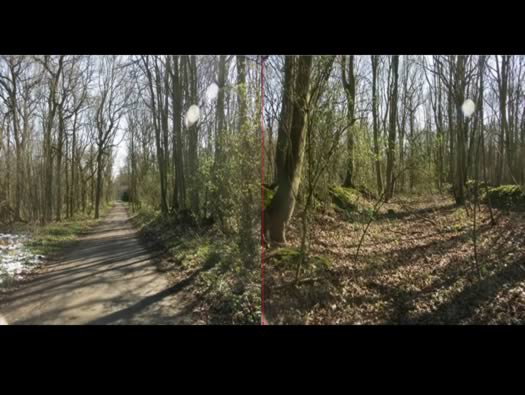

Looking in to the Woodland

Details

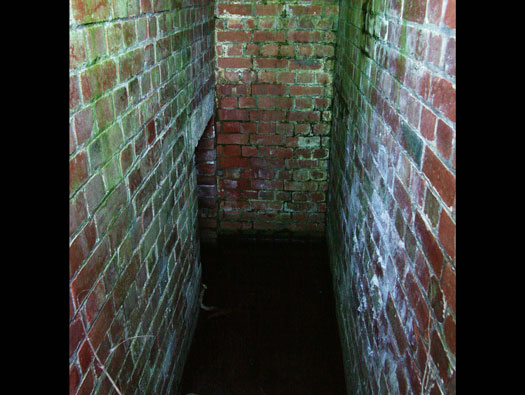

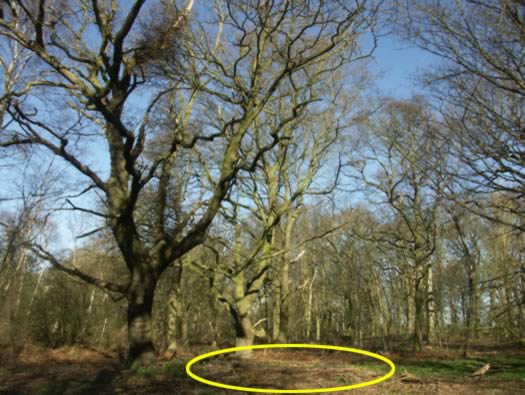

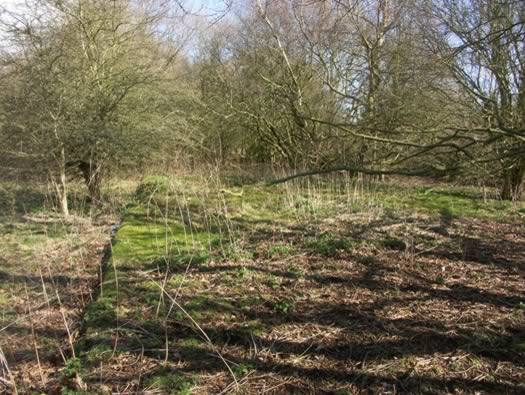

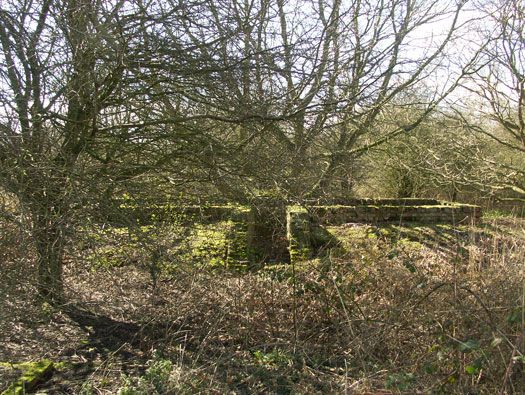

At the base of the trees is a brick trench looking south.


The trench.


Home Guard defenders.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

The third Fuzing Point.

Details

History : Bomb trailers would pass through the huts and fuses fitted in. Paperwork would come down to the bomb store to say what bombs were needed, what fuze's and what settings. Then they would be collected, fuzed then driven around to the aircraft dispersed around the airfield.


142 on the plan is a 4775/42 fuzing point.

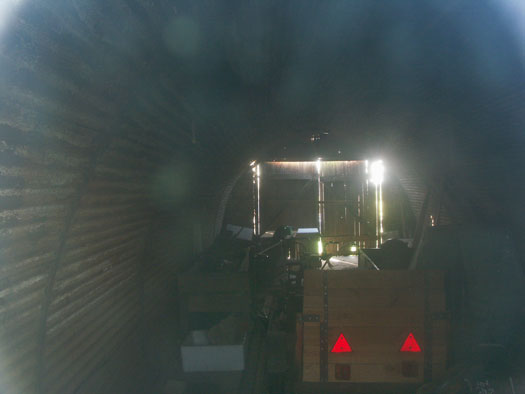

Inside s Nissan hut fuzing point.


How it would have looked.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

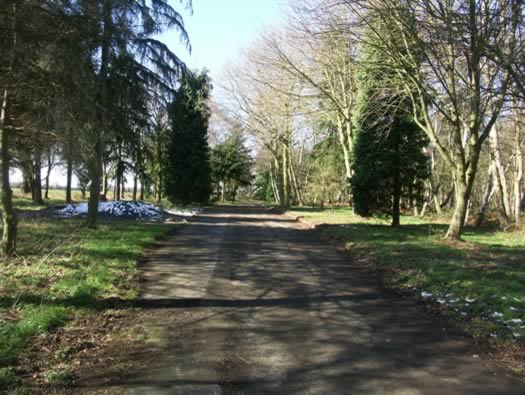

Bomb Store roadway.

Details

History : A circular loop roadway with four main stores for heavy bombs and then different storage and hut for incendiaries and fuses, etc.


We are now here on the plan.


Plan of this corner.


Bomb storage.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Bomb Store Loops to Left & Right.

Details

If bombers had or were used here this would have been a very busy area.


Bomb store crew.


Bomb train.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Bomb Store.

Details

There was a brick wall with a concrete cap and a slope down. On the wall would be several iron rings to trammel the bombs off the lorries.


Trammelling bombs off of their delivery lorries.


Trammel rings.


Concrete ramp.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Incendiary Store 151 on plan 47344/42..

Details

There would have been a drive through earth traversed wall all the way around.


Incendiary store at RAF Keevil.


Incendiary bomb.


Incendiaries being dropped from a Lancaster.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Perimeter Track & a Spectacle Aircraft Dispersal.

Details

As this was a late build 'A' class bomber station it had 36 spectacle aircraft dispersals.


Spectacle dispersals.


Spectacle dispersals.


Dispersed Lancaster.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

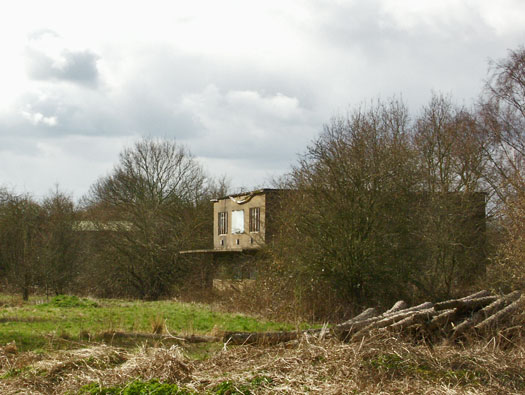

T2 Hangar & Control Tower across the Airfield.

Details




Landing light concrete holder.


An electrical ducting tile.


Runway drainage.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Broken Runway Foundations.

Details

In this pile are pieces of lamp fittings.


Cast iron lamp fitting.


Another lamp fitting.


One of the many manholes.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Stanton Shelter Air-Raid Shelter.

Details




This is the area where the shelter is and its right out on its own, one hell of a run from the dispersals. 107 was an M&E plinth to bring electricity to the area.

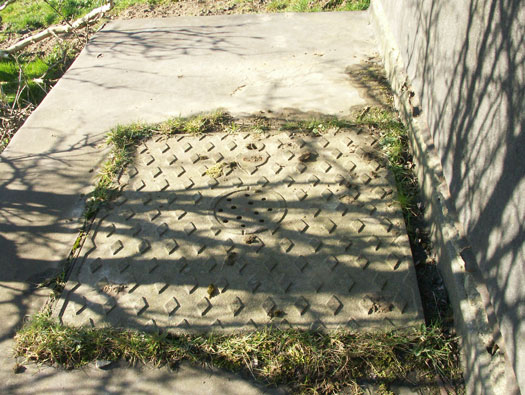

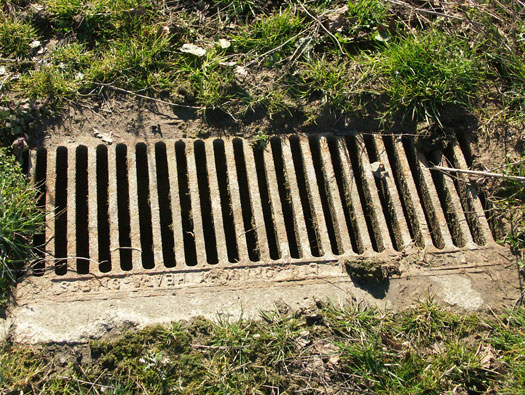

Runway drain with cover now scrapped.


The type of drain cover..

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

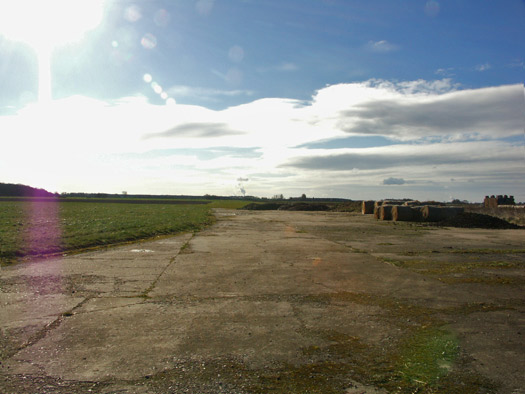

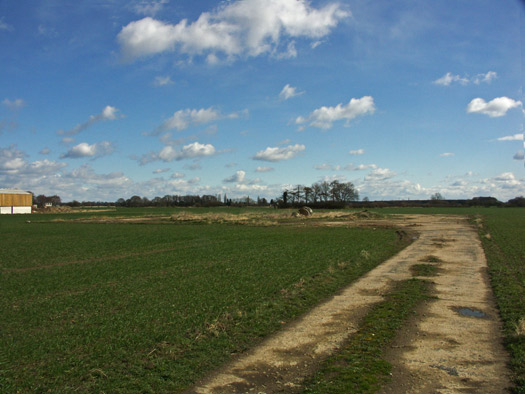

50ft Perimeter Track running off to the B1 Hangar Base.

Details

Bomber bases usually had two T2 hangars and one B1 Ministry of Aircraft Production repair hangar. They repaired badly damaged aircraft with civilian workforce to take pressure of the RAF repair teams.





B1 MAP Hangar.


Wellington being repaired.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

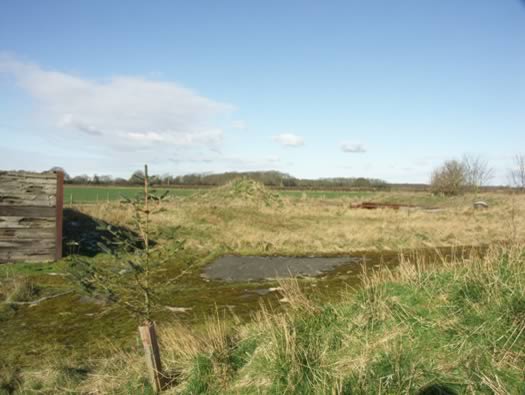

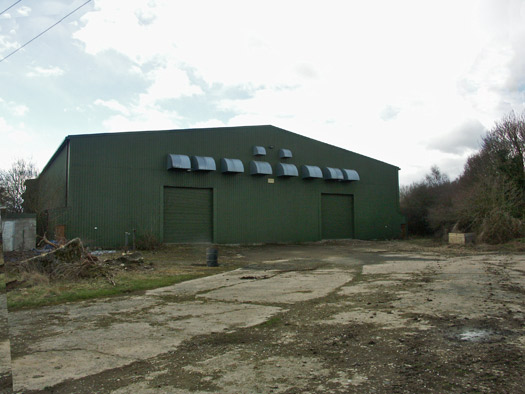

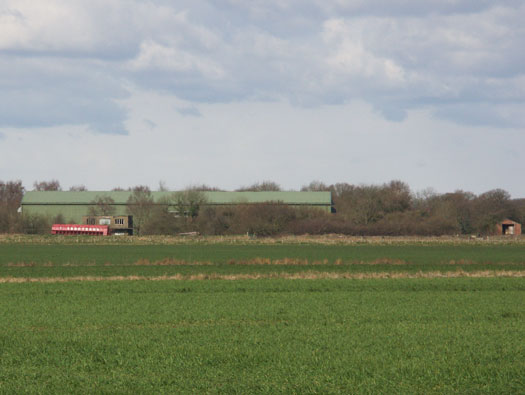

The site of the B1 hangar, now a barn sits in its place.

Details




Eight aircraft dispersals & the base of a B1 hangar and one Nissen hut armament & equipment store.
The barn is modern.


Inside a B1 Ministry of Aircraft Productions hangar.


Civilian workers.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Perimeter Track to B1 Hangar.

Details




The B1 hangar and the armament & equipment hut, two huts general purposes, two technical latrines, thank you Terry.


576 Squadron damaged during a heavy landing in bad weather in late 1944

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

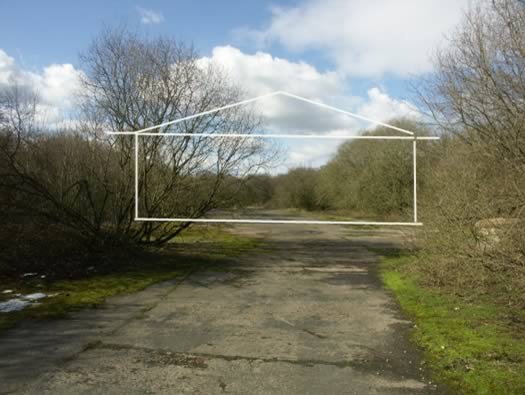

Base of the B1 Hangar (how it would have looked)

Details




Halifax being repaired.


Lancaster's moving around a perimeter track.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Nissen Hut 114 on the plan.

Details

Next to the B1 hangar [113] were several huts, two sets of latrine 117/118 and three Nissen huts. Nissen hut [114] 11420/41 was the armament equipment store.


Browning 303 machine guns.







RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Petrol Installation Aviation [120]

Details

The second petrol installation [120 on plan] on the airfield, one at each end dispersing the fuel in case of aerial attack. A 72,000 gal capacity type 13022/42.





120 Petrol installation 72,000 gal13022/42, 121 is the Picket Post a sort of guard room.


Fuel bowser.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

York Minster in the Distance.

Details

There were three landmarks for pilots to use when landing here, York Minster in the north, the York to Selby railway line in the west and the river Ouse that flows SE of the airfield.


Oxford pilot.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Perimeter Track to the first T2 Hangar Base.

Details




The technical site.
Base of one T2 hangar and one T2 re clad, a control tower, several hut bases, some huts & fire tender house.




RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Base of the first T2 Hangar.

Details

[57 on the plan] T2 Type 3653/42.


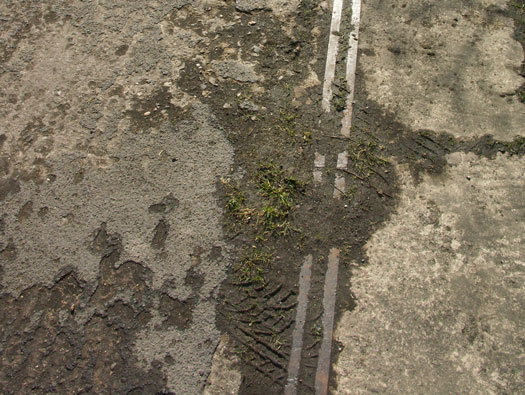

T2 door runner.


T2 doors and runners.


Plan of the e technical area.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

The second T2.

Details

Re-clad with the doors replaced and now used as a potato store.


The original doors laid out behind.


T2 doors.


T2 roof.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Combined Instructional Building 92 o plan 1191/43.

Details

Right behind the second T2.


This is a plan of crew drying and rest room which was No.7 on the plan but here it is being used as an instructional building.


There would be a heating plant on the end of this building like this one.




RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Two Blast Air-Raid Shelters.

Details




The second shelter.


2360/41 type shelter.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Pathway to Squadron Maintenance Block 'A'.

Details

More 24ft Nissen hut 90 on plan 12777/41 with 2411/43.


24ft Nissen at RAF Marston Moor it may have looked like this.


The blue hut in the middle.


Engineering.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Works Service Buildings No's. 68 to 74 on the plan.

Details

68 - Wrks. store, Nissen, 10024/41.
69 - Wrks. latrine, Temp. Brick, 5538.42.
70 - Wrks. store, Nissen, 10024/41.
71 - Wrks. C of Wrks. & station Engs. Off., Temp. brick, 5538/42.
72 - Wrks. Mess room carpenters & fitters shops, Temp. brick, 5538/42.
73 - Wrks. store, Temp. brick, 5538/42.
74 - Wrks. DSWO's Off. & AG'L Imp. Shed., Temp. brick, 5538/42.


Temp. brick hut 5538/42.


Another temp. brick hut 5538/42


Red square on the plan.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Floodlight Trailer & Tractor Shed.

Details

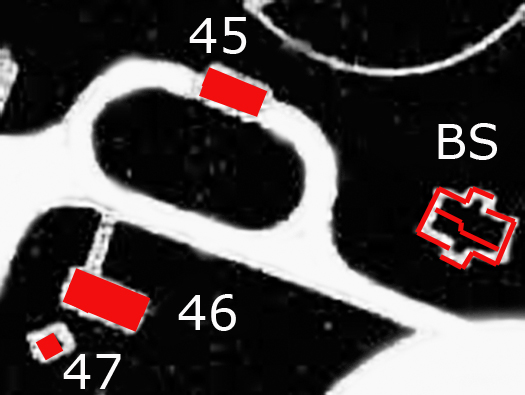

Floodlight Trailer & Tractor Shed 45 on plan 12411/41.


Chance floodlight.


RAF David Brown Tractor.


45 - Fl. & Tr.Shed., 12411/41
46 - Sigs. & Int. Bldg., 4699/43,
47 - M&E Plinth [Transformer].

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

T2 Hangar No.2.

Details

T2 Aircraft Shed, [Hangar] 3653/42.


Under construction.


Inside.




RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Roadway behind the Control Tower.

Details




With the T2 on the right and a road leading along behind the control tower.
50 - fire tender shelter, Nissen, 12410/41.
51 - signals apparatus building, Steel, 4701/43.
52 - control tower [watch office], perm. brick, 345/43.


53 - balloon filling hut perm. brick.
BS - blast shelter.


Fire tender.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Watch Office for All Commands 343/43.

Details

Watch Office for All Commands 50 - perm. brick 343/43.


Plan top floor.


Plan ground floor.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Watch Office for All Commands 343/43.

Details




Control room.


Halifax doing a touch and go in training.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Watch Office for All Commands 343/43.

Details










Oxford crews training.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Watch Office for All Commands 343/43.

Details

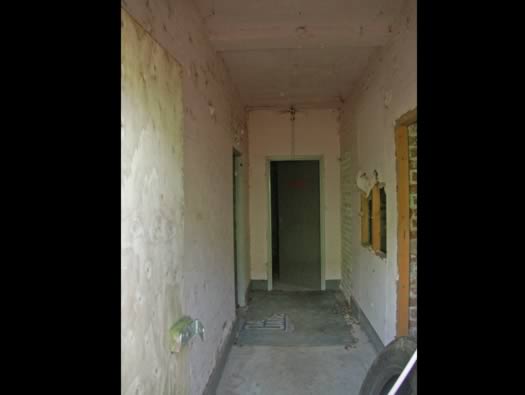

Corridor from rear door to watch office.


A - met off.
B - duty pilots rest.
C - watch office.
D -switch room.
E - toilets.


Duty pilots rest room & toilet

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Watch Office for All Commands 343/43.

Details

Met office with a toilet in left corner, rear left room.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Watch Office for All Commands 343/43.

Details

The watch office. I have tried to join two photos together.
The cupboard on the left is for Very pistol flair cartridges.


1941 British No3 mk1 Very pistol.


Flair cartridges.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Watch Office for All Commands 343/43.

Details

Stairs up to landing.


Image Caption

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Watch Office for All Commands 343/43.

Details

Controllers rest room middle right.


Plan.


Duty pilots restroom.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Watch Office for All Commands 343/43.

Details

Signals office, middle left.


Plan


Plan.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Watch Office for All Commands 343/43.

Details

There has been some modern alterations to the control room.


Plan.







RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Watch Office for All Commands 343/43.

Details

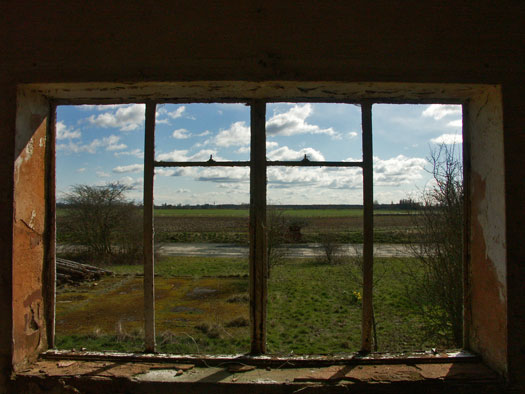

View across the airfield.


Signals office hatch.


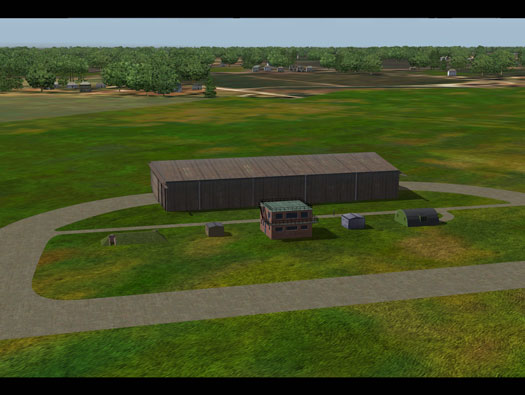

How it would have looked. (Thanks to Terry for the Flight Sim image).


Radio room.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Signal Square.

Details

It would have had a large AM stating Acaster Malbis. Signs laid out here tell a pilot wind direction and runway to use.


Signal Square.


Ridgwells signal square.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Speech Broadcasting 23 on plan 10786/41.

Details




RAF speech broadcast speaker.
This was for speech broadcasting, the radio one of ww2, messages could be passed through this building and sent out to speakers all over the camp.


Yellow circle.

RAF Acaster Malbis, Yorkshire. image

24 March 2008

Information

Site 4 RAF Communal. I will continue this site on a second page.

Details

This is a large dispersed domestic site.


The red square is where site 4 is situated.
