RAF Dalton, Yorkshire. image

Information

RAF Dalton, Yorkshire.

Details

RAF Dalton started life as a grass satellite airfield to become a full 'A' Class WW2 bomber station.


Image Caption


Grass runways.


To 150ft wide runways.

RAF Dalton, Yorkshire.

Information

RAF Dalton, Yorkshire.

Details

RAF Dalton to the east of the A1(M) exit junction 49 for Thirsk. Turn off the A168 at the Topcliffe bypass for Dalton. I came in from the east A19, on minor roads over the main line railway.

RAF Dalton, Yorkshire. image

Information

RAF Dalton, Yorkshire.

Details

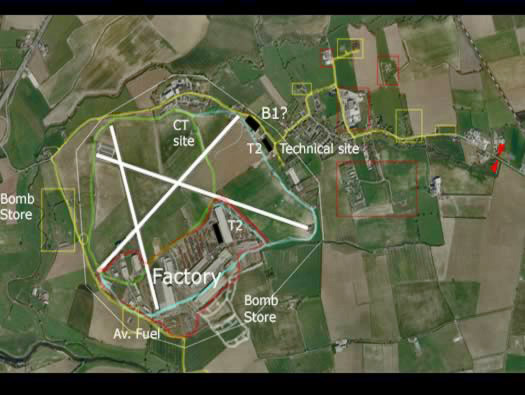

I started in the east at the two red arrows.
The yellow squares are where I visited & the red squares sites I did not.
The yellow line is the route I took, green line the original airfield perimeter.
The  blue line the enlarged peri track.
The redline the perimeter of the steel factory.

It used to have :
1 x Control Tower.
2 x T2 hangars (extant).
1 x B1 hangar.


How the control tower may have looked.


Floodlight & tractor shed.


Night flying equipment store.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Dalton Village.

Details

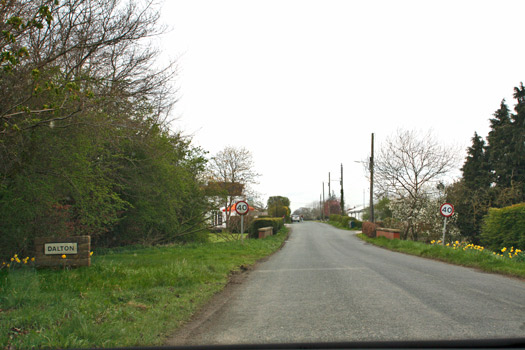

The road into Dalton.


102 Sqn RAF.


Whitley.


Crew.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Dispersed site (I do not have a plan for Dalton)

Details

History : Air Ministry surveyors early in the war were looking for dispersal airfields and they found a flat field here and RAF Dalton opened in November 1941 with a few buildings, a bomb store and grass runways..


Dispersed site.


Front entrance of this Stanton style shelter.


Halifax :
HP 57 Prototype.
B Mk1 Series 1.
B Mk1 Series III.

RAF Dalton, Yorkshire. image

Information

M&E Plinth.

Details

On several of these plinths, broken glass is set into the cement around the top of the wall to stop anybody entering. The glass can be beer bottles, clear and in this case frosted glass the sort used in toilet windows.


A plan of the site with a red square where an M&E plinth still survives.


M&E Plinth.


Cabinet inside a plinth.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Domestic site.

Details

History - The first occupants were 102 Squadron, one of the original Yorkshire bomber units. They moved in from nearby RAF Topcliffe pre war expansion airfield with their Whitley's and were quickly in action from the new airfield, providing aircraft for an attack on Emden on the night of 30th November 1941.


Set out in the fields to the north of the last site is another with several buildings. I did not manage to get out there but a latrine block, Nissen hut & what looks like a picket post.


A picket post from another airfield.


Latrine block plan.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Just along the road & another Domestic Site

Details

There are several hut bases and in the woods it looks as though there are more huts preserved?.


The red square is a Nissen hut and the yellow circle an air-raid shelter.

RAF Dalton, Yorkshire. image

11 April 2009

Information

The Woodland & an Air-Raid Shelter

Details

History - Another raid was on Dunkirk in December 1941.


Plan


Dunkirk from the air.


Whitley.

RAF Dalton, Yorkshire. image

11 April 2009

Information

'A' Site of Orlit Huts

Details

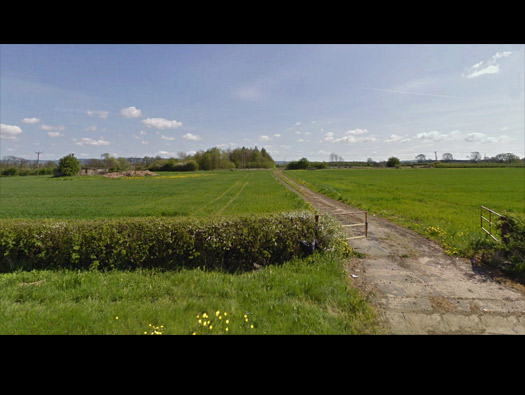

A roadway built for war to carry airmen to their huts in the wood.


Plan.


A - one Orlit and a double fuel store.
B - one standing Orlit & an air-raid shelter.
C - now built on but was part of the domestic accommodation.


Foot scraper on the site of 'C'. Airfields were noted for their mud so many huts had foot scrappers.

RAF Dalton, Yorkshire. image

11 April 2009

Information

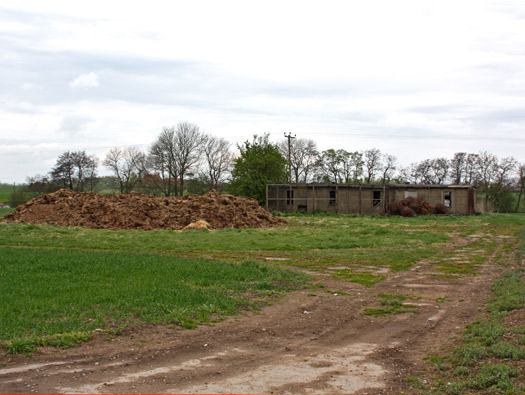

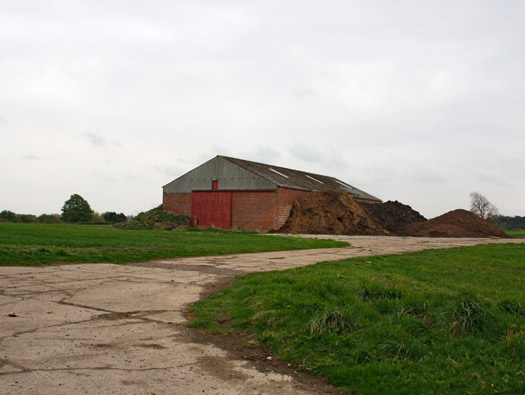

Fuel compound and 'A' One Orlit Hut & Site of some others.

Details

The pile of dung is sat on the top of a fuel compound for coal/coke to use in their pot bellied stoves.


A - one Orlit and a double fuel store.
B - one standing Orlit & an air-raid shelter.
C - now built on but was part of the domestic accommodation.

imagePlan of fuel compound 9108/41.

Gate into a fuel compound.

RAF Dalton, Yorkshire. image

11 April 2009

Information

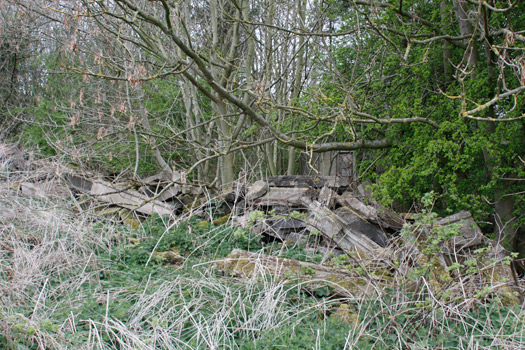

'B' a pile of Orlit's & one Behind

Details

We are now inside the woodland at 'B'.





Lots of open drains in the woods mind your footing.


Plan.

RAF Dalton, Yorkshire. image

11 April 2009

Information

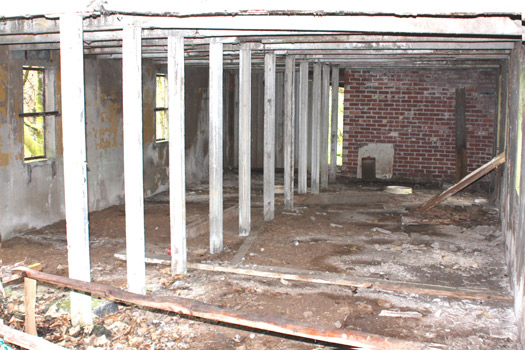

Orlit hut Inside.

Details

The view inside with a small room at the bottom, Orlit's were built out of concrete to save on wood which by the end of WW2 was getting very scarce.
There are many hut bases in this wood.


(I presume) the Corporals room. This hut was very hard to photograph inside as it has a lot of wire mesh bird pens.


Inside an Orlit hut.




RAF Dalton, Yorkshire. image

11 April 2009

Information

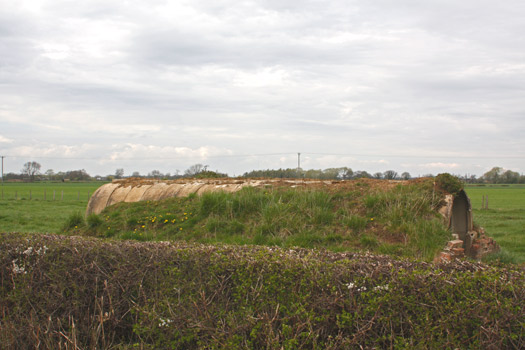

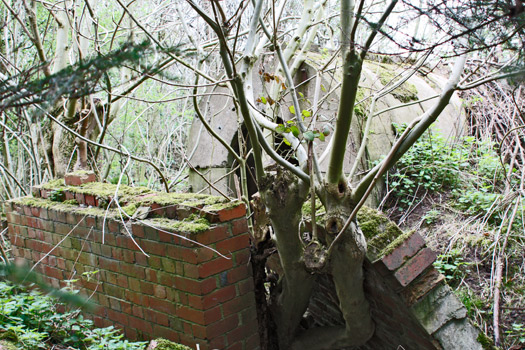

Air-Raid Shelter.

Details

History - Another Whitley attack was Brest. Then they converted to Halifaxes.


Early Halifax's.


A plan of the three runways and the three hangars.


Halifax on its dispersal.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Another Picket Post in the distance.

Details

History - January 1942 converting to Halifax's, 102sqn left and 79 & 78 Sqn conversion flights joined 1652 HCU. [Heavy Conversion Unit] these were used to convert pilots from twin engined trainers to heavy bombers.


Plan.


Crew.


Oxford trainers.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Nissen Hut & Latrine.

Details

History - Closed in August 1942 and the construction workers moved in. Three runways were laid, a perimeter track and a complete dispersed accommodation in hutted camps and a large bomb store.


Royal Canadian Air Force Wellington and crew.


Airfield construction.

RAF Dalton, Yorkshire. image

11 April 2009

Information

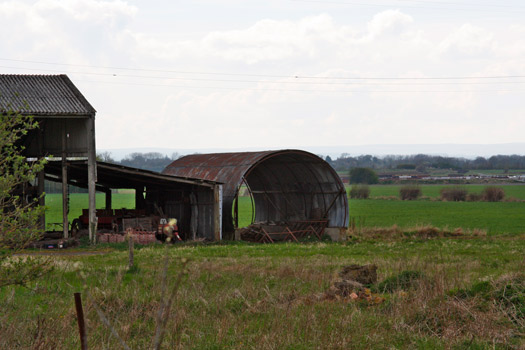

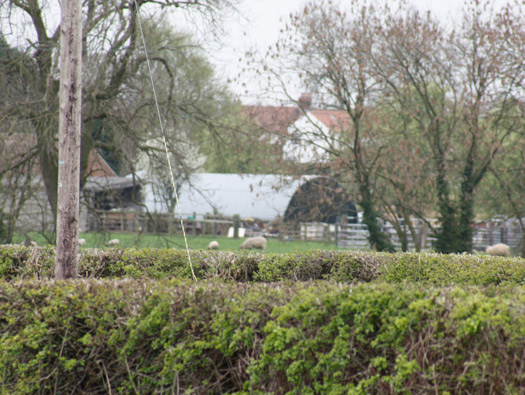

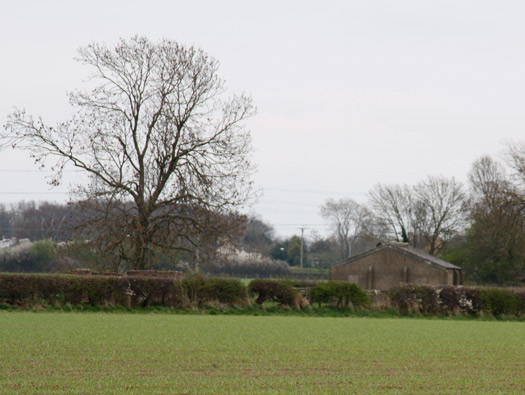

Another long shot across the fields to a Nissen hut in a back garden.

Details

History - Dalton re opened in November 1942 with the RCAF with Wellington bombers.


Royal Canadian Air Force.


Royal Canadian Air Force.


Canadian crew.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Domestic Site.

Details

Another large domestic site with several huts and good road system.


Area of camp.


Plan of camp.




RAF Dalton, Yorkshire. image

11 April 2009

Information

Domestic Site.

Details

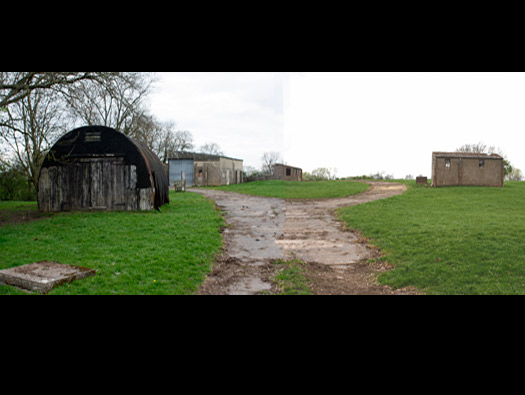

The road way in with a Nissen hut, several latrines and a picket post.


Nissan hut.







RAF Dalton, Yorkshire. image

11 April 2009

Information

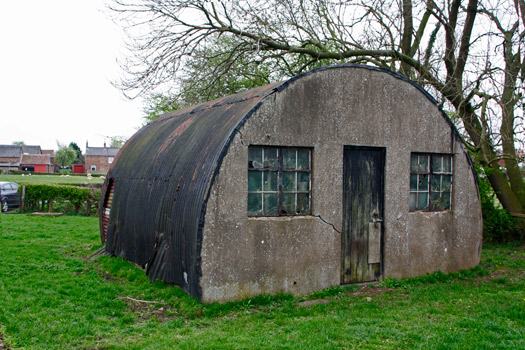

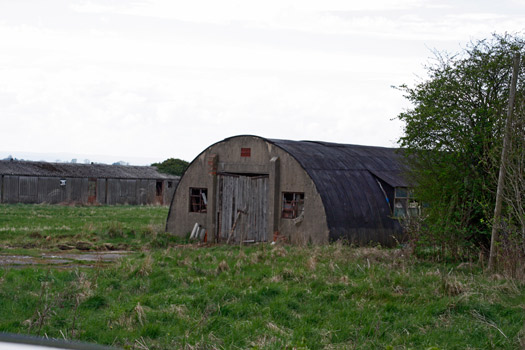

Nissen Hut 16ft.

Details

One end has a filling of wood and tarpaper covering and two large doors and the other is bricked up and rendered.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Latrine.

Details

Of all buildings left over from airfields in WW2, the latrine block must be the most. They seem to be the one building that when all the others were being removed the workmen left them as a place to have a wee.


Plan of camp.


Latrines plan.

RAF Dalton, Yorkshire. image

11 April 2009

Information

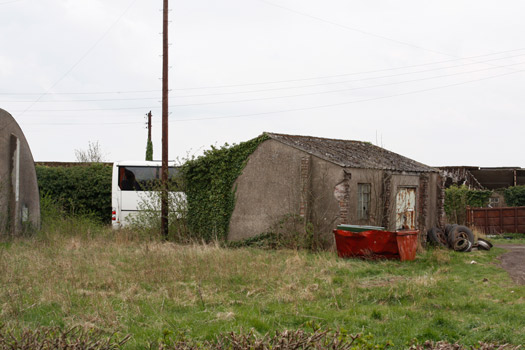

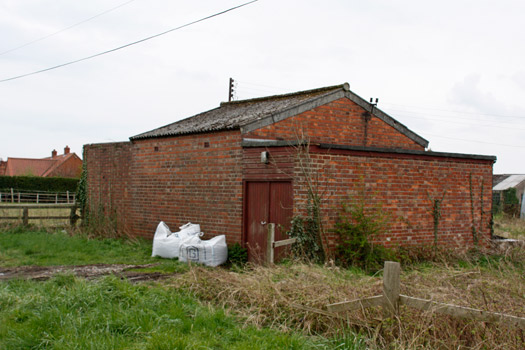

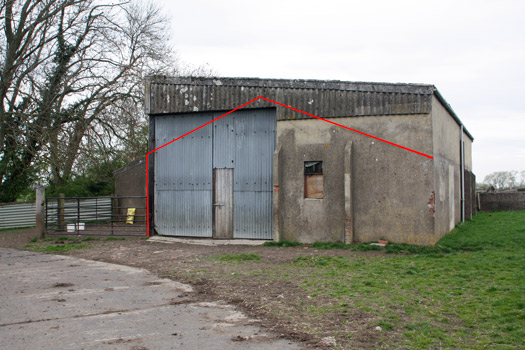

Temporary Brick Hut.

Details

I have superimposed what it would have looked like.

RAF Dalton, Yorkshire. image

11 April 2009

Information

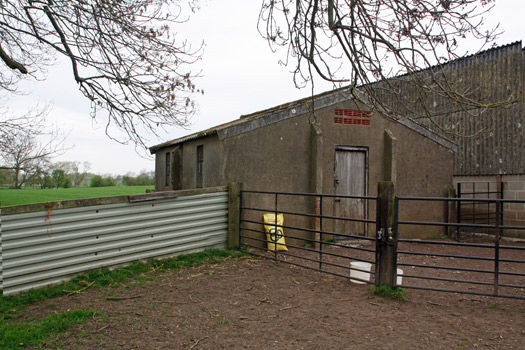

Picket Post in amongst the farm buildings.

Details

The picket post or small guard room for this site.

RAF Dalton, Yorkshire. image

11 April 2009

Information

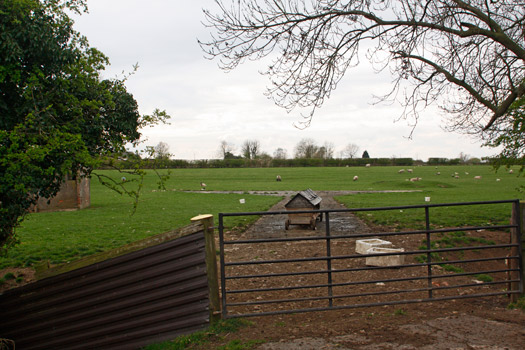

Into the next field.

Details

History - 1691 (Bomber) Gunnery Flight had been formed here early in July where it remained here until the end of the war - it became 1695 Bomber Defence Training Flight in February 1944 - providing support training for 6 Group.


Another latrine in the field on the left

RAF Dalton, Yorkshire. image

11 April 2009

Information

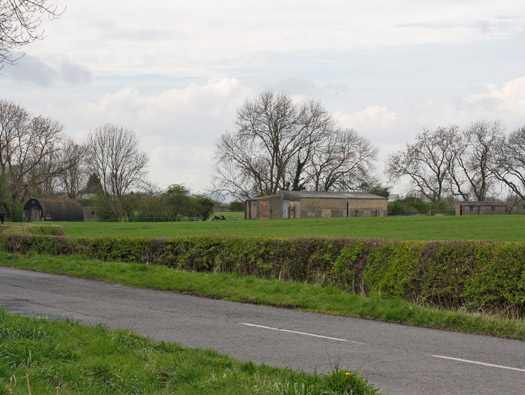

T2 hangar & technical site.

Details

History - August 1945 and the airfield closed.


We are now in the area of the white square. The red line is the route I took. The three white boxes are the hangars, one B1, two T2's.


T2 hangar.




RAF Dalton, Yorkshire. image

11 April 2009

Information

24ft Nissen huts

Details

These huts could be used for Flight, Squadron, MT, Crew Locker & Drying offices, Armoury.


Red - T2 hangar.
Yellow - Nissen huts.
Green - temporary brick hut.


Crew Drying Room.




RAF Dalton, Yorkshire. image

11 April 2009

Information

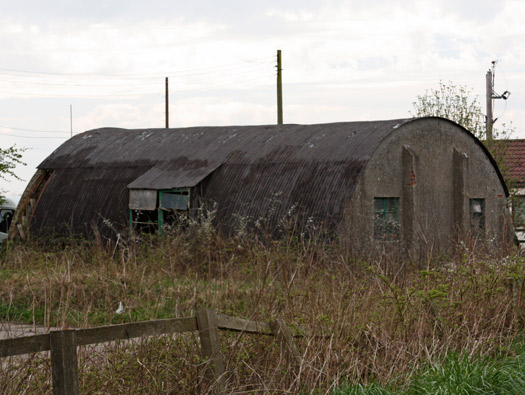

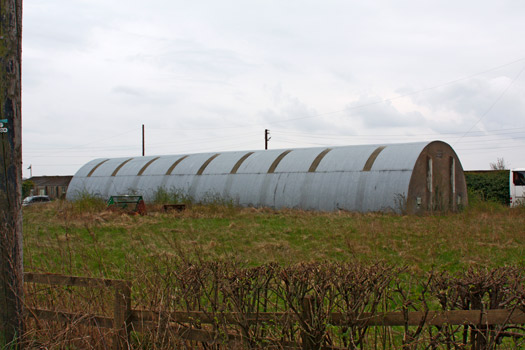

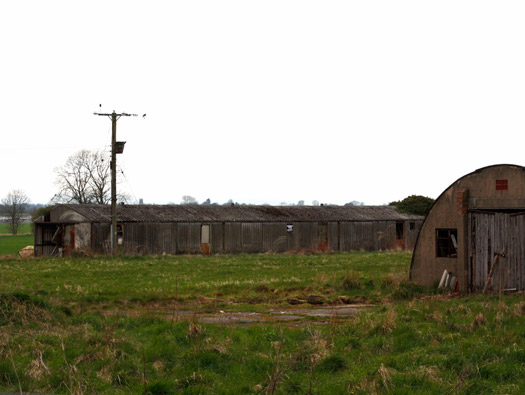

The long Nissen hut.

Details



RAF Dalton, Yorkshire. image

11 April 2009

Information

Technical site..

Details

The hut behind the Nissen I have seen before but at the moment cannot identify it. Also it is built on the perimeter track for the E/W runway with another Nissen hut?


Red - T2 hangar.
Yellow -
Nissen huts.
Green -
Temporary brick hut.

RAF Dalton, Yorkshire. image

11 April 2009

Information

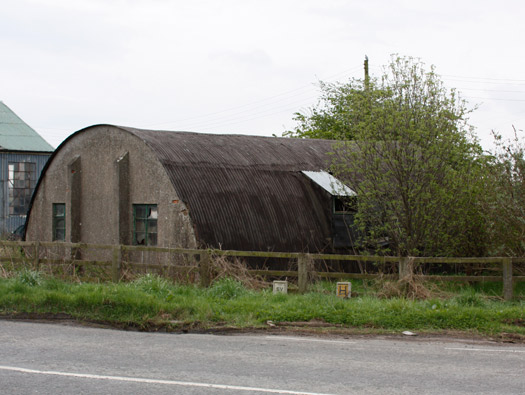

Nissen Hut Garage

Details




Another site I did no see when I visited shows lots of living accommodation huts.

RAF Dalton, Yorkshire. image

11 April 2009

Information

NFE Store & Floodlight Trailer & Tractor Shed.

Details

Now we are in the area of the Airfield site where the running of the airfield would take place. NFE Store & Floodlight Trailer & Tractor Shed were always sited next to the control tower now alas removed.


Technical site.


A Goose Neck Flair doing its job..


Night flying aid a Goose Neck Flair stored in the NFE store.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Buildings around the Airfield site near where the control tower was sighted..

Details

Camouflaged shed and a flight hut behind.


Yellow square - the control tower site with the NFE store & the floodlight trailer shed. Control tower sadly gone.
Red square - main picture.
Yellow arrows - the route taken.
Red arrow
- main gate.







RAF Dalton, Yorkshire. image

11 April 2009

Information

Standby Set House (small I think??)

Details

To provide vital electricity in an emergency.


Plan of the standby set house.


Power cables still attached to this building.


Standby set engines.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Standby Set House (small I think??)

Details



RAF Dalton, Yorkshire. image

11 April 2009

Information

This looks like

Details




Halifax
B.MKII Series IA
M.MK III
B.MKVI (late)







RAF Dalton, Yorkshire. image

11 April 2009

Information

Romney Hut

Details

Romney huts were used for Main store, Main workshops, Turret training, and more.


workshops.


Store.


Armoury.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Romney Hut

Details



RAF Dalton, Yorkshire. image

11 April 2009

Information

Picket post

Details

Guard post for the airfield site where everybody entering and leaving checked in.

RAF Dalton, Yorkshire. image

11 April 2009

Information

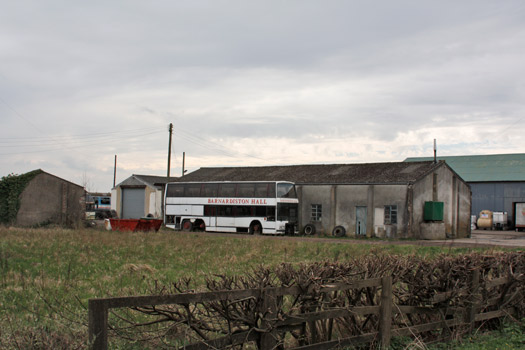

This could be an Instructional and Operations room.

Details

Some additional details will go here


Operations.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Technical latrine

Details




Plan.

RAF Dalton, Yorkshire. image

11 April 2009

Information

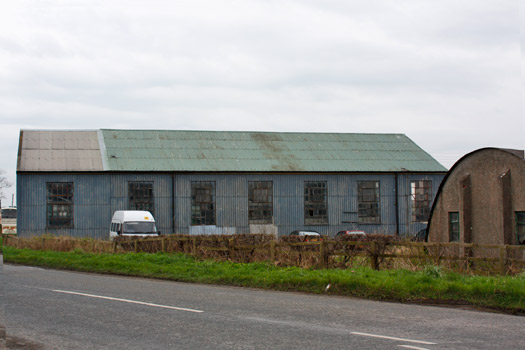

Extended Marston shed.

Details

Marston sheds could be built and dismantled easily and also used for very many uses and one was often engine maintenance.


Inside a Marston shed.


Engine repairs.


Image Caption

RAF Dalton, Yorkshire. image

11 April 2009

Information

24ft short Nissen hut.

Details






RAF Dalton, Yorkshire. image

11 April 2009

Information

24ft short Nissen hut

Details



RAF Dalton, Yorkshire. image

11 April 2009

Information

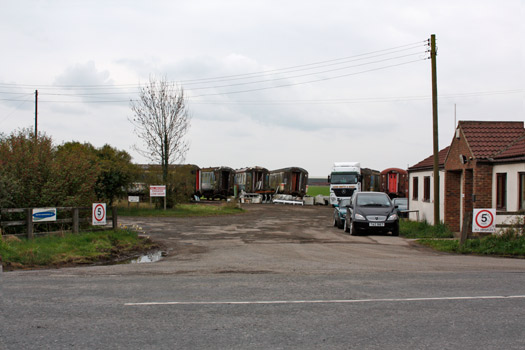

Main gate

Details






RAF Dalton, Yorkshire. image

11 April 2009

Information

A couple of completely different huts.

Details

The large temporary brick hut, may be Guard Room and Fire Party and the other a Seco prefabricated hut using wood & asbestos.


Plan.


Seco hut.


Fire party.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Flight offices

Details

There look to be three flight along the front and very close to the perimeter track for access to the airfield and aircraft..


Flight offices.







RAF Dalton, Yorkshire. image

11 April 2009

Information

Another Nissen hut 24ft in the factory site.

Details




Image Caption

RAF Dalton, Yorkshire. image

11 April 2009

Information

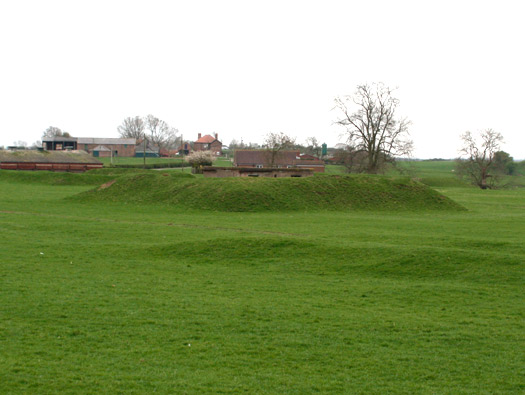

This is the early small bomb store dated around 1940/1.

Details

Incendiary Bomb Store & Piro Store 18185/40?.


1940 pattern bomb store.


Incendiary Bomb Store & Piro Store 18185/40?.

RAF Dalton, Yorkshire. image

11 April 2009

Information

Fuzed & Spare Bomb Store

Details






RAF Dalton, Yorkshire. image

11 April 2009

Information

Component Store 5384/40

Details




Plan


Fuzes.




RAF Dalton, Yorkshire. image

11 April 2009

Information

Component Store 5384/40

Details




Yellow square - 1940 pattern bomb store.
White square - 1942 pattern 'A' standard bomb store (now removed).

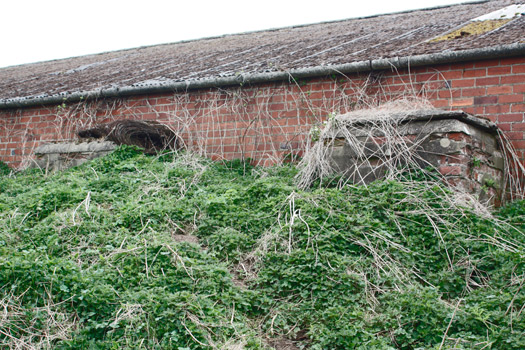

RAF Dalton, Yorkshire. image

11 April 2009

Information

ROC Post. (Royal Observer Corps)

Details

Opposite the bomb store area is this little mound of earth with odd bits sticking out of it. It ia a Royal Observer Corps Post. Built in the late 1950's early 60's and had one small room underground for three people. The ROC went from observing enemy aircraft above ground then underground to monitor the fall at nuclear bombs. Subterranean Britannica has a very good site on the subject.


Site of ROC post.


Plan of an ROC post.


ROC crew.

RAF Dalton, Yorkshire. image

11 April 2009

Information

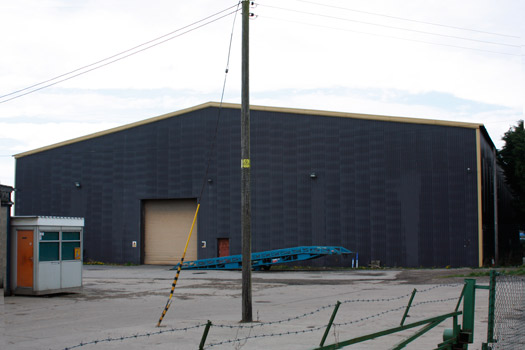

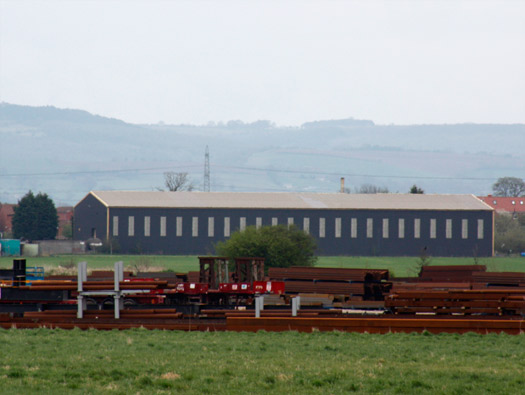

T2 hangar in the steel works.

Details

This is where I believe terminal 5 at Heathrow was built by the steel company.


Heathrow terminal 5.


Heathrow terminal 5.


Heathrow runways.

RAF Dalton, Yorkshire. image

11 April 2009

Information

74,000 gal Aviation Petrol Instillation 9846/41

Details

I have taken this directly from AIX and find it a great quote I am sure they won't mind me using it.
"Reminds me of a comment in a book I read a while ago, regarding ex aircrew visiting their old base. ... we managed to find the remains of the old communal site... the dilapidated officers' mess was full of pigs. Nothing changes !"


Scammell delivery tanker.


AEC fuel bowser.


Fuel pumps inside an AVI at another airfield.

RAF Dalton, Yorkshire. image

11 April 2009

Information

74,000 gal Aviation Petrol Instillation 9846/41

Details

Pipe inlets.


Underground fuel tanks.







RAF Dalton, Yorkshire. image

11 April 2009

Information

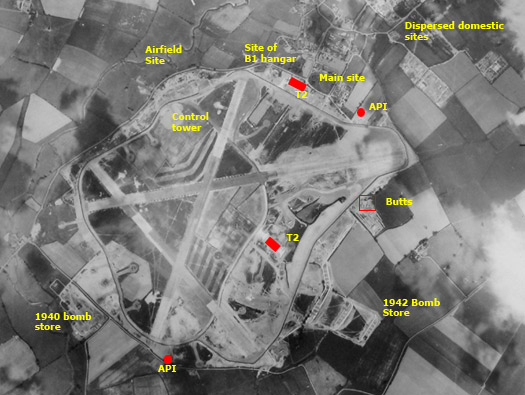

1940's photo showing a mid war 'A' style of airfield.

Details
