Lo112 Ban-Gâvres

08 September 2013

Information

Lo112 Ban-Gâvres

Details

The defence of the village of Gâvres.
2 x H634.
1 x H633.
1 x H626.
1 x H502 (dome).
1 x H621.
1 x H612.
2 x Vf.
1 x Vf58c.
2 x 2cm Flak 28.
1 x 5cm M19 mortar.
1 x 7.5cm F.K.
1 x 7.5cm Pak40.

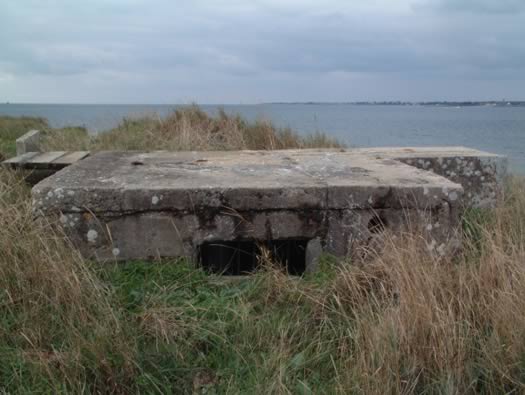

R634 casemate, there were two here.


2 x 2cm Flak 28 Oerlikon.

Lo112 Ban-Gâvres

Google

Information

Lo112 Ban-Gâvres

Details

StP Gavres is made up of four Wn's, L0335 a battery of four casemates. Lo361 a Flak battery covering Lorient. Lo362 an old French fort and Lo112 a defence site for the town.

Lo112 Ban-Gâvres

Google

Information

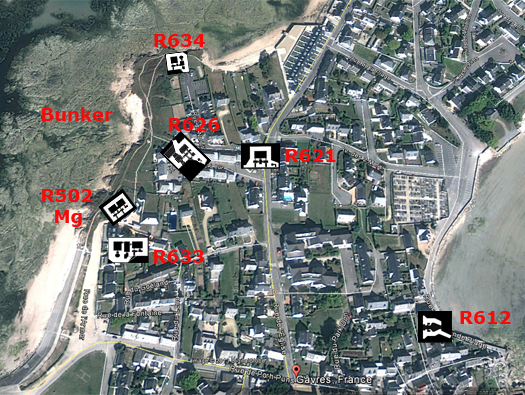

Lo112 Ban-Gâvres Plan.

Details

Many of the bunkers remain.

Lo112 Ban-Gâvres

28 August 2013

Information

Lo112 Ban-Gâvres The view of Gavres from Port Louis.

Details

Lo112 is the right side of the picture.


R612 casemate for an assault gun.


7.5cm Field Kannon 18.


Inside a gun room.

Lo112 Ban-Gâvres

24 June 2002

Information

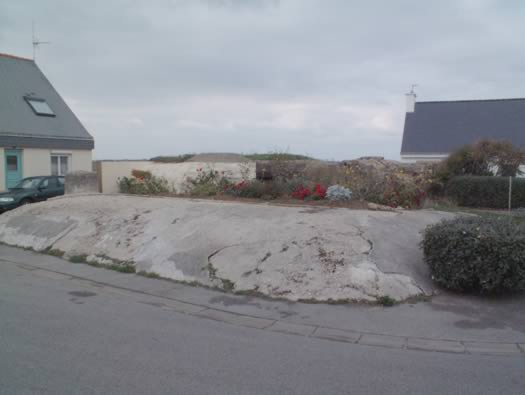

Lo112 Ban-Gâvres R621.

Details

Group bunker.


Plan of an R621.


Inside a bunker.

Lo112 Ban-Gâvres

24 June 2002

Information

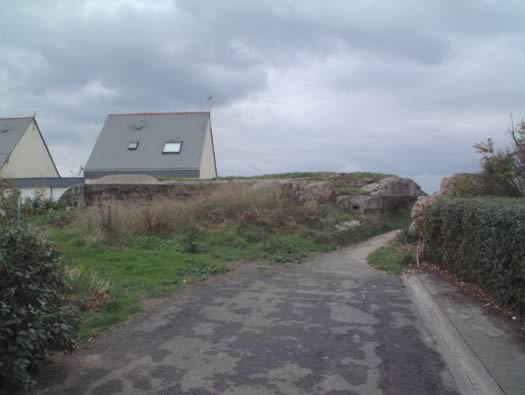

Lo112 Ban-Gâvres R626 at the end of the road
and my old red Seat Ibiza.

Details

A casemate for a 7.5cm Pak with a roof canopy.


Plan of an R626.


7.5cm Pak anti-tank gun.


7.5cm A/t ammunition.

Lo112 Ban-Gâvres

24 June 2002

Information

Lo112 Ban-Gâvres R626 at the end of the road.

Details

A very odd casemate, a concrete crew room on the left and a wall of concrete on the right, an ammunition room underneath and a gun room with a large half round steel plate as a roof.


R626 in Dunkirk showing the casemate with its steel roof in place.


Note this bunker is made in mirror image.

An R626 at Riva-Bella, Quistreham.

845P6 metal plate used for a roof.


845P6 metal plate used for a roof.

Lo112 Ban-Gâvres

24 June 2002

Information

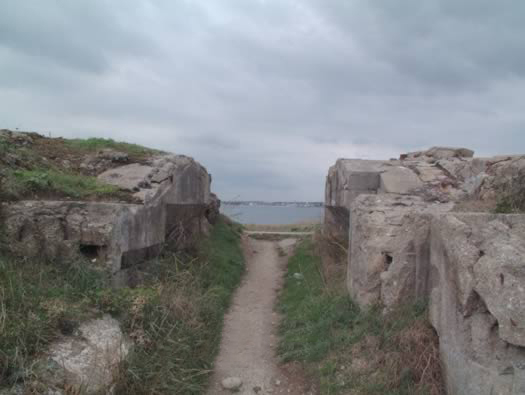

Lo112 Ban-Gâvres R626 gun room.

Details

This is where the gun room with a half round steel roof fitted over the top.


7.5cm A/t gun & crew.


The R626 from the air and I have added a gun and the Tobruk defence.


Tobruk.

Lo112 Ban-Gavres.

24 June 2002

Information

Lo112 Ban-Gâvres R626

Details

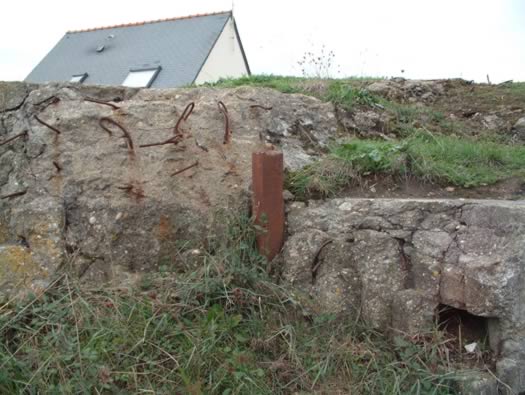

The step where the steel plate fitted and the row of bolts that held the plate in place.

Lo112 Ban-Gâvres

24 June 2002

Information

Lo112 Ban-Gâvres R626 Casemate.

Details

An odd steel square section to hold the roof on.

Lo112 Ban-Gâvres

24 June 2002

Information

Lo112 Ban-Gâvres R626

Details

The entrances (left) into the Tobruk & the main entrance into the crew room with a close combat window.


R626 Casemate.

Lo112 Ban-Gâvres

24 June 2002

Information

Lo112 Ban-Gâvres

Details

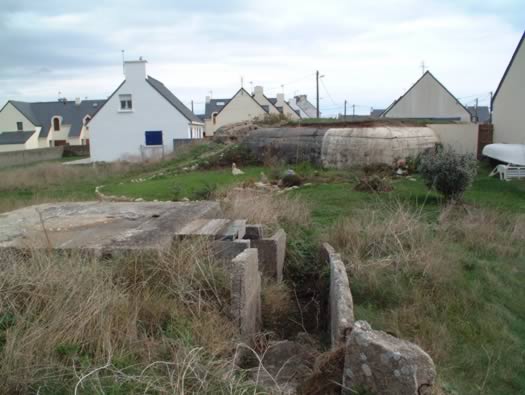

Vf machine gun bunker possibly an early Atlantikwall structure. Behind is the R626 casemate crew room part of the bunker.






Lo112 Ban-Gâvres

24 June 2002

Information

Lo112 Ban-Gâvres

Details

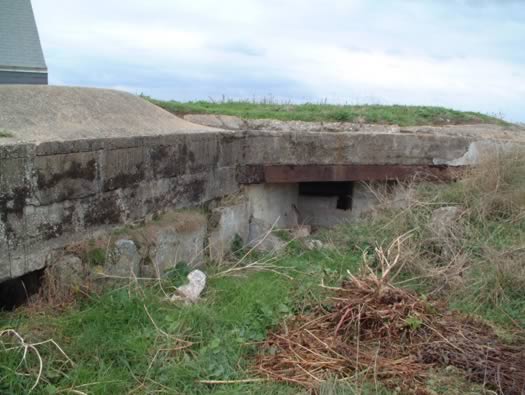

Vf machine gun bunker window. Crew room window.

Lo112 Ban-Gâvres

24 June 2002

Information

Lo112 Ban-Gâvres

Details

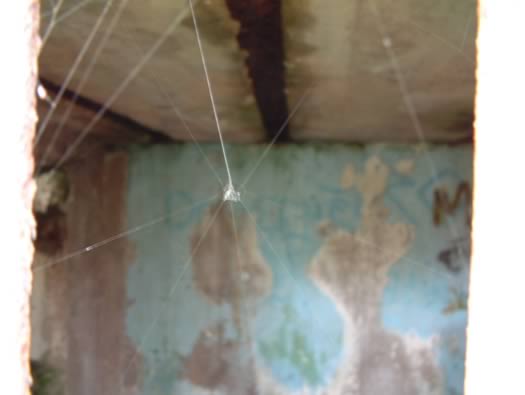

Machine gun bunker window. The photo into the small crew room.




Lo112 Ban-Gâvres

24 June 2002

Information

Lo112 Ban-Gâvres R633

Details

R633 emplacement for an M19 automatic mortar. A bunker designed to fire 5cm mortar shells at a high rate that would shower down on any target in 360°. The bunker has a crew room, ventilation, ammunition, close combat defence and a Tobruk defence.


R633 for an M19 5cm mortar.


The steel dome with a slot to allow an 5cm mortar to fly out.


The M19 mortar looking up at the cupola.
