Lo32 Le Couregant

10 September 2013

Information

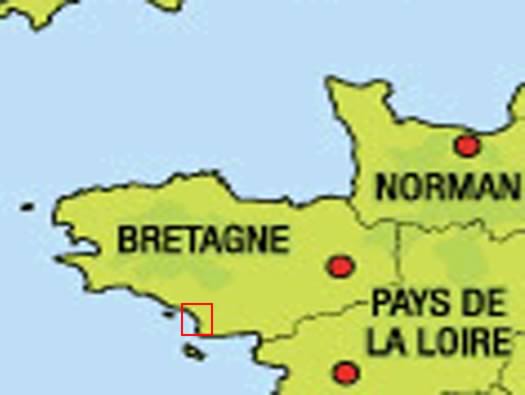

Wn Lo31 is situated on the western side of Lorient.

Details

2 - R505.
2 - R501.
1 - SK/ Doppelschartenstand.
10 - Vf58c.
2 - R600b.
2 - 5cm KwK 38 L42.
2 - 3.7cm Pak35/36.


5cm KwK 38 L42.


3.7cm Pak35/36 anti-tank gun.


SK/ Doppelschartenstand.

Lo32 Le Couregant

10 September 2013

Information

Lo24 to Lo32.

Details

This coast was quite well protected as it could have been the back way into the Lorient U-boat pens. A determined attack could have landed here and moved over land into Lorient.


U-boat in Lorient.


U-boat pens in Lorient.


U-boat pen

Lo32 Le Couregant

10 September 2013

Information

Lo32 Le Couregant

Details

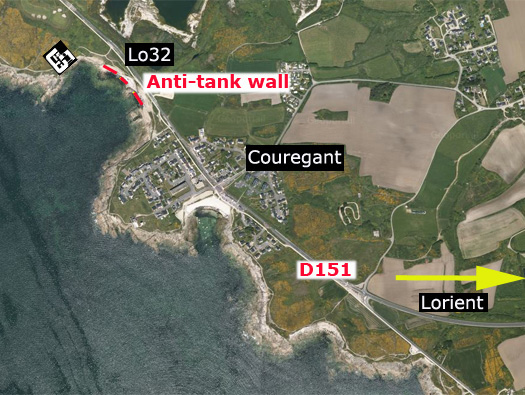

Lo32 Le Couregant runs from the bunker on the plan, around the village to the next headland.


There were two R501s

Lo32 Le Couregant

28 June 2002

Information

Pointe du Couregant.

Details

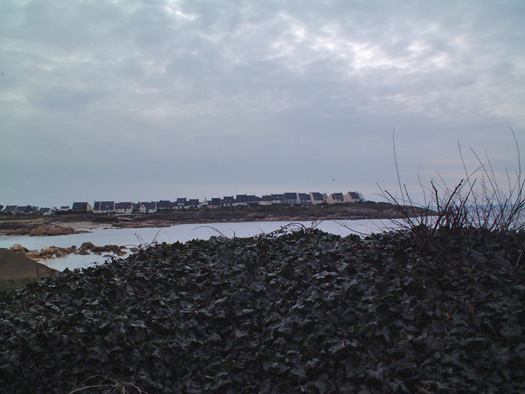

View of the bay from on the top of the bunker.

Lo32 Le Couregant

28 June 2002

Information

Lo32 Le Couregant

Details

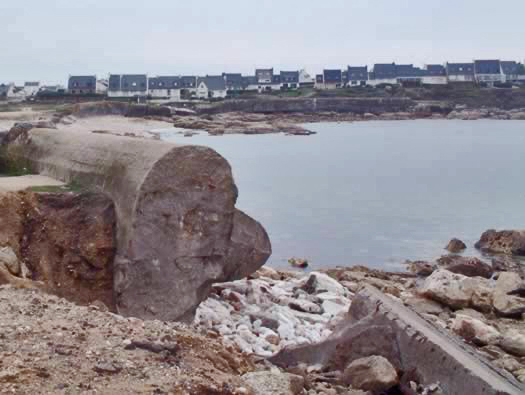

This is part of the large anti-tank sea wall running around the bay.

Lo32 Le Couregant

28 June 2002

Information

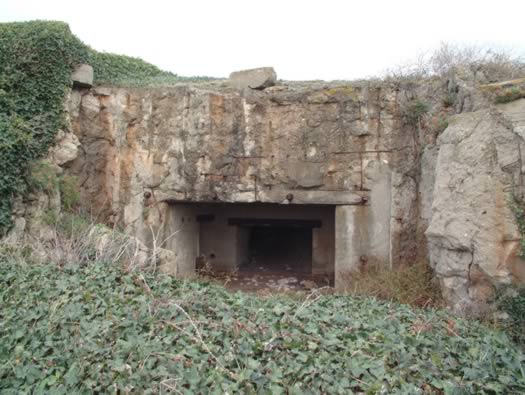

R505 Casemate.

Details

The damage done was I feel not in battle but by the scrap men. There should have been a large steel front piece bolted to the casemate.


R505 casemate for anti-tank gun.


485p2 Panzer schartenplatte steel plate.


3.7cm Skoda ant-tank gun with red the steel plate.

Lo32 Le Couregant

28 June 2002

Information

H505 Casemate.

Details

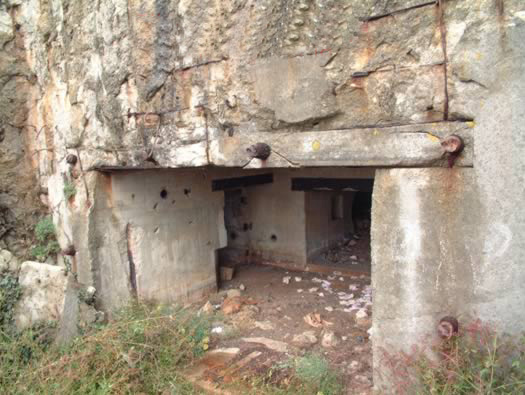

You can see the cut off bolts that held the plate in place.


485P2 Panzer schartenplatte.


Gunner.


Gun room in a contemporary casemate.

Lo32 Le Couregant

28 June 2002

Information

H505 Casemate.

Details

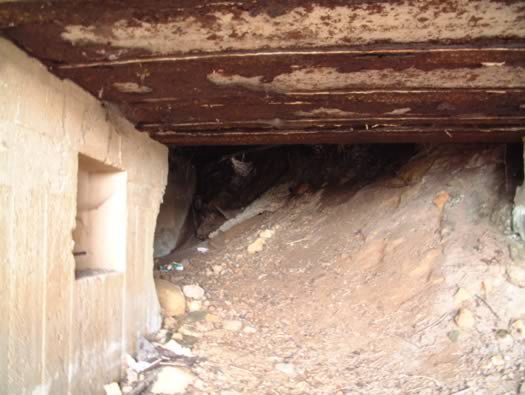

Looking into the gun room where soil has been pushed in through the back door.


Plan.

Lo32 Le Couregant

28 June 2002

Information

H505 Casemate.

Details

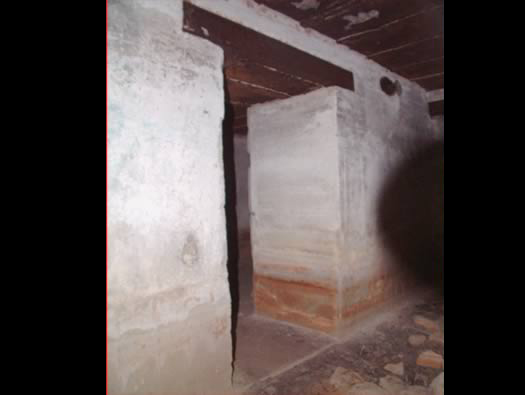

Looking into the ammunition room from the passage.


Plan.


3.7cm ammunition in its carrying box.


3.7cm standard early war anti-tank gun.

Lo32 Le Couregant

28 June 2002

Information

H505 Casemate.

Details

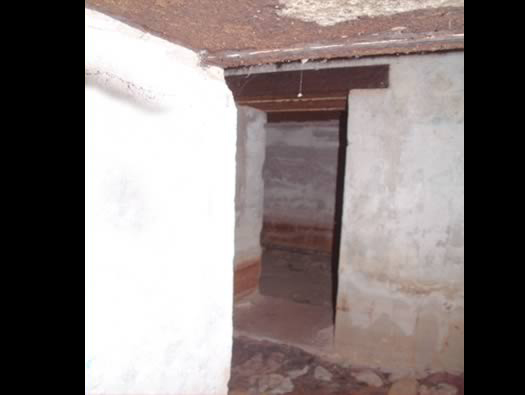

Passage looking into the crew room.


plan




Lo32 Le Couregant

28 June 2002

Information

H505 Casemate.

Details

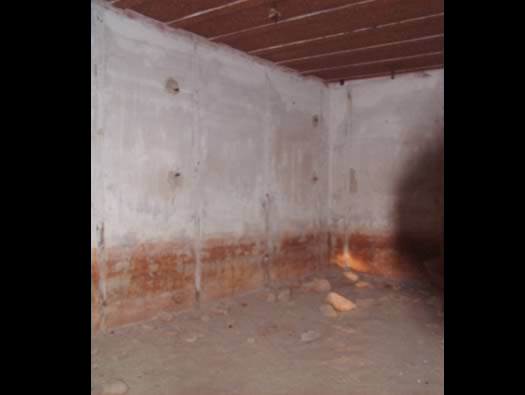

Crew room.

imageCrew room.

Crew room.

Lo32 Le Couregant

28 June 2002

Information

H505 Casemate.

Details

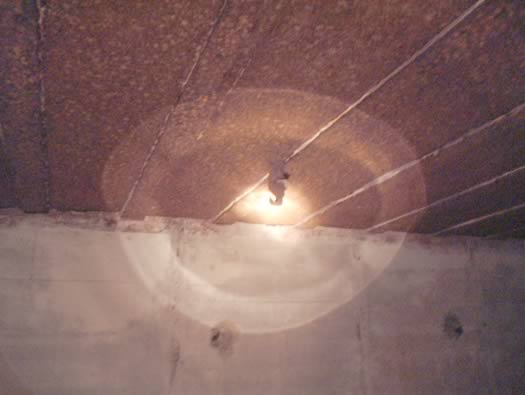

Hooks to hang the crews bunks.


Bunk fittings.


Bunks full.


Bunk asleep.

Lo32 Le Couregant

28 June 2002

Information

H505 Casemate.

Details

Close combat window now removed covered the rear entrance..


It looks like a 422po1 plate.


Close combat machine gun.

Lo32 Le Couregant

28 June 2002

Information

H505 Casemate.

Details

Close combat window, the other side.


Close combat machine gun.

Lo32 Le Couregant

28 June 2002

Information

H505 Casemate.

Details

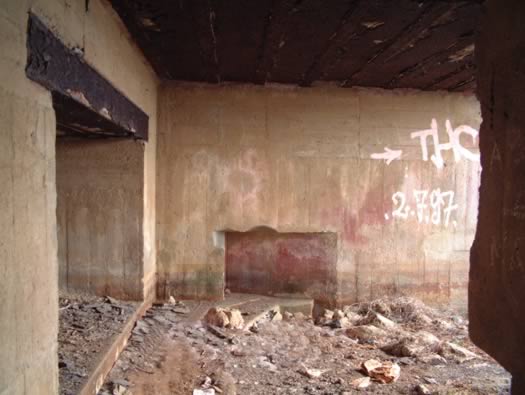

Gun room. Looking at the gun room from the passage with the front to the right and the rear entrance on the left..


3.7cm Skoda Pak.


R505 plan.

Lo32 Le Couregant

28 June 2002

Information

H505 Casemate.

Details

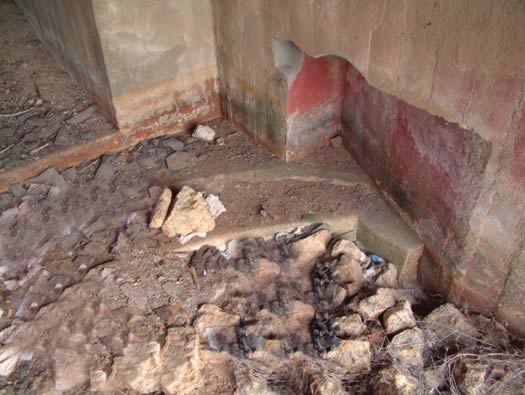

The gun would swivel on a centre mounting and the trail would fit into this slot.


You can see the rear trail set into the slot.

Lo32 Le Couregant

28 June 2002

Information

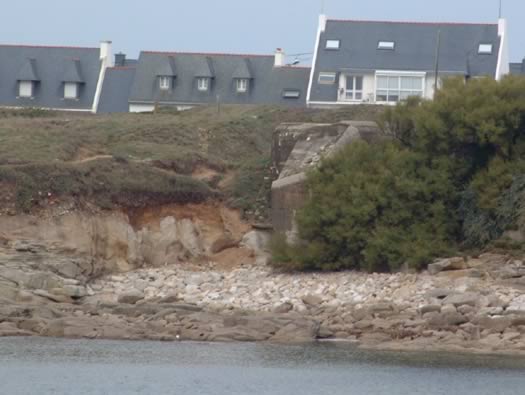

A H505 flanking the other side of the Bay .

Details

This is all I had time to look for but there is a lot more to find along this coast . .


The bay showing where the two H505's were laid out and their arks of fire.

Lo32 Le Couregant

12 September 2013

Information

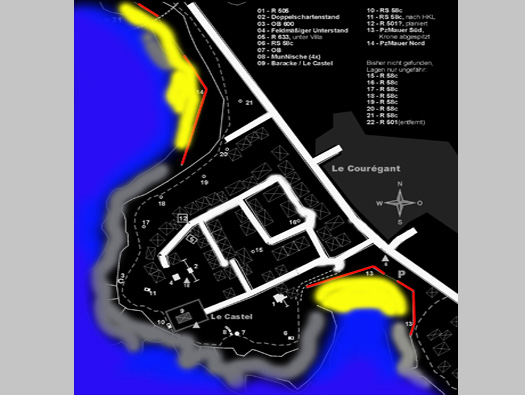

Plan of Lo32 Le Couregant.

Details

This may have been an early plan.
