Lo78 Milieu de l'isthme de Gavres


Information

Lo78 Milieu de l´isthme de Gâvres

Details



Tobruk Vf58c.


R630 machine casemate.


R621 group bunker.

Lo78 Milieu de l´isthme de Gâvres

Google

Information

Lo78 Milieu de l´isthme de Gâvres

Details



Lo78 Milieu de l´isthme de Gâvres

Geoportail

Information

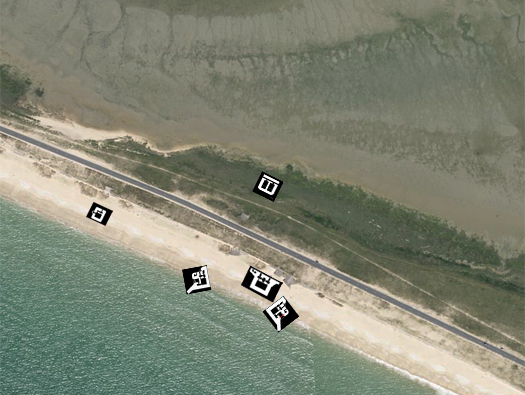

Lo78 Milieu de l´isthme de Gâvres plan .

Details

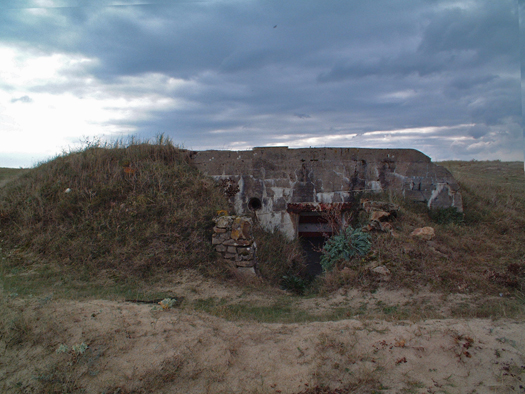

Left to right R501, R630, R621, R630 & behind an R134.
1 x R621.
2 x R630.
1 x R134.
1 x R501.
1 x Vf58c Tobruk.

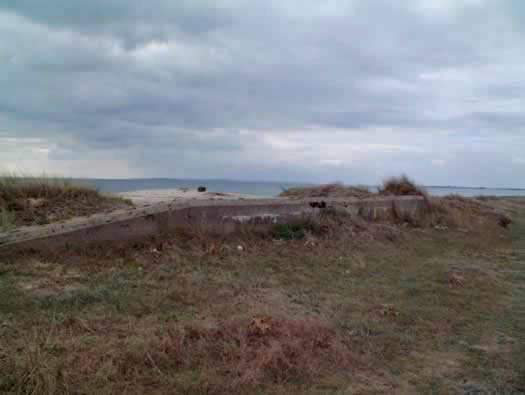

R630 machine gun casemate.


R501 group shelter.

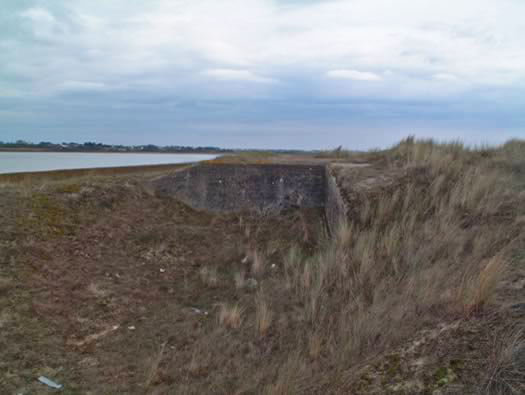

R134 ammunition bunker.

LLo78 Milieu de l´isthme de Gâvres

24-06-2002

Information

Lo78 Milieu de l´isthme de Gâvres
R134 ammunition

Details

R134 ammunition bunker with two rooms and a passage entrance.

R630.

R134 Plan.


Small arms ammunition

Lo78 Milieu de l´isthme de Gâvres

24-06-2002

Information

Lo78 Milieu de l´isthme de Gâvres
R501 ammunition

Details

R501 is a small group bunker for troops.


R501 Plan.


Inside a bunker.


Inside a bunker.

Lo78 Milieu de l´isthme de Gâvres

24-06-2002

Information

Lo78 Milieu de l´isthme de Gâvres
R621

Details

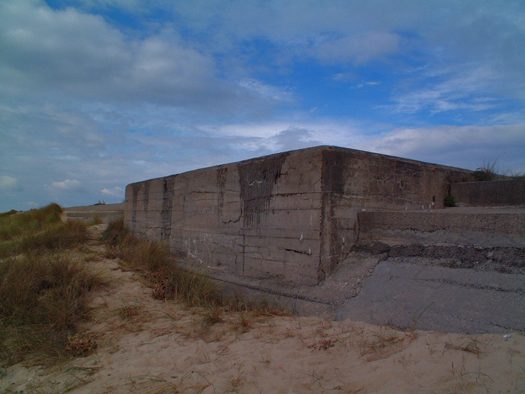

R621 group bunker.


R621 group bunker.


Bunker entrance (my archive).


Inside an R621 (my archive).

Lo78 Milieu de l´isthme de Gâvres

24-06-2002

Information

Lo78 Milieu de l´isthme de Gâvres
R630

Details

R630 Embrasured machine gun emplacement with an armoured plate.

Armoured plate.

Machine gun.


German heavy machine gun.

Lo78 Milieu de l´isthme de Gâvres

24-06-2002

Information

Lo78 Milieu de l´isthme de Gâvres
R630

Details

The periscope fitting could be extended or lowered as needed.

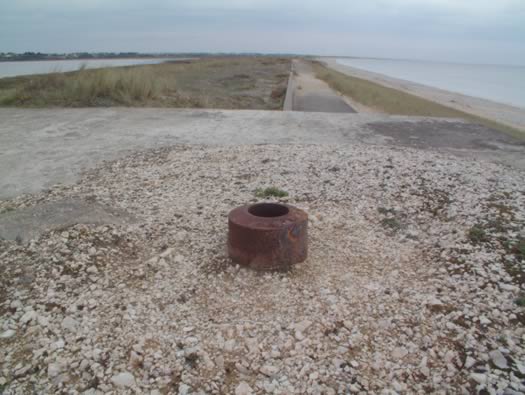

Periscope.


Internal periscope fitting in the roof.

Lo78 Milieu de l´isthme de Gâvres

24-06-2002

Information

Lo78 Milieu de l´isthme de Gâvres
The second R630

Details

With the aid of a periscope the bunker commander could use it to help sight he machine gun and look all around the bunker.


R630 plan.


The main plan of the Wn with the two R630's either side, living bunker between and ammunition behind.


R630 gun room with the plate removed (my archive).
