Ra109 Pointe de la Varde. image

Information

Ra109 Pointe de la Varde.

Details

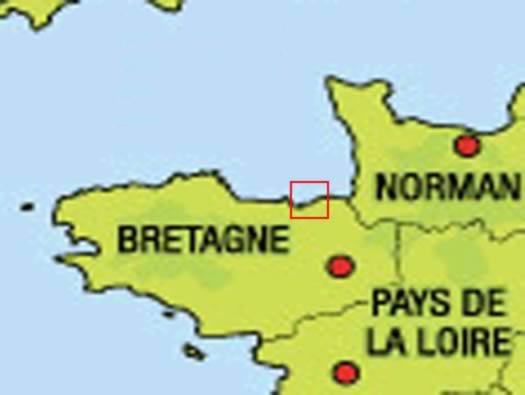

From St-Malo its a nice drive north up the coast and you can park quite close to Varde's entrance. Varde was originally a Vauban fort like most around the French coast and then taken over after occupation and turned into a Ra109 a very strong defence position covering the top of the bay at Rothéneuf.
1 x R120.
1 x R611.
1 x R611/SK.
1 x R667.
1 x R600.
1 x R112a.
1 x 653.
1 x 506c.
1 x R621.
1 x R622/SK.
1 x R502.
1 x 622/SK Machinenstand
2 x R622.
1 x Vf61a.
3 x Vf58c.
1 x Vf58c searchlight (DCA).
1 x 5cm KwK L/42.
2 x 5cm KwK L/60.
1 x 4.7cm Pak K.36.
2 x 7.5cm F.K.243(h).
1 x 2cm Flak 30.


7.5cm F.K.243(h).


R611 casemate.

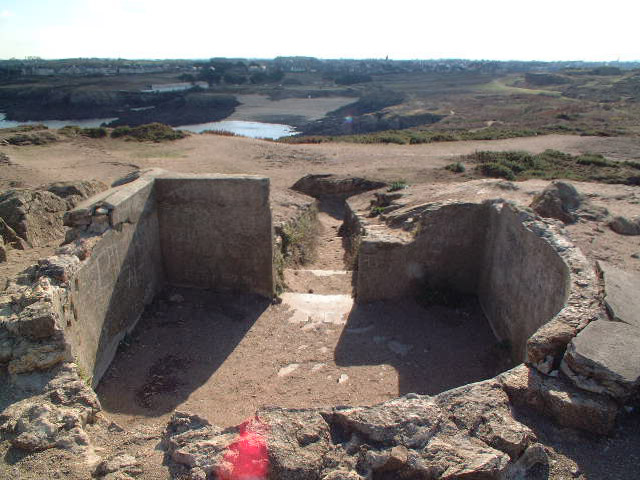

Vf61a Tobruk for an 81mm mortar.

Ra109 Pointe de la Varde.

Information

Ra109 Pointe de la Varde.

Details

Red arrows - 2 x 7.5cm F.K.243(h) guns.
Yellow arrows - 2 x 5cm KwK L/60 guns.
Green arrow - 1 x 4.7cm Pak K.36(t)










Ra109 Pointe de la Varde. image

Plan

Information

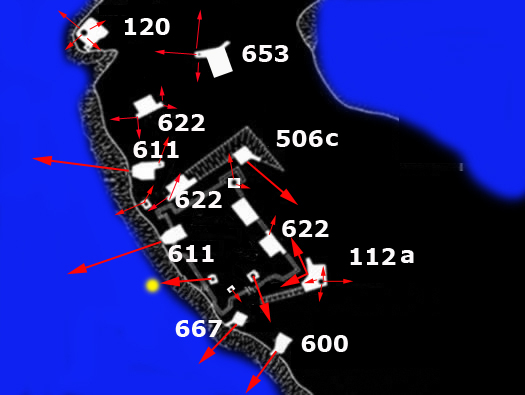

Ra109 Pointe de la Varde Plan.

Details

Plan of the Wn showing the direction of fire from all the guns, the yellow dot was a Tobruk with a search light attached to it.

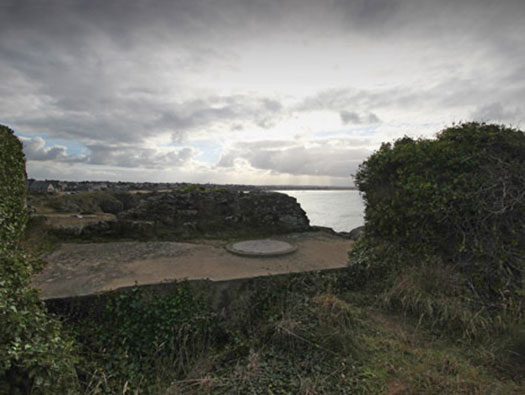

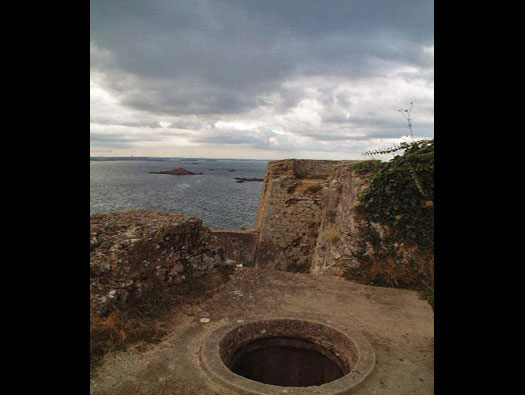

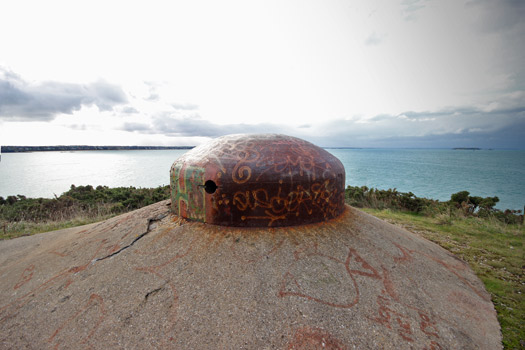

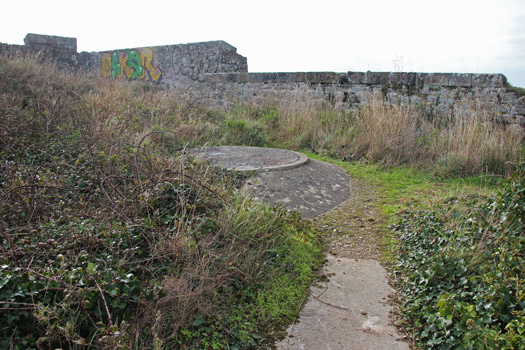

The top of the steel dome in the R120 overlooking the bay.

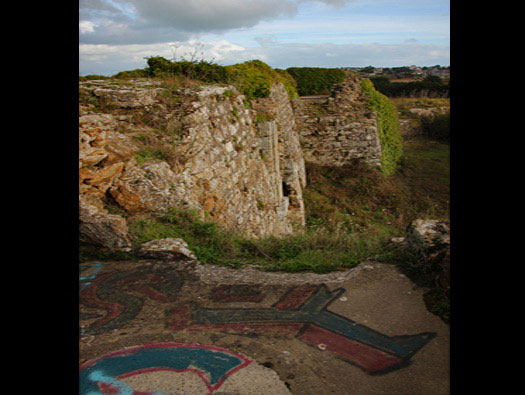

Vauban outer wall of Varde.


Vauban dry moat.

Ra109 Pointe de la Varde. image

25 November 2013

Information

Ra109 Pointe de la Varde.

Details

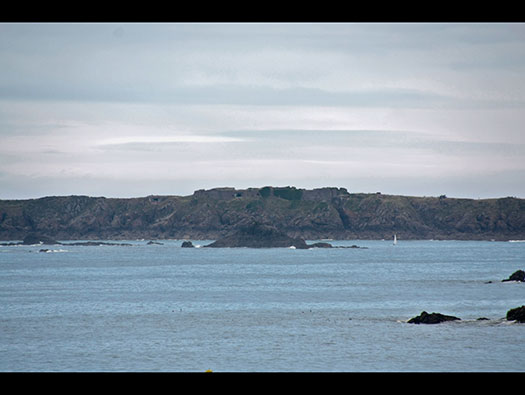

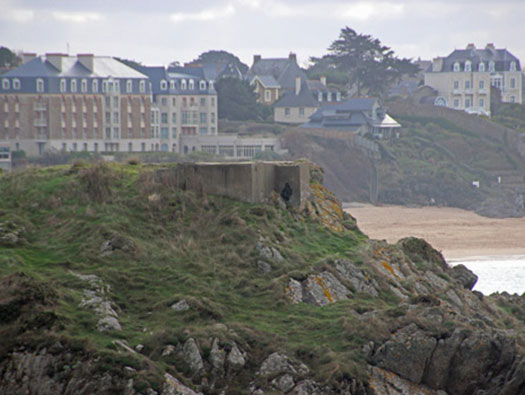

Ra109 Pointe de la Varde the view from St-Malo sea front showing the Pointe de la Varde and the Vauban fort in the centre.

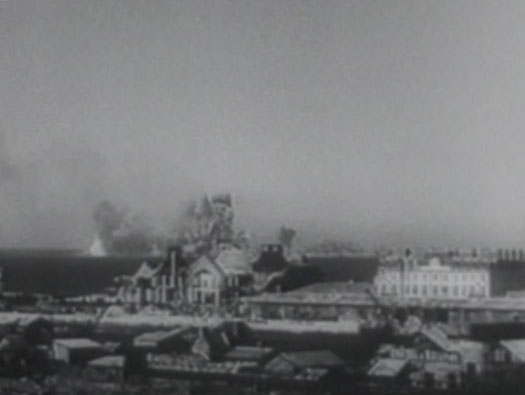

Varde under attack by the Americans. The view from St-Malo.


Pre war postcard of Varde.




Ra109 Pointe de la Varde. image

25 June 2002

Information

Ra109 Pointe de la Varde.

Details

R506 a casemate for a 4.7cm Pak(t)


Varde plan.


R506 plan.


4.7cm Pak gun.

Ra109 Pointe de la Varde. image

25 June 2002

Information

Ra109 Pointe de la Varde.

Details

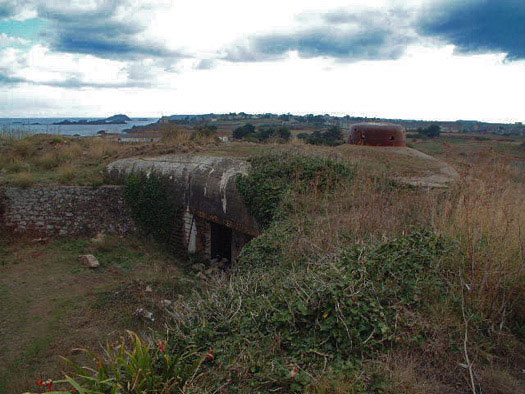

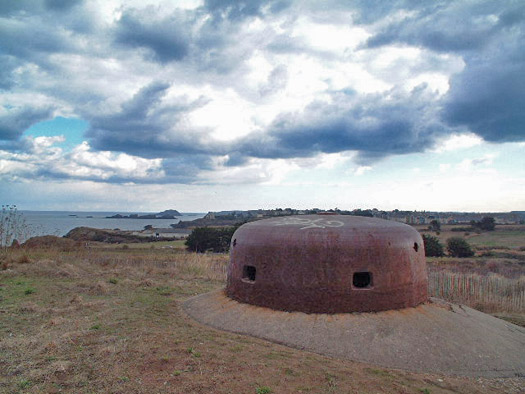

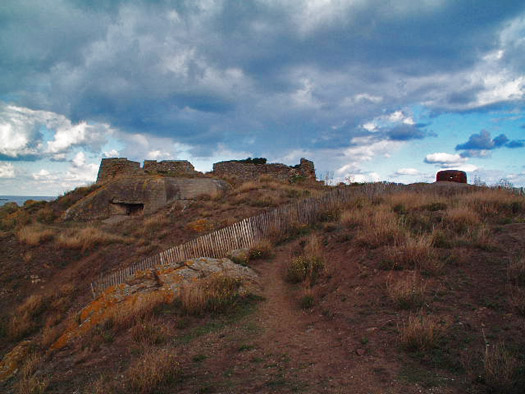

With on the left an R600 and right the cupola of an R122.

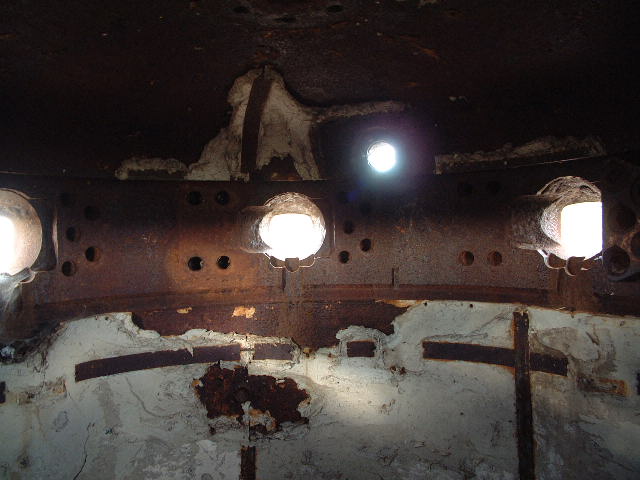

The R112 is a six embrasure turret (cupola) a steel turret fixed in concrete and has six embrasures so that a machine gun could move from window to window as the gun was needed. also a periscope was set into the centre of the cupola.

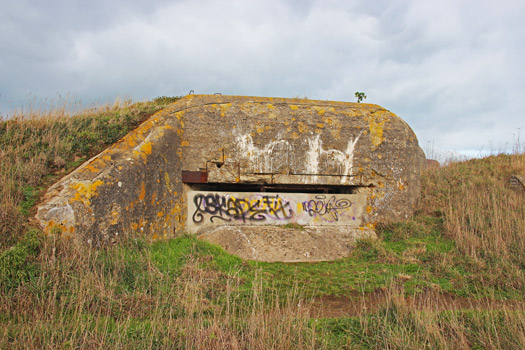

R600 a casemate here for a 5cm KwK L/60.


Varde plan.





The type of fortress machine gun fitting.

Ra109 Pointe de la Varde. image

25 November 2013

Information

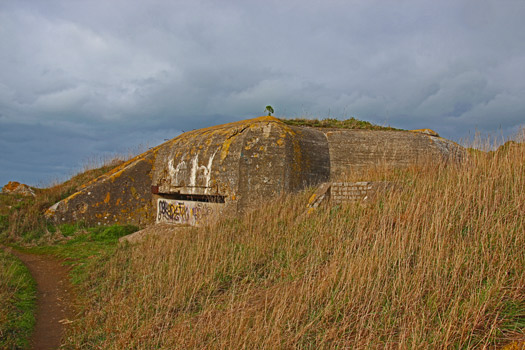

R600 Casemate for a 5cm KwK Pak L/60.

Details

R600 you would have seen as an open emplacement but here a casemate has been built over it in around 1944.

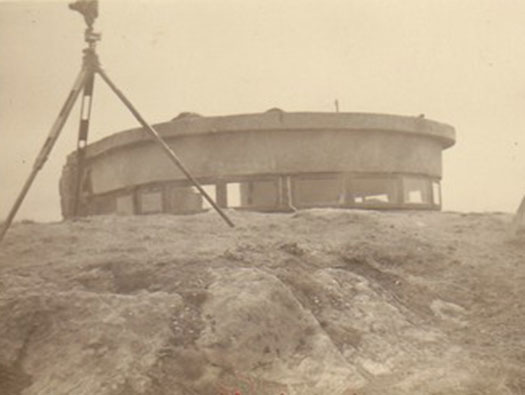

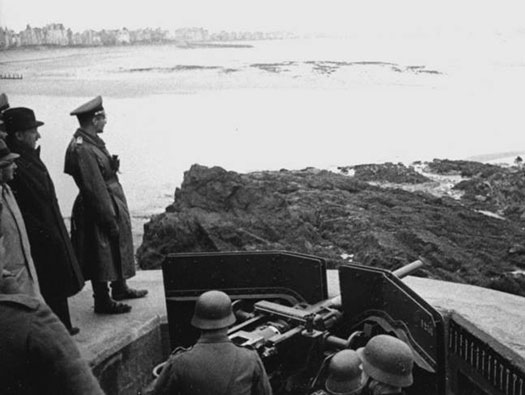

How it would have looked without its cupola was fitted.


This is an R600 open emplacement but here a cap has been placed over the top.


R600 at Varde.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R600 Casemate for a 5cm KwK Pak L/60.

Details

Some additional details will go here


5cm KwK.





5cm ammunition boxes on Omaha beach.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R600 Casemate for a 5cm KwK Pak L/60.

Details

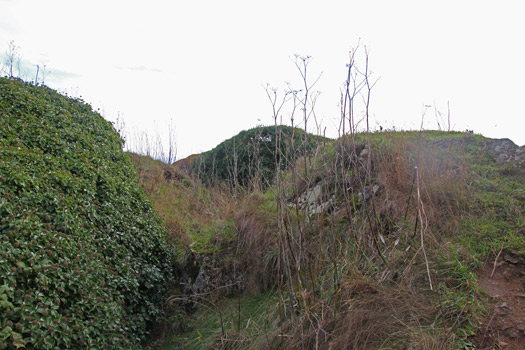

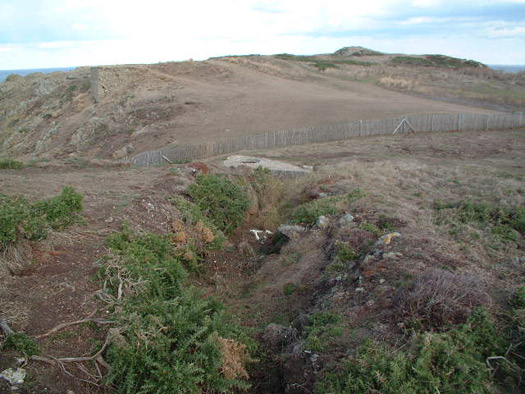

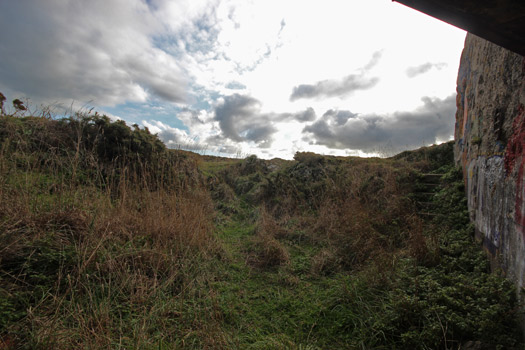

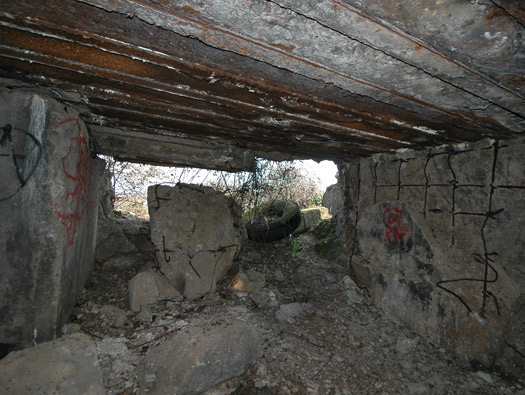

A trench leading to the rear of the R600 now very hard to walk through.


Crew room in an R600 at Ra107.


The ammunition in an R600 at Ra107.


Plan of an R600 with crew room on the left and ammunition room on the right.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R600 Casemate for a 5cm KwK Pak L/60.

Details




5cm KwK Pak L/60 model with a muzzle break.


5cm KwK Pak L/60.


How it may have looked when captured

Ra109 Pointe de la Varde. image

25 November 2013

Information

R600 Casemate for a 5cm KwK Pak L/60

Details

You can see the glasses of the R600 underneath.


R600 plan the arrow showing where the glacés is.


R600 Varde plan.

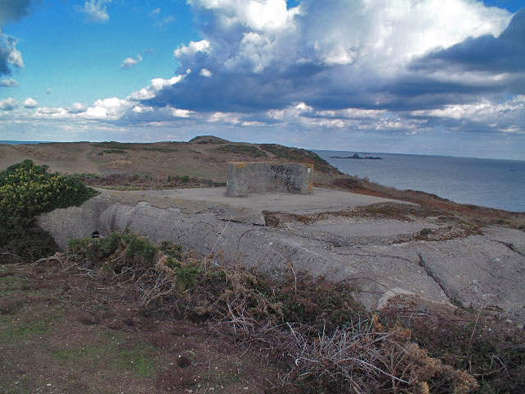

Ra109 Pointe de la Varde. image

25 November 2013

Information

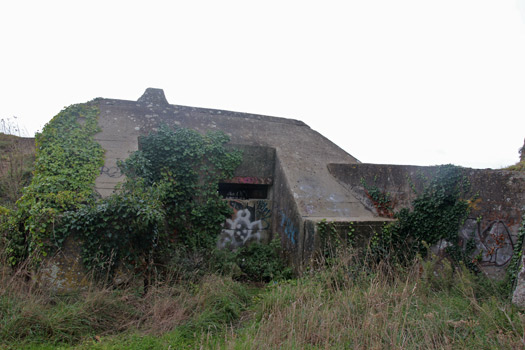

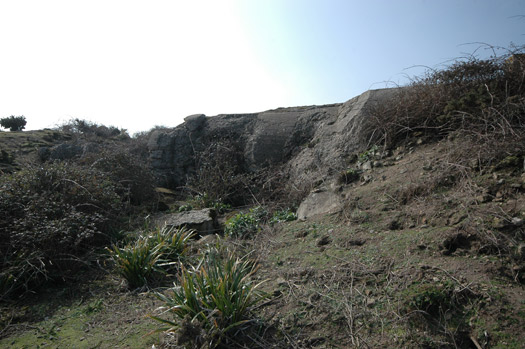

R667 Casemate for a 5cm KwK Gun.

Details

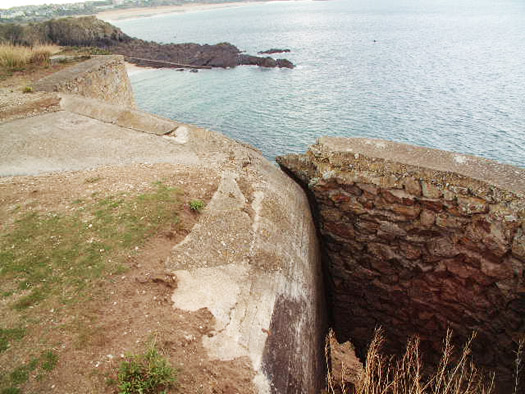

With its flanking wall covering its seaward side.


Varde map R667.


R667 casemate.


An R667 with its gun.

Ra109 Pointe de la Varde. image

25 June 2002

Information

R667 Casemate for a 5cm KwK Gun.

Details

Ammunition was stored in the left hand niche and fired cases were put into the square hole in the back wall to remove them from gun room. The gun would have been bolted to the floor.








Ammunition boxes.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R667 Casemate escape..

Details

A standard R667 does not have a crew bunker underneath it. But this R667 does seem to have an escape, so putting them together means there must be an underground bunker of some sort???


The escape coming up the side of the casemate.


Looking down into the escape with its steel ladder rungs still in place.


Plan of how an escape works from the underground bunker.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R667 Casemate for a 5cm KwK Gun.

Details

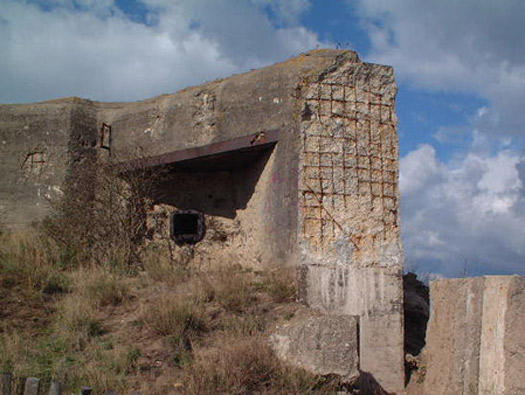

Rear entrance usually would have had a blast wall across the rear.

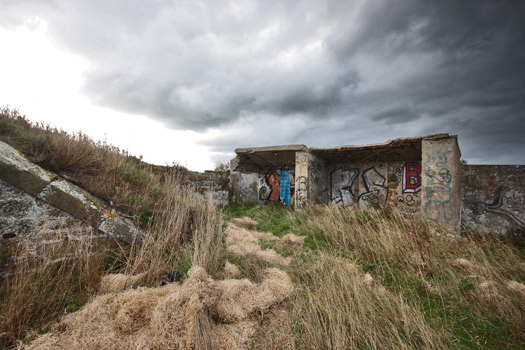

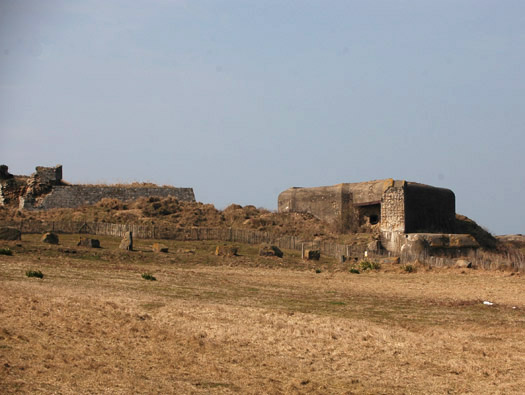

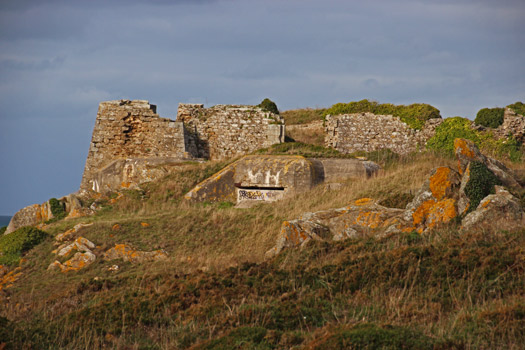

R600 left, R667 right.

Ra109 Pointe de la Varde. image

25 November 2013

Information

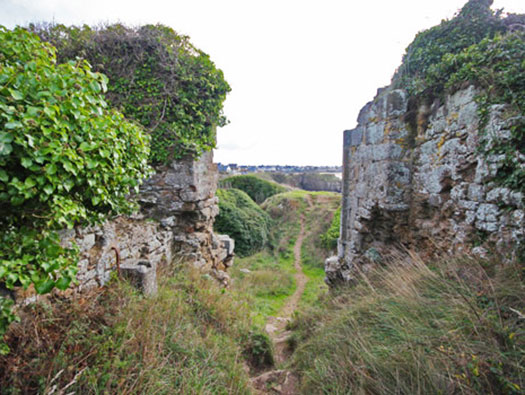

Main Gate of Fort de la Varde.

Details

I would imagine a double door and a lifting draw bridge would have been here pre war.


To the left of the entrance is a steel hand hold to climb up to the left hand Tobruk.


How the gate may have looked.

Ra109 Pointe de la Varde. image

25 November 2013

Information

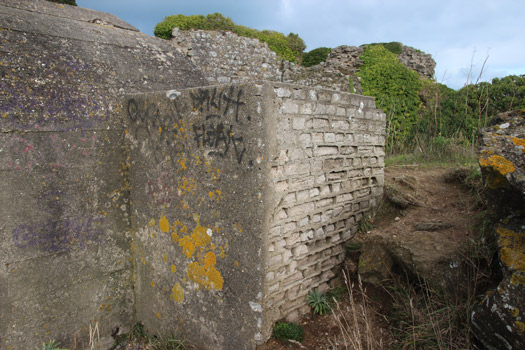

Tobruk covering the entrance

Details




Varde plan.


Tobruk position.




Ra109 Pointe de la Varde. image

25 November 2013

Information

The second Tobruk.

Details

This one is to the left of the gate on the inland side.


Vauban fort Varde plan..





Yellow - the two Tobruk's.
Red - Vf61a mortar Tobruk.

Ra109 Pointe de la Varde. image

25 June 2002

Information

An older view of the above Tobruk.

Details

Here is another photo showing how this Tobruk could cover the entrance and rears of the R600 and R667 below them.





Inside a Tobruk.


Plan view of a Tobruk.

Ra109 Pointe de la Varde. image

25 November 2013

Information

Fort Varde.

Details

This is the view inside the fort from the eastern gate, there would have been a large barrack block on the right side now completely removed.


French barracks.


The barracks sitting high above the fort walls.


The view from above.

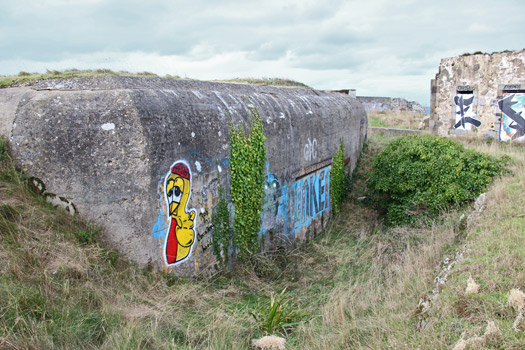

Ra109 Pointe de la Varde. image

25 November 2013

Information

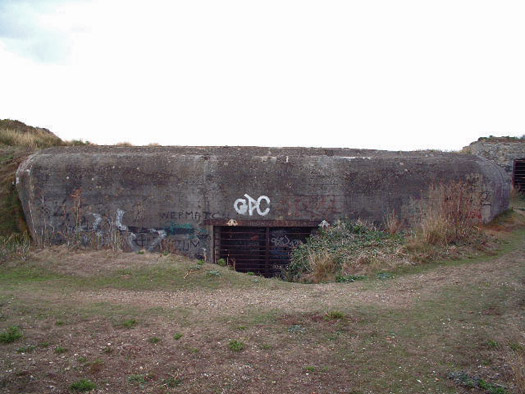

R622 Twin Group Bunker.

Details

Now sealed up.


Plan of the fort.


Plan of an R622 twin group bunker.




Ra109 Pointe de la Varde. image

25 November 2013

Information

Vf67a.

Details

A Vf61a is a Tobruk for an 81mm mortar.


Vf61a Tobruk.


Inside a mortar Tobruk.


81mm mortar.

Ra109 Pointe de la Varde. image

25 November 2013

Information

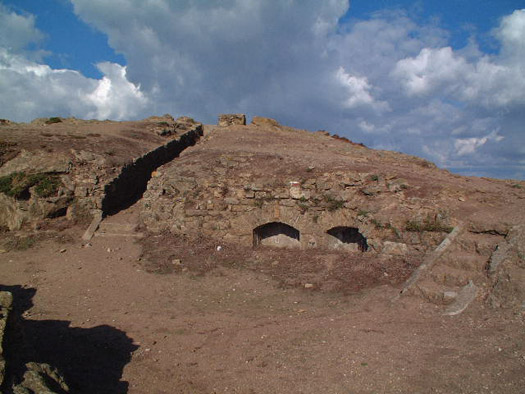

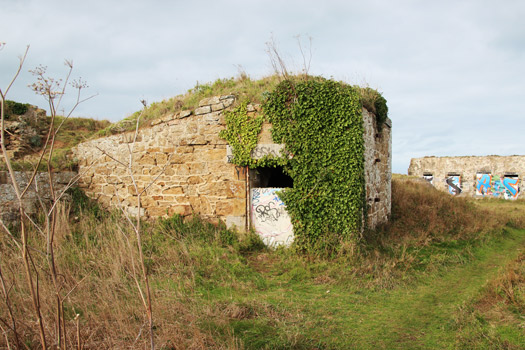

Vauban Chamber.

Details

Some additional details will go here


Photo into the chamber.







Ra109 Pointe de la Varde. image

25 November 2013

Information

R611/SK casemate for a field gun.

Details

A very large casemate for such a small gun set into the outer wall of the fort. Normally a 611 has a Tobruk on the rear but hear it was not needed so never built.


R6110/SK plan.


This casemate has been built into the outer wall.


IR6110/SK viewing to the embrasure and the forts wall.

Ra109 Pointe de la Varde. image

25 June 2002

Information

R611 casemate for a field gun.

Details

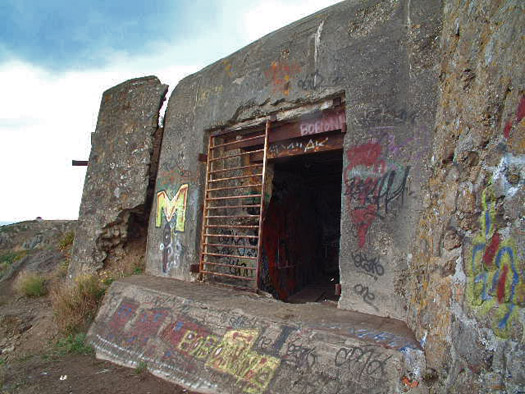

The rear entrance where the gun would pass through into the centre passage.


7.5cm F.K.243(h) a Dutch gun captured and put back into use by the Germans.


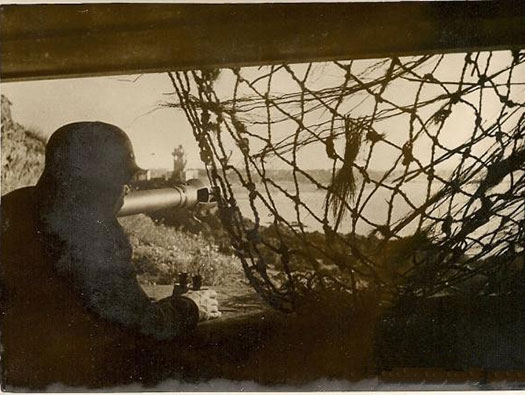

How it may have looked in a captured casemate embrasure in Normandy.

Ra109 Pointe de la Varde. image

25 June 2002

Information

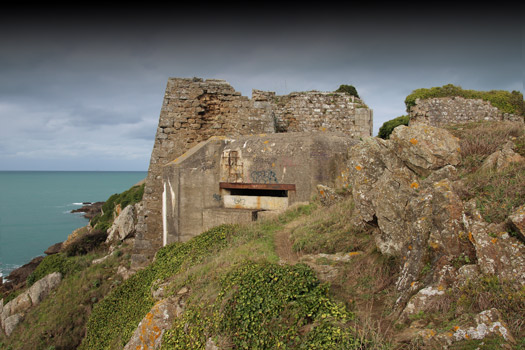

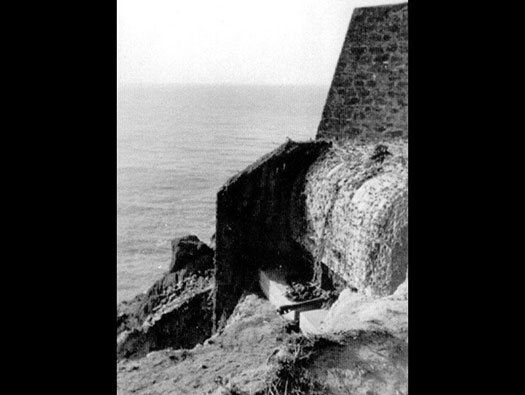

Front of the R611 cut into the forts outer Wall.

Details

You can see how the forts wall has been re built as camouflage.




Ra109 Pointe de la Varde. image

25 June 2002

Information

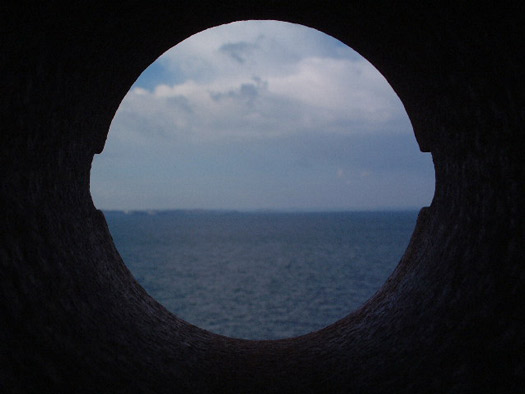

Casemate embrasure.

Details






Ra109 Pointe de la Varde. image

25 June 2002

Information

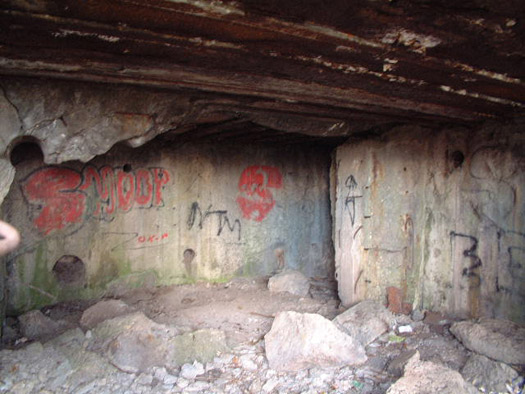

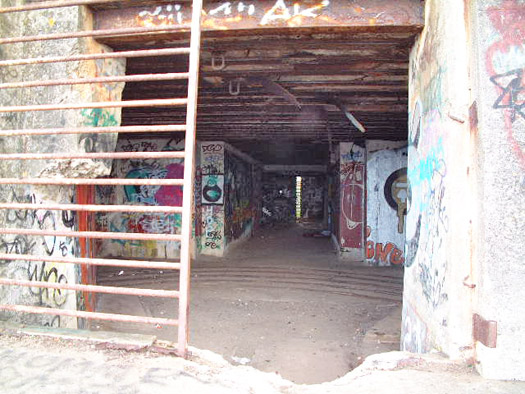

Gun room.

Details

The gun trails would have fitted into the half round steels set into the floor. The passage leads to a steel rear double door and then on the right, ammunition rooms and left crew room.





Plan of the R611 here.

Ra109 Pointe de la Varde.

00-00-00

Information

Gun room.

Details

The half round marks in the floor are for the guns trail to rest in so it does not jump backwards when firing.

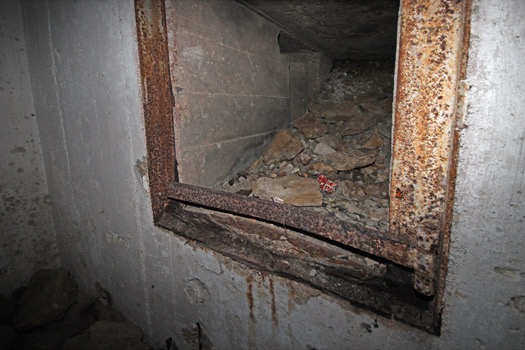

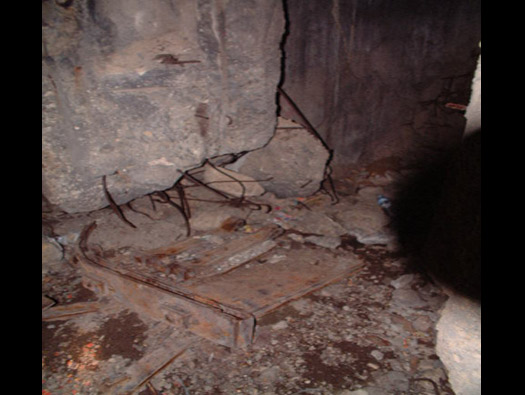

Man hole cover to spent case store under the floor.

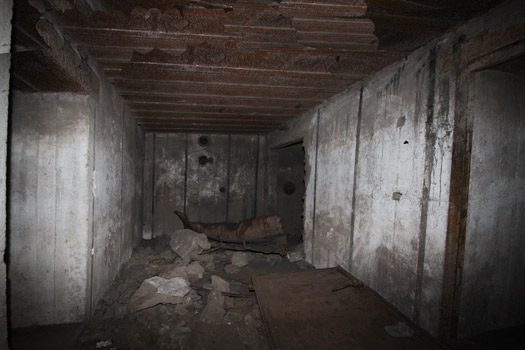

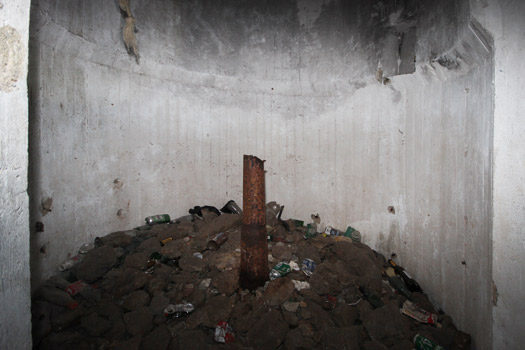

Spent shell case room under casemate floor.


Shell cases stacked up.

Name

25 November 2013

Information

Gun room.

Details

This is where the gun would sit and fire over the bay across St Malo.


here


7.5cm F.K.243(h).




Ra109 Pointe de la Varde. image

25 November 2013

Information

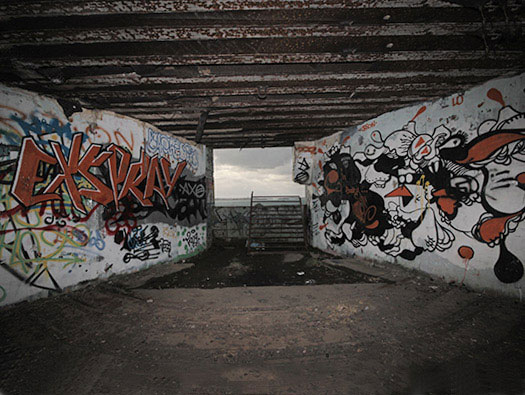

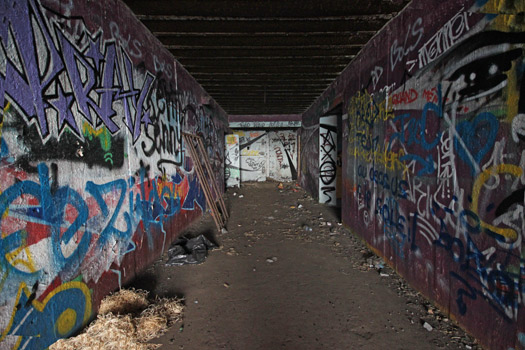

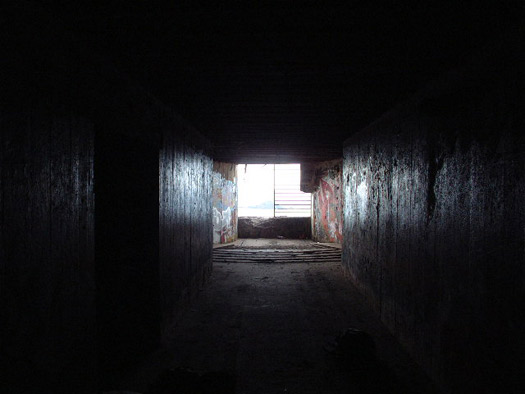

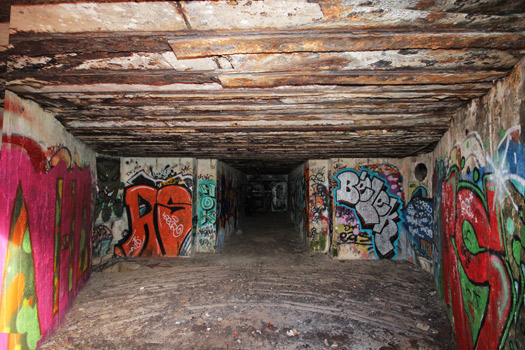

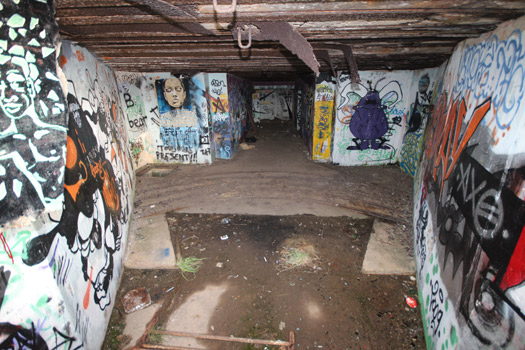

The Passage Down the Centre.

Details

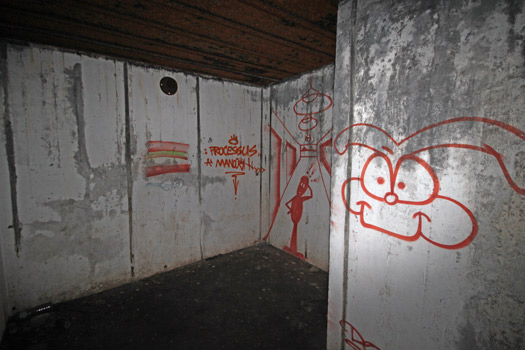

Graffiti artists - GET A BLOODY LIFE what an absolute mess. There is nothing artistic here 'Banksy'.


R611 plan.

Ra109 Pointe de la Varde. image

25 November 2013

Information

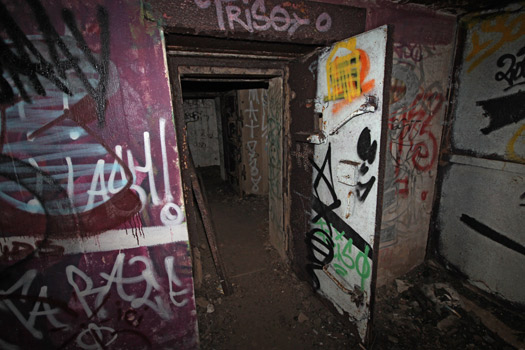

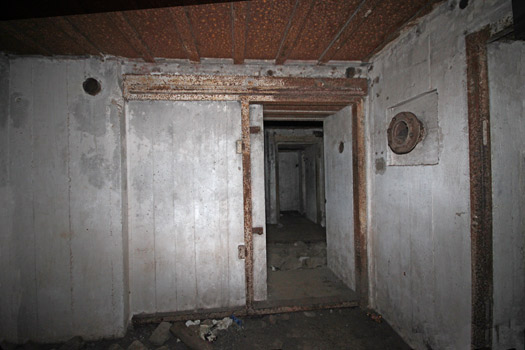

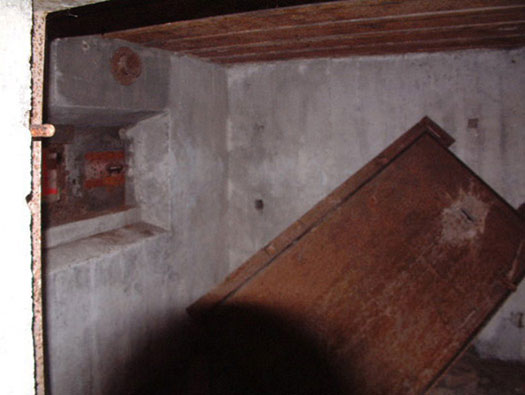

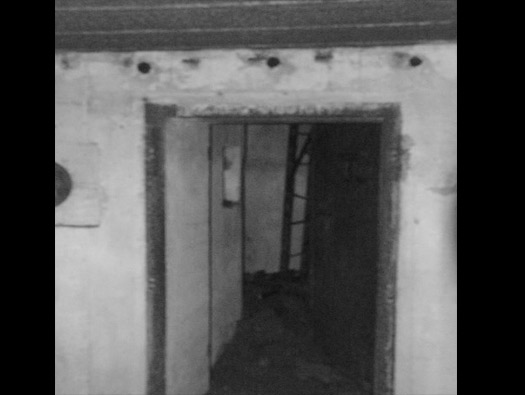

Door to the crew room.

Details

Several doors are still in place.


19P7 door, a steel door with gas tight seal around it and a small glass viewing window.

Ra109 Pointe de la Varde. image

25 June 2002

Information

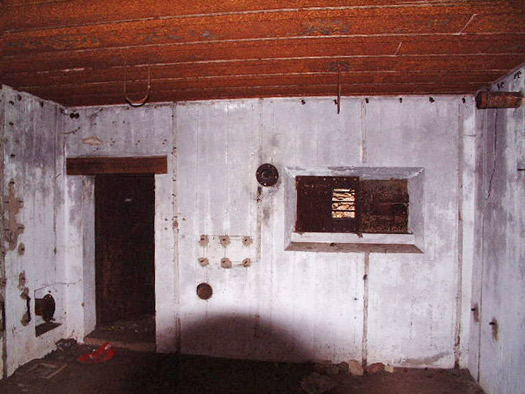

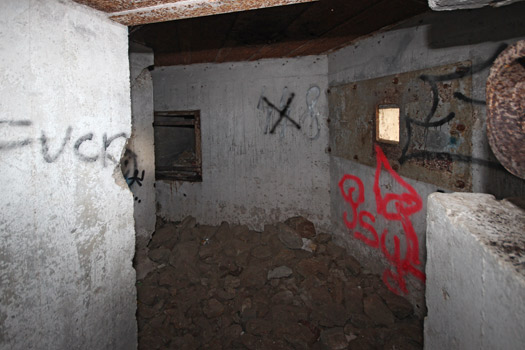

R611 Crew Room

Details

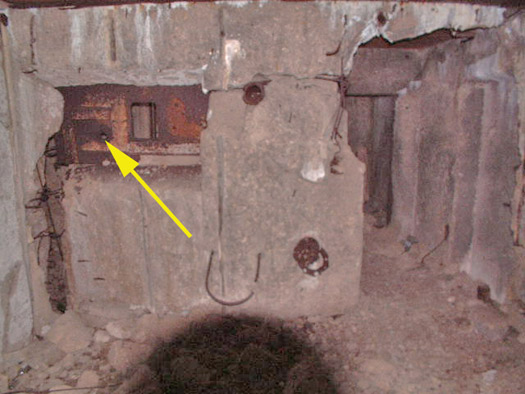

The close combat defence covering the rear door, you can see through the open window right out of the back door.


R611 plan.


How to use a close combat embrasure properly.


I think it may be a 483p2 close combat window.

Ra109 Pointe de la Varde. image

25 November 2013

Information

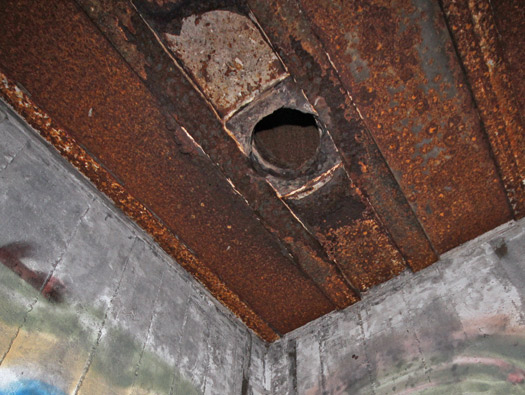

Periscope Fitting.

Details

This bunker had a telescope for viewing its all around defence. It may have helped to target the gun but that usually came from forward observers or from the R120 observation post.








The armoured hole for the periscope on the roof.

Ra109 Pointe de la Varde. image

25 November 2013

Information

Ammunition door.

Details

A 434p01 steel door.


434p01 door.




Ra109 Pointe de la Varde. image

25 November 2013

Information

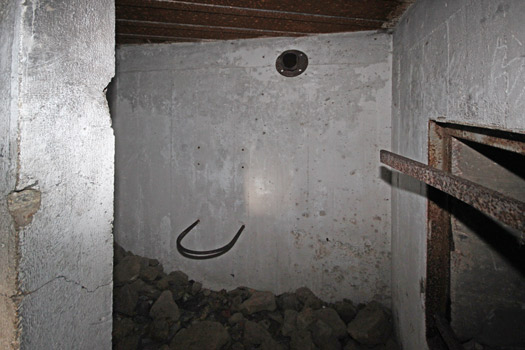

Case room.

Details

Two ammunition rooms case and shell.


Possibly the case room where the shells propellant was stored. It came in small brass cases and filled with bags of cordite propellant. The amount of cordite put in them adjusted the guns range as well as hiring the barrel.


Shell & case.


10.5cm powder propellant in its wooden box.

Ra109 Pointe de la Varde. image

25 November 2013

Information

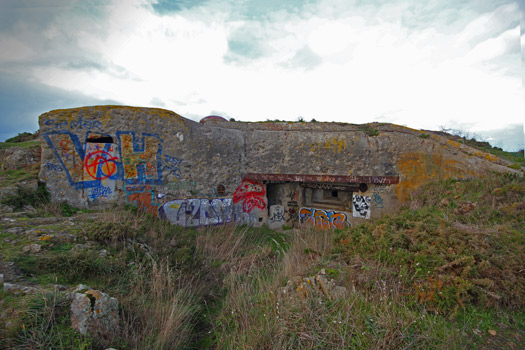

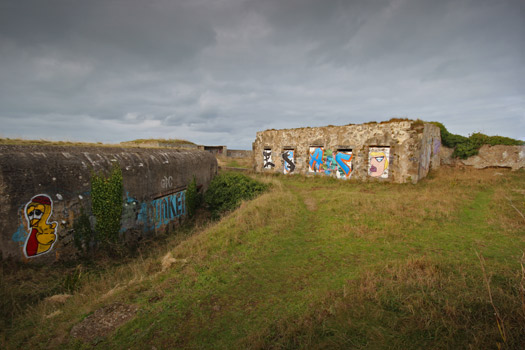

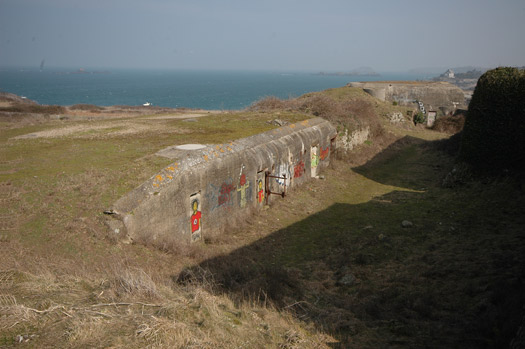

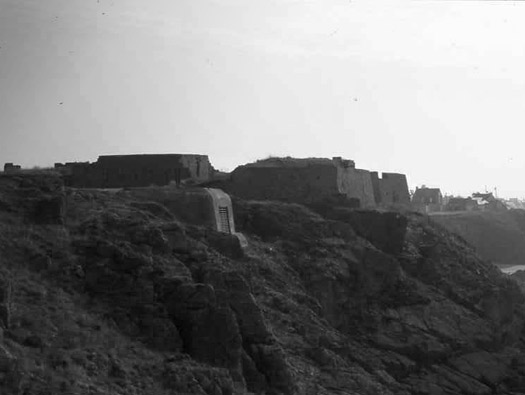

R611 left and French barracks.

Details

.







Ra109 Pointe de la Varde. image

25 November 2013

Information

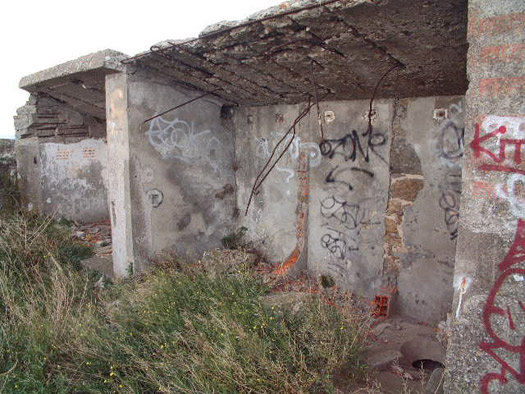

French toilets.

Details

A row of Turkish toilets. (Turkish is the name of this toilet design)


A Turkish toilet.


Men reading in the toilet, I bet the Romans did the same.

Ra109 Pointe de la Varde. image

25 June 2002

Information

French toilets.

Details







Pissing by numbers.


Turkish toilet at Varde.

Ra109 Pointe de la Varde. image

25 June 2002

Information

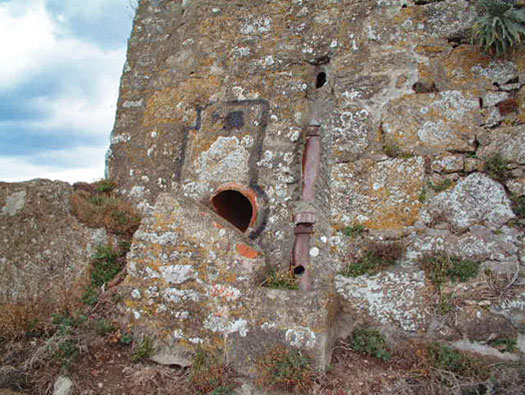

Toilet drains.

Details

And this is where it all went and then out to sea.

Ra109 Pointe de la Varde. image

25 November 2013

Information

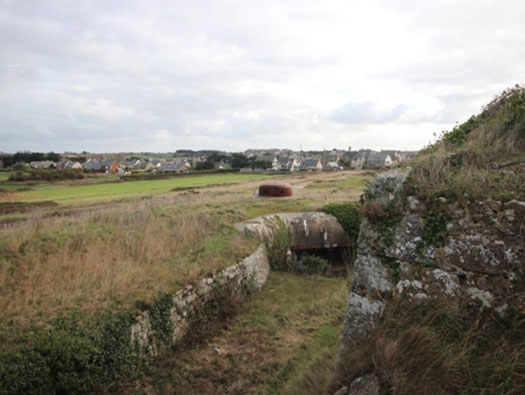

Looking towards the pointe viewed from the R611 in the middle of the picture is another Tobruk.

Details




The Tobruk.


Position of Tobruk.


Plan of a Tobruk.

Ra109 Pointe de la Varde. image

18 March 2006

Information

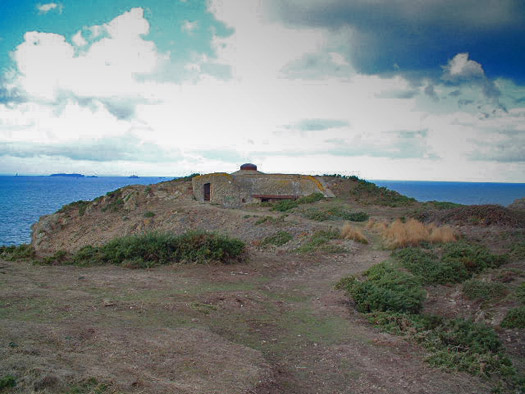

We are now at the second R611.

Details

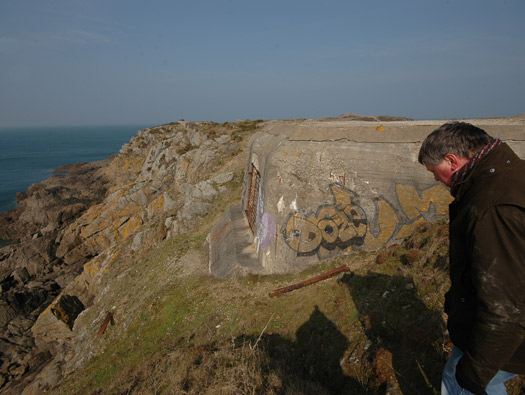

Yes me about to tackle a cliff edge to enter the R611.


Its the Gorilla in me!!!

Ra109 Pointe de la Varde. image

18 March 2006

Information

R611.

Details

The R611 from the other side.

Ra109 Pointe de la Varde. image

18 March 2006

Information

R611 Gun room.

Details












Ra109 Pointe de la Varde. image

25 June 2002

Information

R611 gun room and passage.

Details

Standard R611.


Plan of this R611 with its Tobruk defence

Ra109 Pointe de la Varde. image

25 June 2002

Information

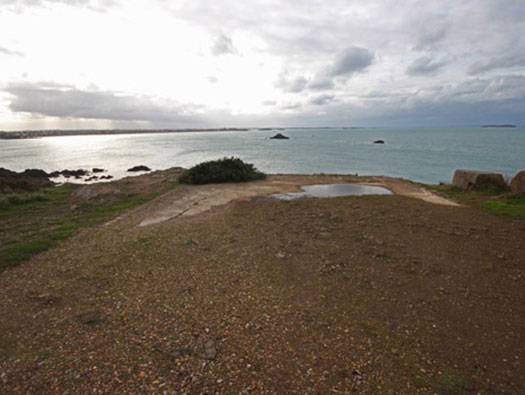

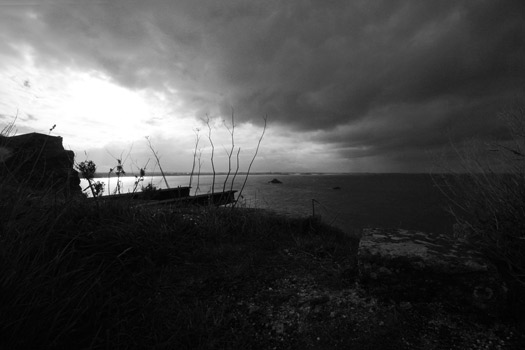

The area the guns protected.

Details




Gun positions.

Ra109 Pointe de la Varde. image

18 March 2006

Information

View back at the Fort.

Details



Ra109 Pointe de la Varde. image

25 November 2013

Information

Two railway lines for a search light.

Details






Ra109 Pointe de la Varde. image

25 November 2013

Information

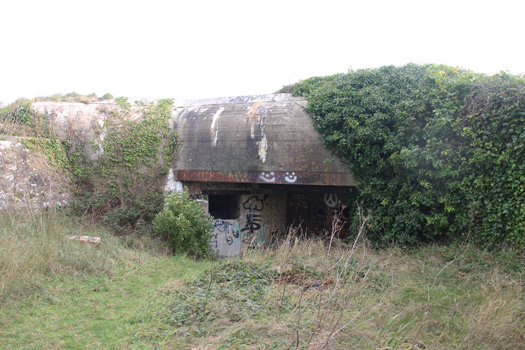

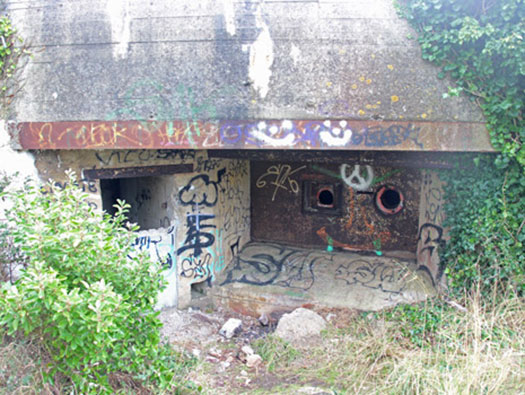

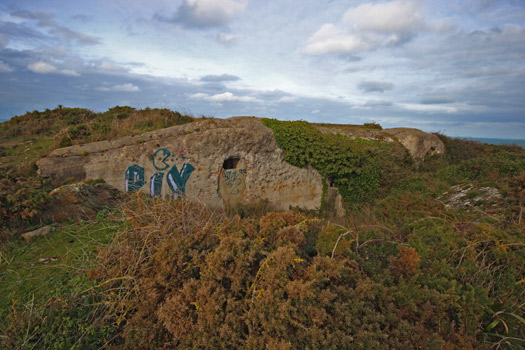

R622 with twin Tobruk's.

Details

Some additional details will go here

Ra109 Pointe de la Varde. image

25 November 2013

Information

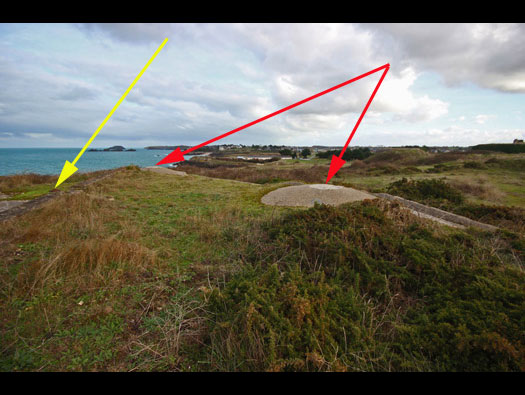

R622 with twin Tobruk's.

Details

Yellow arrow is the periscope fitting.
Red arrows the two Tobruk's.










Ra109 Pointe de la Varde. image

25 November 2013

Information

R120 Artillery Observation Post with an armoured turret.

Details

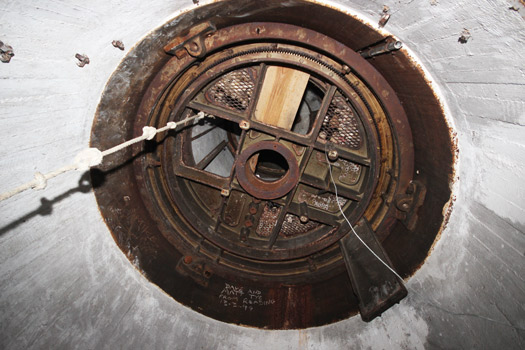

A type 441PO1 steel cupola still in place.


Side view of an R120.


Plan of an R120.

Ra109 Pointe de la Varde. image

25 November 2013

Information

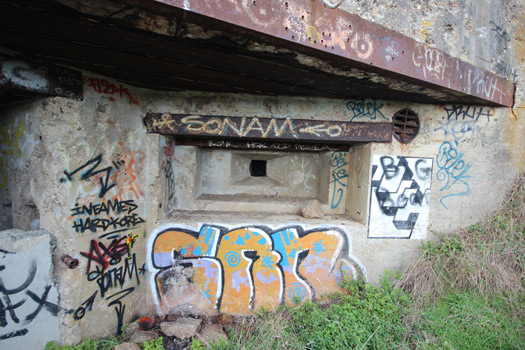

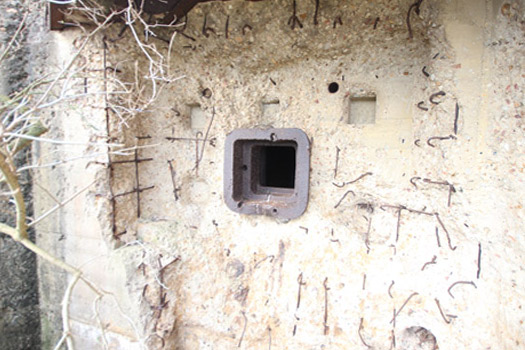

R120 close combat defence window.

Details

An interesting window moulded concrete has been used in front of steel plate behind.


Plan of the R120.

Ra109 Pointe de la Varde. image

25 November 2013

Information

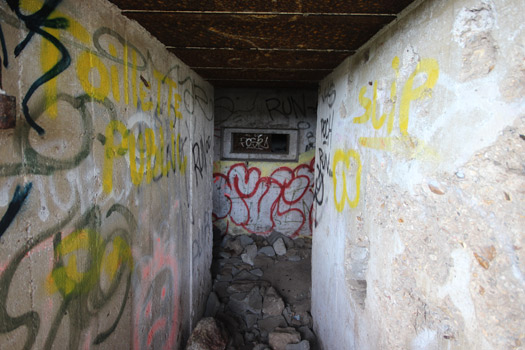

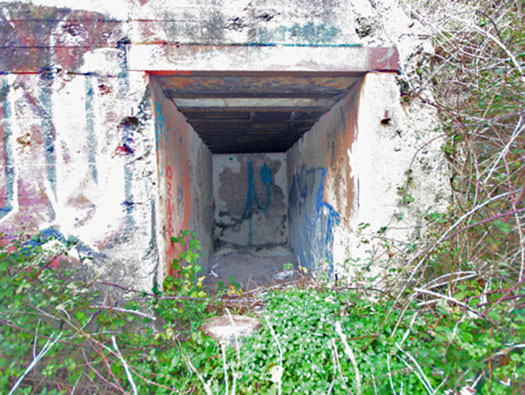

R120 bunker entrance.

Details

The second close combat window covering this entrance corridor.


Close combat defence machine gun.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R120 main close combat defence room.

Details

In the distance the escape hatch.


Plan of the R120.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R120 ammunition space.

Details

It looks as though there was a second gas filtration unit on the far wall or the iron metal loop sticking out of the wall held unused gas filters.


R120 plan.


Gas filters.


Gas filter pump.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R120 escape.

Details




View down the escape tunnel.


Layout of an escape tunnel.


410p9 escape door.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R120 crew room.

Details




R120 plan.




Ra109 Pointe de la Varde. image

25 June 2002

Information

R120 view from the chart room to the observation turret.

Details

Chart room to the observation turret is a small passage opening out to a circular space with the turret above.


R120 plan.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R120 observation turret.

Details

The base of the turret and the base tube for the periscope.


Periscope in use in a bunker.




Ra109 Pointe de la Varde. image

25 November 2013

Information

R120 base of turret.

Details

The view up into the turret showing the turret floor, the circular hole is for the periscope fitted through. The left hand square hole is the access where a ladder used to fit (picture below).


How it looked a few years ago with its ladder and braces still in place. 25 June 2002.


Inside the cupola.


One of the observation holes.

Ra109 Pointe de la Varde. image

25 June 2002

Information

R120 turret observation hole.

Details

A special machine gun could be placed through this and any other hole and fired by its operative and a commander below would have viewed through the periscope and commanded the machine gunner where to fire.


How it may have looked inside.


The machine gun possibly an MG Schartenlafette 34Td Rh Blatt1.


20p7 type dome.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R120 crew room

Details

Note the sliding doors, this bunker has several.


R120 plan.

Ra109 Pointe de la Varde. image

25 June 2002

Information

Commanders room sliding door.

Details

One of the sliding doors in the commanders room and also on the left the close combat window covering the main entrance passage.


R120 plan.




Ra109 Pointe de la Varde. image

25 November 2013

Information

The view from the entrance.

Details

The way out of the R120 and it would have gone into an extensive trench system now covered over.


R120 plan.


Varde plan.


A trench system.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R120 bunker cupola 441P01 type.

Details

A very strong steel cupola with six embrasures and a periscope in the top. A fortress machine gun mounting could fire through all the embrasures with special blanking fittings to fit into the embrasures not in use.


Blanking plug, hinged and could be swivelled into position.


Blanking plug in a cupola at Ra230 Fort de Cite de Aleth.


A cupola that was used in Cherbourg.

Ra109 Pointe de la Varde. image

25 June 2002

Information

R120 looking over the bay.

Details












Ra109 Pointe de la Varde. image

25 November 2013

Information

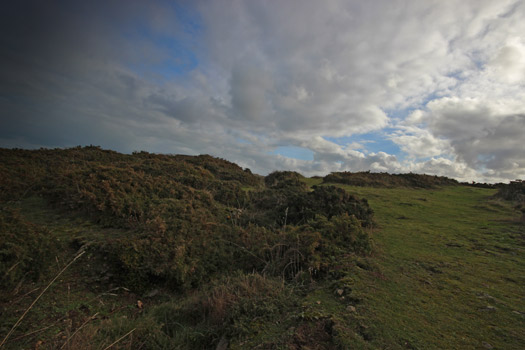

Trenches.

Details

There were many trenches around the Varde defence.


More trenches


Soldiers being inspected.


Digging trenches.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R653 casemate for a 5cm KwK L/42 Gun.

Details

This seems to be rather rare bunker, Holland had six and AOK7 (Normandy & Brittany) nine. A very extensive bunker for such a small gun.


5cm KwK L/42 gun.


Fitted into a casemate.




Ra109 Pointe de la Varde. image

25 June 2002

Information

Concrete shield.

Details

Like others I believe this is part of a French rifle range. This was one of the firing points.


R653 casemate for a 5cm gun.


Rifle range.


German troops firing on a range.

Ra109 Pointe de la Varde. image

25 June 2002

Information

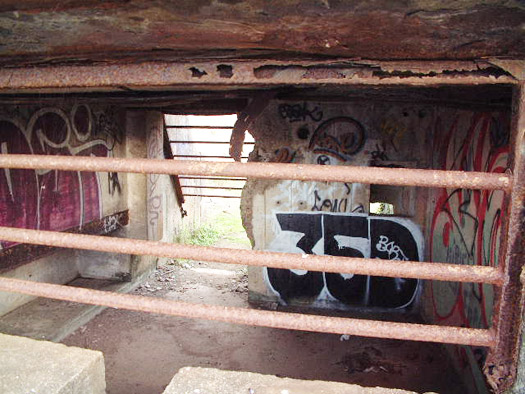

Gun room.

Details

A gun room for a 5cm KwK L/42 Pak gun and would have been set into the floor.


R653 casemate plan.


Image Caption




Ra109 Pointe de la Varde. image

18 March 2006

Information

R653 Gun room.

Details

The gun would have sat on the floor here and fired down into the valley covering the inland north - north/east flank.





Where the gun would cover.




Ra109 Pointe de la Varde. image

25 June 2002

Information

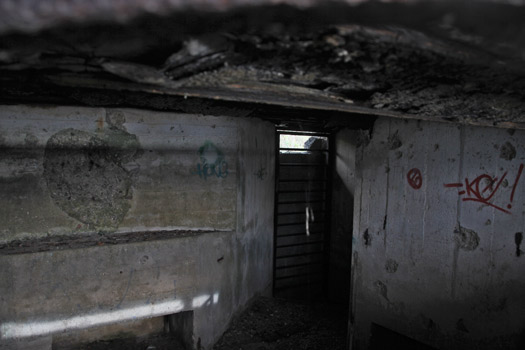

R653 crew room.

Details

Crew room with the close combat window covering the rear entrance, the gas filtration system and the passage to the gas lock and way out.
The yellow arrow shows where and armoured piercing bullet has penetrated the close combat window.


Crew room.


Close combat defence.


Gas filtration system.

Ra109 Pointe de la Varde. image

25 June 2002

Information

R653 internals.

Details

A crushed door. This bunker has been badly damaged either by the French post war or the Americans training for attacking bunkers to help them as they move through Brittany.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R653 gun room.

Details

There is a lot of damage done here.


Plan of Varde.

Ra109 Pointe de la Varde. image

25 June 2002

Information

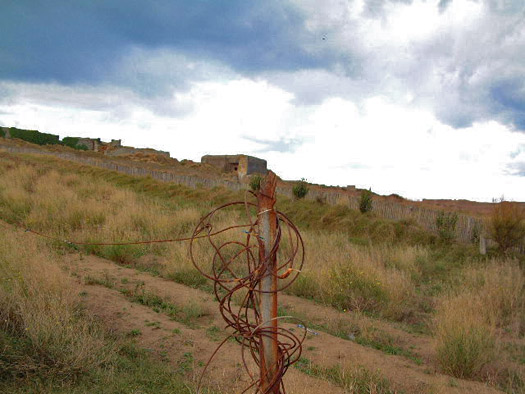

Trench down to a Tobruk and on to the pointe.

Details

Nice trench system allowing the guard to reach the Tobruk in safety.










Ra109 Pointe de la Varde. image

25 June 2002

Information

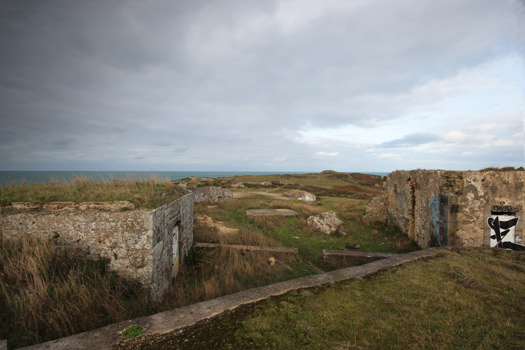

The point where another smaller fort sat.

Details

This was a lookout and small Vauban gun emplacement probably up graded for WW1 and in the 1930's..


The French lookout that sat on the top.


French Poilu.

Ra109 Pointe de la Varde. image

25 June 2002

Information

The pointe lookout.

Details




The French lookout that sat on the top.


French officers observing.




Ra109 Pointe de la Varde. image

18 March 2006

Information

R622/SK twin group bunker.

Details

This R622 has an extra storage that in other bunkers may have been used for extra water storage.


Image Caption







Ra109 Pointe de la Varde. image

25 November 2013

Information

R622/SK twin group bunker.

Details

This may just be extra storage space for a water tank.


One of the two entrances


Wasser tank in Wn12 Ouistreham ('Hillman'), Normandy.




Ra109 Pointe de la Varde. image

18 March 2006

Information

R506c casemate for a 4.7cm Pak (t).

Details

Another huge block of concrete much too large for the gun it mounts.


Plan of an R505 Casemate for a 4.7cm Pak (t).


Skoda 4.7cm Pak fitting.


Gun room with a 770P4 steel gun fitting in place.

Ra109 Pointe de la Varde. image

18 March 2006

Information

R506c casemate for a 4.7cm Pak (t).

Details

Close up of the embrasure. The wall (Mur de flaquement) fell off in 2007.


R505 at Varde.


Casemate with the chute for fired cases to the store below the bunker..


Skoda gun and crew.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R506c casemate for a 4.7cm Pak (t).

Details

I think this is a 770P4.


Below the 770P4 is a tube where spent cases could be passed down into an storage tank..


770P4 from inside where the gun would be attached to..


Skoda 4.7cm Pak(t)

Ra109 Pointe de la Varde. image

25 November 2013

Information

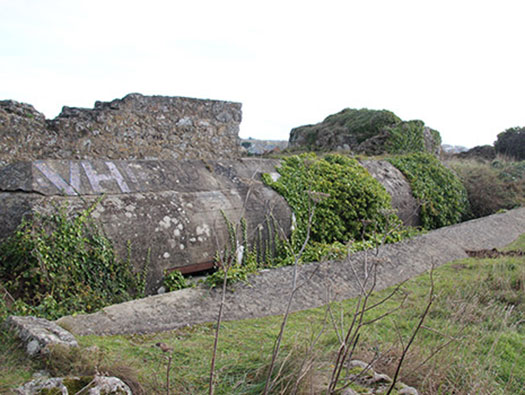

R112a casemate and the forts moat.

Details

R112a set into the corner of the moat and a large metal plate has been fitted.


R112a six embrasure turret bunker with a metal plate instead of a close combat defence window.


R112a six embrasure turret bunker.




Ra109 Pointe de la Varde. image

25 November 2013

Information

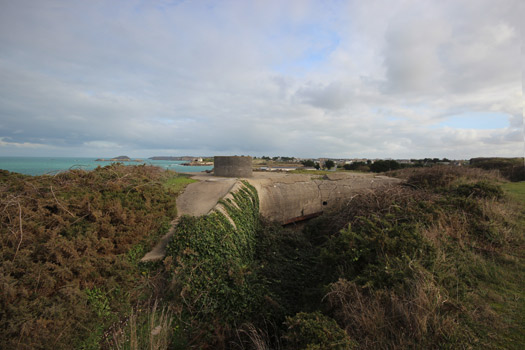

R112a six embrasure turret bunker.

Details

Sitting neatly in the corner of the moat, the turret covers the S/E corner and the metal plate below covers the moat in both directions.


The metal plate.


The cupola.

Ra109 Pointe de la Varde. image

25 November 2013

Information

R112a six embrasure turret bunker.

Details

The cupola or turret a type 35P8.


Hinged blanking plug to cover the open embrasure.


Close off embrasure.

Ra109 Pointe de la Varde. image

25 June 2002

Information

R112a casemate type 35P8 turret inside.

Details

Asbestos was placed on the inside to insulate from heat & cold.


A gunner in place.


The machine gun mounting

Ra109 Pointe de la Varde. image

25 June 2002

Information

R112a casemate type 35P8 turret inside.

Details

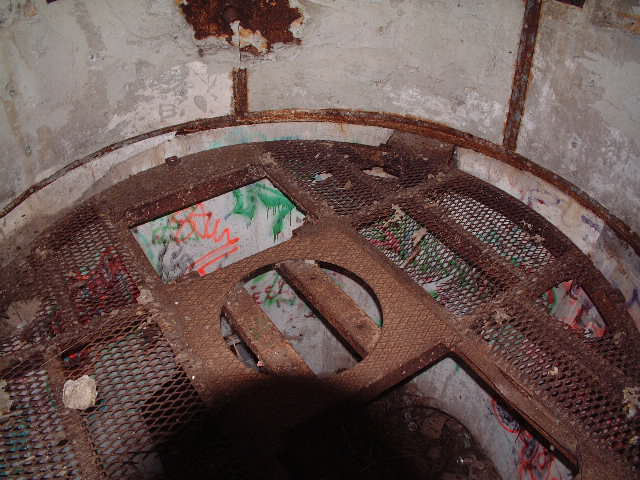

The floor with two access holes and centre hole for a periscope.


Periscope.


Image Caption

Ra109 Pointe de la Varde. image

25 June 2002

Information

R112a six embrasure turret bunker.

Details

Set down into the moat.


View to the left.


View strait in front.


Yellow arrows are the views on the left.

Ra109 Pointe de la Varde. image

25 June 2002

Information

R112a casemate entrance and metal plate.

Details

Possibly a fortress machine gun mount fitted into one or two of the holes.


Fortress machine gun mounting .







Ra109 Pointe de la Varde. image

25 November 2013

Information

I am not sure what this was?

Details

As you walk towards Fort Varde this piece of concrete sits looking out to sea. It may have been the base of a hut?

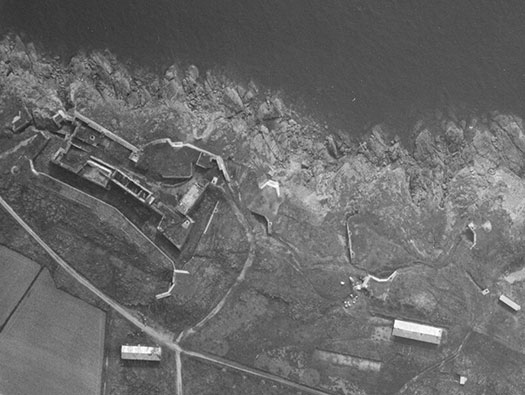

It looked the same in 1947.

Ra109 Pointe de la Varde. image

25 November 2013

Information

La Tour du Bonheur.

Details

I thought it may be part of the defences but after a bit of digging I think its the old base of a tower.


Cote d'Emeruade
De Rothéneuf à Paramé
Pointe de la Varde
La Tour du Bonheur.


Another photo.

Ra109 Pointe de la Varde. image

25 November 2013

Information



Details
