Ra107 Pointe du Meinga image

05 December 2013

Information

Ra107 Pointe du Meinga, Festung St Malo.

Details

Ra107 Pointe du Meinga.
2 x R612
1 x R667/SK.
2 x R600.
2 x R501.
2 x Vf/MG Stand.
2 x Unterstand.
4 x Vf58c Tobruk's.
1 x SK/Schartenstand for a 5cm KwK gun.
2 x 7.5cm F.K.
2 x 5cm KwK L/42.
1 x 2cm Flak 30.


R612 casemate for an assault gun.


R600 emplacement for a 5cm KwK gun.


R501 group bunker.

Ra107 Pointe du Meinga

Google

Information

Ra107 Pointe du Meinga

Details



Ra107 Pointe du Meinga image

05 December 2013

Information

Ra107 Pointe du Meinga, Festung St Malo.

Details

The Pointe sticks out pointing due north, the yellow square ? I have a 1950's which shows what look like bunkers and three red squares where I did find bunkers ant the last yellow square on the north tip is a bomb crater one of many that were here around the fall of St Malo. The yellow dot looks as though its a bunker but I did not go that far.


The bombing of France by the USAAF.

Ra107 Pointe du Meinga

1943

Information

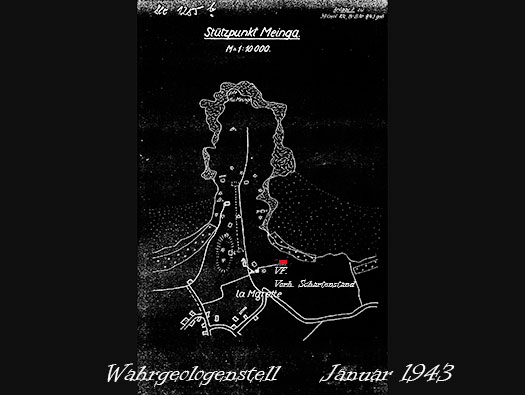

Stützpunkt Meinga.

Details

A 1943 Plan.

Ra107 Pointe du Meinga image

25 November 2013

Information

Ra107 Pointe du Meinga, Festung St Malo.

Details

I have super imposed where I think the bunkers were placed. The centre one looks as though it was in process of being built.


A close up of one of the bunkers.

Ra107 Pointe du Meinga image

25 November 2013

Information

Ra107 Pointe du Meinga, Festung St Malo.

Details

Pointe du Meinga.

Ra107 Pointe du Meinga image

25 November 2013

Information

Ra107 Pointe du Meinga, Festung St Malo.

Details

The path to the point.




Ra107 Pointe du Meinga image

25 November 2013

Information

Ra107 Pointe du Meinga, Festung St Malo.

Details

The path to the pointe a bit further on and the fence posts are made from old beach defences. These would have lined the beach in at least two rows.


Tetrahedral.


Tetrahedral beach defence.

Ra107 Pointe du Meinga image

25 November 2013

Information

SK/Schartenstand for a 5cm KwK Pak gun.

Details




5cm KwK 39 L42.


5cm KwK 39 L42.

Ra107 Pointe du Meinga image

25 November 2013

Information

Looking along the headland.

Details

Looking along the headland with the SK/Schartenstand in the middle distance.




Ra107 Pointe du Meinga image

25 November 2013

Information

SK/Schartenstand for a 5cm KwK Pak gun.

Details



Ra107 Pointe du Meinga image

25 November 2013

Information

SK/Schartenstand plus an R600.

Details

Steps run down to a trench, left to the SK/Schartenstand and right R600 bunker.


Image Caption

Ra107 Pointe du Meinga image

25 November 2013

Information

SK/Schartenstand plus an R600.

Details

Set into the rocks this bunker would have been very hard to knock out.

Ra107 Pointe du Meinga image

25 November 2013

Information

SK/Schartenstand plus an R600.

Details

A very heavy concrete cab was used to cover the start of the trench.


SK/Schartenstand.

Ra107 Pointe du Meinga image

25 November 2013

Information

SK/Schartenstand plus an R600.

Details

The trench from the casemate to the bunker


Plan.


Ra107 Pointe du Meingaimage

25 November 2013

Information

SK/Schartenstand gun room.

Details

A lovely view.







Ra107 Pointe du Meinga image

25 November 2013

Information

SK/Schartenstand gun room.

Details

The rear of the gun room with the rear door and a small ammunition space in the corner.


Plan.



5cm ammunition boxes.

Ra107 Pointe du Meinga image

25 November 2013

Information

SK/Schartenstand gun room.

Details

Gun base hold fast.


5cm KwK 39 L42.

Ra107 Pointe du Meinga image

25 November 2013

Information

The trench.

Details

Cut out of solid rock.





Ra107 Pointe du Meinga image

25 November 2013

Information

Trench leading to an R600 bunker

Details

Very overgrown.


Plan.

Ra107 Pointe du Meinga image

25 November 2013

Information

R600 bunker entrance.

Details




R600 bunker plan.




Ra107 Pointe du Meingaimage

25 November 2013

Information

R600 bunker passage.

Details

Passageway with a small storage area at the end.


Plan.

Ra107 Pointe du Meinga image

25 November 2013

Information

R600 bunker crew room door.

Details

A 19P7 thin steel door into the crew room.


A 19P7 thin steel door with a rubber gas seal all the way around it and a small glass window.




Ra107 Pointe du Meinga image

25 November 2013

Information

R600 bunker crew room.

Details




Plan.

Ra107 Pointe du Meinga image

25 November 2013

Information

R600 bunker crew room.

Details

Left side is the gas filter. Right is the escape hatch.


Image Caption


410p9 door.


Escape.

Ra107 Pointe du Meinga image

25 November 2013

Information

R600 bunker door to ammunition room.

Details

A double heavy steel door in two parts to the ammunition room.


434p01 door.


Ammunition boxes.

Ra107 Pointe du Meinga image

25 November 2013

Information

Niche at the end of the passage.

Details

A small storage area at the end of the passage for personal equipment.


Crews bits.

Ra107 Pointe du Meinga image

25 November 2013

Information

Step access.

Details

Steps down and the stone wall is shaped to allow a machine gunner to cover the entrance.




Ra107 Pointe du Meinga image

25 November 2013

Information

The View of the beach defended.

Details



Ra107 Pointe du Meinga image

25 November 2013

Information

SK/Schartenstand on the right and a R612 on the left.

Details



Ra107 Pointe du Meinga image

25 November 2013

Information

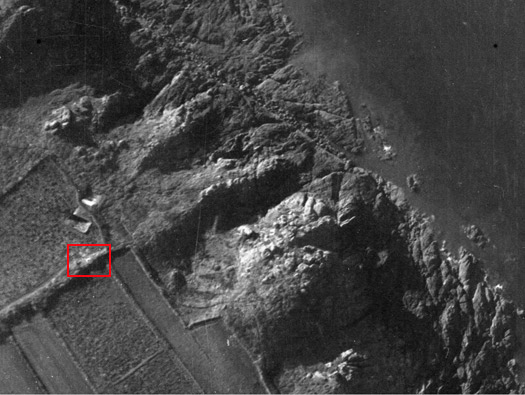

A 1950's air photo.

Details

Above the red square is the R612 casemate for an assault gun and the red square is a Tobruk.


R612 with two small ammunition spaces.


Tobruk.


7.5cm Field Kannon.

Ra107 Pointe du Meinga image

25 November 2013

Information

R612 set nicely into the cliff face.

Details

A nice shape over the door to stop rain water dripping into the front door.




Ra107 Pointe du Meinga image

25 November 2013

Information

R612 & an Eisenpfahel.

Details

Still here after all these years an Eisenpfahel barbed wire support where barbed wire entanglement would have been placed both sides of the casemate and possibly minefields in front and behind.


Eisenpfahel barbed wire support.




Ra107 Pointe du Meinga image

25 November 2013

Information

R612 rear entrance.

Details




Image in the 1950's.


R612 view through the rear door.


Gun being fired.

Ra107 Pointe du Meinga image

25 November 2013

Information

The area the gun would have covered.

Details



Ra107 Pointe du Meinga image

25 November 2013

Information

Hedge row with a Tobruk in it.

Details




The Tobruk in the hedge.

Ra107 Pointe du Meinga image

25 November 2013

Information

Tobruk rear.

Details

I am not sure if this Tobruk is not a modified type?


Tobruk looks as it does not have a rear storage area?


Standard Tobruk.

Ra107 Pointe du Meinga image

25 November 2013

Information

Tobruk.

Details

Looking into the machine gun ring.


A mounting that fits into the gun ring on the Tobruk and a machine gun set on it and a place to rest your elbows.


Another form of ring mount.




Ra107 Pointe du Meinga image

25 November 2013

Information

This may have been a machine gun position?

Details




Plan.




Ra107 Pointe du Meinga image

25 November 2013

Information

The Pointe.

Details

Note the bomb crater right on the pointe, there were at least three here.


The three bomb craters that can be seen today.


B17.
