Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Ra104b/Ra310a Pointe du Grouin

Details

Cancale a wonderful place for sea food. Situated on the coast between Le Mont Saint Michel and Saint-Malo.
Ra104b:
1 x R502.
1 x R600.
1 x 5cm KwK ringstand.
1 x R504.
1 x R667/SK.
6 x Vf68c.
1 x Stolen.
2 x 5cm KwK L/42 guns.
Ra310a:
Station Kriegsmarine, 1./3. Funkmess-Abteilung.
1 x SK/Machinenstand.
1 x Fu.MG Seetakt Gema.


Tobruk.


R504.


R502.

Ra104b/Ra310a Pointe du Grouin.

Google

Information

Pointe du Grouin.

Details



Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin.

Details

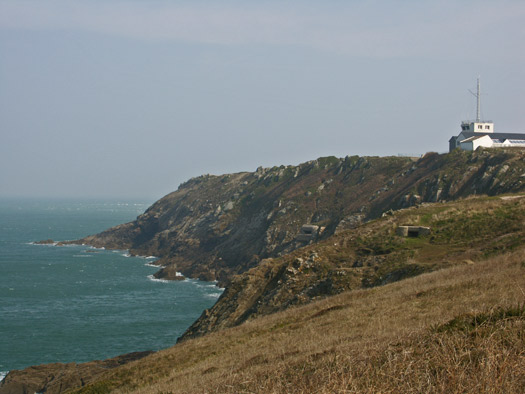

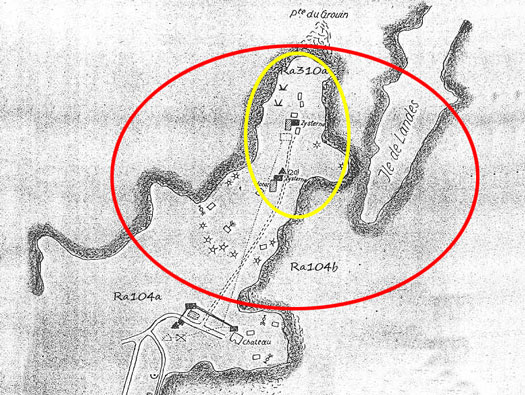

Ra104b (red) is the pointe and Ra310a (yellow) is the radar station.

Ra310a:
Station Kriegsmarine, 1./3. Funkmess-Abteilung.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

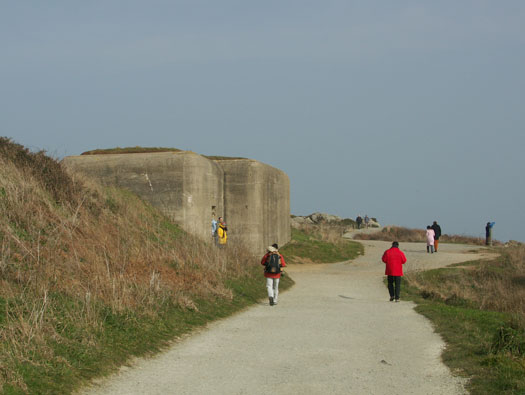

Pointe du Grouin. The view

Details

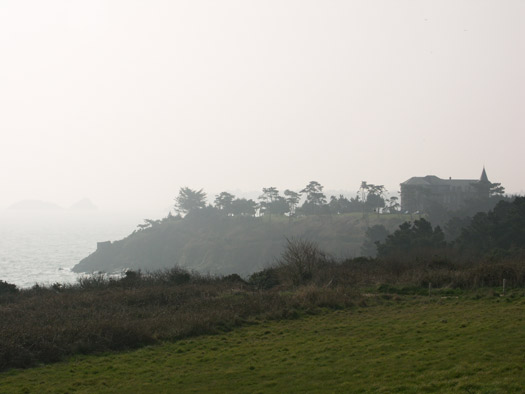

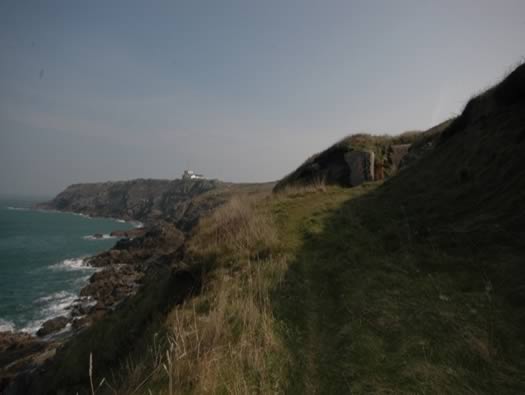

The view back as we started out on our walk. Ra104a Château de la Barbe Brulée. (That is for another day)

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

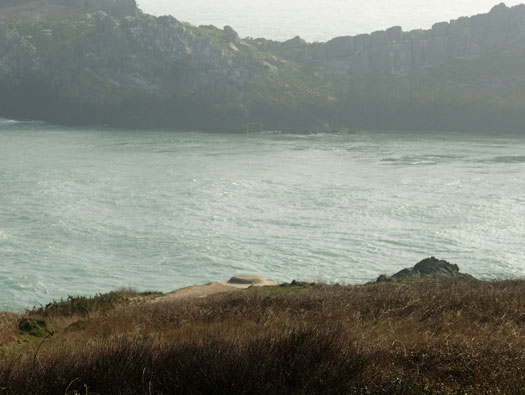

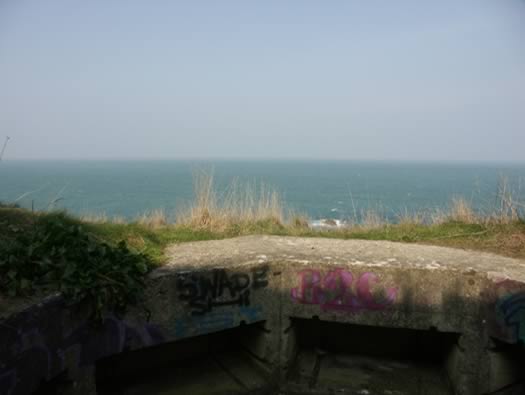

The first Tobruk.


Plan.





Plan of a Tobruk.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra310a

Details

SK/Machinenstand.
This is the power house for the radars and the equipment in the exploitation bunker.


8 KW Generator.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra310a

Details

Radar Exploitation Bunker.




Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra310a

Details

Radar Exploitation Bunker.
Behind this bunker was a Seetakt Gema radar.


Seetakt Gema radar.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra310a

Details

Radar Exploitation Bunker.





Radar image.




Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra310a

Details

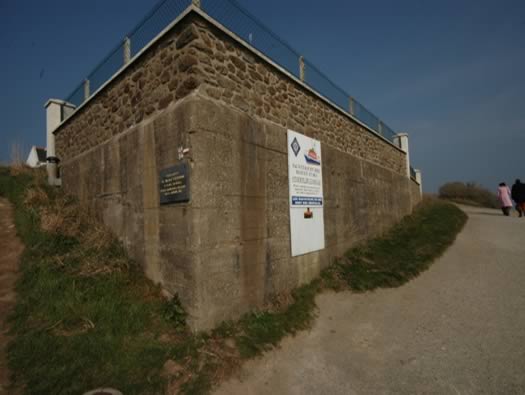

Radar Exploitation Bunker. The entrance into the bunker where quite large electrical equipment would have been brought in.


A Gema valve.





A plan of how it may be. A big entrance to allow large machinery to be moved in. You cannot get access.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra310a

Details

Radar Exploitation Bunker & Radar. Behind the French semaphore.
A view back at the semaphore with the radar bunker and to its right the place the radar would have been placed. I have cut and pasted a Seetakt Gema radar scanner onto the picture to show what it may have looked like.


Seetakt Gema radar.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

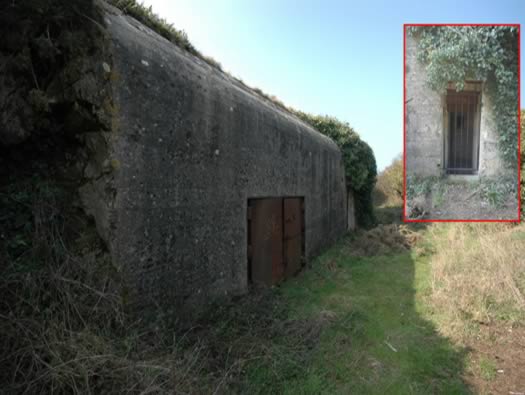

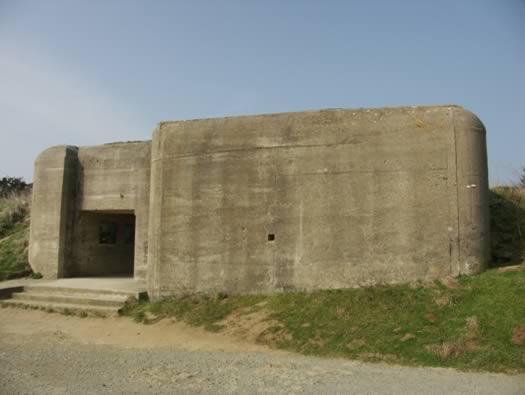

R502 twin group bunker. Inset the Tobruk attached to the bunker.


R502 twin group shelter plan.







Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

R502 twin group shelter.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin.

Details

The Pointe.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin.

Details

The west side of the Pointe

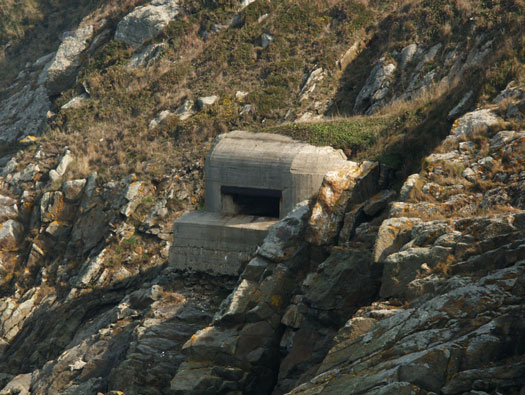

With the Semaphore above you can see one H667/SK 5cm KwK bunker and a covered Tobruk.


R667.


Image Caption

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

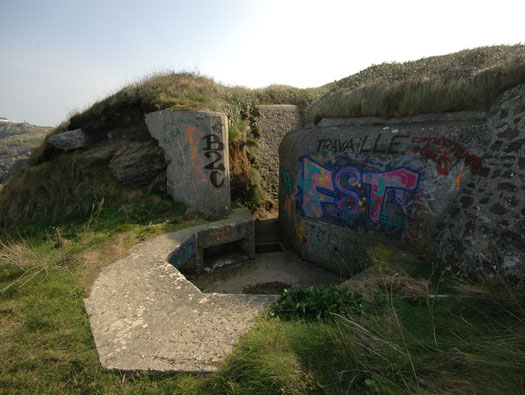

R667/Sk bunker for a 5cm KwK gun.
A long way down. R667/SK emplacement for a 5cm KwK 39 L/42 Pak gun


5cm KwK 39 L/42 Pak gun.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

How to get to the bunker. I'm too old for this.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

R667/Sk bunker for a 5cm KwK gun.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

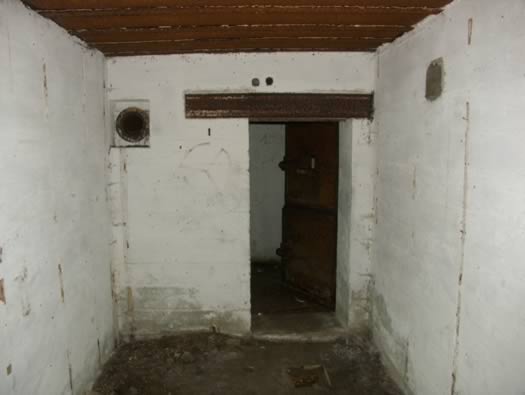

R667/Sk bunker for a 5cm KwK gun. The gun room with the ready ammunition storage on the left, then the door, to the right is a square chute for putting the fired brass case to clear them from the gun room. Behind the wall (inset) is an added ammunition room.


R667/SK with extra ammunition or crew space behind.




Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

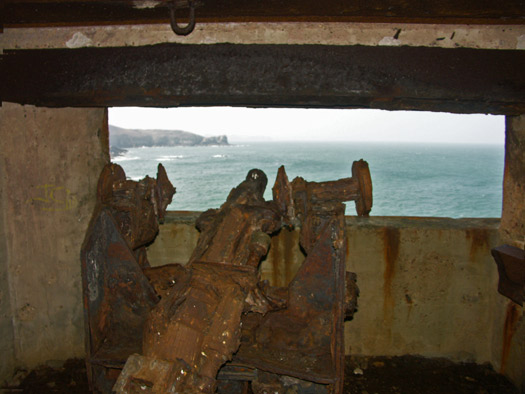

R667/Sk bunker for a 5cm KwK gun. Part of the corroded gun still in place.




Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

R667/Sk bunker for a 5cm KwK gun.




Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

R667/Sk bunker for a 5cm KwK gun the view from the door.




Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

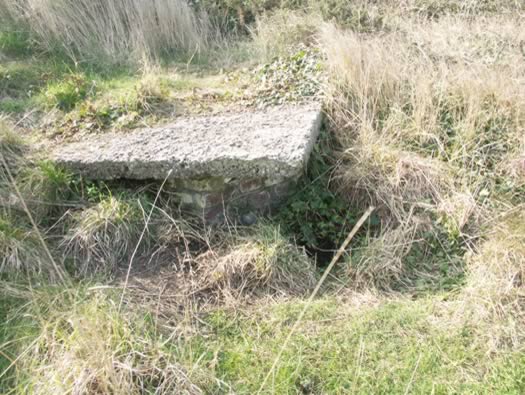

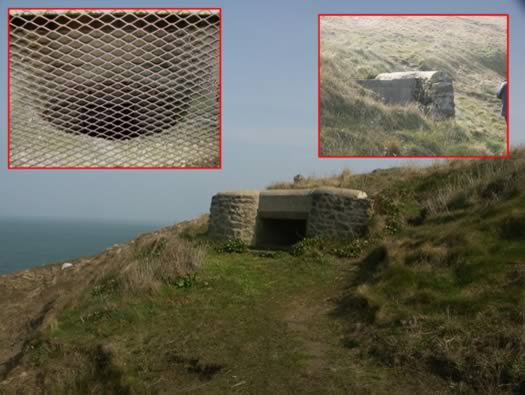

Covered Tobruk. Two very unusual Tobruk's they could only fire one direction covering a small area?




Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

Covered Tobruk two.




Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

R600 ringstand and personnel bunker.
Set into the side of the cliff is a very well camouflaged ringstand for a 5cm KwK and behind a personnel / ammunition bunker.


R600 personnel & ammunition rooms.


Ringstand.


5cm 39 L/42 KwK Pak gun.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

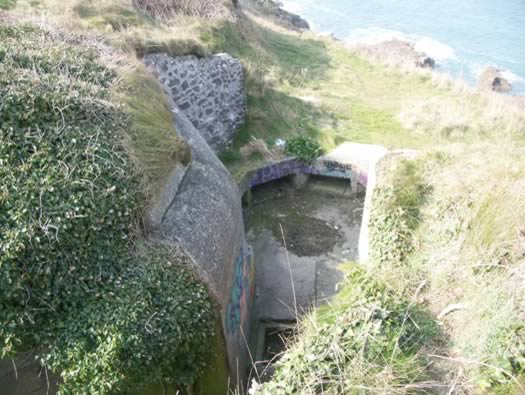

The ringstand. R600 ringstand and personnel bunker.


R600 ringstand and bunker.


5cm ammunition.




Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

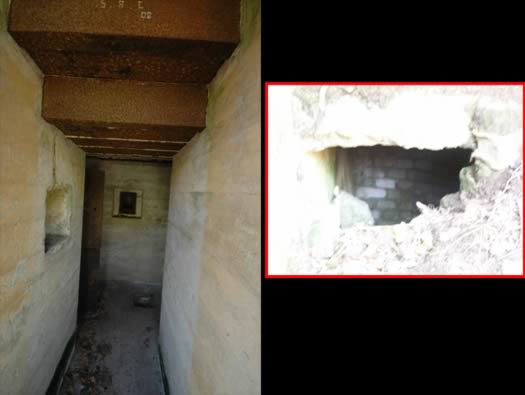

R600 ringstand and personnel bunker. A narrow passageway to the bunker.


5cm KwK 39 L/42.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

R600 ringstand. The view the gunners would have had. Ready ammunition would have been stored in the niches set around the ringstands low wall.


5cm ammunition.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

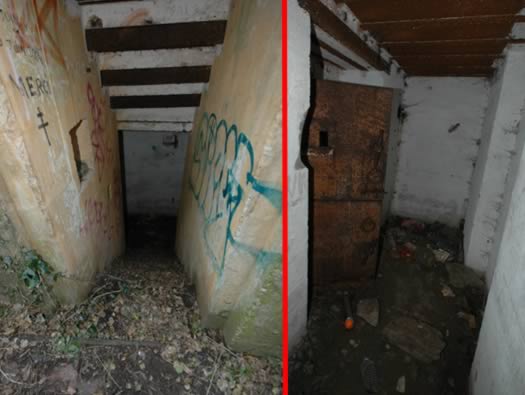

R600 ringstand and personnel bunker.
Left :
steps down into the bunker.
Right : the gas lock area and an armoured door to the ammunition room.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

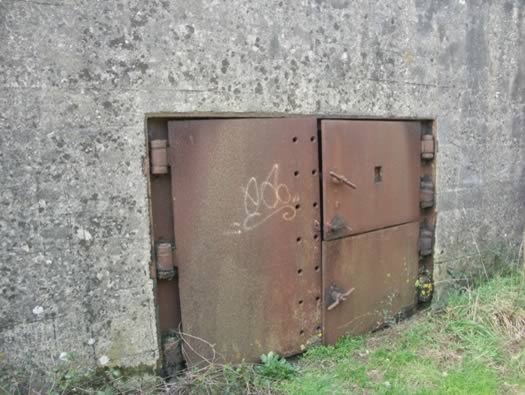

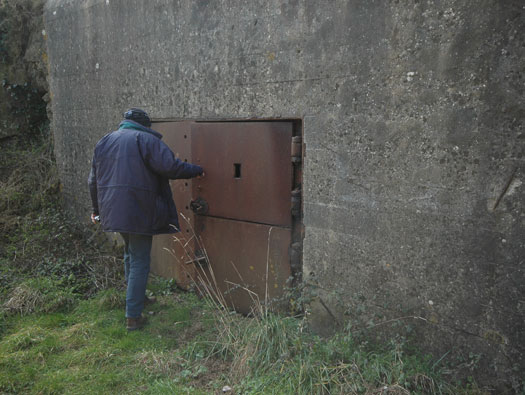

R600 ringstand and personnel bunker. The armoured door to the ammunition room showing the door fittings. A Marine type door 434p01.


Armoured 434p01 door.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

Ammunition room R600 ringstand and personnel bunker. Crew room on the left, ammunition room on the right and the gas lock in the front.


Ammunition wooden box.







Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

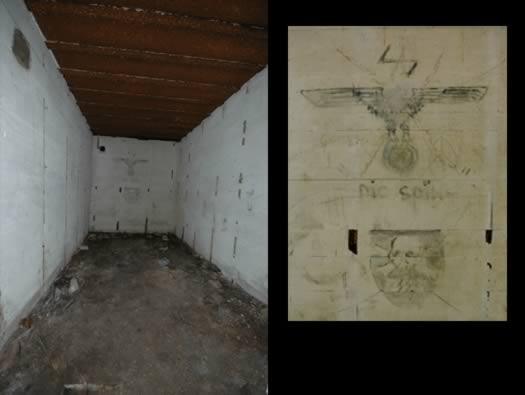

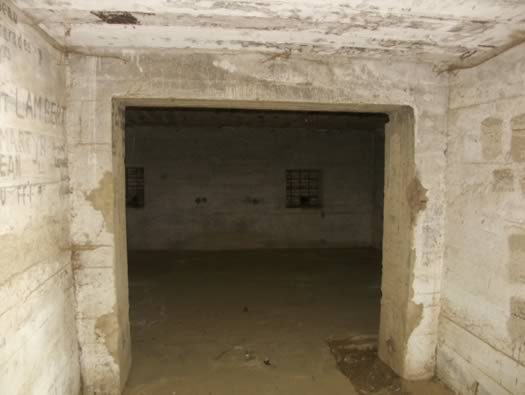

Ammunition room R600 ringstand and personnel bunker. The ammunition room, the painting on the wall is NOT original we believe.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

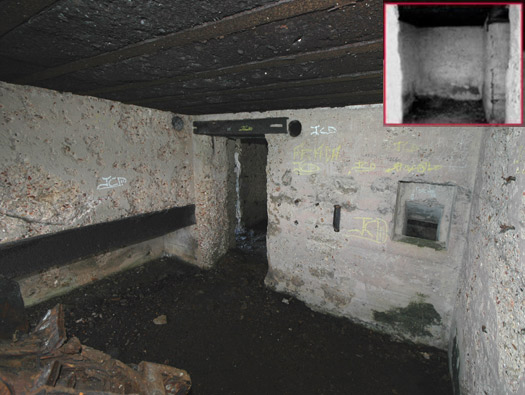

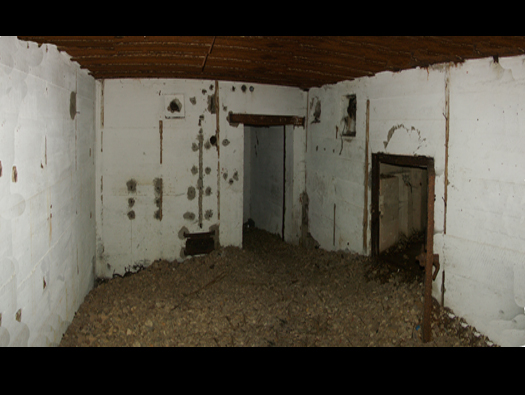

Crew room R600 ringstand and personnel bunker.

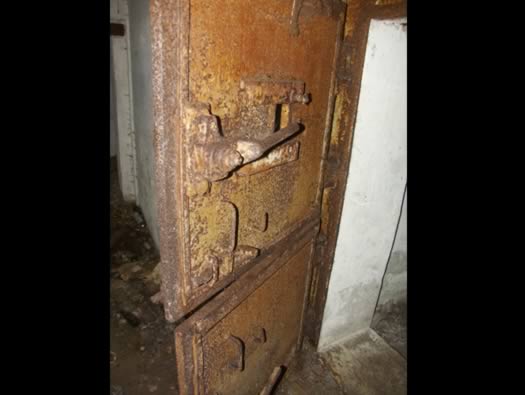

The crew room with the main door and an escape passage and 410p9 escape door.


The way the escape works with the door and a passage through the concrete wall and a steel ladder up the side.


410p9 escape door.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details
?







Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

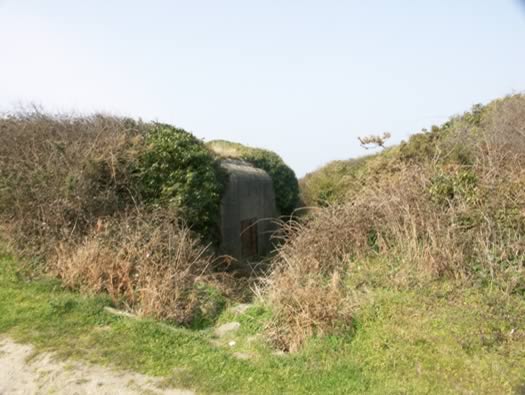

R504 gun garage for a 3.7cm Pak gun. The bunker is set into a bank with access both ways.


3.7cm Pak


R505 garage and two crew rooms.


The Pak gun could be moved up to the coast or back to the road making a flexible defence.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

R504 gun garage for a 3.7cm Pak gun.
Inset is a gate (491p2 Gittertur).


How it may look inside. An R504 at Ra670.


Crew room. An R504 at Ra670.


491p2 Gittertur gate.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

R504 gun garage for a 3.7cm Pak gun.
Looking into the entrance through the Gittertur with the close combat window protecting the entrance. On the right is the escape tunnel.


Close combat window.


Crew with a close combat window behind.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin. Ra104b

Details

R504 garage. 494p2 armoured double garage door.


494p2 double heavy steel armoured doors.


Side view of the R504 garage.


Map.

Ra104b/Ra310a Pointe du Grouin. image

18 March 2006

Information

Pointe du Grouin.

Details

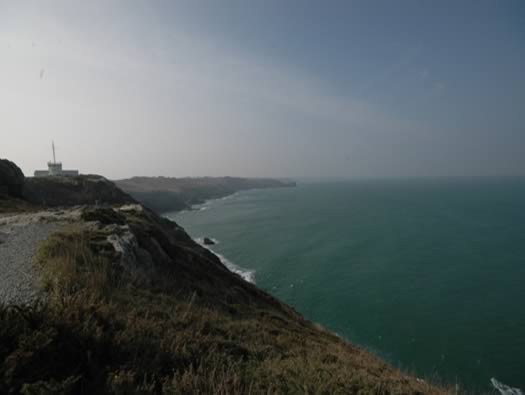

The view from the Pointe.
The Brittany coastline is very varied and beautiful, here with with cliffs, small coves, fishing ports and fine sandy beaches.
