Re137, Pointe St Mathieu.
16 October 2013
Information
Re137, Pointe St Mathieu.
Details
The large deep water port of Brest was large enough to receive battle ships like the Tirpitz. Also a U-boat pen was constructed inside the harbour. That meant that the whole area around the entrance to the Rade de Brest had to be defended. After the attack on the lock gate at St Nazaire the defence was again increased. Pointe St Mathieu is the site of the Abbaye Saint-Mathieu de Fine-Terre and Wn Re137.
Brest U-boat pens.
Re137, Pointe St Mathieu.
Google
Information
Abbaye Sainte-Mathieu.
Details
Re137, Pointe St Mathieu.
16 October 2013
Information
Re137, Pointe St Mathieu.
1 x Machinenbunker.
1 x Fu.MG Stand.
1 x Fu.MG Seetakt Gema ('Calais 7').
1./3. Funkmess Abteilung.
Part of: - Wn305.
2 x Sk/Searchlight garage bunkers.
1 x M182 searchlight bunker.
Details

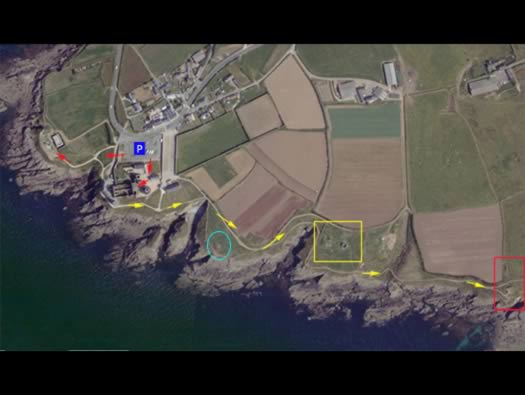

We parked in the car park at the Abbey and walked the Abbey & the Vauban fort and a small battery of French guns red arrows. Then we walked yellow arrows along the coast path. At the blue circle we found a French emplacement, yellow square a bunker & an ancient lookout and the red square a searchlight and its garage bunker at Wn Re307.
Seetakt Fu. MO. 2.
Seetakt Fu MO 2.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. Lighthouse and Abbey.
Details
The 56meter lighthouse built in 1835 and the Abbey church was built from 1157 to 1208. (It was burnt down by the English in 1558). Those English get around.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. .
Details
Abbaye Saint-Mathieu de Fine-Terre
The arms of Du Chastel.
The Kerston.
Re137, Pointe St Mathieu.
25 November 2009
Information

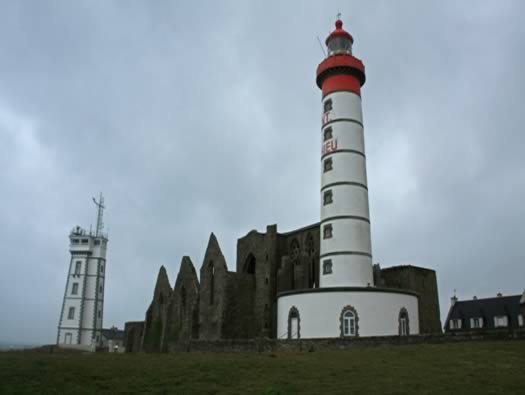

Re137, Pointe St Mathieu. Pointe St Mathieu Lighthouse & Semaphore.
Details
The semaphore (far tower) was built in 1905 to watch the entrance to Brest and may have had the Seetakt radar placed on the top. So far I cannot find any information about its whereabouts..

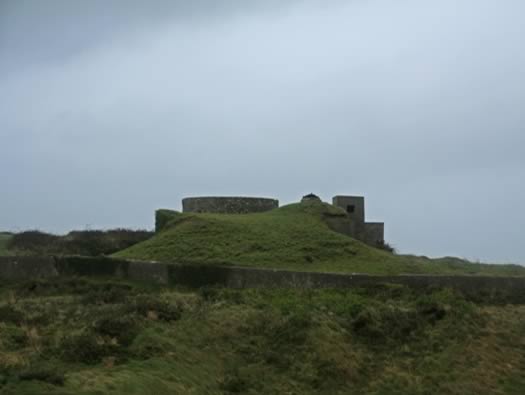

Battery & Fort.
Fort.
Re137, Pointe St Mathieu.
25 November 2009
Information

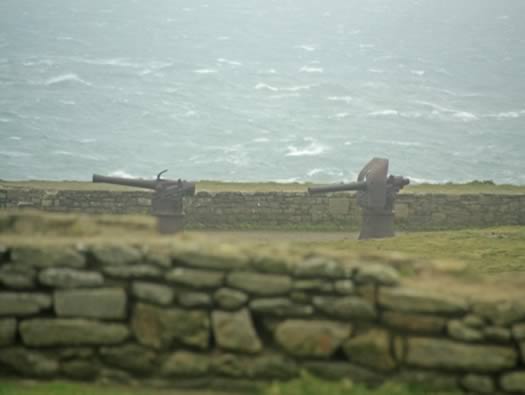

Re137, Pointe St Mathieu. French guns.
Details
This type of gun was used all around the coast of France and we often find the hold fast fittings at many coastal places.
9.5cm guns canon de cote de 95 M 93.
9.5cm guns canon de cote de 95 M 93
Bases of larger guns.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. Second French batterie.
Details
A gun emplacement hold-fast.

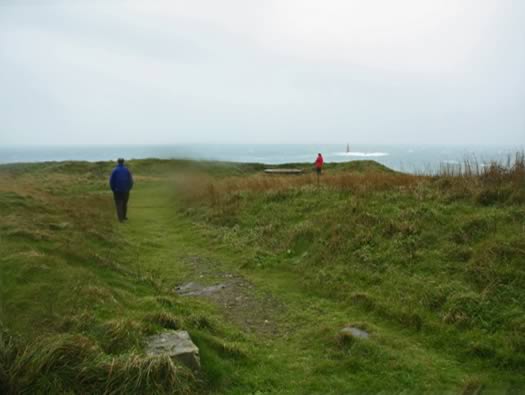

Now following the yellow arrows. Blue circle is the site of this French batterie.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. Second French batterie.
Details
After a brisk walk we came upon this gun hold fast and as there are no other works around here we presumed it to be a one gun battery position of WW1 era?
A French 13cm gun that was common around heavy batteries and may have been here?
The sort of gun it may have been being used by the Germans.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. Bunker, lookout & searchlight.
Details
We did not find any radars.

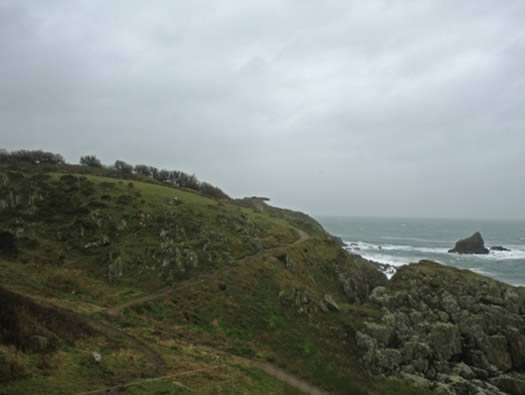

Continuing along the coast path. yellow square on map.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. Bad Weather Getting Worse
Details
It was very cold and wet.
Even the Cauliflowers are growing at a 45deg angle to the wind.
Re137, Pointe St Mathieu.
AIR 29-263 Interpretation Reports
Information
Re137, Pointe St Mathieu.

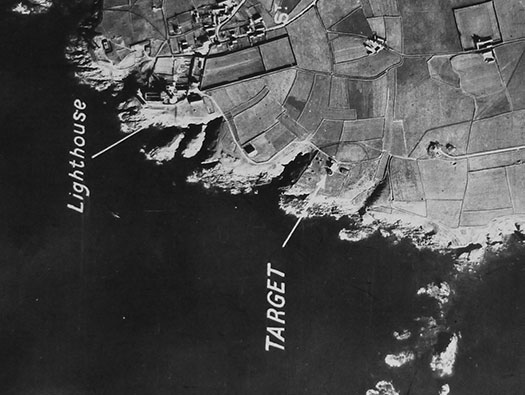

RAF Air-Photo
Details
The RAF new this was a radar site and had it as a target to attack.
A photo reconnaissance Spitfire of the RAF.
Fitting cameras.
Medmenham where the interpritation of air-photos was done.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. SK/V256 searchlight garage bunker
Details
SK/V256 (energy bunker for the radar) this could be the power generating bunker for a radar.
A plan of the bunker at StP Kerlohic an SK or a (V256) for radar Fu.M.O.51 Mammut Gustav.
This is a Frieburg 11 not that dissimilar to a Fu.M.O.51 Mammut - Gustav.
Generator.
Re137, Pointe St Mathieu.
25 November 2009
Information

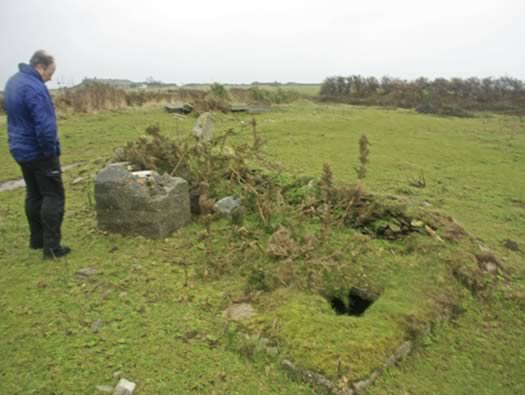

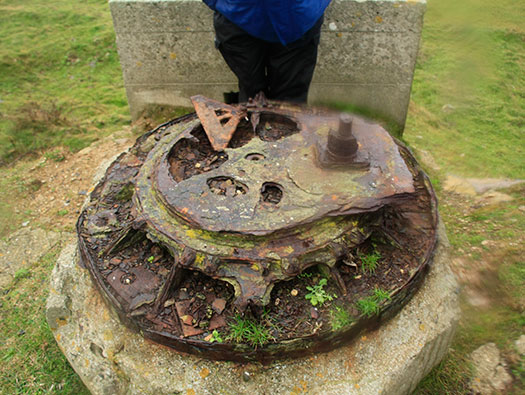

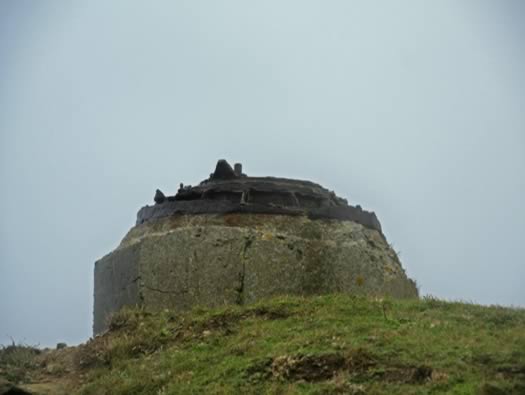

Re137, Pointe St Mathieu. Observation escape/hatch or it may be the base of a FuMO 51 radar.
Details
Tank or ships type hatch? well that is what we thought but it looks like it is the base of a radar.
Hatch.
Grill or air vent chimney.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. Observation escape/hatch or it may be the base of a FuMO 51 radar.
Details
Tank or ships type hatch? well that is what we thought but it looks like it is the base of a radar.
Re137, Pointe St Mathieu.
25 November 2009
Information

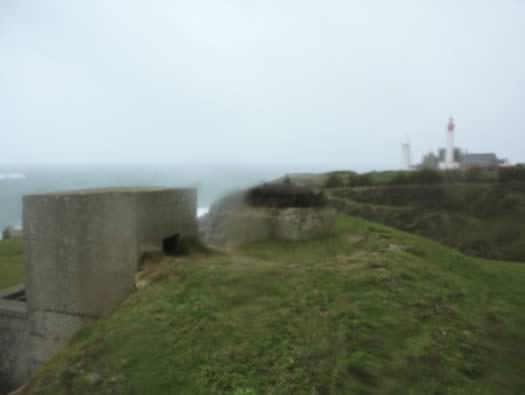

Re137, Pointe St Mathieu. Searchlight garage bunker
Details
Behind the bunker is a French 18/19th cent. guard lookout?
They are at it again.
Re137, Pointe St Mathieu.
25 November 2009
Information

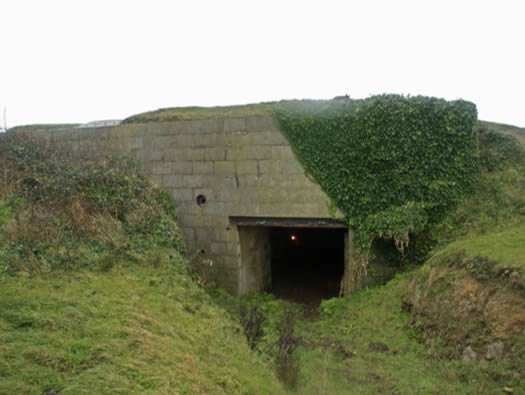

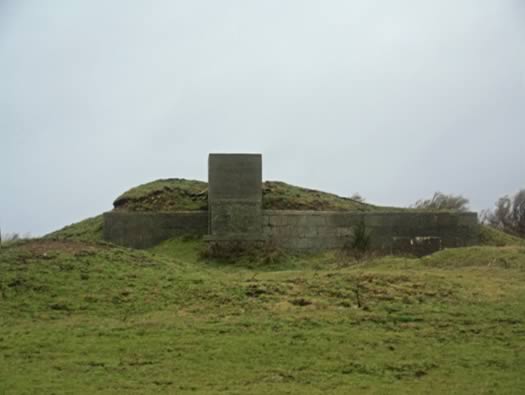

Re137, Pointe St Mathieu. Searchlight garage bunker, viewed from the Sea.
Details
V 256 (energy bunker for the radar) this could be the power generating bunker for a radar.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. Searchlight garage bunker
Details
V 256 (energy bunker for the radar) made from Formstein (breeze block shuttering, filled with concrete).
Site plan.
Re137, Pointe St Mathieu.
25 November 2009
Information

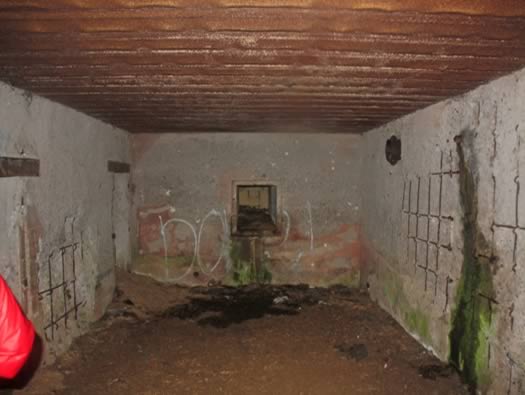

Re137, Pointe St Mathieu. Garage.
Details
Three doors to the left, first for access to the foot entrance, second to the crew room and third the fuel store room. The square hole in the end wall is the breather chimney and escape tunnel.
A generator may have sat in front of the chimney/escape mounted on the floor.
This is a Frieburg 11 not that dissimilar to a Fu.M.O.51 Mammut - Gustav.
Generator of the type that may have been used here.
Re137, Pointe St Mathieu.
25 November 2009
Information

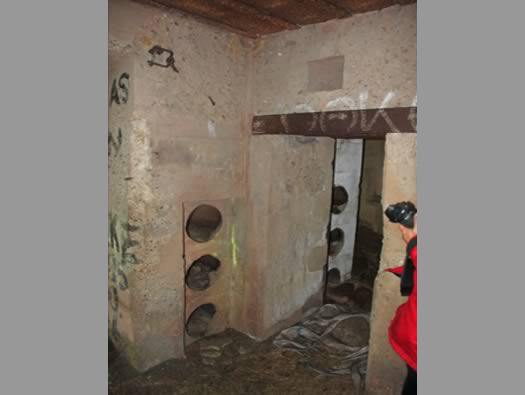

Re137, Pointe St Mathieu. Note the air vents.
Details
Three large air pipes and a single door, a 19P7 type door was fitted here.
19p7 door would have fitted here.
A plan of an SK search light garage bunker.
Re137, Pointe St Mathieu.
25 November 2009
Information

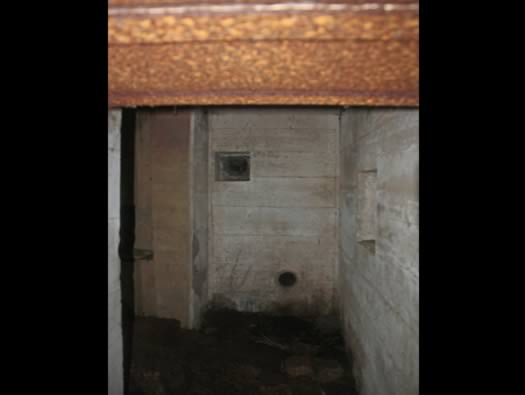

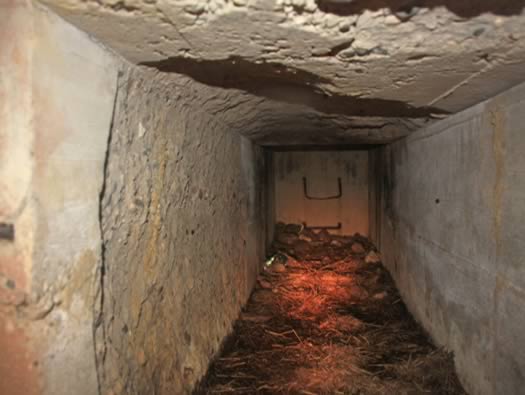

Re137, Pointe St Mathieu. Passage way out.
Details
Three large air pipes and a single door, a 19P7 type door was fitted here.
Way out with aerial slots on both sides of the door & also the camouflage still to be seen painted on the wall.
Re137, Pointe St Mathieu.
25 November 2009
Information

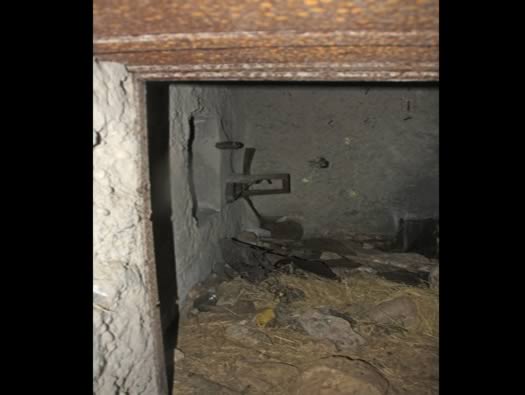

Re137, Pointe St Mathieu. Crew room.
Details
The metal fittings of the anti-gas filter still on the wall next to the close combat window.
Close combat window.
Left : close combat window & air filter for anti-gas filtration.
Right : inside of the close combat embrasure.
Anti-gas filters.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. Crew room.
Details

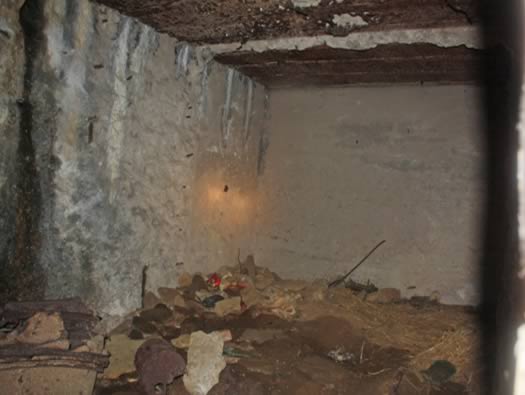

This is the rest of the crew room.
Plan.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu.
Details
Chimney air vent/escape
Plan of how the generator may have been set up in this room.
Cupola escape & air vent/chimney.
Re137, Pointe St Mathieu.
25 November 2009
Information

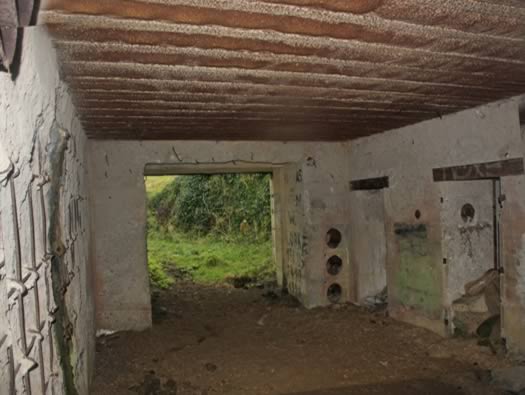

Re137, Pointe St Mathieu. Garage looking out.
Details
Looking at the garage with the door to the crew room & foot entrance. The vent in the door of the crew room is an equalizer vent.
Equalizing valve.
Damage to the walls may have been caused by an internal explosion after it was captured.
Door fittings.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. SK searchlight bunker
Details
V 256 (energy bunker for the radar).
Tobruk, note the hooks to hold a camouflage net.
Camouflage netting.
Site plan.
Re137, Pointe St Mathieu.
25 November 2009
Information

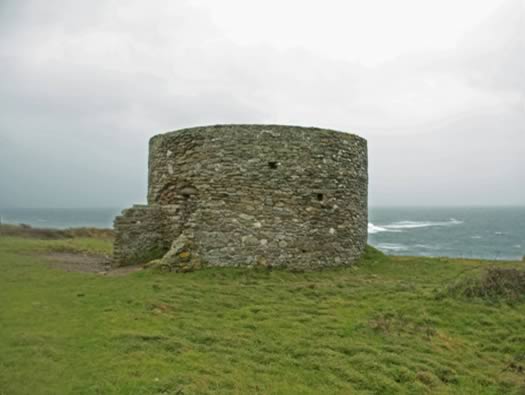

Re137, Pointe St Mathieu. Early French lookout or a Freya radar.
Details
Freya early warning radar.
Openings in the wall use lintels made of concrete.
Freya radar..
Plan.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. Field bunker.
Details
Walking the coast path this is the first fortification of Re305 a field type bunker. There is supposed to be a V256 and I have no idea what one looks like yet?
The walking route.
Re137, Pointe St Mathieu.
25 November 2009
Information

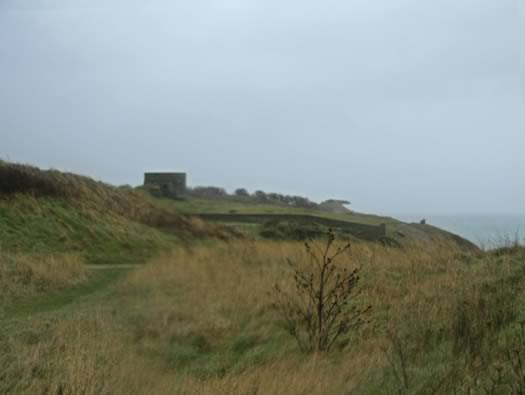

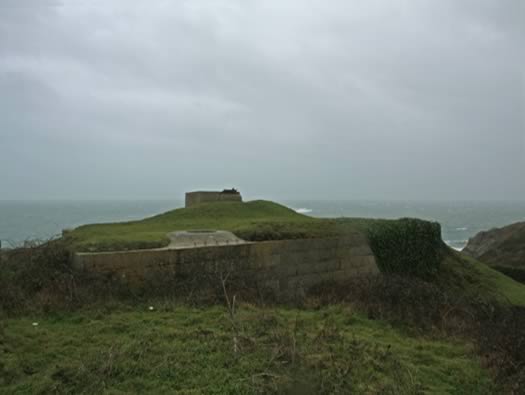

Re137, Pointe St Mathieu. M182 Emplacement for a 150cm Searchlight
Details
In the distance is an M182 searchlight emplacement looking out over the cliffs, These searchlights, three of them in this area would have been working with the local batteries of 'Holtzendorf ' and the large gun battery 'Graff Von Spee'.
Image Caption
We are now coming up to the red square.
Re137, Pointe St Mathieu.
25 November 2009
Information

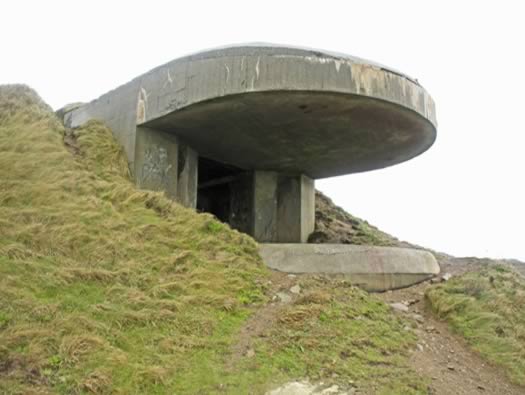

Re137, Pointe St Mathieu. M182
Details
Emplacement for a 150cm Searchlight.
Left & Right are plans of the M182 searchlight emplacement.
Elevation.
150cm searchlight.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu.
Details

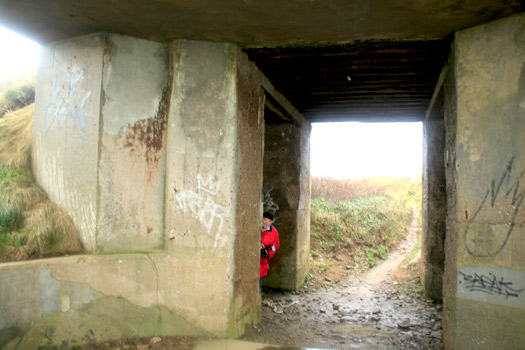

Peep oh!
Re137, Pointe St Mathieu.
25 November 2009
Information

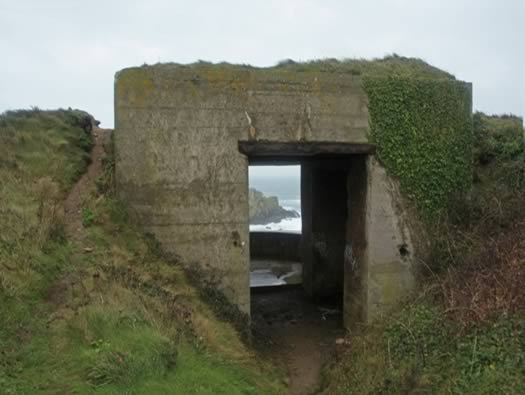

Re137, Pointe St Mathieu. M182
Details
Emplacement for a 150cm Searchlight.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu. M182
Details

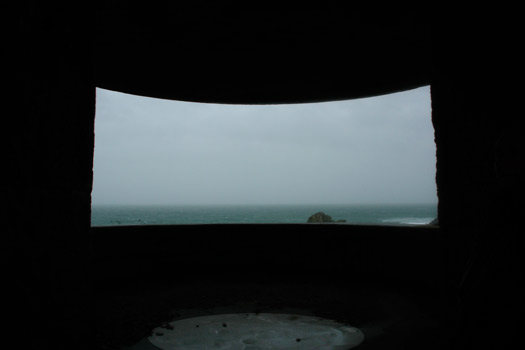

View through the emplacement from the back.
Re137, Pointe St Mathieu.
25 November 2009
Information

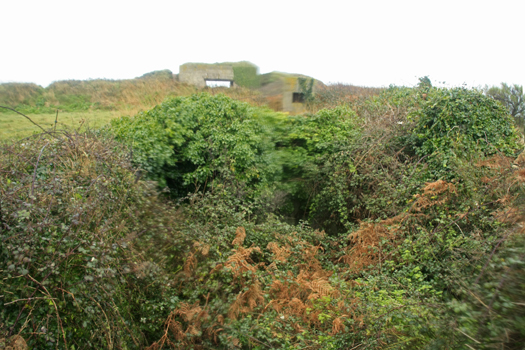

Re137, Pointe St Mathieu. Searchlight emplacement & garage.
Details
In the undergrowth is an Sk searchlight garage we could not get down there to look inside.
My plan.
The searchlight bunkers Tobruk.
Re137, Pointe St Mathieu.
25 November 2009
Information

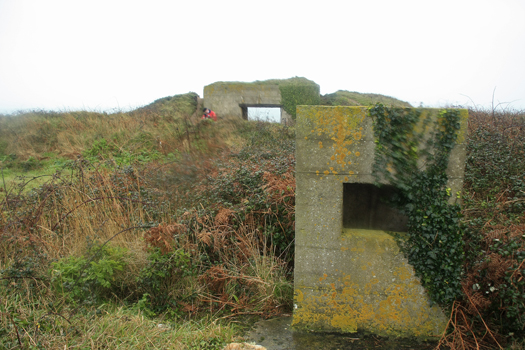

Re137, Pointe St Mathieu. The Air vent/escape.
Details
In the distance is an M182 searchlight emplacement looking out over the cliffs, These searchlights, three of them in this area would have been working with the local batteries of Holtzendorf and the large gun battery Graff Von Spee.
Plan.
Re137, Pointe St Mathieu.
25 November 2009
Information

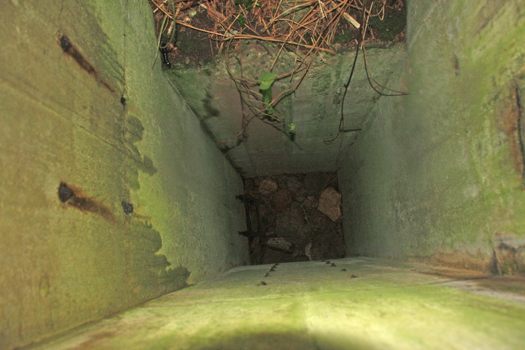

Re137, Pointe St Mathieu. Looking down the air vent/escape.
Details
Note the steel ladder rungs have all been cut off.
Vent.
Re137, Pointe St Mathieu.
25 November 2009
Information
Re137, Pointe St Mathieu.
Details
The next landfall is the Americas.
