The deep water port of Brest was large enough to receive battle ships like the Tirpitz. Also a U-boat pen was constructed inside the harbour. That meant that the whole area around the entrance to the Rade de Brest had to be defended.
1 x S414 FCP.
1 x M151 bunker.
6 x Vf58c Tobruk's.
1 x Flakstellung 2cm Flak28.
1 x- L401a.
After the attack on the lock gate at St Nazaire the defence was again increased. A batterie of four 28.0cm SKL/40 guns were placed in three open emplacements and one in a large casemate. These guns were targeted from a very large fire control post (PDT).

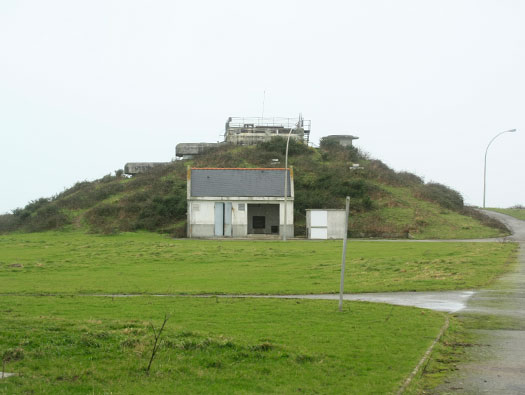

A contemporary view of the post.
Re302 S414 Fire Control Post [PDT]
Google
Information
Re302 S414 Fire Control Post [PDT]
for Bat. 'Graff Spee'.
Details
Le Conquet.
Brest U-boat base.
Re302 S414 Fire Control Post [PDT]
Google
Information
Re302 S414 Fire Control Post [PDT]
for Bat. 'Graff Spee'.
Details
Plan of the area showing where Re302 is forward of Re303 the batterie.
Re302 S414 Fire Control Post [PDT]
Google
Information
Re302 S414 Fire Control Post [PDT]
for Bat. 'Graff Spee'. Pointe St-Mathieu.
Details
We parked in the car park at the Abbey and walked the Abbey, Vauban fort and a small battery of French guns red arrow. Then we walked the yellow arrows along the coast path, finding several gun positions, search lights, AA battery and MKB Von Holtzendorf. Continuing inland you came upon the large fire control post (PDT) for Bat. 'Graff Spee'.
Pointe St-Mathieu.
S414.
Batterie 'Graff Spee'.
Re302 S414 Fire Control Post [PDT]
Defence pf Brest file HQ 29th Inf. Div.
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'.
Plan
Details
Defence pf Brest file HQ 29th Inf. Div. panflet.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'..
Details

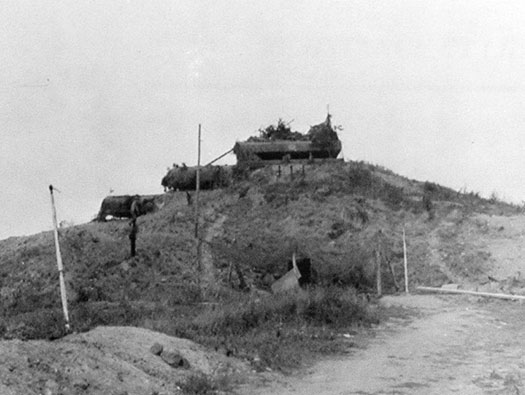

Towering up out of the flat landscape this FCP was called by the Americans the 'Hill', although it was camouflaged it could still be seen for miles around
2cm Flak28.
Tobruk local defence.
M151 Quarters for 28men.
Re302 S414 Fire Control Post [PDT]
1944
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'.
Details
'The Hill.'
2cm Flak28.
Tobruk local defence.
M151 Quarters for 28men.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'.
Details
Seen from the road.
Two contemporary photos.
The view to the sea.
Re302 S414 Fire Control Post [PDT]
Report on Selected German Coastal Batteries in France, May 1946
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'. Plan of an S414.
Details
Re302 S414 Fire Control Post [PDT]
Report on Selected German Coastal Batteries in France, May 1946
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'. Plan of an S414.
Details
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'. Plan of an S414.
Details
Built on several levels with rangefinder, two observation, computing, telephone exchange, wireless, ventilation rooms plus not shown here an extra M151 Quarters bunker.
Inside another type of FCP.
Observation room.
Range finder.
Re302 S414 Fire Control Post [PDT]
1945
Information
Re302 S414 Fire Control Post [PDT] 'Graff Spee'.
Details
This picture shows the attempts at camouflage.
Re302 S414 Fire Control Post [PDT]
Report on Selected German Coastal Batteries in France, May 1946
Information
Re302
S414 Fire Control Post [PDT] 'Graff Spee'.
Details
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'.
Details
From the roadway.
Plan of the S414 with an attached M151 bunker under the gray/white French building (that looks like toilets).
Plan of an M151 quarters bunker for 1 officer, two NCO's & 24 seamen, this bunker was attached to the S414 PDT via a tunnel.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'. Flak open emplacement and Tobruk.
Details
One book states a Flakstellung with a 2cm Flak28 but another says it was a Flakstellung L401A for an 8.8cm gun???
L401A emplacement for an 8.8cm or 10.5cm Flak.
Tobruk.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'.
Plan
Details

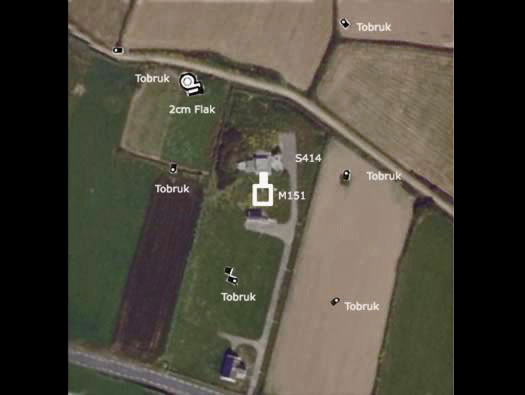

Plan of the Site.
Surrounding the bunker are six Tobruk's, a Flakstellung, the M151 quarters bunker and the S414 in the centre.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'.
M151 Quarters.
Details
Re303 the main battery site has an M151 quarters bunker in the centre of the battery like the one here. So I have added those pictures to show what it may have look like at the.
The main picture - is the passage In, with communication cables on the right and two aerial fittings in front and the main door to the left. A telescopic aerial and a radio send & receiver would be set into the slot.
Telescopic aerial in place in a bunker.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'.
M151 Quarters.
Details

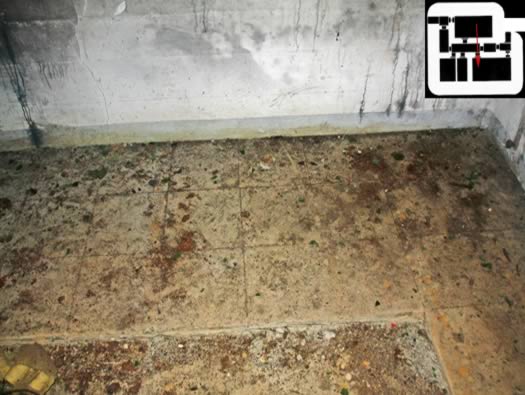

The floors were tiled to make them a feel a bit more homely but also they helped to cushion the impact of artillery fire on the legs & feet.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'.
M151 Quarters.
Details
The two larger rooms were for the seamen. The larger of the two small rooms was for two NCO's and the other for the officer.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] for Bat. 'Graff Spee'.
M151 Quarters.
Details

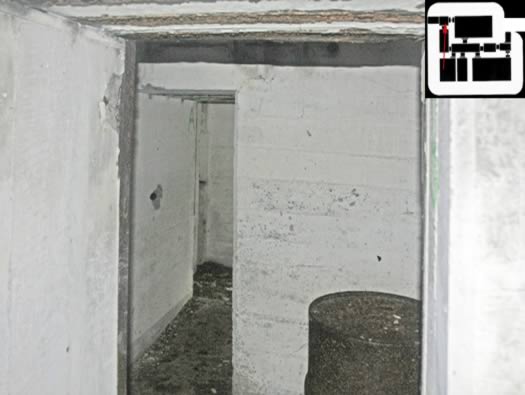

Entrance corridor.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re303 M.K.B. 'Graff Spee' Battery
Plan.
Details

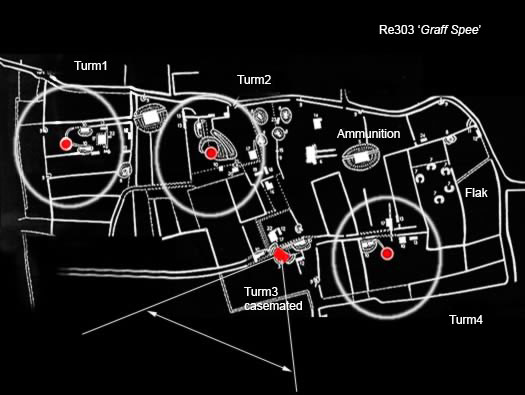

We now go to the fight for BatterieRe303 'Graff Spee' & the FCP.
Three of the four 28cm guns could traverse 360deg and instead of attacking sea targets they had to fire on Americans attacking from inland. They said the shells sounded like express trains rushing through the air.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] 'Graff Spee'. The Battlefield.
Details
The rangers landed in Normandy on D-Day at Pointe du Hoc. After the breakout from Normandy they were used in western Brittany supporting the 29th Inf. Div.
The red arrows are the route they took then attack Re302.
One of their jobs was to clear the fortifications of the Le Conquet peninsular. A mixed force of 2nd & 5th Rangers took (I am presuming the Flak bunker ) and then capturing about 40 defenders.
Rangers arm badge.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] 'Graff Spee'.
Details
How it may have looked after the battle. A room in and S414 in the Gironde.
An English speaking German officer took Lt Eldin [left] with three men, crossed a mine field to the main bunker entrance. Leaving two men to guard the rear door they continued inside.
2nd/5th Rangers after D-day.
A large bunker entrance door.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] 'Graff Spee'.
Details
How it may have looked steps up into the observation room. A room in and S414 in the Gironde.
Ranger with machine gun.
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Re302 S414 Fire Control Post [PDT] 'Graff Spee'.
Details
There would be a heavy door here.
Re302 S414 Fire Control Post [PDT]
Defence of Brest file HQ 29th Inf. Div.
Information
Re302 S414 Fire Control Post [PDT] 'Graff Spee'.
Details

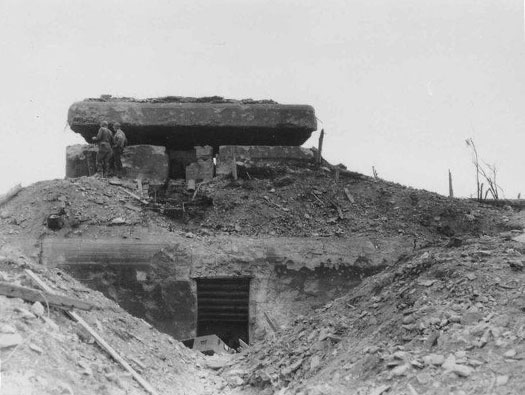

After its capture by the Rangers
Re302 S414 Fire Control Post [PDT]
Defence of Brest file HQ 29th Inf. Div.
Information
Re302 S414 Fire Control Post [PDT]
Details
From a pamphlet from the HQ 29th Inf. Div.
It is now a very good museum
Re302 S414 Fire Control Post [PDT]
Re302 S414 Fire Control Post [PDT]
25 November 2013
Information
Memorial Plaque
Details
"Le 9 September 1944 Le co Rudder du 2d RANGAERS et le col Faucher commandant des FFI ont recu en ce lieu poste de commandement des batteries de Keringar et des Rospects la reddition du col Allemand Furst."
Col. Rudder
From the 29th Div guest book entry of Col Furst's & it says "Not very happy, Heil Hitler!".
