Le Conquet, Western Brittany a small fishing port looking out into the wild Atlantik.


The large deep water port of Brest was big enough to receive battle ships like the Tirpitz. Also a U-boat pen was constructed inside the harbour. That meant that the whole area around the entrance to the Rade de Brest had to be defended. After the attack on the lock gate at St Nazaire the defence was again increased. Kermorvan was the start of the northern defence of the port of Brest.


Position of bunkers on the point.


StP Kermorvan. StP Re104 to Re119.

28 October 2013

Information

Le Conquet.

Details

StP Kermorvan.
Re104 nord est - 1 x R505. 1 x 3.7cm Pak 35/36.
Re105 nord est - 1 x R634. 1 x Unterstand. 1 x Vf58c.
Re106 nord ouest - 1 x R628. 1 x Vf58c. 1 x Stollen.
Re107 nord - 2 x R601. 2 x 7.5cm Pak 97(f).
Re108 nord - 1 x R648.
Re109 nord - 1 x Vf58c. 1 x Unterstand.
Re110 nord, fortin de L'llette - 1 x Casernment.
Re111 - 1 x R515. 1 x Vf58c.
Re112 ouest Werk 'Koln' - 2 x SK/Schartenstand. 2 x 7.5cm K.M.97(f). 1 x Stollen.
Re113 s-o - 1 x R505. 1 x unterstand. 1 x Vf58c. 1 x 3.7cm Pak 35/36.
Re114 sud - SK/MG Schartenstand. 1 x R628. 1 x Vf58c.
Re115 sud-est - 1 x R634. 1 x Vf58c.
Re116 est - 1 SK/Doppel M.G. Schartenstand. 1 x R635. 1 x Stollen.
Re117 centre - 1 x R621. 2 x Vf58c.
Re118 centre - 1 x 638.
Re119 centre - 1 x R628. 2 x Vf58c. 1 x Stollen.


L'llette ancien fort Corps de Garde. .


Corps de garde.

StP Kermorvan. StP Re104 to Re119. image

28 October 2013

Information

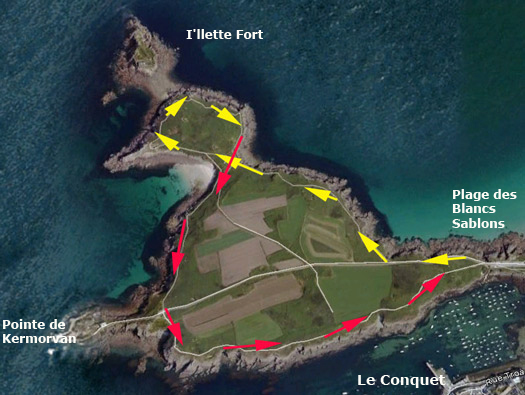

The Route we Walked.

Details

StP Kermorvan held several Wn's Re104 to Re115. There were and are many defence structures some hard to find, most blocked off by gates to stop entry but a an interesting walk around on a very blustery wet day. There is plenty of history here not just WW2.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re115 The Isthmus to the Pointe

Details

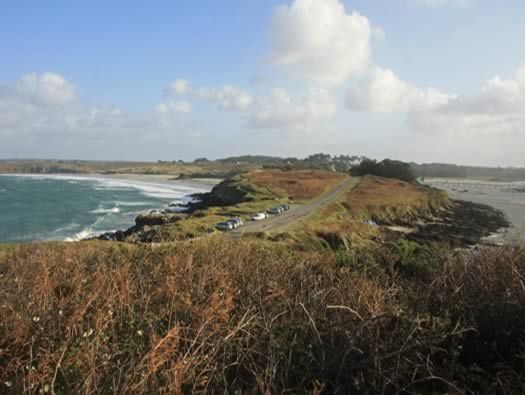

A view from the bunkers covering the entrance. The weather was atrocious (it may not look it in some pictures, but it was).


Image Caption


StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

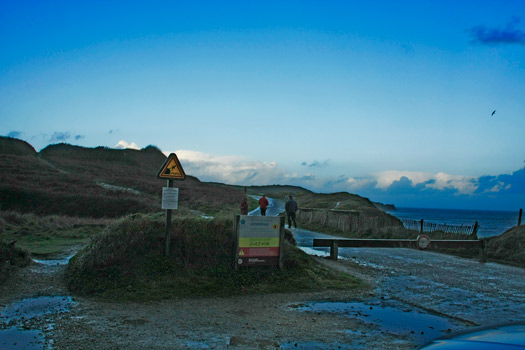

Re115 The Start of our Walk, Dull, Dark & Very Wet

Details

I have worked hard on this picture to brighten it up.




StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

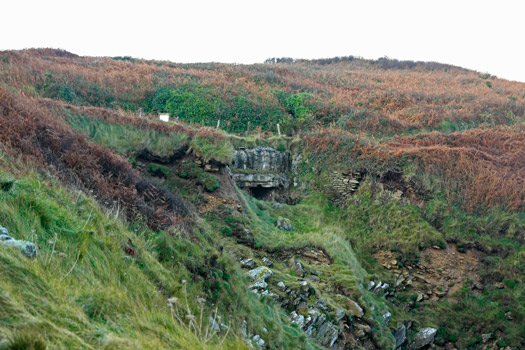

Re115 Machine Gun Bunkers

Details

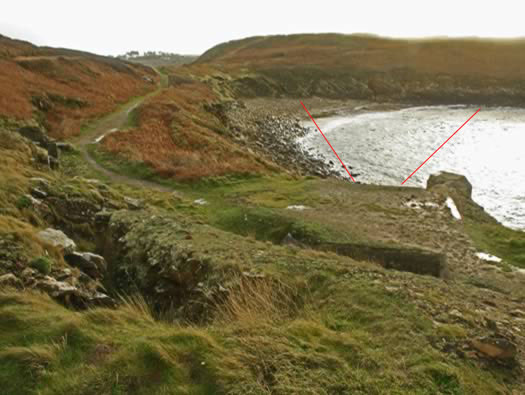

There were two machine-gun bunkers set into the hillside and covered the entrance to StP Kermorvan.




StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re115 Machine-gun Bunker, left hand.

Details

Very little can be seen now.

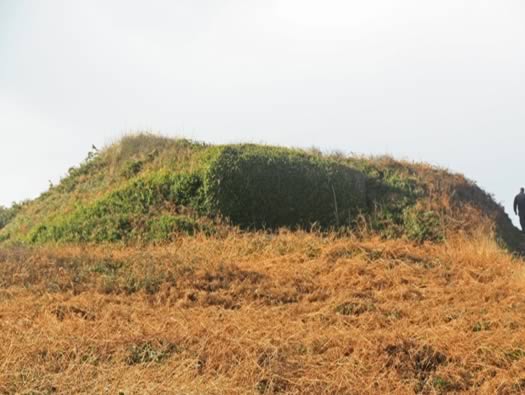

The first two machine-gun emplacements, a Tobruk & then an R505.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re115 R635 Twin Group Bunker.

Details

Set behind the cover of a bank and two machine gun bunkers is an H635 twin group bunker for possibly 12 men. A periscope would be able to view 360degrees and allow the men inside a good view.


Plan of an R635 twin group bunker, on the left a tobruk, gas lock and one crew room. On the right, gas lock with a small room for a periscope and another crew room.


R635 twin group bunker.




StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re115 R635 Twin Group Bunker

Details

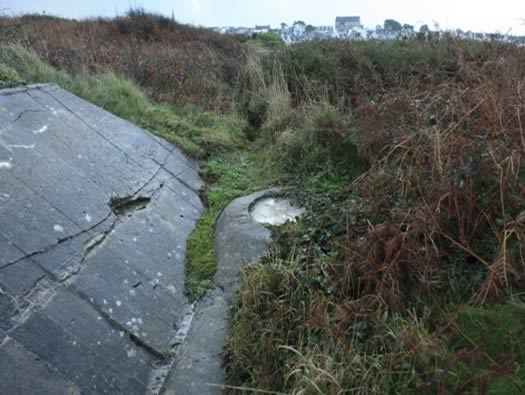

R635 bunkers had a strengthened forward apron for protection from that direction and two flanking walls covering the entrances.


R635.







StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re115 R635 Twin Group Bunker.

Details

The entrances now blocked off.

imageThe two entrances.




StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re115 Tobruk Vf58c.

Details

Set on the north shoulder of the peninsular is this tobruk.







StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re115 Tobruk Vf58c.

Details

A very simple concrete bunker for one or two men. One on the gun and the other feeding the ammunition.


Plan of Tobruk.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re104 a R505 PaK Casemate for 3,7cm with Armoured Plate.

Details

Set down in the rocks with access from the rear.


R505 PaK Casemate.


Inside a casemate.




StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re104 a R505 PaK Casemate for 3,7cm.

Details

Looking from the rear of the bunker at the entrance to allow a 3.7cm PaK A/T gun can get into the gun room.


Plan an R505 casemate. The small room is for ammunition, the large room is for crew and the long thin room is the gas lock corridor with a periscope.


Close combat window.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re104 a R505 PaK Casemate for 3,7cm.

Details

Gun room looking across the bay.


The way in to the bunker.

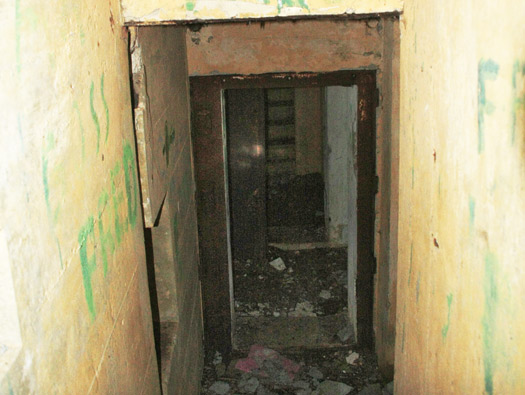

View into the gas lock.


View into the gas lock from the gun room.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re104 a R505 PaK Casemate for 3,7cm Gun Room

Details

Very small gun room.


485P2 Panzerscharten platte für 3,7cm Pak.


A cut off bolt that would have held the plate in place and then cemented in.


3.7cm Pak anti-tank gun.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re104 a R505 PaK Casemate for 3,7cm Field of Fire

Details

Not a very powerful gun but it would have done enough damage to a landing craft.


Waiting game.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re105 the Path Continues with some Concrete

Details

There are trenches all over this peninsular.

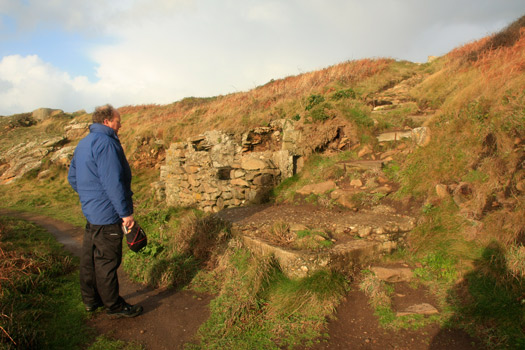

A trench cut into the rocks that lead to the Tobruk.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re106 a R628 Group Bunker.

Details

An R628 a group bunker, smaller version of an R635 like the earlier one we saw at the entrance to the peninsular.


R638 group bunker.


Steps down into the bunker.


How it may look inside?

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re111, 110, 109, 108, 107 & 106. Moving on.

Details

Continuing on, we missed an R634 a six embrasured turret


R648 bunker with one single embrasure.


Re628 group bunker.


Four Tobruk's.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re106 Tobruk Vf58c.

Details









StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re106 an R628 Group Bunker with Forward Apron.

Details

That man again photographing (with HIS Nikon) mine is a Canon.


R628 group bunker with trenches in and out.



Bunker telephone.

StP Kermorvan. StP Re104 to Re119.image

03 December 2009

Information

Re106 an Integrated Tobruk on the side of this R628

Details

Trenches coming into the bunker entrance.


Image Caption


StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re106 trench cut into the Rock and Access to Bunker

Details

Some additional details will go here


Trench cut in the rock.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re106 R628 Group Bunker Entrance.

Details

Some additional details will go here


The entrance is now sealed up.


Plan of an R628 a group bunker.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re107 an R601 Anti Tank Gun Bunker with a steel roof.

Details

There are a pair of theses bunkers on the neck of this part of the pointe.


R601 plan with the gun garage on the left, main room for the gun crew & the smaller room for stores, ammunition underneath.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re107 an R601 Gun Garage.

Details

Three heavy '7P7' 10cm steel plates would have been bolted on to the top of the bunker as protection for the gun & crew.


One of the long bolts that would have held the roof on.


The two garages side by side.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re107 an R601 Gun Garage.

Details

Some additional details will go here


The steel plate on the roof with crew quarters on the right and ammunition storage below.


The niche in the end wall is for the gun barrel to fit in.

StP Kermorvan. StP Re104 to Re119.

03 December 2009

Information

imageOld Houses.

Details



StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re111 Old Houses.

Details

These look like some very old dwellings, possibly fisherman's cottages.


Breton Fishermen

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re111 an R515 Machine Gun Casemate.

Details




Plan of an R515 machine gun casemate with forward apron.


Inside a machine gun emplacement.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re111 R515 Casemate for a Machine Gun.

Details

Note the bolts still sticking out of the concrete.


78P9 Pz Schartenplatte for a machine gun.


Plan of an H515 casemate for a machine gun.


On the plan is a red dot, its a periscope and this is what the commander of the bunker would use to search for targets.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re111 R515 Rear Entrance

Details

A trench would have lead into the rear door and connected it to other defence features.


Periscope tube on the roof of the bunker.


Gun room of an R515 in St Malo area.


The view through the periscope.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re111 R515 Rear Entrance.

Details

Rear entrance, the three square holes are for the rear door fitting and the P shaped is where the aerial was fitted.


A 729P3 door that may have been fitted here.


StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re111 R515 Gas Lock.

Details




Plan R515.


The Periscope room.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re111 an R515 Machine Gun Casemate.

Details

Rear access to the R515 & a Vf58c Tobruk on the hill.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re111 Vf58c Tobruk & a Bunker Hunter in Red

Details

Imagine being a soldier ordered to do a 12 hour guard duty in this tobruk. On this day the wind was very cold & strong.


Image Caption


Image Caption




StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re111 View down to the R515

Details

Trench system and the R515.

StP Kermorvan. StP Re104 to Re119. image

03 December 2009

Information

Re112 Pointe de Kermorvan

Details




StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re110 L'llette Fort

Details




Corps de Garde.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re109 Tobruk & Re110 L'llette Fort.

Details




Image Caption


Inside a Tobruk.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re110 L'llette Fort

Details

There was a machine-gun position on the island firing to the right as we look at it. We did not go out there, pity! 17th century, 18th century

imageCorps de Garde plan

.
imageCorps de Garde.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re107 Working our way Around the Coast Path.

Details

View across to the Plage des Blancs Sablon which has its own sets of bunkers both ends of the beach & two French forts.


Ah! the rain coming in again.


StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re107 Second H601.

Details

Home for a French 7.5cm Pak anti tank gun.





The two H601 garages.


They had a round area in front to fire the gun from.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re107 R601 Entrance to the Crew Room & Tobruk.

Details

On this H601 the tobruk is on the right and left on the other one.


A 7.5cm PAK 97/38(f) anti-tank gun.


Plan of the bunker layout


Anti tank gun bunker in action.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re107 R601 Anti-tank Gun Bunker with Roof Canopy.

Details

The gun garage.


Bolts cut to remove the 45Ton steel roof.


Damage from a bullet. Its still in there. .


Entrance into the crew room.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re112 Pointe de Kermorvan

Details







I have no idea what this was but its in the path??

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re112 Pointe de Kermorvan "Werk Koln".

Details

We would have liked to have gone out to it but we did not.


The Vauban fort was renamed as "Werk Koln" under the occupation and Re112.


Corps de Garde.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re112 Pointe de Kermorvan "Werk Koln".

Details

It looks heavily defended but there are only two SK casemates for 7.5cm K. M.97 (f) guns on the Pointe and they are joined by a tunnel and of course the French fort.
"SK" bunker = (Sonderkonstruction) Special construction.


7.5cm K. M.97 (f) guns.







StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re112 Pointe de Kermorvan SK Casemate Werk "Koln"

Details

A good view into the mouth of this bunker.


Image Caption


An SK casemate for a 7.5cm (f) pivot gun.


The French fort a Corpse de Garde, were built all around this and the Normandy coast all to what look like the same design.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re112 Pointe Kermorvan. Phare de Kermorvan 1880.

Details

I believe the French coast has the most lighthouses than any other country.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re112 Pointe de Kermorvan Werk "Koln".

Details



StP Kermorvan. StP Re104 to Re119.
image f6d

06 December, 2009

Information

Re112 Pointe de Kermorvan "Werk Koln"..

Details




German iron reinforcement to the roadway.


Image Caption

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re112 Pointe de Kermorvan "Werk Koln".

Details

There is a tunnel between the two casemates.


Image Caption


Image Caption

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

The Port of Le Conquet.

Details

Although the weather was appalling and the wind strong the waves were not as spectacular as I had hoped.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re113 Tobruk Vf58c.

Details

Ah that red coat again.


Image Caption


Plan of a Tobruk.




StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re113 Tobruk Vf58c.

Details

Looking down into the trench to the rear entry to the Vf58c.


Inside a Tobruk.


An entrance and ammunition storage area and then a squeeze up into the Tobruk its self.


7.92 ammunition.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re113 Path, Trench into an R628.

Details

Some additional details will go here


Site of the R628.


The trench to the bunker.


A side trench to another location but very impassable now due to brambles.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re113 R628 Group Bunker with Forward Apron.

Details

Some additional details will go here


This H628 has an extended apron with the tobruk pulled further away probably to allow a better field of fire.


Air vents at the front door.


Air vents at the front door.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re113 R628 Group Bunker with Forward Apron.

Details

Note the aerial slot on the left of the passage.


A 434P01 door that was fitted here (see the four broken hinges in the door frame) and it looks as though there is another 434Po1 door still in place to the entrance into the crew room.


R628 group bunker.


Image Caption

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re113 R628 Defence Tobruk.

Details

Some additional details will go here


Looking up into the defence tobruk.


Another view of the entrance to the defence tobruk.


Steps or shelving in the Tobruk.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re113 R504 for a 3.7cm Pak..

Details

A view across to the harbour above the R504.


Image Caption


Plan of an R504 casemate.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

StP Kermorvan. StP Re104 to Re119.

Details

The rear entrance, now blocked off.





?


StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re113 H505 Casemate for 3,7cm PaK Gun.

Details

Some additional details will go here


3.7cm crew in the open.


R505 plan, rear entrance, close combat window,gas lock with periscope,crew room & ammunition room and gun room ,

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

Re113 H505 Casemate for 3,7cm PaK Gun.

Details

You can see here where the gun pivoted with the wheels running either side of the semi circle of concrete.


How the gun may have looked.


There was not a lot of room inside.


485P2 Panzerscharten platte that was set into the front embrasure of the bunker and bolted on by six large bolts and concreted over.

StP Kermorvan. StP Re104 to Re119. image

06 December, 2009

Information

StP Kermorvan. StP Re104 to Re119.

Details




Looking up from the path at a large flat open area which had/has an R638, 622, 628, 628, a Tobruk, an R69 mortar Tobruk, large barracks and two water reservoirs, etc.


R638 small dressing station.


Medics.
