StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin

Details

North/West of Oye-Plage is the Batterie 2./Heers Küsten Artillery Abteilung 827.
An army (Heer) Coastal (Küsten) batterie, two kilometres from the coast it defended.


15.5cm K.418(f).


15.5cm K.418(f).


15.5cm K.418(f).

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.

Google

Information

StP Norbert, Rue Robelin

Details

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


12/07/1949 IGN

Information

StP Norbert, Rue Robelin
Plan

Details

Batterie 2./H.K.A.A. 827.
1 x R219 double flanking casemate.
2 x R600b ringstand for 5cm KwK.
24 x Feldm bunker (some are Wellblech bunkers).
6 x Geschützstellung (open emplacement).
6 x 15.5cm K.418(f).
1 x 7.62cm F.K.17(t) in the R219.
2 x 5cm KwK.
3 x Officers.
26 x NCO's.
106 x Troops. .








Elevation: showing the Geschützstellung (ringstand) and a form of camouflage over the top.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


12/07/1949 IGN

Information

StP Norbert, Rue Robelin
Plan

Details

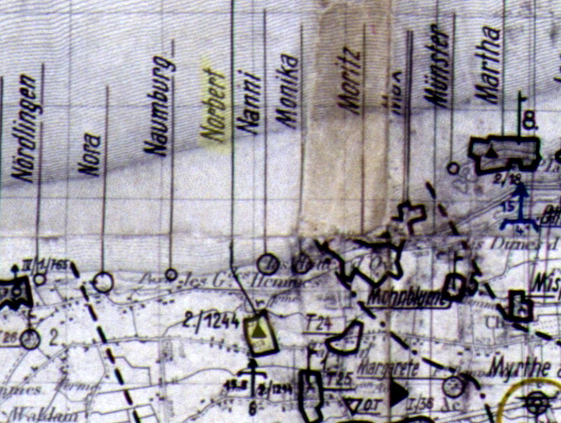

Einsatz der 18.Lw.Felddivision im K.V.A. „B”.
Deployment of the 18th Army Field Division in K.V.A. „B”.






StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


My plan 2005

Information

StP Norbert, Rue Robelin
My plan around the wood

Details

The battery runs parallel to the D119 and there are many more bunkers around the area that we did not find but Google Earth/Remonterletemps can now show up. When we visited StP Norbert there was no Google Earth.
A - Vf observation post.
B - Wellblech personnel shelters.
C - R600b KwK gun emplacement.
D - Vf ammunition bunker.
E - Open emplacement - Geschützstellung.
F - Bunker.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin

Details

C on the plan : Rue Robelin, on the left behind the trees is an R600b 5cm KwK emplacement.


Plan.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
R600b.

Details

An emplacement for a 5cm KwK gun.

imageR600b type of emplacement.

5cm open emplacement.


5cm KwK L/60.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
R600b

Details

Ready ammunition spaces around the outside.





5cm ammunition.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Ammunition space.

Details

Very close to the ringstand is this small ammunition room.




StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Ammunition space.

Details

Inside extra ammunition for the 5cm ringstand.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Ammunition Sk Bunker?

Details

D on the plan : a double Sk ammunition room.


D on the plan.


Plan of the bunker.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Ammunition Sk Bunker

Details

D on the plan : a closer look at this Sk small double ammunition room.




StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Ammunition Sk Bunker

Details

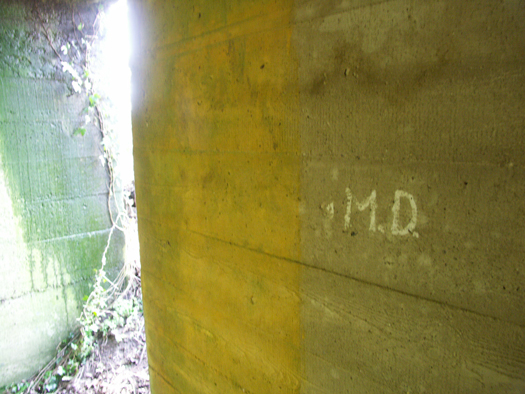

One of the two entrances with MD ?? not sure what this means, its before graffiti was liberally pasted all over lots of bunkers. So it may be original.




StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Ammunition Sk Bunker.

Details

Ammunition Sk bunker and observation post above it.










StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Observation bunker

Details

E on the plan : the observation bunker with wide reaching views across the fields almost to the coast. In front of this bunker is a ringstand base for a 15.5cm K418(f) gun. There were five more to the left.


Plan.


15.5cm open emplacement.




StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Observation Bunker

Details

A small square observation bunker.


Inside with a concrete bench to sit on? or is it for spare ammunition.


StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Geschützstellung

Details

Ringstand for 15.5cm K418(f) gun.


I think this is a drag shoe brake for a wagon. It would have been carried hanging from the wagon on a chain and when the wagon started to go down a hill, it is placed under the rear wheel. Thus dragging along the ground and acting as a brake.


Plan.


How it may have looked.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Hold fast bolts for the gun racer

Details

The guns racer is the a piece of metal that the trails of the gun rested on and ran around the emplacement.


Plan.


Plan.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Crew Bunker

Details

F on the plan : this bunker looks like an accommodation bunker for the guns crew.


There is a window and only one entrance.


Plan.




StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Crew bunker

Details

The entrance passage.


Plan.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Crew bunker.

Details

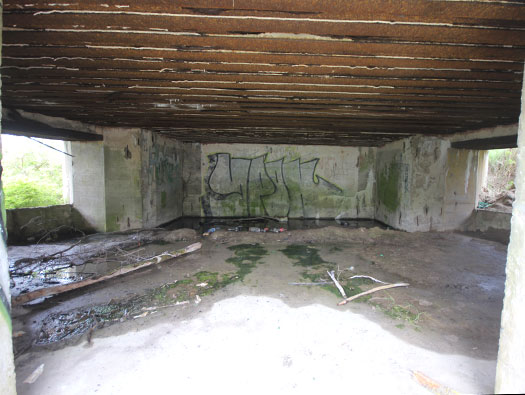

Right hand room with a door to the left hand room and a window in the rear wall. Marks on the walls are for bunk bed fittings.





Left hand room.




StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


Geoportail 1961

Information

StP Norbert, Rue Robelin
Wellblech bunker.

Details

B on plan : this is a Wellblech personnel bunker.
A very common shelter and can be used in many ways from accommodation to ammunition.


Plan.


Sheet steel used in a Wellblech bunker.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin
Wellblech bunker.

Details

B on plan : this is a Wellblech personnel bunker.


Inside of a Wellblech shelter on Cap Gris Nez.





Plan.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin

Details

B on plan: taken from another angle showing two Wellblech buildings now in the garden.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


05 April 2005

Information

StP Norbert, Rue Robelin

Details

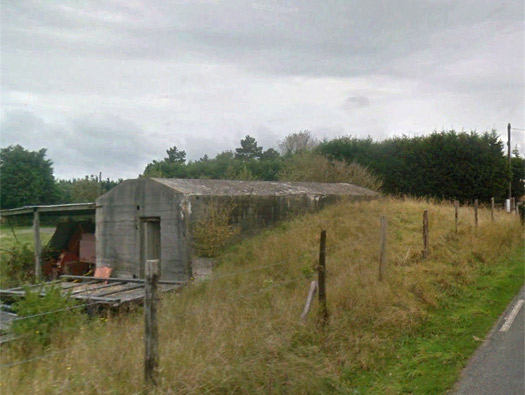

A on plan : a double roomed building with a Vf observation on the roof or a flak position.


Plan.


Elevation.


Plan.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


Google

Information

StP Norbert, Rue Robelin
Barracks

Details

Across the road on the south side is a barrack building.










StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


Google

Information

StP Norbert, Rue Robelin

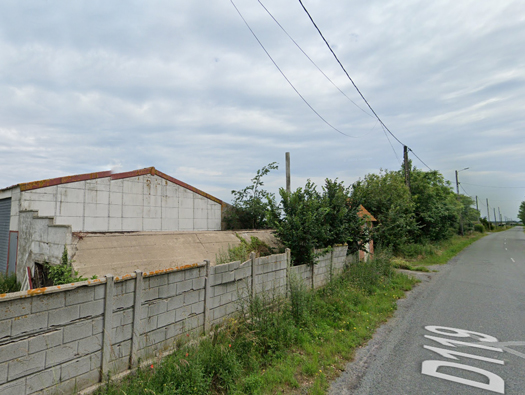

Moving west along the D119

Details

Right hand room with a door to the left hand room and a window in the rear wall. Marks on the walls could be bunk bed fittings.










StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


06 March 2014

Information

StP Norbert, Rue Robelin
Barrack 1

Details

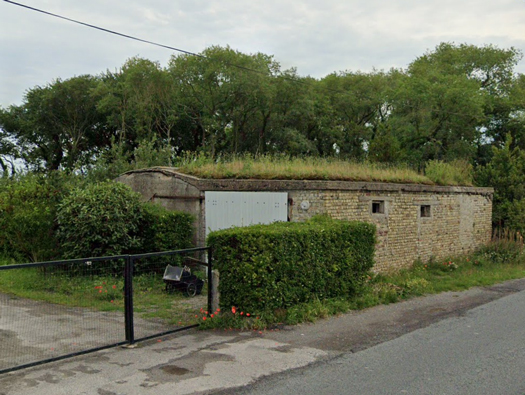

Extended Wellblech bunker.










StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


Google

Information

StP Norbert, Rue Robelin
Barrack 1

Details

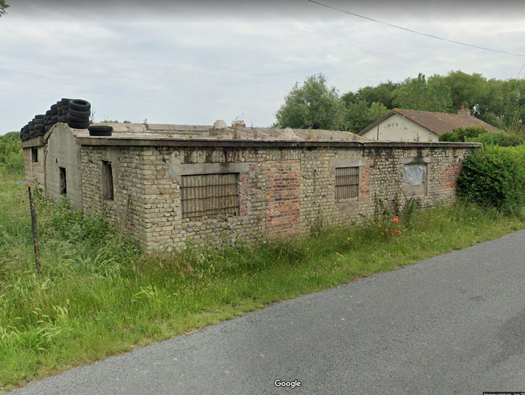

In the centre is a Wellblech bunker and then two brick buildings are built on the sides. The roof is of reinforced concrete.










StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


Google

Information


StP Norbert, Rue Robelin
Barrack 2

Details

Another built in the same style as Barrack 1.


Field kitchen.







StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


Google

Information


StP Norbert, Rue Robelin
Barracks 2

Details

This shows the way they were built. The Wellblech in the middle shows the escape door.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


Google

Information


StP Norbert, Rue Robelin
The single Wellblech

Details

This is just a single building










StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


Geportail

Information

StP Norbert, Rue Robelin
2 more Wellblech.

Details

Two more Wellblech with what look like trenches connecting them.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


Google

Information

StP Norbert, Rue Robelin
Wellblech1

Details

Escape in this end.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


Google

Information

StP Norbert, Rue Robelin
Wellblech 2

Details

The two doors face each other, so the trench system would have joined them up.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


Geportail

Information

StP Norbert, Rue Robelin
A look from above R219

Details

Now we get to the last item, an R219 double casemate. A 7.62cm F.K.17(t) field Kannon would sit inside and be able to fire east and west. The idea was that the embrasures could not be hit by direct fire. There are four flanking walls to protect the embrasures s well.


R219 casemate plan.


R219 casemate my original plan. The gun could fire out of one embrasure and if needed could be turned 180° and fire in the opposite direction. Later casemates did away with this idea and used two casemates covering each flank.


7.62cm F.K.17(t) field gun.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


Wn Reinhilde Les Hemmes dr Marck 18 May2018

Information

StP Norbert, Rue Robelin
R219 at Wn Reinhilde Les Hemmes dr Marck

Details

The gun room of an R219 showing the two embrasures. Ammunition would have been tacked against the far wall


R219 casemate plan.


R219 casemate my original plan.


7.62cm F.K.17(t) field gun.

StP Norbert, Rue Robelin, les Huttes d'Oye Plage.


06 March 2014

Information

The view from above today.
