StP M.K.B. Oye Plage, Oye Plage. image

Information

StP M.K.B. Oye Plage.

Details

Batterie 8./M.A.A.204.
4 x M270 casemates.
1 x R219 Doppelschartenstand.
1 x Hochleitstand FCP.
1 x (M)134.
1 x Barracks. .
1 x Feldmäßig.
1 x Michelmannstand.
2 Vf2a bunker.
4 x 15cm S.K.C/28.
4 x 7.5cm Flak M33(f).
4 x 2cm Flak 28.
1 x 7.5cm Lag.


M270 casemate.


15cm S.K.C/28.




StP M.K.B. Oye Plage, Oye Plage.

Google

Information

Situated between Marck and Grand-Fort-Philippe.

Details

At les Dunes d'Oye a battery of four casemated guns.


Parking les Dunes d'Oye.

StP M.K.B. Oye Plage, Oye Plage. image

Information

StP M.K.B. Oye Plage

Details

Above: is Wn Münster (yellow circle). Not covered.
Below: Wn M.K.B. Oye Plage. (Marine Kusten Battery).

StP M.K.B. Oye Plage, Oye Plage. image

Information

StP M.K.B. Oye Plage

Details

Wn M.K.B. Oye Plage. (Marine Kusten Battery).

StP M.K.B. Oye Plage, Oye Plage.image

26 February 2005

Information

Hochleitstand (fire control post).

Details

Fire control post for battery 8./M.A.A.204 (Marine Artillerie Abteilung) with good views over the coast and the sea controlled the fire of four 15cm S.K.C/28.


4 x M270 casemates with a 120degree ark of fire.120degree.


15cm S.K.C/28 pivot mounted guns.




StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

Pieces of an M270 casemate.

Details

I believe rather than give the bunkers up to the Allies they blew them up.


Remains of an M270.


Plan.




StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

M134 Ammunition bunker.

Details

Note that the bunker has straight sides and is not rounded off. A Westwall bunker design and later bunkers would have been rounded off.


134 ammunition bunker plan of how I see it?


The blue line is the extent of the West Wall and purple the Maginot line.


Plan.

StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

882P7 marine armoured door.

Details

Parts of the original door are still in place.


This may be an 882P7 marine armoured door.







StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

882P7 Marine armoured door.

Details

This picture taken in 2018 and it looks very much the same..


134 ammunition bunker plan of how I see it?







StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

A collapsed accommodation building.

Details

A light reinforced concrete structure, not a bunker.


How it may have looked.


The inside of the same style of building inside.


Plan.

StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

Hochleitstand.

Details

Set behind the gun line which is situated on a sand dune, this fire control post built to look like a church tower had to be able to look over and in front of the guns and out to sea at its targets.
Just before its inevitable capture the foundations at the front were under mined to allow it to collapse, but as you see it now leans like Pisa.


Plan.







StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

Hochleitstand.

Details

The trees have grown around it and hard to see from a distance..

StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

Hochleitstand.

Details

Walking around the side and over the main control room under the Hochleitstand.


Plan of the FCP.







StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

Hochleitstand.

Details

The set of steps are the only way into the control room below.


Plan.


FCP main command post under the tower. Two entrances, one from above and one at ground level.


Plotting room.

StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

Hochleitstand.

Details

The 434P01 rear armoured door still nicely in place.


434P01 door.

StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

Hochleitstand.

Details

The 434P01 rear armoured door a real piece of thick plate.


434P01 door.






StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

Hochleitstand.

Details

The rear armoured door front view with the viewing slit and door bolt.


434P01 door.




StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

Hochleitstand.

Details

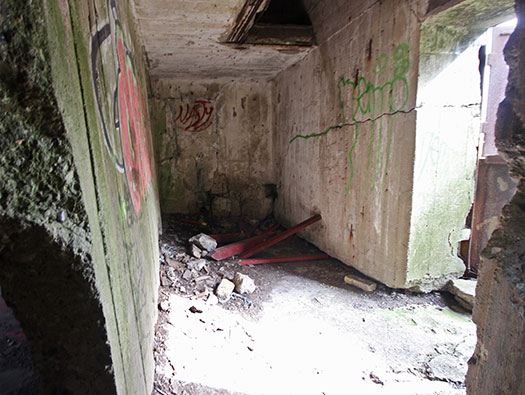

Coming through the door and the first anti-room where a set of iron stair case went to the first floor continuing to the top.


You can see the stairs on the elevation.




StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

Hochleitstand.

Details

The first floor room with windows each side but none facing forward.


Ground floor.




StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

Hochleitstand.

Details

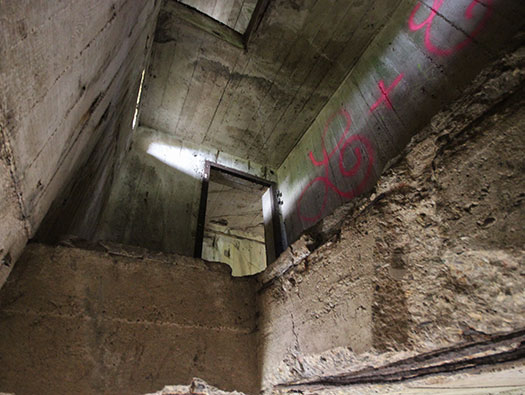

Looking up through the stair well to the first floor.


First floor.




StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

Hochleitstand.

Details

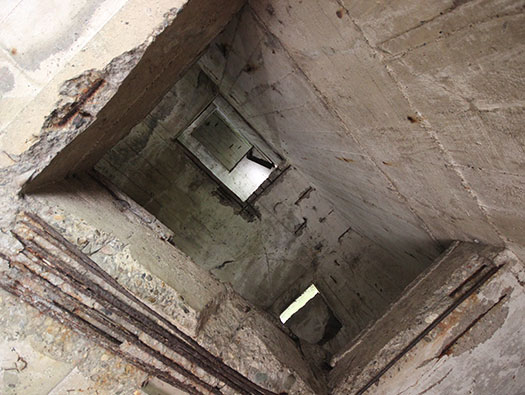

Looking up the stair well to the top. Just a ladder needed.


Elevation.




StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

Hochleitstand.

Details

The view up the tower and steel reinforcement that has been deliberately left to hook camouflage nets to it.


Camouflaged bunkers.




StP M.K.B. Oye Plage, Oye Plage. image

18 May 2018

Information

Hochleitstand.

Details

The view up the front face.







StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

Hochleitstand.

Details

Designed to look like a local church tower to add to its camouflage effect, but as you can see it did not stop the Canadians from firing at it by the looks of the many hits received.










StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

Hochleitstand.

Details

A nice view of the top vision slits.










StP M.K.B. Oye Plage, Oye Plage. image

Found on Internet

Information

Hochleitstand.

Details

A picture taken post war.
It even looks as though it had a clock face painted on.

StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

Battery position.

Details

Fire control post and the gun positions, number four is to the right off the picture.


Plan.


Horses on the beach.


15cm S.K.C/28.

StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

R219 casemate?

Details

The rear of the casemate now turned into a bird hide.

StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

R219 casemate?

Details

The front of the casemate looking into one of the embrasures.


This could be a plan of a R219 casemate Vf LAG stand for a 7.5cm LAG gun and the gun could be used either through the left or the right embrasure. LAG (anti landing gun).


Plan.

StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

M270 Casemate remains possibly Turm 2.

Details

The batterie site was destroyed to stop it falling into the hands of the Canadians as they advanced.

StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

M270 Casemate remains roof section upside down possibly Turm 2.

Details

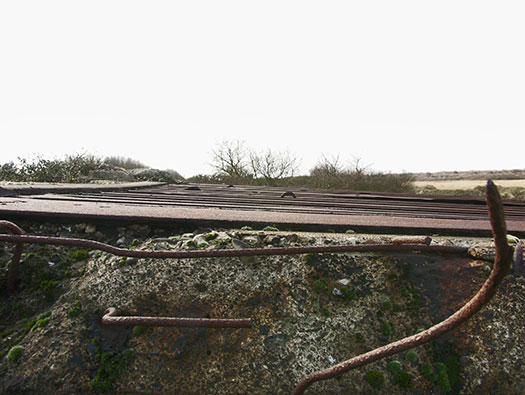

Casemate roof showing the reinforcement rods and the steel roof..

StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

M270 Casemate Turm 3?.

Details

All the M270 casemates completely destroyed.


M270 at Battery Brommy, Cherbourg


Plan.




StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

M270 casemate Turm 3?.

Details

This one looks as though the walls blew out and the roof collapsed in.


The other M270 at Brommy, Cherbourg.

StP M.K.B. Oye Plage, Oye Plage. image

26 February 2005

Information

M270 casemate Turm 3?.

Details

Closeup of the top of the embrasure.


M270 plan, gun room, two ammunition rooms and close combat defences to both rear entrances.

StP M.K.B. Oye Plage, Oye Plage.

26 February 2005

Information

Bomb Crater.

Details

Looks like a bomb crater, most batteries were bombed or shelled relentlessly after D-day to save infantry casualties when they were attacked.


Halifax.


Lancaster.

StP M.K.B. Oye Plage, Oye Plage.

21 May 2018

Information

3D Plan.

Details

A lovely plan kindly lent buy Kurt from MKB Bunkertour.


MKB. Click on image for MKB's Facebook Page.


MKB. Click on image for MKB's Facebook Page.

StP M.K.B. Oye Plage, Oye Plage.

21 May 2018

Information

Plan.

Details

A lovely plan kindly lent buy Kurt from MKB Bunkertour.


MKB. Click on image for MKB's Facebook Page.


MKB. Click on image for MKB's Facebook Page.

StP M.K.B. Oye Plage, Oye Plage.

26 February 2005

Information

Le Platier D'oye Reserve.

Details
