StP18 M.K.B. Oldenburg
Information
StP18 M.K.B. Oldenburg
Details
A batterie of two 24cm S.K.L/50 guns originally from a Russian battleship "Rurik" which was in the harbour of Libau, Latvia, and was captured when the port was taken. The guns were removed and modified from 25.4cm to 23.80cm to be able to use standard German ammunition. Then sent to the island of Borkum of the German coast as a coastal batterie. In 1940 they were moved to Calais. 1942 casemates were built around them
24cm Shells.
1913.jpg)
Russian battleship "Rurik".
Borkum, Germany.
StP18 M.K.B. Oldenburg
Information
StP18 M.K.B. Oldenburg
Details
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
Batterie 2./M.A.A.244
200 naval personnel.
1 x R606 bunker for a 60cm searchlight.
2 x R612 casemate for an assault gun (LAG).
1 x R629 anti-tank gun bunker.
5 x SK bunkers.
1 x SK/Machinenbunker.
1 x Leitstand/SK + Hospital.
2 x Vf/Schartenstand.
1 x 7.5cm F.K.231.
2 x 5cm KwK ringstands.
2 x Vf58c Tobruks.
5 x MG Stand.
1 x Wellblech.
2 x 24cm S.K.L/50 guns.
2 x 4cm Flak 28.
R606 bunker for a 60cm searchlight.
R612 casemate for an assault gun (LAG).
R629 anti-tank gun bunker.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details

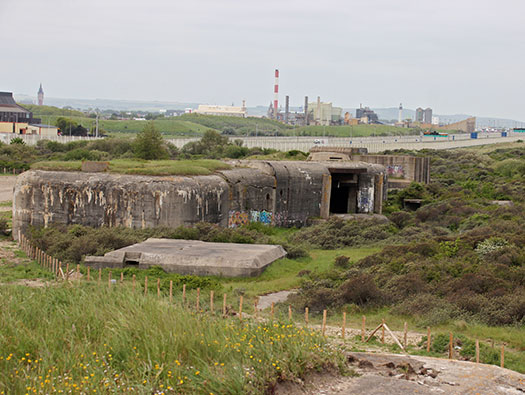

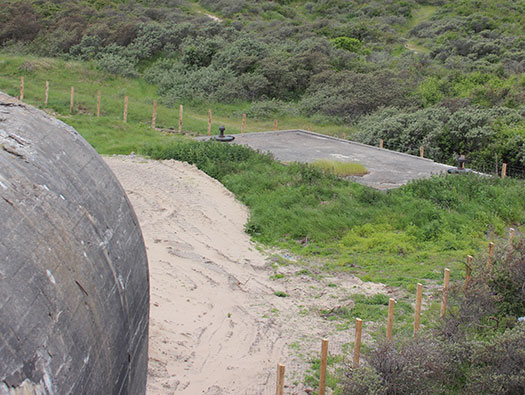

The two large gun bunkers have now had the ground completely re modelled since the holiday camp (Vacance) and the Jungle has been removed.
Vf58c Tobruks.
M.K.B. Oldenburg 24cm S.K.L/50 guns.
/7_62cmfk39(r).jpg)
7.62cm F.K.39(r).
StP18 M.K.B. Oldenburg
Martian Report
Information
StP18 M.K.B. Oldenburg
Details

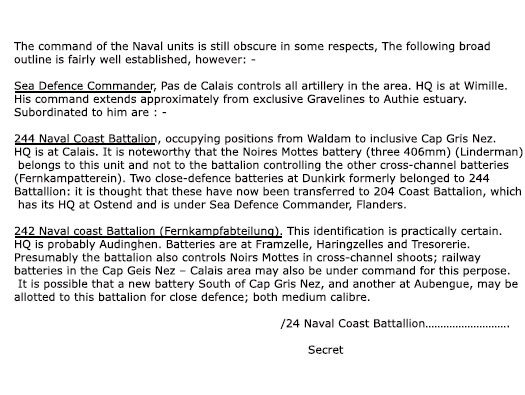

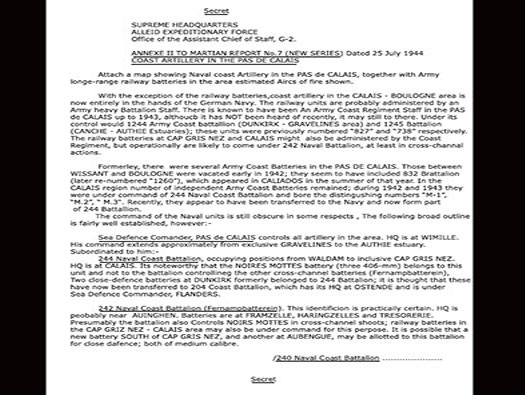

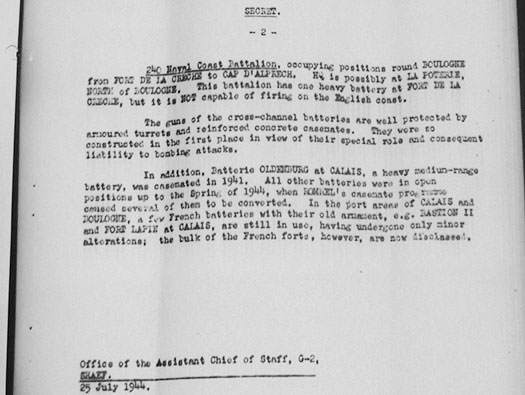

Page -1- Interesting details about the heavy batteries in the Calais area. Remember these documents are SECRET!
7.5cm F.K.235(b).
7.5cm Flak M33(f).
4cm Flak 28.
StP18 M.K.B. Oldenburg
Martian Report ii
Information
StP18 M.K.B. Oldenburg
Details
Page -2-
Photo reconnaissance Spitfire that would have flown over here almost daily to acquire and build up an idea of what was happening on the ground.
Dover gun Winnie IWM/H/7918.
Convoy being shelled from France.
StP18 M.K.B. Oldenburg
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
Information
StP18 M.K.B. Oldenburg
Details

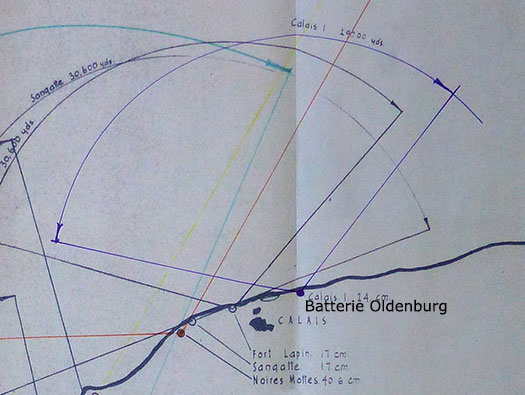

Batterie Oldenburg’s arc of fire.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details

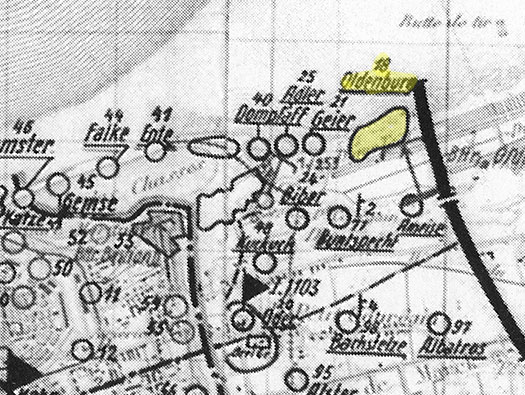

This is the German map showing all the defences along the coast with Oldenburg as StP18.
The black line is the demarcation line between - in the east AOK15 (15th Army) to the west AOK7 (7th Army).
StP18 M.K.B. Oldenburg
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
Information
StP18 M.K.B. Oldenburg
Details

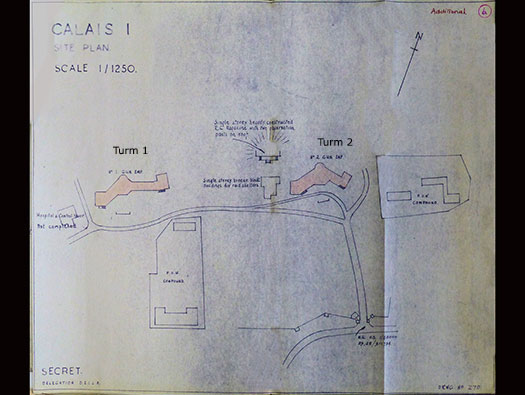

Plan of the batterie by Allied Intelligence 1944 with the two casemates either side.
StP18 M.K.B. Oldenburg
Evidence in camera
Information
StP18 M.K.B. Oldenburg
Details

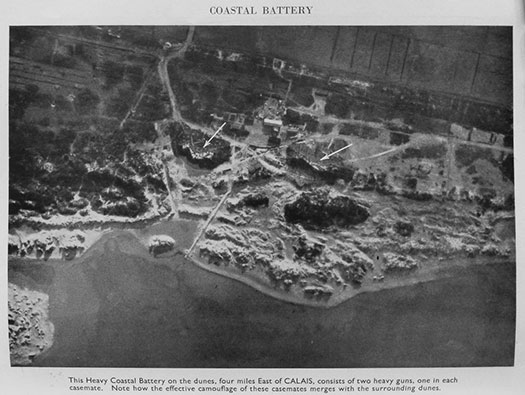

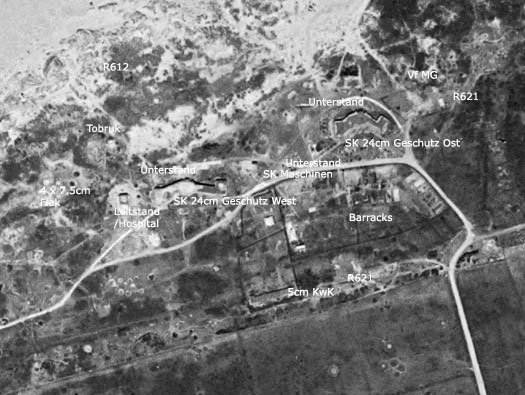

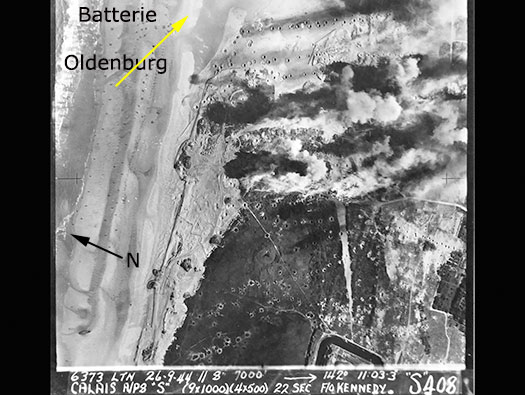

Allied aerial photo of the batterie showing the two casemates arrowed.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details

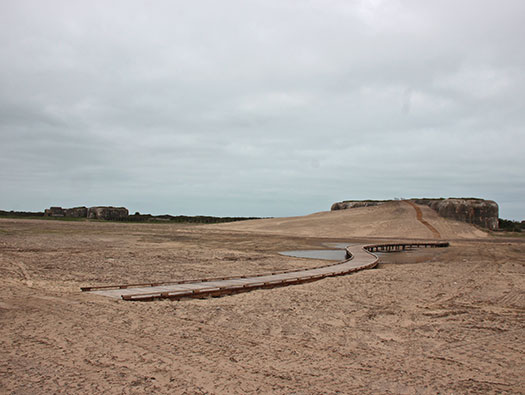

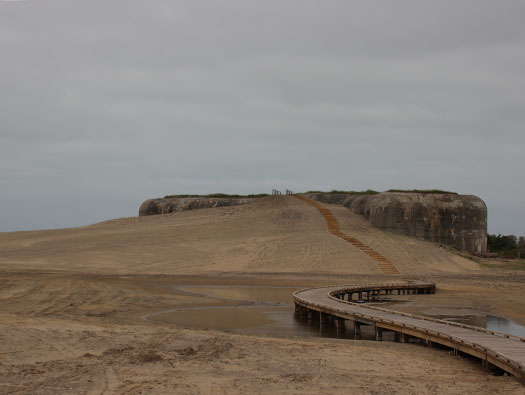

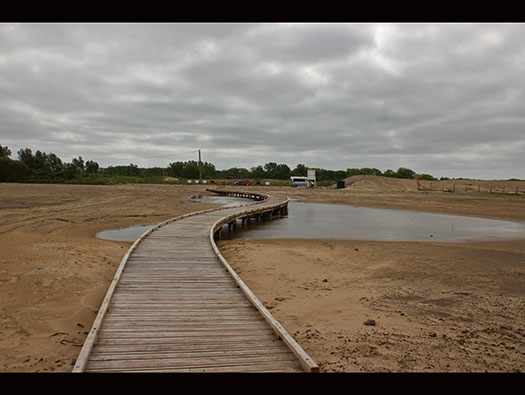

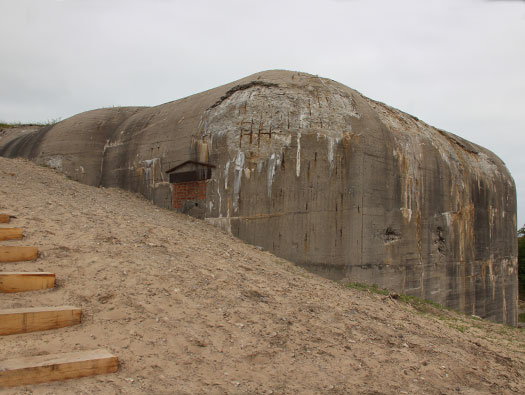

Today you have to walk along the board walk to the first casemate.
Powder bags being brought up to the gun.
Two brass cases.
StP18 M.K.B. Oldenburg
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
Information
StP18 M.K.B. Oldenburg
Details

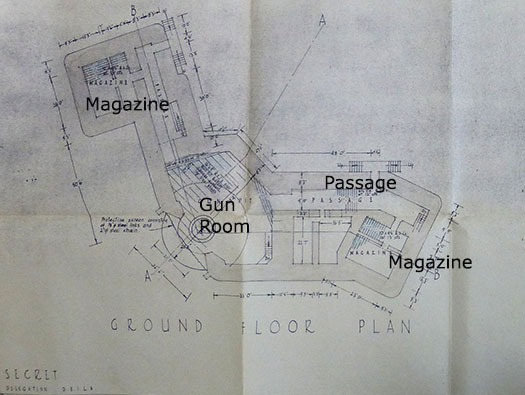

Casemate ground floor plan.
Installing the gun.

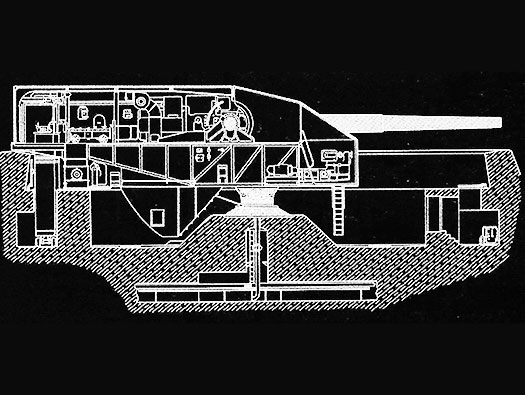

How the turret may have looked before the casemates were built.
Batterie Lindemann firing, how this gun may have looked.
StP18 M.K.B. Oldenburg
Batterie Lindemann
Information
StP18 M.K.B. Oldenburg
Details
The open emplacement at Batterie Lindemann, how this would have looked..
Shell magazine.
Powder bags.
details
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
The door with a very nice porch over it allows access to the magazine. This door can be seen on the picture below but without the porch. It must have been found that a modification was needed..
Plan.
Towering cranes to lower the guns into place.
StP18 M.K.B. Oldenburg
1941
Information
StP18 M.K.B. Oldenburg
Details

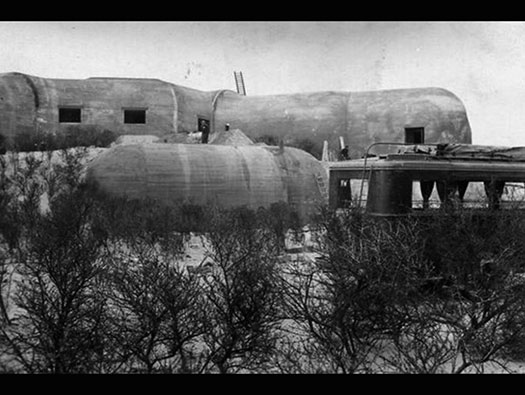

The rear in 1941 when it was under construction.
StP18 M.K.B. Oldenburg
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
Information
StP18 M.K.B. Oldenburg
Details

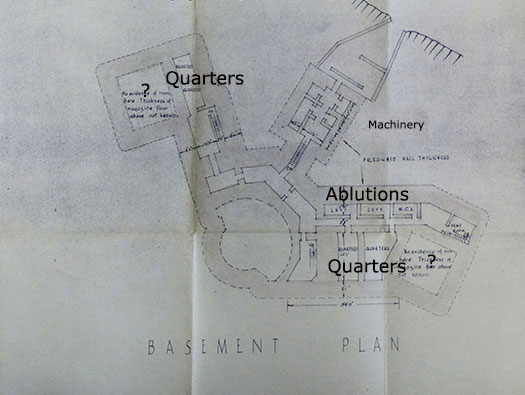

Plan of Basement level.
Quarters for seamen and officers, also at the rear a machine bunker.
Machinery room.
Elevation of a machinery room.
StP18 M.K.B. Oldenburg
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
Information
StP18 M.K.B. Oldenburg
Details

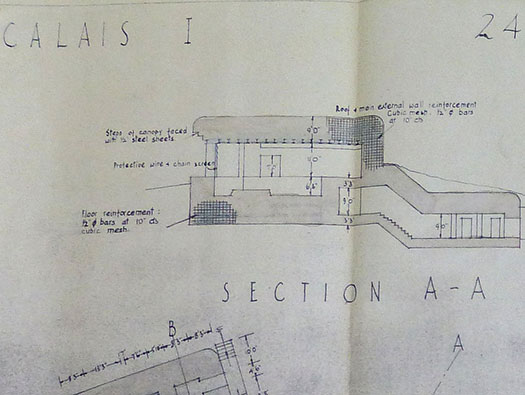

Elevation of the gun room through A--A and out to the machinery room.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details

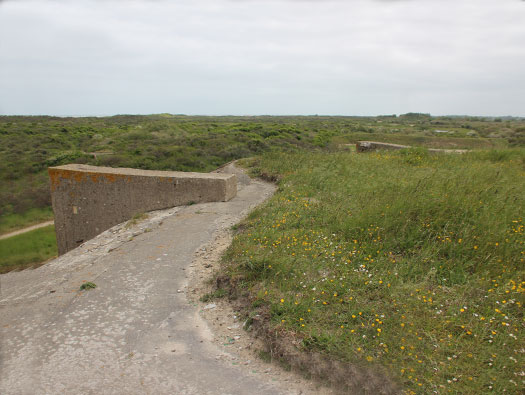

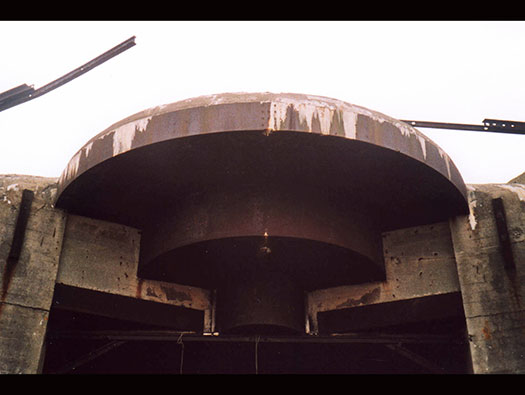

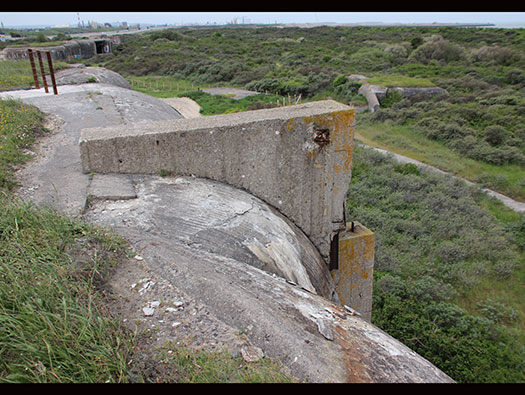

Up on the roof looking down on the embrasure and the concrete extensions to carry heavy steel nets (to explode any shell that might penetrate the embrasure) and also camouflage nets.
Embrasure.
The chain mail used around the guns embrasure.
StP18 M.K.B. Oldenburg
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
Information
StP18 M.K.B. Oldenburg
Details

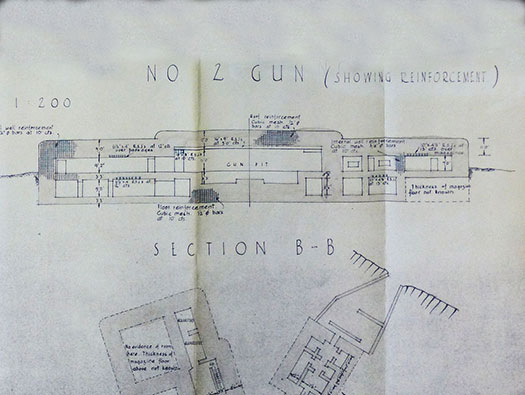

Elevation plan of the casemate.
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
Information
StP18 M.K.B. Oldenburg
Details
Erik Ritterbach gave me these photos many years ago and has allowed me to use them which I thank him very much. We could not get to the front of the casemates on this visit..
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
Up on the roof looking down on the embrasure and the concrete extensions to carry heavy steel nest (to explode any shell that might penetrate the embrasure) and camouflage nets.
A close up of the chain mail.
Case and powder bag magazine to gun room.
Magazine storage of cordite powder bags.
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
Information
StP18 M.K.B. Oldenburg
Details

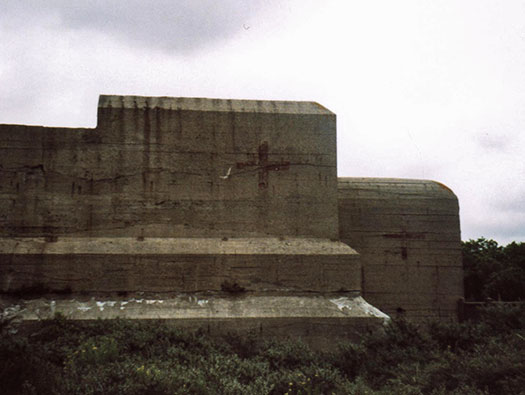

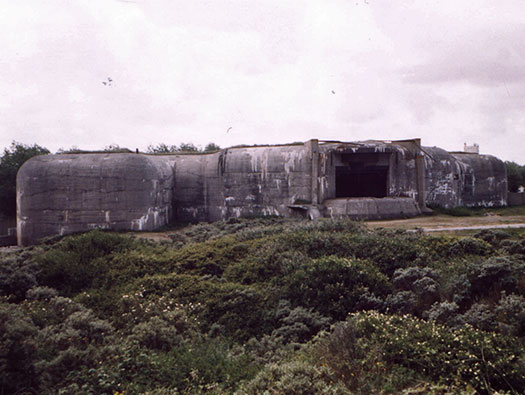

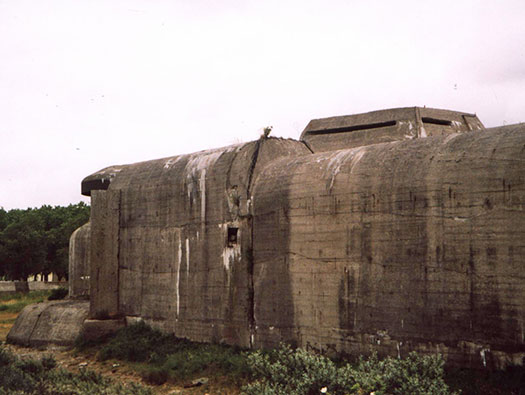

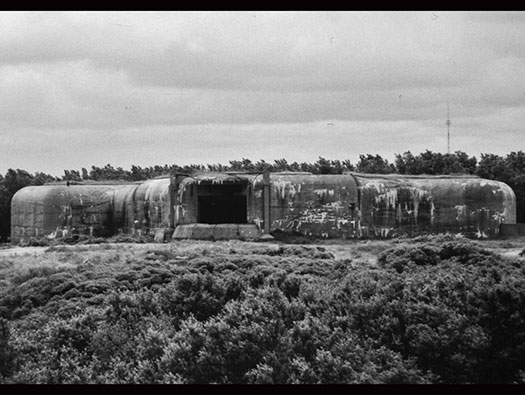

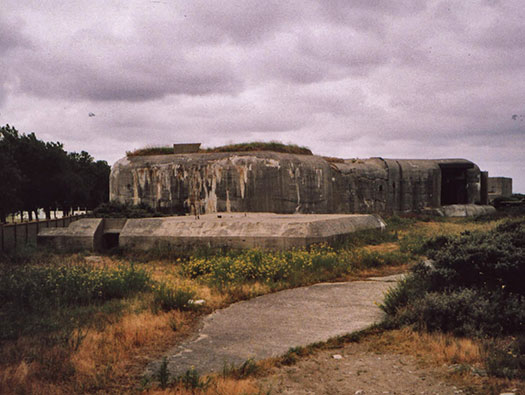

Erik's photo of the casemate and the overhanging nose.
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
Information
StP18 M.K.B. Oldenburg
Details

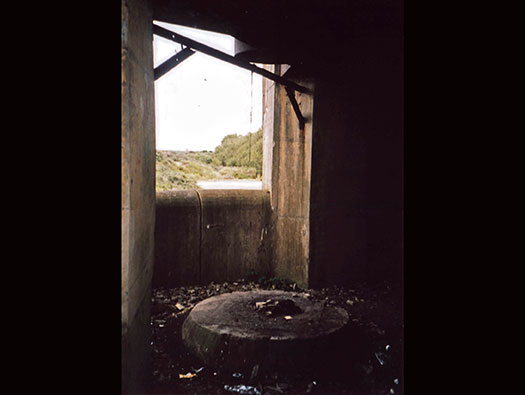

Inside the casemates gun room where the gun and shield was mounted.
Batt. Lindemann's turret.
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
Information
StP18 M.K.B. Oldenburg
Details

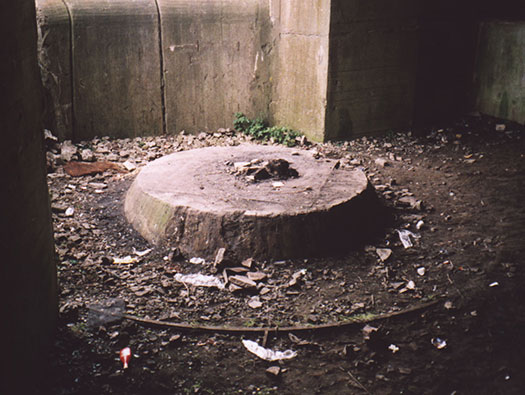

Inside the casemates gun room.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
Tobruk defence on the roof.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details

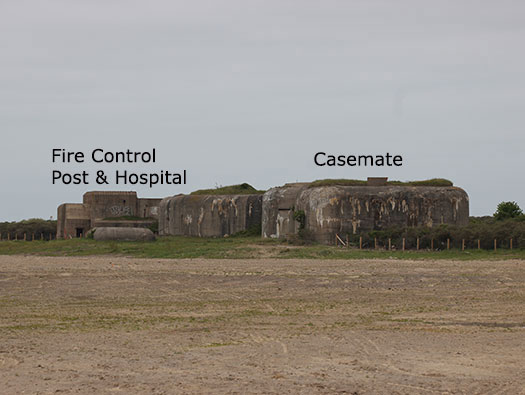

Turm 1 and the fire control post/Hospital.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
Fire Control Post (Leitstand) and the ground floor is a Hospital.
Between us and the FCP is a machinery bunker.
Generator in bunker.
Plan of an engine house.
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
Information
StP18 M.K.B. Oldenburg
Details

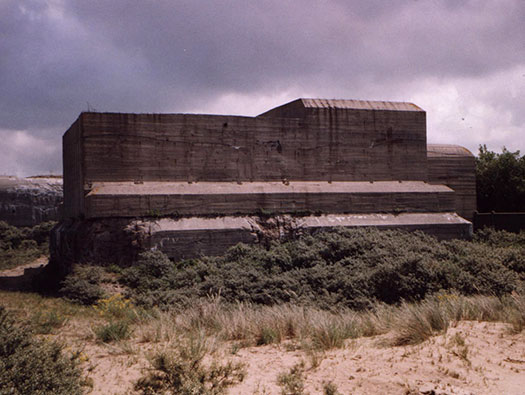

Fire Control Post (Leitstand) and the ground floor is a Hospital.
Plotting room.
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
Information
StP18 M.K.B. Oldenburg
Details

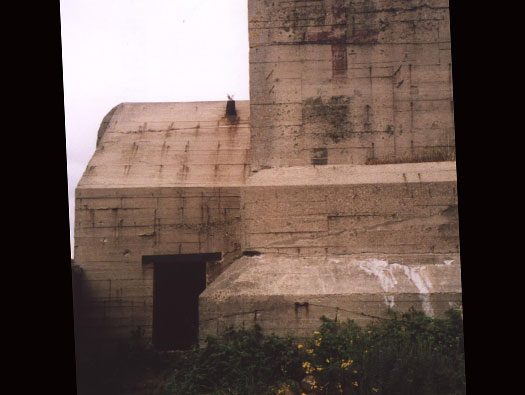

Fire Control Post (Leitstand) and the ground floor is a Hospital.
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
Information
StP18 M.K.B. Oldenburg
Details
Fire Control Post (Leitstand) and the ground floor is a Hospital.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details

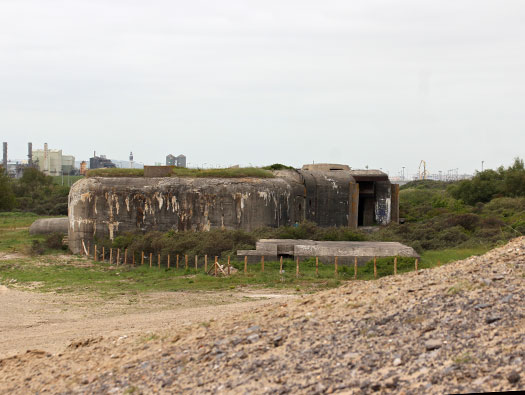

The bunker with a side entrance is a Naval design bunker for guns crew.
Crew bunker.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
Naval design bunker for guns crew.
Crew bunker.
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
Information
StP18 M.K.B. Oldenburg
Details

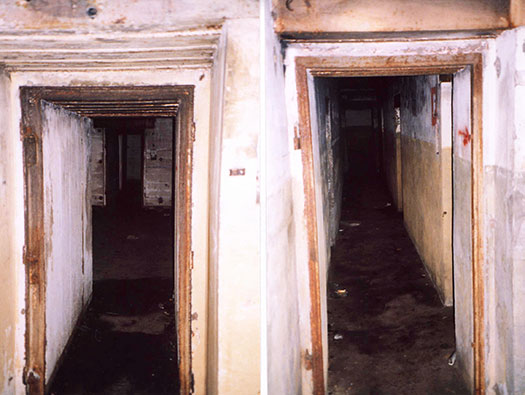

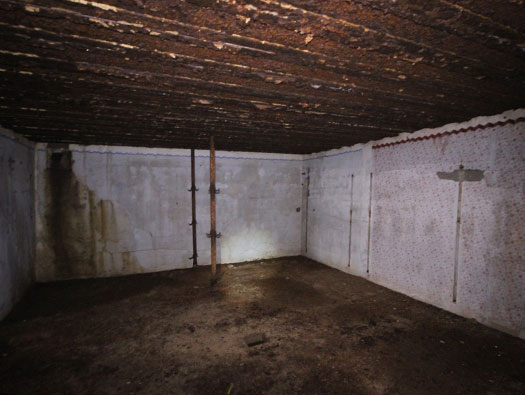

One of the Crew bunker passage at Oldenburg.
Crew bunker.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
My picture of a Crew bunker at Grosser Kurfürst Batterie.
Crew bunker.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
On the roof is a small odd shaped fire control post ?
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
Information
StP18 M.K.B. Oldenburg
Details
On the roof is a small odd shaped fire control post ?
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
On the roof is a small odd shaped fire control post ?
StP18 M.K.B. Oldenburg
1944
Information
StP18 M.K.B. Oldenburg
Details

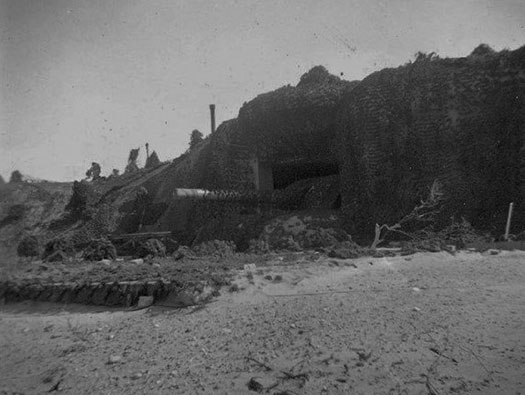

This looks like it was taken just after capture.
The Canadians attacked from the rear and the crew surrendered very quickly.
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
Information
StP18 M.K.B. Oldenburg
Details

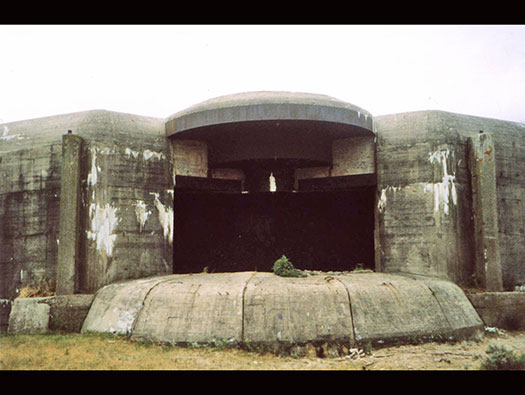

Gun casemate.
StP18 M.K.B. Oldenburg
1940's
Information
StP18 M.K.B. Oldenburg
Details

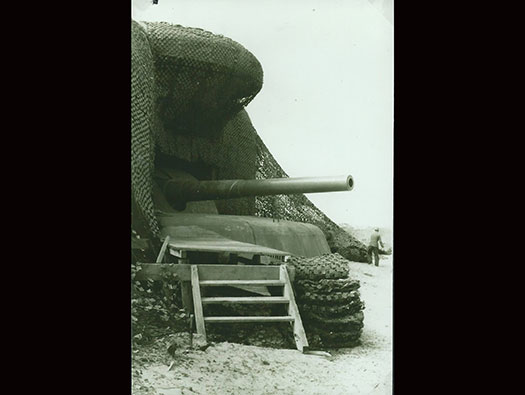

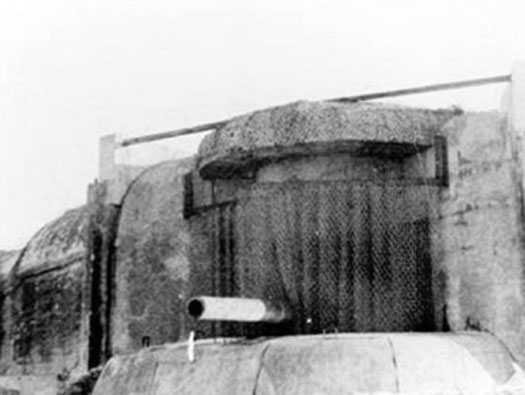

Turreted gun in position with a few camouflage nets stacked around.
Death of a sailor inside the casemate.
StP18 M.K.B. Oldenburg
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
Information
StP18 M.K.B. Oldenburg
Details

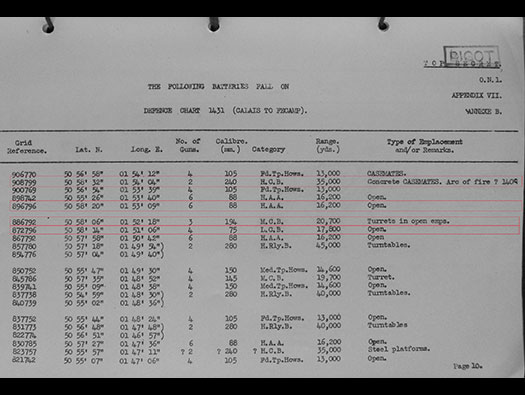

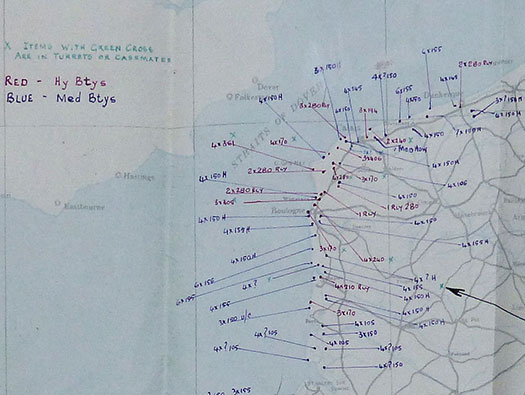

Batteries in the area.
StP18 M.K.B. Oldenburg
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
Information
StP18 M.K.B. Oldenburg
Details
Batteries in the area.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details

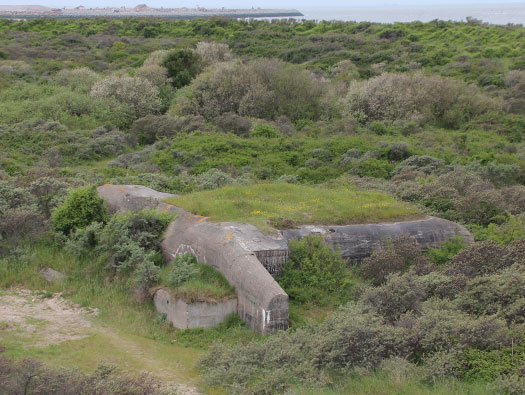

Crew bunker and a ringstand for a 5cm KwK gun on its roof built in local brick.
5cm KwK ringstand.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
Crew bunker and a ringstand for a 5cm KwK gun on its roof built in local brick.
details
details
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
R629 anti tank gun garage.
R629 anti-tank gun bunker.
2.5cm Pak gun.
Pak gun by garage.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
Out in front an Unterstand /R621?
Plan of an R621 group bunker.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
Bombing of Calais and Oldenburg areas on many occasions.
Handley Page Halifax.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details

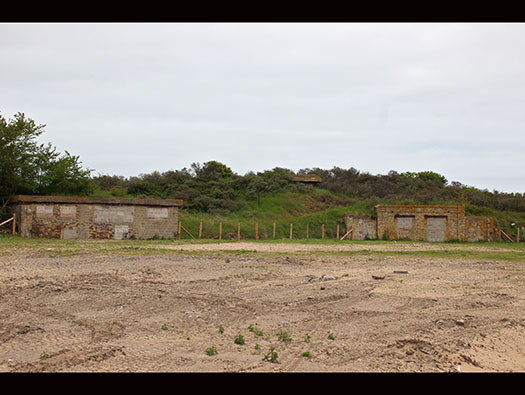

Several barrack looking buildings continuing to the east side.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
Unterstand/Naval barracks bunker?
Pos. this type?
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
Note our own police protection.
The batterie position was captured on 1 October 1944, by the Canadian 3rd Infantry Brigade.
Canadians in Normandy.
Details2
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
Information
StP18 M.K.B. Oldenburg
Details

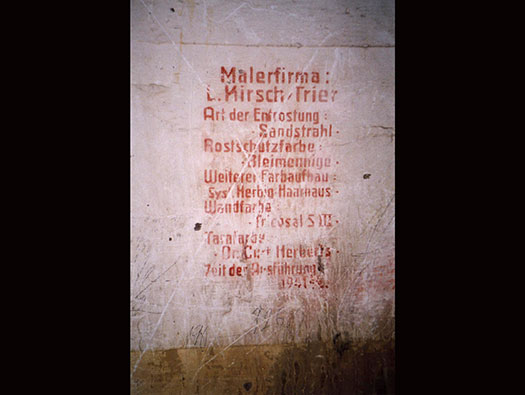

Writing on the bunkers wall.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
Writing on the bunkers wall.
Translated 'Piecing pipe wiper' ?
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details

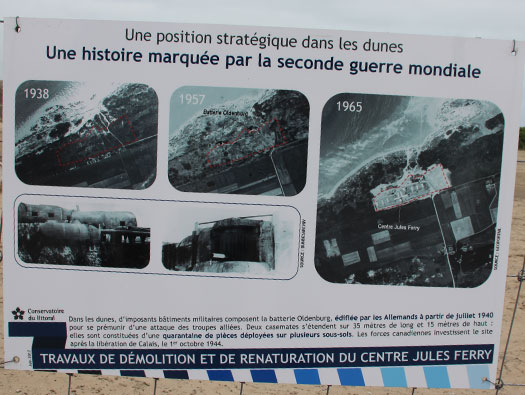

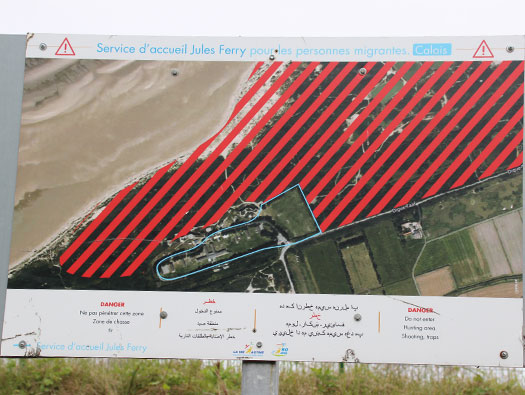

On the fence by the road.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details
On the fence by the road.
StP18 M.K.B. Oldenburg
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
Information
StP18 M.K.B. Oldenburg
Details
Heavy and light batteries in the Pas de Calais.
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
Information
StP18 M.K.B. Oldenburg
Details
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details

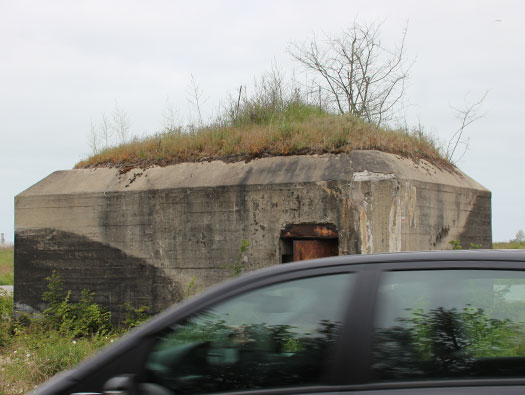

There is a story here, just before we turned to go up the road to the batterie, we found this bunker. A young lady 'of the night' was hanging around the back of the bunker with her car. I was reluctant to take her in the picture, but in my haste this car entered the frame. Oh dear what we come across bunker hunting.
StP18 M.K.B. Oldenburg
18 May 2018
Information
StP18 M.K.B. Oldenburg
Details

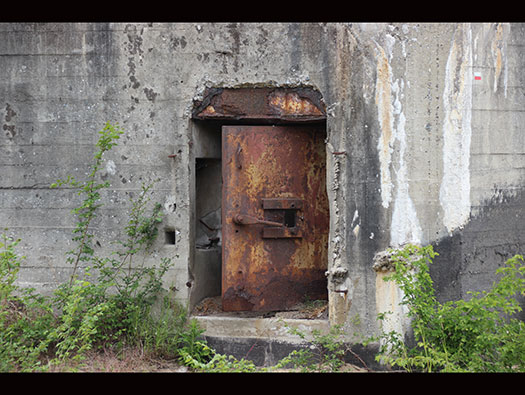

Bunkers very heavy door.
StP18 M.K.B. Oldenburg
Information
StP18 M.K.B. Oldenburg
Details
The Bunker.
