INFORMATION:

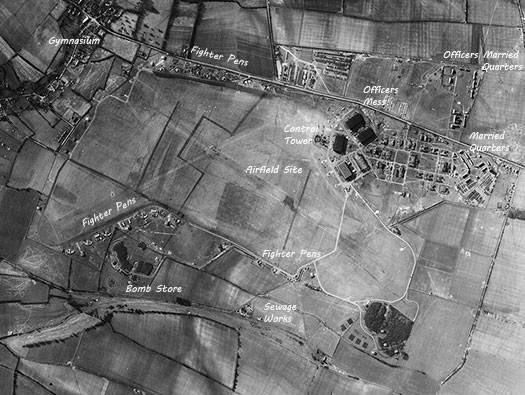

The layout of a standard RAF expansion scheme era, Control tower at the front, hangars behind, then technical area and then barrack blocks. After that married quarters and across the road Officers mess and Officers married quarters.
As the war progressed and MW became a fitter station, many sets of fighter pens were added around the perimeter. .
