Operation Seelöwe was the plan to attack the British Isles in 1940, first the RAF had to be removed from the skies and then the landings could take place. The German army (Heers) wanted to have some very large guns along the coast to cover the channel and fire on the Dover area (the landing beaches). Several batteries were started and here a batterie of two 28cm S.K. L/45 Marine batterie was built (27 July 1940). They fired on shipping in the channel on many occasions and the the Dover area. The batterie was removed in 1943 and transferred to Leningrad, Russia and StP155 Grosser Kurfürst replaced it.


28cm S.K. L/45.







StP125 M.K.B Prinz Heinrich Ost

Information

StP125 M.K.B Prinz Heinrich Ost

Details



StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

The site of the batterie with the two white circles are the gun turntables and the red circles two remaining ammunition bunkers. There maybe more there but we could not get access.
Marineküstenbatterie Prinz Heinrich
1 x Fire control post (Leitstand).
2 x Maschinenbunker
6 x Munitionsbunker
4 x Unterstands
1 x SK/Sanittatsbunker
2 x 28cm S.K. L/45
2 x 8.8cm Abk L/40
2 x 4cm Flak 28.
Guns were removed by 1944.


28cm S.K. L/45, note the large concrete block that the gun sits on.


Guns ringstand plan.

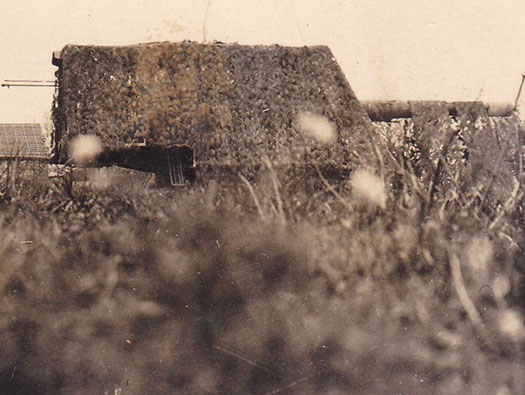

Turm 1.

StP125 M.K.B Prinz Heinrich Ost

Google

Information

StP125 M.K.B Prinz Heinrich Ost

Details

I have superimposed a picture of the guns in the place they were.


Turm1.





This could be the Fire control post (Leitstand) on the coast.

StP125 M.K.B Prinz Heinrich Ost

1949 Geoportail

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Left Side: -
The hospital bunker and a reserve ammunition bunker.
Right Side: -
Batterie site with a barbed wire and mine field.
Second reserve ammunition bunker.


Warning 'Electric Fence'..


SK/Munition bunker at StP106 Dresden. This type may have been used here close in to the guns.


8P710 wooden Fire control post (Leitstand).

StP125 M.K.B Prinz Heinrich Ost

1942

Information

StP125 M.K.B Prinz Heinrich Ost

Details

28cm S.K. L/45.


Report on the Engineer Survey.






Convoy being attacked by heavy batteries in the Dover Straits.

StP125 M.K.B Prinz Heinrich Ost

WO 208/2985

Information

StP125 M.K.B Prinz Heinrich Ost

Details

This is a 28cm S.K. L/40 here they were L/45,s. Probably not very different.










StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Reserve ammunition bunker.


Shells


Cordite bags store.

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Reserve ammunition bunker.
Entrance into the bunker with two large double wooden doors.





German transport.

StP125 M.K.B Prinz Heinrich Ost

WO 196/27

Information

StP125 M.K.B Prinz Heinrich Ost

Details

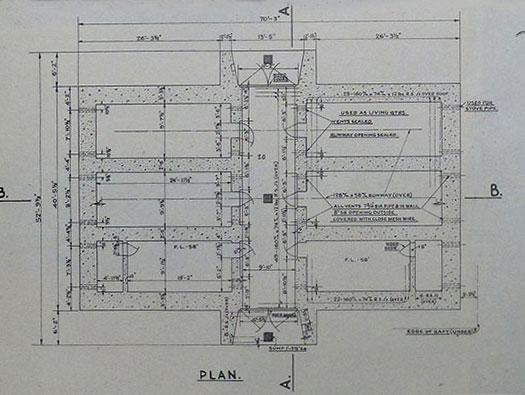

Plan of a Reserve ammunition bunker.
“Reserve Magazine” Drawing from file Wo 196/27 No. D.F.W.S. No.25.

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Reserve ammunition bunker.
Reading the above Drawing No. D.F.W.S. No.25, it states that they had wooded doors, This one has had a thin steel sheet has been screwed to the front with Phillips screws, so not an original covering. But behind is a wooden door?

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Reserve ammunition bunker.
If the doors are shut, to talk to the men inside you had to use a speaking tube.


Sprachrohr mouthpiece.

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Reserve ammunition bunker.
Battle damage??

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Reserve ammunition bunker.

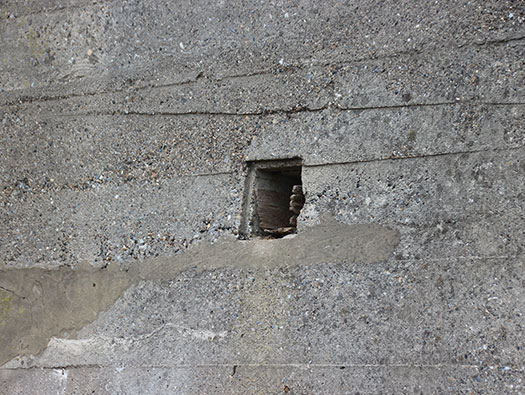

Looking at one side showing the air vents to allow fresh air to enter and pass through the ammunition rooms.

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Reserve ammunition bunker.
Looking at one side showing the air vents to allow fresh air to enter the ammunition rooms.

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Reserve ammunition bunker.
Around the back.

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Reserve ammunition bunker.
They all seem to have these cubes with a steel rod sticking out. These are for camouflage nets to be strung around the bunker.


Camouflage.

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Reserve ammunition bunker.
I am not sure about the building on the roof, often they had a 2cm or 4cm Flak in an emplacement on the roof. Here were about 2 x 4cm Bofors. The roadway would circle around and lorries could drive around and through the back door and out of the front door without having to turn around.


There were 2 x 4cm Flak28.

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Top right: -
The SK/hospital bunker.
Bottom left: -
Another reserve ammunition bunker.










StP125 M.K.B Prinz Heinrich Ost

Geoportail 1946

Information

StP125 M.K.B Prinz Heinrich Ost

Details

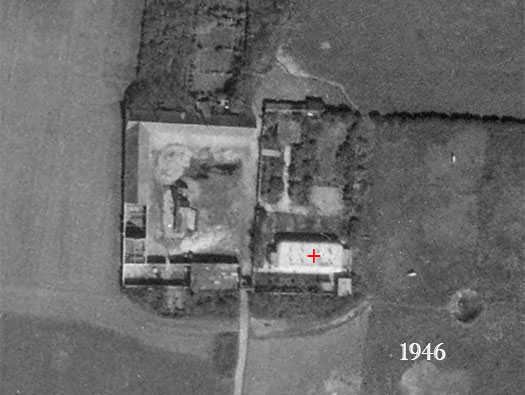

The SK/hospital bunker.
Set into the farm and away from the batterie position.










StP125 M.K.B Prinz Heinrich Ost

MKB Bunkertour

Information

StP125 M.K.B Prinz Heinrich Ost

Details

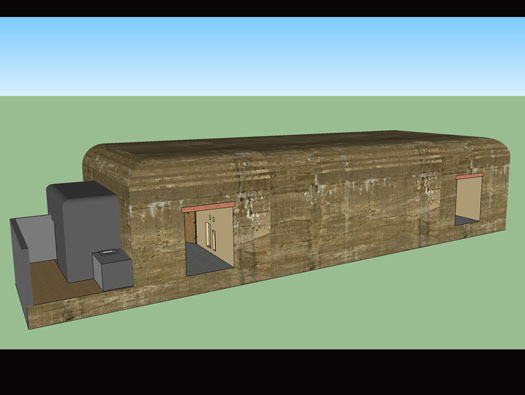

This is MKB's elevation of the SK/hospital bunker. Larger entrances to allow casualties an easy access to the bunker.

StP125 M.K.B Prinz Heinrich Ost

MKB Bunkertour

Information

StP125 M.K.B Prinz Heinrich Ost

Details

This is MKB's plan of the SK/hospital bunker.

StP125 M.K.B Prinz Heinrich Ost

Google

Information

StP125 M.K.B Prinz Heinrich Ost

Details

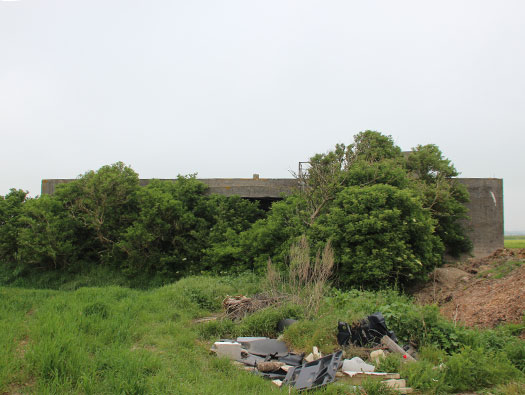

Second Reserve Ammunition Bunker.
The road was too busy to stop and also its covered in growth and hard to visualise.

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Second Reserve Ammunition Bunker Grosser Kurfürst Batterie at Framzelle.
The road way through the centre of the bunker.


Prinz Heinrich at the top and Grosser Kurfüst lower down.

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Second Reserve Ammunition Bunker Grosser Kurfürst Batterie at Framzelle.
The doors into the ammunition rooms.


Plan of the door way.


Plan of the second and third doors.


Overhead rails brought the shells out from the rooms to be loaded onto lorries.

StP125 M.K.B Prinz Heinrich Ost

18 May 2018

Information

StP125 M.K.B Prinz Heinrich Ost

Details

Second Reserve Ammunition Bunker Grosser Kurfürst Batterie at Framzelle.
Ammunition room.










StP125 M.K.B Prinz Heinrich Ost

WO 196/27

Information

StP125 M.K.B Prinz Heinrich Ost

Details

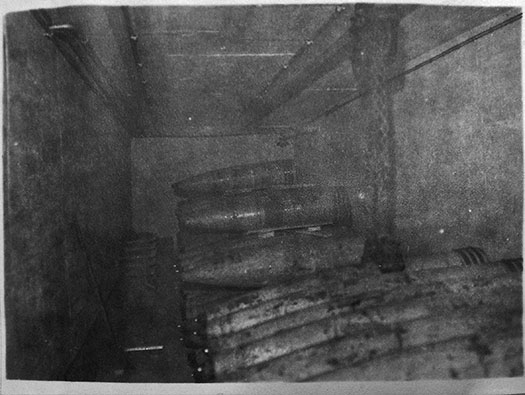

A shell store.

StP125 M.K.B Prinz Heinrich Ost

WO 196/27

Information

StP125 M.K.B Prinz Heinrich Ost

Details

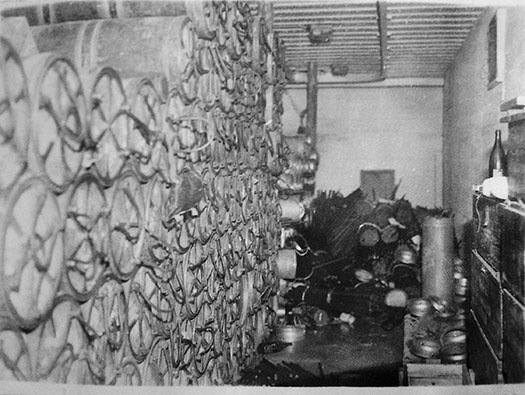

A cartridge store.

StP125 M.K.B Prinz Heinrich Ost

WO file

Information

StP125 M.K.B Prinz Heinrich Ost

Details

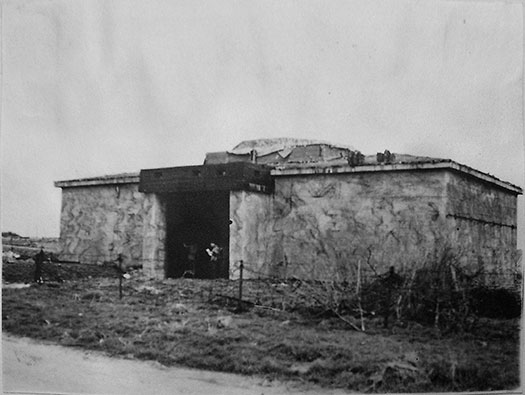

Reserve Ammunition Magazine at Grosser Kurfürst Batterie at Framzelle, this is how the Reserve ammunition Magazine here at M.K.B Prinz Heinrich may have looked with a flak position on the roof.

StP125 M.K.B Prinz Heinrich Ost

F/O Smith 25/09/44 Sangatte beach
