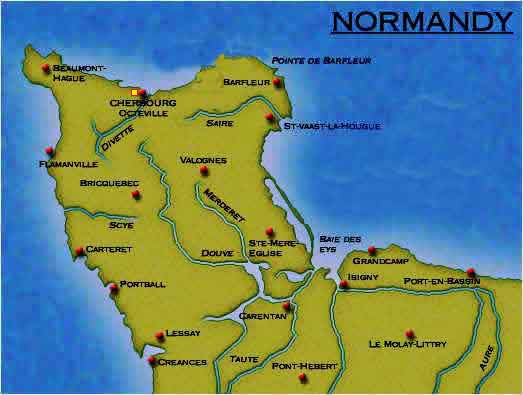

Building started in the summer of 1942, for what looks like two batteries of open Ringstands or Geschützstellung, with 6 x 15.5cm K.420(f) guns, with a range of 21 kilometers. Autumn of 1943 building began for four R679 casemates. These casemates were built for four of the guns, and were ready in April 1944. Many other bunkers were added, a fire control post and several tunnels. When Cherbourg was attacked by the Americans, this battery came under attack from artillery and fighter-bombers. Only two of the guns were able to return fire. After further advances brought the Americans into better firing positions, the batterie surrendered on 25 June.










StP272 les Couplets H.K.B.

Information

StP272 les Couplets H.K.B.

Details



StP272 les Couplets H.K.B.

SHM

Information

StP272 les Couplets H.K.B.

Details

SHM.

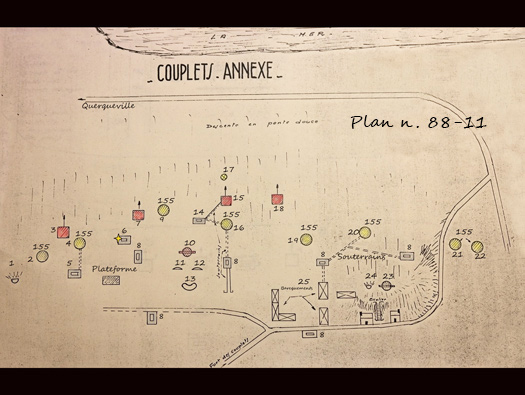

1, 24 - Searchlight.
2,4,9,16,19, 20, 21, 22 - Open emplacements for 15.5cm guns.
3, 7, 15, 18 - R679 Casemates.
5, 8, 14 - Bunkers (Ammunition -Troop accommodation).
6 - Bunker for Flak.
10 - Fire control post.
11, 12 - Look out posts.
13 - Emergency water supply.
17 - Tobruk's.
23 - French (Fort) fire control post.
25 - Barracks.


Canon de 145 L modèle 1916 Saint-Chamond or 145 L 16 was a French heavy artillery piece designed and produced during the First World War. From 1918, many were re-bored to use 155 mm shells and renamed Canon de 155 L modèle 1916 Saint-Chamond (155 L 16). A number of 145 and 155 guns were still on hand during the Second World War and served as coastal artillery in the French, Italian and German services. (Wiki)


15.5cm K.420(f) guns, Canon de 145 L modele 1916 Saint-Chamond.


Plan of an open emplacement at Batterie Gatteville.

StP272 les Couplets H.K.B.

IGNF 1947

Information

StP272 les Couplets H.K.B.

Details

Heeres Kusten Artillerie Regiment 8./1261.
4 x R679 casemates.
8 x Geschützstellung. Open emplacements for artillery.
2 x SK/Fire control post/Leitstand. 1 - for the batterie SK type and one French type inside the fort.
1 x Vf51a.
2 x 5cm KwK gun Ringstands.
1 x R646
1 x Vf58c Tobruk.
7 x Wellblech shelters.
1 x emergency water supply (Zisterne).
2 x 5cm KwK.
6 x 15.5cm K.420(f) guns.

G - Geschützstellung. Open emplacements for artillery.
T - Turm casemates.
EWS - Emergency Water Supply.

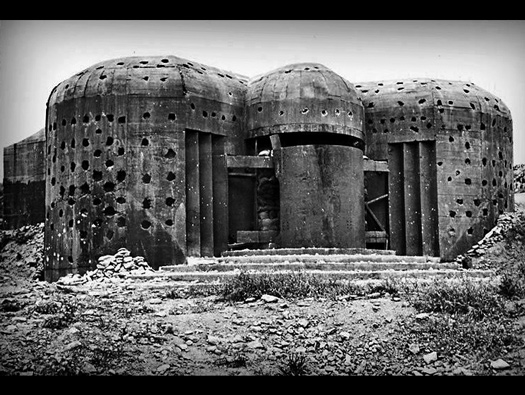

R679 casemate.


Plan of an open emplacement at Batterie Gatteville.


R636 FCP. The one here would have been very alike.


Wellblech type bunker.


R646 Wasser bunkers, there were two types 7m3 or 14m3.(MKB Bunkertour).


Vf51a half group shelter..

StP272 les Couplets H.K.B.

Allied reconnaissance photo 1942

Information

StP272 les Couplets H.K.B.

Details

The two early batteries of four Geschützstellung each and a fire control post each (C & C1). On the right they used the old French forts post, on the left they may have used an open emplacement of wood and sand bags.


A fire control post made of sand bags.


15.5cm K.420(f) guns, Canon de 145 L modele 1916 Saint-Chamond.




StP272 les Couplets H.K.B.

Allied reconnaissance photo

Information

StP272 les Couplets H.K.B.

Details

This is the French fort of 1894/5. Built to keep out the English with many other positions all around Cherbourg.


Sandbagged Fire control post at StP277 M.K.B. York.


Re305, Les Respects Fire Control Post(f).




StP272 les Couplets H.K.B.

Bundesarchiv

Information

StP272 les Couplets H.K.B.

Details

G - Geschützstellung. Open emplacements for artillery.
T - Turm casemates.
EWS - Emergency Water Supply.

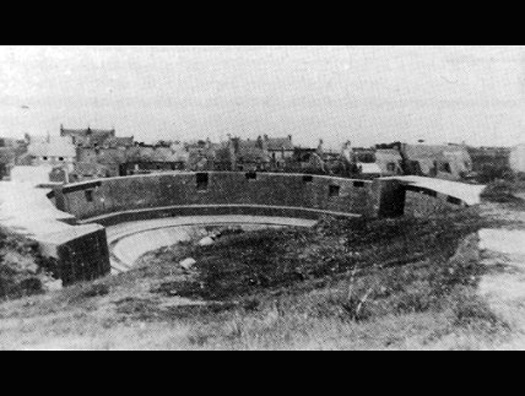

If the Geschützstellung looks like this, the gun was still in place in 1947.


Dummy batterie.


Something else I saw, a cable connection. There should be a box set into the grounds.

StP272 les Couplets H.K.B.

14 December 2003 ------------------------------------------------------------------------------------------------------ Google

Information

StP272 les Couplets H.K.B.

Details

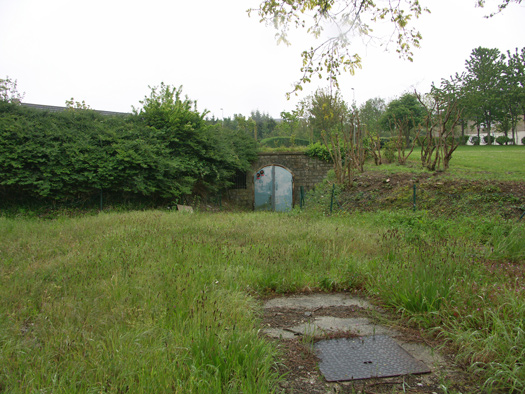

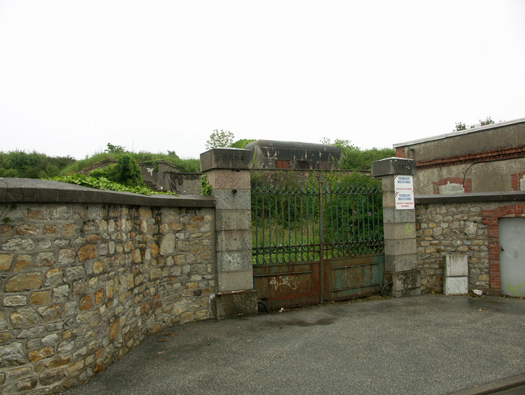

Fort les Couplets annexe.
The French fort, you can see top right, the French fire control post.

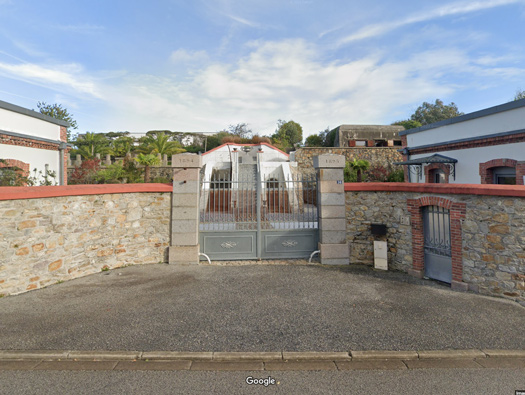

And today, somebodies lovely new house and grounds.


No entry.


Plan.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Fort les Couplets annexe.
FCP.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Fort les Couplets annexe.
FCP.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Fort les Couplets annexe.
FCP.


Plan.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

French fuel depot, underground.

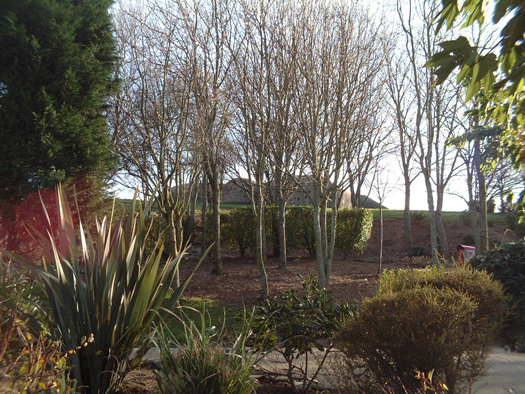

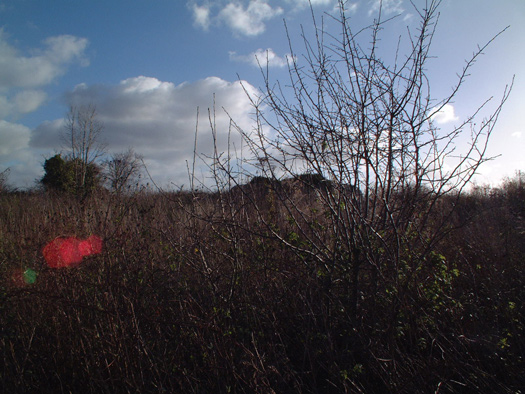

Somewhere here there should be an open Ringstand for a 5cm KwK Pak.


Plan.


Vf1692 type it may have been.


5cm KwK L42.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

French fuel depot, underground.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Fort les Couplets annexe.
FCP.


Plan.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Fort les Couplets annexe.

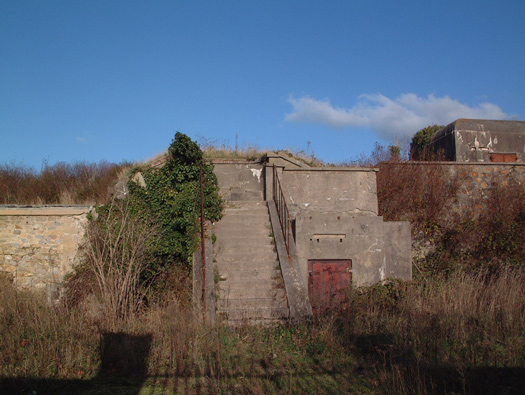

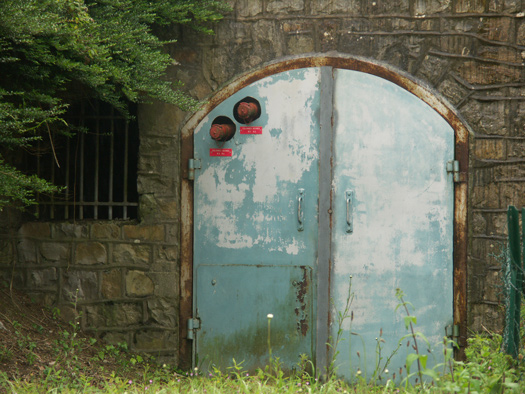

In this corner is an exit from the fort, I found the door, but never went in.


Alan Taylor
Lettering/markings on the entrance?


Bottom corner.

StP272 les Couplets H.K.B.

05 ‎September ‎2009 Alan Taylor

Information

StP272 les Couplets H.K.B.

Details

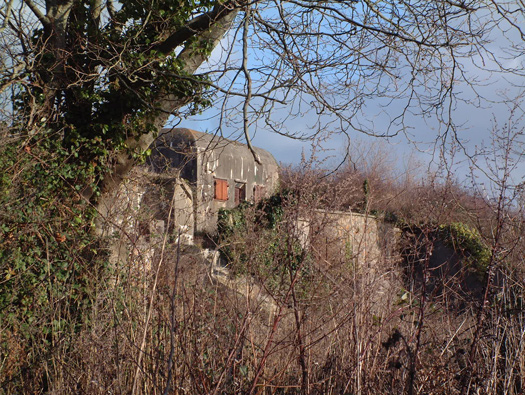

Fort les Couplets annexe.
Now Alan Taylor sent me these photos. The passageway in and you can see the camouflage on the walls.
Thank you Alan.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

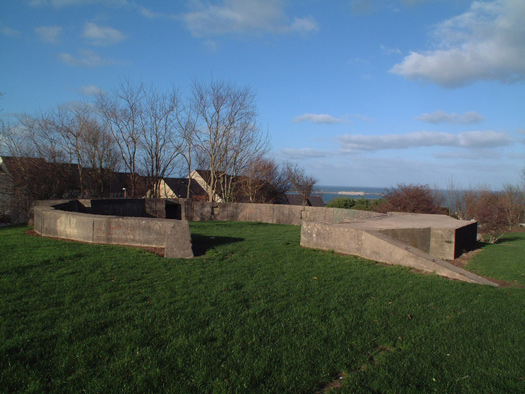

Geschützstellung 3.


Plan.




StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Geschützstellung 4.


Plan.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Geschützstellung 4.


Plan.


Cordite bags.


Cordite bags.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

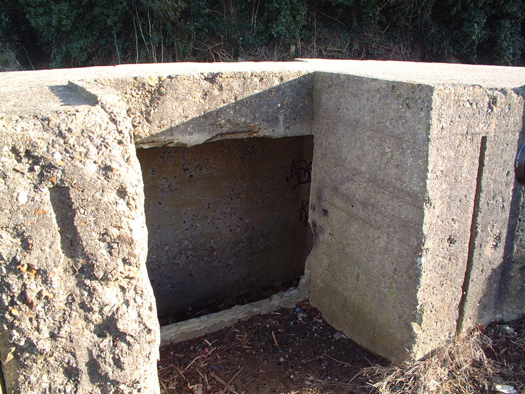

Geschützstellung 4.

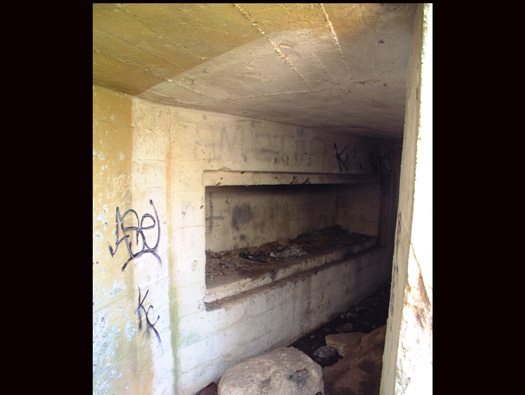

The way into the ready ammunition store.



















Inside a niche to hold ready ammunition. Not very much.


Plan.


Crew.


Shell.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

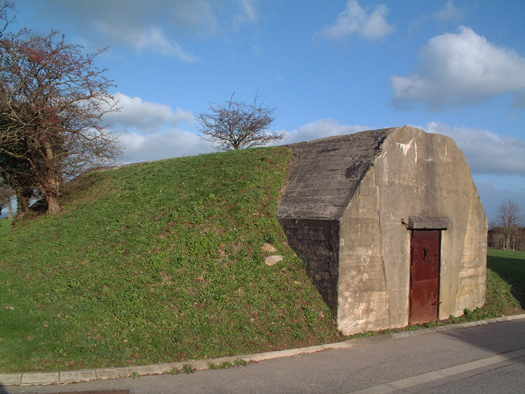

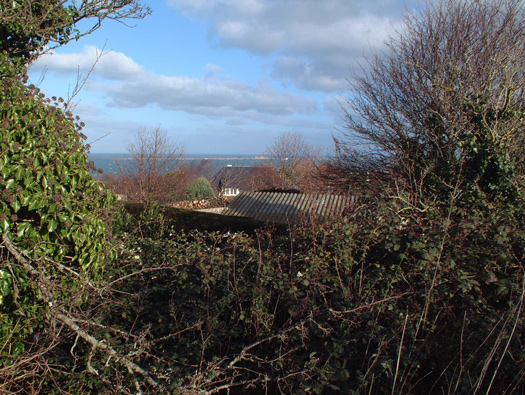

Wellblech bunker.
Early type of German shelter.


Plan.




StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Wellblech bunker.
Early type of German shelter.


Elevation.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Wellblech bunker.
Early type of German shelter.

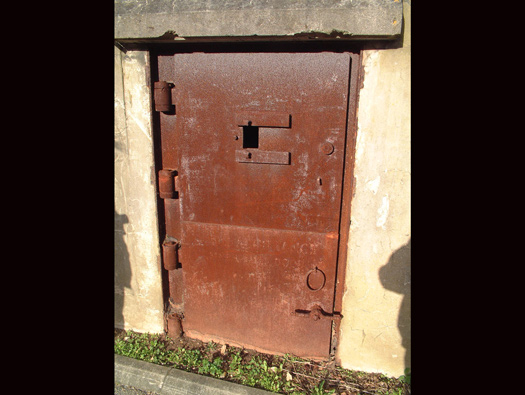

434P1 steel armoured door.


Types of door L or R.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

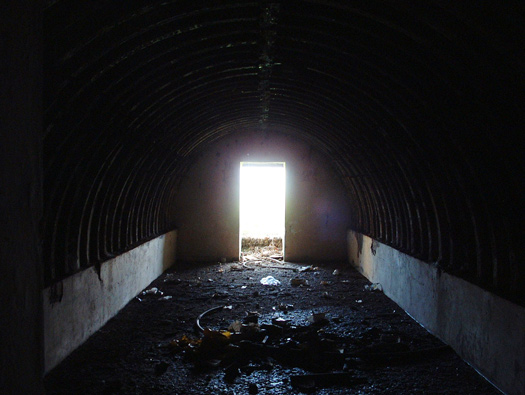

Wellblech bunker.
These bunkers made of steel half round sheets corrugated and very strong were covered in concrete. Used as barracks, ammunition storage, in fact anything that need to be kept safe.


With the door closed, you can see the light through the small window.


Window (viewing slot).

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

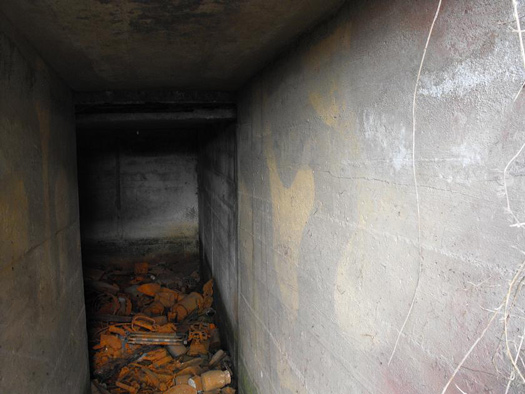

There was a tunnel linking some bunkers to G5. This looks like it.


details

StP272 les Couplets H.K.B.

Google

Information

StP272 les Couplets H.K.B.

Details

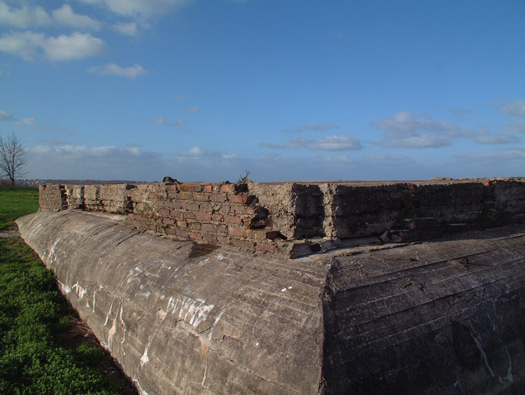

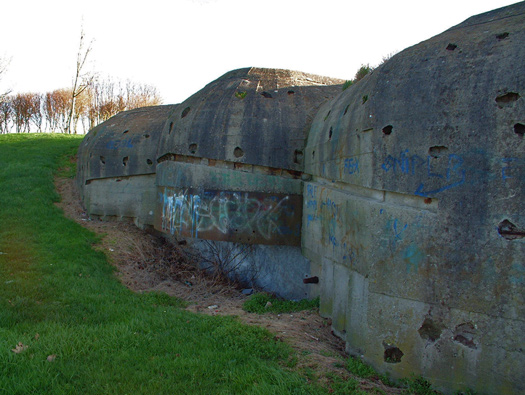

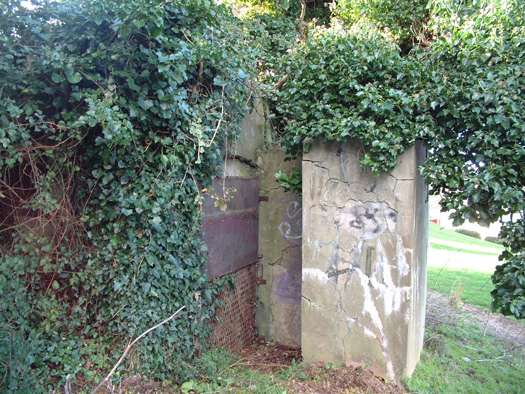

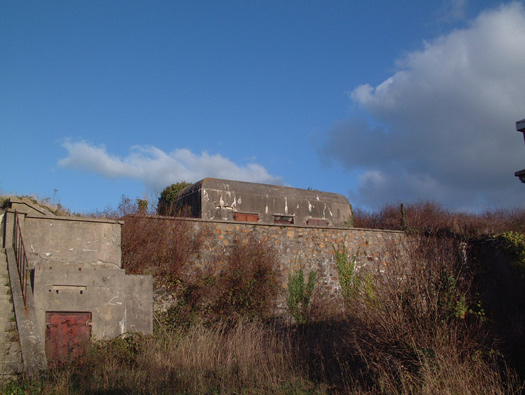

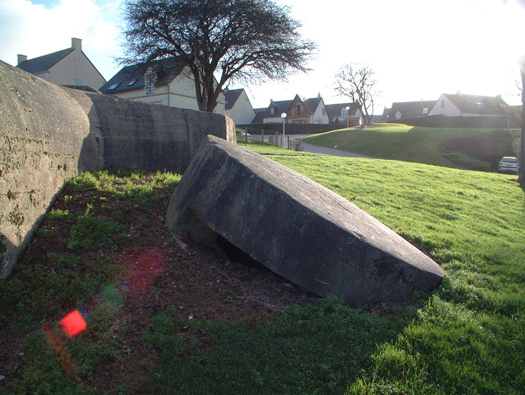

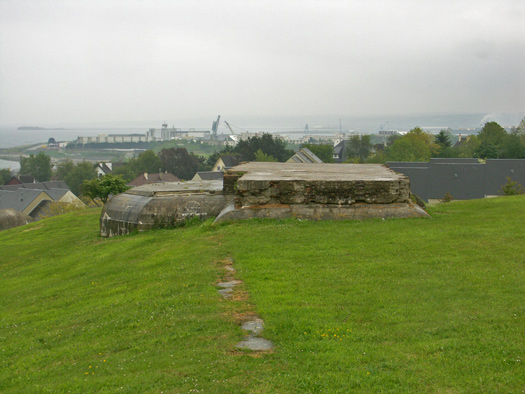

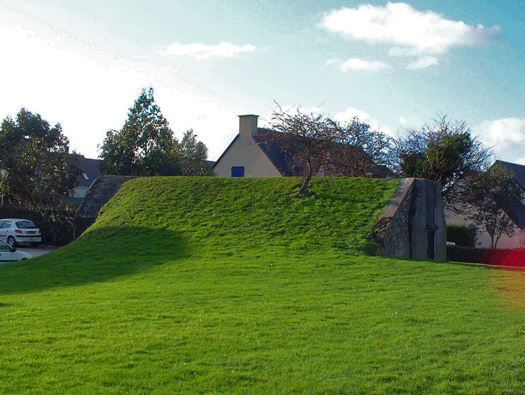

Casemate Turm 1.
Now surrounded by housing.


Plan.

StP272 les Couplets H.K.B.

1944 US Army Signals Corps, Nicholas Rudziak.(Thank you to Jim Swan) -------------------------- 1944 US Army Signals Corps

Information

StP272 les Couplets H.K.B.

Details

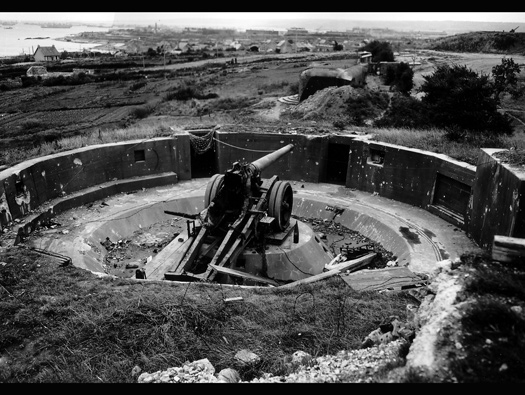

Geschützstellung 5 & Turm 2 behind.

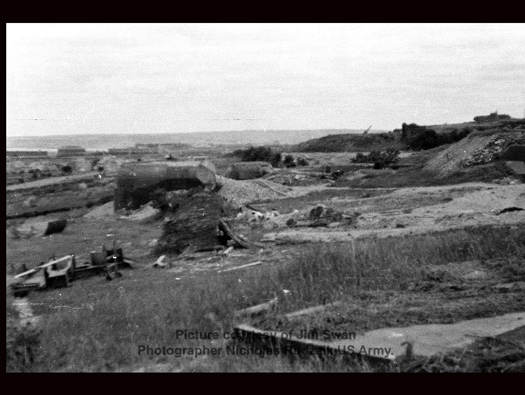

Many Americans went around photographing the batterie sites after the battles, some officially like the US Army Signals Corps. Some for Military intelligence and some British of 30 Assault Unit.


details

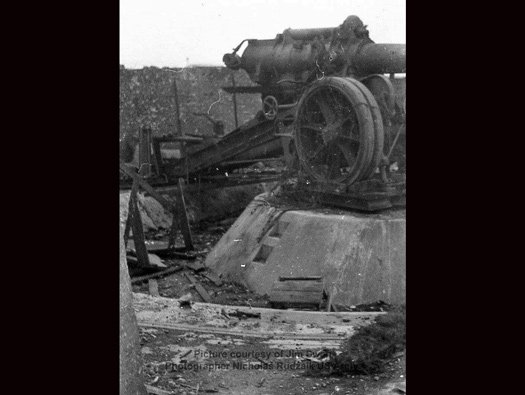

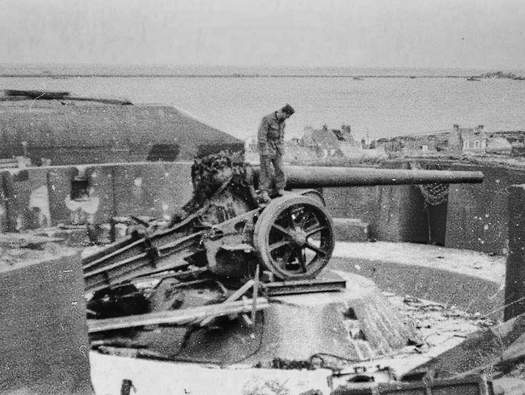

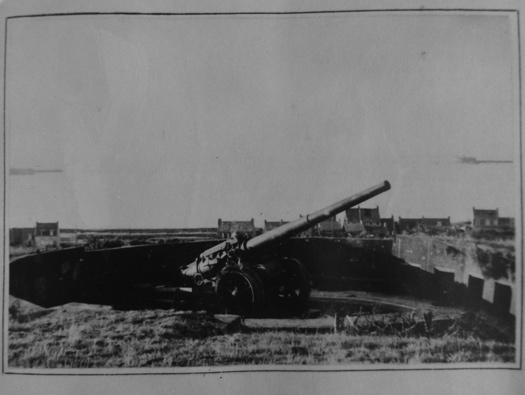

The gun was still there in a 1947 picture,


US Army Signals Corps.

StP272 les Couplets H.K.B.

1944 US Army Signals Corps ------------------------- ----------------------------------------------------1944 US Army Signals Corps, Nicholas Rudziak.(Thank you to Jim Swan)

Information

StP272 les Couplets H.K.B.

Details

15.5cm K.420(f) guns, Canon de 145 L modele 1916 Saint-Chamond captured by the German advance into France in 1940 and used to bolster the artillery defence of Normandy. Ammunition was plentiful as I believe these guns were to be used to cover parts of the Maginot Line in the east of France.

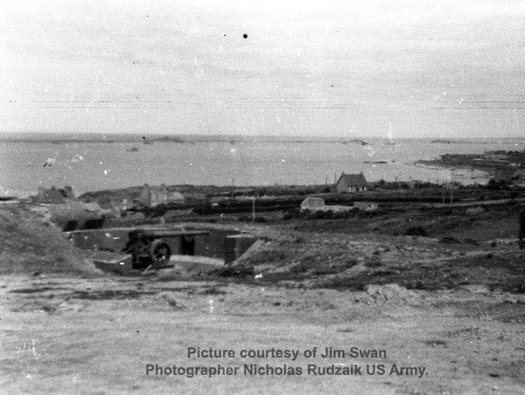

Nicholas Rudziak's photo of the area to the east of the batterie, there seems to be a Flak gun and a fire control post.
This could be Fort Couplets further back up the hill.


Maginot Line army badge.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Turm 2.

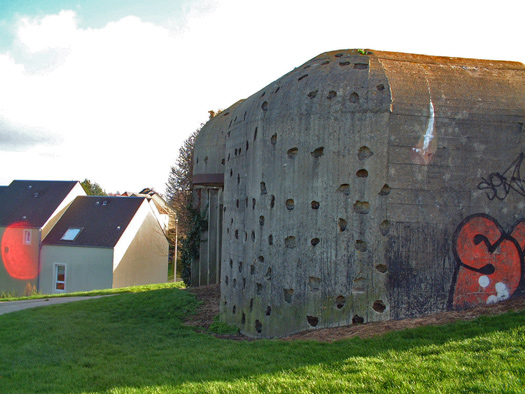

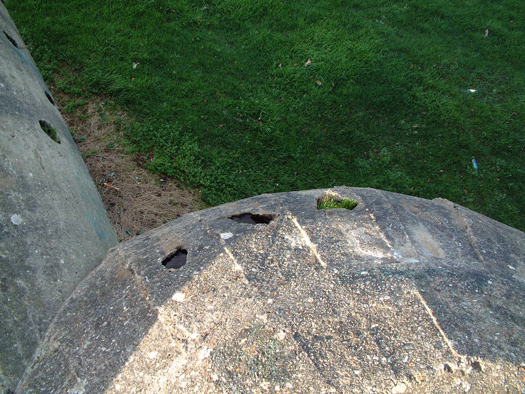

Note the holes in the concrete, this was achieved by rolling up a cement bag and inserting it in the face of the wet concrete. It acted as a camouflage to break up the solid concrete face of the casemate.


Paper concrete bags.

StP272 les Couplets H.K.B.

14 December 2003 ----------------------------------------------------------------------------------------------------- 1944 US Army Signals Corps
1944 US Army Signals Corps

Information

StP272 les Couplets H.K.B.

Details

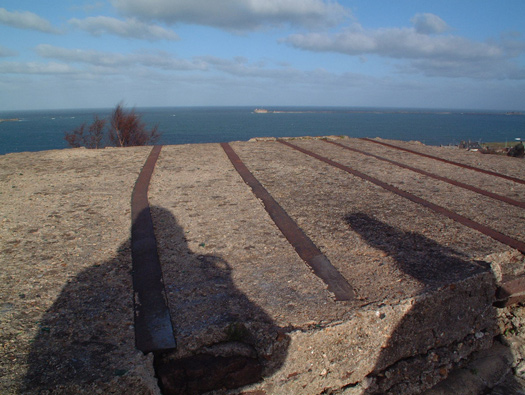

Turm 2.

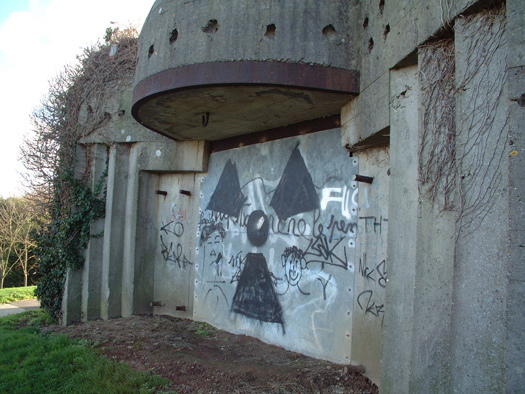

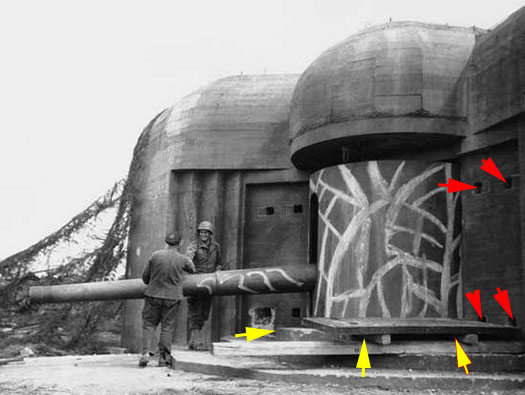

The four threads sticking out of the bunker on each side, was to attach a rectangular steel armoured plate.



















Not completed in time for the battle of Cherbourg, so a metal plate was bolted to the embrasure and shored up with timber. Making it look as though a gun may have been in place.



















This is StP152 Gatteville H.K.B showing how the metal plates would have fitted. Red arrows the treads and yellow arrows the metal plate ready to be used.


Bolt set into the concrete to hold the plate in place.


Metal plates awaiting distribution to bunkers.




StP272 les Couplets H.K.B.

Air 37/864 ---------------------------------------------------------------------------------------------------------------- Air 37/864

Information

StP272 les Couplets H.K.B.

Details

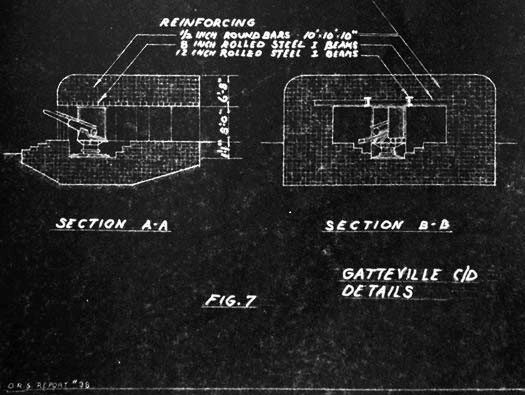

Allied plans of the bunkers.

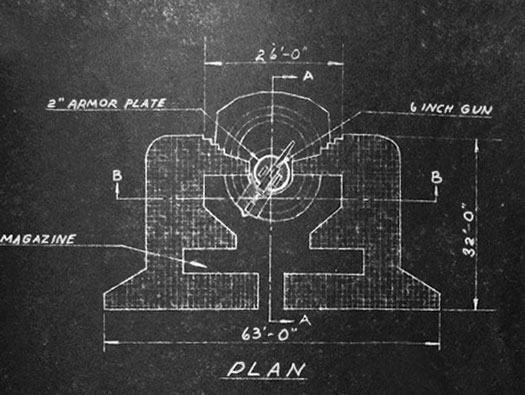

R679 Casemate Plan.

StP272 les Couplets H.K.B.

1944 US Army Signals Corps ------------------------------------------------------------------------------------------------------ 1944 US Army Signals Corps

Information

StP272 les Couplets H.K.B.

Details

Geschützstellung 6.
I think I have these two pictures correct.


Plan.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

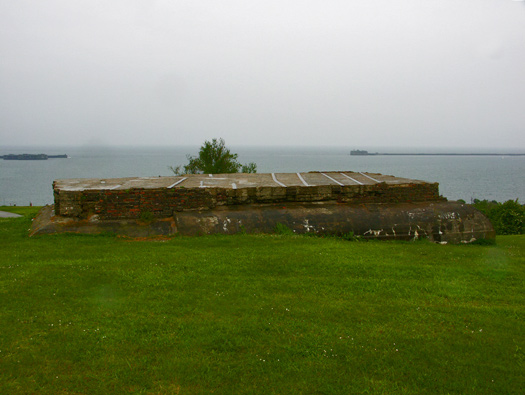

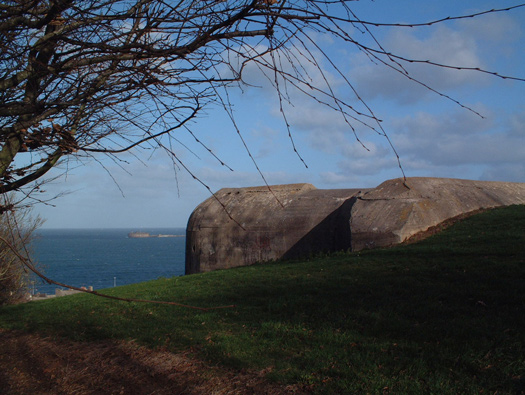

SK/Fire control post, Leitstand, Peilstand.

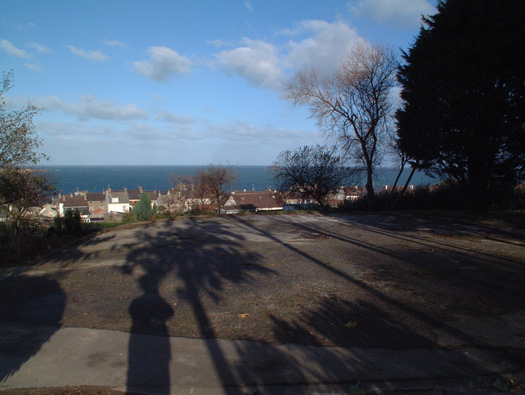

The view across Cherbourg's harbour.
SK - Sonderkonstruktionen - special construction in other words not a standard design. There was a book full of design plans made by the Fortress construction Organisation and for some reason they decided to build their own?


Plan.







StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

SK/Fire control post, Leitstand, Peilstand.
Looking into the front.



















Side view.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

SK/Fire control post, Leitstand, Peilstand.
Strengthened roof. Normally there would have been an open, but due to the very heavy bombing of Cherbourg. A strong roof may have been installed to protect the crew.


Open rangefinder room.


R636a, command post for an army coastal batterie. How this SK/FCP may have looked.




StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Turm 3.


The excavations for T3.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Turm 3.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

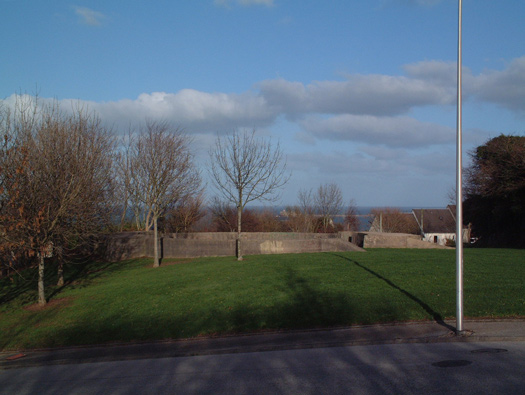

Geschützstellung 7.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Geschützstellung 7.

StP272 les Couplets H.K.B.

1944 US Army Signals Corps

Information

StP272 les Couplets H.K.B.

Details

Turm 4.



















How the gun would have looked, mounted on its pedestal and the armoured rap around shield. I really do not know how many guns were fitted. Not many I think.


The hole being dug out to build T4.

StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Turm 4.
Observation/MG.










StP272 les Couplets H.K.B.

14 December 2003

Information

StP272 les Couplets H.K.B.

Details

Turm 4.

StP272 les Couplets H.K.B.

Google

Information

StP272 les Couplets H.K.B.

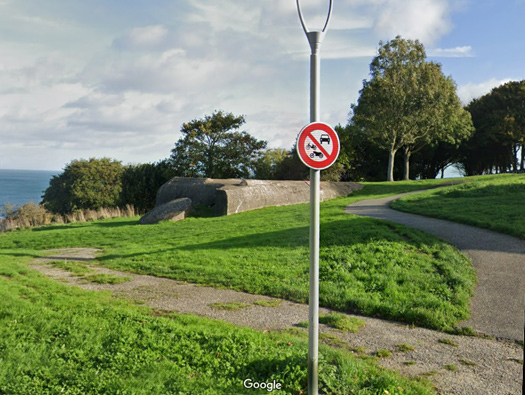

Details

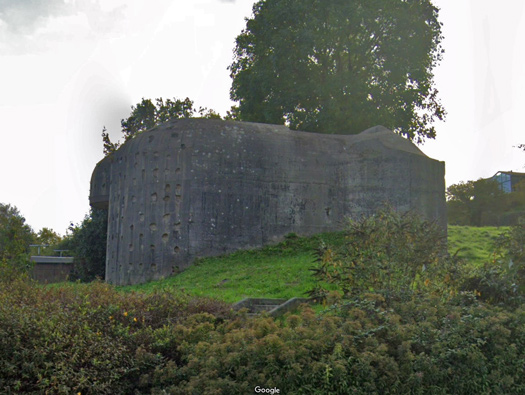

Turm 4
