Alderney a small island off the coast of the Cherbourg Peninsular one of the Channel Islands and a Crown dependency. 3miles x 1.5miles.
In June 1940 its entire population was removed and sent to either the other Channel islands or to Britain (most ended up in Glasgow). Then the German occupation forces arrived on the 2nd July. Hitler thinking that the British would attempt at recapturing, ordered it to become a Festung and later combined into the Atlantikwall.


Flak.


AA rangefinder.




Alderney, M5 Wn 'Hafen-Süd'

Google Maps

Information

Alderney, M5 Wn 'Hafen-Süd'

Details



Alderney, M5 Wn 'Hafen-Süd'

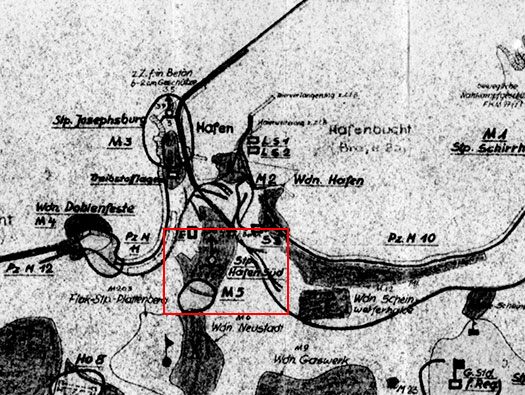

Ausboustand-karte Alderney.

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Ausboustand-karte Alderney.


Ausboustand-karte Alderney.

Alderney, M5 Wn 'Hafen-Süd'

‎Plan

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

1 x Unterstand WaKoFest bunker.
3 x 3.7cm Flak.
1 x Mortar.
2 x Flame throwers.
1 x Ft tank turret (f).
Many machine guns trenches and field bunkers.


Automatic flame thrower. A pressurised cylinder that could be electrically fired either manually by a defender or by an enemy by a trip wire.


3.7cm Flak.


Field position.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

A broken trench shelter.


Field bunker.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

A large cleared area to sit a wooden army hut. This gave them a certain amount of protection.


Plan.


It could have looked like this one.


Batterie York, Cherbourg hut.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

More hut bases.


Plan.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

A large hut base and the view out to sea.





Peeling spuds.


Store man.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

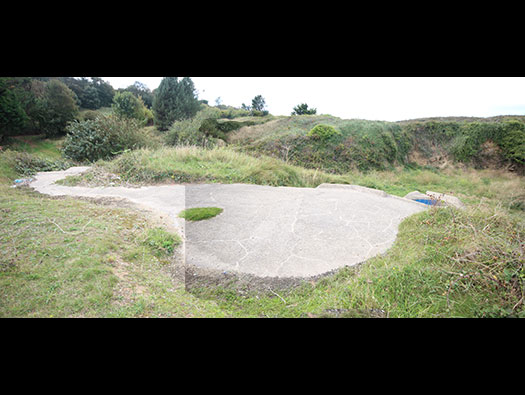

A 3.7cm Flak position. These could be 3.7cm Flak 30/37/40 or 43.
These emplacements may have had Flak in them but later they were removed and the were possibly turned over to a mortars.


3.7cm Flak.


Plan.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

The view over the quarry and the new generator.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016 JF

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

With my knees you are lucky to see these pictures.


Plan.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Vf type bunker attached to a trench system. This was an observation and a machine gun bunker.


Vf.


Observation.


Machine gun position.

Alderney, M5 Wn Hafen-Süd

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Vf bunker inside.


Machine gun position.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Vf bunker odd roof looking now it may be a steel plate and concrete. The roof structures used large 7P7 steel plate. this is another of at least three used here.


A 7P7 steel plate for a machine gun emplacement.


The 7P7 plate in the Wireless bunker at M2 Wn Hafen.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

3.7cm Flak.


3.7cm Flak.


Crew.


3.7cm shell cases.

Alderney, M5 Wn Hafen-Süd

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

The old quarry.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Entrance into a short tunnel.


Plan.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Entrance into a short tunnel. We did not enter.


Drilling a tunnel.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Trenches all over the hill.


Details2







Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

More entrenchments.


Trenches.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest bunker, this type was only built in the Channel Islands.


Unterstand WaKoFest bunker has a key hole shaped Tobruk (observation) and steps going inside are turning and not straight down. A crew room for twelve men and a store room.

Alderney, Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest bunker way in.







Alderney, M5 Wn 'Hafen-Süd'

05 October 2016 JF

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest bunker entrance.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

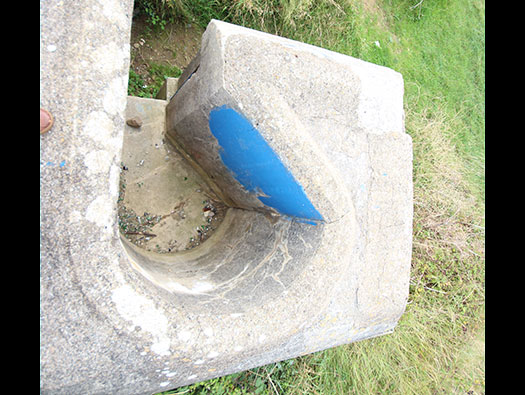

Unterstand WaKoFest bunker a formed Tobruk (observation).




Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest bunker a formed Tobruk (observation).


MG34.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest bunker.
Steel steps set into the concrete and two long grab handles to climb up into the Tobruk.
A 200mm air vent still in place.


A 200mm air vent.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest bunker.
The different style of entrance. On the right a switch box set into the wall.


Plan.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest bunker entrance field telephone switch box.


Relay box that may have been placed here.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest bunker bottom of the R/H entrance steps.


Plan.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest bunker passage.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest entrance to gas lock.


Plan.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest.
Passage drain where there could have been a shower to wash off mustard gas as it clings to the uniform and boots.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest.
Gas lock with on the left an aerial fitting showing its earth wire still in place and on the right a light switch and cabling.


Plan.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest.
Light switch and cabling.


Light switch.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest.
Aerial earthing strip.


Aerial in place.


Plan of an aerial in a bunker.


Radio.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest.
Deck light still in place.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest crew room for twelve men.


Plan.


Crew.


Bunks.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest.
19P7 door was fitted here a thin steel door that had a rubber seal around it to make it gas tight. There was also a small glass window.


19P7 door.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest.
Crew room bunker drain.


Sinkkasten drain fittings.


Sinkkasten drain fittings.


Plan of a bunker drain.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest.
Door into the store room.


Gasschutztur 19P7 door.


Unterstand WaKoFest.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest.
The store room with an escape on the left.


Escape 410P9 door.


Rations.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest.
Looking into the escape.


410P9 Door.


Emergency escape.


Escape shutters further into the escape tunnel..

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest.
Cable running around the wall for lighting and a hook in the roof to hang a chain which is attached to a triple bunk.


Bunker beds.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest store room.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest crew room.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest gas lock..

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Unterstand WaKoFest.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Covered bunker of some type.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Hidden in the bushes.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

And some.


Bunker inspection.




Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Bunker inside showing the escape in the roof.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Bunker escape in the roof.

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Bunker main room.





Details2

Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Bunker main room.




Alderney, M5 Wn 'Hafen-Süd'

05 October 2016

Information

Alderney, M5 Wn 'Hafen-Süd'

Details

Vf Machine gun bunker. This one is not at M5 Wn Hafen-Süd but gives an idea of the one that is here and we did not manage to find.


Pzt37.


Pzt37.


Pzt37 turret.
