Wn Tre09, Le Tréport, le Grange,
StP. Gruppe Le Tréport,
K.V.A. 'E1', Houte-Normandie.

Page updated: March 1, 2024

Wn Tre09, Le Tréport, le Grange image

Information

Wn Tre09, Le Tréport, le Grange.

Details

Around 53 troops.
2 x R630.
1 x R515.
1 x R680.
1 x Kabelbrunnen.
7 x Vf58c.
1 x Feldm.
1 x Wellblech.
1 x 7.5cm Pak 40.


R515. I do not know where this was/is.


Kabelbrunnen at Fort Mahon.


Tobruk.

Wn Tre09, Le Tréport, le Grange

Google

Information

Wn Tre09, Le Tréport, le Grange.

Details

The plateaux above the town and Tre01 covers the southern way into the town.

Wn Tre09, Le Tréport, le Grange image

22 February 2014

Information

D126 looking towards le Tréport.

Details

The only gun position we found is pointed out by the red arrow. A Canadian Sherman tank coming up this road would have been blown sky high by the 7.5cm PaK in the R680 bunker.


R680 town type.


7.5cm Pak 40.


Shooting out of a casemate.

Wn Tre09, Le Tréport, le Grange image

22 February 2014 or 1944

Information

As can be seen.

Details

The gun casemate would have been camouflaged and until the gun fired they would not see it. The range to here is 720meters. The Sherman's main armament has an effective range of 450meters.










Wn Tre09, Le Tréport, le Grange image

22 February 2014

Information

Wn Tre09, Le Tréport, le Grange.

Details

There would of been a half circle of seven Tobruk's, trenches, road blocks, two R630, one R515 casemates and lots of wire & mines.


Tobruk there were seven here..


Trenches.


R630 machine gun bunker.

Wn Tre09, Le Tréport, le Grange image

22 February 2014

Information

R680 casemate for a 7.5cm Pak gun.

Details

The 7.5cm & 8.8cm Pak guns became so big, heavy and unwieldy that they were gradually being removed from front line use and then were placed in casemates on the Atlantikwall where they became deadly. On D-day with an 8.8cm in Wn72 and then another at Wn61, with terrible crossfire. Where as if they had been in the open they may have not lasted so long.


The 8.8cm is a very large gun.


Inside a casemate on Omaha Beach at Wn61.




Wn Tre09, Le Tréport, le Grange image

22 February 2014

Information

Closer look at the R680.

Details

This photo is a 720 meter shot not too bad. Effective guns range was 1,800 metres (5,906 ft) that would be ample for this 720 meters.

Wn Tre09, Le Tréport, le Grange image

22 February 2014

Information

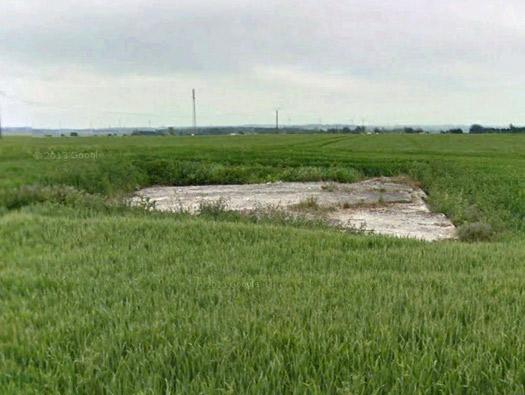

R622 personnel bunker.

Details

This bunker would have had some trenches around the rear to enter the rear. The roof would have had earth on the top and grassed over.


R622 twin group bunker at Cherbourg.


R622 twin group bunker.




Wn Tre09, Le Tréport, le Grange image

MKB Bunker tour

Information

MKB Bunker Tours plan of the bunker.

Details

Unlike a normal R680 which is rounded and usually has a flanking wall, here there is no flanking wall. The walls and roof are squared off to allow the bunker to blend into an urban situation. In towns there are only verticals and horizontals, no rounded corners.


R680 with flanking wall and rounded edges.


R680 town type without flanking wall and squared edges.

Wn Tre09, Le Tréport, le Grange image

Information

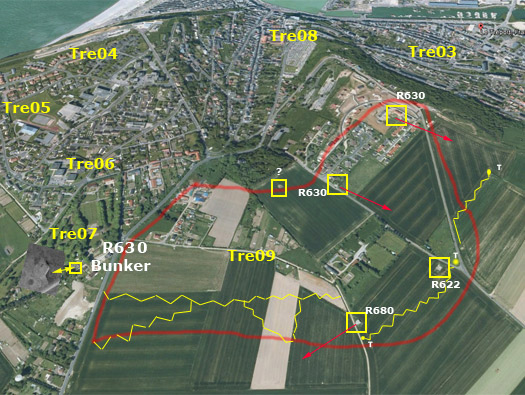

I think I have found nearly all the bunkers now via Google? at Wn Tre09, Le Tréport, le Grange and an R630 in Tre07.

Details

The two R630's can be found one in a housing estate and the second in a garden, the R622 is in a field of crops and the R680 covers the plateaux. Also the trench system and 'T's are I think three of the seven Tobruk's. They still could be there.


R630.


Gun room.


Crew room in a R622.
