Struggling with Fact and Fiction Reading many accounts of what went on here. Many comments have been lost in translation and I feel also to history. So I will do my best.
Work was slowly being carried out until the armistice, then all works stopped.
The souterrain is un accessibly today, its gated to allow Bats to fly in and out freely.
We visited on the 21 November 2003 & 17 March 2006.
This batterie position was part of the greater Maginot Line. The idea of the Maginot Line was not just to cover the eastern approaches to France, but a greater defence, covering the ports from Dunkirk to Cherbourg. St Malo to Brest. And also the west facing coast to the Gironde estuary. The south of France Batterie Cépet.Toulon. Then there was Corsica, Tunisia and many other territories of greater France. A whole range of guns were to be used. Mostly Naval guns, as it was the French Navy's responsibility to defend the ports.
André Maginot French Minister for War.
Batterie Cépet.Toulon
Castel Vendon, Batterie Française Tourville, (Souterrain).
Google
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Castel Vendon, Batterie Française Tourville, (Souterrain).

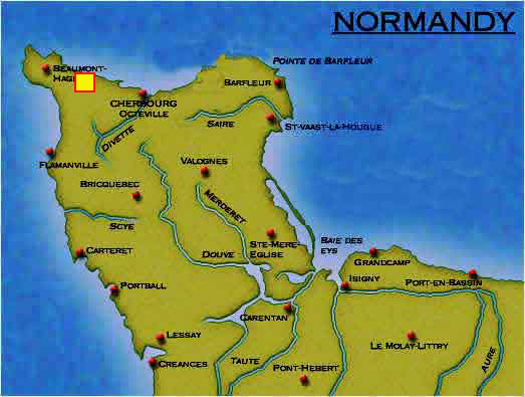

Castel-Vendon
Département de la Manche
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
SCIENTIFIC AND TECHNICAL FILE FOR
THE CREATION OF A PREFECTORAL BIOTOPE PROTECTION ORDER (APB) November 2020.

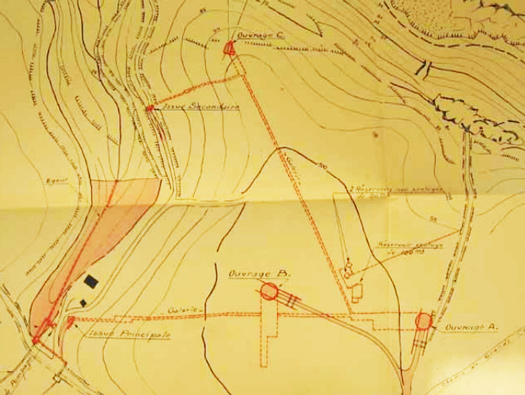

Original plan plan of the site.
In 1926 the French navy studied the construction of coastal defense batteries comprising armored turrets of two 340mm guns identical to those of the battleships. These turrets, called type C model 1928, weighed 600 tons. The guns had a length of 15.58 m and could fire 2 rounds/min. The guns of these turrets had been ordered in 1929 from the Schneider company and delivered in 1932/1933. Two turrets were planned for the Cride battery, one for the Metline battery in Tunisia and one for Bonifacio. The Cride and Bonifacio batteries having been canceled, two turrets were installed at Metline and the other two stored in the artillery park at Puits Soret. In 1936, the site of Castel Vendon, west of Cherbourg, was chosen to install two type C turrets there to replace the battery of 4 164 guns.
From Memoire et Fortifications

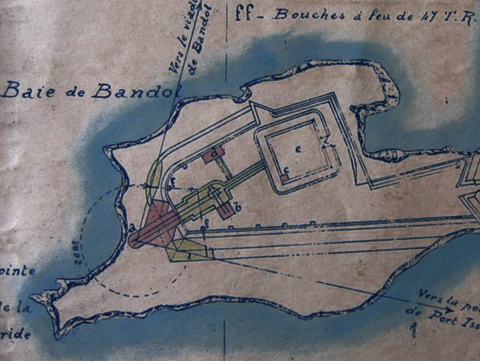

Fort de la Cride1911. Sanary-ser-Mer. West of Toulon.
Cherbourg defences.
Castel Vendon, Batterie Française Tourville, (Souterrain).
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

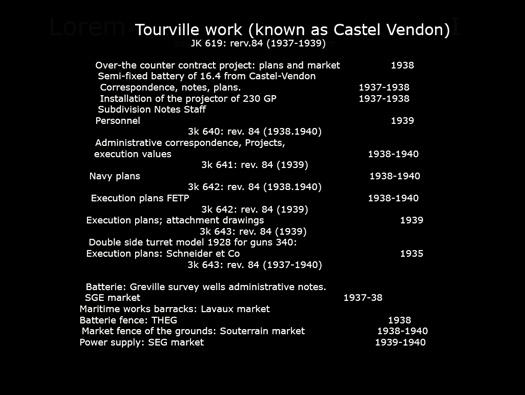

The official time line of the works copied from the French.
Castel Vendon, Batterie Française Tourville, (Souterrain).
IGN REMONTER LE TEMPS 1942
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

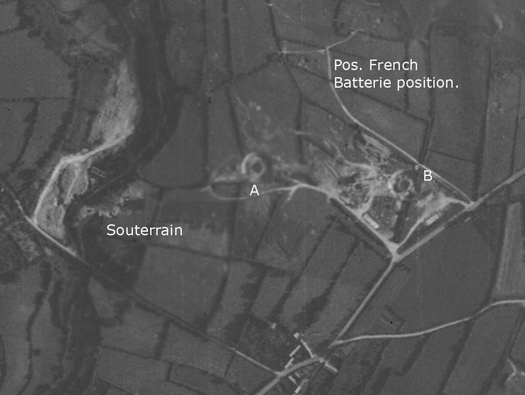

A 1942 air photo showing the pre war excavations, the two gun positions, the entrance and the possible position of the earlier French batterie. And what may have been the German excavations ?
How the pre war French batterie may have looked.
Main Maginot line.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

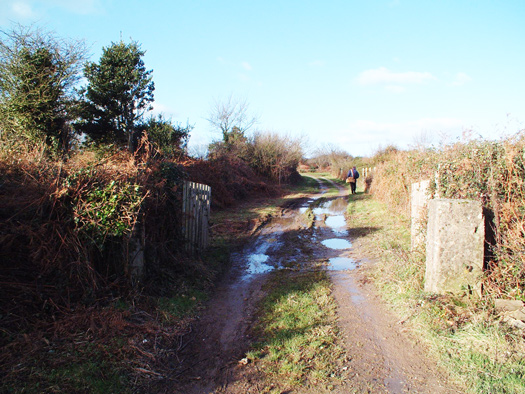

Batterie entrance.
Two concrete blocks would have a chain across or a Belgian gate to close off the entrance. This is the main gate to both batteries. These c probably German.
Belgian gate.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
'A'
Plan.
Castel Vendon, Batterie Française Tourville, (Souterrain).
Unknown Internet
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

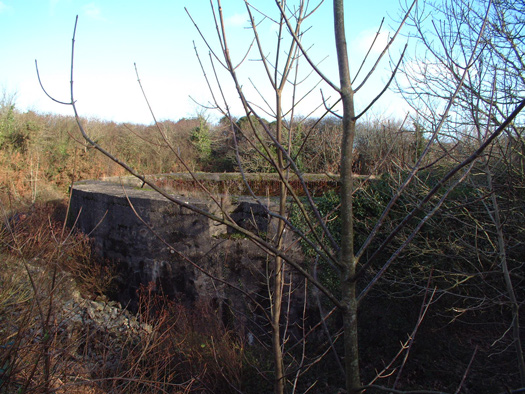

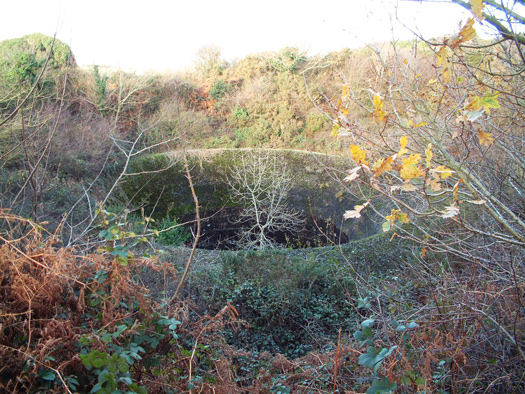

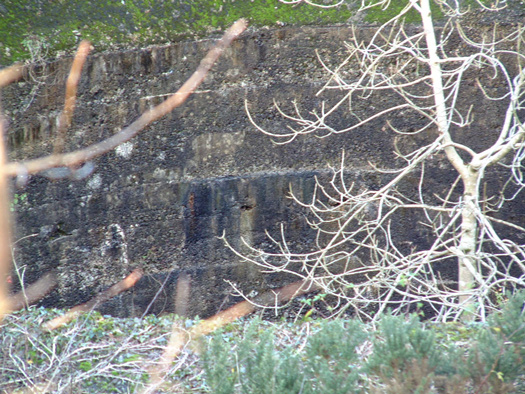

Above ground looking at the central tube where the turret would have been lowered into place. Wooden battens to to support the reinforced concrete. That would have all been removed to lower the turret into the ground.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006SHM
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
This shows the way they were constructed. A large hole was dug out and then the concrete supports for the turret mounted guns to fit. This was a standard way of building the Maginot forts. Tunneling was only done where this form of construction could not be carried out.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006SHM
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
This shows the way they were constructed. A large hole was dug out and then the concrete supports for the turret mounted guns to fit. This was a standard way of building the Maginot forts. Tunneling was only done where this form of construction could not be carried out.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
'A'
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
'A'
Details2
Castel Vendon, Batterie Française Tourville, (Souterrain).
Elevation
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

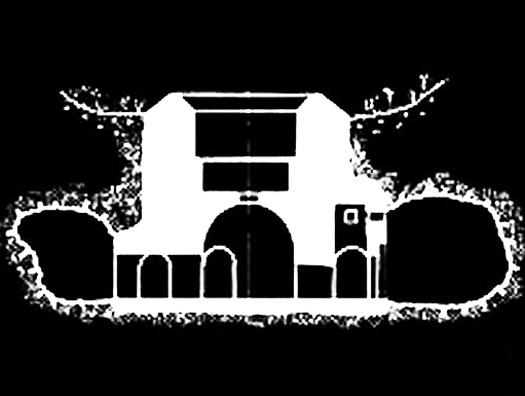

Elevation of the design.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
'B'
Plan.
Castel Vendon, Batterie Française Tourville, (Souterrain).
USS Texas Gun Turrets (Lonestarbattleship)
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

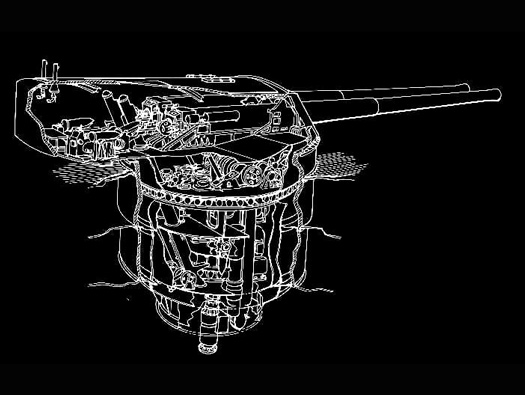

This is a twin turret of 14inch guns from USS Texas. 35.5cm gun very like the 34cm guns that were to be sent here. The lower parts would have been dropped down into the concrete tubes. Giving an idea of what a turret of that size looked like.
Castel Vendon, Batterie Française Tourville, (Souterrain).
SHM
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

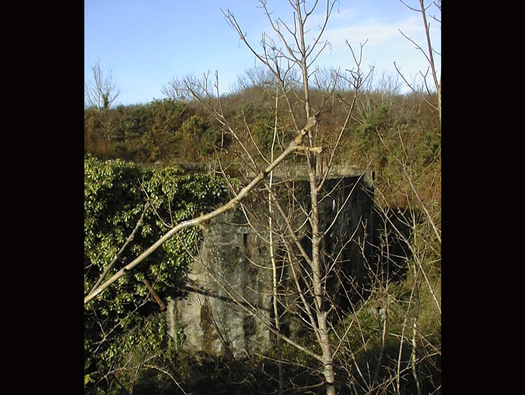

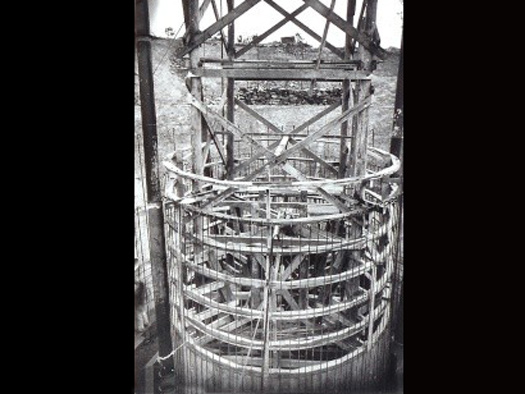

The shaft wooden construction and then concrete would have been poured.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

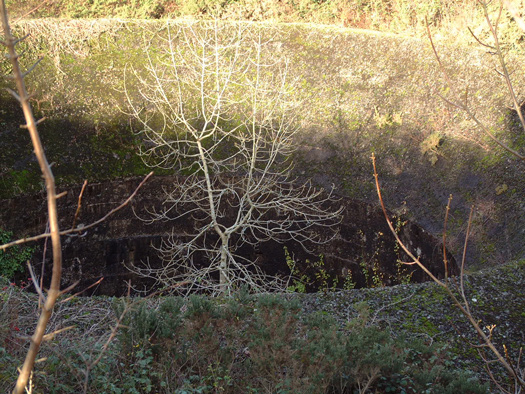

'B' very un finished.
Details2
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
'B'
Details2
Castel Vendon, Batterie Française Tourville, (Souterrain).
30 December 2000
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
'B'
Details2
Castel Vendon, Batterie Française Tourville, (Souterrain).
Subterranea Britannica
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Maginot souterrain entrance on the left with the two 'A' & 'B' emplacements, a German heavy gun turret (unfinished). The tunnel that would have connected the two emplacements and continuing on to the fire control by the cliffs. Then the personnel buildings and the four M272 German Atlantikwall gun casemates in type M272.
Yellow - French.
Red - German.
Castel Vendon, Batterie Française Tourville, (Souterrain).
Defence Report No.1
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

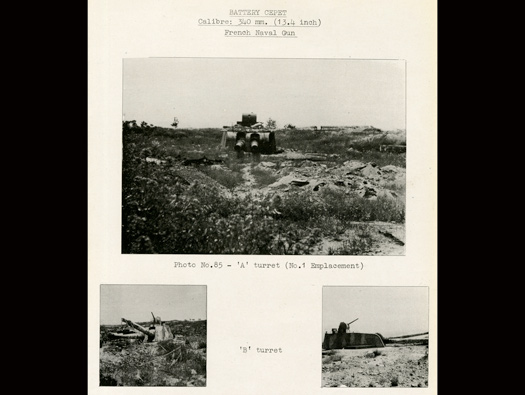

The French turret 'A' at Cap Cépet, Toulon, France. This is how the turrets here would have looked. Original 34cm guns of the "Normandie" class battleships.
'
Normandie-class-battleship.
Castel Vendon, Batterie Française Tourville, (Souterrain).
Defence Report No.1
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
The French turret 'A' at Cap Cépet, Toulon, artists sketch of the turret.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
In the Autumn of 1943, the Germans try and install two of the turrets of the battleship Gneisenau, each consisting of two 28cm SKC/34 guns. The French tubes being too narrow. So a new construction east of the position was undertaken, but abandoned at the end of 1943. The turrets will be used in Denmark (Vogelnest battery). After this failure, the Todt organization changed their plans and built a battery of 4 guns of 150 SKC/28 (range of 23 km) in M272 casemate. This battery was called MKB Landemer. On casemate 4 was a 2cm Flak cannon mounted on the roof and a 5cm KwK defence gun placed towards the sea.
28cm SKC/34 turret 28cm SKC/34 turret.28cm SKC/34 turret Fjell fortress in Norway.
28cm SKC/34 turret.
Gneisenau.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Bits of concrete still lie around from the construction.
Plan, Ent - Entrance tunnel.
Entrance.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Getting closer.
Plan, Ent - Entrance tunnel.
Castel Vendon, Batterie Française Tourville, (Souterrain).
SHM
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

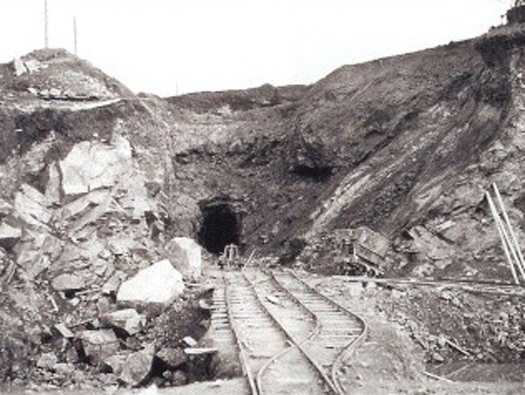

The tunnel entrance and the decauville, light rail system to carry away spoil. The tunnel was bored out whilst the main gun positions were being dug out and would have been used as access after completion.
Plan, Ent - Entrance tunnel.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

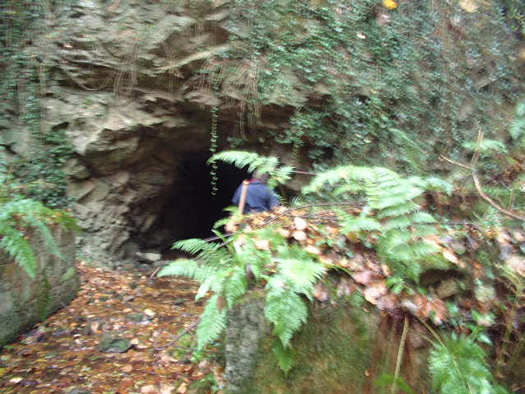

The way in. Ent on the plan.
Plan, Ent - Entrance tunnel.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Plan, Ent - Entrance tunnel.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006 John Flaherty
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

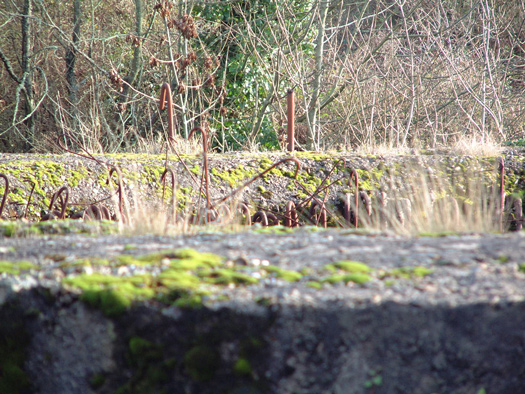

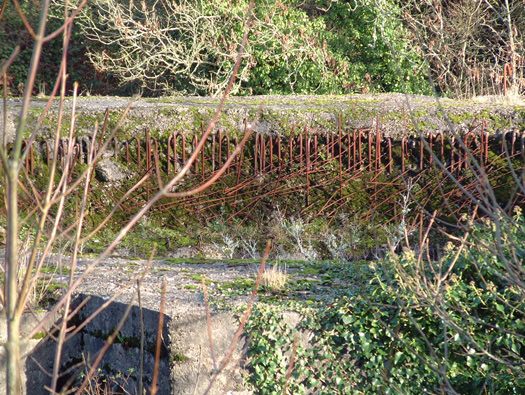

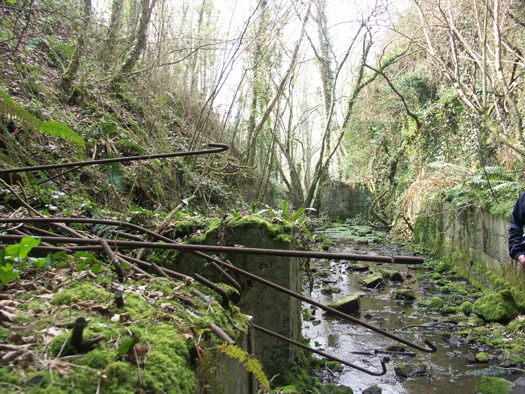

Remains of the re bar bent over.
Plan, Ent - Entrance tunnel.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
About half way in.
Plan, tunnel towards A.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Continuing on,then turn left and you can just see the concrete arches in the distance.
Plan, tunnel towards A.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Des refuges pour chauves-souris en Normandie.
Possibly Brandt's bats (Myotis brandtii).
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003 John Flaherty
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
The start of the main structure.
Plan, tunnel at A.
Castel Vendon, Batterie Française Tourville, (Souterrain).
21 November 2003
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Its quite a big structure, church like.
Plan, tunnel at A.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

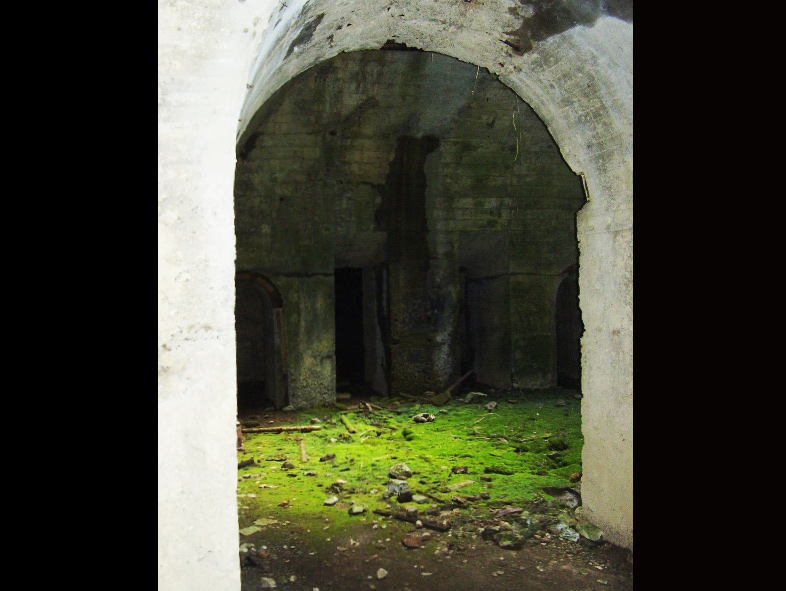

Looking in.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
The ships turret would be lowered down into this space and it would allow access to ammunition loading.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

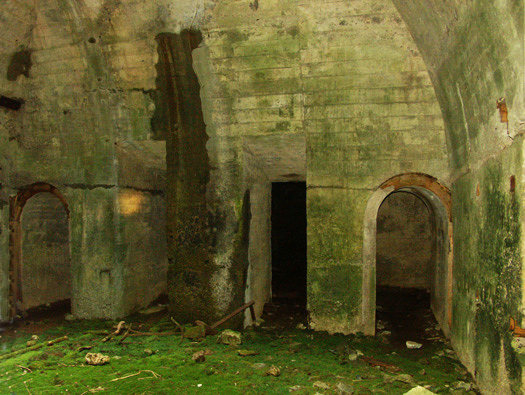

Another picture of the chamber.
Castel Vendon, Batterie Française Tourville, (Souterrain).
26 June 2002 17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

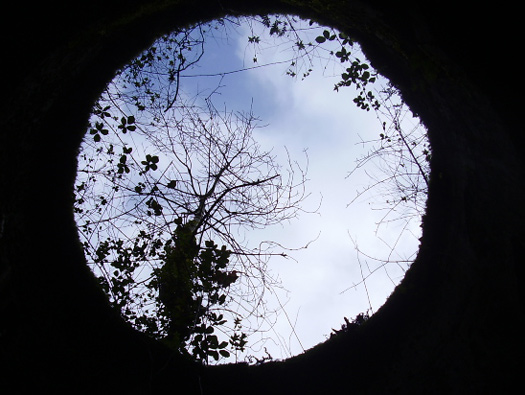

Two pictures looking out of the turret hole.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006 Shaun Churchill
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Different chambers leading off for ammunition.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006 John Flaherty
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Mike and Shaun giving scale to the picture.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006 Shaun Churchill
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

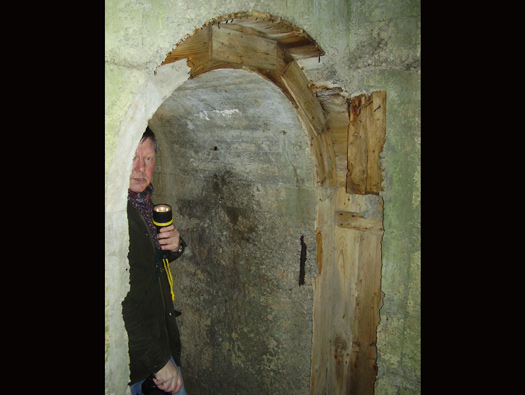

Caught on camera I try and stay out of photos.
Note the wood from the shuttering is still in place.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006 Shaun Churchill
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
Shaun.
Again shuttering still looks as good as it did when new.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
A corner section of shuttering looks new.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
This is looking towards the 'B' turret, there is no link through the rock. Just a deep hole that may have lead to the second position. The water is spotlessly clear and quite a lot of metal pipe work is down there.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details

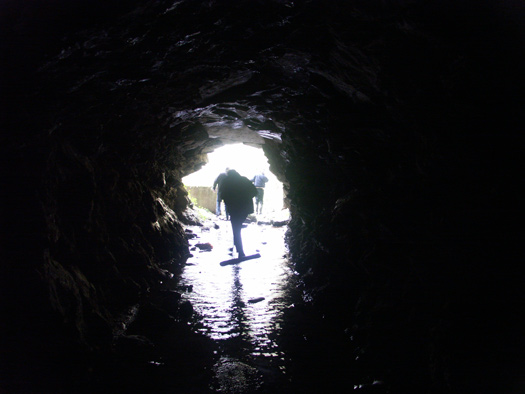

On the way out.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
French re bar sticking out of the concrete supports.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006 John Flaherty
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
A later visit to 'A' with a good view of the hole.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
A later visit to 'A' with another good view of the hole.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
I hate showing pictures of friends struggling to extricate themselves from a situation.
"But sometimes you have to, don't you John"! Mike staying vert clear.
Castel Vendon, Batterie Française Tourville, (Souterrain).
17 March 2006
Information
Castel Vendon, Batterie Française Tourville, (Souterrain).
Details
France
Great Britain
