Ra230 Fort de la Cite d'Aleth. Outside the wall. image

12 January 2014

Information

Ra230 Fort de la Cité d'Aleth. The old French defence of St-Servan-sur-Mer and the left flank of Saint-Malo. A very old defence probably upgraded by Vauban and then by the Germans into the main defence of Festung Saint-Malo.

Details

Z1 : R112a (abri avec cloche blindé type 35P8)
Z2 : R506 (casemate pour Festung-PaK 3.7 cm (t) )
Z3 : R112a ( abri avec cloche blindé type 35P8 )
Z4 : R625 ( casemate pour 7.5 cm Pak 40 )
Z5 : R625 (idem)
Z6 : R621/501 ( blockhaus type 621 couplé a un blockhaus type 501 , abri pour personnel)
Z7 : R114a neu ( abri avec cloche blindé type 20P7)
Z8 : R504 ( abri avec garage pour canon Pak)
Z9 : R105d ( casemate MG )
Z10 : R114a neu ( abri avec cloche blindé type 20P7)
Z11 : R112a (abri avec cloche 20P7 )
Z12 : R112a ( abri avec cloche blindé type 20P7 )
Z13 : R105b (casemate MG) Z14 : R105 b (casemate MG)
Z15 : Removed.
Z16 : R105d/105b ( 2 casemates MG couplés entres elles)
Z17 : R105d/105b (2 casemates MG couplés entres elles)
Z18 : R105d/105c / MG stand SK ( 2 casemates MG + MG stand SK couplés avec cloche blindé type 486P2)
Z19 : R105c (casemate MG + cloche blindé type 486P2)
Z20 : R611 ( casemate canon de campagne 10.5 cm le F. H. 16)
Z21 : R611 (idem)
Z22 : R636 (poste directeur de tir)
Z23 : L410a /L410a : abri couplés doté de 2 cuves Flak ( 4 cm Flak 38 Bofors) , une 3e cuve Flak est placé a proximity
Z24 : Abri pour Mortier automatique M19 Z25 : R667 (casemate pour 5 cm KWK L60)

From Armuria : Le Passe en Miniature.

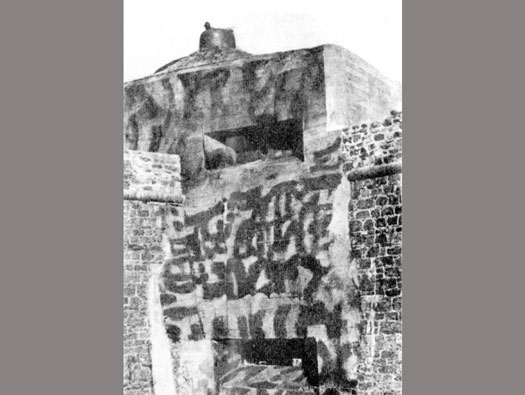

Inside a bunker.


The American capture.

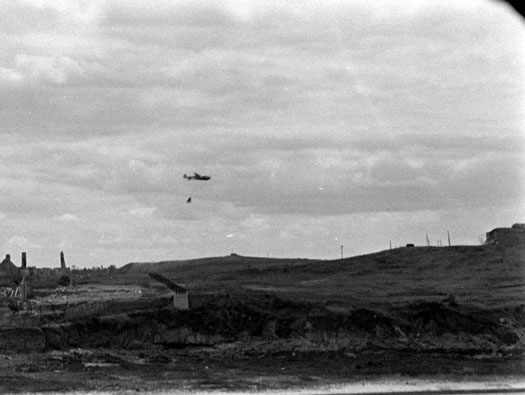

The battle.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

12 January 2014

Information

Ra230 Fort de la Cité d'Aleth.

Details



Ra230 Fort de la Cite d'Aleth. Outside the wall.

12 January 2014

Information

Ra230 Fort de la Cité d'Aleth.

Details

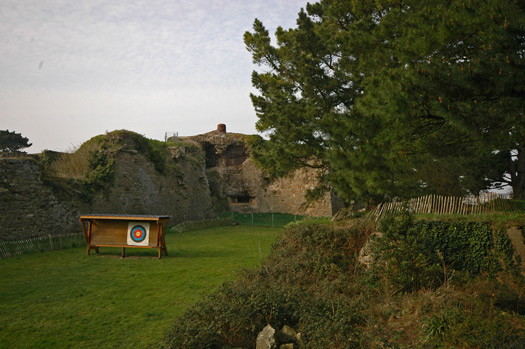

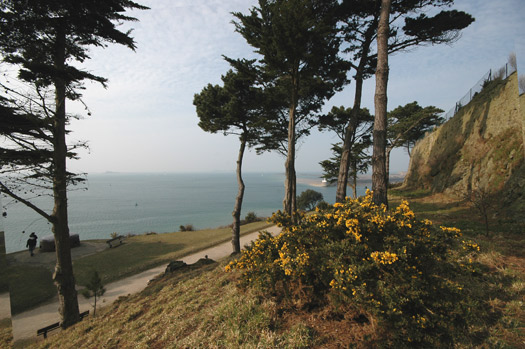

A nice walk from Saint-Malo town across the lock and around the bay at Les Bas Sablon to the yacht marina (Port De Plaisance des Sablon) and then climb the steps up to the fort. Also you can drive through the old roads through St-Servan-sur-Mer and park at the yacht marina. On all my visits I have walked the perimeter and the came back through the main gate and on to the port.


Fort Cité d'Aleth.

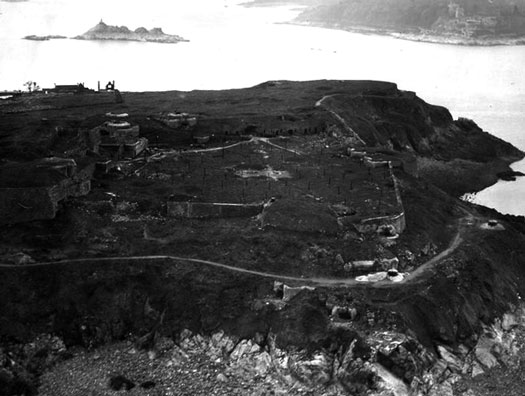

The iconic view of the fort.


A colour photo of the ruins of St-Malo.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 November 2013

Information

Ra230 Fort de la Cité d'Aleth.

Details

Stab Festungskommandant,
Stab M.A.A.608, M.N.O.


The victors.


Oberst Von Aulock commander of Festung Saint-Malo.

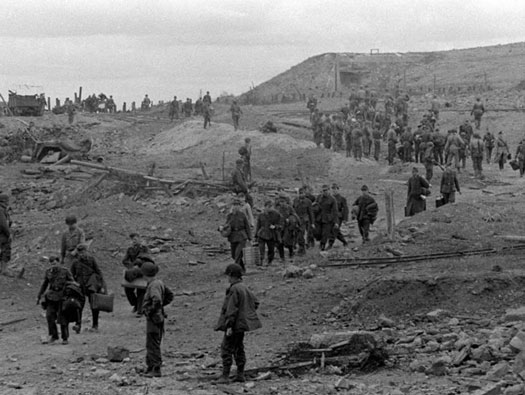

The captured.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

12 January 2014

Information

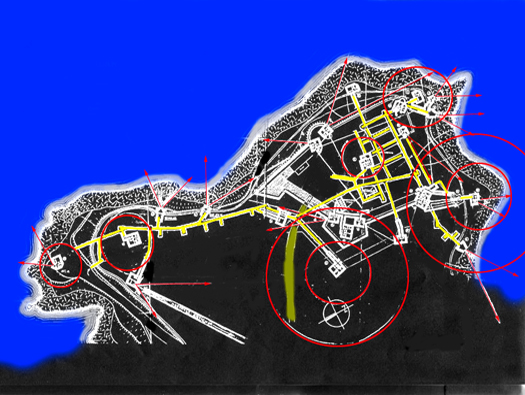

Plan of Ra230 Fort de la Cité D'Aleth.
White - defences.
Yellow - underground (souterrain).
Red - guns.

Details


The plan of layout of the fort showing all the bunkers in white and in yellow the underground (souterrain). In the summer you can tour the underground areas and Museum.
Each bunker is numbered with Z. followed by its number. The bunkers used were adapted to being attached to an underground system by leaving out their close combat rooms.


Z.18 R105d/c


Z.7 R114a neu.


Z.24 R633.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

21 November 2013

Information

Ra230 Fort de la Cité d'Aleth.

Details

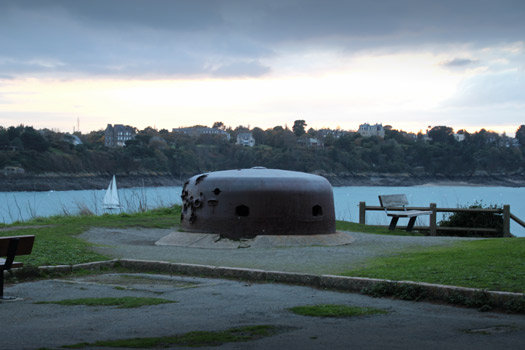

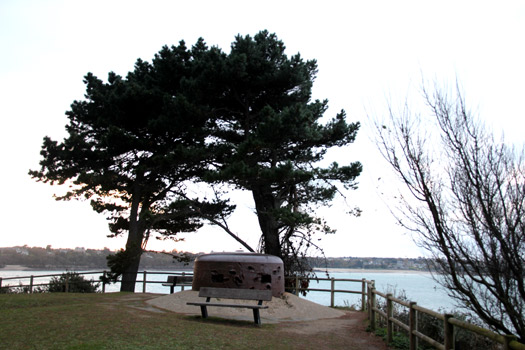

Z.10 114a neu bunker with a 20P7 cupola.
The dome (cupola) has six embrasures to locate a machine gun in and a periscope in the centre of the roof. The battle to take the fort was hard and bloody as you can see from the damage done.


114a neu 6 embrasure turret.


Machine gunner inside a 20P7 dome.


Inside a cupola, not a lot of room. An MG 34 was used in here.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

21 November 2013

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.10 114a neu bunker with a 20P7 cupola.
Underneath this cupola is an R114a neu bunker with a crew room, a gas lock & entrance and the cupola and here it was linked to an underground network of passages which attached most of these bunkers together into a very strong defence.


Plan of the defence.

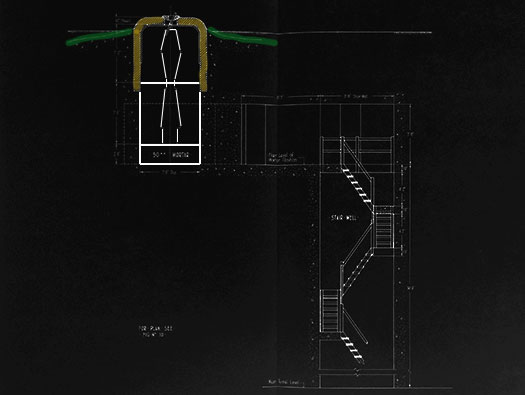

R114a neu.


Image Caption

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 Marsh 2006

Information



Details

Z.18 R105d/105c/M.G. - Stand S.K.
This is the bottom of Z.18 and shoots along the forts east wall.


Plan.


R105d/105c/M.G. - Stand S.K plan.




Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 November 2013

Information

Ra230 Fort de la Cité d'Aleth.

Details

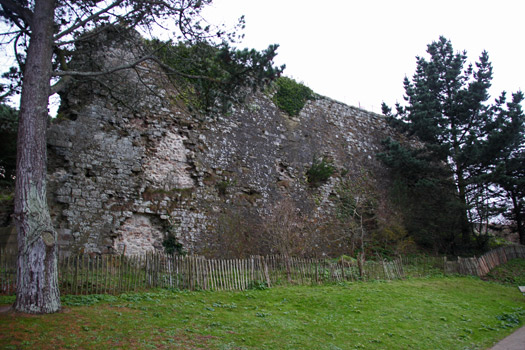

The original French fort wall.
Showing lots of battle damage

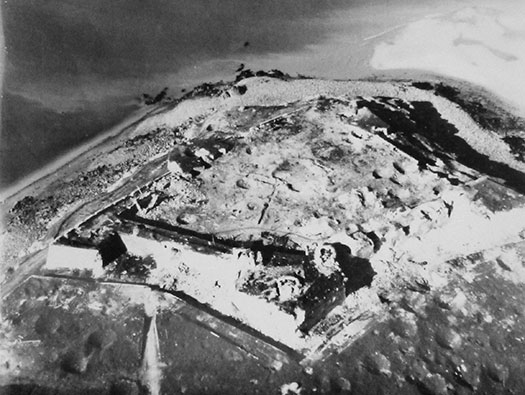

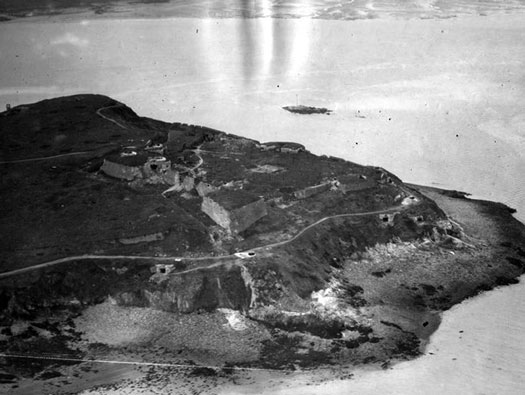

1940's air photo.







Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 November 2013

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z. 10 R112b Bunker with a 20P7 cupola.
A slightly larger bunker using the same type of cupola this time covering the northern side of the fort with cross fire from both cupolas either side.


R112b bunker slightly larger than the last bunker R114a with added ammunition room and a store room and a larger crew room and around eleven men would man this bunker.


Plan of the defence.


A periscope came up through the centre of the cupola and the officer in charge of the bunker could control the battle from there.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 November 2013

Information

Ra230 Fort de la Cité d'Aleth.

Details

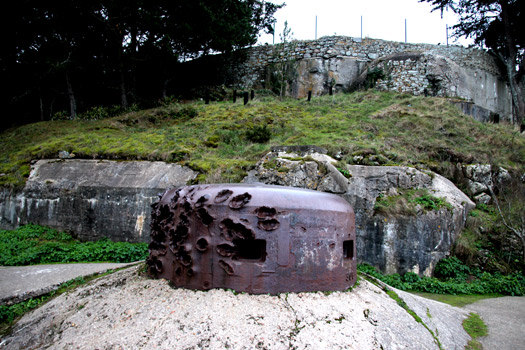

Z. 10 R112b bunker with a 20P7 cupola.
This one really did take some hits and is the famous one with a shell still embedded in the metal.


Bunker periscope.

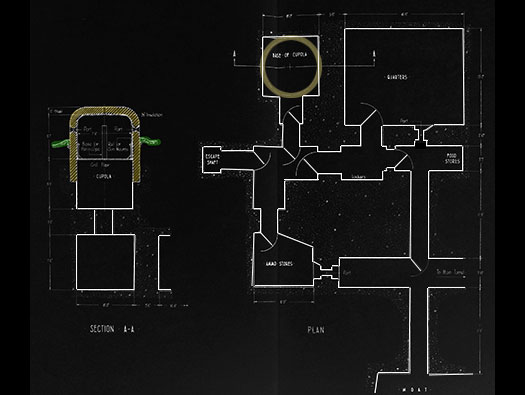

R112 plan here with the close combat room not built and a passage to the underground tunnel system.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 November 2013

Information

Ra230 Fort de la Cité d'Aleth.

Details

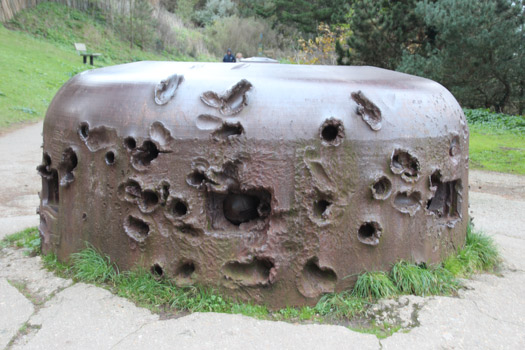

Z. 10 R112b bunker with a 20P7 cupola.
And this is the one. Imagine what it must have been like inside.





Looking up from underneath.




Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 November 2013

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.10 R112b bunker with a 20P7 Cupola.
Above is the fire control post Z.22 an R636


The periscope would come through the top of the cupola.


Blanking plug to close off the open embrasure.


And inside with the hinged blanking plug (probably has a name and a number?)

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.22 an R636 command post for coastal batteries.
This command post must have had a battery of guns inland to fire on the coast.


R635 at Fécamp.


R636 plan with crew room, centre computing room and the three rooms at the top officers, com's. and wireless..


Crew room

Ra230 Fort de la Cite d'Aleth. Outside the wall. imageimage

25 November 2013                                                                                                          BAU Report No.30 St Malo

Information

Ra230 Fort de la Cité d'Aleth.

Details

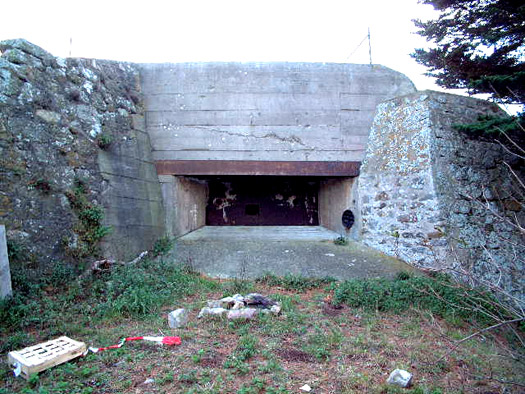

Z.20 R611 Casemate with 10.5cm F.H.18 Guns.
Below the Cupola and its R112b bunker is an R611 casemate. This one is at Ra155 Ville es Mesneir, 'Battr. Kahlenbach' and this shows how it would look down there. In a normal 611 the left hand side would have been two ammunition stores (case & shell rooms) here it is connected to another fighting room an R667 casemate and behind would have connected to the underground passage.

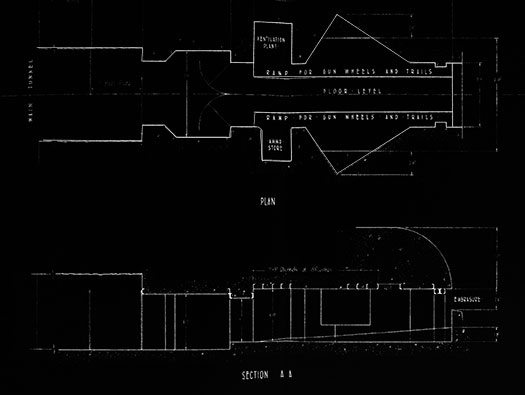

Plan of the area below the fire control 636. Top 667, bottom 611 & behind 112.


10.5cm F.H.18.


10.5cm F.H.18.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 November 2013

Information

Ra230 Fort de la Cité d'Aleth.

Details

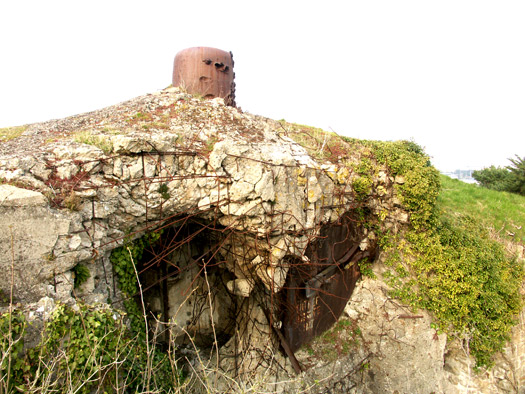

Z.12 R112 six embrasured turret bunker.


R112 set into the rocks and attached to the underground tunnel system.


Plan.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.12 R112 six embrasured turret bunker.
Two bunker specialists (well spotters) discussing the weather and disinterested locals walk by and ignore us.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.12 R112 six embrasured turret bunker.
The turret this side is perfect no damage at all. This looks to be a 40P8 cupola.


Inside a cupola.





Ra230 Fort de la Cite d'Aleth. Outside the wall.

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.12 R112 six embrasured turret bunker.

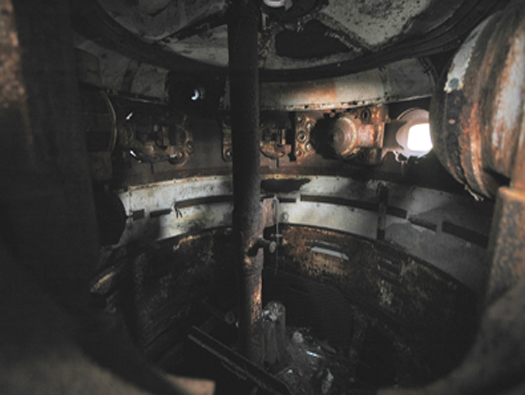

The turret inside with he periscope tub in place and the embrasure plugs to close off the aperture hinged open. This looks to be a 40P8 cupola.


8192E1 blanking plug.


8192E1 blanking plug in place.


Steel ball joint to hold an MG34 machine gun.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

1944/50

Information

Ra230 Fort de la Cité d'Aleth.

Details

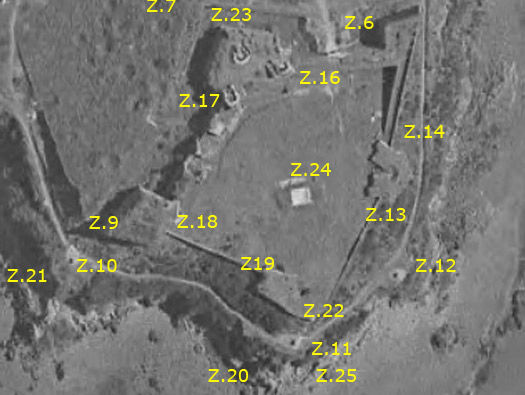

The defences.
The Z numbers of bunkers around the fort.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.13 an R105b machine gun emplacement.
Covering the fort wall this gun could sweep the wall and bank with machine gun fire against attackers.


R105 plan with a machine gun behind a 78P9 metal plate.


A 78P9Pz.-Schartenplatte for a MG.34.


MG34 with crew.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 June 2002

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.13 an R105b machine gun emplacement.


How it may have looked inside.


Ammunition.


Plan.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 June 2002

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.13 an R105b machine gun emplacement.

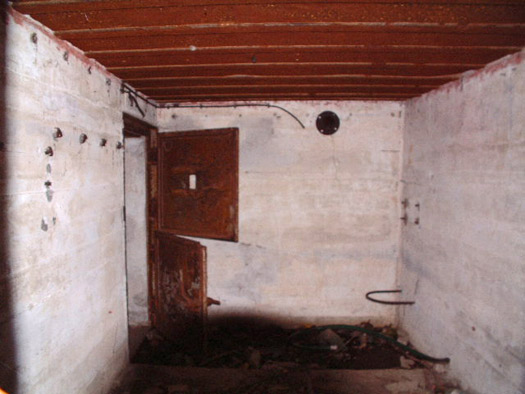

Gun room with a heavy double steel door and an anti gas filtration unit on the wall.


Image Caption


434P01 double steel door.


Air would be drawn in via a tube and drawn through an anti gas filter and then allowed it over pressure the gun room thus not allowing the gas to get in. Also there was an ant smoke filter that could be used when just smoke was a problem.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 June 2002

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.13 an R105b machine gun emplacement.
This is the area that the machine gun covered, the trees would not have been there.


Machine gunners.







Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 June 2002

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.14 an R105b machine gun emplacement.
Now this is the same bunker but facing the other way.


R105b plan.


Mg34 tool kit.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 June 2002

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.14 an R105b machine gun emplacement.
A closer view of the 78P9Pz. Schartsnplatte for an Mg34.


78P9Pz. Schartsnplatte for an Mg34.




Ra230 Fort de la Cite d'Aleth. Outside the wall. image

00-00-00

Information

Ra230 Fort de la Cité d'Aleth.

Details

The French fort wall.
Possibly an original French gun casemate and damage on the old wall.




Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 June 2002

Information

Ra230 Fort de la Cité d'Aleth.

Details

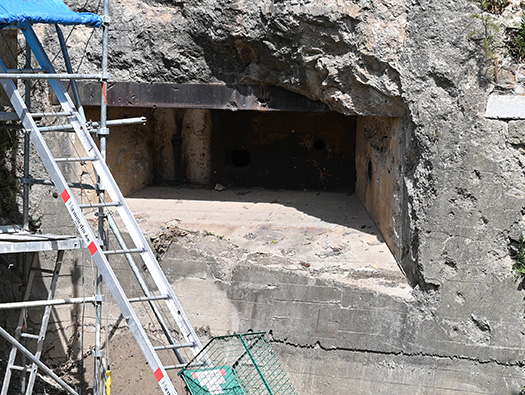

Z.5 R625 casemate for a 7.5cm Pak 40.
This casemate is designed for a 7.5cm Pak 40 anti-tank gun, ideal to shoot at shipping by hitting low on the water line to sink them.


R625 Casemate for a 7.5cm Pak 40 fitted into the rock face.


7.5cm Pak 40.




Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 June 2002

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.4 R625 casemate for a 7.5cm Pak 40.
This is the second Pak bunker.


Plan.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 June 2002

Information

Ra230 Fort de la Cité d'Aleth.

Details

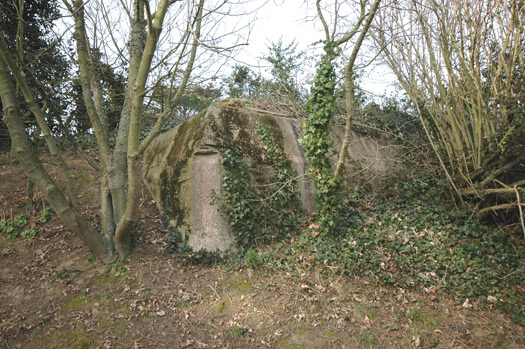

I think this may be a small ammunition bunker?


Plan in this area.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 June 2002

Information

Ra230 Fort de la Cité d'Aleth.

Details

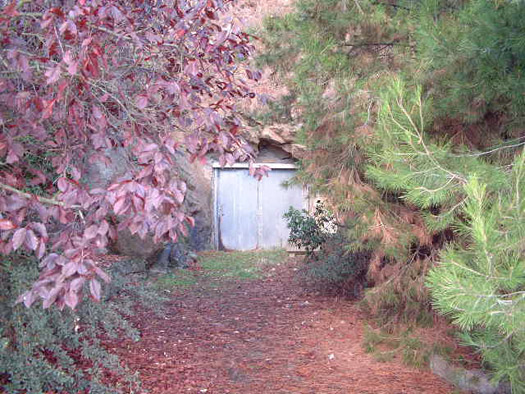

One of the two entrances into the tunnel system. I believe these were also for searchlights to cover the estuary.


Plan.







Ra230 Fort de la Cite d'Aleth. Outside the wall. image

25 November 2013

Information

Ra230 Fort de la Cité d'Aleth.

Details

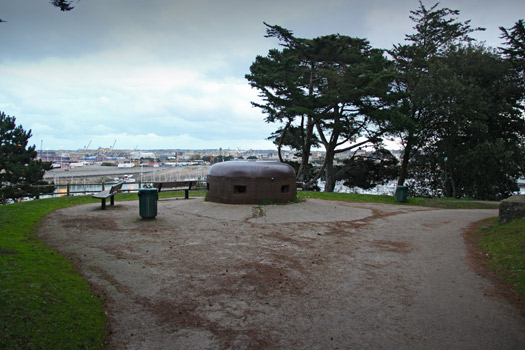

Z.1 R112 six embrasured turret bunker.
This one has been shot at from the town.


Mg34.


Plan.




Ra230 Fort de la Cite d'Aleth. Outside the wall. imageimage

18 March 2006                                                                                                         BAU Report No.30 St Malo

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z. 7 R114A neu six embrasured bunker.
This 40P8 cupola covers the back of the fort.


Plan.


R114A neu attached to the underground passage.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

Manufacturers number and date

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.17 105d/105b two levels of bunkers.
Two very large steel plates set into a mix of bunkers and old fort and set into the Keep and able to shoot across the moat.





The metal plate.


Plan.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

Damaged wall and a door, Sally Port.
With this door they could access the moat from the main fort.


434P01 door.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

The 434P01 door.
Still with all its fittings here.

Ra230 Fort de la Cite d'Aleth. Outside the wall. imageimage

18 March 2006.                                                                                                         BAU Report No.30

Information

Ra230 Fort de la Cité d'Aleth.
Garage

Details

Z. 5 R504 antitank gun garage.
The gun could be placed into the garage and the crew use use the other two rooms, Ammunition was stored underneath the gun.

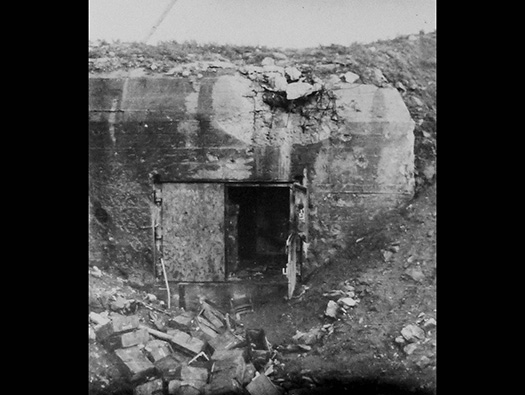

Garage just after its capture




Plan of an R504.


R504 garage side view.


2cm Pak gun.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.18 R105d/105c/M.G.-Stand S.K.

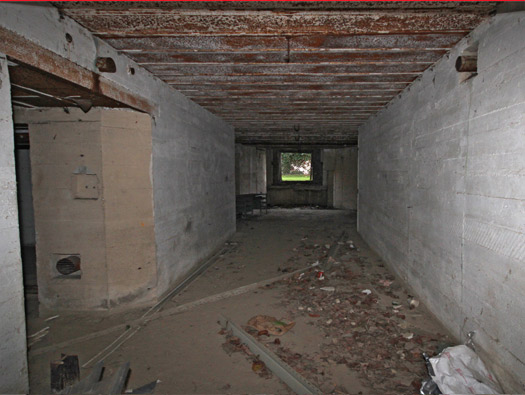

Built into the old Keep of the fort are three bunkers on several levels with tunnels and steps connecting them.


Plan.


486P2 cupola.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.18 R105d/105c/M.G.-Stand S.K.
This view shows how much damage was done by the heavy American guns.


Image Caption


Z.18 & cupola with two R105's and Z.10 and its cupola.


I think that this is the plan of the lower bunker with the ability to fire into the moat or up the outer fort wall.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.18 R105d/105c/M.G.-Stand S.K.

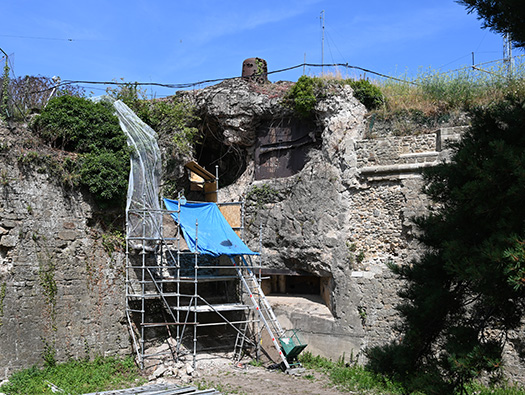

The damage is excessive on this side showing where the Americans sighted their guns.


486P2 cupola.


10.5cm American artillery.


American tank destroyer.

Ra230 Fort de la Cite d'Aleth. Outside the wall. imageimage

14 July 2019                                                                                                                   BAU Report No.30

Information

Ra230 Fort de la Cité d'Aleth.

Details

Z.18 R105d/105c/M.G.-Stand S.K.
The damage is excessive on this side showing where the Americans sighted their guns.


486P2 cupola.


10.5cm American artillery.


American tank destroyer.

Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

The damage.

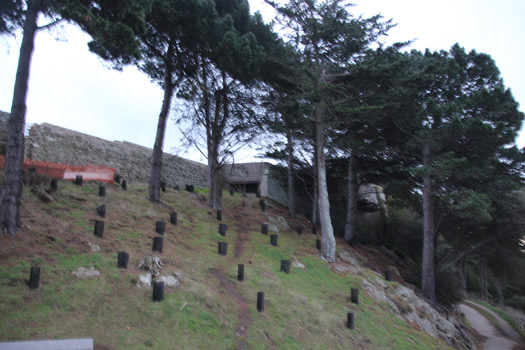

Heavy American direct fire came in from the town, now there are trees but in August 1944 it was wide open and the Americans with their very large guns sighted them through the barrel at the fort. And then fired them, as their sights would not depress that low.


Sherman tank.







Ra230 Fort de la Cite d'Aleth. Outside the wall. image

18 March 2006

Information

Ra230 Fort de la Cité d'Aleth.

Details

The lower level machine gun embrasure covering the moat.


Sherman tank.







Ra230 Fort de la Cite d'Aleth. Outside the wall. imageimage

14 July 2019                                                                                                                   BAU Report No.30

Information

Ra230 Fort de la Cité d'Aleth.
Bomb crater

Details

The fort was bombed, machine gunned, Napalmed and shelled and then it took an infantry assault to capture it.











Distribution of density of bomb strikes (Numbers of bombs in Acre squares).





Napalm attack.




Ra230 Fort de la Cite d'Aleth. Outside the wall.

25 June 2002

Information

Ra230 Fort de la Cité d'Aleth.

Details



Ra230 Fort de la Cite d'Aleth. Outside the wall.

25 June 2002

Information

Ra230 Fort de la Cité d'Aleth.

Details
