Artillery commander Cherbourg had these batteries:
Hamburg Batterie (West) in Fermanville (4 x 24cm).
York Batterie (West) in Querqueville (4 x 17cm).
Brommy Batterie (West) near Les Caplains (4 x 15cm).
and Cherbourg Mole Batterie (4 x 9.5cm).
(The word WEST means Western Europe as opposed to Eastern Europe, there were several batteries in the east with the same names).
Construction started in early September 1940 around the French batterie of Les Caplains.
The French guns were removed and four emplacements for four 15cm S.K.C./28 ships guns were ready by the end of the month. Construction was by the Marine Construction Battalions 311 and 313. A 1.5m diameter searchlight was also added.
After the frantic arrival and build up of 1940, then Battle of Britain was fought. The airfields of Maupertus and
Querqueville had Me109 & Stuka dive bombers flying backwards and forwards to fight the British over Portland, Weymouth and Portsmouth.
After that, the area the area went very quite. Not a lot happened until the RAF had built up more strength.
Then with the RAF starting Circus (daytime bomber attacks with fighter escorts against short range targets), Ramrod – short range bomber attacks to destroy ground targets, Rhubarb – fighter or fighter-bomber attacks. Things started to liven up. More light flak was added and in December 1943, when Hitler decided to casemate all artillery. The construction of four casemates was started, (1 x standard M272, 2 x M270 and 1 x M195). Which was completed in May 1944 and also added were a batterie of four 7.5cm AA guns (f) and two 7.62cm Field guns (r). A huge mine belt surrounding the site with over 2800 mines was planted. Most of this work was carried out by the Todt Org.
StP245 Fort des Caplains M.K.B. 'Brommy',
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
StP245 Fort des Caplains M.K.B. 'Brommy',
27 June 2001 ---------------------------------------------------------------------------------------------------------- German plan June 1944
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

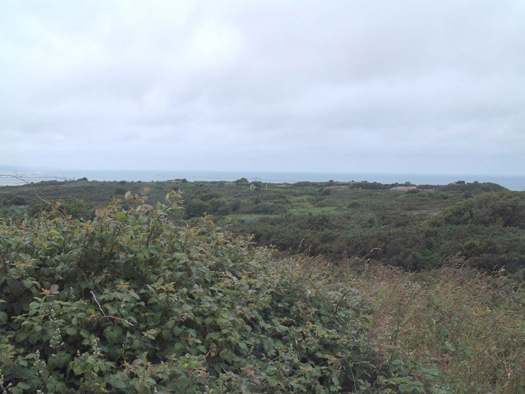

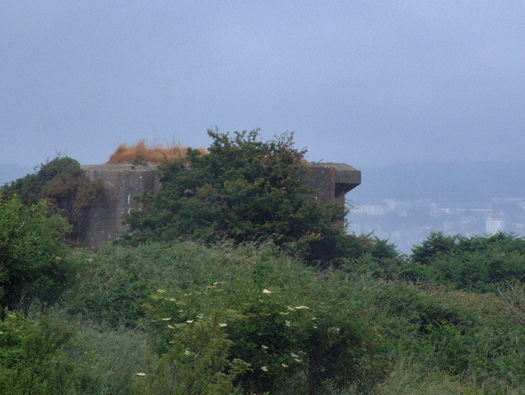

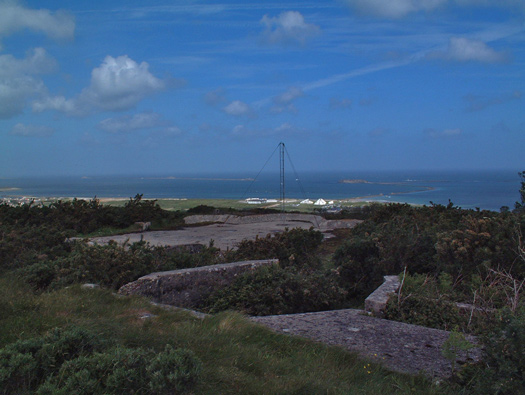

The batterie looking north from Wn244.

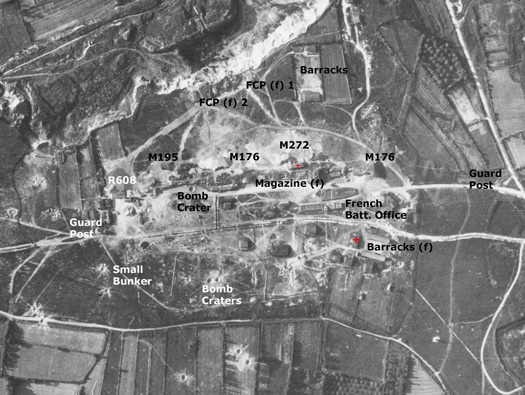

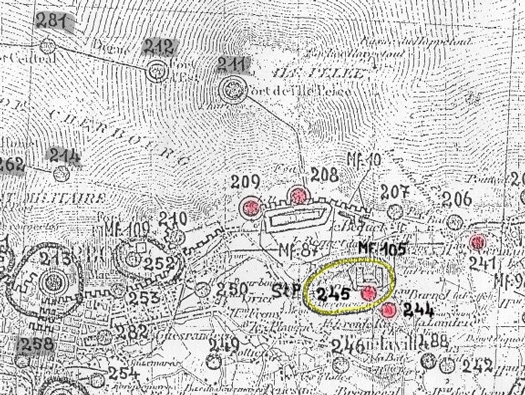

The German plan of the area, showing all the defences in the area.
200's the main seaward defence. 400's the Land defence.
MF 105- Mine field with at least 2800 mines..
Wn241 Le Fort de Digosville.
StP209 Port des Flamands.
StP208 Plage Collignon.
StP245 Fort des Caplains M.K.B. 'Brommy',
IGNF 1944
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Bttr.1/M.A.A.260.
Captain Lieutenant Walter Schindler.
1 x M195 Geschützstellung/casemate.
1 x M272 casemate.
2 x M270 casemates.
1 x R608 Stab bunker.
1 x SK/Sanitätbunker.
1 x SK/Scheinwerfer, searchlight.
4 x Vf bunkers.
2 x Leitstand/SK.
4 x 15cm S.K.C./28 medium-caliber naval guns.
6 x 7.5cm Flak M17/34(f) guns.
2 x 7.62 F.G.(r).
2cm Flak.
M195 Geschützstellung/casemate.
M270 casemate.
M272 casemate.
R608 Stab bunker.
SK/Sanitätbunker.
15cm S.K.C./28 medium-caliber naval guns.
StP245 Fort des Caplains M.K.B. 'Brommy',
SHM Plan
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
SHM's plan.
StP245 Fort des Caplains M.K.B. 'Brommy',
24 October 2004
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

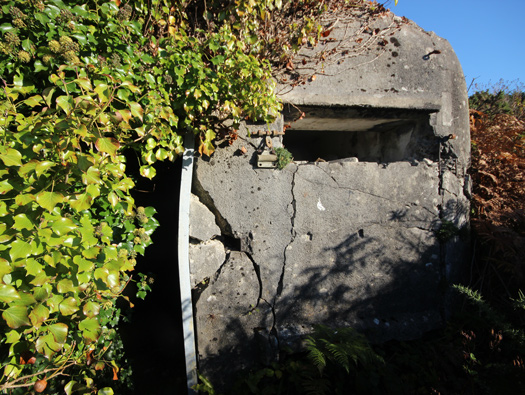

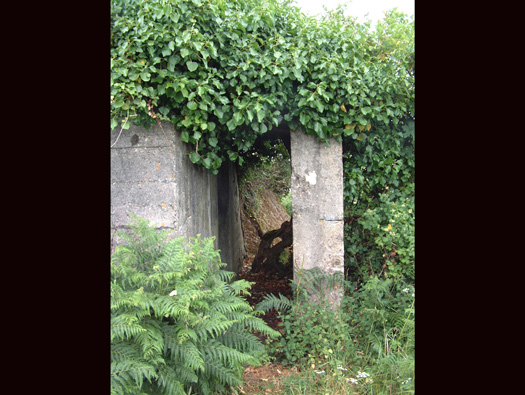

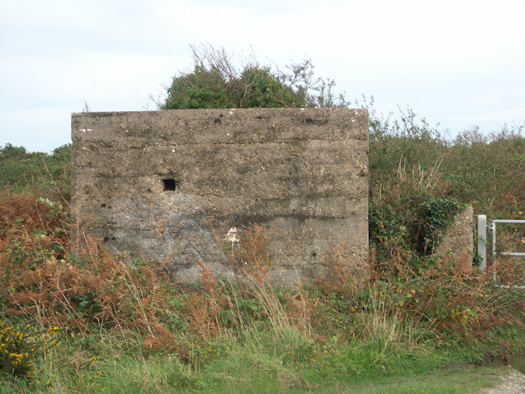

Main gate and guard bunker.
Plan.
StP245 Fort des Caplains M.K.B. 'Brommy',
24 October 2004
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

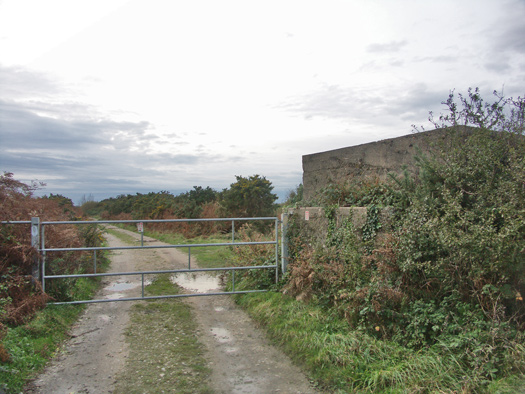

Main gate and guard bunker.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

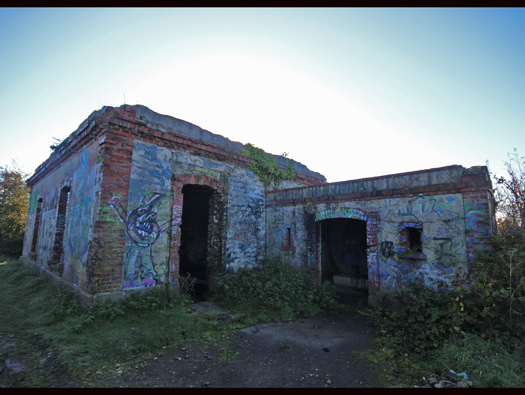

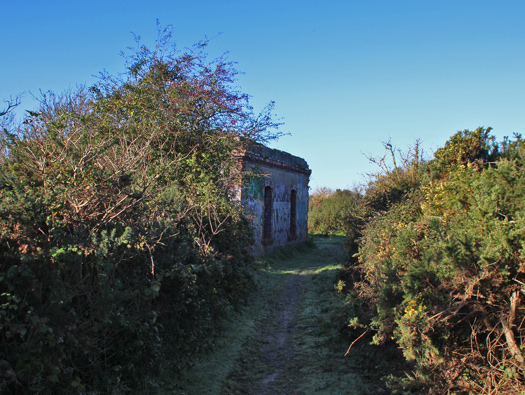

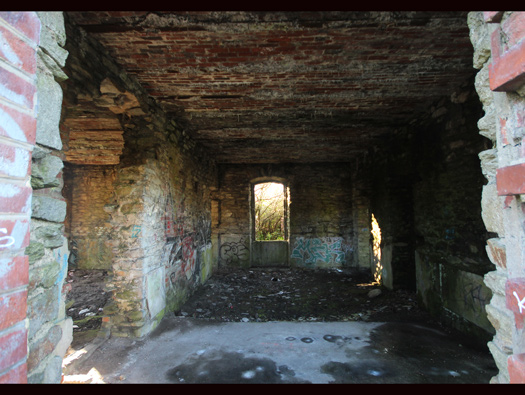

French batterie offices.
Plan.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
French batterie offices.
Plan.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
French batterie offices.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
French batterie offices.

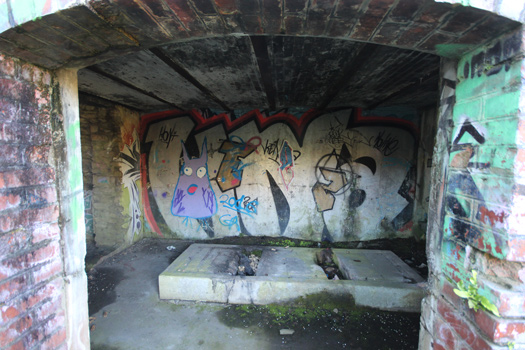

In a small annexe is a power house that would have held a generator, to run the French batterie. There was/is a water cisterne just outside the offices and may have also held a water pump.
Plan. The small annexe on the side.
Old generator.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
French batterie offices.
Annexe for generator.
Plan. The small annexe on the side.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

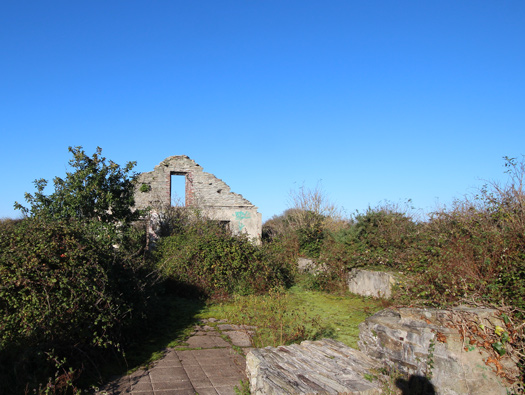

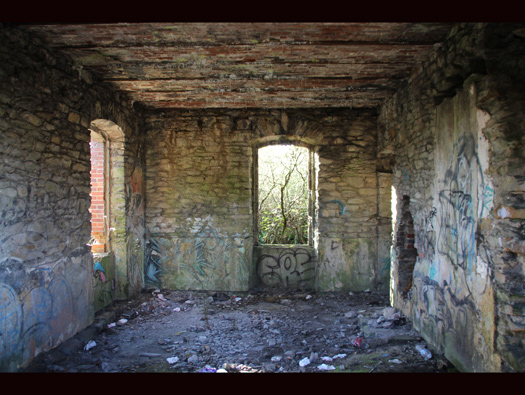

Ex French barrack block.
StP245 Fort des Caplains M.K.B. 'Brommy',
04 May 2001 ---------------------------------------------------------------------------- Wn241 Le Fort de Digosville Fonds Karl Herbust 1940
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
French ammunition magazine
Originally here there were a battery of six 240mm French naval guns and a second batterie of either two or 4 95mm guns. These were in open emplacements on a long earth mound and concreted in, in open emplacements. They had two of these ammunition magazines, one room looks as though it was the store for ether gun.
And how Wn241 Le Fort Digosville looked in the 1930's.
Ammunition magazine & one gun emplacement.
A magazine and a 240mm gun at Wn241 Le Fort de Digosville.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
French ammunition magazine
The same view 16 years later.
Plan.
StP245 Fort des Caplains M.K.B. 'Brommy',
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

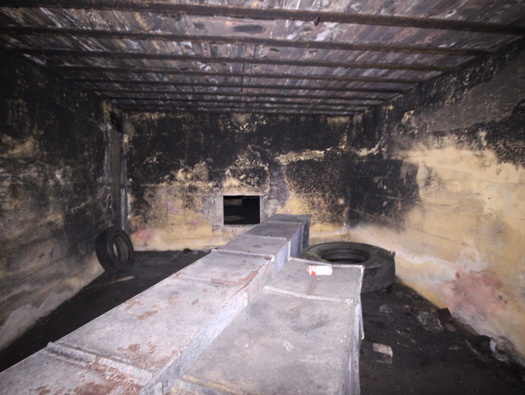

French ammunition magazine
When filling the magazine, the ammunition would have been brought in through the door. But in battle. The door is closed and the ammunition is issued via two slots. Top and bottom. These slots would have had steel shutters, or often galvanised shutters.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
French ammunition magazine
The ammunition was placed on the lower table and then cranked up via a shell hoist at the far end to the top shelf.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
French ammunition magazine
Shell hoist, note the recess mad in the wall to allow the hoists winding handle to run right around. A very tight fit.
Detail in the wall, I have no idea what it was. Air vent?
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

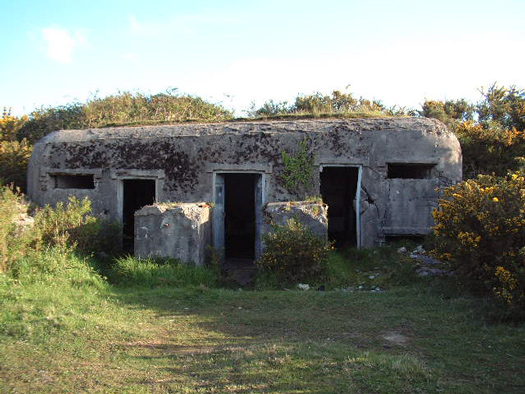

French ammunition magazine.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
French ammunition magazine
Little blast walls between entrances.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

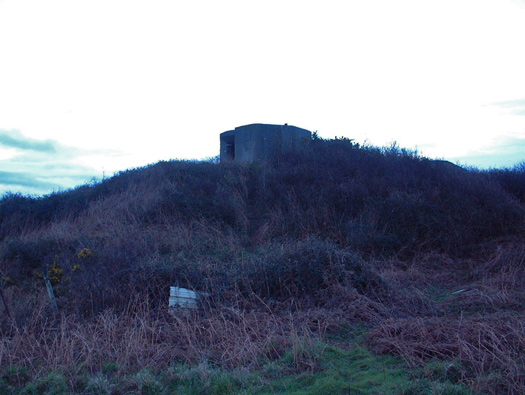

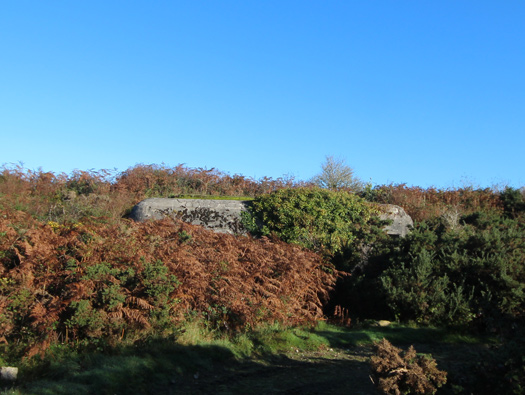

Unknown bunker.
StP245 Fort des Caplains M.K.B. 'Brommy',
04 May2001 ----------------------------------------------------------------------------------------------------------- Bundesarchiv
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

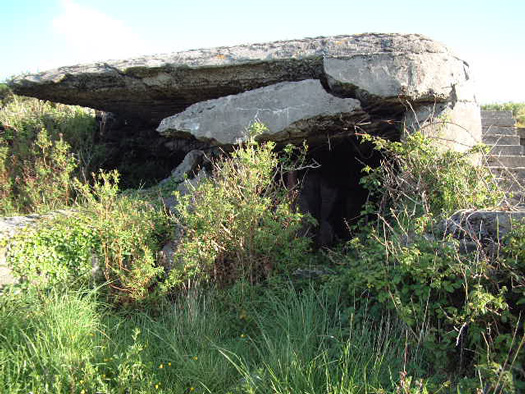

The second ammunition bunker.
Another example of probably the American engineers. Filling a bunker with ammunition, cordite bags and any other explosives and blowing the lot up.
1943/4 and Rommel doing his rounds at StP245 Fort des Caplains M.K.B. 'Brommy',
US engineers filling a bunker with 600lb of T.N.T. and 3200gal of oil into a ventilator shaft and then detonated. (13 April 1945).
Preparations for blowing up Teller mines.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

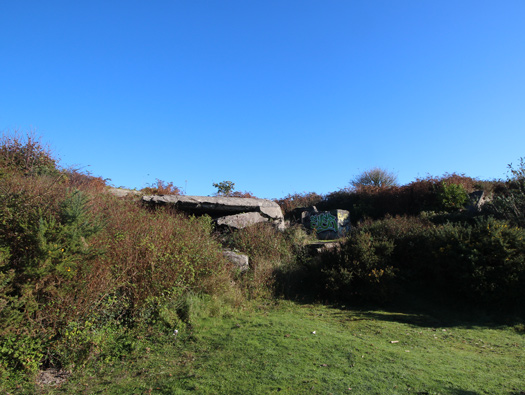

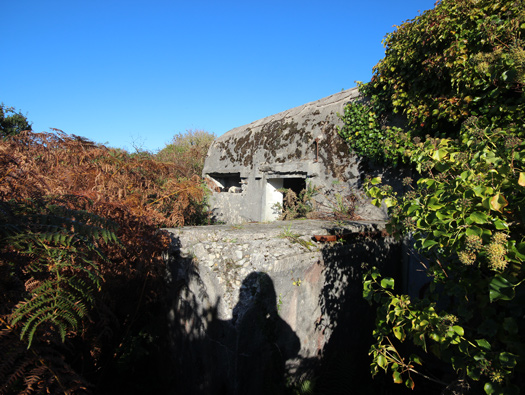

Part of the French gun position.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

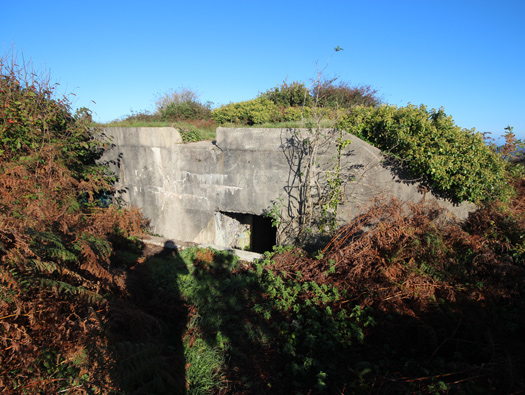

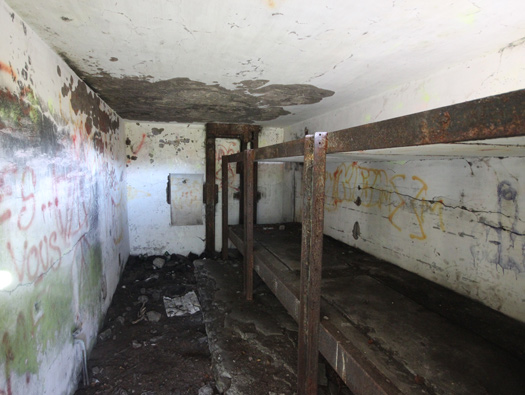

Ammunition bunker German
There are three of this type at StP277 'York', one at Turm 1 StP234 Battr. 'Hamburg' and another here.
Entrance either end and a small escape hatch that even I can squeeze through in the wall that separates the two rooms.
Plan.
Plan
StP245 Fort des Caplains M.K.B. 'Brommy',
04 May 2001
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Ammunition bunker German

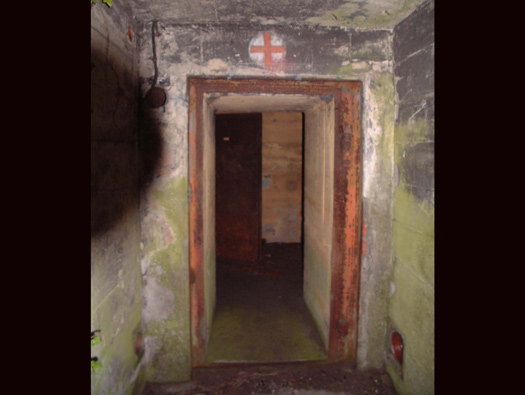

This is how I found it in May 2001. The red cross looks genuine?? Although there was an SK/Sanitätbunker behind the batterie.
SK/Sanitätbunker.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Ammunition bunker German
The small escape hole between the two rooms.
Plan.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Ammunition bunker German
Plan.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Ammunition bunker German

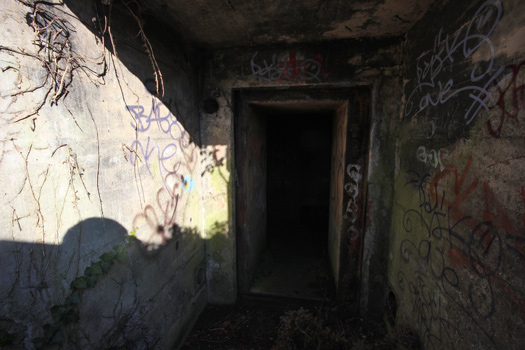

The other door out towards the guns.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

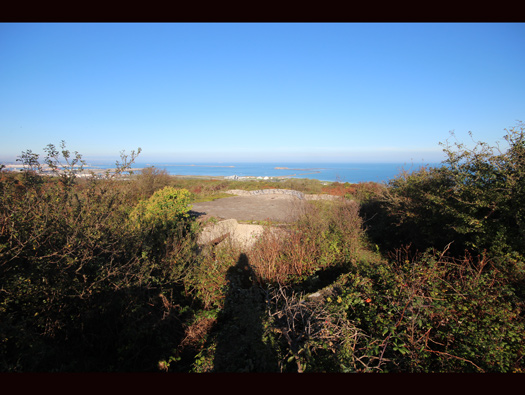

Turm 2 from above.
Plan.
StP245 Fort des Caplains M.K.B. 'Brommy',
27 June 2001 --------------------------------------------------------------------------------------------------------- US Signals Corps
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 1 M270 15cm S.K.C./28 medium-caliber naval gun.

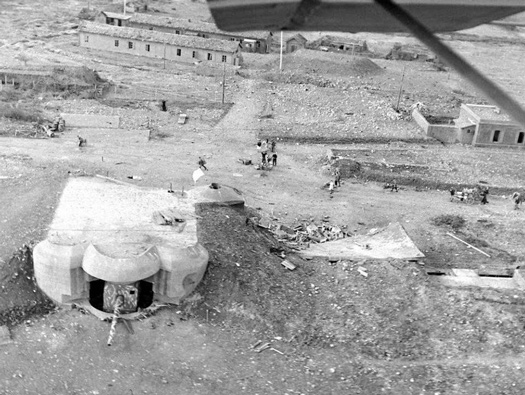

Nice overhead picture taken from a light American spotter plane. The casemate with its gun in place, the French batterie offices and a barrack block behind. There is also a defence Tobruk on the back of the bunker.
Looks like some looting is going on.
StP245 Fort des Caplains M.K.B. 'Brommy',
12 January 2000
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 1 M270 15cm S.K.C./28 medium-caliber naval gun.

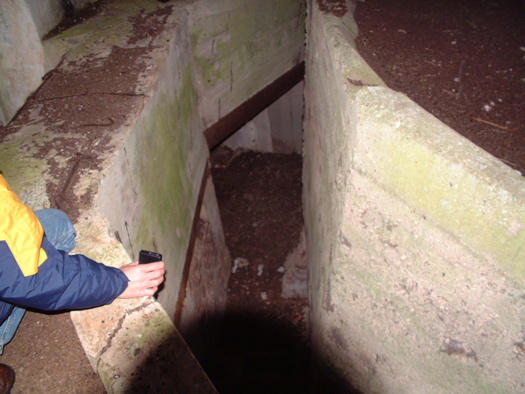

There were four very thick cable inlets to a panel on the wall. I have never seen any of these panels in situ so I cannot show what they were like.
Cable connections.
Armoured cable.
StP245 Fort des Caplains M.K.B. 'Brommy',
12 January 2000
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 1 M270 15cm S.K.C./28 medium-caliber naval gun.

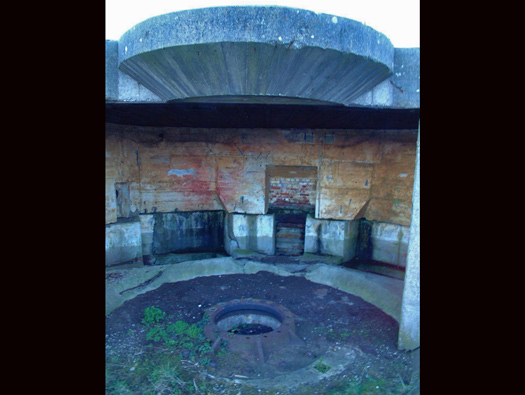

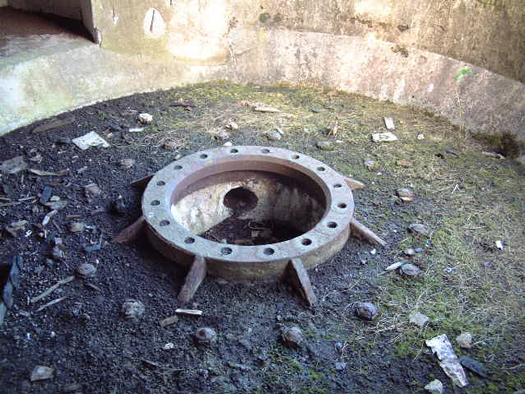

One hell of a mounting for the gun.
The guns turntable.
StP245 Fort des Caplains M.K.B. 'Brommy',
04 May 2001
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 1 M 270 15cm S.K.C./28 medium-caliber naval gun.
Ammunition rooms.
StP245 Fort des Caplains M.K.B. 'Brommy',
04 May 2001
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 1 M270 15cm S.K.C./28 medium-caliber naval gun.

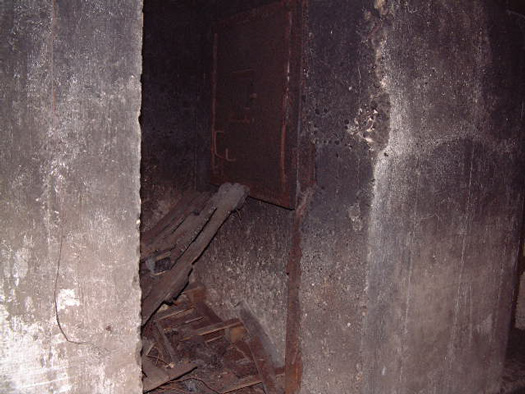

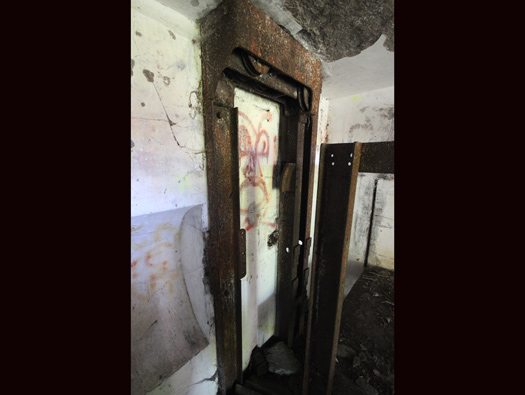

Access to the two case and shell store ammunition rooms with a 434P01 door.

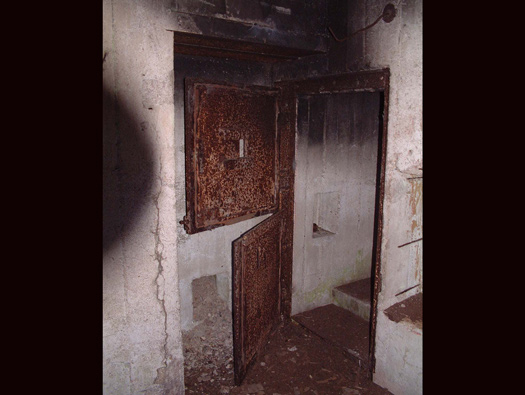

434P01 door.
StP245 Fort des Caplains M.K.B. 'Brommy',
04 May 2001
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 1 M270 15cm S.K.C./28 medium-caliber naval gun.

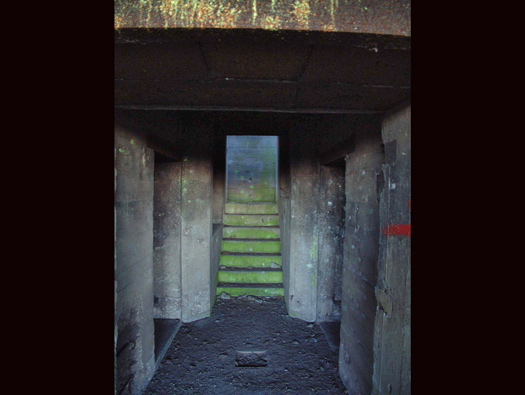

Access to the two case and shell store ammunition rooms.
M270 plan.
details
Trolley collecting the ammunition.
StP245 Fort des Caplains M.K.B. 'Brommy',
04 May 2001
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 1 M270 15cm S.K.C./28 medium-caliber naval gun.

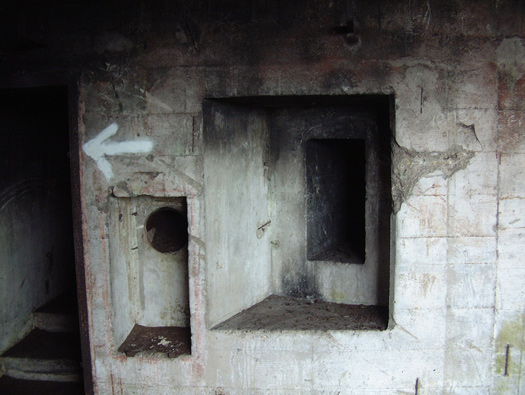

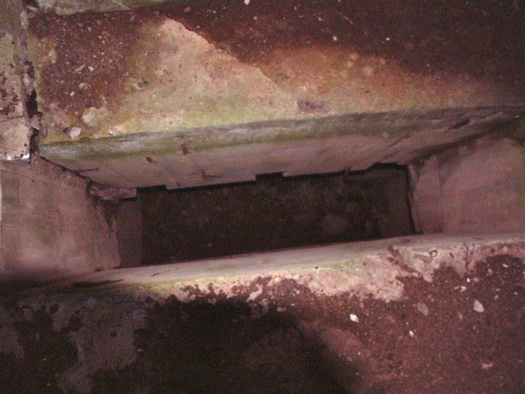

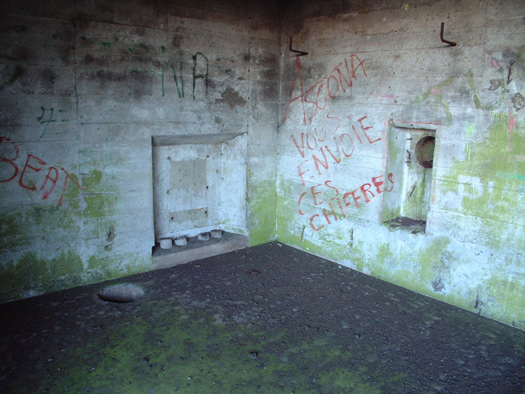

Ammunition can be passed through these apertures to the gun crews by ammunition handlers in the magazines.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

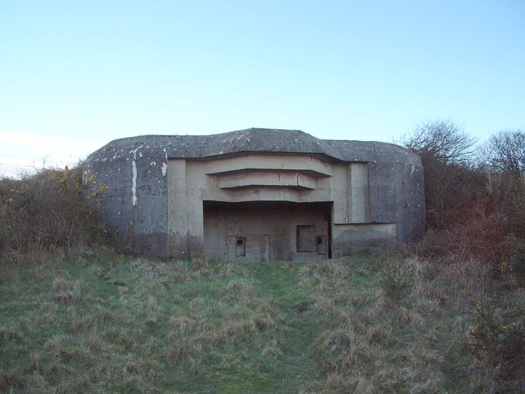

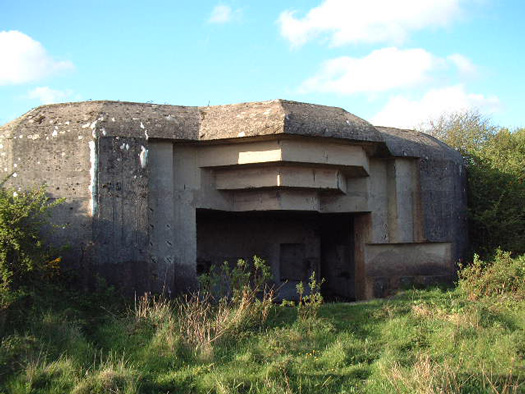

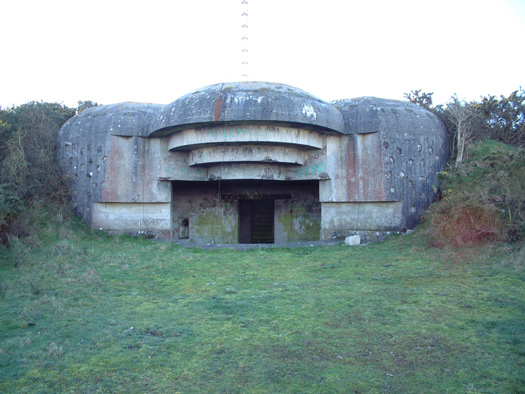

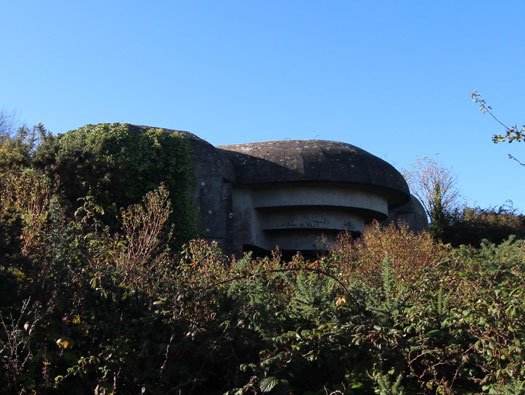

Turm 2 M272 15cm S.K.C./28 medium-caliber naval gun.
Same type of gun, just a different casemate.
M272 casemate.
StP245 Fort des Caplains M.K.B. 'Brommy',
01 January 2000 ----------------------------------------------------------------------------------------------- DEFE 2/488
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 2 M272 15cm S.K.C./28 medium-caliber naval gun.
StP245 Fort des Caplains M.K.B. 'Brommy',
01 January 2000
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 2 M272 15cm S.K.C./28 medium-caliber naval gun.
Two smallish niches either side for ammunition (unlike the last bunker) and and stairs running out.
M272 casemate.
StP245 Fort des Caplains M.K.B. 'Brommy',
24 May 2002
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 2 M272 15cm S.K.C./28 medium-caliber naval gun.
Nice view over the top.
StP245 Fort des Caplains M.K.B. 'Brommy',
27 June 2001
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 2 M272 15cm S.K.C./28 medium-caliber naval gun.

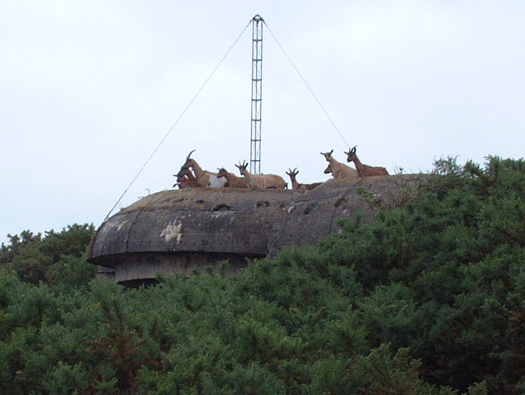

On this particular visit I was on my own, except there were 30 Goats about.
StP245 Fort des Caplains M.K.B. 'Brommy',
27 June 2001 ------------------------------------------------------------------------------------------------------ DEFE 2/488
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details

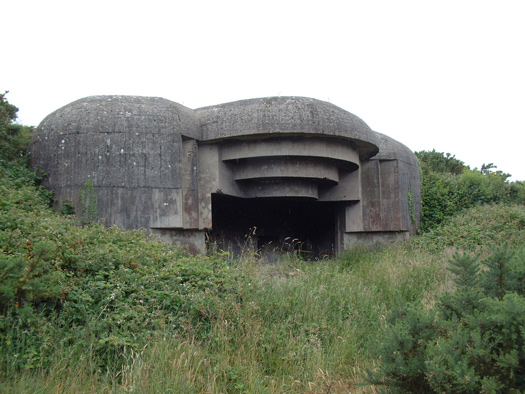

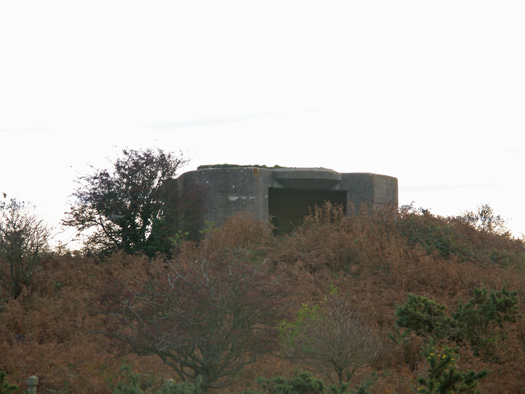

Turm 3 M270 15cm S.K.C./28 medium-caliber naval gun.
Plan.

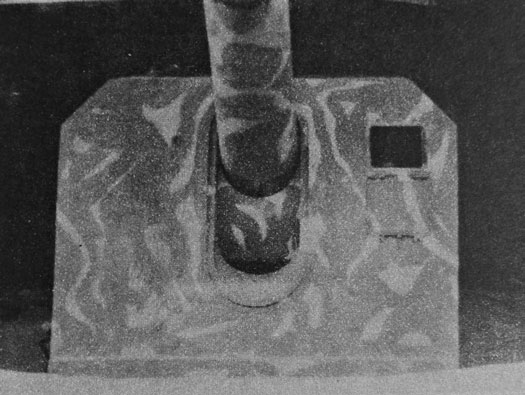

15cm S.K.C./28 medium-caliber naval gun.
Plan.
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017 ---------------------------------------------------------------------------------------------- US Army Signals Corps
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 3 M270 15cm S.K.C./28 medium-caliber naval gun.

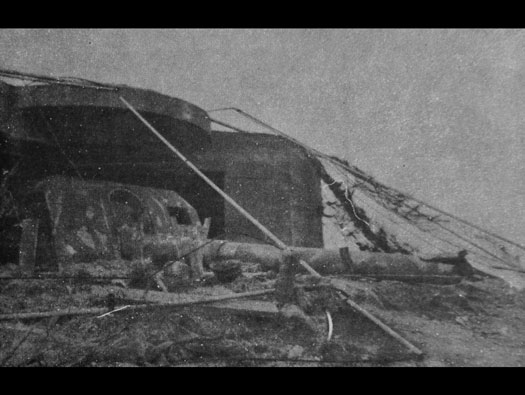

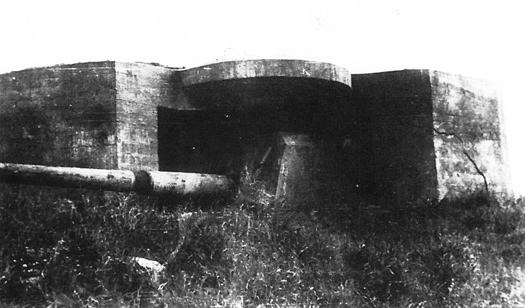

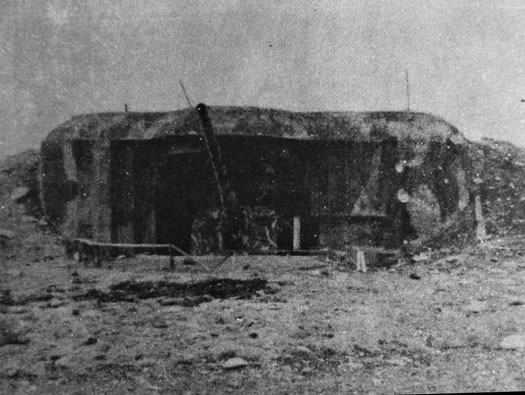

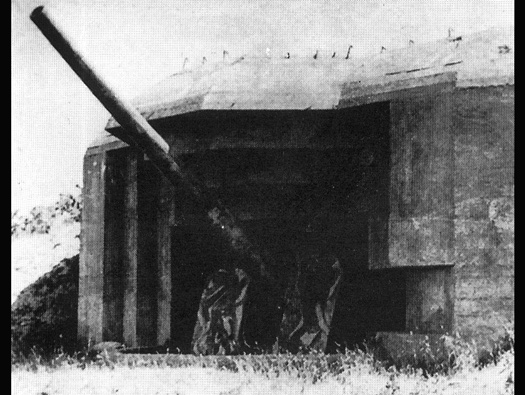

And how it looked after its capture.
15cm S.K.C./28 medium-caliber naval gun.
M270 plan.
StP245 Fort des Caplains M.K.B. 'Brommy',
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 4 M195 Geschützstellung/casemate.
This casemate was originally designed as a
Geschützstellung or open emplacement with semi sunk ammunition magazines behind the gun. Then when the order came from Hitler to casemate the guns, this open emplacement was casemated over with a lid.
M195.
Plan.
StP245 Fort des Caplains M.K.B. 'Brommy',
27 June 2001
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 4 M195 Geschützstellung/casemate.
The lid on the top.
StP245 Fort des Caplains M.K.B. 'Brommy',
24 October 2004 ------------------------------------------------------------------------------------------------- DEFE 2/488
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 4 M195 Geschützstellung/casemate. .
Gun sights.
StP245 Fort des Caplains M.K.B. 'Brommy',
05 January 2000 ----------------------------------------------------------------- 1944
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 4 M195 Geschützstellung/casemate.
And with its gun in place.
M195.
KM-Doppelfernrohr-10x80525.
StP245 Fort des Caplains M.K.B. 'Brommy',
05 January 2000 --------------------------------------------------------------------------------------------------- 05 January 2000
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
Turm 4 M195 Geschützstellung/casemate.
The access to the ammunition rooms below.
This is actually horizontal and a shell/case would be passed through int.
StP245 Fort des Caplains M.K.B. 'Brommy',
27 June 2001
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
On the evening of June 24th, the 12th Infantry Regiment under Colonel Luckett had advanced to Tourlaville, just a few hundred meters south of the battery, and an attack was imminent. After a swarm of P-47 Thunderbolt fighter-bombers dropped a total of 13 bombs on the battery, on the morning of June 25. The 1st Bn., 12th IR cautiously approached the battery area along the route of the couplet (today's D 120). Since two of the American troops had seen white flags, the Americans assumed that the garrison wanted to surrender and moved closer without taking cover. The Germans then opened fire with several mortars and 2 cm anti-aircraft guns, seriously wounding six Americans. With the support of several tanks, the Americans then penetrated the battery area and were able to take the battery without encountering much resistance. In great haste, Naval Task Force 129 under Rear-Admiral Morton Deyo, which was heading towards Cherbourg, was informed that the Brommy battery was in American hands and therefore there should be no shelling from sea.
details
StP245 Fort des Caplains M.K.B. 'Brommy',
15 October 2017
Information
StP245 Fort des Caplains M.K.B. 'Brommy',
Details
France
Great Britain
