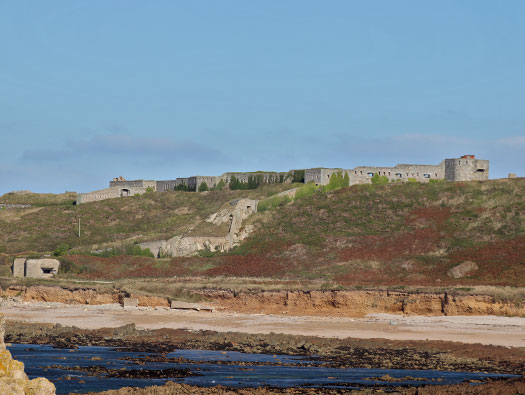

Alderney, W 1 StP Türkenburg
Information
Alderney, W 1 StP Türkenburg
Details

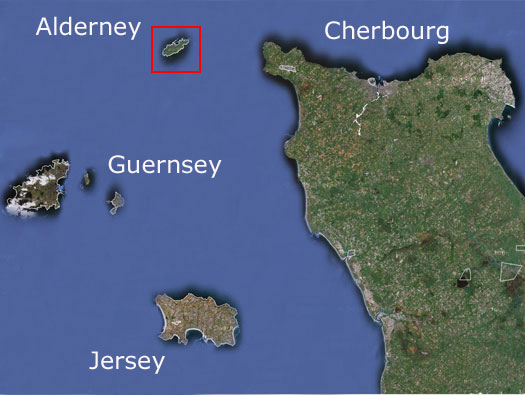

Alderney a small island off the coast of the Cherbourg Peninsular one of the Channel Islands and a Crown dependency. 3miles x 1.5miles.
In June 1940 its entire population was removed and sent to either the other Channel islands or to Britain (most ended up in Glasgow). Then the German occupation forces arrived on the 2nd July. Hitler thinking that the British would attempt at recapturing, ordered it to become a Festung and later combined into the Atlantikwall.
Plan.
English soldiers.
English soldiers.
Alderney, W 1 StP Türkenburg
Google Maps
Information
Alderney, W 1 StP Türkenburg.
Details
Alderney, W 1 StP Türkenburg
http://www.jerseywartours.com
Information
Alderney, W 1 StP Türkenburg.
Details

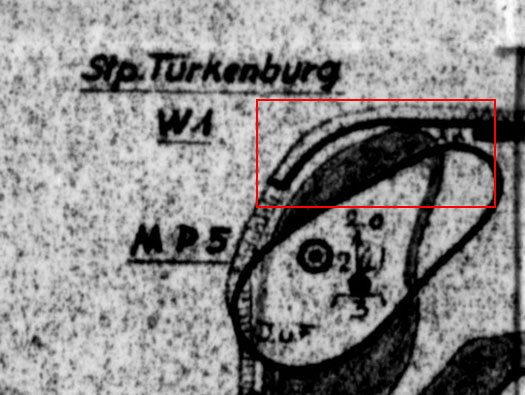

Ausboustand Karte Alderney.
Ausboustand Karte Alderney.
Alderney, W 1 StP Türkenburg
www.alderneylivingislands.com
Information

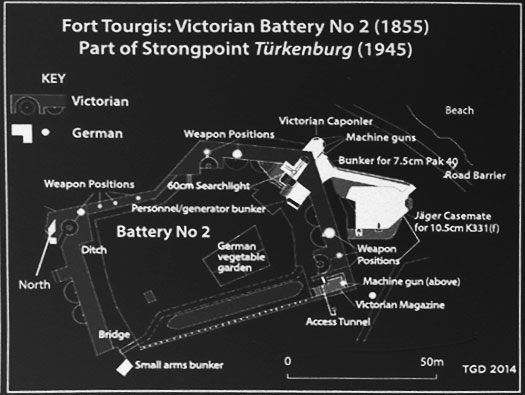

Alderney, W 1 StP Türkenburg. Plan.
Details
1 x Tobruk 58c.
1 x R701 garage for Pak 40.
1 x Jäger casemate.
1 x R670 casemate.
1 x Vf Pak casemate.
1 x 10.5cm K 331(f).
2 x 7.5cm Pak 40.
1 x 60cm Searchlight.
1 x Road block.
Several Vf MG positions.
7.5cm Pak 40.
/noirmont05.jpg)
10.5cm K 331(f).
Jäger casemate for a 10.5cm K 331(f).
R701 garage for Pak 40.
60cm searchlight.
R670 casemate.
Alderney, W 1 StP Türkenburg
www.alderneylivingislands.com
Information
Alderney, W 1 StP Türkenburg.
Details
Alderney, W 1 StP Türkenburg
www.alderneylivingislands.com
Information
Alderney, W 1 StP Türkenburg.
Details
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg.
Details

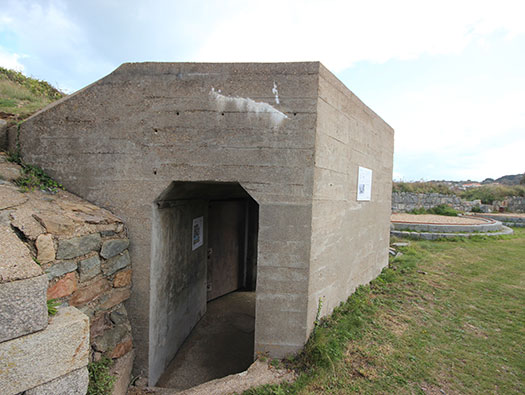

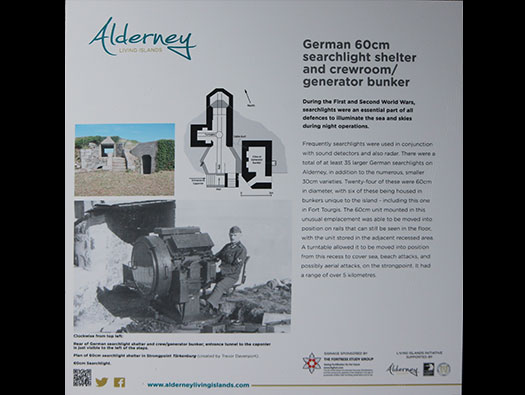

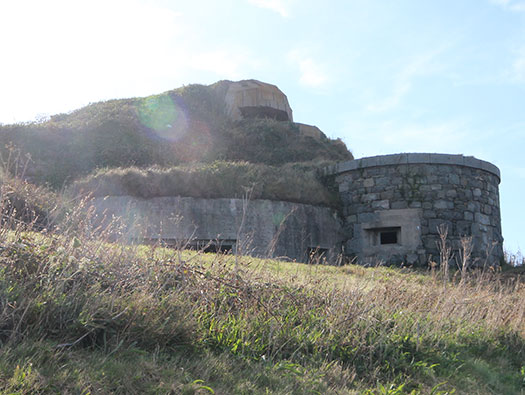

Jäger bunker, Vf casemate for a 75cm Pak, MG position and a 60cm searchlight.
Vf MG position.
/incasemate.jpg)
10.5cm K 331(f).
60cm searchlight.
Alderney, W 1 StP Türkenburg
05 November 2016
Information

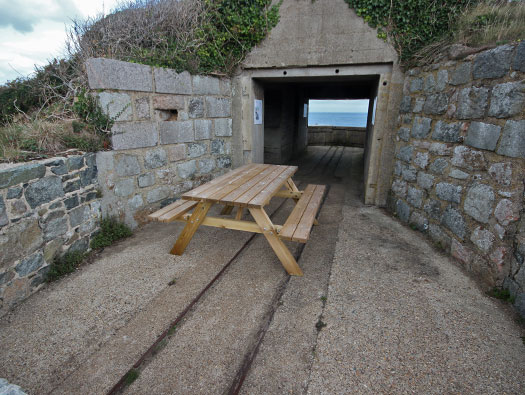

Alderney, W 1 StP Türkenburg. Road Block.
Details
Platte Saline road block.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg Road Block.
Details

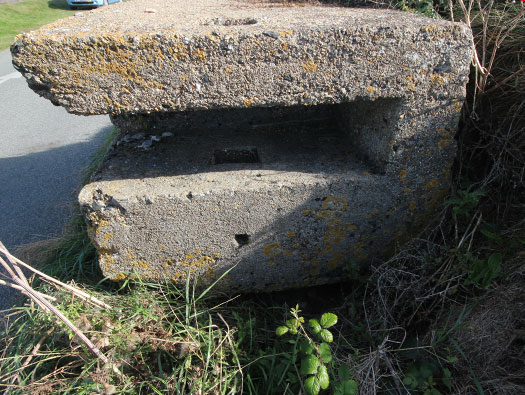

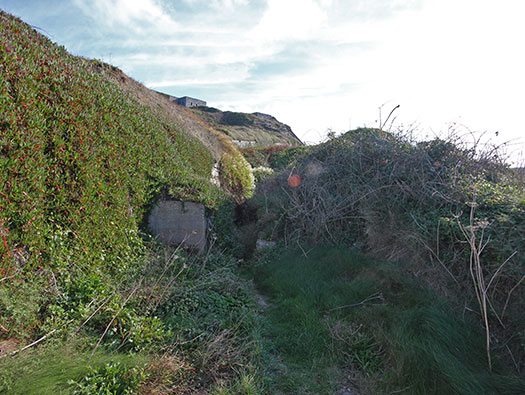

Platte Saline road with one remaining concrete part to the road block, there would have been another on the left side.
Alderney, W 1 StP Türkenburg
DEFE/2/1296 NA
Information
Alderney, W 1 StP Türkenburg Road Block.
Details

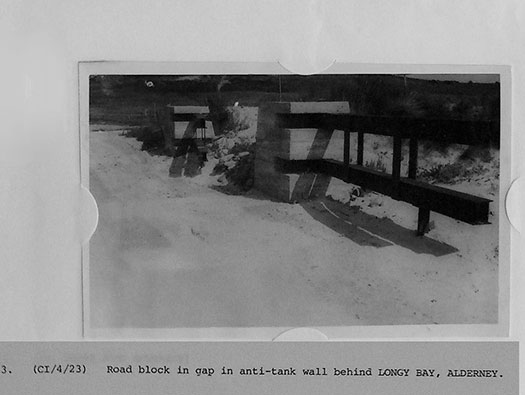

This is the road block at Longy Bay using two steel I beams that could swing across the road and block it.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Road Block.
Details
Close up picture of the concrete block.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger casemate.
Details

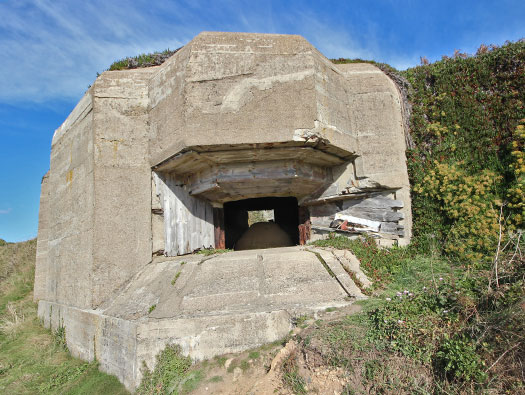

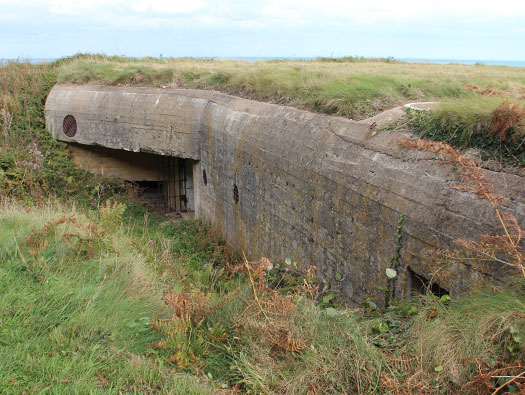

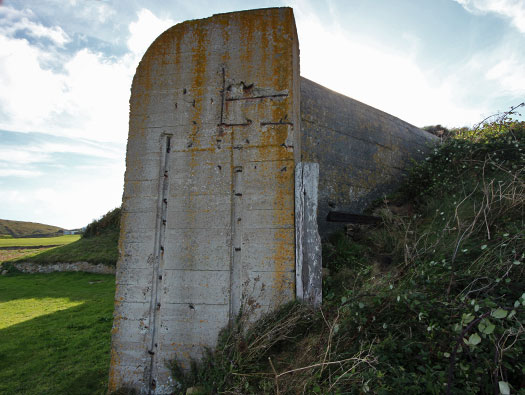

Jäger casemate for a 10.5cm K331(f) gun. A 'Jäger' bunker is named after its designer.
/Noirmont04.JPG)
10.5cm K331(f) gun in an open emplacement.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger casemate.
Details
Strong concrete flanking wall.
Constructing a bunker.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Vf anti-tank casemate.
Details

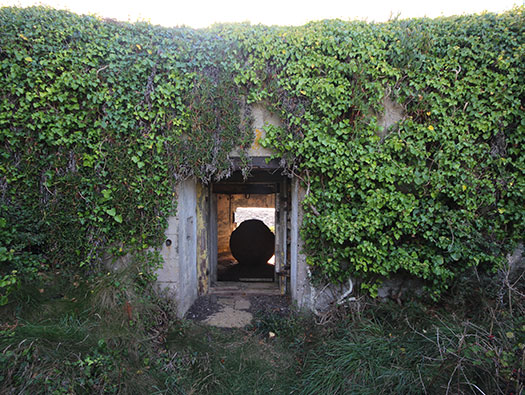

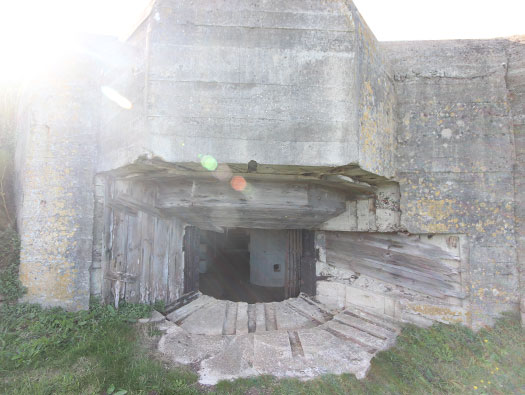

Vf anti-tank casemate for a 75cm Pak 40 gun.
75cm Pak 40 gun.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. 60cm searchlight.
Details

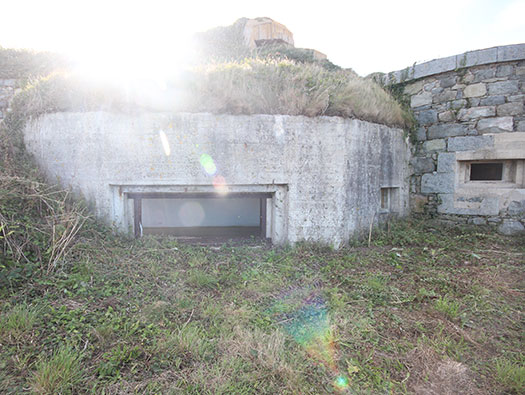

60cm searchlight position on the top.
60cm searchlight.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. MG position.
Details

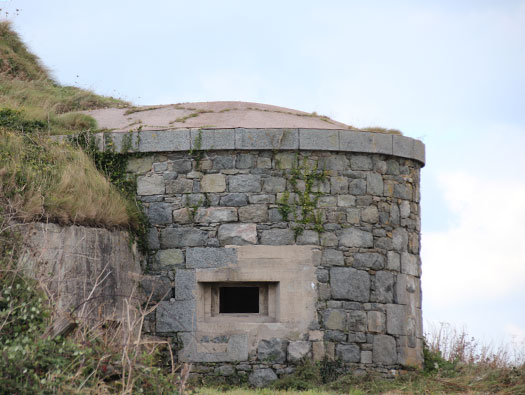

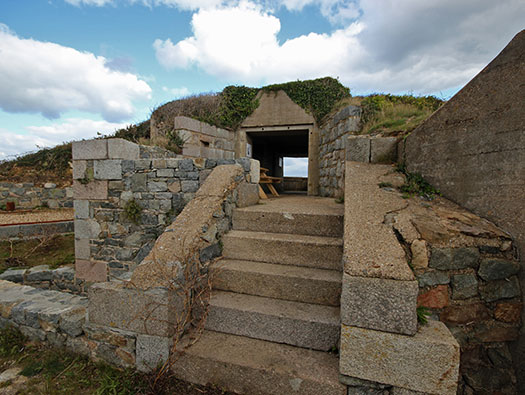

Victorian Caponier converted from musketry loopholes to two machine gun emplacements.
There were many machine gun positions all around the fort.
The Victorian Caponier.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Search light casemate.
Details
Search light casemate. A very strong position.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Vf for a 75cm Pak 40 gun.
Details

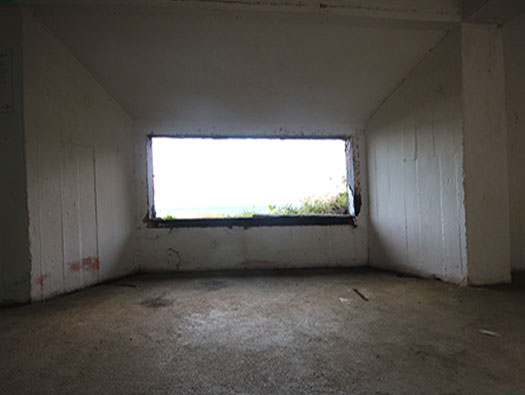

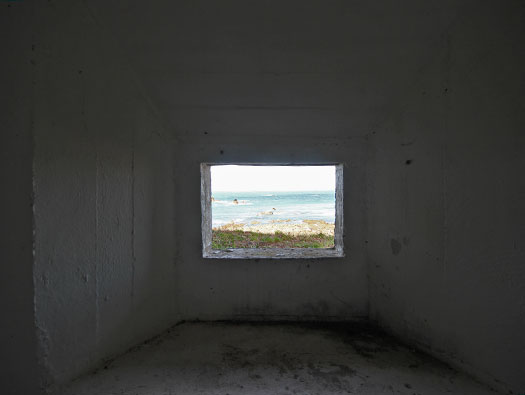

Vf for a 75cm Pak 40 gun room ready to shoot right down the beach.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Vf for a 75cm Pak 40 gun.
Details
Vf for a 75cm Pak 40 gun room ready to shoot right down the beach.
75cm Pak 40 gun.
75cm Pak 40 gun.
75cm Pak 40 gun.
Alderney, W 1 StP Türkenburg
DEFE/2/1296 NA
Information
Alderney, W 1 StP Türkenburg. Vf for a 75cm Pak 40 gun.
Details

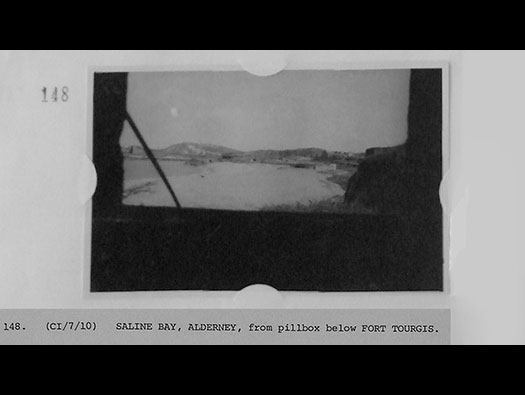

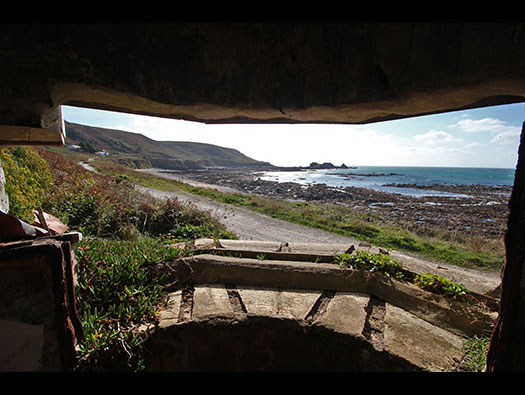

The view down the beach from this embrasure in 1945 taken by a British Offices..
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Vf for a 75cm Pak 40 gun.
Details
Vf for a 75cm Pak 40 gun room and Vf MG position next to it.

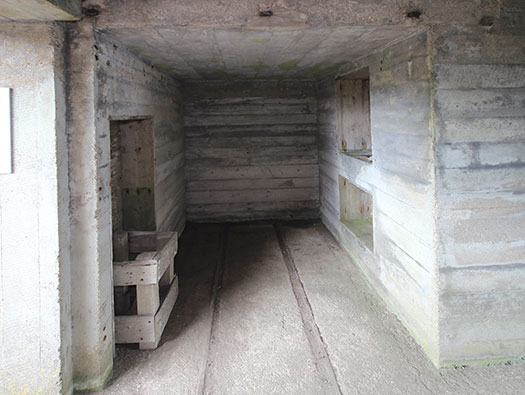

The half round shape on the floor is where a steel runner would have sat so that the guns rear legs would sit to stop the gun moving back on the recoil when fired.
.
Rear legs of a 7.5cm Pak 40.
7.5cm ammunition.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Vf MG.
Details
The machine gun position.
Machine gun room.
MG08 Maxim.
MG08 Maxim on its WW1 mount..
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg
Details

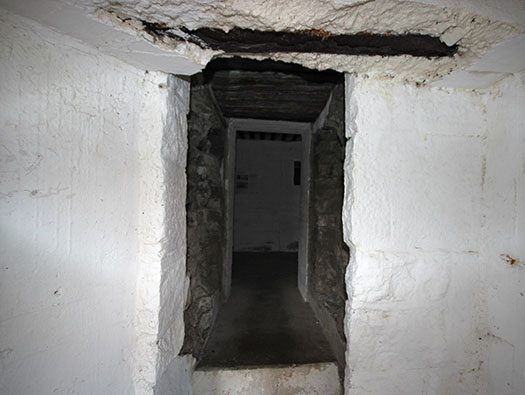

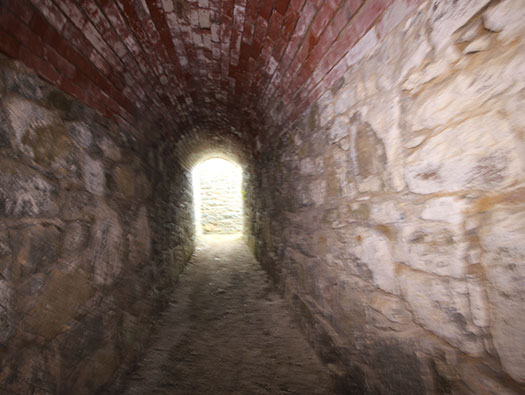

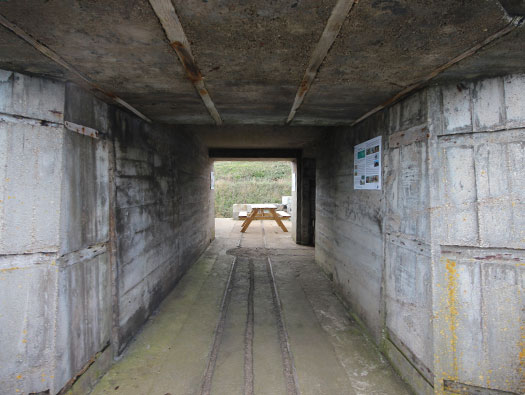

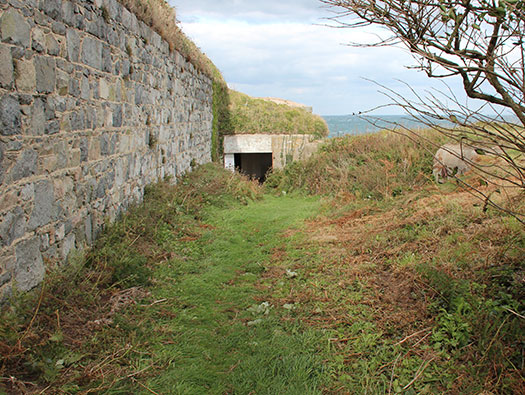

Passage way cut through the old forts wall.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg
Details

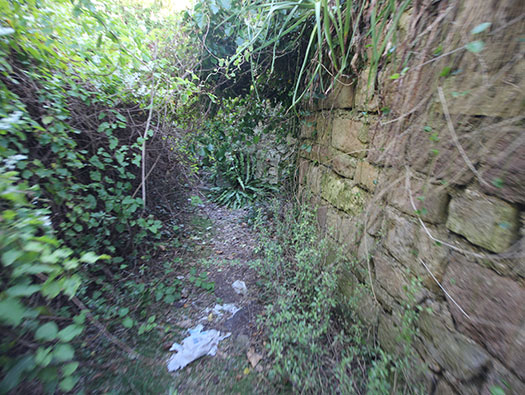

Passageway continuing on.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg
Details
Musketry loopholes converted to concrete rifle emplacements.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Double MG space.
Details

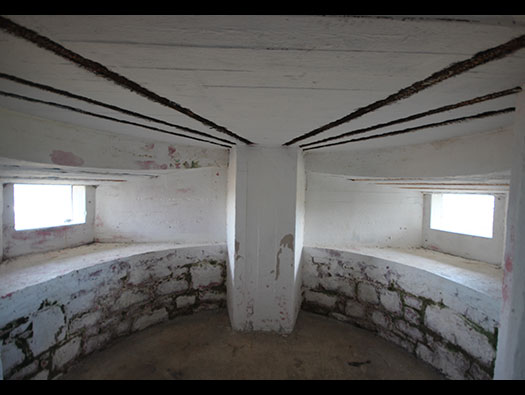

Converted Victorian Caponier converted to a twin machine gun position.
Stripping an MG34.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker.
Details
Out behind the Jäger bunker.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg Jäger bunker.
Details
Layout.
Plan of the Jäger bunker.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker.
Details
Back entrance of the bunker
Plan entrance.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker.
Details

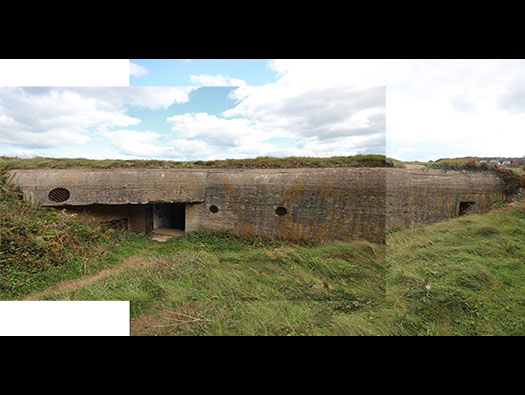

The whole rear of the bunker, left the large vent to vent out gasses from the gun room. Next close combat defence, door entrance, two ventilation vents and the Tobruk defence entrance.
200mm vent.
200mm vent. The two types on that wall.
The largest possibly 300 to 400mm vent.
Alderney, W 1 StP Türkenburg
05 November 2016
Information

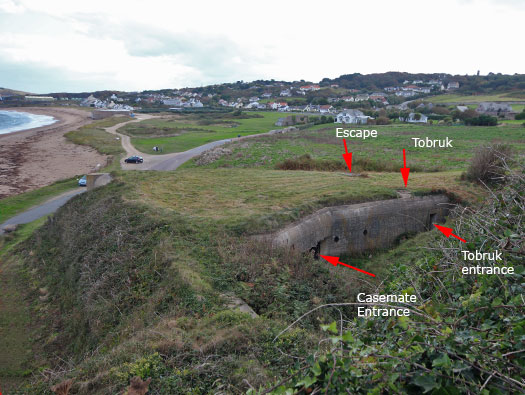

Alderney, W 1 StP Türkenburg. Jäger bunker Tobruk.
Details

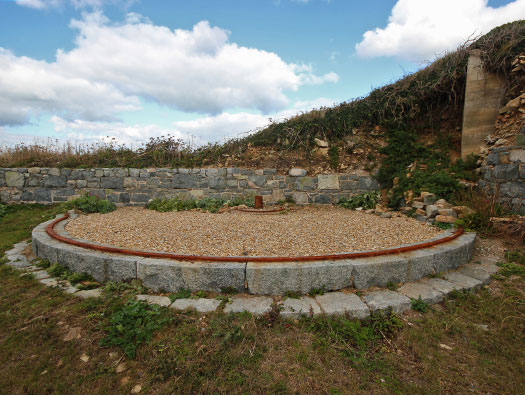

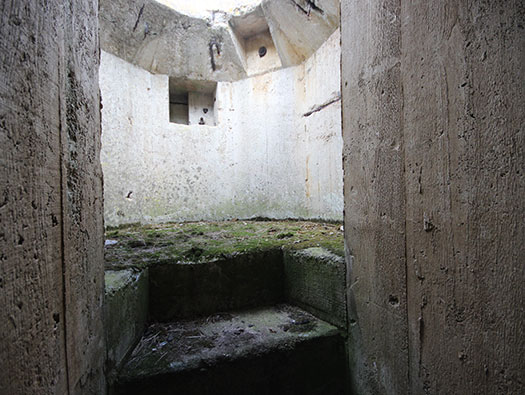

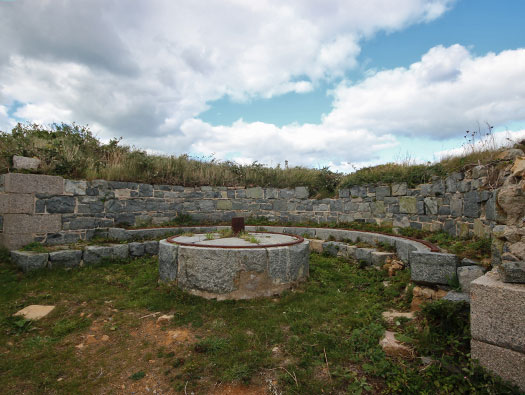

The Tobruk defence. There would have been a steel slip ring for the machine gun to slide smoothly around.
Tobruk just like this one.
The gun sat on a slip ring that could travers 360°.
Plan Tobruk.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker Tobruk.
Details

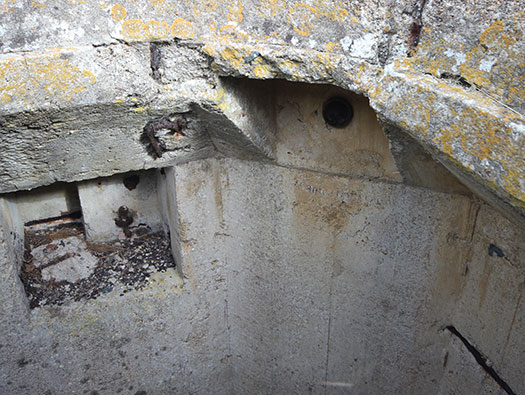

The round hole is the Sprachrohr mouthpiece would have been screwed in and by speaking through it, you could talk to the troops inside the bunker. The square shape on the left is another communications connection and could be attached to a field telephone to also speak to inside or a connection to the main telephone network.
'Sprachrohr' the words painted on the wall.
Sprachrohr mouthpiece
The connection.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker Tobruk.
Details

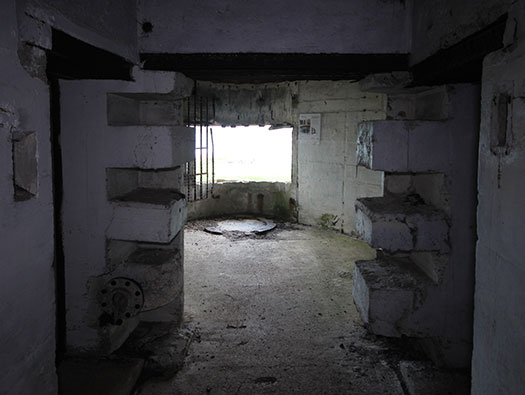

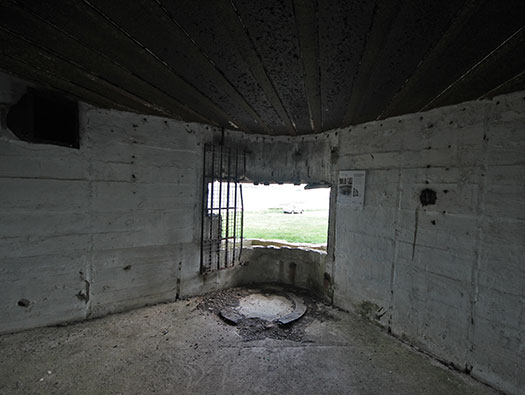

Looking into the Tobruk from the steps.
One thing I have noticed on Alderney and nowhere else on the Atlantikwall is the use of aerials mounted into Tobruks. It does not mean they were used but they could be.

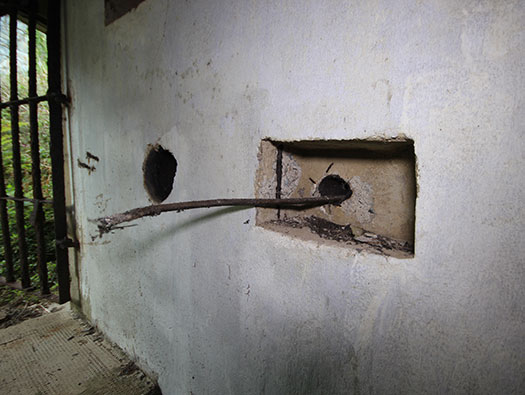

An aerial in its slot.
Plan of a bunker aerial.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker Close combat defence embrasure.
Details

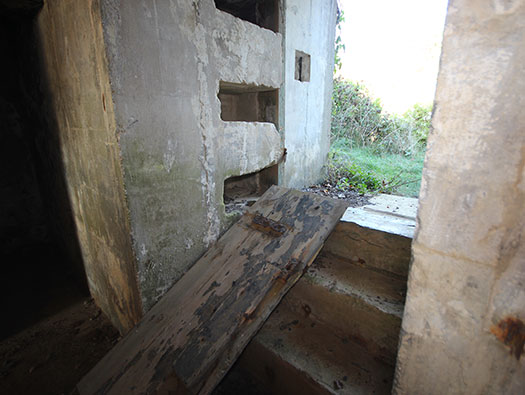

Close combat embrasure covering the rear door with a lethal MG34 a sub-machine gun or a rifle. What ever was at hand.
Plan close combat defence.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker entrance.
Details

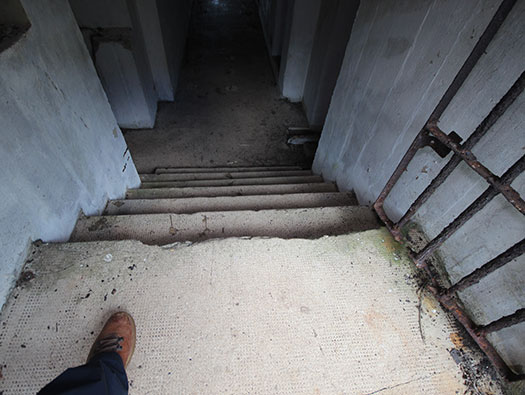

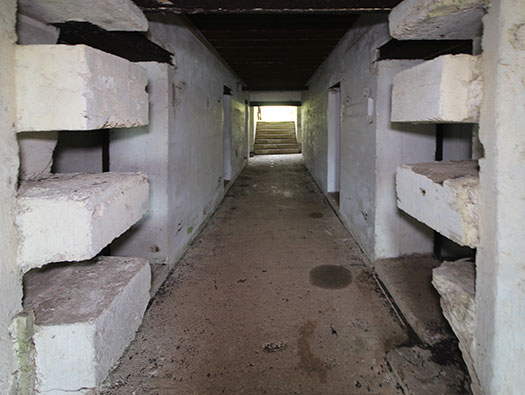

The entrance is much wider than later bunker types, so here there were two gates to fill the gap.
491P2 Gittertür (Screen Door).
Left hand Gittertür.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker entrance.
Details
Inside the left niche is a relay box for a field telephone, this would contact the inside of the bunker from the entrance.
Telephone relay box.
Telephone relay box.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker gas lock.
Details
Two aerial slots either side of the door. A 434PO1stable type armoured door with its four heavy hinges.
Drainage in the bunker.
434PO1 Door.
The two types of this door, left & right.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker.
Details
Details
4ML01 equalising valve. When a close explosive goes off a pressure wave is forced into the bunker via its fresh air system. This equalising valve closes it off and stops the air pressure rise.
48P8 close combat defence embrasure fitted here.
48P8 close combat defence embrasure
Plan close combat defence room.
Alderney, W 1 StP Türkenburg
05 November 2016 JF
Information
Alderney, W 1 StP Türkenburg. Jäger bunker Crew room.
Details

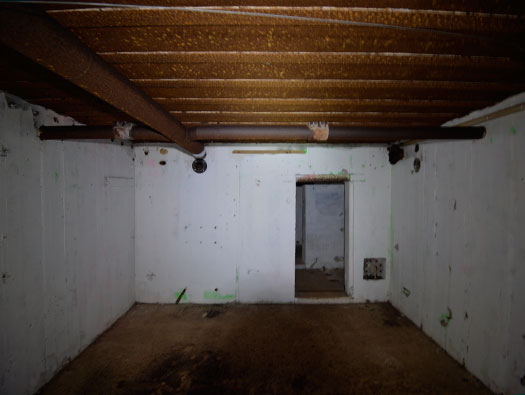

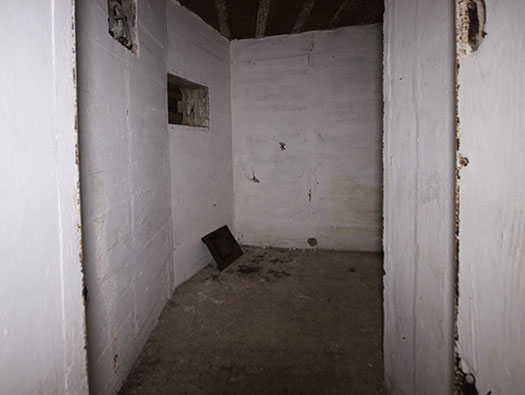

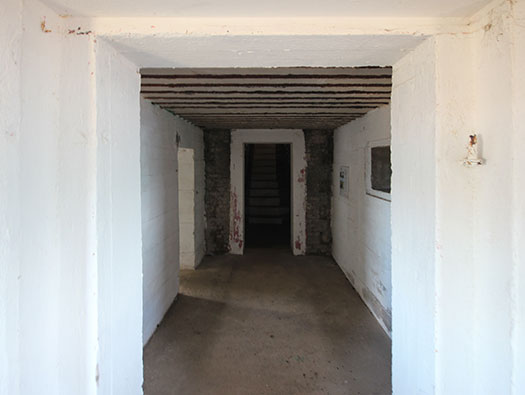

Crew room with door to the gas lock.
Stove chimney fittings.

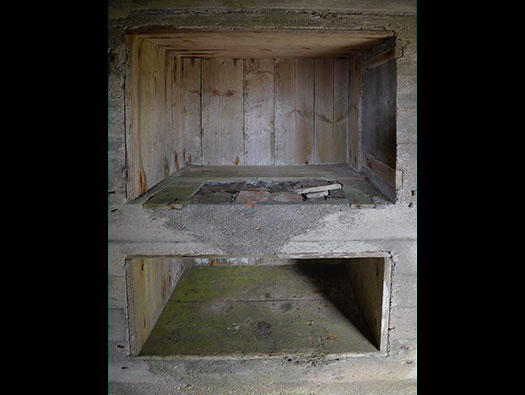

Bunk beds hook in the roof.
Fresh air pipe connection. Its rare to find the pipes in place and rarer to find a pipe connector.
Fresh air pipe work in the crew room.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker Inner entrance.
Details

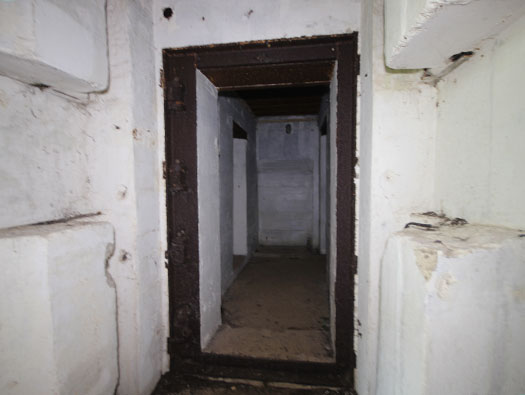

The tooth shaped pieces of concrete on either side was for a large steel double door and frame to protect the gun room.
484P2 is a door that may have been envisaged here but never fitted.
Plan.
Cleaning brushes hung on the wall of a bunker.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker empty shell case room.
Details

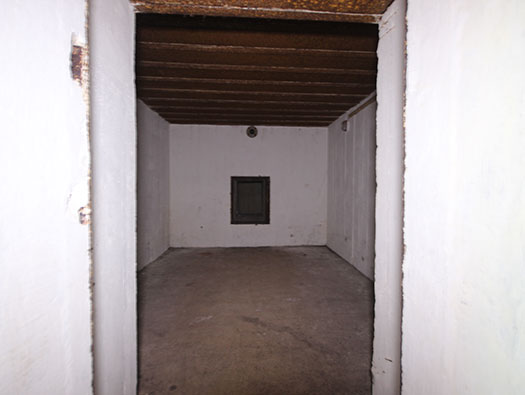

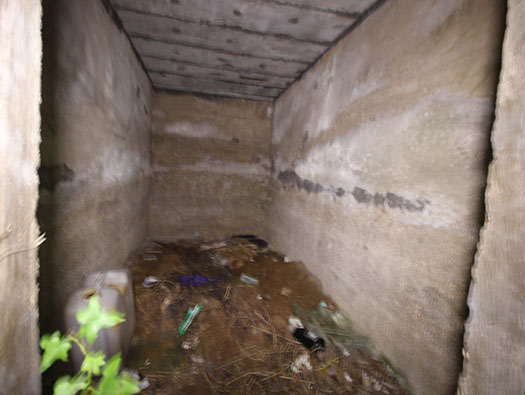

This is where the empty fired shell cases would have been stored and then removed to be re-used at a later time.
Details2
10.5cm shell cases.
Boxes shell cases came in.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker ventilation room..
Details

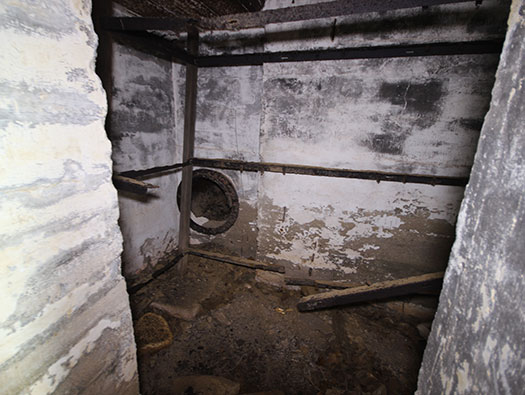

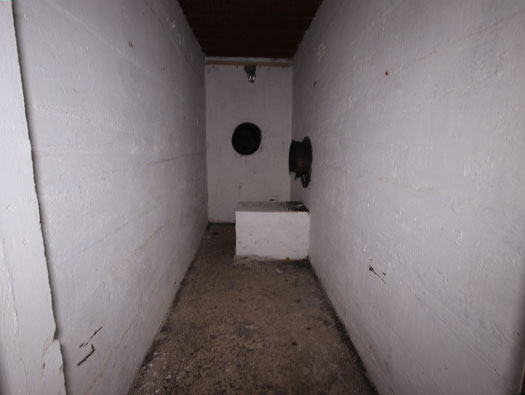

This is where a large ventilation fan and an electric motor would have sat on the concrete plinth. The gases when the gun fired would be sucked out by the fan and sent to the the large 300/400mm vent in the rear wall.
The collecting vent in the gun room.
Extractor in a different bunker.
Looking into the extractor vent pipe.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker gun room.
Details
Gun room with left to right the ventilation vent, the guns tie down ring. There was also a periscope fitting in the roof.
Plan.
The collecting vent in the gun room top left hand corner.
Periscope fitting in the roof.
Base for the periscope in the floor on the left side.
/amunition.jpg)
Ammunition.
10.5cm K 331(f).
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker.
Details
The tooth shaped pieces of concrete on either side was for a large steel double door and frame to protect the gun room not fitted.
484P2 is a door that may have been envisaged here but never fitted.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker Ammunition room.
Details
Ammunition room and the bunkers escape on the far wall. Ammunition would be stacked in racks with about three loads of shells.
A load is the amount of shells calculated for firing for a certain time. Then when more is needed, the order would go out for how many loads were needed.

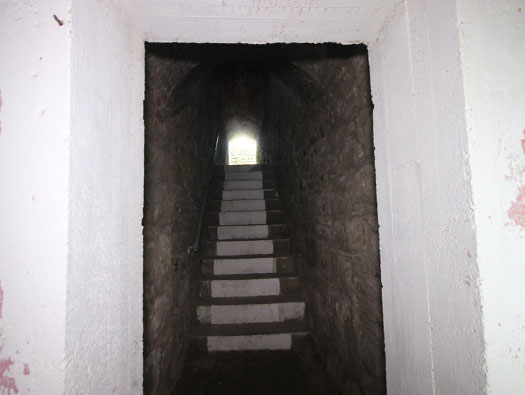

The escape tunnel.
Plan ammunition room and escape.

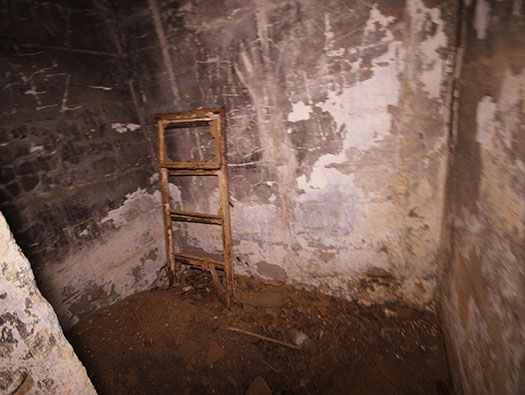

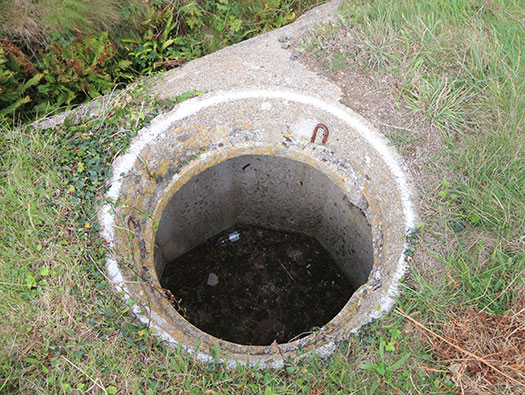

The escape man hole cover over the shaft going down to the bunkers ammunition room.
Plan of how the escape worked.
Stacked shells.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker escape tunnel.
Details

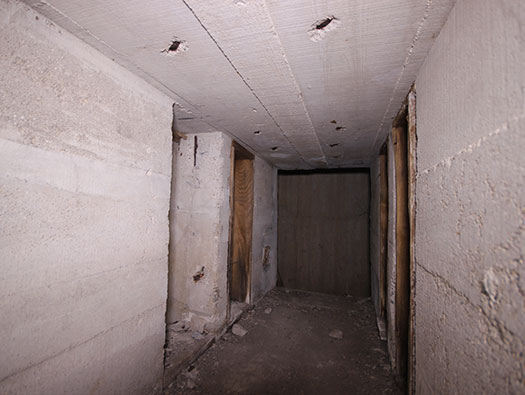

The escape tunnel shows the thickness of the bunker walls with slots in the sides for escape shutters, lengths of metal strips with a handle to shut off the space.
Plan ammunition room and escape.
410P9 escape door
Escape shutters.
Plan of an escape.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Jäger bunker connection box cable.
Details
Aerial fitting.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg.
Details
Steps through the wall.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg.
Details
DA nice brick and stone passage.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg Battery No2.
Details

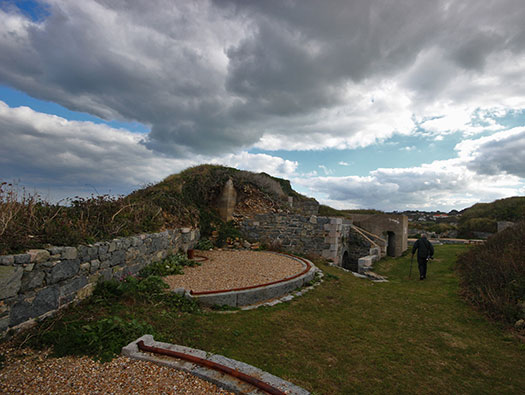

One of the many 68 & 32 pounder gun mountings that were here..
Plan.
Alderney, W 1 StP Türkenburg
www.alderneylivingislands.com
Information
Alderney, W 1 StP Türkenburg Battery No2.
Details

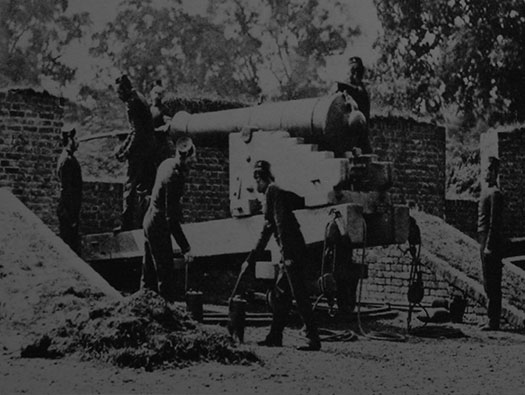

32 Pounder gun in position and crew.
Gunner 1847.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg Battery No2.
Details
Another gun position.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg two more 1855 guns and searchlight.
Details
Searchlight position.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg searchlight.
Details

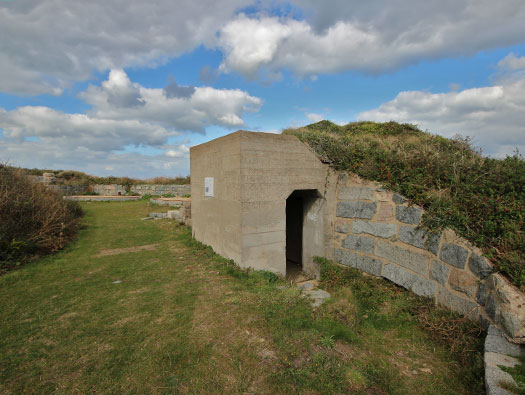

German concrete mixed with English Granite blocks.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg searchlight.
Details
The searchlight ran on rails so that it could be pushed out hear to search the sky for aircraft, back into the tunnel for service, repair or storage. Or run out at the far end and used to show up targets for the artillery inland or the guns set around here.
Alderney, W 1 StP Türkenburg
www.alderneylivingislands.com
Information
Alderney, W 1 StP Türkenburg searchlight.
Details
There was a total of 35 larger searchlight in addition to numerous 30cm varieties. Twenty four of these were 60cm, with six being housed in bunkers unique to the Island. It had a range of five Kilometres. www.alderneylivingislands.com
Plan of searchlight position.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg searchlight
Details
Searchlight storage and maintenance.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg searchlight
Details
Looking out to the working end of the bunker.
Plan.
Details2
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg. Search light casemate.
Details
Search light casemate.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg searchlight.
Details
Looking back.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg searchlight.
Details
It says crew or generator bunker, if a generator was inside it would be noisy, smelly and dirty, I would think the crew were somewhere else.
There was also a cable from this room to the main searchlight emplacement.
Plan.
Bunker/searchlight generator. Although it needed to be small, it also needed to be powerful to power the light.
What the Allies called a Gerry can for the petrol.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg
Details
Searchlight generator bunker. They would have had communications via the main field telephone system to the Flak HQ and the Artillery HQ to either send details of what they have seen or else to receive orders on where to search with their light. The lights could also be directed by sound and radar location.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg
Details

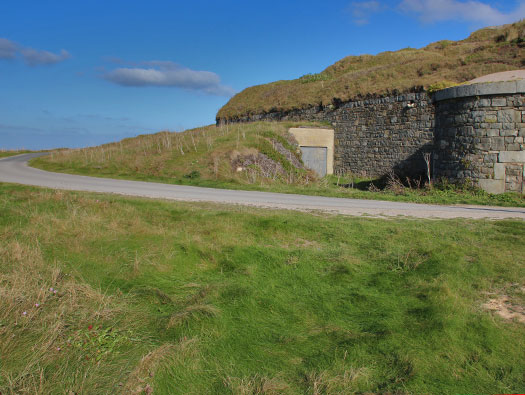

Just around the corner on the next bay is this garage for a 7.5cm Pak40 A/T gun.
R701 garage for Pak 40. Just a long corridor for the gun to enter and there may have been some ammunition storage. In some garages it was under the floor.
It lies next to another Victorian Caponier.
R701 garage for Pak 40.
7.5cm Pak40 A/T gun
Plan
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg
Details
The hard stand for the 7.5cm Pak40 A/T gun to be fired from. It would have had either concrete walls around the front and two sides or sand bags and or earth piled up.
7.5cm Pak40 A/T gun.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg R670 casemate for a 10.5cm K 331(f).
Details

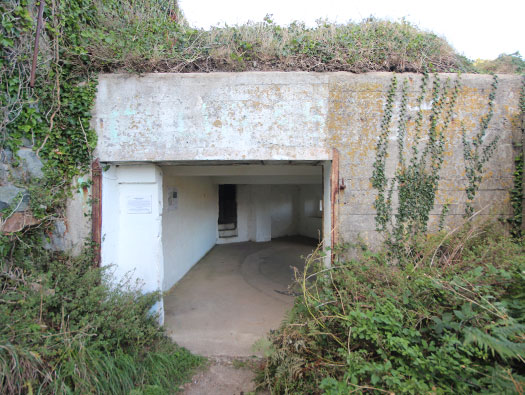

R670 casemate for a 10.5cm K 331(f).
Details2
R 670 casemate for a pivot gun with 90° angle of fire.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg R670 casemate for a 10.5cm K 331(f).
Details

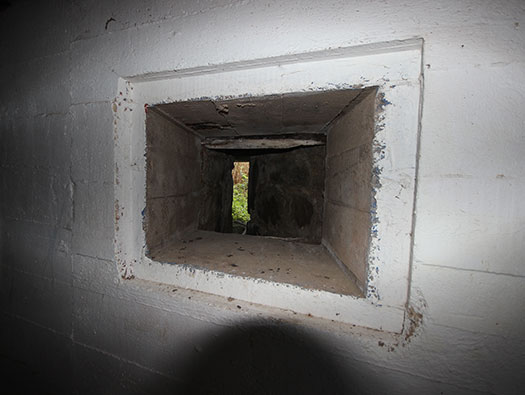

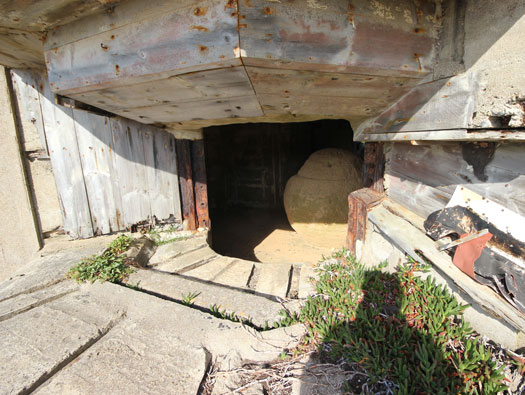

Looking into the gun embrasure. There is a lot of wood is still in place after all this time.
/670casemate.jpg)
I believe this is the way the gun and shield would have looked.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg R670 casemate for a 10.5cm K 331(f).
Details
The rear door.
Plan R670.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg R670 casemate for a 10.5cm K 331(f).
Details
Ammunition and ventilation. Very much the same as the Jäger casemate but this time the extraction was removed from slots in the roof structure and piped through the concrete to a fan and out via a 200mm vent in the rear.
Plan R670.
Plan of ventilation pipes.
/shell_store.jpg)
Shells storage.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg R670 casemate for a 10.5cm K 331(f).
Details
Ammunition, ostensibly the shell store.
Plan R670.
Cases stacked in wooden frames.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg R670 casemate for a 10.5cm K 331(f).
Details

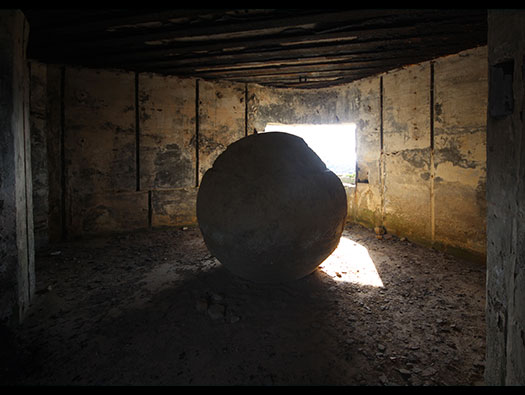

Ignore the sandy concrete ball, its ART you know. Still better than graffiti.
Plan R670.
Gun room.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg R670 casemate for a 10.5cm K 331(f).
Details
The view across Clonque bay and Fort Clonque in the background.
/k331r670.jpg)
I believe this is the way the gun and shield would have looked inside the casemate.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg R670 casemate for a 10.5cm K 331(f).
Details
There should have been some rear doors or door fitted here but it looks like they were not sent over from France.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg
Details
Behind the gun is some extra ammunition storage.
Plan.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg
Details
Hard to get at.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg
Details

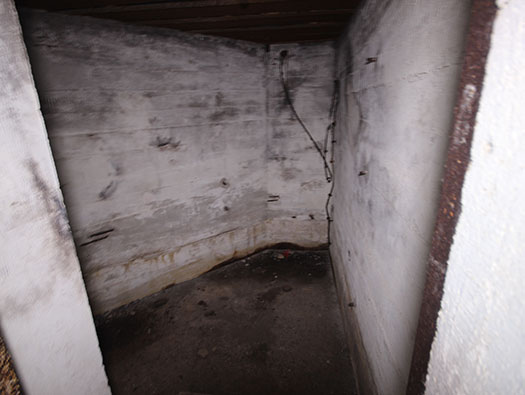

Ammunition storage.
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg
Details

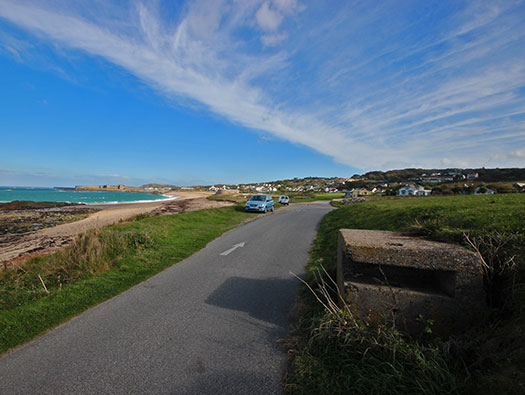

Fort Tourgis with the R670 pointing along the beach. The fort with its three 2cm Flak guns and many M.G. set into the Victorian defences.
Gun loopholes and ports up the outer wall.
About half way up a machine gun embrasure.
Plan..
Alderney, W 1 StP Türkenburg
05 November 2016
Information
Alderney, W 1 StP Türkenburg
Details
The wall of Fort Tourgis.
France
Great Britain
.jpg)
