Führerhauptquartier ´Wolfsschlucht 2´
Flakstellung ´B´,
Laffaux, Soissons, France.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Laffaux 160meters above sea level, this was a 10.5cm Flak position covering the east side of FHQ.

6 x 10.5cm Flak 38.

2cm Flak 30.



Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Laffaux 160m above sea level, this is a six gun batterie of 10.5cm Flak position and three 2cm Flak 30 for lower level. They can all be used in all round defence of the area as a ground roll if necessary. Sitting as it does on the top of a plateaux with views for 360° for many Kilometres.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

The route taken, this was November and the woodland undergrowth had not died down enough. So I would suggest a visit just before spring. the small woodland to the west I think has been removed since the air-photos were taken and the fields is now ploughed and sown with winter wheat.
The batterie B originally consisted of at least 39 buildings:

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

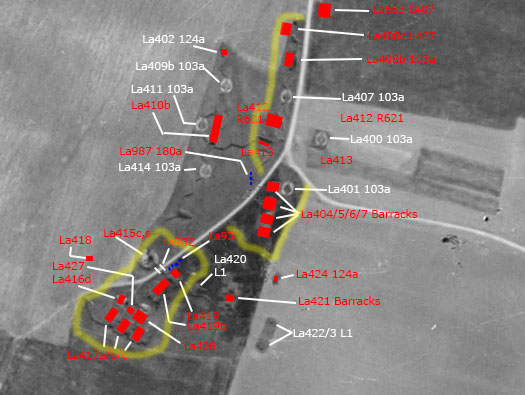

Flakstellung ´B´ Laffaux.
White - Flak emplacements.
Red ---- Bunkers.
Yellow line - the areas able to visit.

La = Laffaux suffix.
L == Luftwaffe suffix.

6 x 103a - 10.5 cm flak.
3 x L1 - 2 cm flak 30 L1.
2 x stands for radio transmitter (one of them on a bunker).
5 x bunkers one of them with stand on 1 Stand for Commandant Equipment.
1 x small stand (for distributor).
1 x ring stand.
12 x barracks with splinter protection.
2 x cisterns with 3 water tanks.
3 x 124A - latrines.
1 x L426 - Funkmeßgerätbunker (radar bunker).
La932 underpass allows the crossing of the road under cover.

La420 Geschützstand für 2cm Flak.L1

La402/409/411/427/400 & 401.
6 x 103a Geschützständ für 10.5cm Flak.

La428 - L425 Flak bunker for 2cm flak 30.

La415s - L426 Funkmeßgerätbunker (radar bunker).

La412 - R621 group shelter.

La653 - L407 Munitionsunterstand schwere Flak. (Munitionsunterstand heavy Flak).

10.5cm Flak 38..

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux.
The track very drivable from Laffaux.

No not that bad.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La408c.
An L427 machinery bunker.

La408c L427.

L427 machinery bunker [Befehis I-Stand].

Generator.

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La408c.
L427 machinery bunker entrance.

Inside a different machinery bunker but gives an idea of what it may be like.

10.5cm Flak shells.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La408c.
L427 machinery bunker roof.

Generator.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La400.
La400 - 103a type Geschützstand für 10.5cm Flak

103a Geschützstand für 10.5cm Flak

Inside one of the niches.
Cable connection 10 pairing.
Remote control.
Cable termination.

Around the lip of the emplacement these cylinders of concrete gave some protection from bomb or flak splinters.

One we found in Brittany.

How the concrete splinter protection fitted on the emplacement..

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Information

Details

Flakstellung ´B´ Laffaux.
Heading on.

Plan.

10.5cm Flak 38.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux.
Well there it is in November hard to see anything.

Plan

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux.
A piece of concrete. I think its is one of the water reservoirs.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La419.
Possibly La419 Barracks 8.1m x 9.3m.

Plan.



Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La931.
La931 108a Vier wasserbehalter (Four water containers)

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La931.
La931 108a Vier wasserbehalter (Four water containers)

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Information

Details

Flakstellung ´B´ Laffaux La931.
La931 108a Vier wasserbehalter (Four water containers)

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La419b.
La419b L1 Geschützstand Baracke 9.3m x 18m (protected barracks).

2cm Flak 30.

L1 for 2cm Flak 30.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La419b.
La419b geschützte Baracke 9.3m x 18m (protected barracks).

Wooden hut that may have been used here.

German wooden hut.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La419b.
La419b geschützte Baracke 9.3m x 18m (protected barracks).

This is a protected barracks at another flak site.

Inside a barracks.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux.?

Luftwaffe Flak crew.

Luftwaffe Flak crew.

Luftwaffe Flak crew.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La416b.
La416b Stand für Funkmeßgerät (Radio measuring instrument - Platform for range finder).

Range finder.



10.5cm Flak.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La416b.
La416b Stand für Funkmeßgerät (Radio measuring instrument - Platform for range finder).

Flak batterie layout.

High flying B17's that flew over the FHQ on June which caused an air raid warning and a rush to the shelters.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux.??

A large protected hut at Wn349 La Roche, Normandy.

A large protected hut inside at Wn349 La Roche, Normandy.

A large protected hut inside at Osteck, Cherbourg, Normandy.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux.
Concrete in the sunset.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux La417b.
La417b one of three here geschutzteI Baracke 8.1m x 19m. (protected barracks).

Flak.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux. Clear sky.
163meters above sea level with views over the valley with the FHQ in the valley.

Führerhauptquartier ´Wolfsschlucht 2´ Flakstellung ´B´

Details

Flakstellung ´B´ Laffaux.
