Führerhauptquartier ´Wolfsschlucht 2´ Margival, Soissons, France.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

The defence and HQ is split into many defined areas, these are the bunkers that come under "Margival - Ma".

R504 gun garage.

R622 twin group bunker.

108A/SK ammunition bunker.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

"Margival - Ma" Village found.
Ma734 - R504 Gun garage Ma734.
Ma598 - R112A Ammunitions bunker.
Ma557 - R502 Unterstand.
Ma393 - R501 Unterstand.
Ma598 - R112A Ammunitions bunker.
Ma393 - R501 Unterstand.
Ma388 - SK MG casemate.
Ma ? ---- 108A type ammunition shelter.

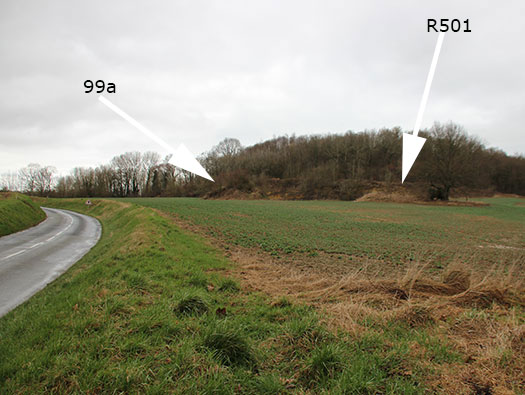

Ma386 -- 99A stand mit Drelschartenturm.
Ma387 -- R501 group shelter.
To be found: -
1 x 108A/SK ammunition bunker.
3 x R98a Machine gun bunker.
2 x SK 3-Schatenturm bunker.
1 x Tobruk.
2 x R621 Group shelter.
1 x R622 twin group bunker Ma558.
1 x R608 Battalion & Regimental headquarters and more.

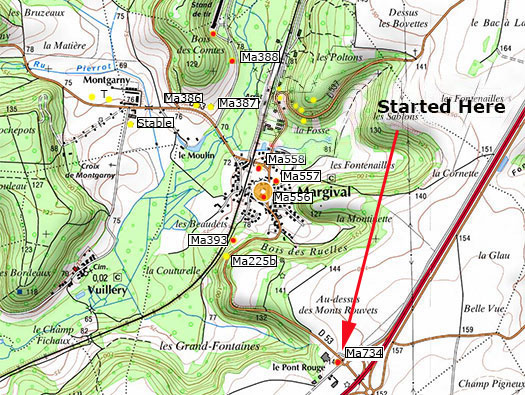

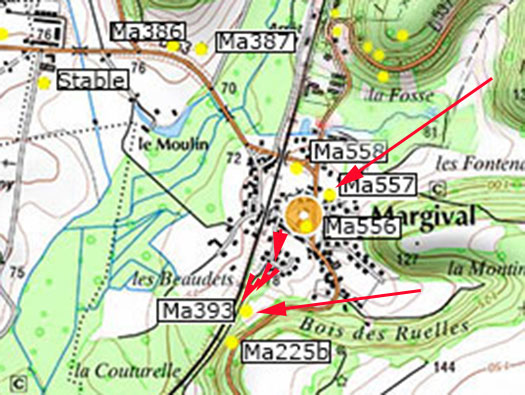

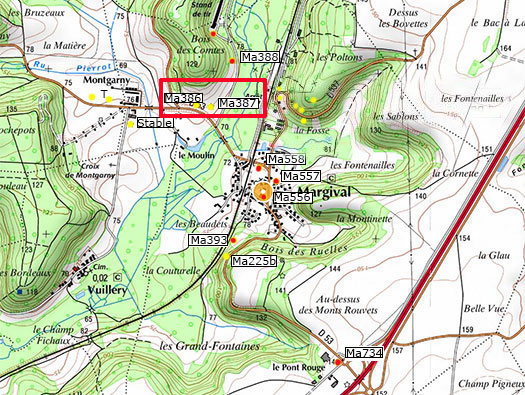

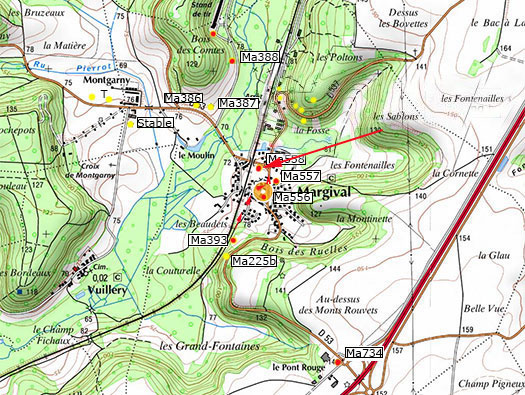

Visited marked in red dots.

R608 Battalion & Regimental headquarters.

3P7 on an SK 3-Schatenturm bunker.

R98a Machine gun bunker.

Führerhauptquartier ´Wolfsschlucht 2´ Margival R504.

Details

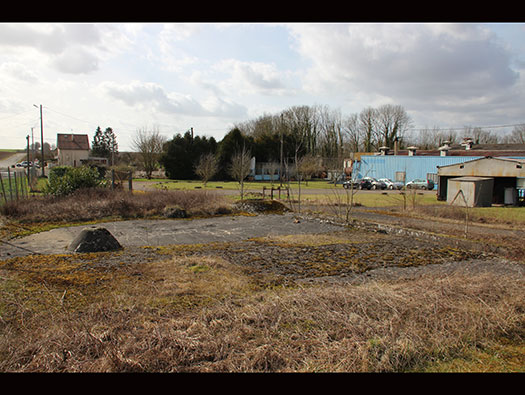

Margival Ma734 an R504 Anti-tank gun bunker.
R504 Anti-tank gun bunker with roof canopy made of two sheets of steel plating is situated in the forecourt of a workshop just off the Soissons road. I
They can also be designate R504's as a&b.
a - Tobruk on left.
b - Tobruk on right.

Plan.

R504.

R504 with steel plate.

R601 with the steel plate removed for scrap. Kermorvan, Brittany.

Führerhauptquartier ´Wolfsschlucht 2´ Margival R504.

Details

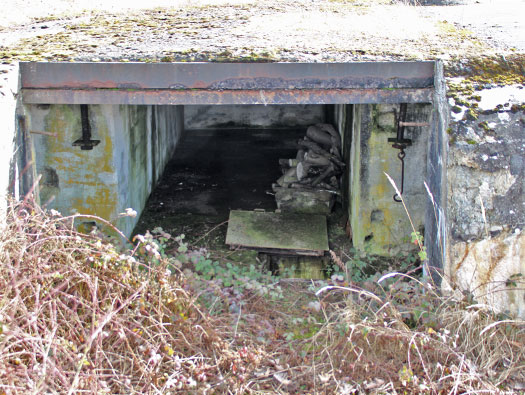

Margival Ma734 an R504b Anti-tank gun bunker.
The gun could be wheeled out of the garage and placed in a ready made emplacement to cover the road from Soissons on the left top corner of the picture.
The small pyramidal piece of concrete it an aerial fitting and the other lump of concrete is a machine gun ringstand .

R504b.

Ringstand observer.

Bunker aerial.

3.7cm A/T gun in position on a road.

The view the gun covered.

Führerhauptquartier ´Wolfsschlucht 2´ Margival R504.

Details

Margival Ma734 an R504b Anti-tank gun bunker.
The view into the gun room showing the long bolts to bolt down the steel roof..

R504 with the steel plate removed for scrap. Kermorvan, Brittany.

R504.

Führerhauptquartier ´Wolfsschlucht 2´ Margival R504.

Details

Margival Ma734 an R504b Anti-tank gun bunker.
The steel door and the hole for the ammunition room below.

R504.

Führerhauptquartier ´Wolfsschlucht 2´ Margival R504.

Details

Margival Ma734 an R504b Anti-tank gun bunker.
Two bolts, the vertical one is to hold down the roof plate and the horizontal one is to hold the front door frame in place.

494P2 type of door may have been used here.

R504.

R504.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

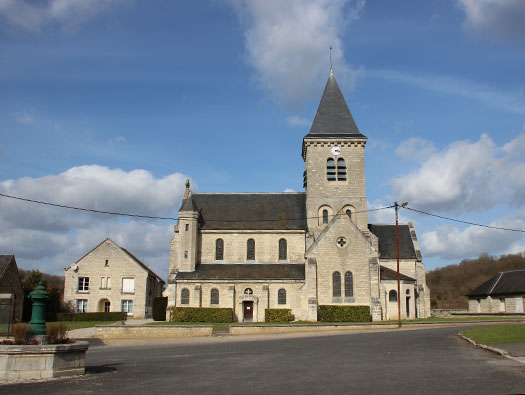

Margival's church.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

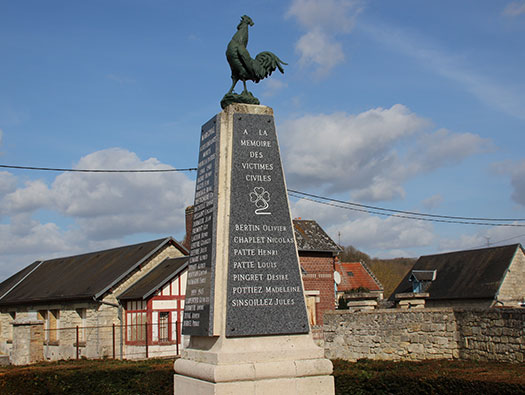

Margival's war memorial also has seven Victimes Civiles who died in the war..

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma598 an R112A Ammunitions bunker.
Münitionsunterstand.

R607 type (R112A) ammunitions bunker.

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma557 an R502 Unterstand.
R502 twin group bunker could hold 12 men arranged around the walls in three tiers of bunks that hang from the wall when not in use and then by chains from hooks on the roof.

R502 twin group bunker.

Plan.



Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma557 an R502 Unterstand.
Heated by a coke fire, safe from a gas attack by having an anti - gas filter system.



Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma557 an R502 Unterstand.
The crew could be an anti-aircraft guns crew or ammunition supply and delivery troops from the large ammunition bunker near by. Or defence troops.







Führerhauptquartier ´Wolfsschlucht 2´ Margival

Information

Führerhauptquartier ´Wolfsschlucht 2´

Details

Ma393 R501 Unterstand.
Now a little walk down the railway line.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
MKB team leaders.
On the left --- MKB's Health and safety officer.
On the right - MKB's Advance reconnaissance Officer.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Arriving at the bunkers entrance.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Entrance 491P2 Gittertür.

Entrance 491P2 Gittertür.

R501 plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Entrance steps into the bunker with a small niche for a light switch or communications into the bunker.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Entrance close combat embrasure covering the entrance steps.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.

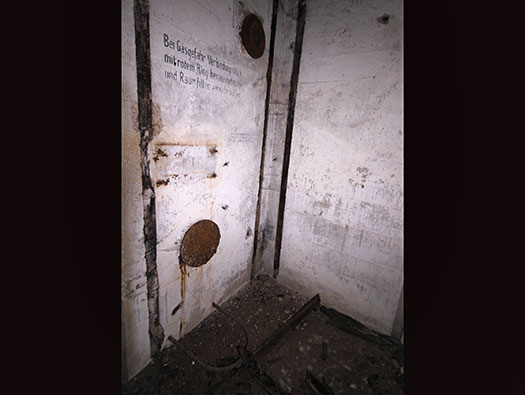

Anti gas instructions.
Bei Gasgefahr ------------ At risk of gas
sowie berm Luften ------- as well as berm airs
sind die ---------------------- are the mil
I think it says: - The red ring on a door donates that it is an anti gas door and when shut is sealed.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Bunker drain, always watch where you are stepping.

Drainage.

Drainage.

Drainage.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.

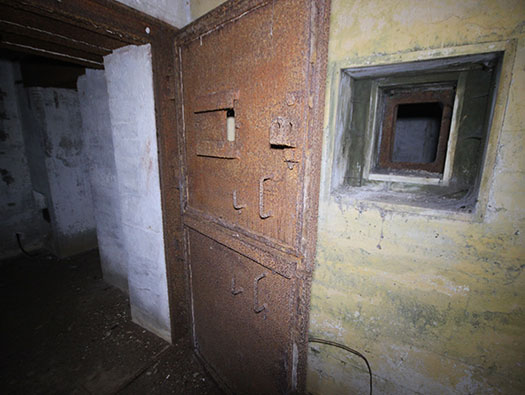

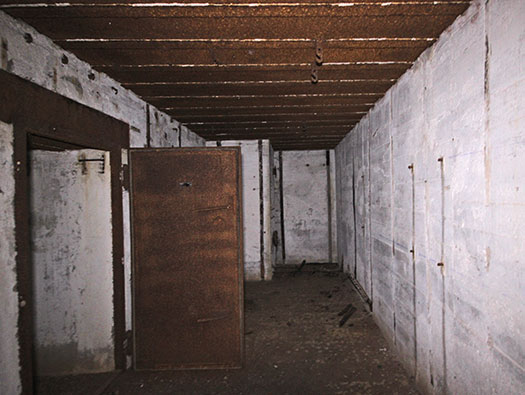

A very nice 434PO1 door, splits in two so that if the door will not open due to battle damage or rubble in the way, the top half can open and you can climb out.

434PO1.

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Air lock.

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Inner 19P7 inner door. A thin sheet steel door with a small glass window to see what is on the other side. A gas tight rubber seal.

19P7 door.





Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Crew room with the supports for bunk beds still in place.

Details2

Plan of bunks.



Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
The 19P7 inner door and a bracket low down to hold spare filters and above the bracket fittings for the anti gas apparatus. To the right are cables incoming from ground level going up the wall.

Stored filters.

Filter pump.

Cabling on the wall may have liked up to a phone.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Filter storage bracket and also you can just see the Thermo plastic tiles on the floor.

Filter.



Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
On the floor are the cable inlets through three pipes.

How it may have looked.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Bunk bed post still in place.

Details2

Plan of a bunk bed.



Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Bei brennendem Licht ------------ in burning light.
Scharte schliessen ---------------- Close Scharte.
48P8 Close combat embrasure.

48P8 close combat embrasure.

48P8 close combat embrasure.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
In the corner is the escape, a small tunnel that goes out horizontally to the outside of the bunker and then runs up vertically to an opening to escape.

410P9 door.

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Looking into the escape tunnel.
A large I beam to hold back the gravel used to fill up the vertical shaft.

Shutters in place.

Escape shafts.

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
Pascal holding an I beam that has been taken out by others and several more on the floor.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
60
393 the bunker number.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
The steps out.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Ma393 R501 Unterstand.
A galvanised vent of some kind all that can be seen of the bunker from the top.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma558 R622 twin group bunker.
Now back to nearly the railway bridge..

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma558 R622 twin group bunker.
Ma558 - R622 twin group bunker situated in the village and a new drive and wall has been built along side it. An accommodation bunker for about 18 men and a defence Tobruk on the left side.

Plan.

R622 twin group bunker.

Inside.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma558 R622 twin group bunker.
Left entrance.

R622.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma558 R622 twin group bunker.
Right entrance with what looks like the original 491P2 Gittertür (Screen Door).

491P2 Gittertür (Screen Door).





Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma558 R622 twin group bunker.
Four 20cm air vents in the side.

20cm heavy vent. Stahlrost.

20cm grill type.

Inside was a hand operated fan that sucks in air from outside that may be gas or smoke filled and the air is pushed through a filter (the round centre) and then blow the cleaned air around the bunker in pipes.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival.

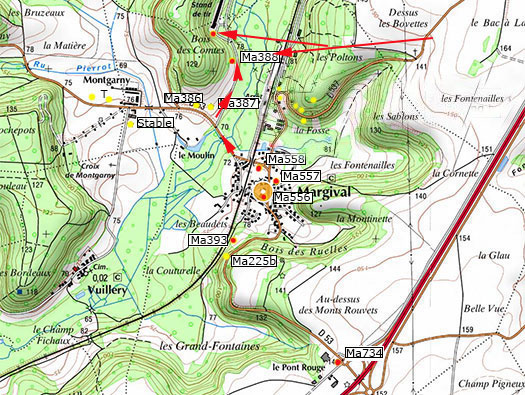

Junction off the Turny-Sorny road turn right and along the German military road.

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival.
Driving down the road.

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate

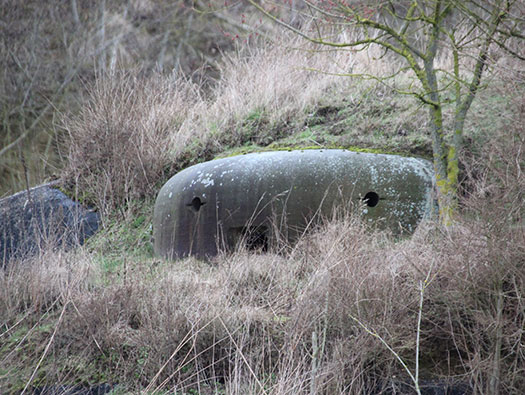

Just up off the road is Ma388 an SK MG casemate machine gun casemate.

SK MG casemate machine gun casemate.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Just up off the road is Ma388 an SK MG casemate machine gun casemate.

Plan.

SK MG casemate machine gun casemate.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Getting closer to the bunker you can see the yellow camouflage wall..

Plan.



Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Embrasure of the close combat defence covering the rear entrance..

Plan..

Close combat...

491P2 Gittertür (Screen Door) would have closed off the entrance.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
A close up of the embrasure steel.

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
A two pin cable connection for a land line phone into the bunker. (Kableanschlussstelle 2 paarig)

Plan..

Relay box.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
The corridor in with another close combat embrasure covering the passage..

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.

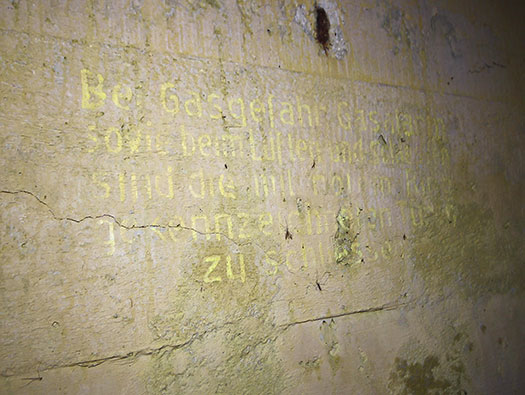

At gas hazard gas alarm -------------------- Bei Gasgefahr gas alarm
as well as when airing and shooting ----- sowie beim luften und Schiessen
are those with red ring ----------------------- sind die mit rotem Ring
marked doors ---------------------------------- gekennzeichnete Turen
to close ------------------------------------------- zurschliessen

Plan.



Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
A 434P01 double door. If rubble stopped the door from opening at least the top door can and you just climbed over it, something I have done many times.

Plan.

434P01 double door.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Bunker numbers, I am not too sure of the No.58 but I do know it is called No.388.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
This is a standard radio aerial fitting, I feel with these if there are no earth taps fitted, no aerials would have been used. There are none here.

Plan.

Earth fittings on a bunker that may have had an aerial..

Aerial fitted into a slot..

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Continuing on into the bunker.

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Close combat defence room with another 434P01 double door.

Plan.



Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Close combat defence embrasure.

Plan.

48P8 embrasure.

4ML01 equalising valve showing the colours still painted on them.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Close combat defence room with a square in the floor for the base of a periscope fitting.

Periscope

Periscope fitted in a bunker..

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
There is a fitting in the roof to close off the hole when a periscope is not fitted.

Three-quarters ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Outside on the roof is a 947S6 Antennenführungsrohr. Antenna guide tube cover.
This would need to be unscrewed to allow the periscope into the bunker.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Equalising valve to equal the inside and outside pressure when there is a local explosion.

4ML01

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Crew room.

Plan.

Drawing of a bunker bed..

Bunker beds hooked up in place.

Crew room.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Crew room gasschutztür 19P7 door.

Plan.



Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Continuing on into the bunker Another close combat embrasure possibly a 505 type.

Plan.

Plan.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate
Door in the gas room/store a 19P7 type.

Plan.

19P7 door 1935 model Gasschutztür.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Gas filter room.
Bei Gasgefahr Verbindungsstuck -- At risk of gas connecting pieces
mit rotem Ring herausnehinen ------- remove with red ring
und Raumfilter einschrauben --------- and screw in the room filter.

Plan.

Anti gas filtration system.

S1,2 is a Dust Filter.
G1,2 is a Gas Filter.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.

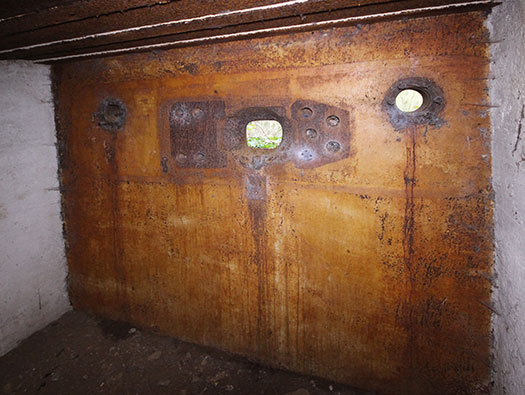

Gun room. 78P9 Pz-Schartenplatte, a 1936 model..

Plan.

78P9 Pz-Schartenplatte with fittings.

MG34 fortress mount in a 78P9 plate..

A steel plate being fitted into a bunker.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Details of the metal plate a 78P9 Pz-Schartenplatte..

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.

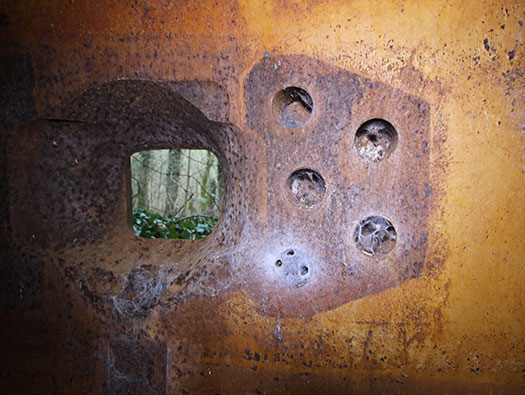

Here were special fittings to view through and could also be closed off if under attack.

A viewing slot on the outside of a plate.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
This is where the MG mounting would be placed.

MG34 fortress mount in a 78P9 plate..

MG34 fortress mount in a 78P9 plate..

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Gas room/fresh air and ammunition chamber.
Here would be a second gas filtration system and if no gas was used but the gun had to fire, the system would suck out the foul gases from the gun and blow it outside. Adding an extra man to the gun crew. About four or five crew would be here, one for the gas, a gunner, gun commander and two ammunition handlers.

Plan.

Gas filtration.

Ammunition boxes.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.

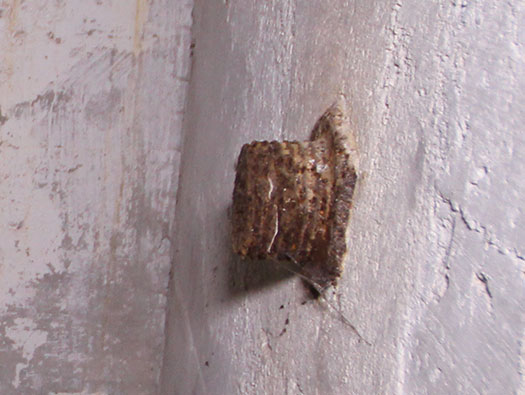

This is a bolt to hold the metal plate in position when under construction.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
Looking into the front of the bunker..

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival Ma388 SK MG casemate.
The field of fire of the gun..

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival 108A type ammunition shelter.

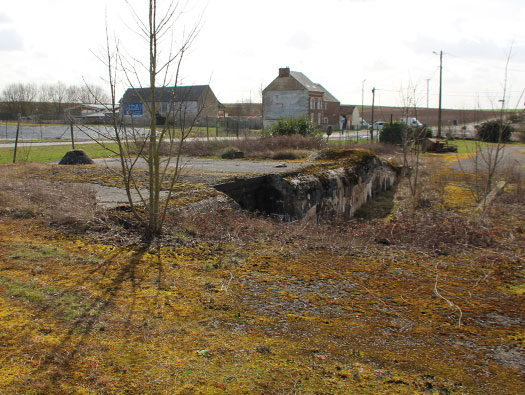

Here on the left a 108A/SK ammunition bunker. Two passageways down each side and two large rooms for ammunition. This area is still a French Army ammunition storage but it was a quarry and in WW1 it was used for all sorts of things from ammunition, hospital (Lazerette), HQ of units in the area, sleeping for soldiers going and coming from the front. So in WW2 it was an obvious choice for ammunition storage and then post war probably a NATO storage.
This view has now changed, the French military have re covered all the ammunition buildings.

Plan.

108A type ammunition store.

Passage way in (Wn01 Le Grand Vey, K.V.Gruppe Marcouf).

Passage way in (Wn01 Le Grand Vey, K.V.Gruppe Marcouf).

Ammunition room (Wn01 Le Grand Vey, K.V.Gruppe Marcouf).

Probably it was full of Flak ammunition.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival :
Ma386 ----- 99A stand mit Drelschartenturm.
Ma387 ----- R501 group shelter.

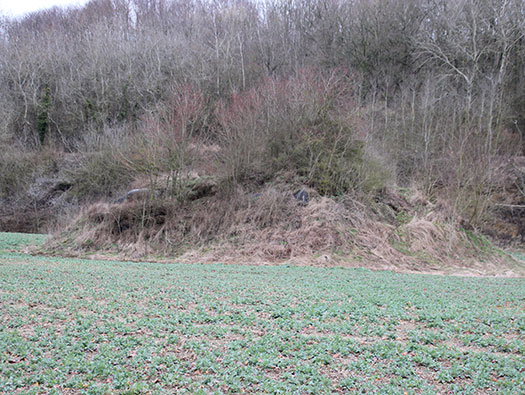

I have not actually visited them but I did drive past, several times.

99A stand mit Drelschartenturm.

R501 group shelter.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival :
Ma386 ----- 99A stand mit Drelschartenturm.
Ma387 ----- R501 group shelter.



99A stand mit Drelschartenturm.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival :
Ma386 ----- 99A stand mit Drelschartenturm.
You can just see the Drelschartenturm - three embrasured steel dome.

Machine gunner.

MG port.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Margival :
Ma386 ----- 99A stand mit Drelschartenturm.
The machine gun covered a wide valley.

Viewing slot.

Constructing a bunker with its dome.

Führerhauptquartier ´Wolfsschlucht 2´ Margival

Details

Führerhauptquartier ´Wolfsschlucht 2´ Margival.

© 2013 Richard Drew
