Luftwaffe station 'Nutria'. (Nutria - Coypu)
Nutria - Coypu.
FuSE 65 Würzburg-Riese.
Fu.MG 401 LZ Freya.
Fu.MG 450 Freya.
M123 Machinery bunker.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine.
Details
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Plan
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine.
Details
Luftwaffe station 'Nutria'.
Luftnachrichten-Regt.54.
19. Flugmelde-Leit-Kompanie
2 x V229 radar bases.
6 x Vf2b Gruppe shelter.
11 x Vf58c Tobruk's.
1 x M123 Machinery bunker.
4 x L402 Emplacements for 2cm Flak guns.
2 x R622 twin Gruppe bunkers. under construction.
4 x 2cm Flak 30.
2 x Fu.SE 65 Würzburg-Riese.
1 x Fu.MG 401 LZ Freya
1 x Fu.MG 450 Freya.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine.
Details

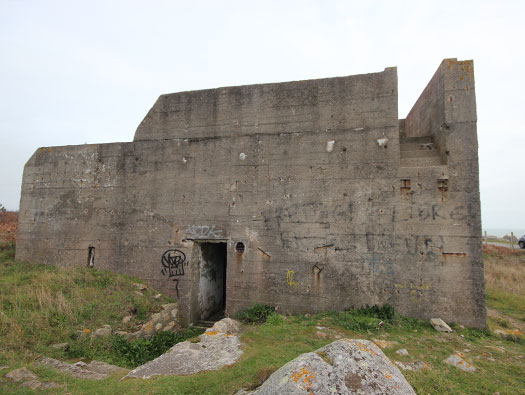

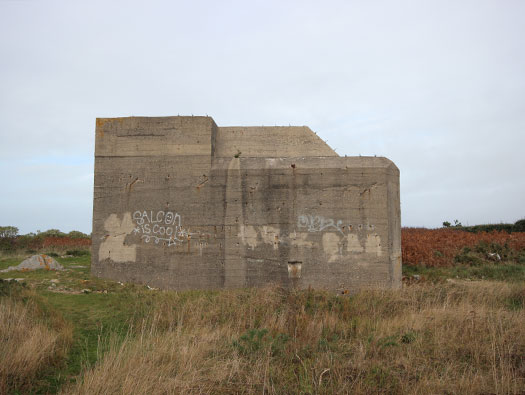

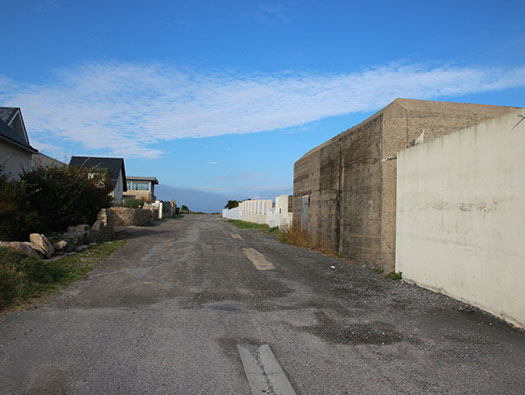

This is the first view you get of two bunkers, the one on the right no problem. On its left now a garage and I have just noticed.
Plan.
Vf2b.
Würzburg Riese Fu.SE 65.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine.
Details
The two Vf2b's.
Vf2b was a Gruppe shelter a 1942 design of one room and a passage entrance acting as a sort of blast wall. Most have an escape hatch in one of the walls and a steel door (now removed ).
L402 bunker for a 2cm Flak.
2cm Flak 30.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine.
Details
Vf2a.
Plan.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information

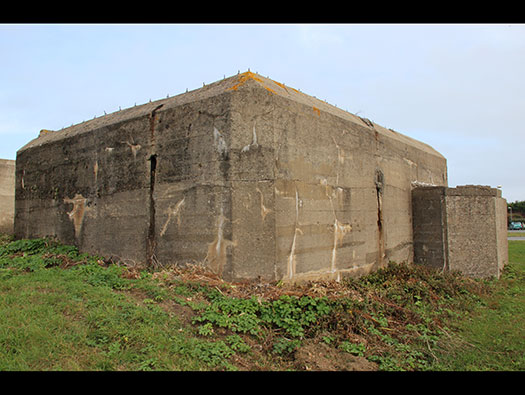

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Vf2b Gruppe shelter.
Details
A nice small bunker that can accommodate a Gruppe of eight to twelve soldiers.
Soldiers outside a small bunker.
Plan.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Vf2b
Details

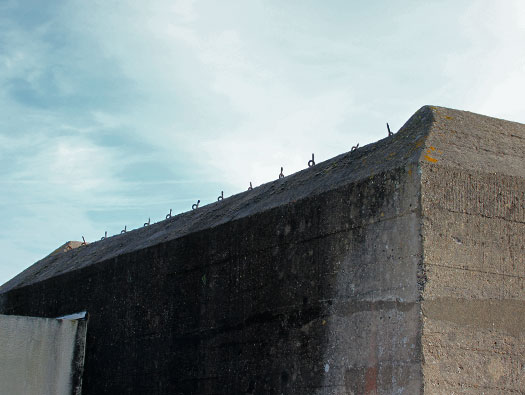

The pigtail hooks to hold a camouflage nett.
Camouflage nets being laid out on a bunker.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Vf2b Gruppe shelter.
Details

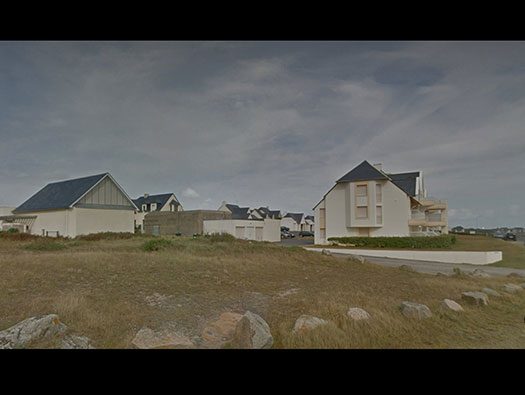

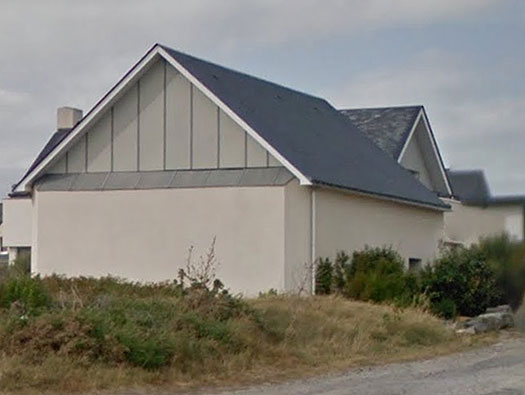

Now a very nice garage.
Plan.
Vf2b plan.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Vf58c Tobruk.
Details
There were eleven Tobruk's around the radar station. We found two.
Tobruk plan.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

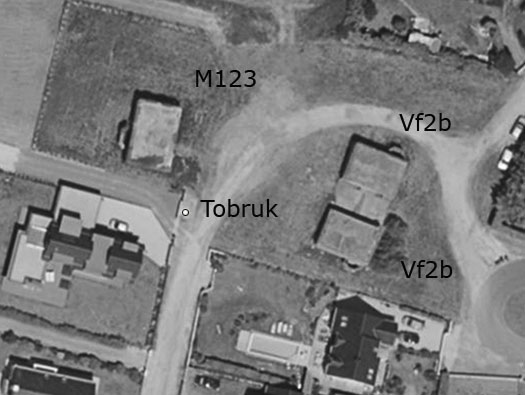

Tobruk and the M123 machinery bunker.
Details

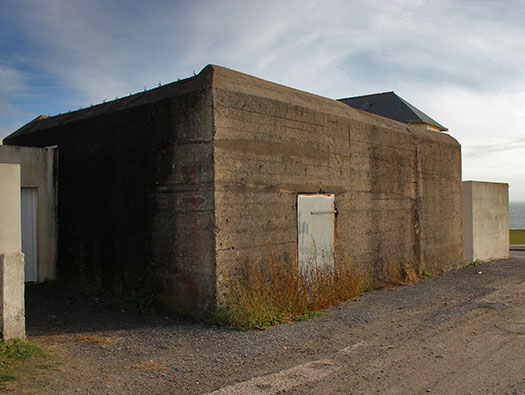

M123 bunkers were for machinery, a generator for a searchlight (Unterstände für Maschinen und Scheinwerfer). Here it probably powered the three radars.
Plan of an M123.
A large generator.
A large generator.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
M123 machinery bunker.
Details

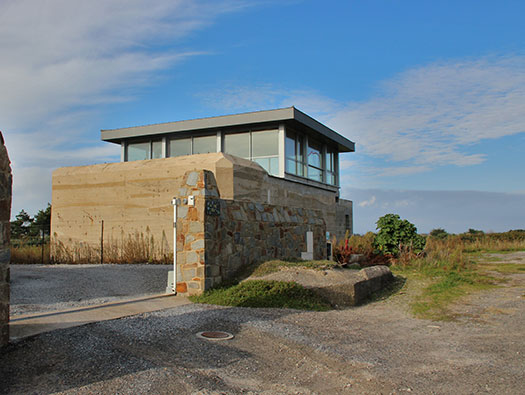

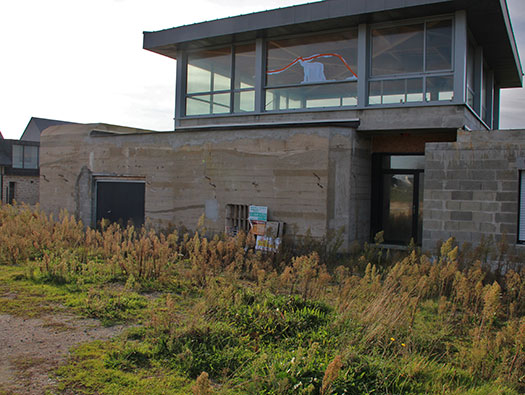

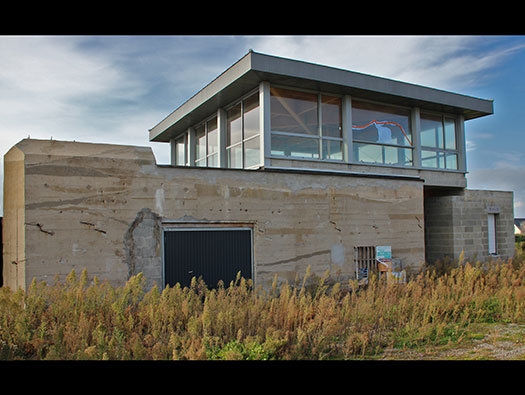

Now an attempt to convert it into a house. I would buy it. But derelict at the moment.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
M123 machinery bunker.
Details
The door allows access from both sides.
Plan.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
M123 machinery bunker.
Details
The two doors and central section.
Plan.
A large ,obile generator that could fit inside.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Freya Fu.MG 401 LZ.
Details

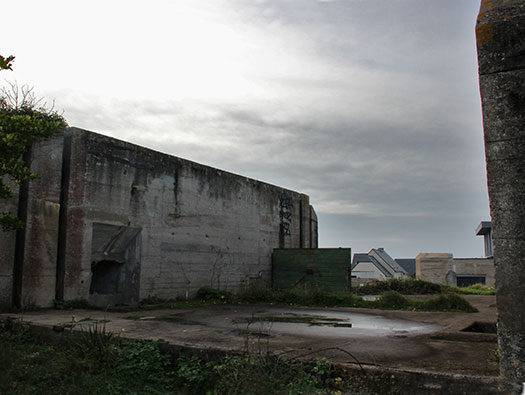

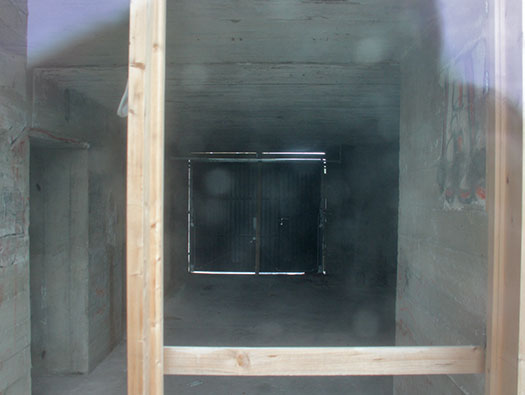

I think the two Vf2b's here had a Freya radar setup on the hard stand between the two bunkers. The radar set placed on the concrete and wooden bulks of timber filling in the gap.
Freya Fu.MG 401 LZ.
Freya.
Two Luftwaffe sodeirs.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Freya Fu.MG 401 LZ.
Details

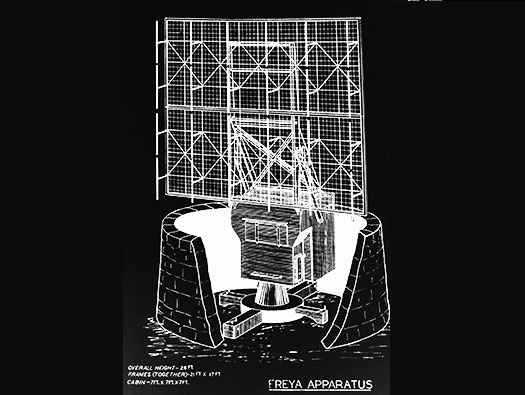

A British intelligence drawing of a Frey radar.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

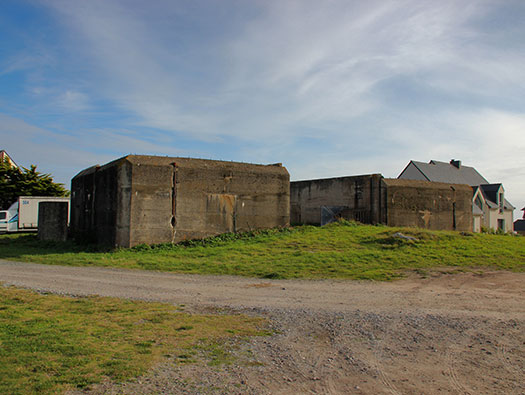

2 x Vf2b's Gruppe shelters.
Details

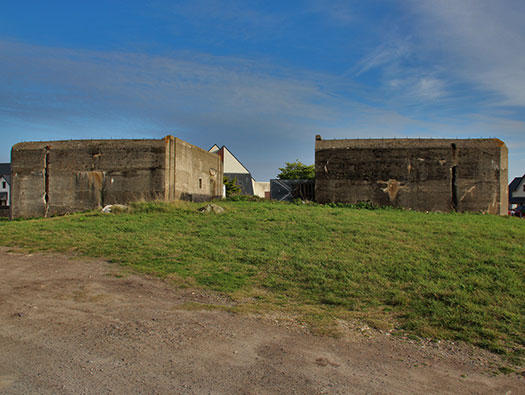

2 Vf2b's with a hard stand between the two.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

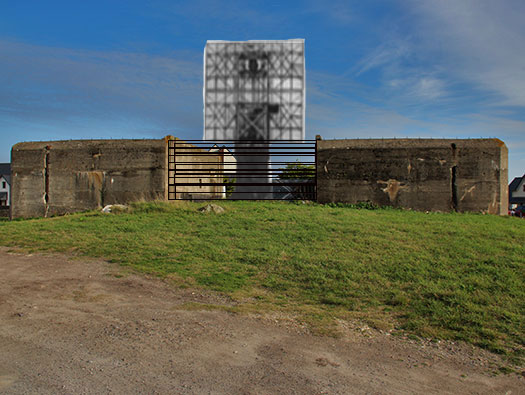

2 x Vf2b's & Freya Fu.MG 401 LZ.
Details
The Freya sat between the two bunkers with large wooden bulks of timber slotted into the recesses in the bunkers and filled with sand or small shingle.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details
Details
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details
Chimney from a stove inside the bunker. It was used not just heating but also for cooking and drying ones cloths.
Bunker stove.
Bunker chimney.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details

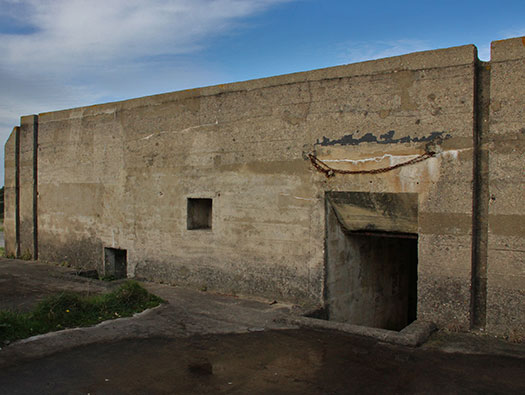

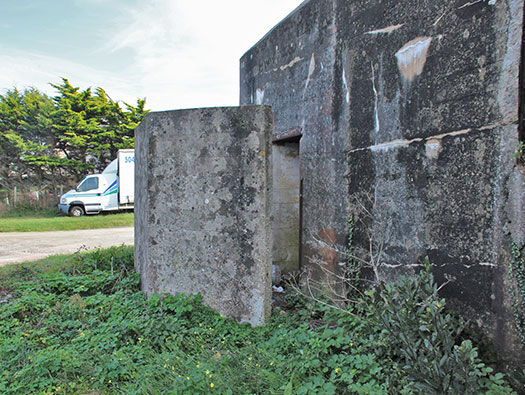

This is a small blast wall covering the entrance passage.
Seen from above.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details

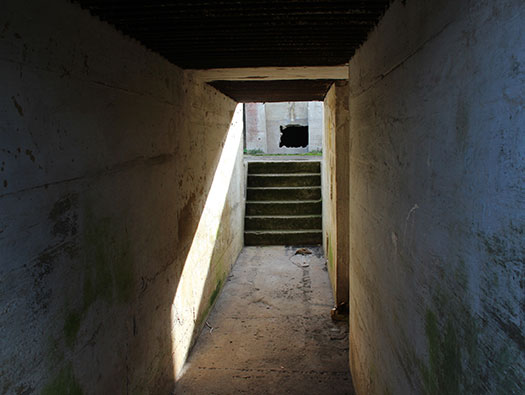

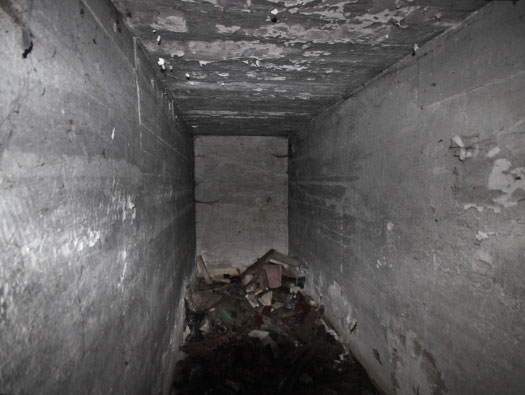

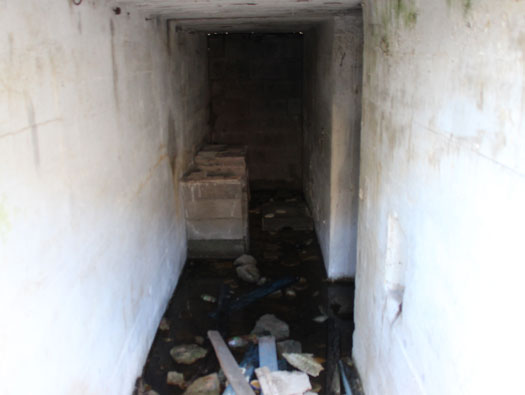

The entrance passage
Vf2b.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details

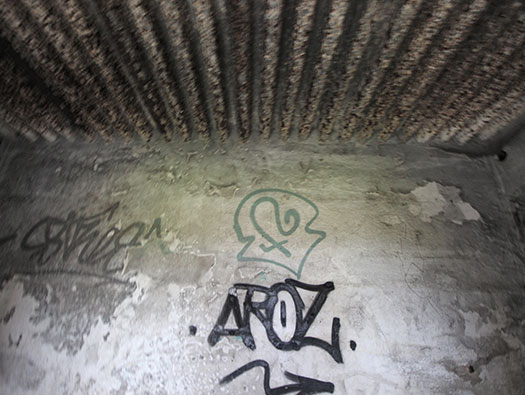

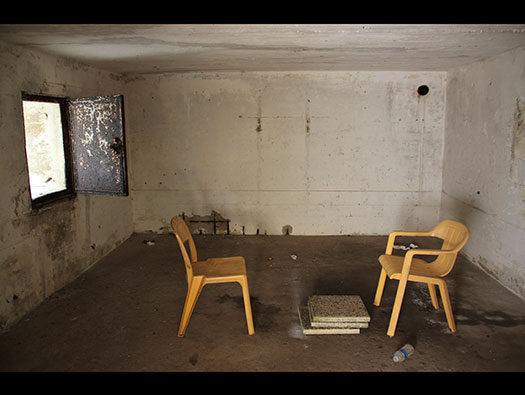

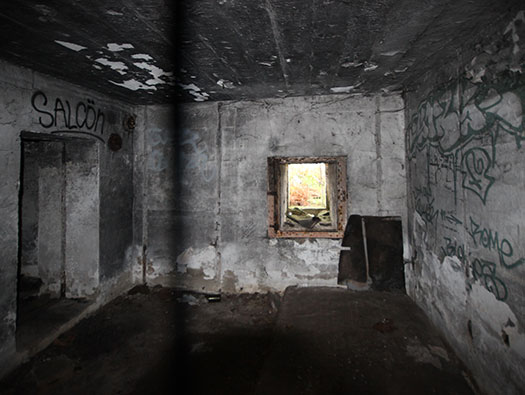

Inside the bunker with the escape on the left, marks on the wall for bunk bed fittings and the outlet for the chimney.
Bunker stove.
Bunker beds.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details

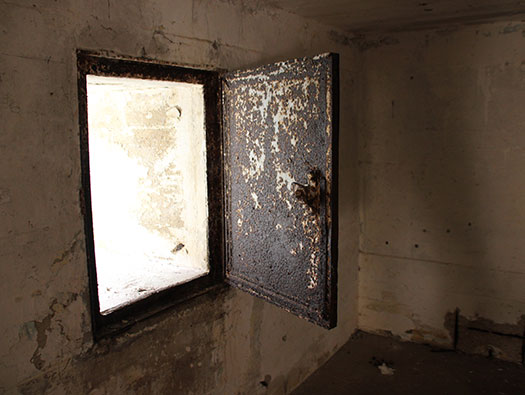

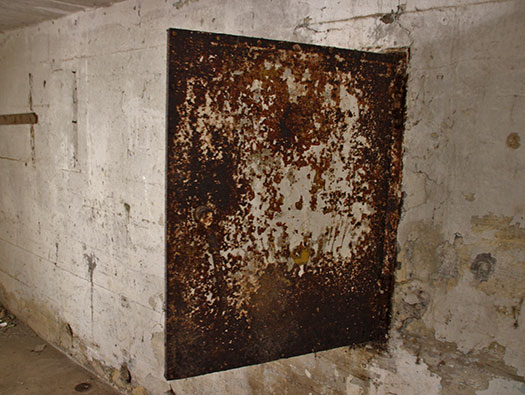

Escape door 414P9 type.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details
Escape door 414P9 type.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details
The escape running through the concrete wall.
Plan of an escape.
Looking into an escape and showing the shutters to close off the outside, they fitted into a slot seen on the main picture.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details

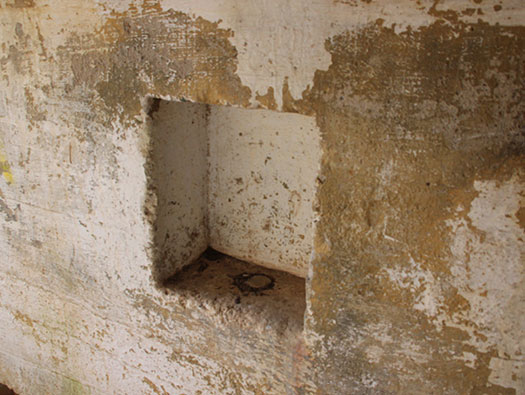

Light switch recess.
One type of light switch.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details
Outside on the hard stand between the two bunkers. The passageway to the bunker, the escape on the left and a small square recess in the wall which I am very sorry I did not notice when we were there and the virtical slots for timber walls.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details

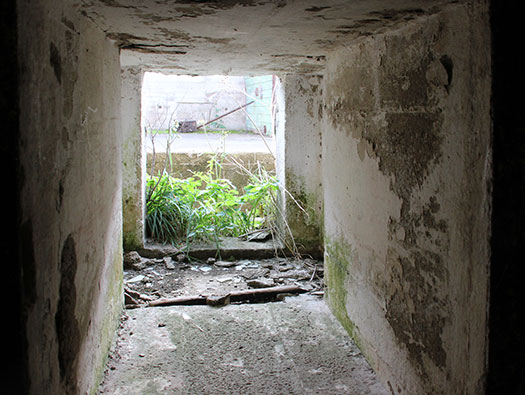

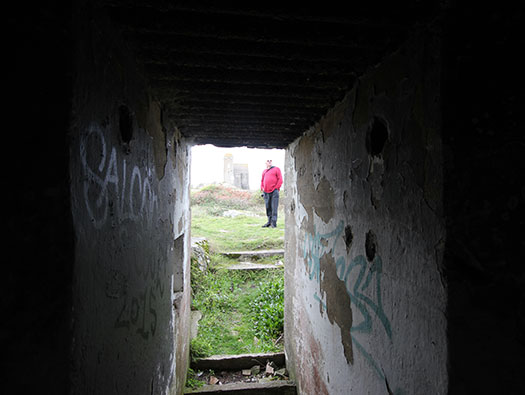

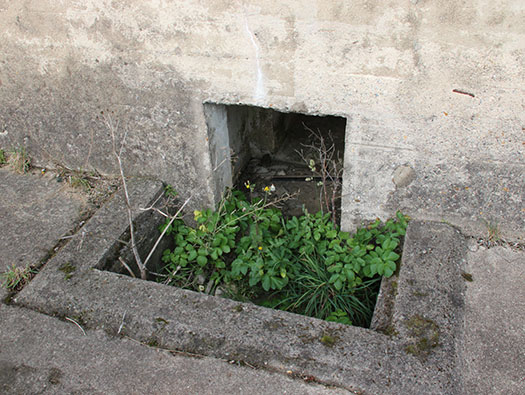

The escape into the outside world.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details
Notice the double set of slots, to me they may have been where large bulks of timber could be set between the bunkers. The two rows timber could have had sand or fine pebble infill to act as an armoured protection and can also be taken down to allow the radar to be removed and replaced.
My interpretation.
My plan showing the Freya radar sat on the hard standing and the timber walls.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details

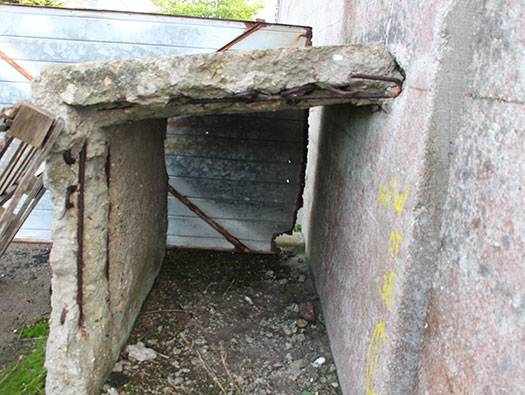

The passage through to the second bunker now sealed up.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details
An odd lean-too??
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
2 x Vf2b's Gruppe shelters.
Details
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Details

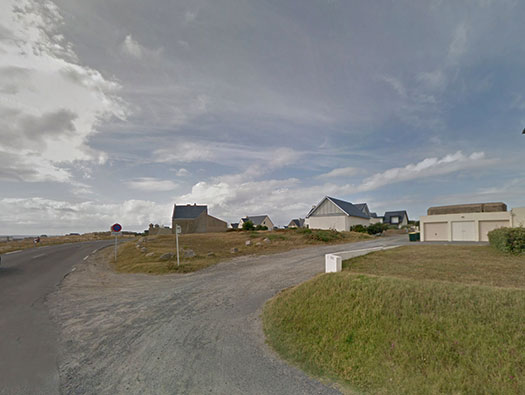

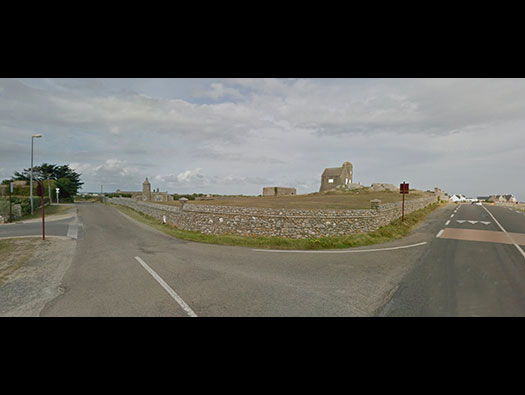

Heading back to the sea front and along the road west.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

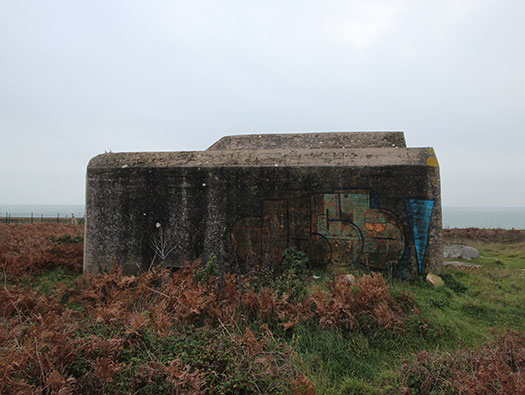

Vf58c Tobruk.
Details

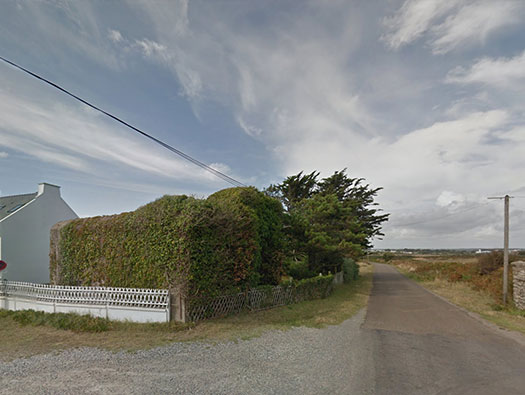

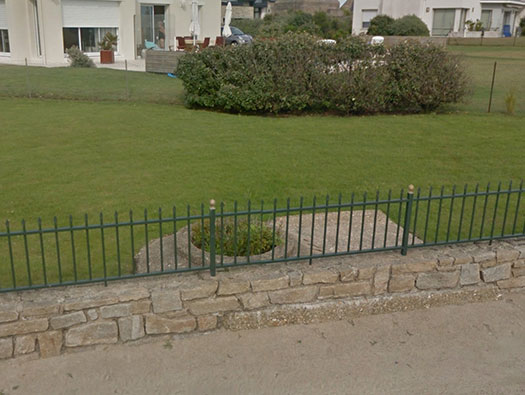

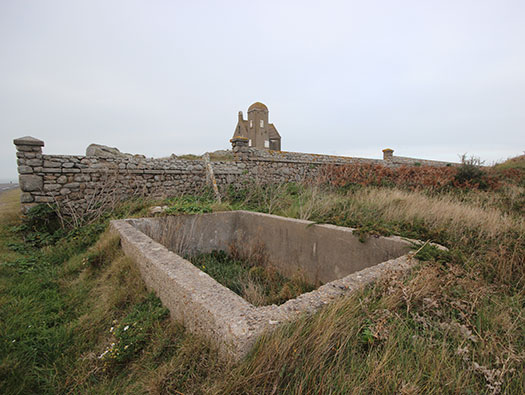

Now in a very nice garden, this Tobruk would have protected this part of Tu500 from the seaward side.
Plan.
Details2
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

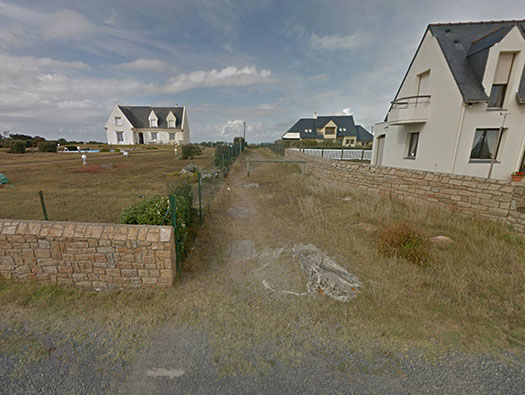

Site of a V229 and its Würzburg Riese Fu.SE 65.
Details
The FuSE-65 Giant Würzburg radar was developed by the Telefunken Co., it was used to locate and track Allied aircraft & shipping (as a secondary use). A pair of Würzburg antennas were used together; one to track Allied aircraft and the second to guide German fighters with the help of the Freya set.
Interior of a Würzburg receiving.
This is the link to the HQ Luftwaffe for fighter direction.
RAF Halifax heavy bomber.
Fw190 German fighter.
Giant Würzburg radar.
V226 plinth for Giant Würzburg radar.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402 for 2cm Flak.
Details
An ammunition & crew bunker below and an open emplacement above for an AA 2cm Flak 30.
L402 from above.
Plan on an L402 with a large crew room and a smaller ammunition room.
Side view of an L402.
2cm Flak 30 on an L402 bunker.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402
Details

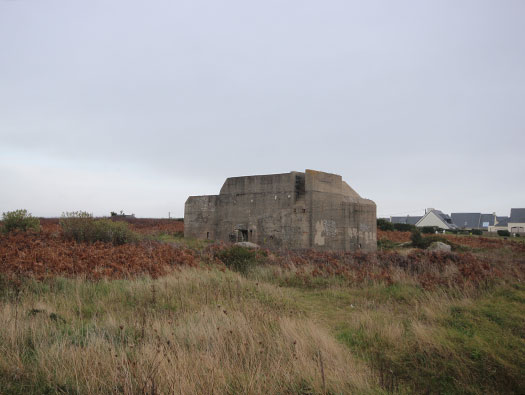

Side view with the flak position on the roof. The ladder wrungs had been cut off so no way on to the gun platform.
Flak crew.
2cm Flak 30 magazines.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402.
Details
??not sure what it is.
Site of ??
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402.
Details

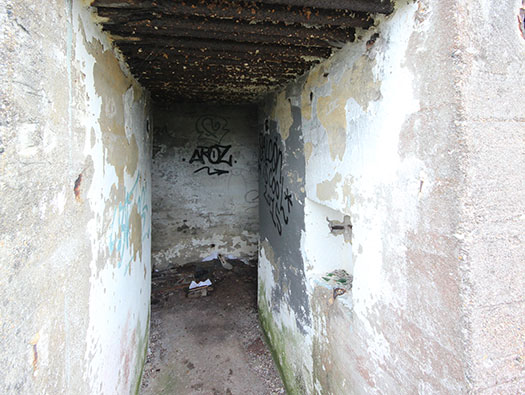

Door to the crew and ammunition rooms and there would have been steps (steel wrungs) up the side of the bunker allowing access to the gun.
Steel leader wrungs going up the side of a flak bunker.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402.
Details
Bunker entrance. Recess on the right for a light switch.
Light switch.
Plan.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402.
Details

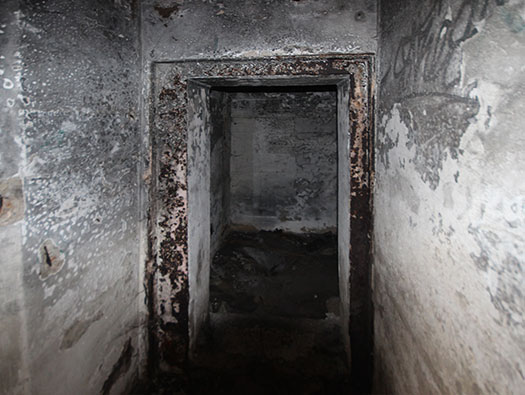

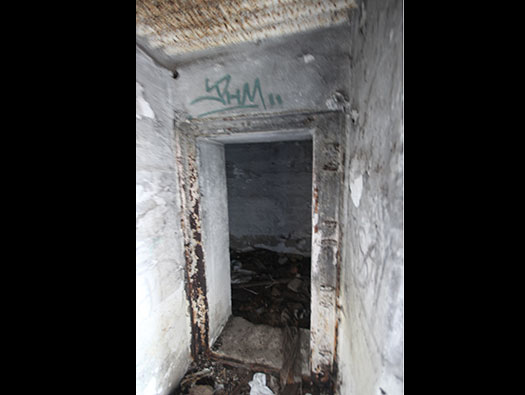

The inside passage.
Plan.
434P01 armored door.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402.
Details
Details of the roof.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402.
Details
Passage to ammunition room.
Details2
Possibly a 19P7 door fitted here.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402.
Details
Ammunition room.
Plan.
2cm boxes of ammunition.
2cm magazines.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402.
Details

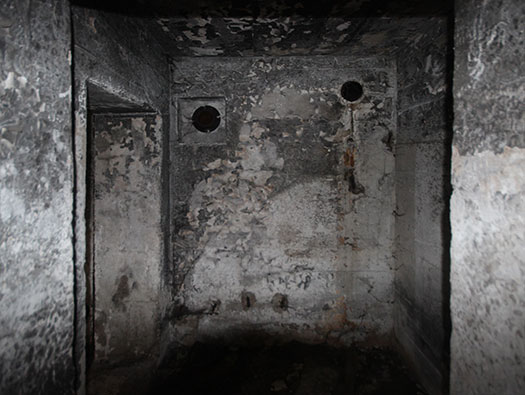

Air vents to allow the ammunition room to breath and a chimney for a stove to keep it warm.
Bunker stove.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402.
Details
Crew room and escape.
Details2
Crew room.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402.
Details
The way out and that man again 'Also in Red'.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
L402.
Details
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Details
Water reservoir
Plan.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Details
A very prominent building in its own grounds with the roof of a Vf2b just visible.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

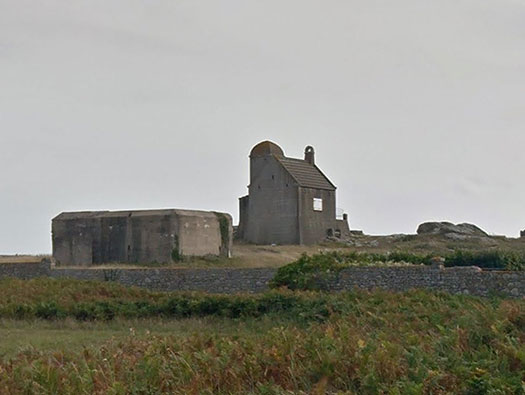

Vf2b Gruppe bunker.
Details
The bunker behind the prominent house. There is another L402 in the green trees on the left.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Details
L402 now very nicely camouflaged.
L402 plan from above.
2cm Flak 30.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Details
Vf2b Gruppe shelter from behind.
Plan.
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
04 November 2015
Information
Wn. Tu500 Croisic (Nutria) Vigie de la Romaine
Details
France
Great Britain
