Gi325 Chenal de Neryan 'Trakehnen'


Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

Facing the Gironde river N/E direction. Quite a well defended area, with a 7.5cm Field Kannon and a 7.5cm Pak 40.


7.5cm Pak 40.


7.5cm Field Kannon.




Gi325 Chenal de Neryan 'Trakehnen'

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details



Gi325 Chenal de Neryan 'Trakehnen'

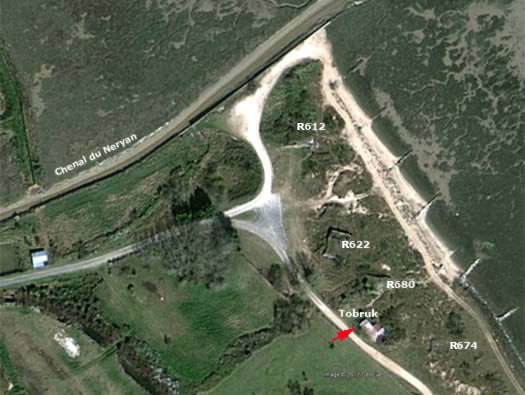

Google

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

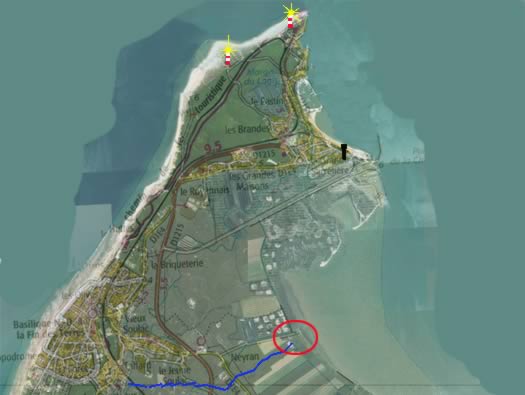

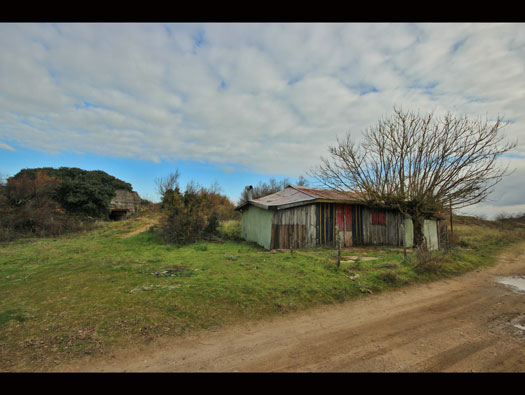

On the southern end of the Pointe De Grave defences, a strong defence Wn has been built just behind the anti-tank ditch.

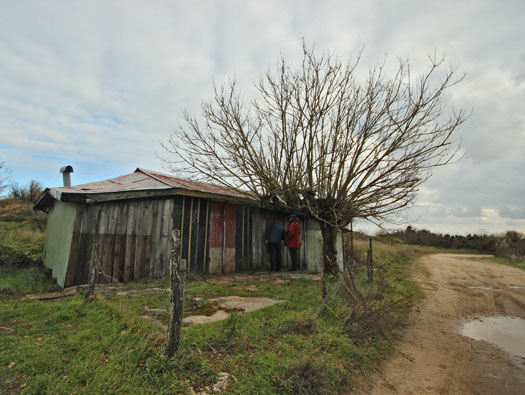

A hard road takes you out to the waters edge where fishermen and wild fowler's use the area to hunt & fish.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

1 x R612 Casemate for an assault gun.
1 x R622 Twin group bunker.
1 x R674 Small ammunition bunker .
1 x R680 Casemate for 7.5cm Pak 40.
1 x R621 Group shelter.
2 x Vf67 Tobruk for Pz.T FT17 turret.
1 x 7.5cm Pak40.
1 x 4.7cm Pak181.
1 x 7.5cm F.K.236(b).
2 x Pz.T FT17 tank turret.


R622 Twin group bunker.


R674 Small ammunition bunker.


R680 Casemate for 7.5cm Pak 40.


R621 Group shelter.


R612 Casemate for an assault gun


Vf67 Tobruk for a Pz.T FT17 turret.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

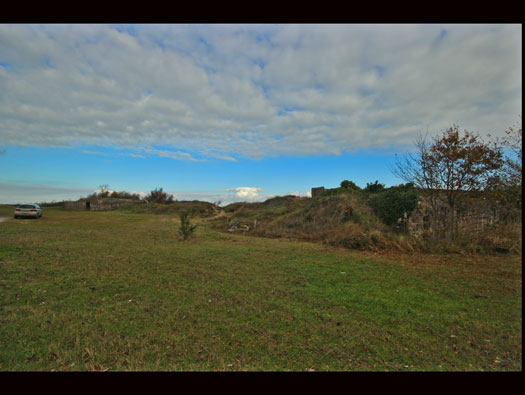

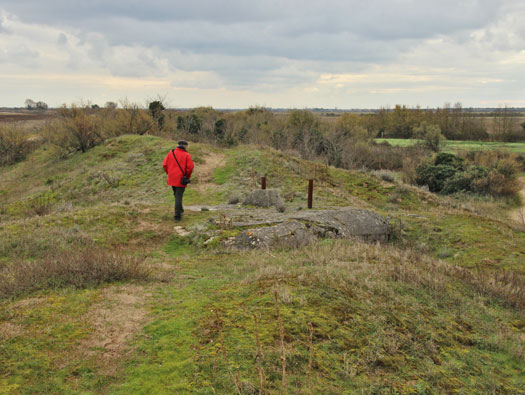

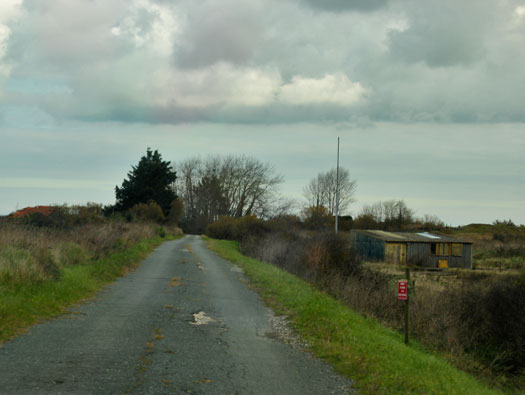

Driving down the road to the defence.








Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

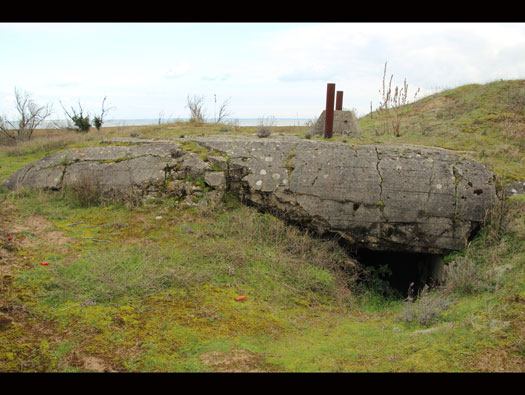

R612 Casemate for an assault gun.
In front is the R612 facing out to sea covering the north/east flank and on the right the twin group bunker for their living accommodation.


7.5cm F.K.236(b).


R612 casemate plan.

imagePlan

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R612 Casemate for an assault gun.

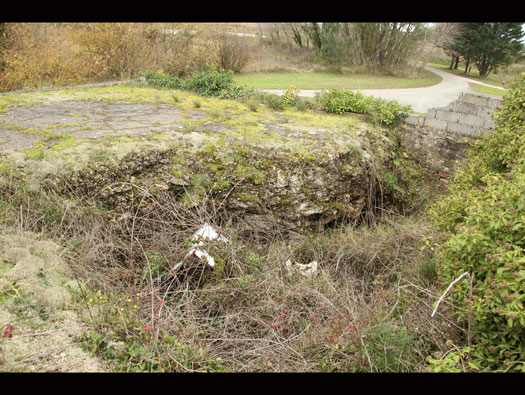

A 7.5cm F.K.236(b) would have been used here. Its not accessible now as it has slipped down at the front, there were no foundations, just a hole dug in the sand and a frame of reinforcement assembled and then concrete poured. So when the ground under them moves they tend to tip over.







Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details


R612 Casemate for an assault gun.
"After very hard fighting night in this sector and heavy losses, elements advances the 34th R.I (FFI the lands, Gironde and Lot and Géronne) obtained the surrender of the enemy resistance nest of La Longue and opened their regiment to the road to Verdon".










Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R612 Casemate for an assault gun.
On this side is a Tobruk for a close support machine gun.


Tobruk defence.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R612 Casemate for an assault gun.
Tobruk defence. R612's do not normally have a Tobruk defence. But they are an option in the plans to add one if needed.




Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R612 Casemate for an assault gun.

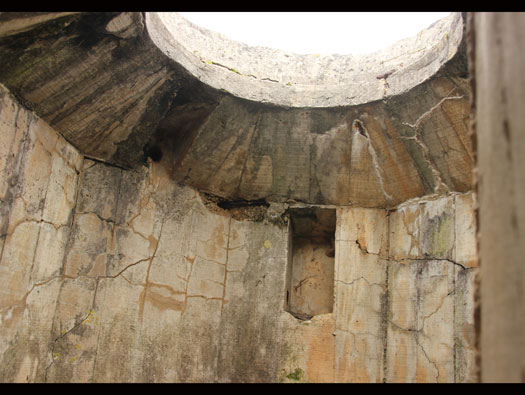

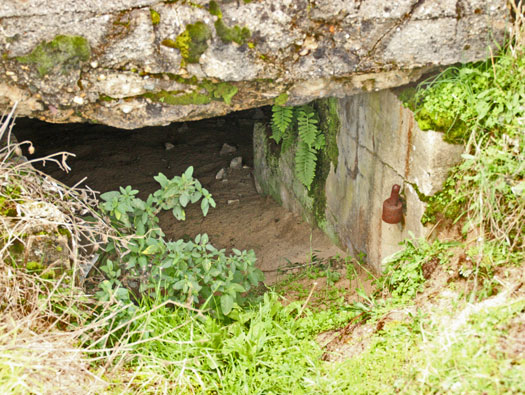

Inside the Tobruk with a recess for a voice pipe to communicate with the inside of the bunker.


Sprachrohr tube.


Plan of the speaking tube in a bunker.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R612 Casemate for an assault gun.

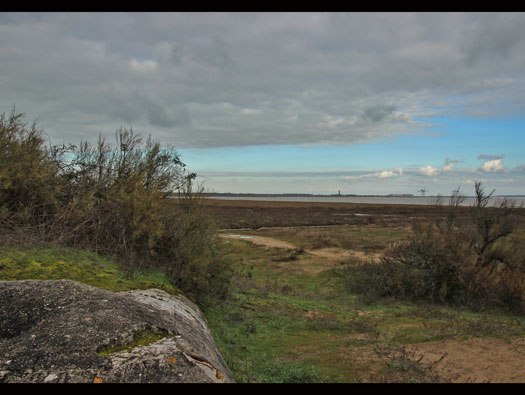

View the gunners would have had.










Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

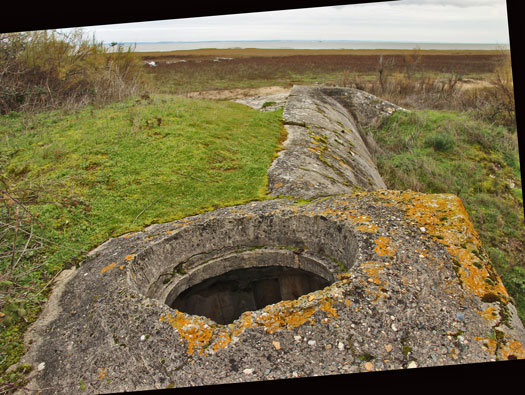

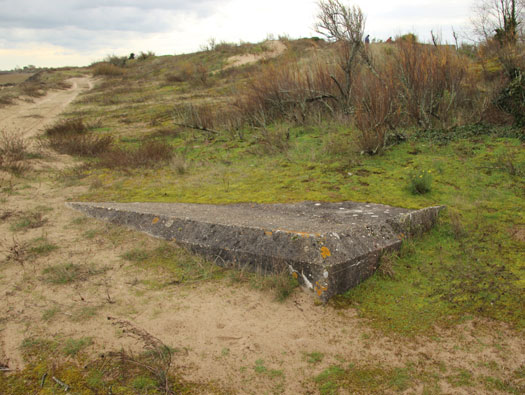

Vf67 Tobruk.
Pz.T. FT17 Tank Turret.


Vf67 Tobruk with an FT17 turret attached.


Riveted FT turret.


Mitrailleuse Mle SMg331(f).

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

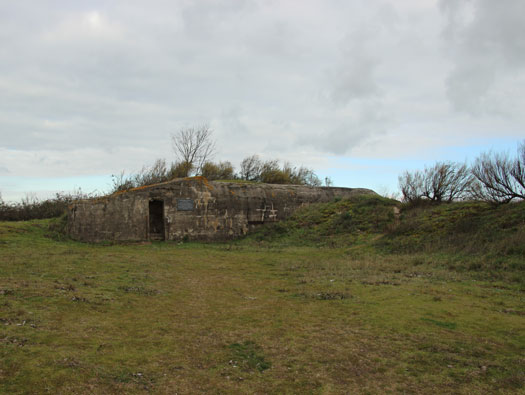

R622 Twin Group Bunker.
The seaward side of bunker.


R622 Twin Group Bunker.


Plan.


Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

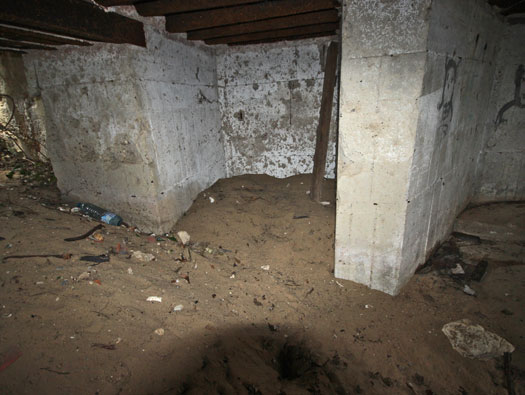

R622 Twin Group Bunker.

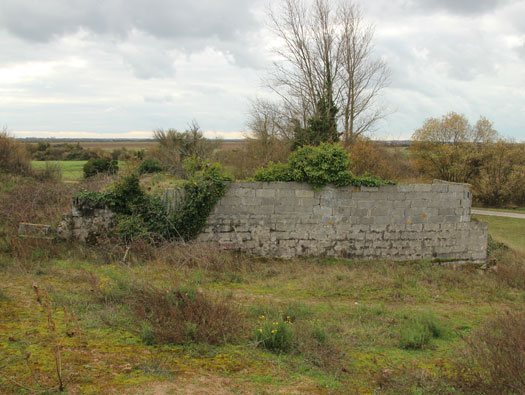

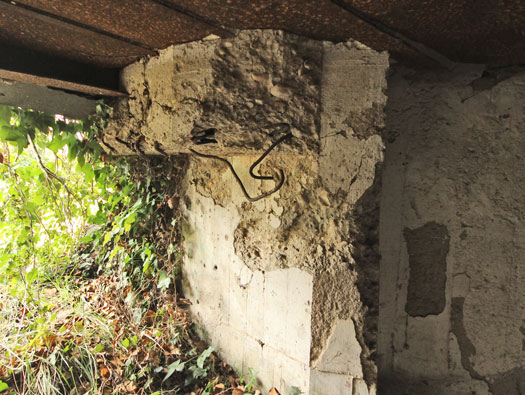

It looks as though this side was hit several times and a newer wall has been added for some unknown reason?

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R622 Twin Group Bunker.
It looks as though this side was hit several times and a newer wall has been added for some unknown reason?

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R622 Twin Group Bunker.

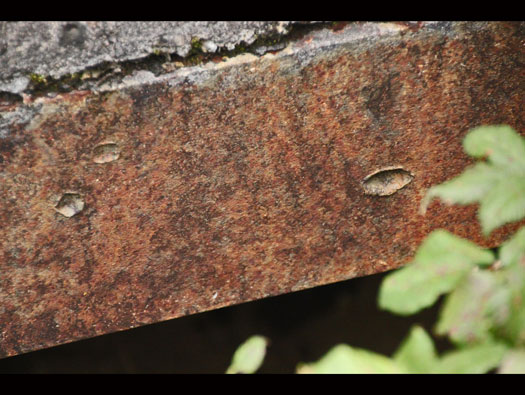

Bullet marks in the steel beam.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R622 Twin Group Bunker.

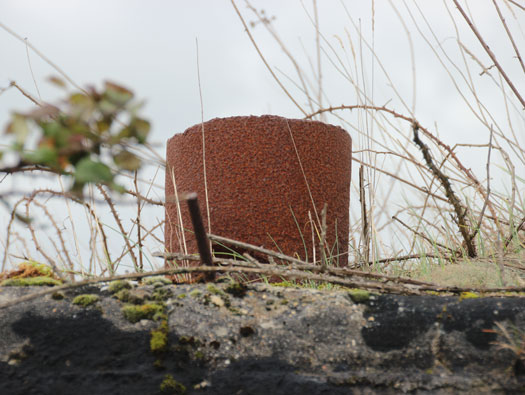

Aerial tube.


Aerial fitting inside the bunker.


Aerial.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R622 Twin Group Bunker.
Tobruk.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

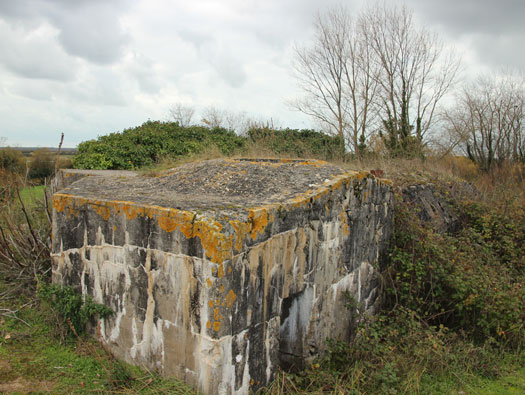

R674 Small ammunition bunker.


R674 Small ammunition bunker.


Plan.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R674 Small ammunition bunker.
This small bunker would have had to store 7.92mm rifle/machine gun ammunition, 7.5cm A/T. 7.5cm field artillery. 4.7cm A/T, 9mm pistol and any other ammunition needed here.


7.92mm.


7.5cm Ammunition,


Grenades.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

H674 Small Ammunition Bunker.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R680 Casemate for a 7.5cm Pak40.
This is interesting, when we visited we did not notice the significance of the fact that, this gun is shooting inland. When the other casemate is shooting out to sea.


Pz.T FT17 tank turret.


Renault FT tank WW1.


Plan.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R680 Casemate for a 7.5cm Pak40.

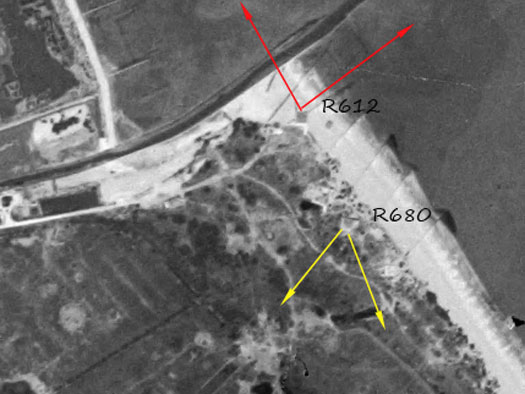

From this air photo you can see the casemates direction. It was covering the died ground between the anti-tank ditch in the south and here. Its effective range was 1800m and its maximum was 7678m. That is a lot of coverage.




Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R680 Casemate for a 7.5cm Pak40 'PanzerAbwehrKanone'.


R680 plan.





Plan.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

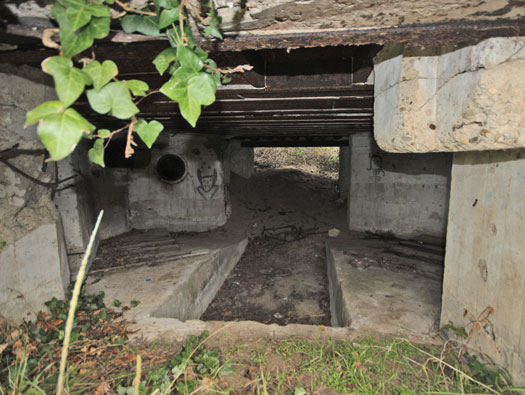

R680 Casemate for a 7.5cm Pak40.
The slots on the left to accommodate the guns trail. Adjustable to size. This and the 8.8cm Pak 43 were some of the best anti-tank guns produced. By 1942/3 they were getting to heavy to move around in Russia quickly when the Russians attacked in vast numbers. They were being swamped. So they were replaced with hand held Panzerschreck's. That freed up guns to be used in the Atlantikwall under concrete casemates.


7.5cm Pak40 firing outside a bunker..


Inside a bunker.


Panzerschreck 43.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R680 Casemate for a 7.5cm Pak40.


A huge shell being loaded.


Ammunition niche wooden racking.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R680 Casemate for a 7.5cm Pak40.

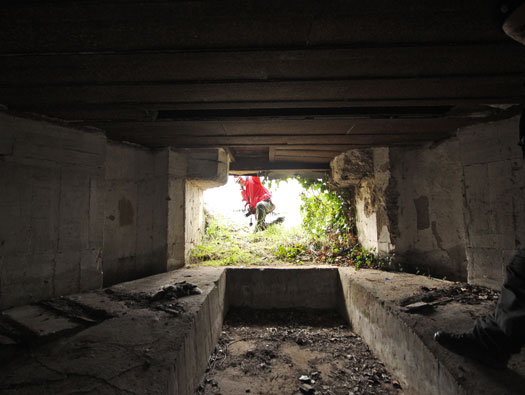

Gun room. not a lot of space.





7.5cm Pak40.




Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

R680 Casemate for a 7.5cm Pak40.
Some battle damage.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

Tobruk for a Pz.T FT17 tank turret.


Pz.T FT17 tank turret.


Renault FT tank WW1.


Plan.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

Vf67 Tobruk for a Pz.T FT17 tank turret.


It may have had a mitrailleuse MAC Mle 1931 'Reibel' gun.


Two types of turret, a cast type or a riveted type.

Gi325 Chenal de Neryan 'Trakehnen'

08 November 2012                                                                                                          18 April 1945

Information

Gi325 Chenal de Neryan 'Trakehnen'

Details

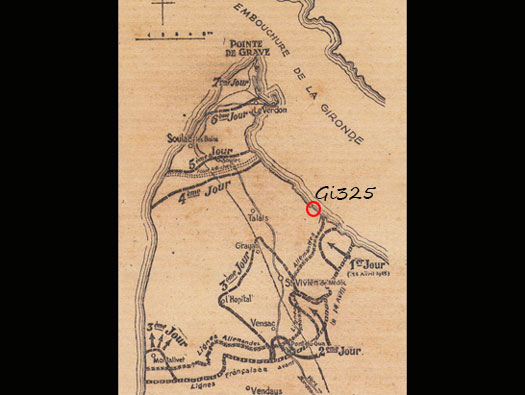

The direction the French attacked.



















Plan of the attack north.
