2 x Control Tower/watch offices.
1 x T2 hangar.
1 x T2 hangar site of.
1 x B1 hangar.
1 x Blister hangar free turret trainer.
1 x pill box.


A T2 hangar at RAF Keevil.


Front plan of a B1 Ministry of Aircraft Production (MAP) hangar used as repair shed for damaged bombers and MAP used civilian workers to take the pressure off of the RAF. The hangar was always away from the RAF hangars and buildings so that they didn't have to see badly damaged aircraft.


Blister hangar used here as a free training space where different equipment could be laid out for air crew training.

RAF Tholthorpe.

Information

RAF Tholthorpe.

Details

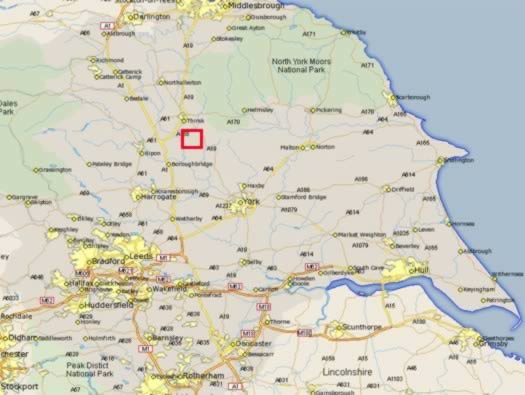

RAF Tholthorpe to the east of the A1(M), exit junction 46 Boroughbridge and work your way east, you may cross a Toll bridge which charges £0.40p, worth every penny.

RAF Tholthorpe.


Information

RAF Tholthorpe.

Details

Laid out as a 1942 'A' type bomber station with three runways, two T2 hangars, one B1 hangar, a technical site, several dispersed accommodation sites and a 'D' type bomb store..


Halifax bomber.


Crew lorry collecting from operations.


Erks the men that kept the airforce in the air.

RAF Tholthorpe.

11 April 2009

Information

Chicken Farm.

Details

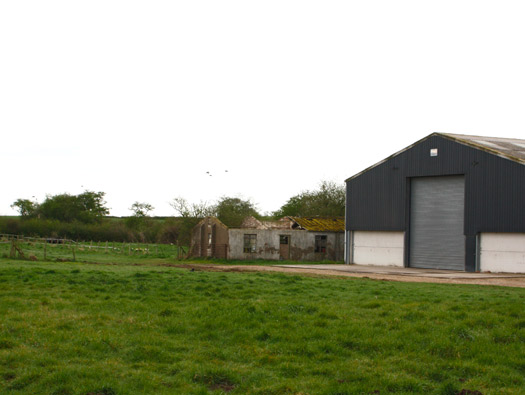

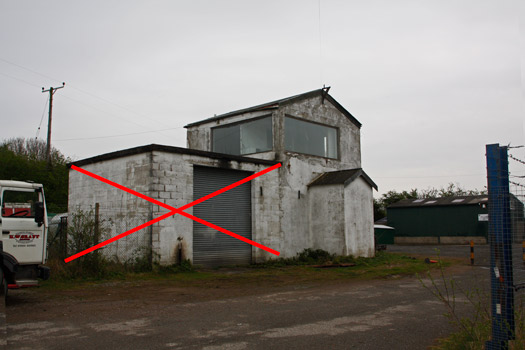

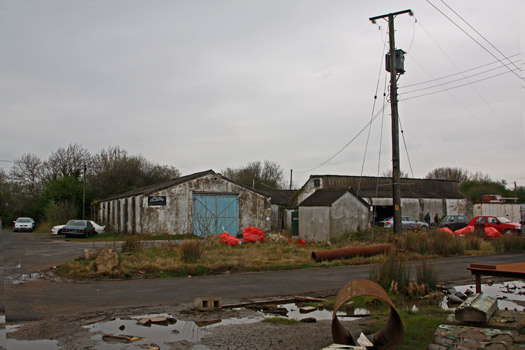

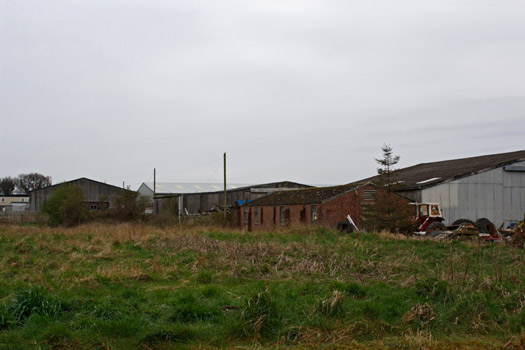

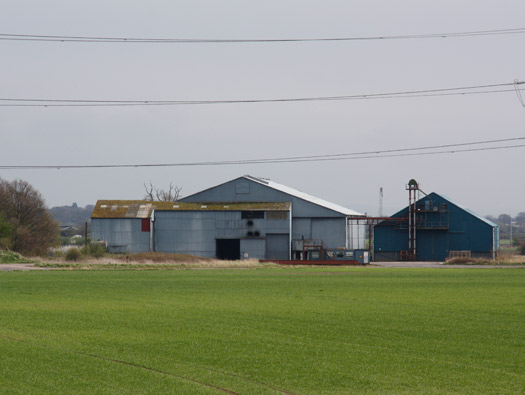

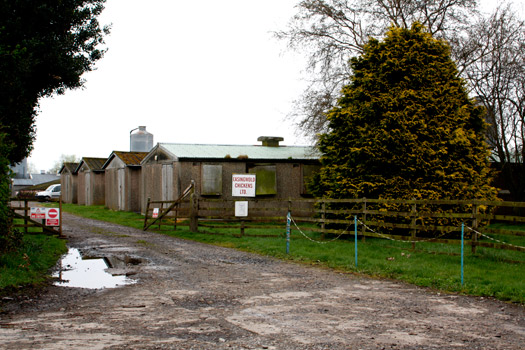

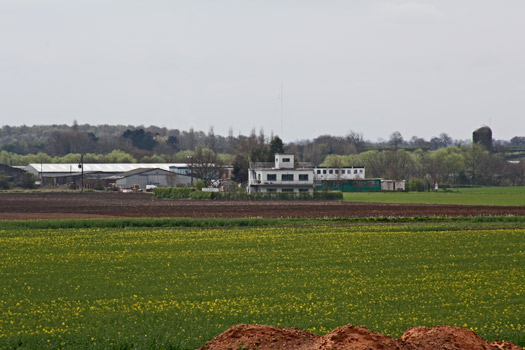

I came in from the south. First a chicken farm that may have huts still there?, past the WAAF site, a squash court converted to a house (no photo), a communal site, tech and then on to the airfield.


I think this is the squash court.


RAF squash court.


Officers mess.

RAF Tholthorpe.

11 April 2009

Information

The WAAF site or Waffery.

Details




Sign on the gate.


WAAF site.


There were WAAF's in WW1 but in WW2 they were brought into the RAF in greater numbers to run the camps, drive, mechanics (air & vehicle), radar, ops room, etc, etc.

RAF Tholthorpe.

11 April 2009

Information

Communal site.

Details

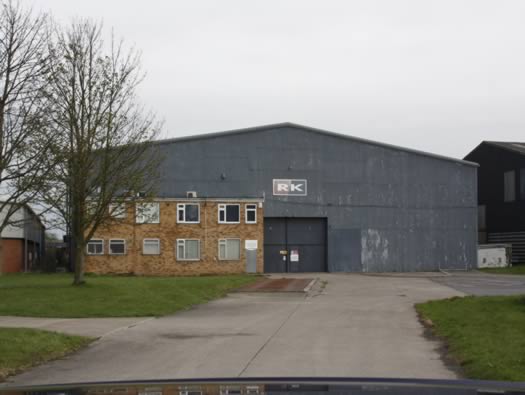

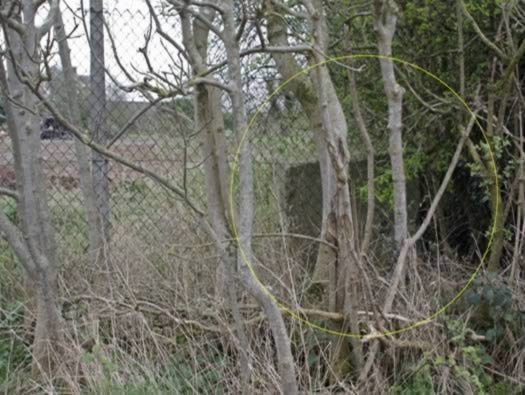

The derelict site on the right may have been another communal site. The building is not WW2 but both sides of the gate posts are these concrete blocks like anti-tank blocks.

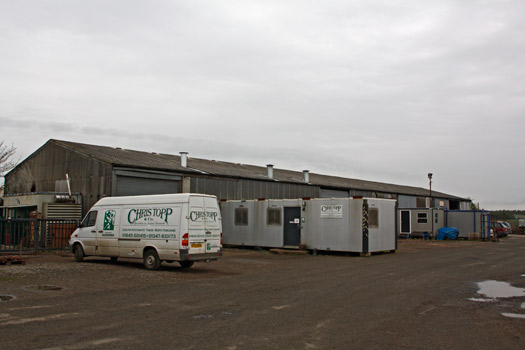

Factory on the site.

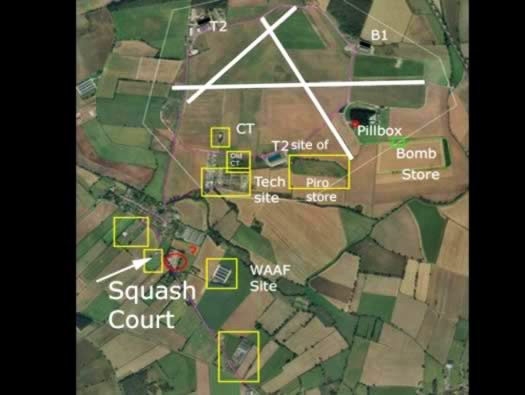

The yellow arrows are the blocks and the white arrow was the squash court and now converted into a house. I did not take a picture of it Yellow squares more dispersed sites.


Sergeants Mess.

RAF Tholthorpe.

11 April 2009

Information

Another site on the hill.

Details

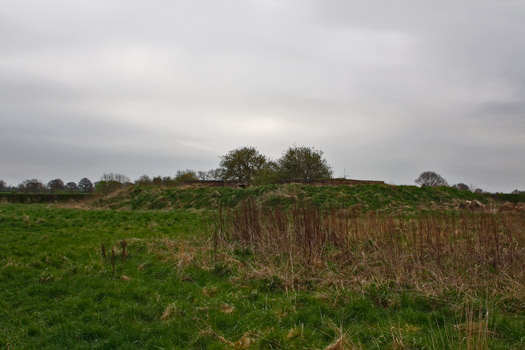

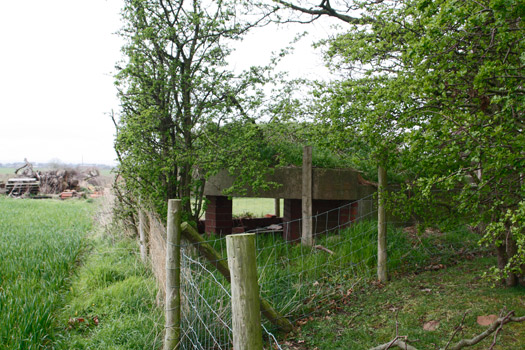

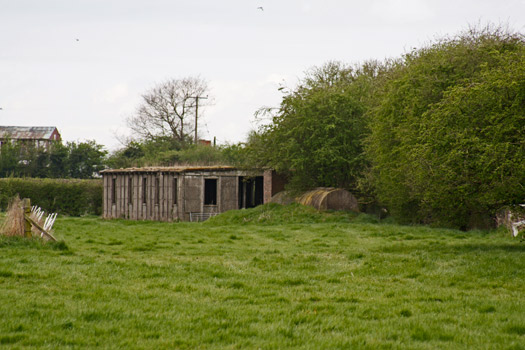

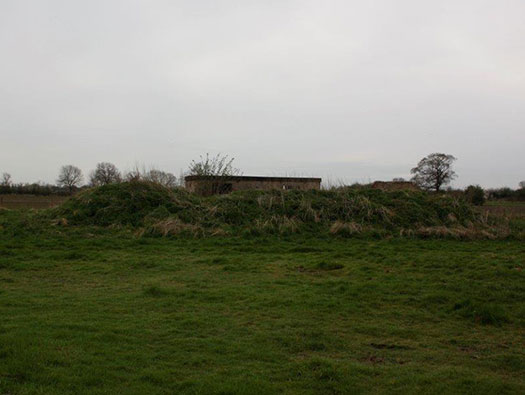

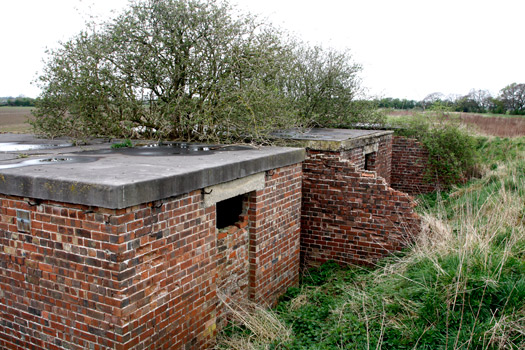

There is a hut and a Stanton air-raid shelter left.


The bigger yellow square.


Inside a Stanton Shelter.




RAF Tholthorpe.

11 April 2009

Information

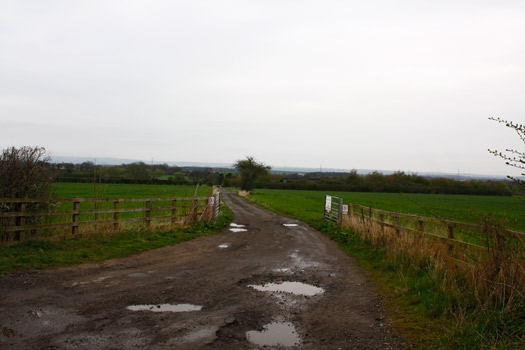

Tholthorpe Village.

Details

Entering the village.

RAF Tholthorpe.

11 April 2009

Information

Scout hut.

Details

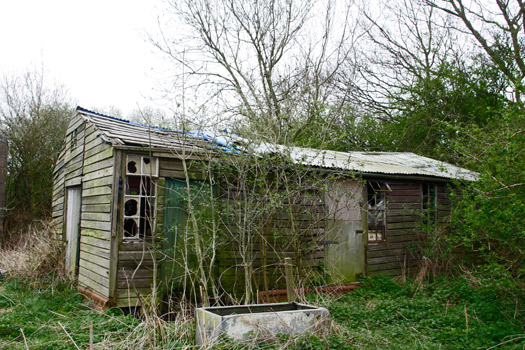

This may be a wartime hut ?


The white circle is the scout hut, yellow the next hut & blue a hut base.







RAF Tholthorpe.

11 April 2009

Information

Behind the new barn is a communal hut.

Details

History :
RAF Tholthorpe started life around 1930 as a grass field for the use of RAF Linton-on-Oise. 1940 it was used by No's 51 & 58 Sqn's Whitley's.


51 Sqn RAF.


Whitley and crew.


Whitley and crew.

RAF Tholthorpe.

11 April 2009

Information

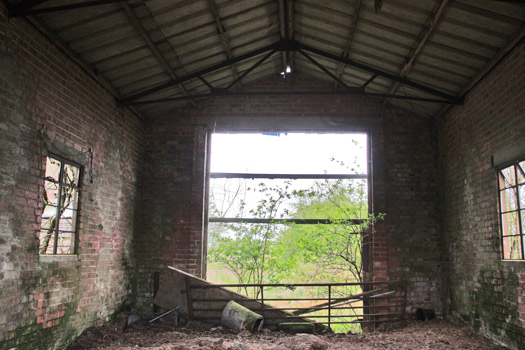

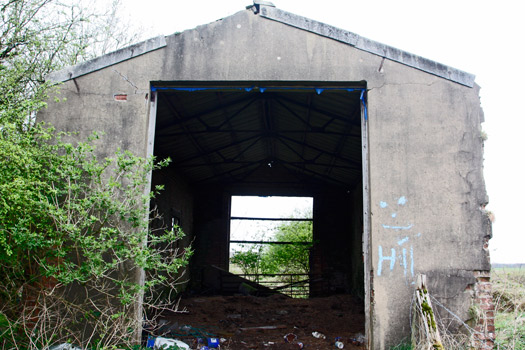

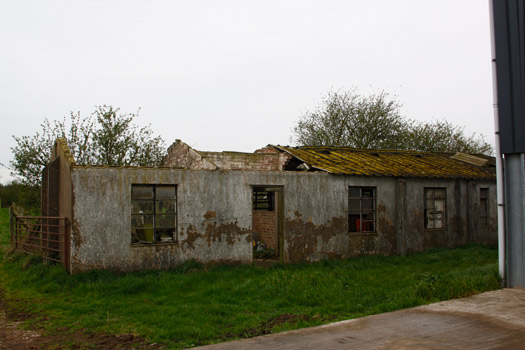

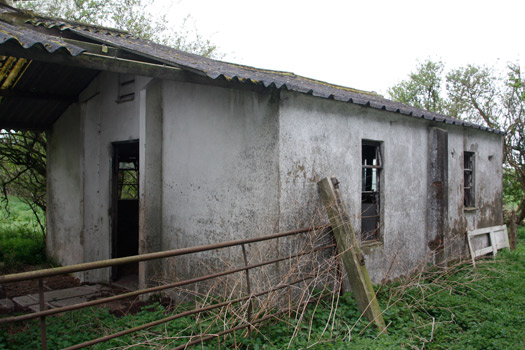

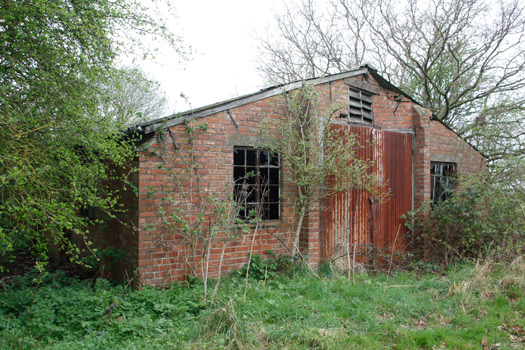

Temporary Brick hut.

Details




Plan of this hut.

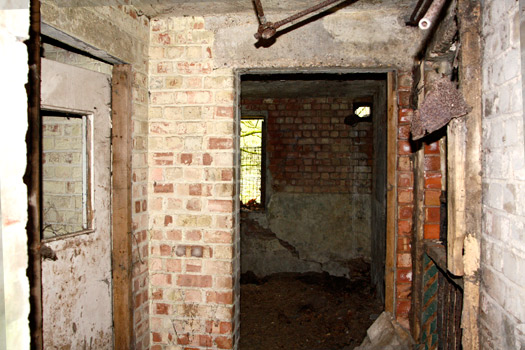

Water pipe and roof falling in.




RAF Tholthorpe.

11 April 2009

Information

Temporary Brick hut.

Details

I

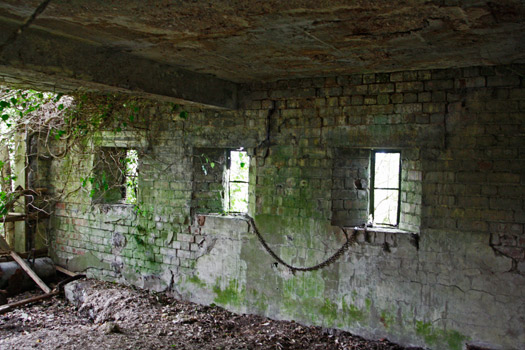

The hut base.


Original wiring, live and earth.




RAF Tholthorpe.

11 April 2009

Information

Tholthorpe Village green & The New Inn.

Details




The New Inn.


The food, it made a very welcome break in the day.

RAF Tholthorpe.

11 April 2009

Information

Memorial.

Details

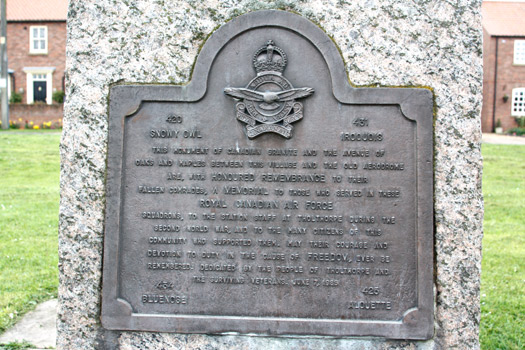

Memorial on the green to 420, 431, 434 & 425 Sqn's Royal Canadian Air Force.


Royal Canadian Air Force.


Canadian crew.


420Sqn RCAF arrived here December 12, 1943 after converting to Halifax III's and stayed until the end of the war.

RAF Tholthorpe.

11 April 2009

Information

Memorial on the green to 420, 431, 434 & 425 Sqn's Royal Canadian Air Force.

Details



RAF Tholthorpe.

11 April 2009

Information

Plan of the technical site.

Details

Showing the layout today, the MT is the only part I am not too sure of?

RAF Tholthorpe.

11 April 2009

Information

Technical site Main Store 5852/42.

Details

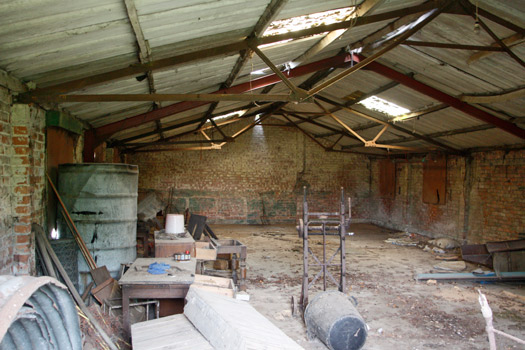

Two Romney huts. These huts were very useful and could be used as stores, engineering or even a NAAFI.


A Romney hut inside.

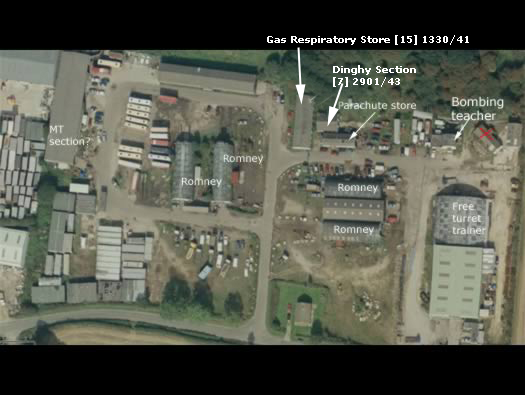

Plan of the technical site today.

RAF Tholthorpe.

11 April 2009

Information

Romney Huts. Main Store 5852/42.

Details

The centre hut is post war and I think nothing to do with the airfield.


Store man.

RAF Tholthorpe.

11 April 2009

Information

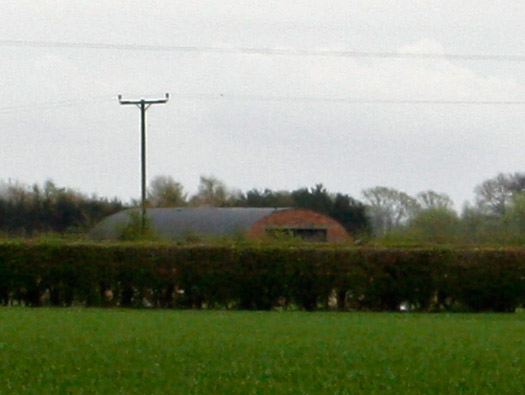

Blister hangar Free Gunnery Trainer 7316/42.

Details

Blister hangar used not for aircraft but as a free gunnery trainer. This is where gunnery training would have taken place with mock up turrets. They became very sophisticated in a pre computer age.


Inside a Free Trainer at an American airfield showing how this one may have looked.


Lancaster turret

RAF Tholthorpe.

11 April 2009

Information

Blister hangar Free Gunnery Trainer 7316/42.

Details

Blister hangars were designed early in the war as a quick and cheap way of covering small aircraft, later as the war progressed they could use them as trainers as in this case.


Blister hangar frame.


Blister hangar.


There is a good line drawing of a turret trainer in Paul Francis book 'British Military Airfield Architecture' page 151. It shows a concave screen which an image was directed on and a form of scaffolding tower with several levels, one with a dummy turret and another for a controller, there was also a power unit.

RAF Tholthorpe.

11 April 2009

Information

Air Ministry Laboratory Bombing Teacher 6301/42

Details

Bomb aimer's and pilots could hone their skills by training on this apparatus.


AMLBT layout.


A Vickers Bygrave version.


Bomb aimer.

RAF Tholthorpe.

11 April 2009

Information

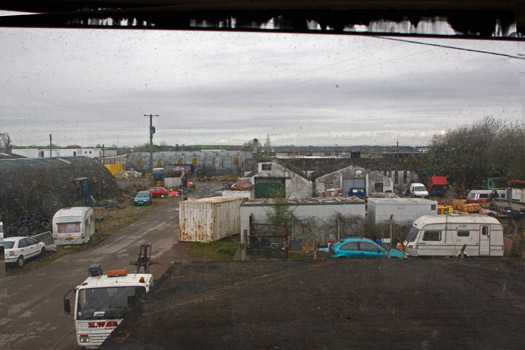

The view from the AML Teacher window.

Details

Parachute store, temporary brick huts and a Romney huts in view.

RAF Tholthorpe.

11 April 2009

Information

Parachute store.

Details




Plan of a parachute store 10825/42


Parachute store interior.


Parachutes in racks.

RAF Tholthorpe.

11 April 2009

Information

Gas Respirator Store & Workshop 13730/41 next to the parachute store.

Details




Gas capes.


Testing his gas mask.

RAF Tholthorpe.

11 April 2009

Information

This could be the site of the MT section.

Details




Plans of a 14bay 9026/40 of a large MT section that was possibly here.


Half of a 14bay Mt garage at RAF Clyffe Pypard.

RAF Tholthorpe.

11 April 2009

Information

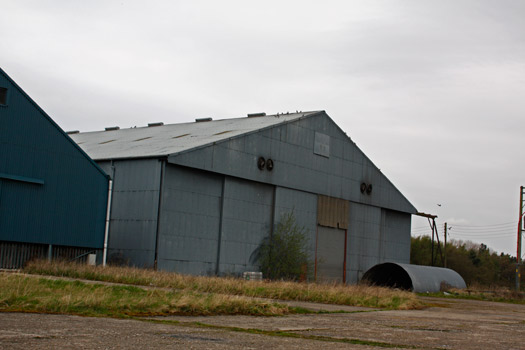

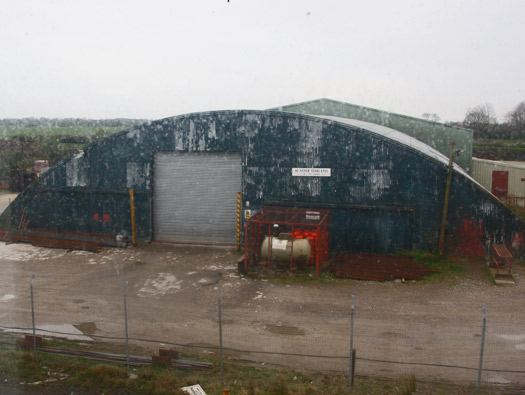

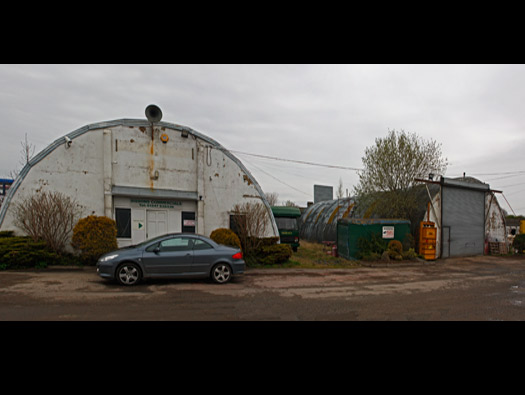

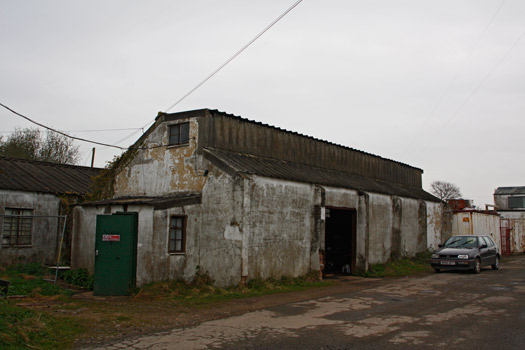

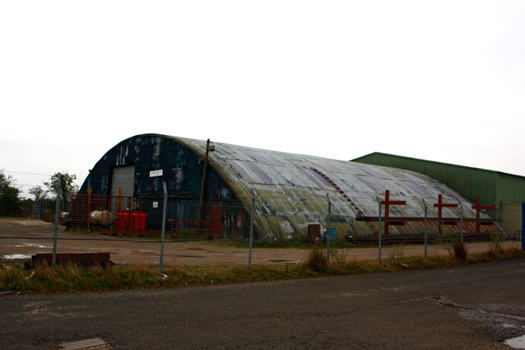

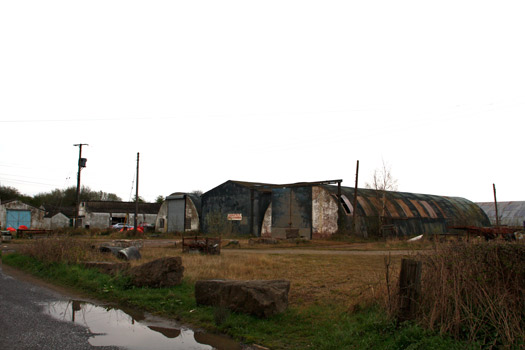

One large shed and the other a Romney hut. Main Store 5851/42.

Details

History :
In the early 40's Tholthorpe was a grass field which in wet weather gets very boggy and modern bombers starting to get heavier and bigger. A new airfield was needed. So a complete re-vamp to turn Tholthorpe into an 'A' class bomber station took place from January 1941 to June 1943. Three hangars (2xT2 & 1 B1), a new watch office, a full bomb store & a full dispersed accommodation.


The circular perimeter track was the original airfield and later the runways were added and the main one was extended.


Halifax's Mks I series I to series II.

RAF Tholthorpe.

11 April 2009

Information

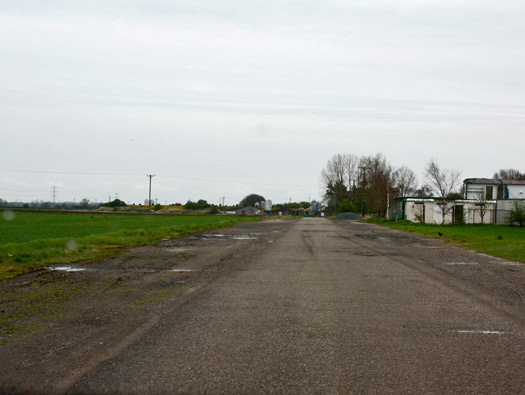

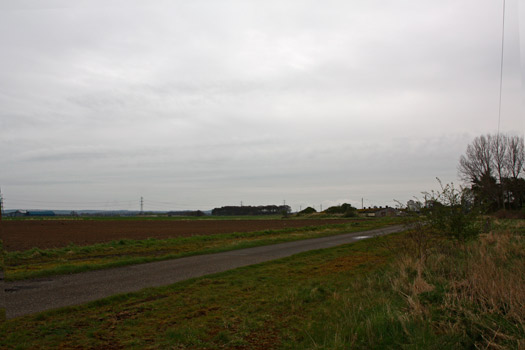

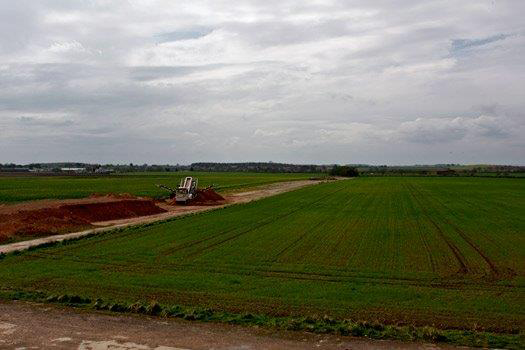

50Ft perimeter track.

Details

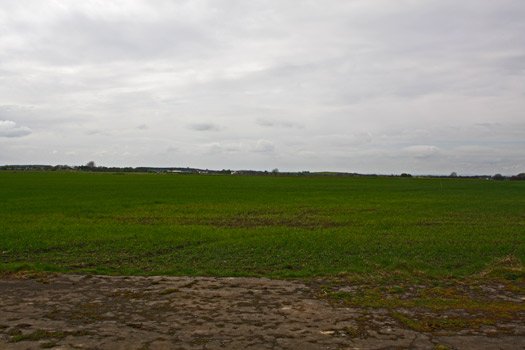

An 'A' class airfield as this one became, had a perimeter track 50ft wide connecting all the runways of 150ft with 36 aircraft dispersals.


Early 'A' class had around 36 circular dispersals, these were very effective in keeping the aircraft dispersed around the perimeter and also a good firm base for the plane to sit. But God forbid you drop a wheel off the concrete onto the mud or grass and it was a heck of a job to get it back on firm ground.


The second type of dispersal that came into use after 1942 was the Scissor or Spectacle type. The circular pans damaged aircraft doing a tight 360deg turn, whereas with the spectacle they could drive in and continue out without turning. Tholthorpe had at least four (possibly more) spectacle and the rest circular.


Halifax on its dispersal. There would be a ground crew hut and latrines with several dispersals per hut where the ground crews of those aircraft, could rest keep warm and store things and also use the toilet.

RAF Tholthorpe.

11 April 2009

Information

Watch Office for All Commands 343/43.

Details

This Watch Office for All Commands 343/43 would have been added in 1943.


Airfield plan with the control tower marked.


Plan down.


Plan up.

RAF Tholthorpe.

11 April 2009

Information

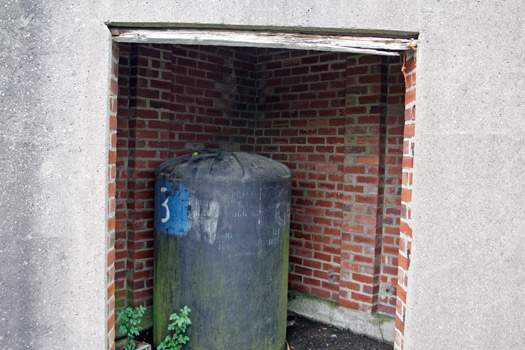

Lubricants & Inflammables Store 12406/41.

Details

Temporary Brick hut behind the old watch office and just inside the airfield site.
History :
Three concrete and tarmac runways were constructed and a perimeter track 50ft wide. 36 heavy bomber hard stands. Accommodation for 1700 people of which there were 200 WAAF's.


Plan.

RAF Tholthorpe.

11 April 2009

Information

Night Flying Equipment Store 12411/41.

Details

Night flying equipment stores held all the goose neck flairs, beacons and any other equipment used for night landings and take offs. An airfield may not have had lighting or if they did and the electricity failed the oil lamps could be put out. Fine on a small airfield but as here a very long runway of over a mile to put out all the lamps.


Goose neck flairs, paraffin filled heavy (like watering cans) with a wick in the spout, then lit by a match it would burn for quite q long time.


Goose neck flair at work.


Chance light a sort of searchlight that could be deployed at the end of a runway and the light pointed down its length. Just another aid to help a pilot land in the dark.

RAF Tholthorpe.

11 April 2009

Information

Night Flying Equipment Store 12411/41.

Details

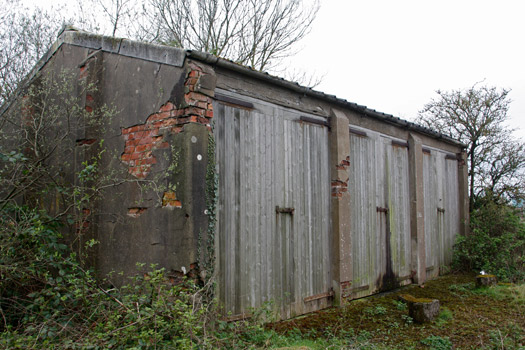

Note the concrete door stops to hold them open and also to stop some Erk on a tractor bumping in to the door. They thought of everything.




RAF Tholthorpe.

11 April 2009

Information

Watch Office for Bomber Satellite Stations 13079/41.

Details

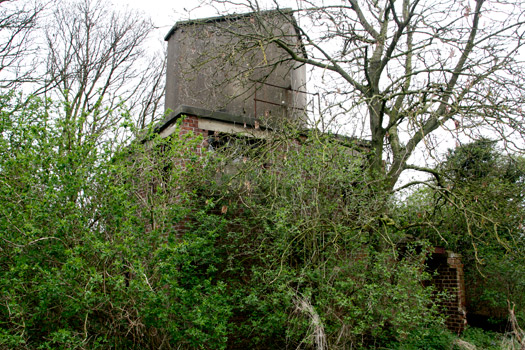

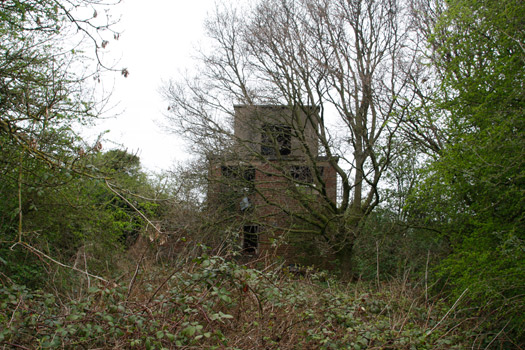

Hidden in the trees is the original Watch Office 13079/41 it would have had two annexes, one for the meteorological office and the other for operations.


Plan.


13079/41 watch office.




RAF Tholthorpe.

11 April 2009

Information

Watch Office for Bomber Satellite Stations 13079/41.

Details

The trees have been removed now but what is going to happen I have no idea.

RAF Tholthorpe.

11 April 2009

Information

Watch Office for Bomber Satellite Stations 13079/41.

Details

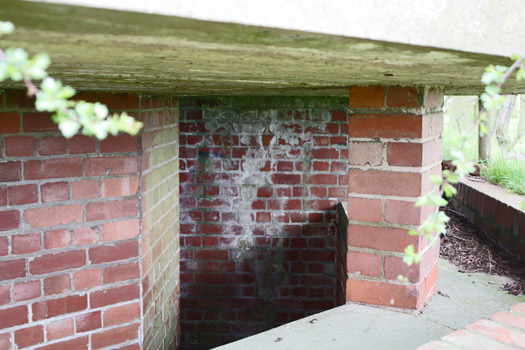

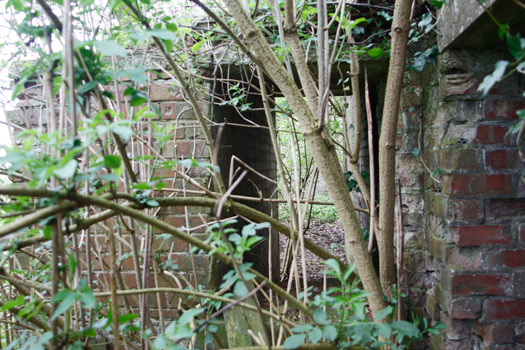

Blast wall entrance.


Plan of what I could see.

RAF Tholthorpe.

11 April 2009

Information

Operations Room.

Details

A protected operations room you can see that by the window showing up the thicker walls. This is where pilots and crews of the Witleys would have collected before take off on the next raid.


Inside an ops block on an American base.


Ops.

RAF Tholthorpe.

11 April 2009

Information

Watch Office Protected Entrance.

Details




Watch Office.

RAF Tholthorpe.

11 April 2009

Information

Watch Office Lobby.

Details




Plan.


Behind the door.


Rear room.

RAF Tholthorpe.

11 April 2009

Information

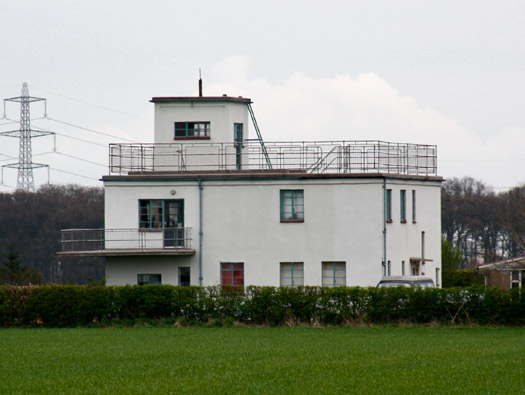

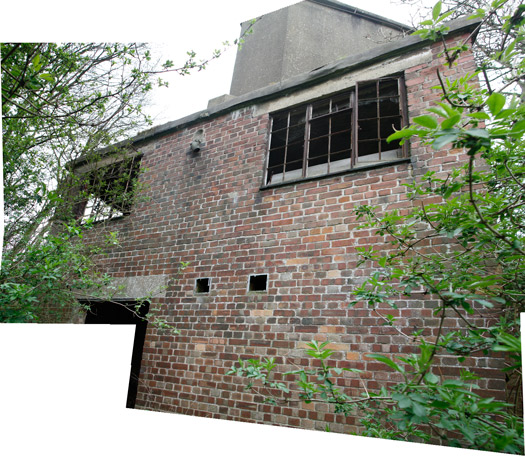

Watch Office side elevation.

Details




Watch Office side elevation.


PBX room. (Private Branch Exchange) the internal telephone system in the camp.

RAF Tholthorpe.

11 April 2009

Information

Watch Office Control Room.

Details

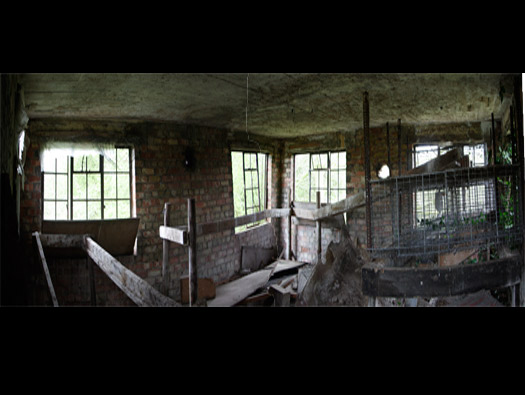

Looking around the control room. The left two windows face west, right hand two south. Its odd that there are two windows in the three walls facing away from the airfield and one window & a door overlooking the airfield ?


First floor plan.

RAF Tholthorpe.

11 April 2009

Information

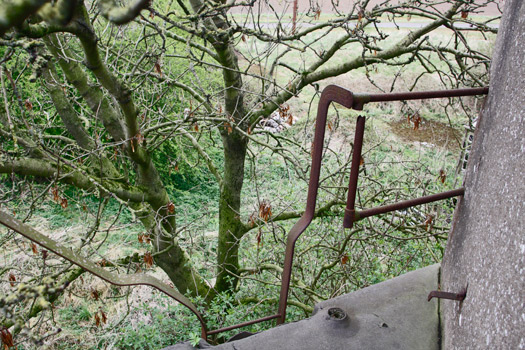

Ladder to the roof.

Details

I carefully climbed to the top.
Note the bracket on the lower wall R/H side, more later about them.


Plan of the roof top. The triangular structure was a "Large 'runway in use' marker boards" to show which runway was in use.




RAF Tholthorpe.

11 April 2009

Information

The triangular building on the roof for the large runway in use markers.

Details

The British numbered runways 1,2, etc., when the Americans arrived the system was changed to number them by there heading in degrees.


Triangular tower for the boards.


The lugs to hold the boards on.


Grafton Underwood with its boards up.

RAF Tholthorpe.

11 April 2009

Information

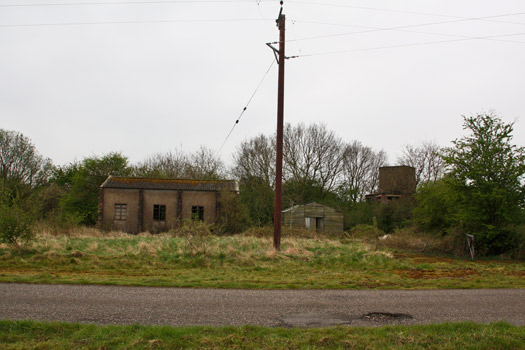

View NW over the airfield.

Details

A wooden huts & the Floodlight Trailer and Tractor Shed 1296/40.
History :
Re-opened and four Canadian squadrons with Halifax heavy bombers arrive. No.420sqn RCAF 'Snowy Owl'. No. 425sqn RCAF 'Alouette'. No.431sqn RCAF 'Iroquois'. No. 434sqn RCAF 'Bluenose'.


RCAF.


425 Sqn RCAF 'Alouette.


Halifax Cockpit.

RAF Tholthorpe.

11 April 2009

Information

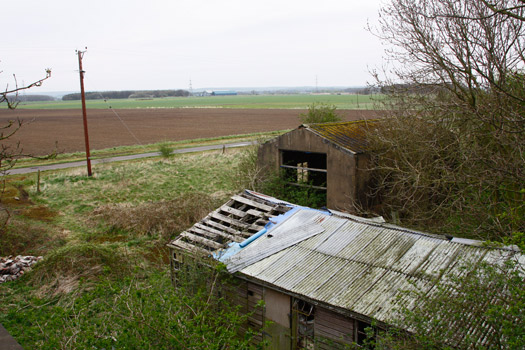

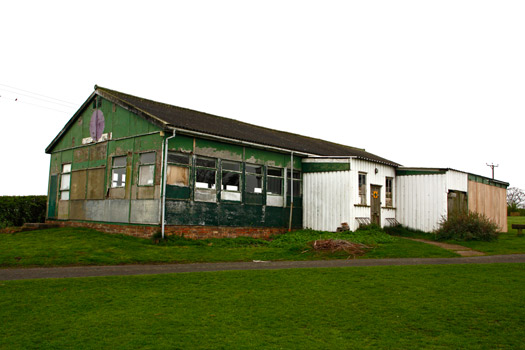

The wooden hut.

Details




431 Sqn RCAF 'Iroquois'.

RAF Tholthorpe.

11 April 2009

Information

Wooden hut inside.

Details




Allerton Park, Knaresbough was HQ of No.6 Group RCAF. 6 Group aircraft flew 40800 operational sorties.

RAF Tholthorpe.

11 April 2009

Information

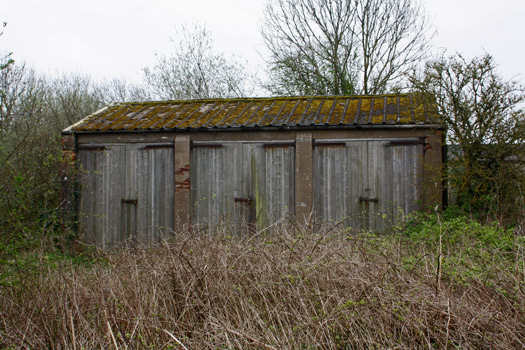

Flood Light Trailer & Tractor Shed. 12411/41.

Details




Floodlight/Chance light.


Floodlight/Chance light.

RAF Tholthorpe.

11 April 2009

Information

Flood Light Trailer & Tractor Shed. 12411/41.

Details



RAF Tholthorpe.

11 April 2009

Information

Armoury & Armoury Maintenance 9882/42.

Details

Built in Temporary Brick (half brick) which was a cheaper and quicker construction than the pre war designs. The windows were standard Crittal steel windows and can still be bought today. The method of building with piers along the sides where trusses lay on for strength goes back to WW1 designs of military hutting and can be seen at RAF Duxford around the hangars.


Armourer.


Browning 303.

RAF Tholthorpe.

11 April 2009

Information

Armoury & Armoury Maintenance 9882/42.

Details

A group of dedicated men would clean the guns after a raid and make sure that they were ready for the next one.


Whitley rear turret.


Armourers at work.

RAF Tholthorpe.

11 April 2009

Information

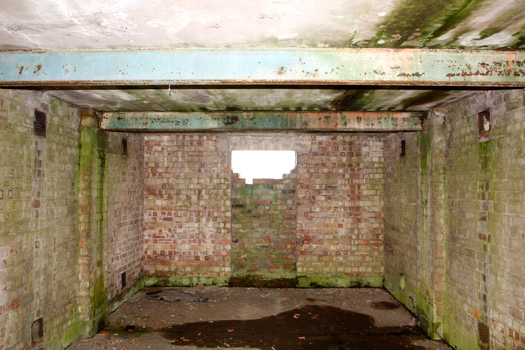

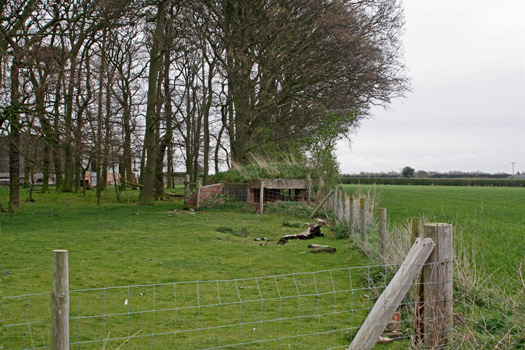

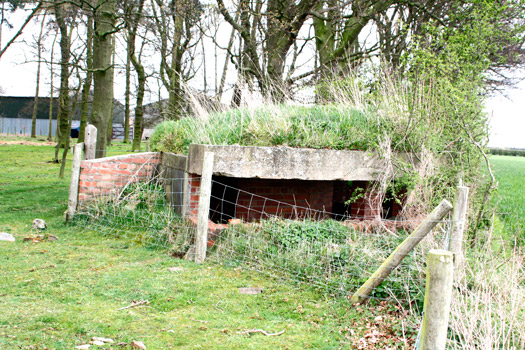

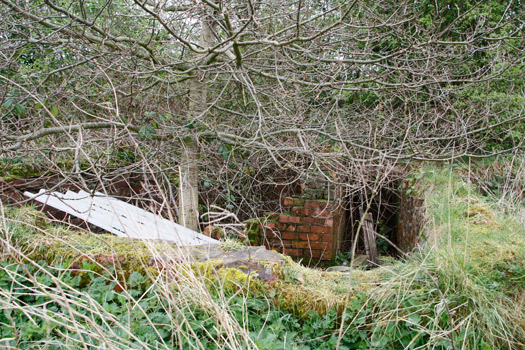

Blast shelter [2360-41]

Details




Plan.


A better view of how it would look without all the undergrowth.


Air raid warning.

RAF Tholthorpe.

11 April 2009

Information

The original (pre 1942) main airfield site with all the buildings grouped around the watch office.

Details




De briefing and a hot cup of tea.


Crew arriving at their plane.


One of the ways crews were delivered to their planes.

RAF Tholthorpe.

11 April 2009

Information

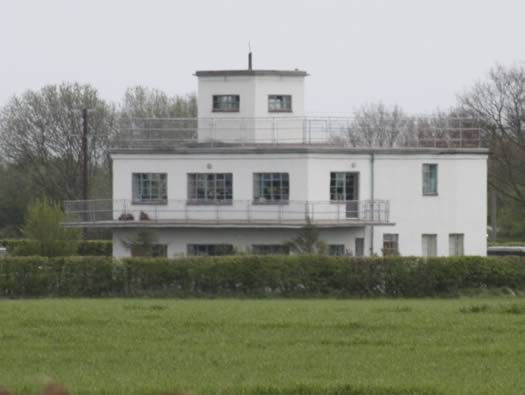

The later control tower.

Details

The name Watch Office changed in the mid 40's to control tower. This was due to two reasons, one - only a watch was kept on an airfield and their pilots could land and take off at almost their own discretion. Two - by 1942 onwards many more aircraft were being used at one time and a form of control was needed to make for a safe and smoother running of the airfield. So the Control Tower was named & designed and placed in a position where it could see ALL the airfield.


RAF Acaster Malbis showing how the control tower could see the airfield.

RAF Tholthorpe.

11 April 2009

Information

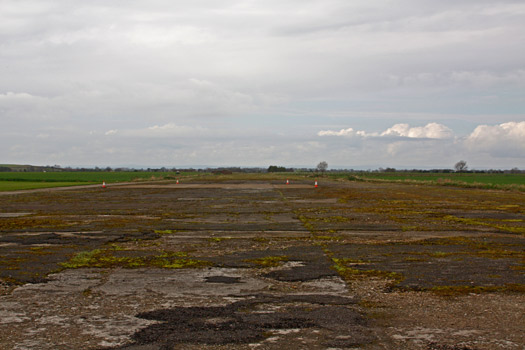

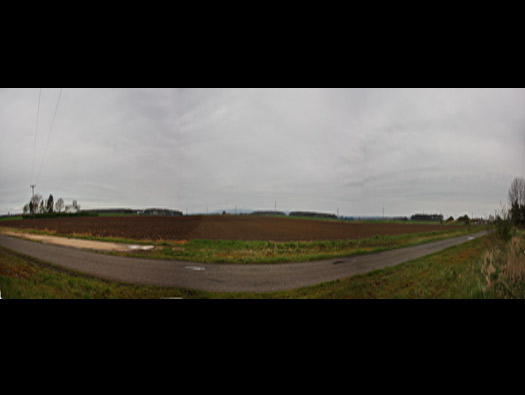

Perimeter track & Airfield.

Details




Plan.

RAF Tholthorpe.

11 April 2009

Information

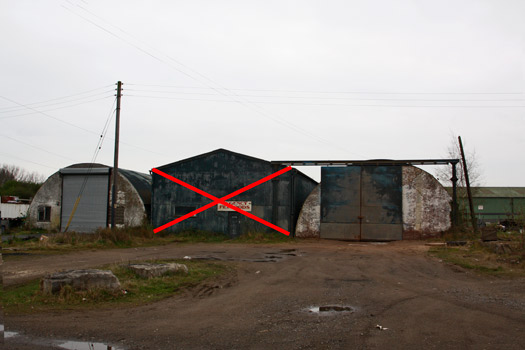

Perimeter track leading to the site of the first T2 hangar.

Details

Any pre & wartime hangar can be called a shed. So that is why on some sites Shed is used.


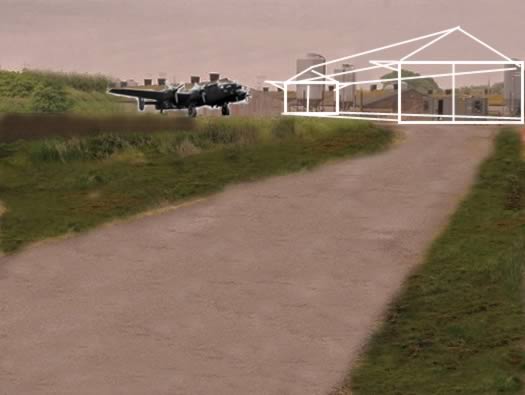

View from above with the T2 superimposed on the area.

RAF Tholthorpe.

11 April 2009

Information

Site of the T2.

Details




Plan.


Building a T2.


A Halifax inside a T2 for a major overhaul.

RAF Tholthorpe.

11 April 2009

Information

BCF Hut & Stanton Air-Raid Shelter.

Details

British Concrete Federation hut.
A hut consisting of a frame of reinforced concrete posts into which panels could be slotted. Designed by the British Concrete Federation (BCF) during WWII.


Stanton shelter inside.


Inside a BCF hut at RAF Snailwell.

RAF Tholthorpe.

11 April 2009

Information

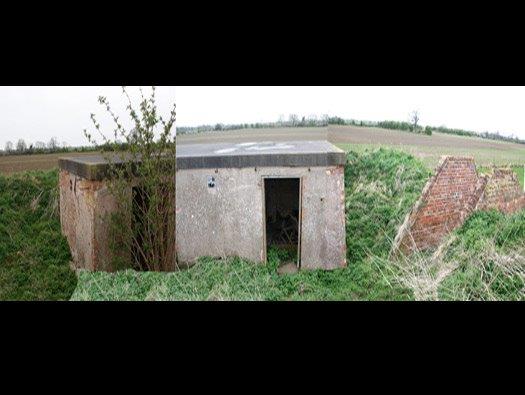

Early bomb store.

Details

This is the entrance to a small bomb store

RAF Tholthorpe.

11 April 2009

Information

Early bomb store.

Details

There may have been more items here.


One of the protected entrances.

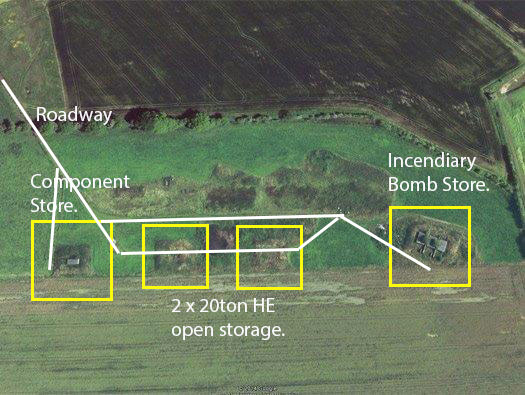

20ton HE open storage.


Store.

RAF Tholthorpe.

11 April 2009

Information

Component store.

Details

With blast walls.


From above.


Plan.

RAF Tholthorpe.

11 April 2009

Information

Component store.

Details

I have had to cobble together three photos to make this up.


The component store with the entrance showing up on the left.


Component store

RAF Tholthorpe.

11 April 2009

Information

3 compartment Incendiary and Pyro store 13436/40.

Details

Incendiary and pyrotechnic store for flairs, markers & incendiary bombs.




RAF Tholthorpe.

11 April 2009

Information

3 compartment Incendiary and Pyro store 13436/40.

Details

This shows the earth wall around the outside and brick walls between each store to keep them separate in case of fire..

RAF Tholthorpe.

11 April 2009

Information

3 compartment Incendiary and Pyro store 13436/40 inside.

Details

Check out the size of the I beams in the roof. Why so strong.


A Lancaster dropping incendiaries.


Incendiary bomb.

RAF Tholthorpe.

11 April 2009

Information

Fuzzing Point UH (Ultra Heavy) 7900/42 & long gone Fuzzing Point HL (Heavy Light) 4778/42

Details

In a Nissen hut.


UH Fuzzing Point inside view.


Bomb trains waiting to leave the bomb store area after fuzzing to go out to the aircraft.


Air photo of the 'D' type full heavy bomber bomb store.

RAF Tholthorpe.

11 April 2009

Information

Seagull trench.

Details

Seagull trenches were an early open pillbox defence to protect (what) I cannot see what it is/was protecting?


Tholthorpe Home Guard.


Small red square is the Seagull trench

RAF Tholthorpe.

11 April 2009

Information

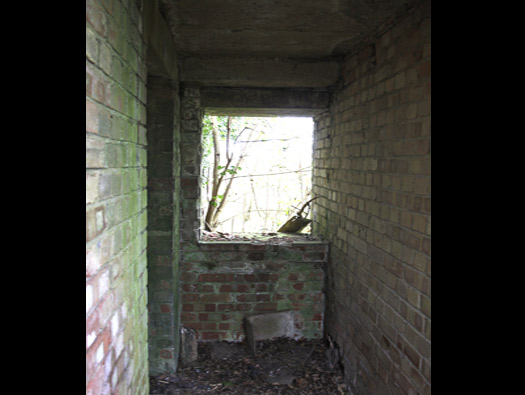

Seagull trench.

Details

Made of standard red brick and reinforced concrete roof.







RAF Tholthorpe.

11 April 2009

Information

Seagull trench.

Details

It just may have covered the small bomb store area ?





A brick tile used to cover electrical cables. There are several in the woodland.

RAF Tholthorpe.

11 April 2009

Information

Seagull trench.

Details



RAF Tholthorpe.

11 April 2009

Information

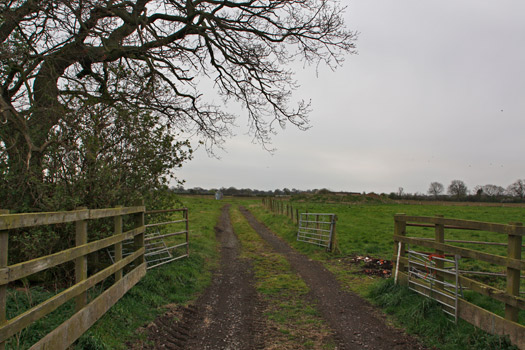

Main Runway.

Details

East west main runway about 6,000 feet or 1.15 miles (1,848meters).


The direction viewed.


Halifax touching down.

RAF Tholthorpe.

11 April 2009

Information

B1 MAP Hangar (Ministry of Aircraft Supply).

Details

The B1 MAP hangar was built to help over worked RAF ground crews to repair severely damaged aircraft.


Wing repairs.


Civilian workers.

RAF Tholthorpe.

11 April 2009

Information

B1 MAP Hangar (Ministry of Aircraft Supply).

Details







Hand made clay water pipes lying around.


Halifax damage.

RAF Tholthorpe.

11 April 2009

Information

Airfield looking south.

Details




Plan.

RAF Tholthorpe.

11 April 2009

Information

Nice to see the control tower in use again even if it is a house.

Details







Inside a working tower.

RAF Tholthorpe.

11 April 2009

Information

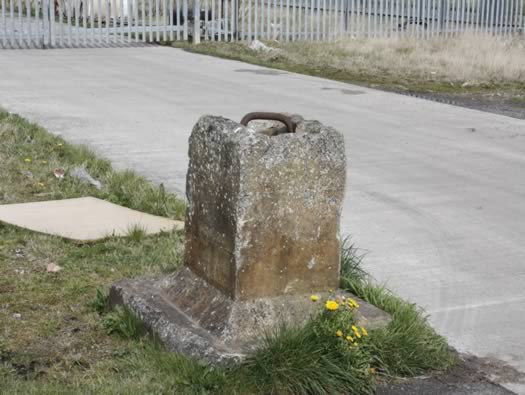

Aircraft tie down.

Details




Circular aircraft dispersal (frying pan or just pan) had several of these set into their concrete base and planes could be tied firmly down in high winds.

RAF Tholthorpe.

11 April 2009

Information

The RED runway on the plan.

Details




Plan.

RAF Tholthorpe.

11 April 2009

Information

T2 Hangar.

Details

Made by the Tees-side Bridge and Engineering Co.


T2.


Still in use on some airfield.


T2 inside.

RAF Tholthorpe.

11 April 2009

Information

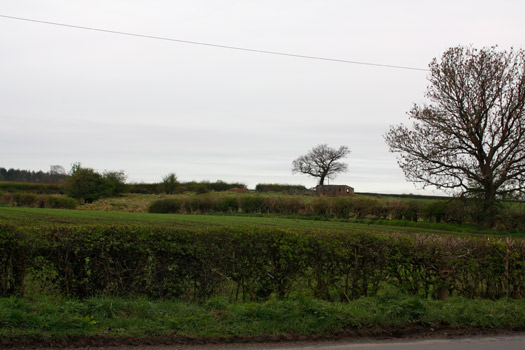

Back to the New Inn showing the details of aerodrome up on the hill.

Details
