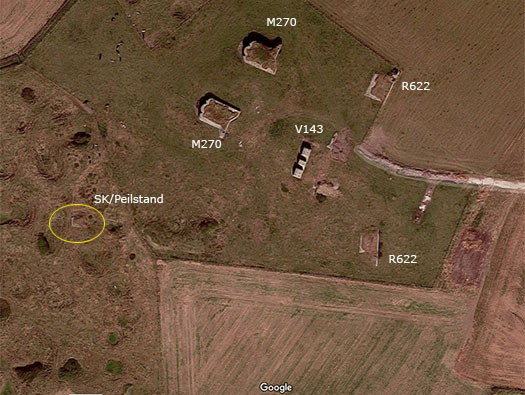

A batterie of three guns in two M270 casemates with a large Mammut radar set behind it.

One of the five M batteries, they were named “Coastal batteries M” of the Marine Artillery Abteilung 244.
StP Waldam M.K.B MI.
StP106 Dresden M.K.B. MII.
Wn164a Sickingen, M.K.B. MIV.


StP Waldam M.K.B. MI.


StP106 Dresden M.K.B. MII.

Wn164a Sickingen M.K.B. MIV.

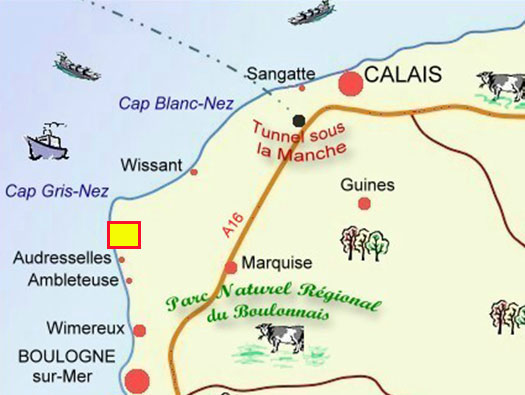

Wn164a Sickingen, M.K.B MIV Waringzelle

Google

Information

Wn164a Sickingen, M.K.B MIV Waringzelle

Details



Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle

Details

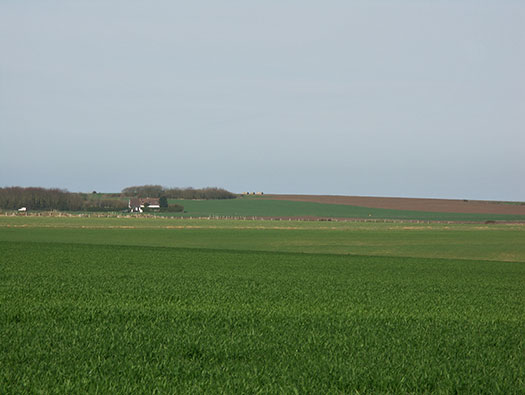

To the right of the trees you can just see three pimples sticking up. These are the radar supports.

Wn164a Sickingen, M.K.B MIV Waringzelle

Air 40/1667

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
Air 40/1667

Details

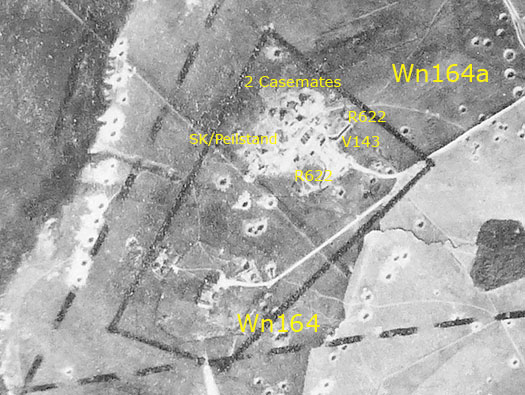

Batterie MIV M.A.A.242
2.Funkmess.Abt

2 x M270 casemates.
2 x R622 twin gruppe bunkers.
1 x V143 Mammut Gustav radar bunker Fu.MO 51.
1 x SK/Peilstand (FCP)
1 x Wellblech(flak crew bunker??)
3 x 17cm S.K.L/40 guns.
1 x 2cm Flak28.


17cm S.K.L/40 guns.


Mammut Radar FuMO 51.


2cm Flak 30.

Wn164a Sickingen, M.K.B MIV Waringzelle

Air 40/1667

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
Air 40/1667

Details

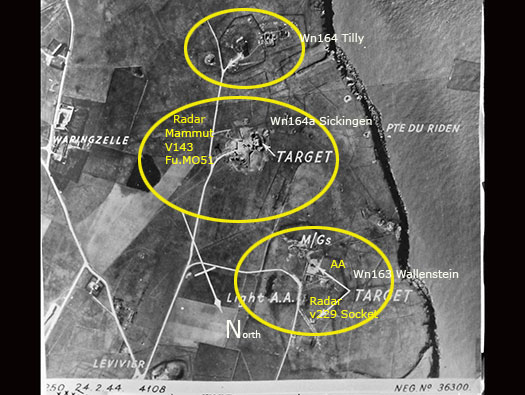

The three Wn's were at times put together into Stützpunkt Frunsberg but here we are just covering Wn164a Sickingen.

Wn164a Sickingen, M.K.B MIV Waringzelle

Air 40/1667

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
Air photo Air 40/1667

Details

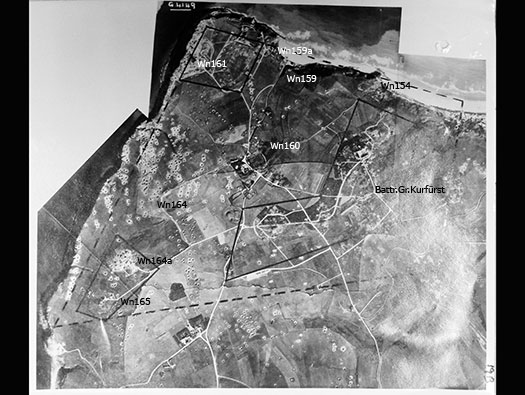

RAF bombing target air photograph of the whole of Cap Gris Nez.








Trimming photos.

Wn164a Sickingen, M.K.B MIV Waringzelle

German Plan

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
German Plan

Details

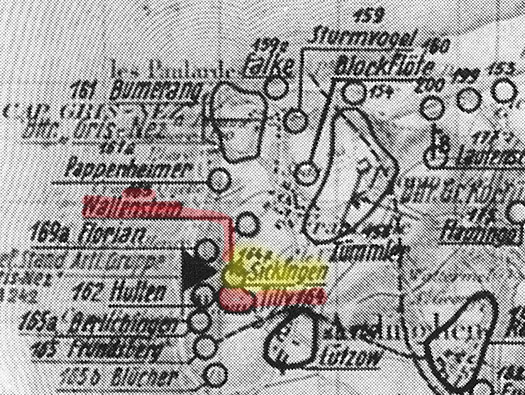

The three Wn's in this area.










Wn164a Sickingen, M.K.B MIV Waringzelle

Air 40/3024

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
Plan

Details

Plan showing what is here, we did not see the SK/Peilstand and could not enter the two R622 and the V143. The two casemates, one is correct and the other is in mirror, a left and a right type.


M270 (left).


M270 (right).


V143.

Wn164a Sickingen, M.K.B MIV Waringzelle

Air 40/3024

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
Air40/3024

Details

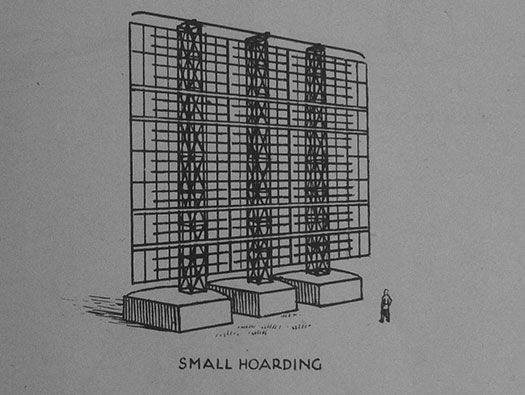

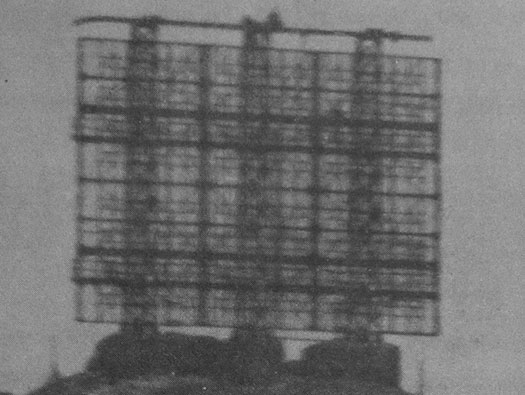

From document Air40/3024 showing an Allied picture of the type of radar. V143 Mammut Gustav radar bunker Fu.MO 51.
Fu.MO an air warning and anti ship warning radar.

Wn164a Sickingen, M.K.B MIV Waringzelle

Air 40/1667

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
Air 40/1667

Details

This is a low level air photo of a small Hoarding showing the three concrete uprights. V143 Mammut Gustav radar bunker Fu.MO 51.

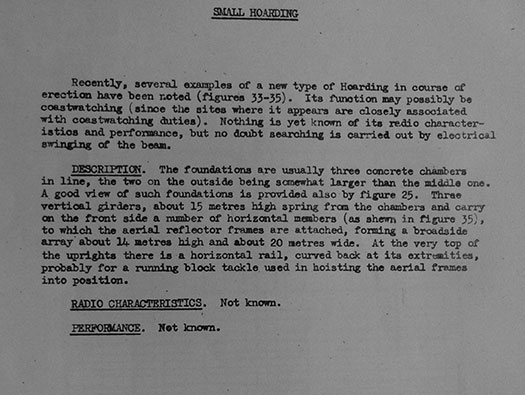

Hoarding was an Allied code name for the type of radar a Fu.MO 51 Seetakt, air/ship warning, Mammut Gustav, range 40/60kms.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle

Details

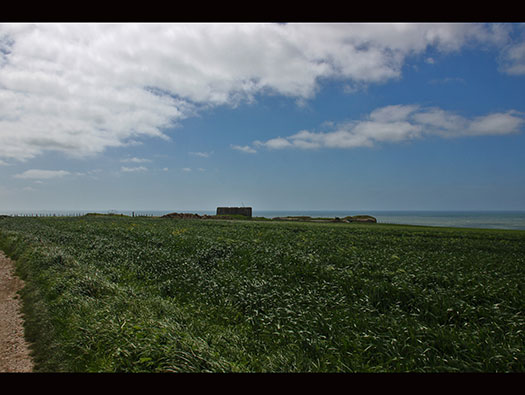

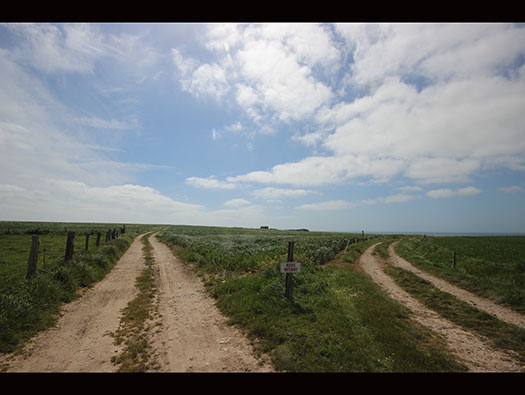

The walk to the Wn.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle

Details

V143 Mammut Gustav radar bunker Fu.MO 51.


Plan.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
Tetrahedron

Details

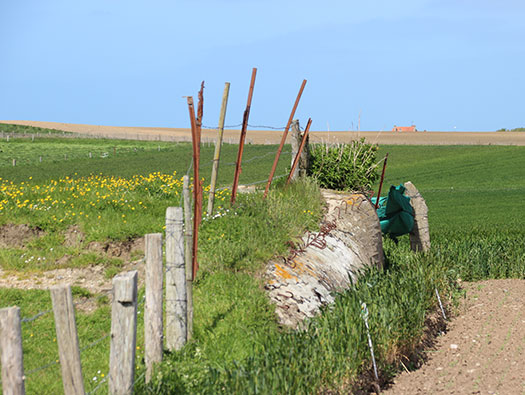

Beach defences now used as fences.


Building beach defences.







Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
R622 twin gruppe bunker.

Details

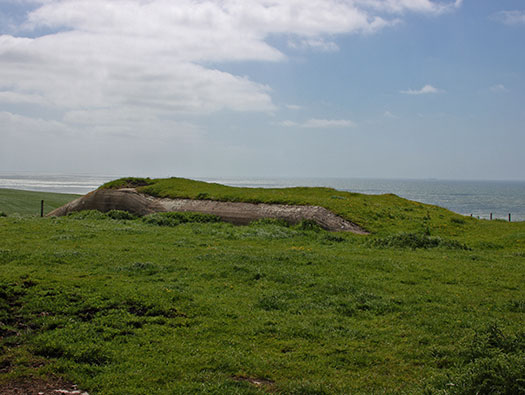

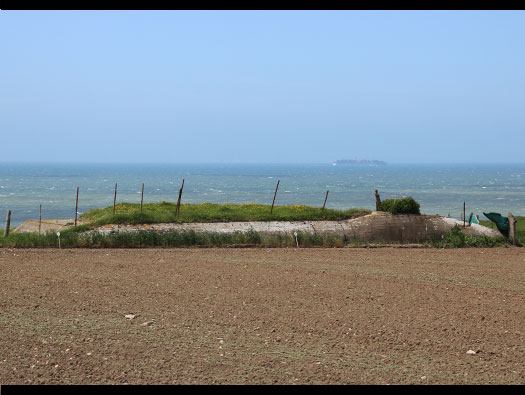

One of two R622's with its Tobruk defence on the right hand side.


Plan.


R622 Plan.


R622 from the rear.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
R622 twin gruppe bunker.

Details

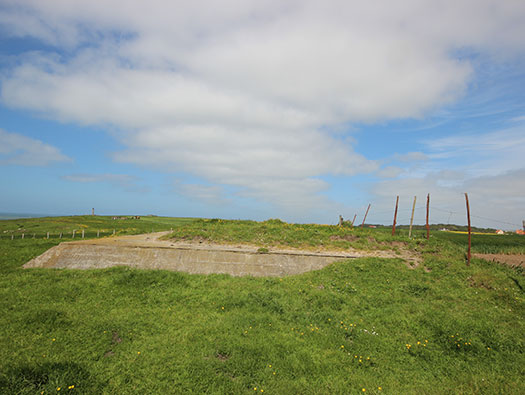

The roof section now visible. Two small gruppe of soldiers could live inside between 12 to 15 in a gruppe and one gruppe per room.


R622 twin gruppe bunker.


Six men in their bunks.


Folding tables an chairs could open up and be used as eating, etc.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
R622 twin gruppe bunker.

Details

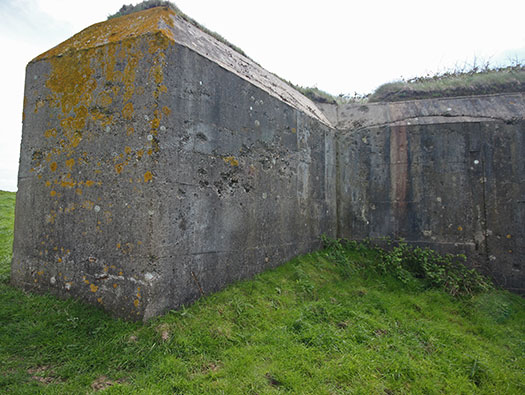

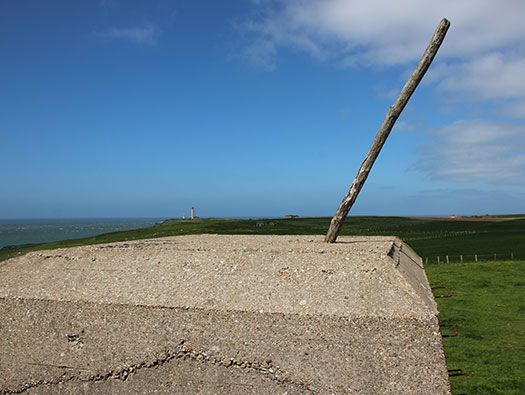

The view along the rear of this R622 also showing up several Eisenpfahel still being used.


Eisenpfahel post.


Barbed wire.


Mine fields.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
R622 twin gruppe bunker.

Details

The second R622 on the other side with its Tobruk on the left side.


Plan.





details


Naval Infantry.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
V143 Mammut

Details

V143 Mammut radar bunker. An early type of radar used by the Navy.


V143 Mammut radar bunker plan.







Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
V143 Mammut

Details

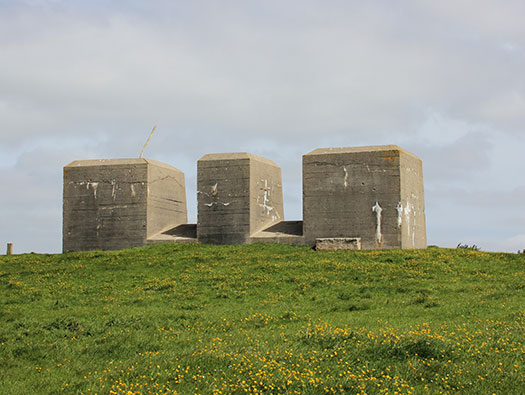

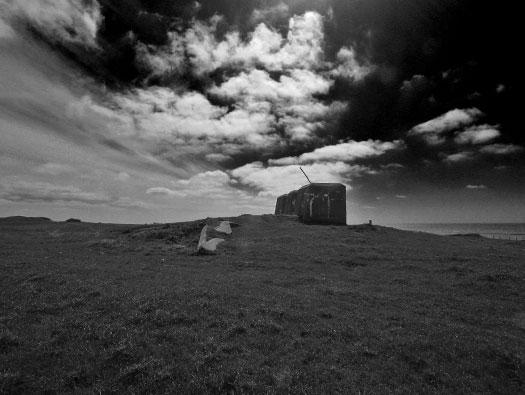

The three concrete uprights to hold the radar array up.


Plan.


How it may have looked.


Wiring diagram.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
V143 Mammut

Details

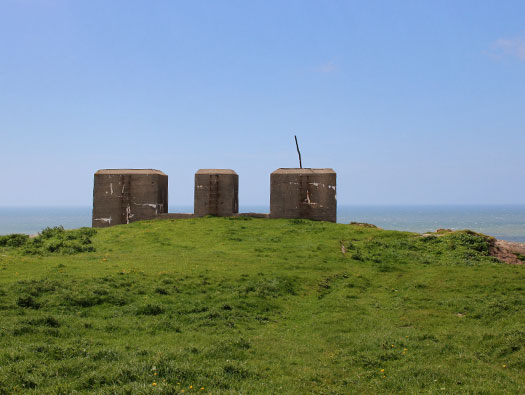

The three concrete uprights to hold the radar array up.
V143 is a 1942 designed bunker.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
V143 Mammut

Details

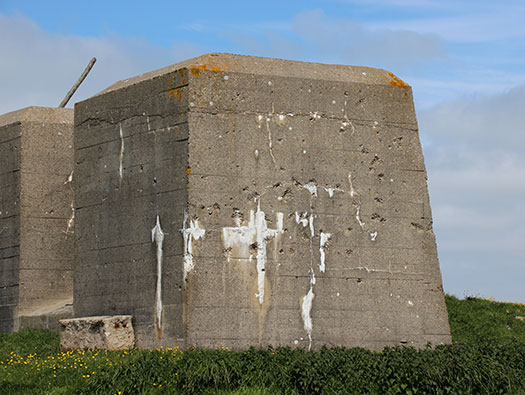

Cannon/machine gun shell damage on the concrete.


Possibly a Typhoon attack.

Wn164a Sickingen, M.K.B MIV Waringzelle

Air 40/1667

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
V143 Mammut

Details

Allied Intelligence.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
V143 Mammut

Details

The top of the right hand side.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
V143 Mammut

Details

There are four slots on each concrete support to hold up the arrays.

Wn164a Sickingen, M.K.B MIV Waringzelle

Air 40/1667

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
V143 Mammut

Details

The tree supports can be seen in this picture.

Wn164a Sickingen, M.K.B MIV Waringzelle

WO file

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
V143 Mammut

Details

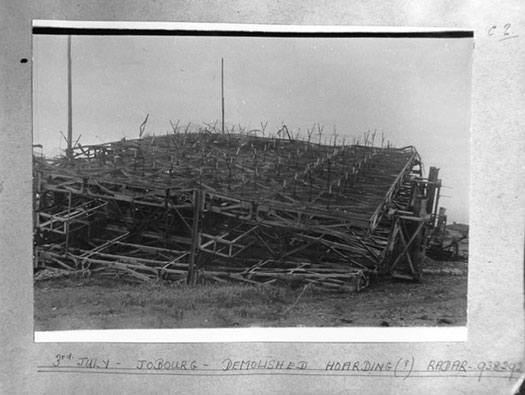

A Mammut array laying on its side. On some they placed the arrays back to back, this way a plane flying towards, over and away from the radar would show up on the screens.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
V143 Mammut

Details

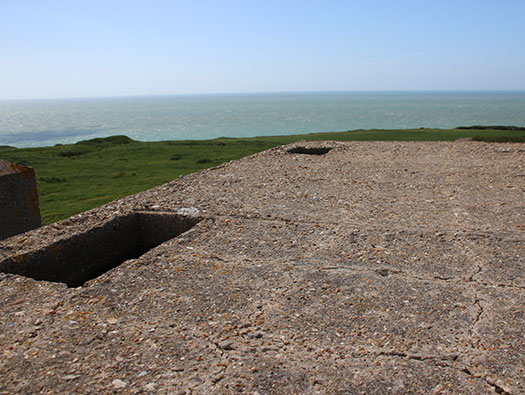

The top of the concrete columns.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
V143 Mammut

Details

The cable holes that carried the signals from the arrays.

Wn164a Sickingen, M.K.B MIV Waringzelle

Air 40/1927

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
Air 40/1927

Details

Full wiring diagram of a large Mammut radar.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
2 x M270 Casemates

Details

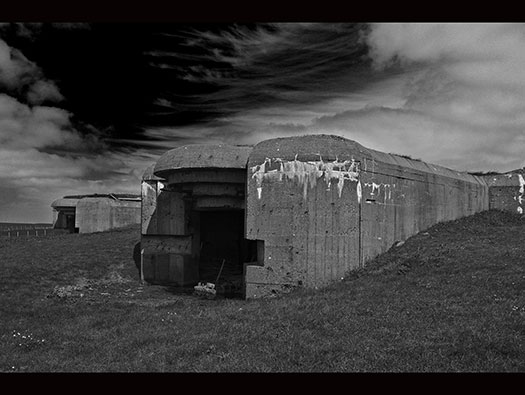

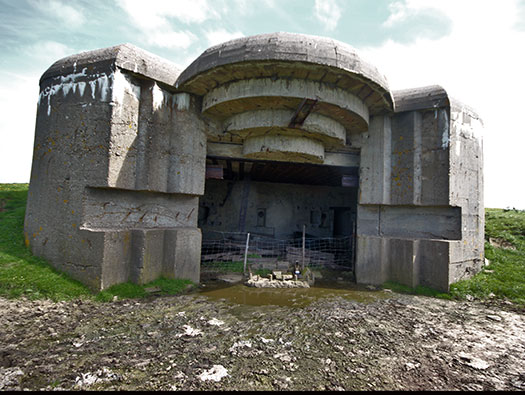

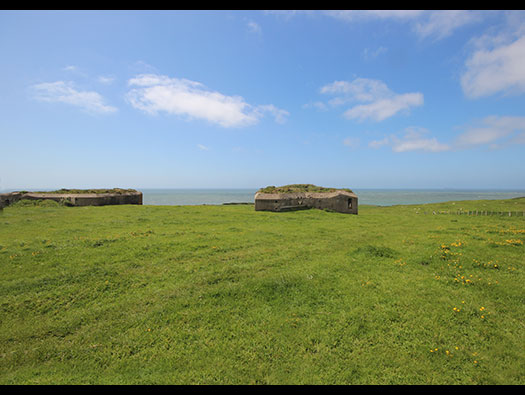

The two casemates.


Plan.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
M270 Turm1

Details

Attached Tobruk to the bunker as a lookout, AA and local defence. Armed with a machine gun and a speaking tube to contact the troops in the bunker bellow.


M270 Tobruk.


Tobruk.


Tobruk.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
M272 Turm1

Details

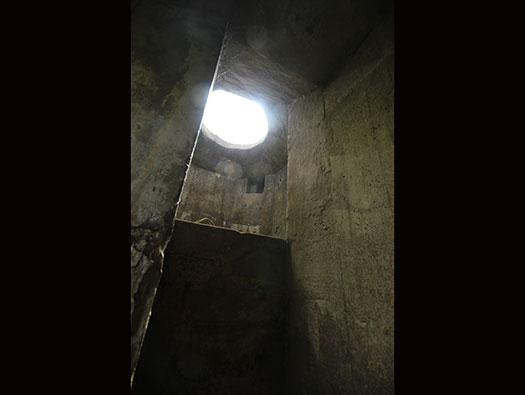

Inside the Tobruk where a poor soldier all on his own would have stood guard duty and look out.


Tobruk.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
M270 Turm1

Details

'M' = Marine, 270 = the type number. Around 1943 two of the three open emplacements were casemated due to the orders of Hitler. By June 1944 two casemates had been made and the third gun was in its open pit.


Plan


17cm S.K.L/40 in an open emplacement.




Wn164a Sickingen, M.K.B MIV Waringzelle

D.E.I.L.A. file

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
D.E.I.L.A. plan

Details

Allied intelligence plan showing most of the bunkers but miss named the R622 twin gruppe bunkers as ammunition.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
M270 Turm2

Details

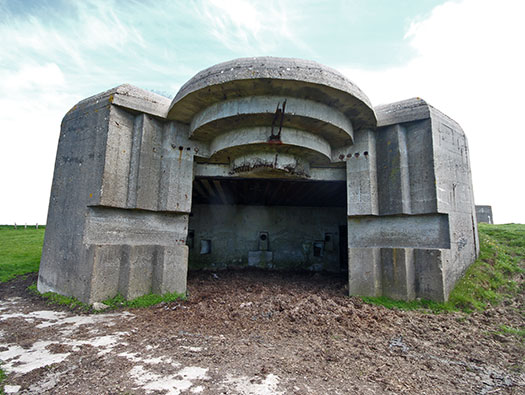

This one you can see the tie down bolts in the concrete floor to hold the gun down. The two slits in the sides (I think) these were to place the barrel of the gun to give some protection when the casemate is being fired upon. The lid sticking out of the front would have had steel bands (now removed) and some times steel plates down each side.


Plan.







Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
Turm2

Details

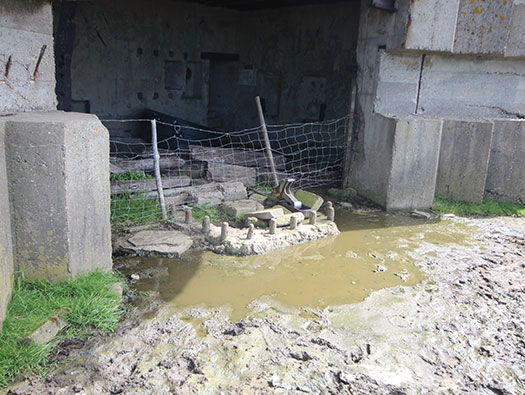

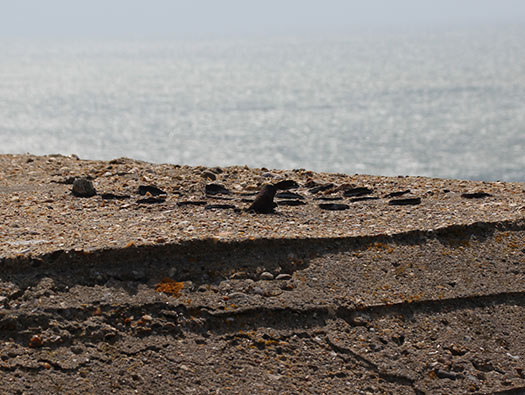

The set of threads sticking out of the concrete.


17cm S.K.L/40 guns.


17cm S.K.L/40 guns.




Wn164a Sickingen, M.K.B MIV Waringzelle

D.E.I.L.A. file

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
D.E.I.L.A. plan of the M270 casemates

Details

Allied intelligence plan of the casemates Turm1.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
Turm2

Details

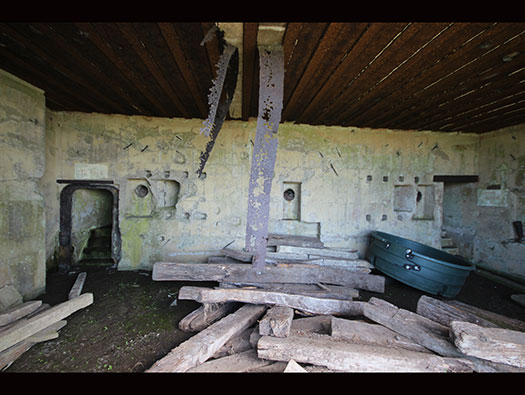

Inside the casemate. There was an 882P7 door on the left side, a double door.


882P7 Marine door.


17cm S.K.L/40 guns.


17cm S.K.L/40 guns.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle

Details

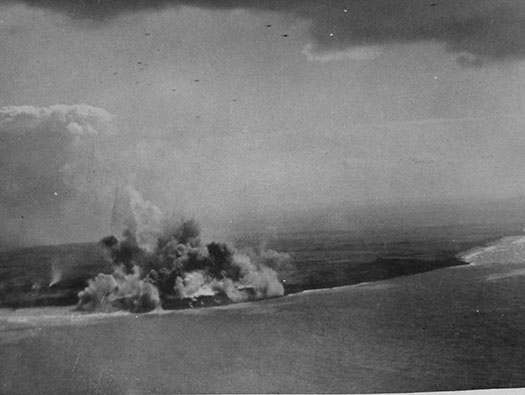

Heavy bombing of Cap Gris Nez.


Lancaster.


Halifax.


Sterling´s.

Wn164a Sickingen, M.K.B MIV Waringzelle

17 May 2018

Information

Wn164a Sickingen, M.K.B MIV Waringzelle
Turm1 & 2

Details

You can see a Drone flght over the battery by Phil Wood.
