StP Gruppe Mont St-Frieux.
Information
Mont St-Frieux Complex.
Details
StP Mont De Terre, Battr.5./A.R.149.
StP Mont ST Frieux, Stab 1./H.K.A.R.1245. Stab II/Gren.Rgt.148.
StP Höhe 158, Mont St Frieux H.K.B. 4./H.K.A.B.1245. Flak.Abt.501.
StP Südostecke, Mont St Frieux est.
17cm 18.
8.8cm Flak 36.
10 cm F14/19 (t).
StP Gruppe Mont St-Frieux.
Google
Information
Mont St-Frieux Complex.
Details
A very powerful 'Stützpunkt Gruppe' situated on the top of several very high sand dunes between Hardelot-Plage and Dannes. There are many different types of bunkers and open gun emplacements, radars and lots of bomb craters.
StP Gruppe Mont St-Frieux.
Information
StP Gruppe Mont St-Frieux Complex
StP Mont De Terre, Battr.5./A.R.149.
StP Mont ST Frieux, Stab 1./H.K.A.R.1245. Stab II/Gren.Rgt.148.
StP Höhe 158, Mont St Frieux H.K.B. 4./H.K.A.B.1245. Flak.Abt.501.
StP Südostecke, Mont St Frieux est.
Details

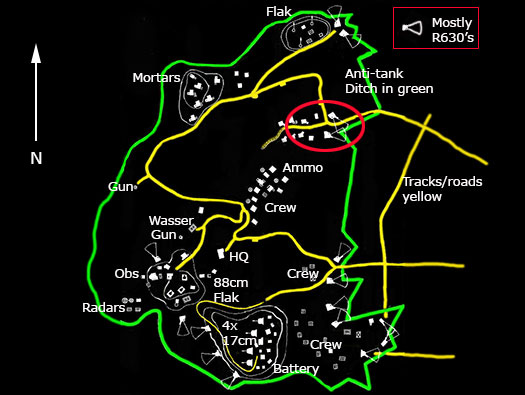

The red circle is where we visited.
StP Mont De Terre, Battr.5./A.R.149.
6 x
Vf59a Obs. post.
5 x Vf2a Group shelter.
1 x V556a Dressing station.
4 x Vf7a Ammunition bunker.
4 x Geschützstellung (open emplacement).
6 x Vf59a mortar Tobruk.
1 Vf/Peilstand (observation).
4 x 10cm le.F.H14/19(t) guns.
StP Mont ST Frieux.
Stab 1./H.K.A.R.1245.
Stab II/Gren.Rgt.148.
5 x R668 casemates.
1 x R646
Water bunker.
1 x R657
Kitchen bunker.
1 x 658 Water bunker.
1 x R119
Battery commanders bunker.
1 x Vf.
3 x 2cm Flak 30.
StP Höhe 158,
4./H.K.A.B.1245. Flak.Abt.501.
4 x R689 casemates.
2 x R135/SK
Ammunition bunker.
1 x
SK/Maschinen.
10 x Feldm/B Stellen.
4 x 17cm K.18.
3 x 8.8cm Flak 18.
1 x 3.7cm S.K.C/30 Flak.
1 x Würzburg See Riese Fu.MO214.
StP Südostecke.
1 x Vf.
8 x R630 Machine gun casemates.
3 x R631
casemate for a 4.7cm Festungspak (t).
1 x R676
small casemate for a 4.7cm Festungspak (t).
1 x
R620 Machine gun casemate with forward apron.
2 x R680 casemate for 7.5cm Pak 40 gun.
1 x R612
casemate for an assault gun.
1 x 7.5cm FK guns.
2 x 4.7cm Pak K.36(t).
2 x 7.5cm Pak 40 gun.
StP Gruppe Mont St-Frieux.
NA
Information
Mont St-Frieux Complex.
Details

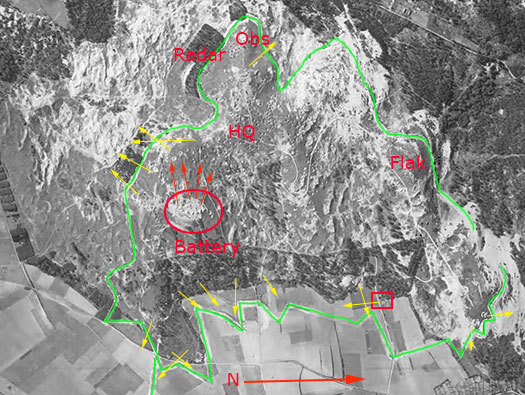

Bombing. The red square is where we visited so you can see how large the site is.
The area was heavily bombed from around D-day onwards.
The RAF used their Lancaster, Halifax's and Sterling force. The USAAF their Flying Fortresses and Liberates also both air forces used medium bombers as well.
Bombed bunker at Batterie Crisbeq in Normandy showing what bombing can do to a bunker.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
Mont St-Frieux Complex.
Details

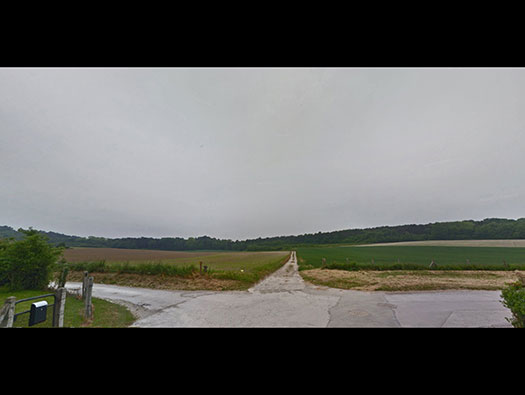

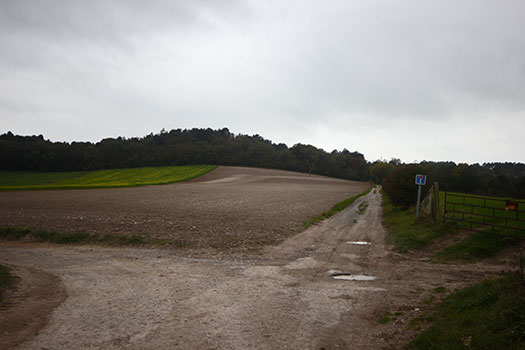

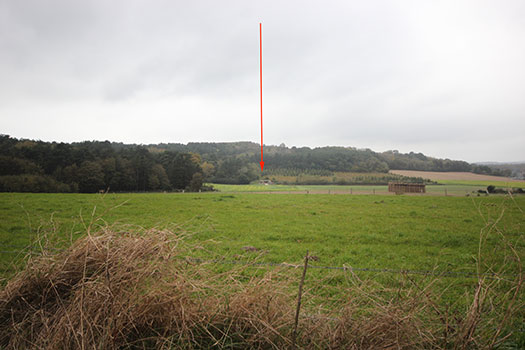

This is the road we drove up and Mont St-Frieux is the hill on the left side and Mont de Terre on the right. The R630 bunker is defending this way in.
Plan.
4 x R689 casemate for a 17cm K18 heavy artillery gun.
4 x 17cm K18 heavy artillery gun.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex

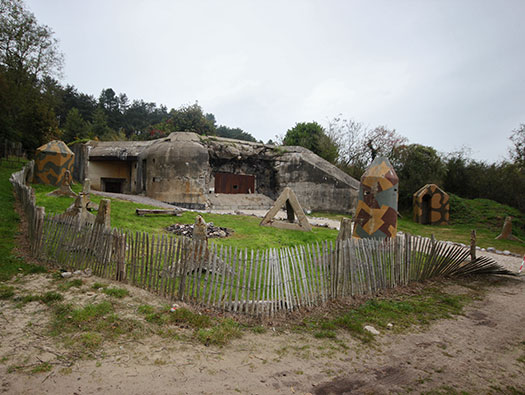

R630 machine gun casemate with an armoured plate.
Details
Here somebody has acquired many artefact from the area around St Frieux and also along the coast and made a small free museum.
Plan R630.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
Guard
Details

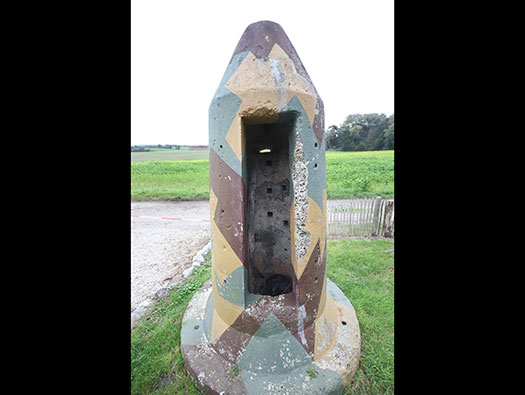

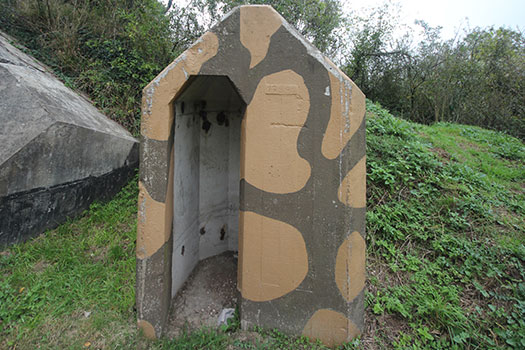

Einmannbunker Splitterschutzzellen.
A one man guard post that would protect the guard in an air-raid, he could duck inside. There would be just enough room for a wooden seat for him to sit on.
This type was made by the Todt organisation in France I believe.
Ein betoniertes Wachhüschen.
A concrete guard house.
The date it was made.
Check point.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
Guard
Details
Einmannbunker Splitterschutzzellen.
This model had a door again made of concrete and also could be bolted down on a ring of bolts to stop it being blown over by blast.
Sentry.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex

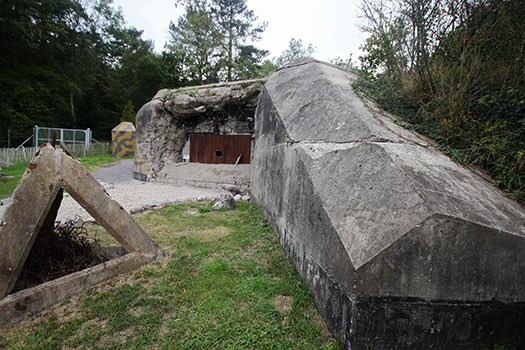

R630 casemate.
Details
The large flanking wall covering the embrasure from fire from on the right flank where an attacker may have advanced.
The flanking wall in action.
Rommel is inspecting beach defences.
Stripping a machine gun.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex

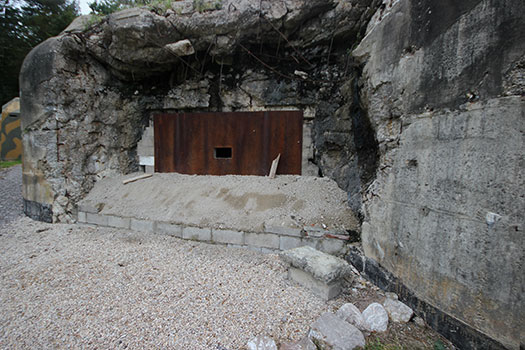

R630 casemate.
Details
Metal plate.
The metal plates were all removed post war as war reparations. The French government allowed all Mayors to scrap metal within their boundaries and use the moneys to help repair their war torn villages/towns.
Panzerschartenplatte is the red line set into the embrasure.
7P7 metal plate.
7P7 plan.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

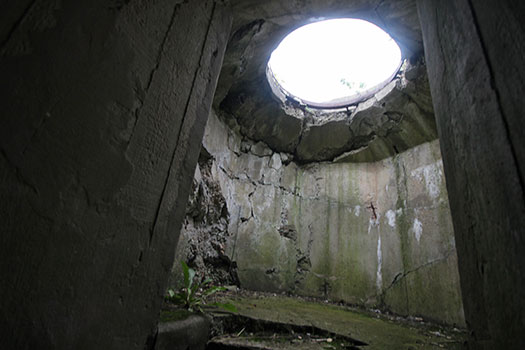

Tobruk steps.
Plan.
MG34 mounting for a Tobruk.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details
Tobruk defence.
Plan.
Tobruk used in the anti-aircraft role.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

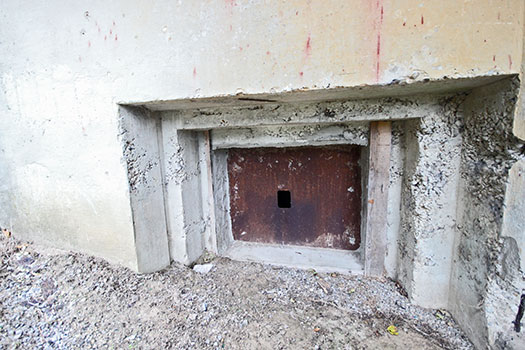

Close combat defence.
The metal plate has been removed and now replaced with a thin sheet.
Close combat embrasure.
442PO1 Close combat plate the type that may have been here.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details
R630 48/39.
48/39 is the bunkers number.
Plan.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

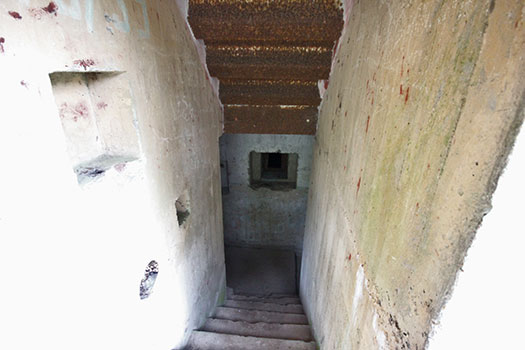

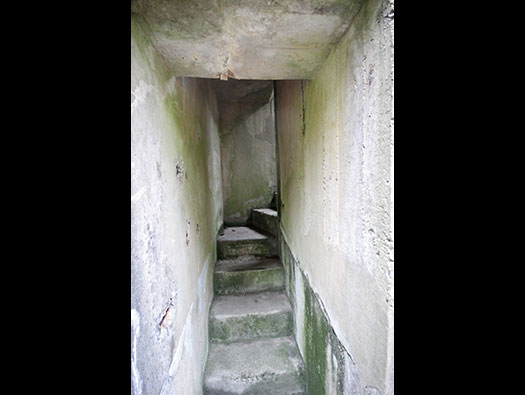

Steps down into the bunker.
Another close combat defence covering the entrance.
Plan.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

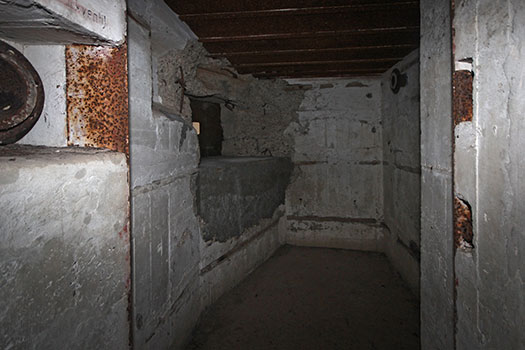

Close combat defence room.
Plan.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

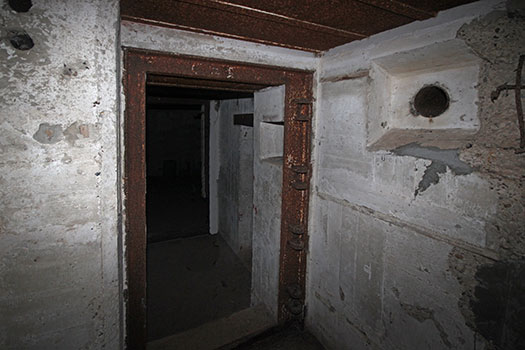

A 434P01 heavy steel double door fittings.
The close combat room was sealed off with a 434P01 heavy steel double door.
Plan.
A 434P01 door.
A 434P01 door with the top door open.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

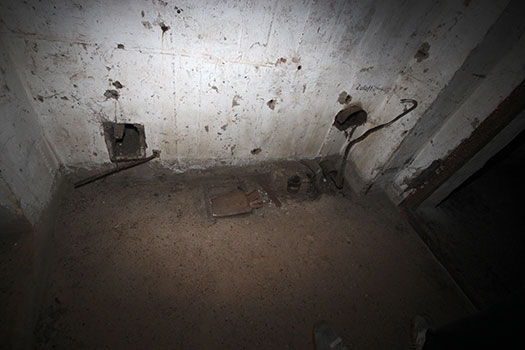

Command cables coming into the bunker connecting all the defence bunkers on the Mont so that a mutual defence between each bunker and the head quarters (Battle HQ?) could be run for their mutual support.
Armoured cable.
Bunker cable connections.
Layout of a bunker telephone.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details
Gas lock.
Plan.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

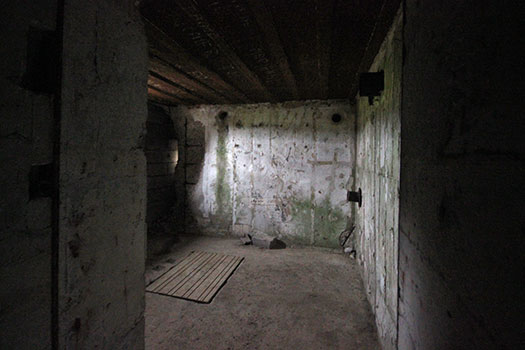

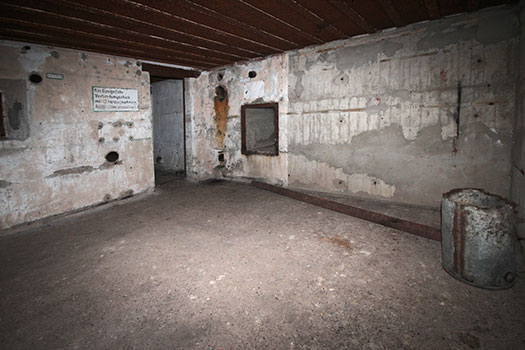

Crew room.
Here is where the crew of about six men would live. Note the different colours on the far wall.
On the left is the emergency escape. On the floor is a fresh air pipe.
Inside a bunker.
Bunks.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

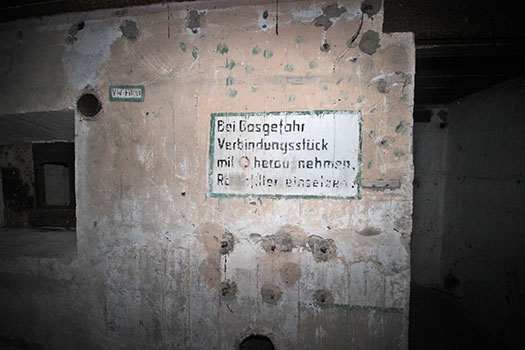

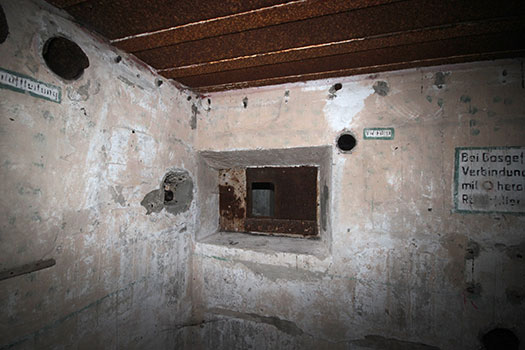

Bei Gasgefahr verbindungsstück mit O herousnehmen Ruumfilter einsetzen.
Not a very good translation but basically "In the event of a gas attack connect the rooms gas filter"
Anti gas pump in action.
Gas filters.
There were also a smoke
filter in-case of fire.
ALARM!!!!!
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details
Crew room.
Close combat covering the entrance stares.
Plan.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

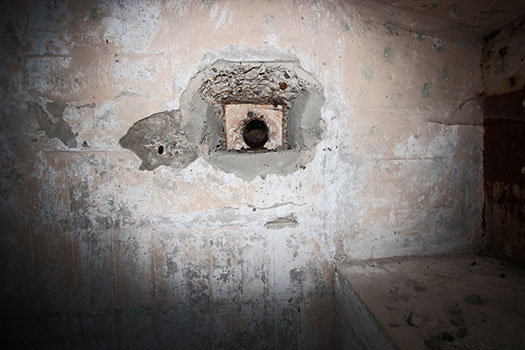

Possibly a speaking tube connected to the Tobruk.
Kampfraum - Battle Space (Tobruk) speaking tube was connected to the Tobruk defence via a pipe set into the concrete when it was built.
Sprachrohr (mouthpiece).
A sprachrohr (mouthpiece) set into a Tobruk.
Under construction.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

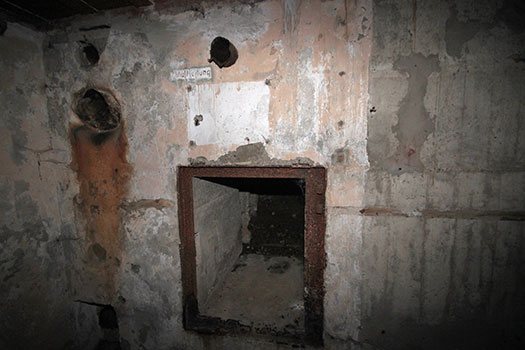

Crew room.
Escape tunnel.
Plan.
Shutters that closed off the escape.
410P9 escape door now removed.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

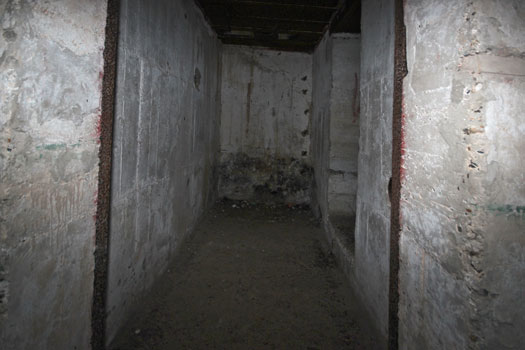

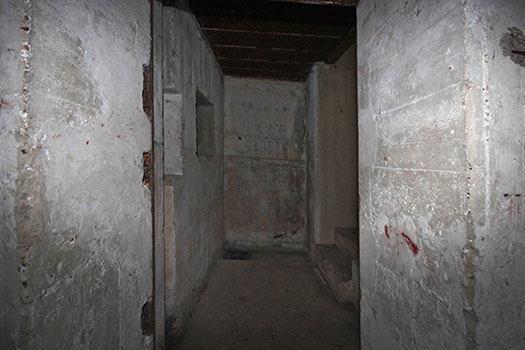

Ammunition room.
Also the passage to the gun room, it was where spare ammunition would be stored and also a periscope fitted to help spot for the machine-gun.
Pistol ammunition box.
Ammunition boxes for machine gun belts.
Mg34 tool kit.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details
The periscope hole.
The tube where the periscope fits through.
Bunker periscopes.
The view.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details
Periscope hole.
Almost managed to get the focus correct.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

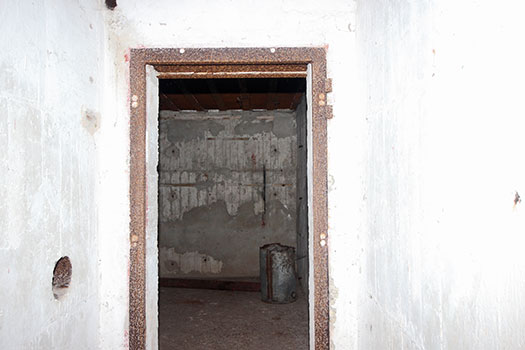

Gun room.
A 19P7 door was fitted here a thin steel gas tight model.
A 19P7 door.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details
The gun room.
Under attack this would be a very busy room.
Mg34.
Plan.
Crew of a bunkers gun in similar type of bunker.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details
Gun room.
The steel plate was removed at the end of the war but its now been bricked up
7P7 plate.
How it may have looked inside.
A closer look.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

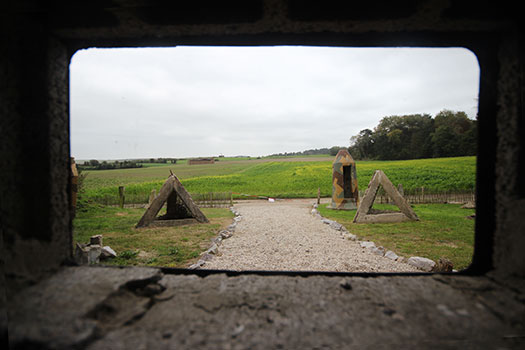

The view.
A large anti-tank ditch zig zagged through the fields from the far trees, across the front and off to the left side.
Plan.
Anti-tank ditch.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

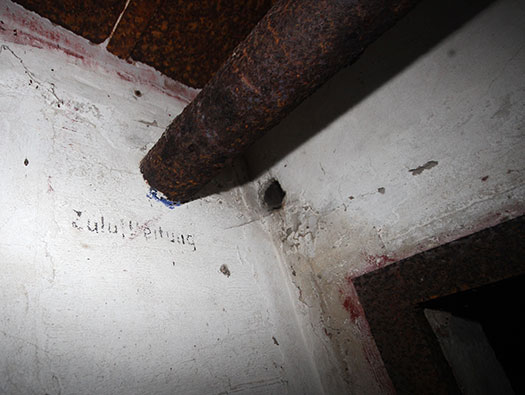

Zuluftleitung - Air supply.
Bringing in air from outside and being filtered by the hand turned filtration pump and then distributed around the bunker making the bunker slightly higher pressure stopping any ingress of gas that may be around and filtering the gases out.
Gas pump filter.
Gas mask and box that all German troops carried.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details
Crew room.
Where the crew lived with bunk beds hanging from the walls, a gas filter pump, a stove to keep them warm in winter and cupboards for their personal kit.
Bunker cupboards.
Crew.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R630 casemate.
Details

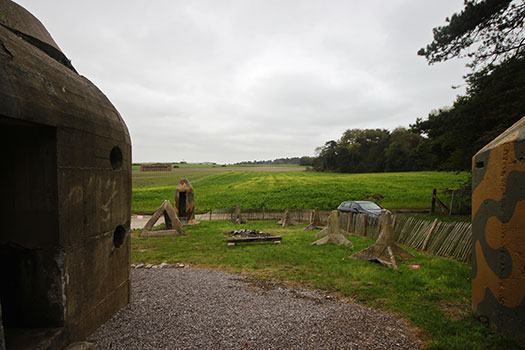

Moving outside.
Beach defences.
Beach defences.
Putting in beach defences. The infantry platoons in the beach side defences worked very hard putting items like this type and wooden posts topped with teller mines, etc.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
Details

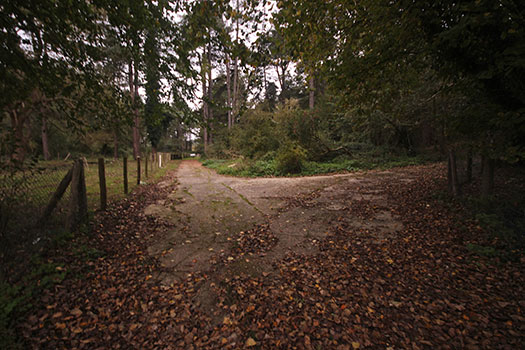

Concrete military road.
We did climb the fence and go inside. This area is strictly closed to the public and an area of hunting. Wild Boar roam freely as do wild Highland cattle. In the summer there are ticks.
This was Autumn so at least no Ticks. We should not have BUT well an old fool is always an old fool. We entered and found a couple of bunkers but then decided better to leave. It would be nice to have an arranged tour of the area run by a local historian. Perhaps one day.
Plan
The yellow roads on the plan are nearly all concrete roads probably built by the Todt organisation or even army engineers.
Todt workers.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
Details

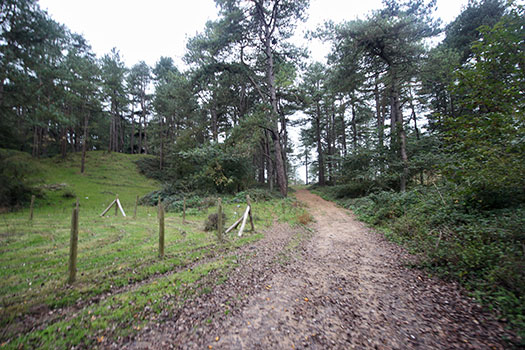

Continuing in on the Military road.
This is a beautiful area, full of wildlife and in the Autumn, Toadstools. This area is made up of large sand dunes now covered with a thin layer of grass and pine trees.
Delivering food.
Opel Blitz.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
Details

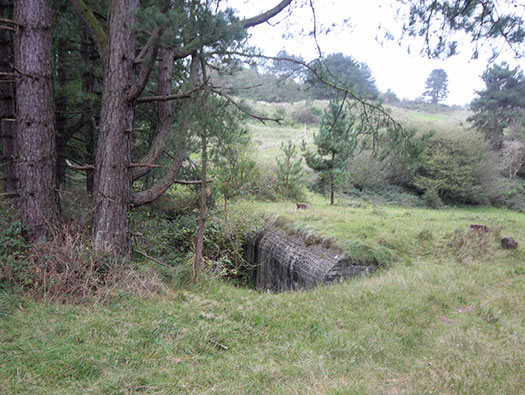

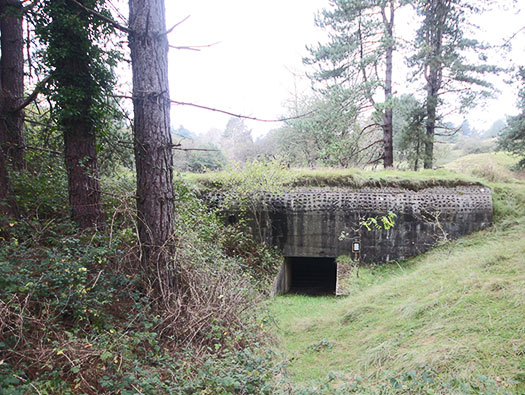

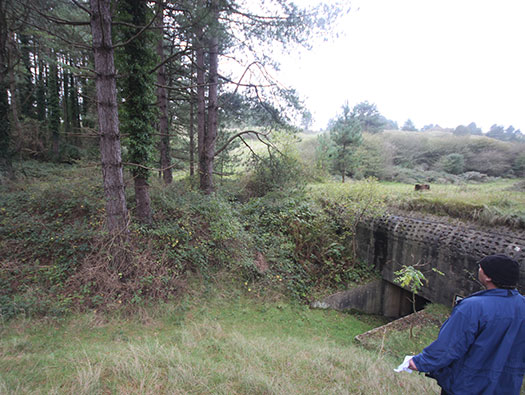

The first bunker that we found.
An R668 small six man bunker and may have a Tobruk? Numbered 60/50. The first bunker on the right of the road would be a Wellblech but we did not find it.
We started to enter the 668 BUT there was a awful smell.
Plan.
R668 plan.
Six men.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R657 field kitchen bunker.
Details

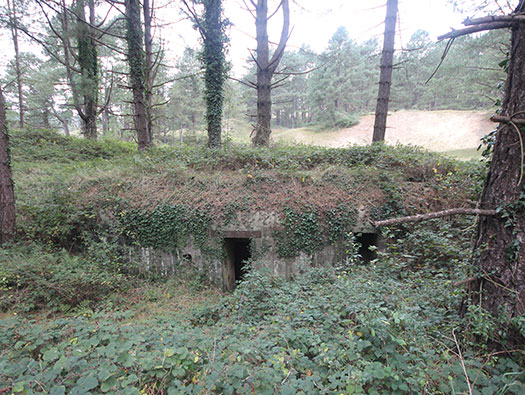

The next is a rare one for me an R657 56/59 a two kitchen bunker.
Again we did not enter and now I kick myself for not doing that as I have never seen inside one.
R657 a two kitchen bunker.
Clockwise: -
Crew room.
Ventilation.
Store.
Kitchen.
R657 field kitchen plan with the field kitchen in place.
Field kitchen being worked on..
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R657 field kitchen bunker.
Details
Two field kitchens could be wheeled in and their chimneys connected up and then potatoes peeled.
Store man.
He liked the food.
Spud peeling a soldiers main occupation before training and fighting.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
R657 field kitchen bunker.
Details
You cans see how many bunkers are just in this area.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
Details
Now we are heading south the R630 arrowed.
Between here and the R630 there was an anti-tank ditch zig zagging across the fields.
The green line is the anti-tank ditch.
Anti tank ditch on Omaha Beach.
This is the actual anti-tank ditch taken on a reconnaissance mission in 1944.
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
Details
This is another road onto the Mont.
The roads on the Mont.
R689 casemate camouflaged up on the hill..
StP Gruppe Mont St-Frieux.
23 October 2014
Information
StP Gruppe Mont St-Frieux Complex
Toadstool.
Details
France
Great Britain
