StP Ruin, Mont de Neufchâtel.


Information

StP Ruine, Mont de Neufchâtel, Neufchâtel-Hardelot. PART 1

Details

Batterie 6./A.R.149.
4 x 669 casemates.
4 x Stollen.
1 x R658.
4 Vf58c Tobruk's.
1 x Wellblech.
1 x Garage.
4 x Feldm.
4 x Geschützstellung.
1 x 5cm KwK ringstand.
1 x R119.
4 x 10cm le.F.H.14/19(t).
2 x 2cm Flak.
1 x 5cm KwK.
Stab II./A.R.149.
Plus: -
1 x R119.
1 x R609.
3 x R622.
2 x Zisterne.
Stab Gren.Rgt.148.


R669 casemate for field gun with a 60deg. field of fire.


10cm le.F.H.14/19(t).


Tobruk's.

StP Ruine, Mont de Neufchâtel.

Information

StP Ruine.

Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

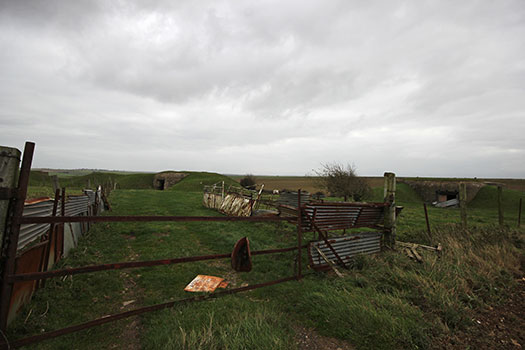

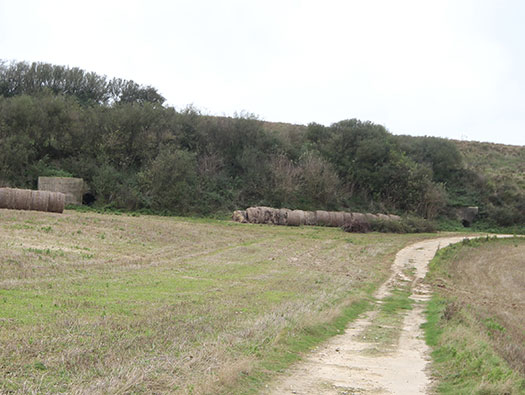

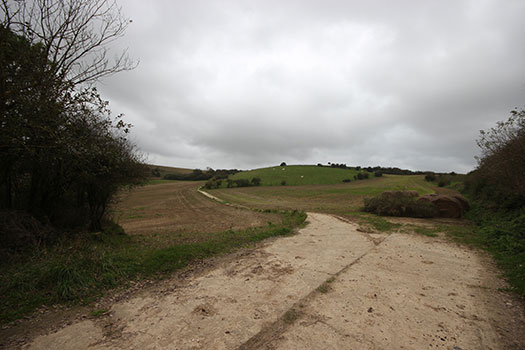

The track lading to the rear of the battery.

Details

Mont de Neufchâtel.


Plan.




StP Ruine, Mont de Neufchâtel.

1947

Information

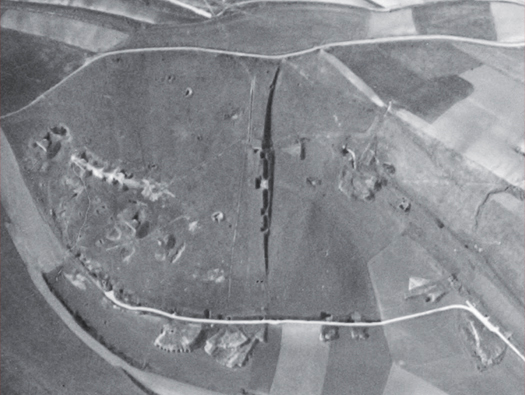

An RAF reconnaissance photo of the area.

Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Batterie 6./A.R.149.

Details

4 x 669 casemates.
4 x Geschützstellung.
4 x 10cm le.F.H.14/19(t).
2 x 2cm Flak.
Souterrain.


Plan.


2cm Flak.


10cm shell case.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

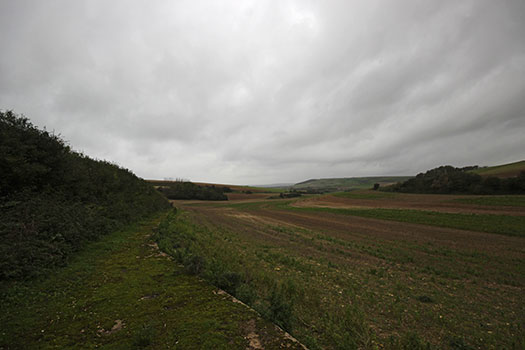

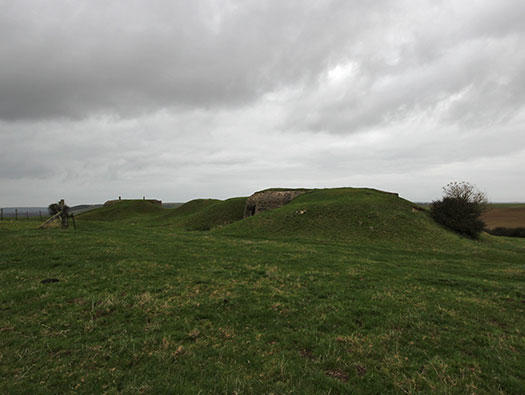

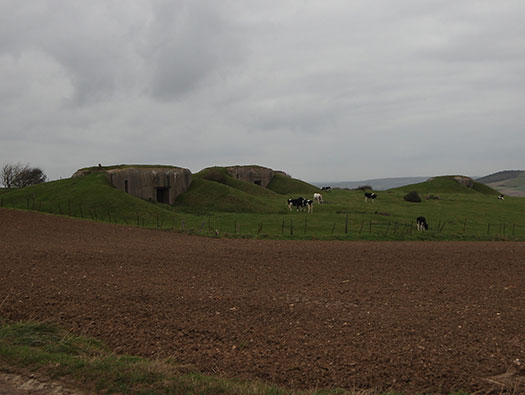

The gun line.

Details

This battery was always sighted just over the hill on the rearward slope, it had no direct firing positions. When the casemates were built, they were placed just in front of the old gun line.


Plan.




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

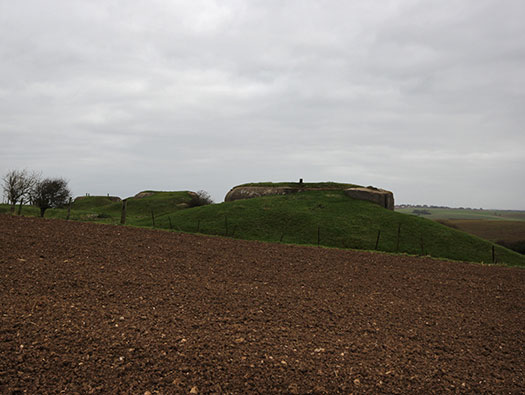

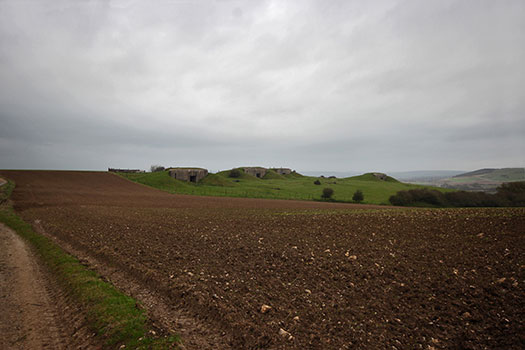

A side view of the battery.

Details









StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Direction of fire Mont St-Frieux.

Details

It covers the area around the Mont St-Frieux complex of batteries and bunkered head quarters and then the beach from St-Cecile Plage to Hardelot-Plage.




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The official entrance.

Details



StP Ruine, Mont de Neufchâtel.

Geoportail

Information

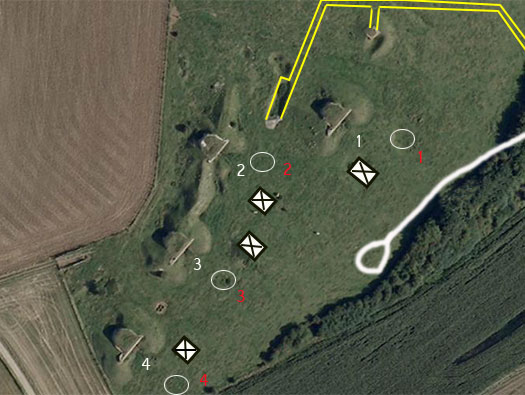

Air photo of the batterie.

Details

1 to 4 white - Casemates.
1 to 4 red - Geschützstellung, open gun emplacements.
4 x White squares - ammunition storage.
White road - the German concrete roadway (this part now removed).
Yellow lines - the souterrain (underground).

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Turm 4 an R669 casemate.

Details

Camouflaged and protected with earth piled up and over the casemate made it a harder target to see and thus a harder target to hit.


R669 casemate.


Air photo.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

A side view of the gun line.

Details









StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Turm 2.

Details

A very narrow embrasure and I am never sure what the large concrete block built into the side.


60deg R669.


This is the concrete bock from the inside.




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The view inside the embrasure.

Details

All these casemates have the same camouflage inside and out. We think that it maybe used as a test for noise deadening?


Close up of the camouflage.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Interesting shape set into the wall?

Details

It may be to take a different style of gun, one with a split trail?


Close up of the shape.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

This is where the gun would have sat.

Details

10cm le.F.H.14/19(t).




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The left ammunition niche.

Details

The left ammunition niche with the fan to remove smoke from the gun room.


Smoke extraction in an R669 casemate.





A casemate extractor fan.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

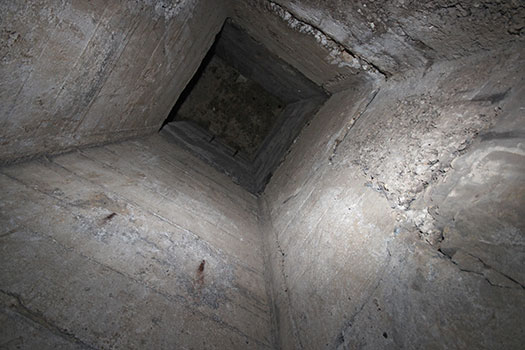

Vents in the roof.

Details

When the reinforcement bars are wired together, the pipes placed between them before the concrete is poured.




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

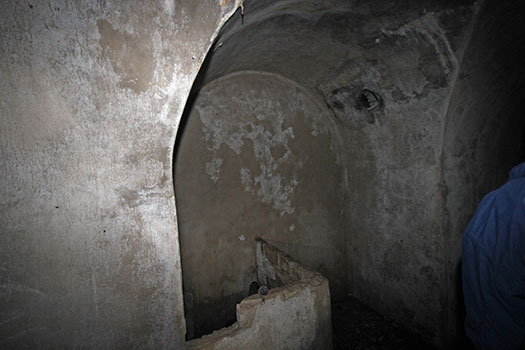

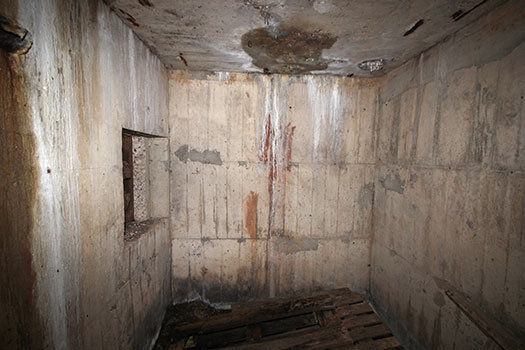

The second ammunition niche.

Details

The second niche in all these casemates seems to have a lower floor level. I have never seen this in any R669 casemate before.


Each artillery Battery held its ammunition in units of fire. I am not sure how much is in units of fire but I believe that batteries around D-day had about 3 to 4 units of fire and the rest was stored quite a way behind the initial battle area ready to be driven up to the gun line.


10cm ammunition.


Ammunition storage.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

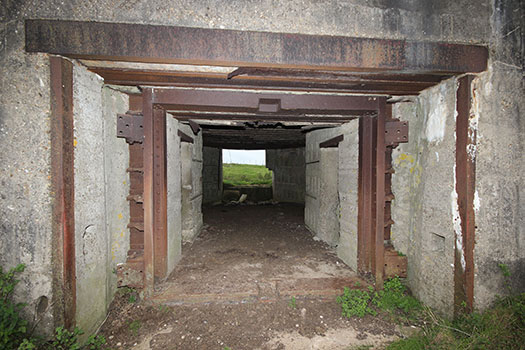

Rear door frames.

Details

All these casemates had rear doors but two are I think 494P2 and two completely different frames.


494P2 doors.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

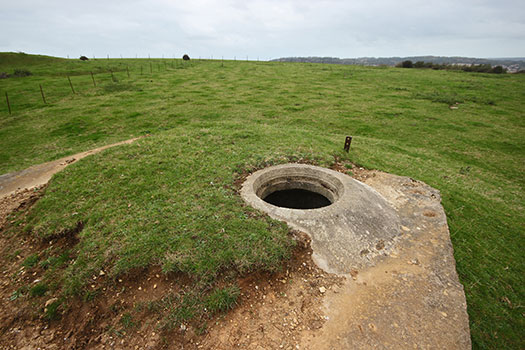

Steps into the Tobruk.

Details

I am quite broad shouldered and carry a bit of weight and I struggle to enter and leave these Tobruk's without hitting my head, I have always wondered how a fully armed and helmeted soldier could charge up or down these steps?







StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Inside the Tobruk.

Details

The two niches, one is for a voice pipe to connect with the inside, the larger one I am not sure.


Sprachrohr - mouth piece.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Looking up into the Tobruk.

Details




something here

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The view from the Tobruk.

Details

A 360 degree view around the battery.




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Could be a 2cm Flack field position.

Details

There were two 2cm Flak guns here.


2cm Flak.


Low level attack.


Low flying Hurricane bomber.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Geschützstellung.

Details

Behind each casemate is an open emplacement, Geschützstellung. These positions allowed a 360degree field of fire. But were vulnerable to air attack, so the guns were put into casemates.


How they may have looked.





Horse drawn artillery.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

A nice view of the rear of one of the R669 casemate.

Details

The Tobruk on the left side and camouflage set into the concrete.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

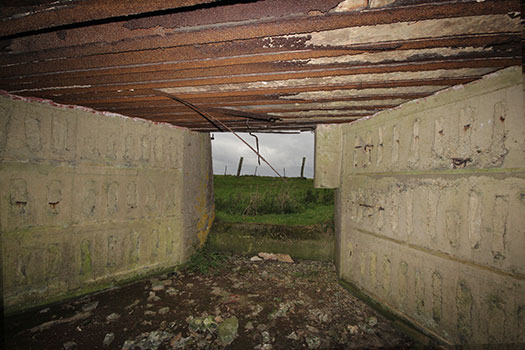

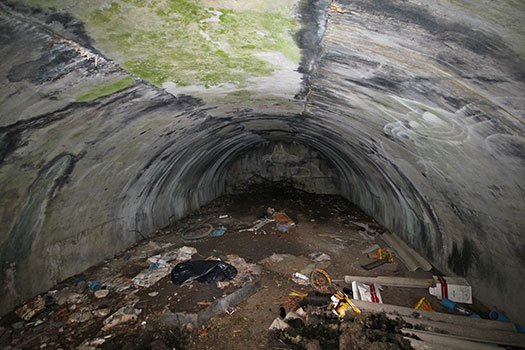

Close to each Geschützstellung is an ammunition store.

Details

It looks like a trench dug into the ground and a brick and concrete roof put over the top, Stollen. Self made probably by the batteries own soldiers.
Also a new found push-me-pull-you cow.








Cordite powder bags in their wooden box.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Eisenpfahel

Details

A shaped barbed wire support post called an Eisenpfahel and it has a flat plate base, so a hole is dug and the post is placed in and the hole filled and tamped down. Easier that banging into the ground and can be carried out very quietly so not disturbing an enemy.
The whole site would have been behind a defence of barbed wire and mines, if there were mines available.







StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

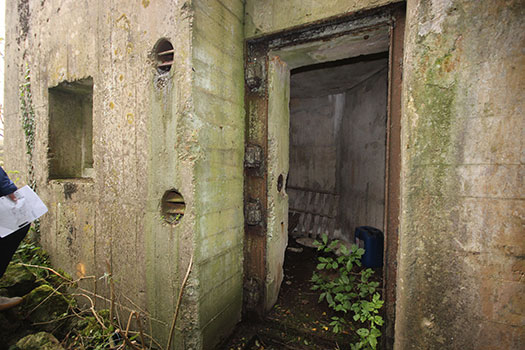

R669 casemate.

Details

Three casemates have Tobruk's. The round hole by the door is to allow the foul gases to be removed from the gun room via a fan extractor in the left hand ammunition niche.


The routes of the extraction pipes.


An extractor fan.




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

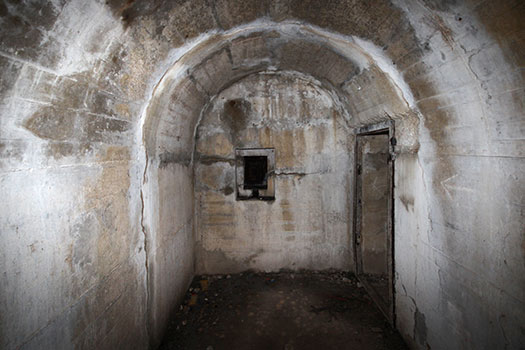

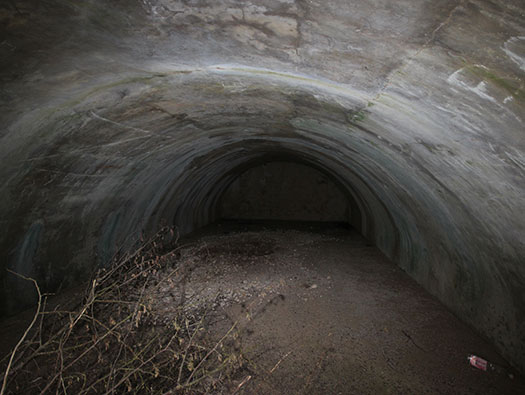

Inside another casemate.

Details









StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Camouflage.

Details

Why the camouflage was continued inside the casemate as well as outside, I have no idea. An explanation could be that an order came down to camouflage the walls and the builders did exactly what they were told. I do not know exactly how these shapes were produced so evenly, usually a cement bag would be screwed up into a ball and set into the concrete. But this is too even and must have taken quite a lot of working out.


Reichsarbeitsdienst.
These look to be RAD workers, boys too young to join the army and too old for school. So RAD was formed to use this ready made workforce in the construction industry.


Todt workers. Todt a private company built many of the German wartime buildings and infrastructure.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Rear door frame.

Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

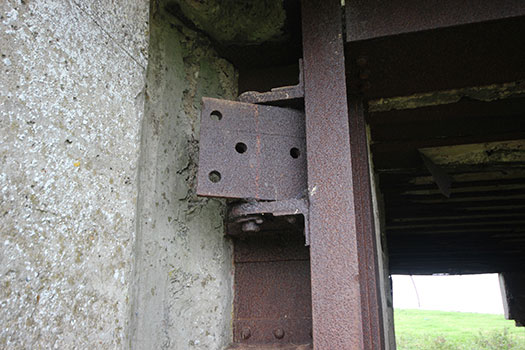

Door hinge.

Details

Note the hinge pin has a bolt to stop the removal of the pin.


494P2 doors.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

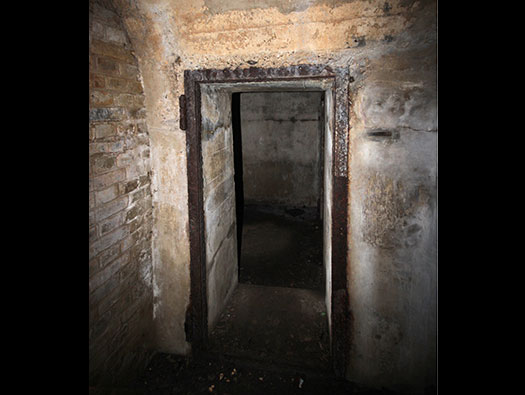

Another completely different door frame.

Details

There must have had several different door frames of the correct size in the stores. At Merville Wn01 the gunners were told to open the doors when firing the gun.


Achtung!
Consider when shooting.
1. If suction for exhaust is inserted switch it on.
2. When shooting keep doors open.
3. Throw cases immediately into the case-pit or remove them out of the room.
4. If smoke is in the fighting-room use gas mask with CO filter.
This is stenciled on the walls of a battery of R669 casemates in Brittany at Mo86c.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Door hinge.

Details

Note the hinge pin has a bolt to stop the removal of the pin.


Door fittings.


I have found this picture of a casemate door that may have fitted here.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Door hinge.

Details

Note the hinge pin has a bolt to stop the removal of the pin.


Door fittings.


I have found this picture of a casemate door that may have fitted here.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Nice grading of the earth.

Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Note the pieces of concrete to hold the earth and grass on the top bunker.

Details

Another first here to see these concrete pieces to hold the earth and grass on the roof.




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The gun line.

Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

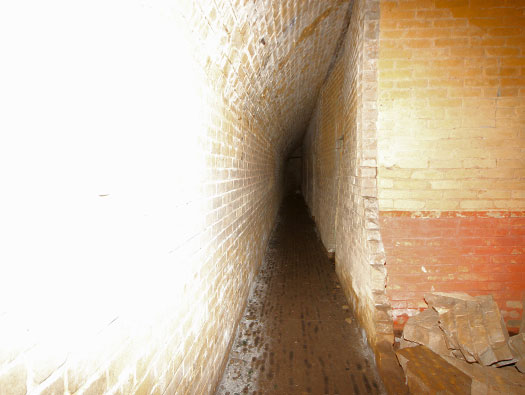

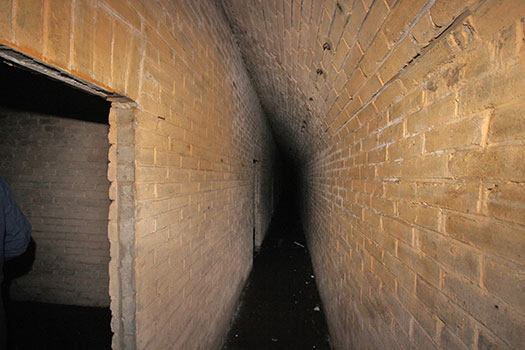

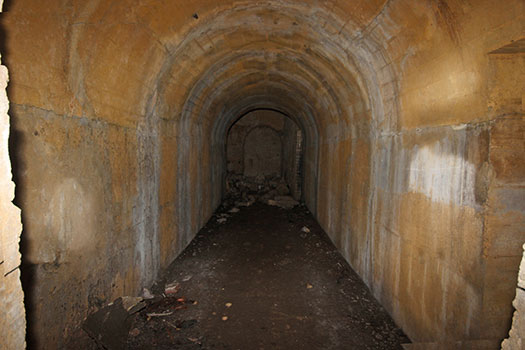

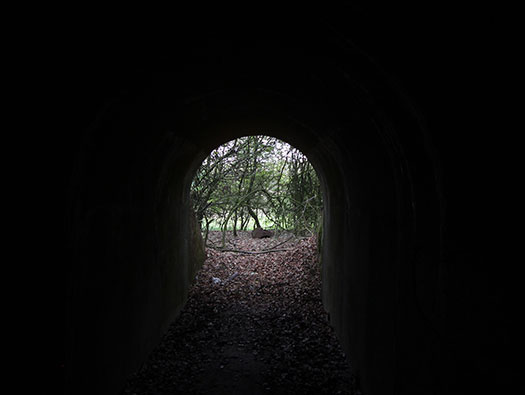

Souterrain, tunnel system No.3.

Details

The entrance into a tunnel system that runs down to the valley.


Plan.


Tunnel system No.3 plan.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

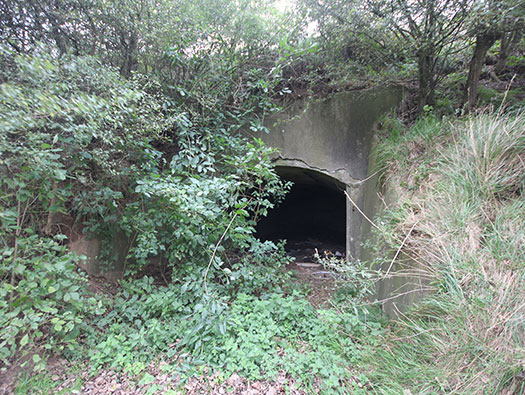

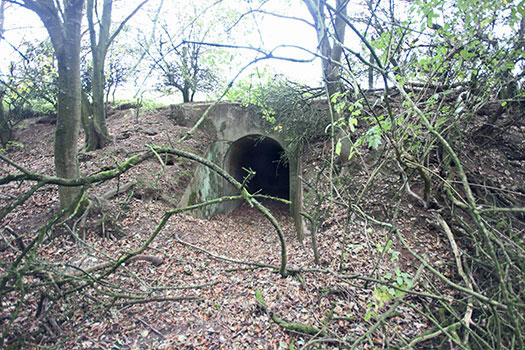

The nicely earth camouflaged entrance.

Details




Note the hooks over the entrance for a camouflage net.


Tunnel system No.3 plan.




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The entrance is blocked to us humans but open to Bats.

Details

Steps going down a long way.





Tunnel system No.3. Its the yellow line..

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Sitting on the top is an attached Tobruk.

Details

This Tobruk protects the tunnel system and can be used in local defence and anti-aircraft role.


Tobruk.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Tobruk.

Details

A heavy piece of steel sticking out of the concrete, I am not sure what it was for.


Its a piece of railway line.


something here




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

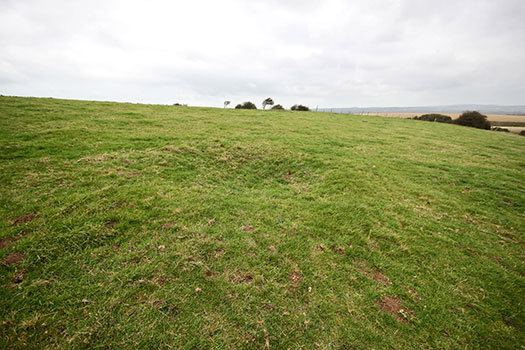

Bomb crater.

Details

The whole area around here was bombed heavily throughout the latter part of the war.


Bombing of Berck Plage.


Marauder bombing.


Lancaster bomber stream.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

There was a bunker or part of the tunnel system No.3.

Details

An area defence Tobruk is behind it.


Tunnel system No.3 plan.


'Alarm!'




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Eisenpfahel barbed wire post.

Details

This whole area would have been wired off from outside.





The top of the Eisenpfahel.


Mines that were removed from another defence.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Eisenpfahel.

Details

This is upside down, as you see it has a flat plate riveted on. This means you dig a hole, place it in and then fill in and tamp down and can be carried out quietly.
The other reason it could be like this is to sit a lamp on it shining in one direction so the enemy cannot see it.


Bunker lamp.


something here




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The German concrete military road under the grass.

Details




The yellow line is the roadway.


This is where the road ends In a circle to drop off ammunition. White road.


Wagon delivering supplies.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

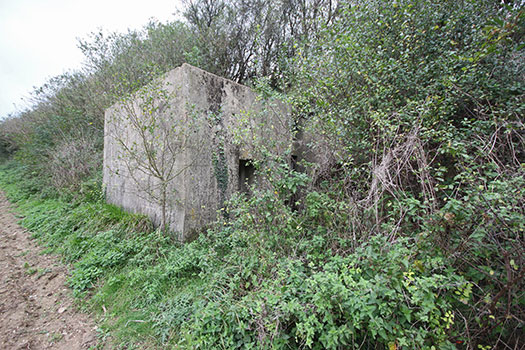

A small building in the bushes.

Details

Built with local French bricks.


Plan where this Abri is situated.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The front with a blast wall.

Details

Possibly a battery office where all the paperwork was done?


Officer at work.


Plan.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

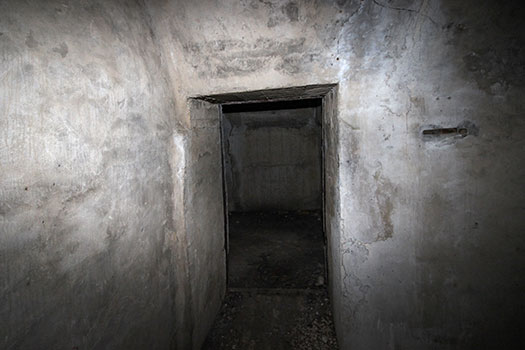

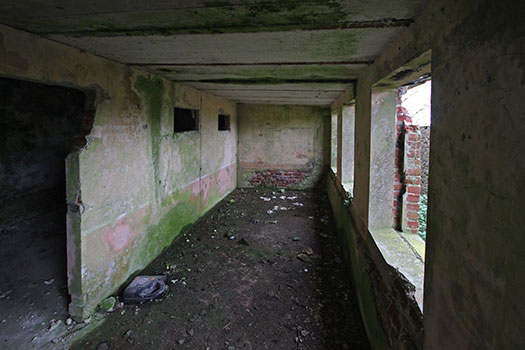

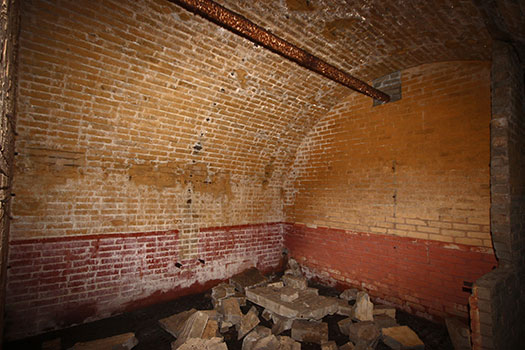

The inside at the front.

Details

Note the white pained dado line and pink underneath.


Plan.




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

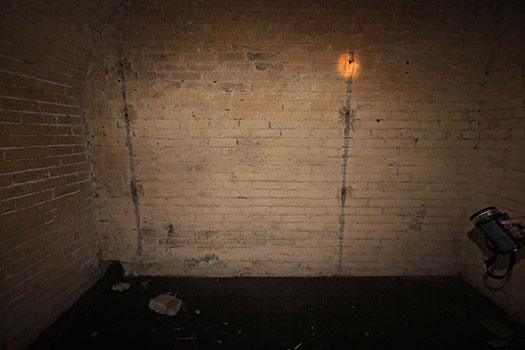

Inside at the rear.

Details

This would be quite a dark room with only small windows.


Plan.


Funk room.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

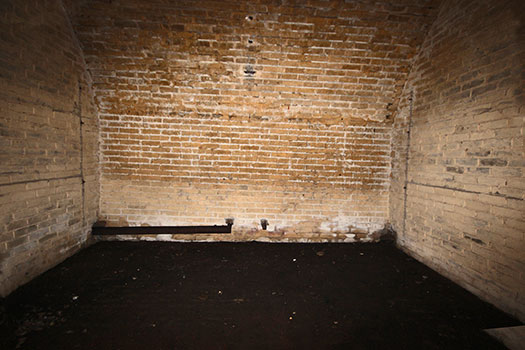

And one large room.

Details




Plan.




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The first entrance to this tunnel system No. 2.

Details

This is the right hand entrance and on the right above should be a Tobruk.


Plan of the tunnel No. 2.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

This is inside and a Bat heaven.

Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The view over the wall.

Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Looking out.

Details




Plan of tunnel No. 2..

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

This is the second entrance and hard to clamber through to get in.

Details

something here


Plan of tunnel No. 2.






StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Looking inside.

Details




something here

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

This is looking up, an escape hatch or a way to a defence Tobruk??

Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Looking back.

Details

I think this tunnel system is very like the next one that we entered.


Tunnel system No. 2.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The military road.

Details




Plan.


Opel Blitz wagon.


Kubelwagen.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Looking across the valley.

Details

Above the straw bales you can see a square piece of concrete and that is the next set of tunnels. The trees are where the rubble removed from the tunnels and dumped there. The trees have subsequently grown up there.


Plan.







StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Straight in front is the second tunnel.

Details

Its two entrances and continuing on the road to the right are two more small garage tunnels.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The roadway coming in.

Details

The woodland on the right is the spoil heaps from the tunnels.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The first garage tunnel.

Details




Plan.


Could be the staff car garage of the battery commander.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The inside.

Details

Probably for the commanders car.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The second garage.

Details




Plan.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The inside.

Details

These two tunnels are slightly different? this one is more rounded.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The view from the last garage.

Details

Looking back up the valley with the roadway running off with the battery on the hill.


Plan.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

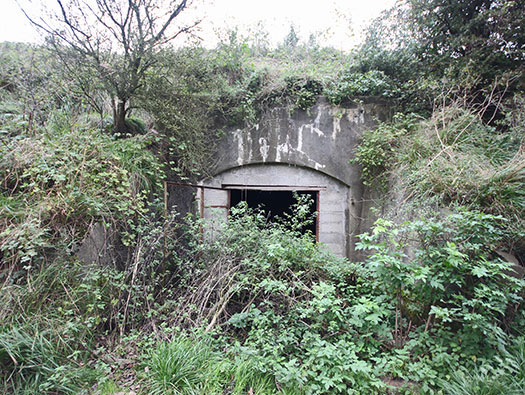

Tunnel No.1 the second entrance now blocked off.

Details

There was or is a Tobruk defence to the right and above the entrance. We did not find this one.


Plan of tunnel No.1.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Tunnel No.1 the first entrance defended.

Details

A large defence block at this entrance, this was the main entrance and would have been a guard room where soldiers entering and exiting would sign in and out.


Plan.


Plan not to any scale.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

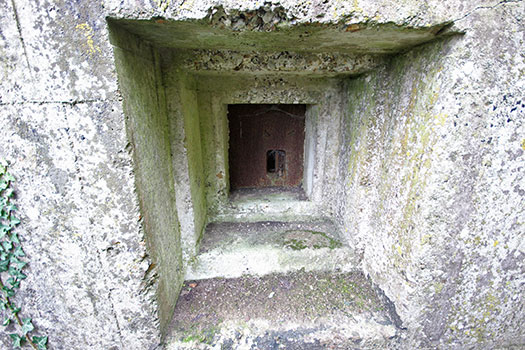

Close combat window.

Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Close combat/guard room.

Details

Make sure you sign in when you enter and out when you leave.


Plan tunnel No.1.


Close combat window machine gun.


There would be a table in the room where all the soldier records would be kept making sure that they were booked in and out of their accommodation.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Close combat and guard room.

Details




The close combat embrasure.


A 48P8 embrasure.




StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Continuing into the tunnel

Details

Tunnel No.1 was accommodation for (we think) 80 fully equip troops. Ten rooms for eight men.


Plan tunnel No.1.







StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

A second line defence.

Details

A second line defence with another close combat window and a chicane entrance. This probably would not be manned unless there was an emergency and any of the soldiers inside could man it.


Plan tunnel No.1.


something here

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Going through the chicane entrance.

Details




Plan tunnel No.1.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

A 19P7 door entrance.

Details

A gas tight thin steel door.


Plan of a 19P7 door.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Close combat room.

Details




Plan tunnel No.1.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Continuing into the tunnel.

Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

This may have been a water cistern or a stove.

Details

There is a stove pipe going out of the wall.


Plan tunnel No.1.


A WT80 Stove.


Stove.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

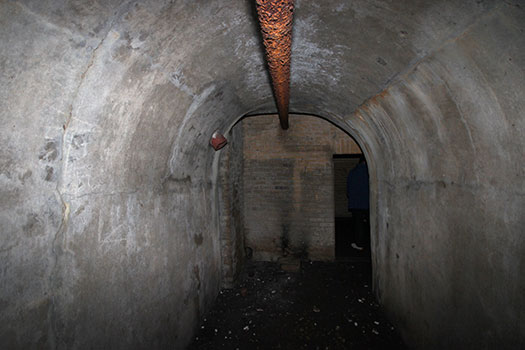

Exhaust pipe.

Details

There is electrics inside the tunnel as we have seen cable fittings on the walls. We think this is part of an exhaust pipe for a generator that would have been at the far end of the tunnel as this pipe runs right through. It also may help with heating? In a small way.


A small generator set.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Continuing to the end.

Details




Plan tunnel No.1.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

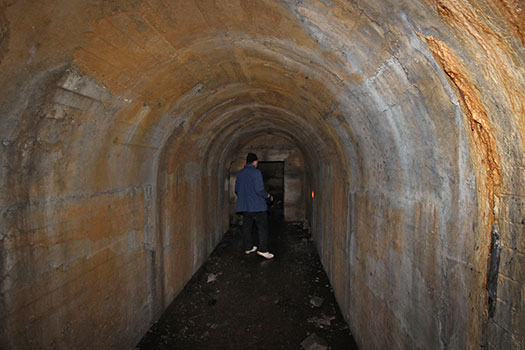

The view down the main accommodation tunnel.

Details

There are ten rooms along here, all may have had a wooden door.


Plan of tunnel No.1.





Replacements.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Accommodation room.

Details

We counted four bunks each side. The pipe on the far wall may have been a fresh air ventilation system.


Plan tunnel No.1.







StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The four bunk fittings.

Details

Four bunks on each end wall.


How it may have looked with the thin brick wall and a set of bunks bolted to the wall on both sides and then a chain holding the other side to the roof. They may have had a standard wooden cupboard for each soldier to store all his kit.


Beds in storage.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The floor has a thermoplastic tiles.

Details

This would be a warmer floor than just concrete.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The far few rooms were painted.

Details

You can see the exhaust pipe running through and clips on the wall for lighting.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

The last one has been demolished???

Details

The recess in the end wall I think is where the generator sat.


Plan tunnel No1.


Generator.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

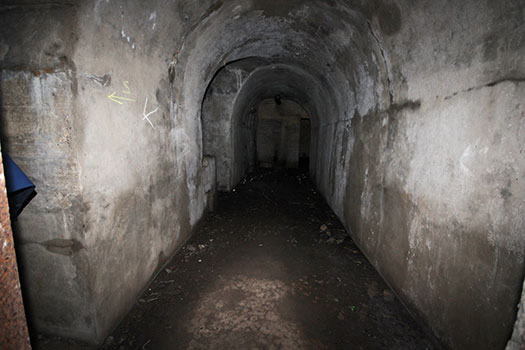

Now walking along the second exit.

Details




Plan tunnel No.1.


Lighting cable clips.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information



Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

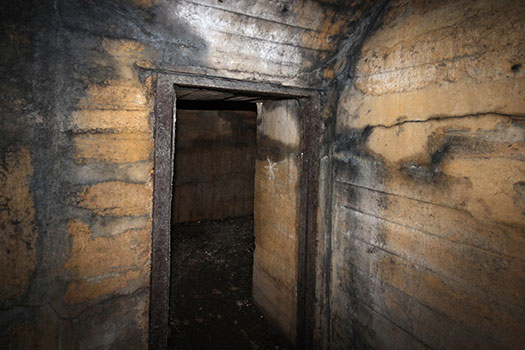

Another 19P7 door entrance.

Details

19P7 door had a small glass pain in it so you could see what was on the other-side and a rubber seal around the edge to seal against gas.


A 19P7 door.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information



Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Close combat room.

Details

483p2 type.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

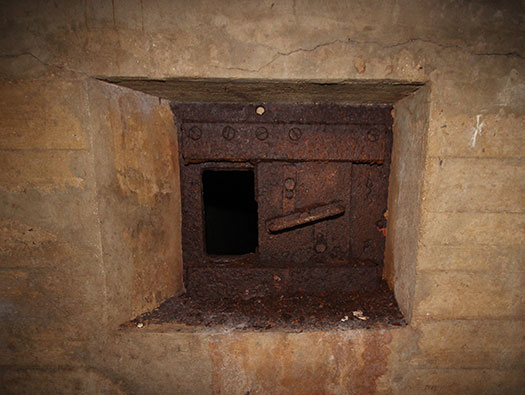

483P2 embrasure.

Details






StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

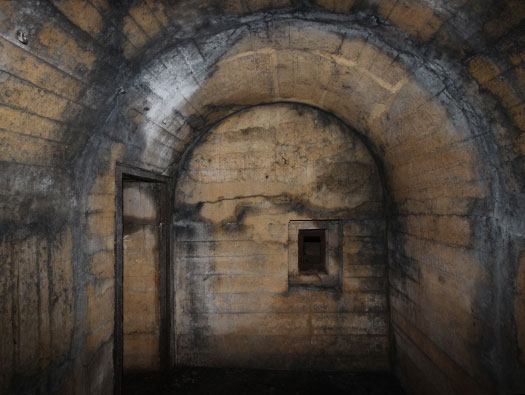

looking back at the chicane and the close combat embrasure.

Details



StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

And onwards and out - but its closed off.

Details

something here


something here

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

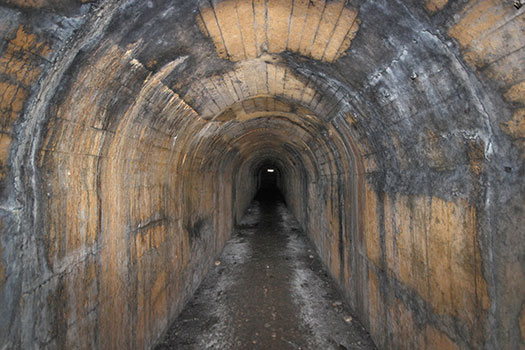

Looking back along the accommodation.

Details




something here

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

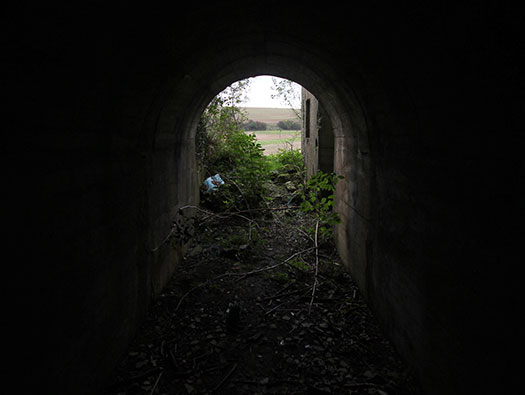

Way out.

Details




something here

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

Looking up the valley

Details

The next items are in the bushes on the far right.

StP Ruine, Mont de Neufchâtel.

23 October 2014

Information

This is the end of PART 1.

Details



StP Ruine, Mont de Neufchâtel.


Information

Part 2 will be the bunkers on the hill.
Click here to continue.

Details
