StP Cucq Kinderheim


Information

StP Cucq Kinderheim.

Details

Batterie 8./A.R.149.
2 x R669.
4 x Geschützstellung (ringstands).
1 x Wellblech.
2 x Feldm.
2 x 2cm Flak 30.
4 x 15.5cm s.F.H.414(f).


R669 casemate for field gun.


15.5cm s.F.H.414(f).


The four ringstands and two casemates.

StP Cucq Kinderheim

Information

StP Cucq Kinderheim.

Details

Avenue De Menton.

StP Cucq Kinderheim

NA

Information

StP Cucq Kinderheim.

Details

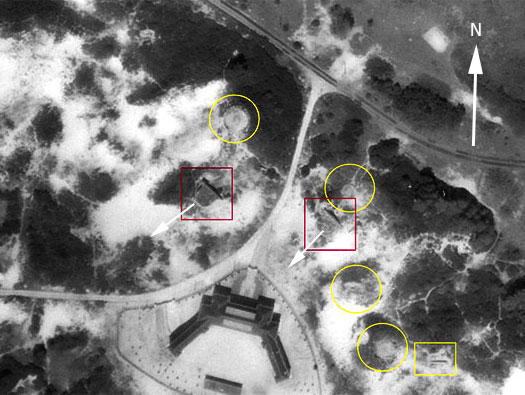

4 x Geschützstellung with 2 x casemates.
Turm 1 & 4 are geschützstellung and Turm 1 & 2 casemated.
The yellow square looks to be one of the other bunkers that we did not find.
The large building was built after the war and has now been completely removed and a new housing estate fills the space.


1 geschützstellung has been destroyed.




StP Cucq Kinderheim

NA

Information

Turm 1.

Details

The first geschützstellung on the top of a sand dune as all these emplacements are. This one it is hard to see any ammunition magazines around the turntable but there is a path that may lead into an ammunition store underneath? I think Turm1 has now completely been removed as I cannot find it anywhere.





Geschützstellung.

StP Cucq Kinderheim

23 February 2014

Information

Turm 1 & 2.

Details

R669 casemates for field guns but only with a 60deg. angle of firing


60deg. angle of fire.


15.5cm s.F.H.414(f).

StP Cucq Kinderheim

23 February 2014

Information

Turm 1 casemate.

Details

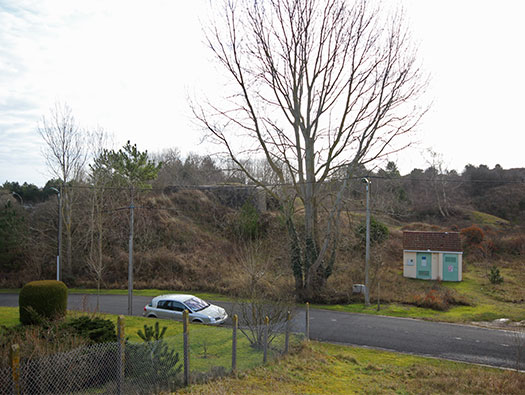

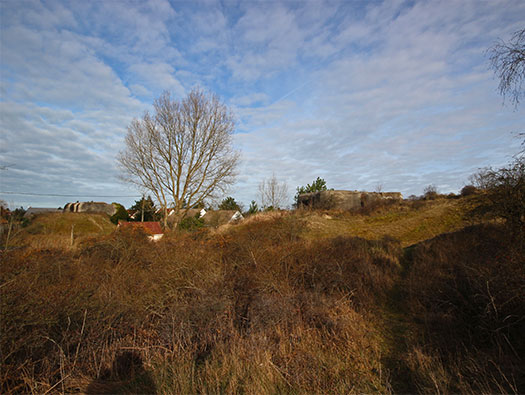

As you can see they were all built on sand dunes.

StP Cucq Kinderheim

23 February 2014

Information

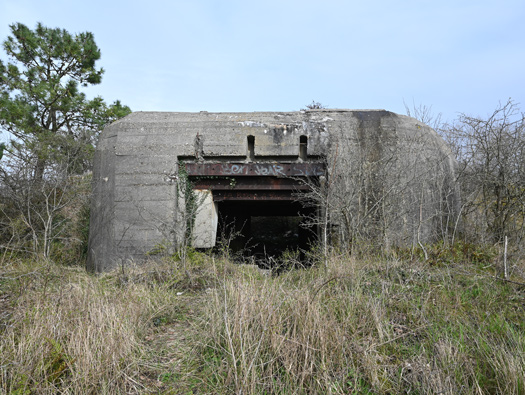

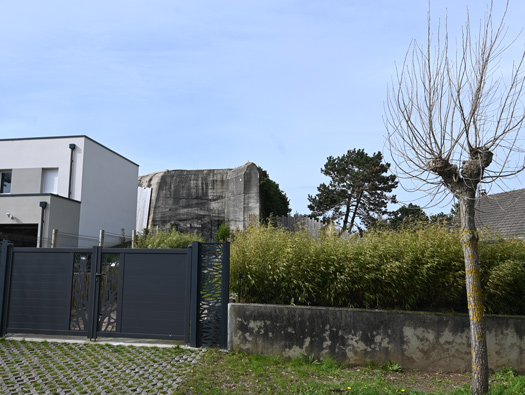

Turm 1 R669 casemate.

Details

The extended flank allowing earth (sand here) can be built up the sides as a camouflage and extra protection from attack.
Also the hooks made by not cutting off the square mesh steel reinforcement and bent over so the nets could be hooked on.


R669 showing the earth banked up around its sides.


Steel reinforcement.


Rolling down nets off a bunker.

StP Cucq Kinderheim

23 February 2014

Information

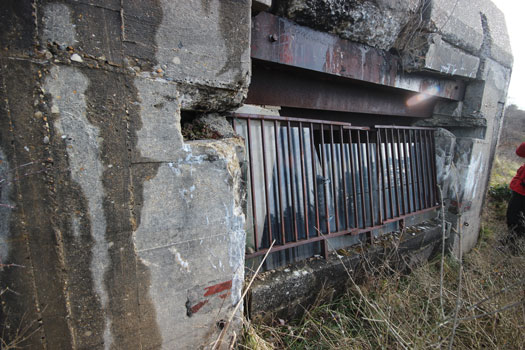

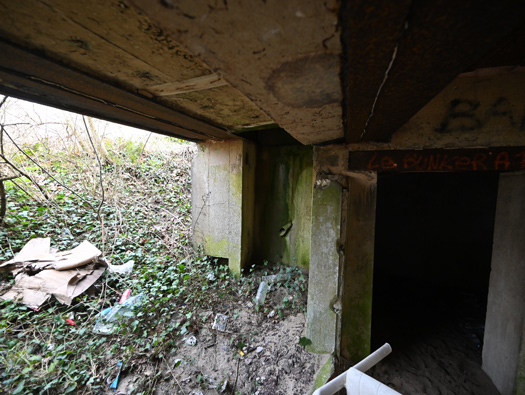

Turm 1 R669 casemate embrasure.

Details

This one is used by the householders as a store.





These two batteries cover the beach area between Stella and Merlimont.

StP Cucq Kinderheim

23 February 2014

Information

Turm 1 R669 casemate.

Details

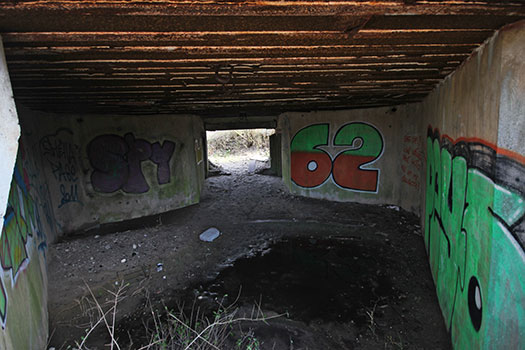

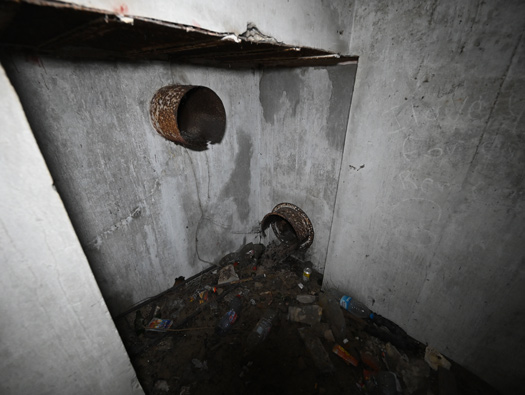

Looking into the gun room. You can see the half round slot to allow the guns trail to sit in.


Artillery trails.

StP Cucq Kinderheim

23 February 2014

Information

Turm 2 R669 casemate.

Details

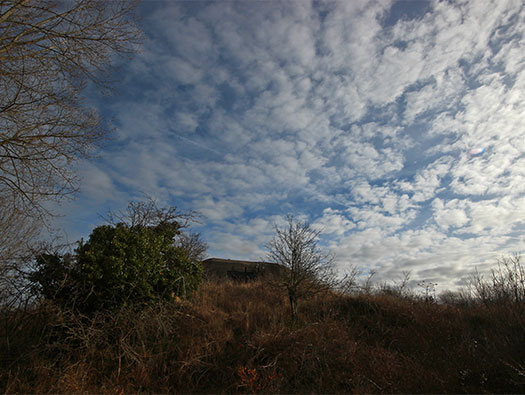

Sitting on the top of another sand dune.


Plan.


Field kitchen.




StP Cucq Kinderheim

23 February 2014

Information

Turm 2 R669 casemate.

Details



StP Cucq Kinderheim

23 February 2014

Information

Turm 2 R669 casemate.

Details

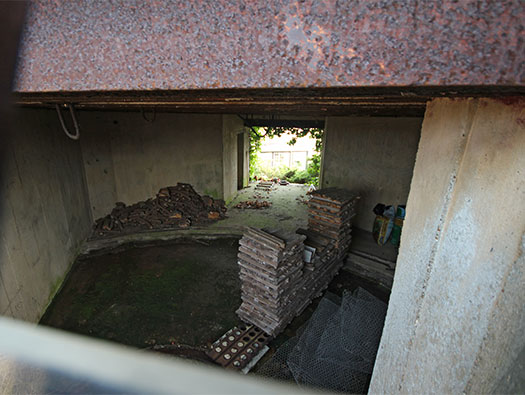

Looking down into the casemate.

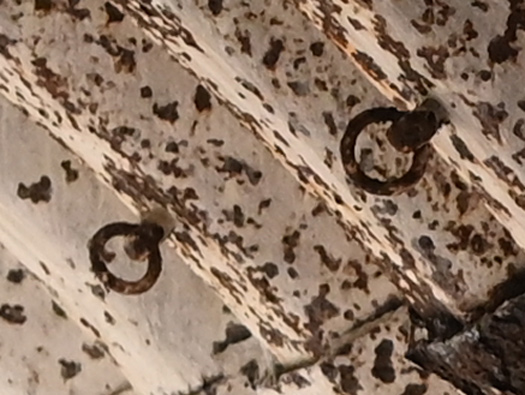

Telephone wire Insulators set into one of the door fittings.


Close up this maybe post war or wartime?


Telephone pole insulators.

StP Cucq Kinderheim

23 February 2014

Information

Turm 2 R669 gun room.

Details






StP Cucq Kinderheim

23 February 2014

Information

Turm 2 R669 gun room.

Details

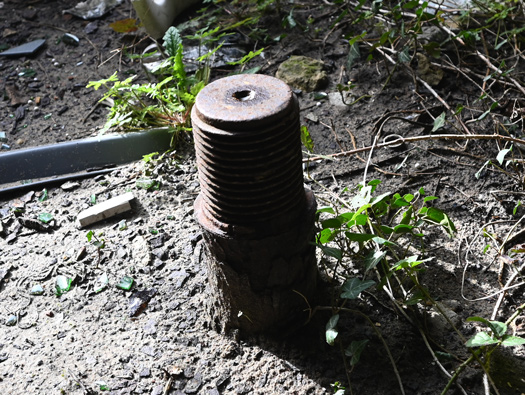

You can see threaded stud sticking up.


The stud on Turm 4.


This is a gun sitting on a type of turntable that may have been used here.


Turntable.

StP Cucq Kinderheim

23 February 2014

Information

R669 Turm 2.

Details

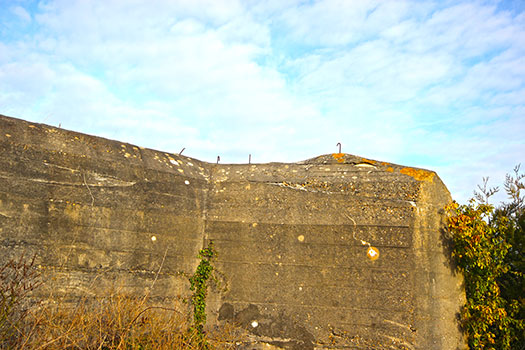

Note the pieces of concrete sticking up on the bunkers roof, that is to stop the sand piled on the roof an grass grown on it from blowing/sliding off.


Casemate with grass camouflage on the roof.

StP Cucq Kinderheim

23 February 2014

Information

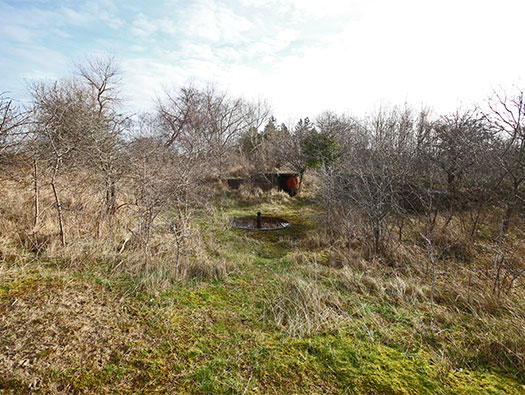

Turm 3 Geschützstellung.

Details

The third open emplacement on the next sand dune with ammunition magazines built around it.


Ringstand plan.




StP Cucq Kinderheim

23 February 2014

Information

Turm 3 Geschützstellung.

Details

The turntable stud.


Turntable.


Turntable.

StP Cucq Kinderheim

23 February 2014

Information

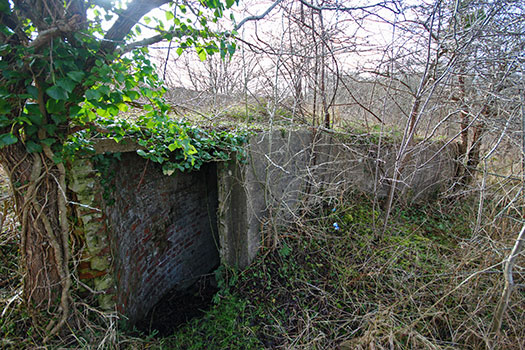

Turm 3 ammunition magazine.

Details

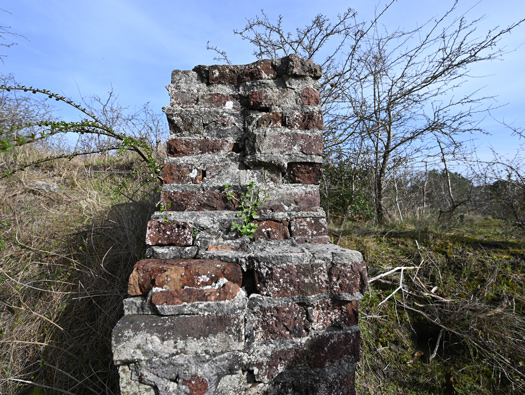

This one is made of red brick possibly taken from French brick stocks in the area.


StP Cucq Kinderheim

23 February 2014

Information

Turm 3 ammunition magazine.

Details






StP Cucq Kinderheim

23 February 2014

Information

Turm 3 ammunition magazine.

Details

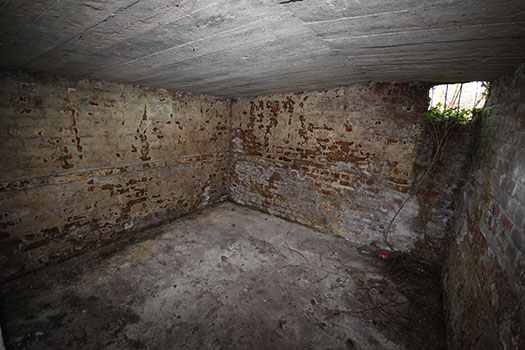

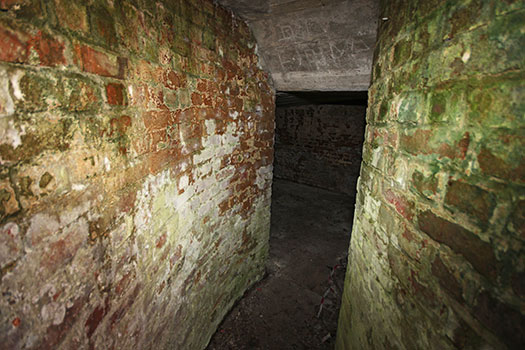

Inside the magazine.







StP Cucq Kinderheim

23 February 2014

Information

Turm 3 ammunition magazine.

Details

Way out.


2cm Flak 30.


Dragging a gun up a sand dune.

StP Cucq Kinderheim

23 February 2014

Information

Turm 4.

Details




Plan.


Plan.

StP Cucq Kinderheim

23 February 2014

Information

Turm 4 Geschützstellung.

Details

This is very overgrown.





15.5cm s.F.H.414(f).

StP Cucq Kinderheim

23 February 2014

Information

Turm 4 Geschützstellung.

Details

The turntable stud.

StP Cucq Kinderheim

23 February 2014

Information

Turm 4 Geschützstellung.

Details

The turntable stud.

StP Cucq Kinderheim

23 February 2014

Information

Turm 4 Geschützstellung.

Details

Concrete ammunition magazines very badly damaged.
