Alderney, M3 StP Josephsburg, Fort Grosnez

Details

Alderney a small island off the coast of the Cherbourg Peninsular one of the Channel Islands and a Crown dependency. 3miles x 1.5miles.
In June 1940 its entire population was removed and sent to either the other Channel islands or to Britain (most ended up in Glasgow). Then the German occupation forces arrived on the 2nd July. Hitler thinking that the British would attempt at recapturing, ordered it to become a Festung and later combined into the Atlantikwall.

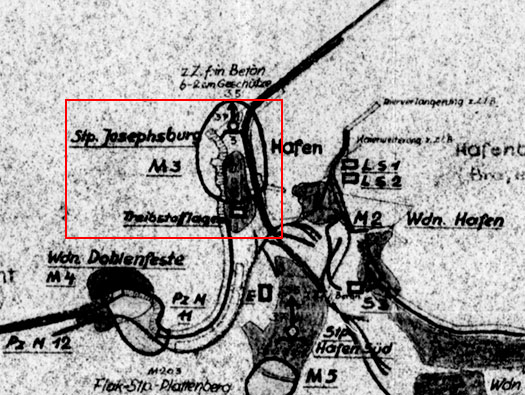

Plan.


Band playing on Alderney.

Alderney, M3 StP Josephsburg

Google Maps

Information

Alderney, M3 StP Josephsburg

Details



Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Ausboustand-karte Alderney.


Ausboustand-karte Alderney.

Alderney, M3 StP Josephsburg

Google

Information

Alderney, M3 StP Josephsburg

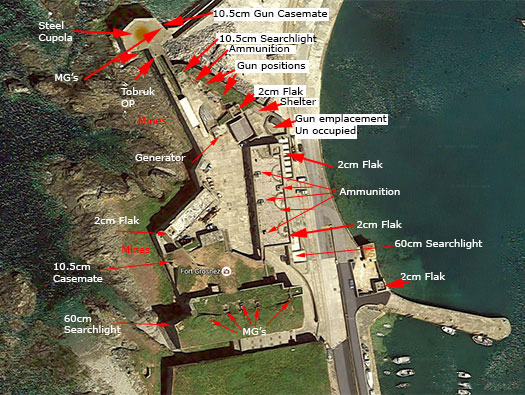

Fort Grosnez or “Grey Headland” (Norse) the fort dates back to the 14th©. I 1859 Fort Grosnez armed with two 8˜ howitzers, six 68-pounder guns, sixteen 32-pounders and four 24-pounders. By 1893 all but two guns had been removed and that is how the Germans found Fort Grosnez.

Details

Flak Regiment 197.
2 x R670 casemates for a medium pivot gun (90°).
6 x 2cm Flak 30.
2 x 60cm Search lights.
1 x 150cm Search light.
2 x 10.5cm K331 (f) guns.

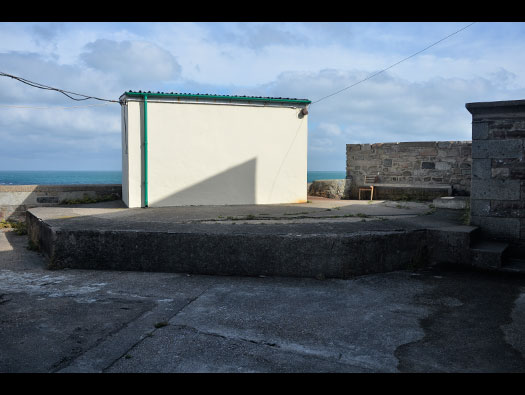

1 x Generator house.
Many x Machine gun/defence positions.
Mine fields.

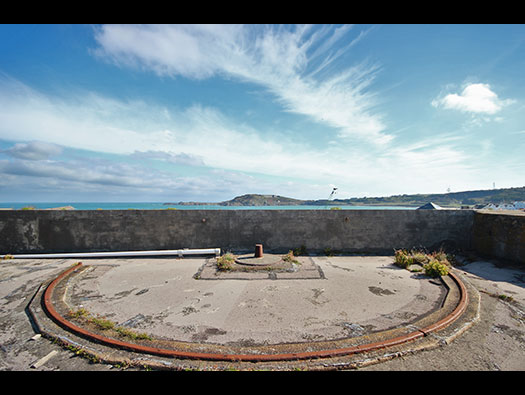

32pdr cannon.


68pdr cannon.


24pdr cannon.


10.5cm K331 (f) gun.


2cm Flak 30.


150cm searchlight.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

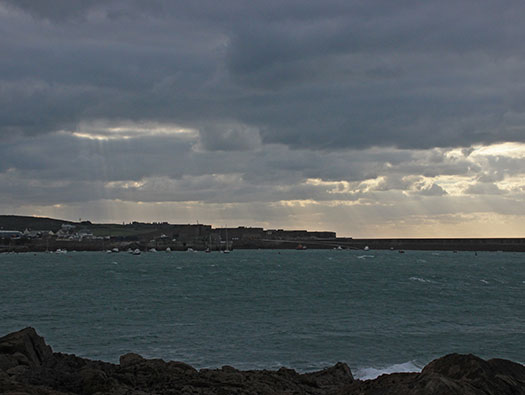

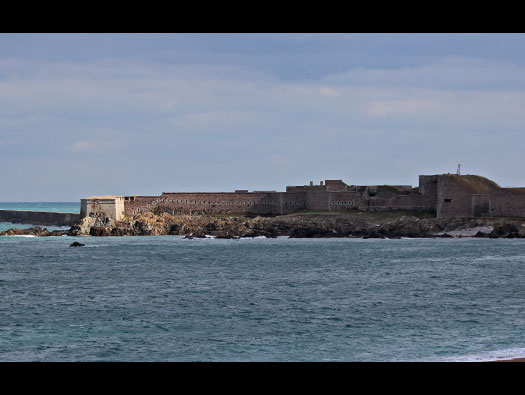

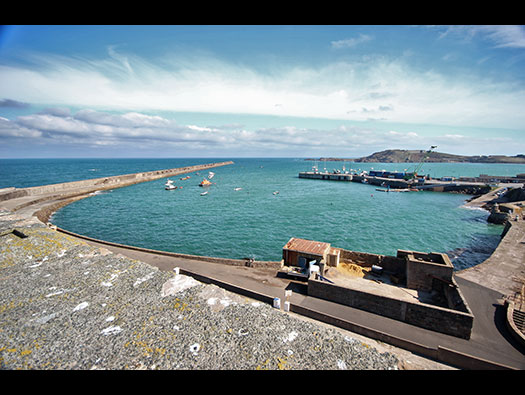

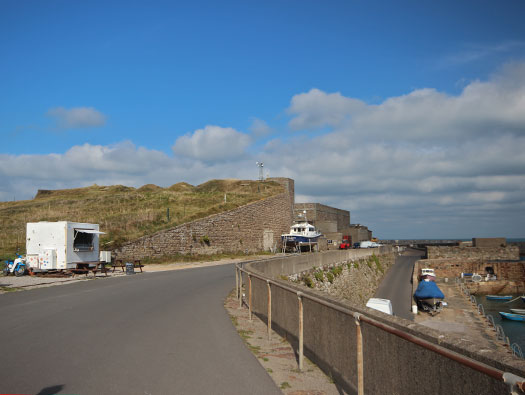

Stormy view over Braye and the harbour with Fort Grosnez The fort was built to defend the harbour of Braye by the English and when in the 19c. the English also decided to build a massive harbour to equal the ones being built in Cherbourg & Brest by their enemies the French to protect the English fleet. There was to be two walls but only one was started and cost so much money,also history overtook its construction in the way ships were being designed (steel ironclads, deeper drafts & the French became allies and not enemies) that it became redundant and was left.


Details2


A picture showing the draft of a boat, the bit that is under the water.


How the designs of the harbour changed.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

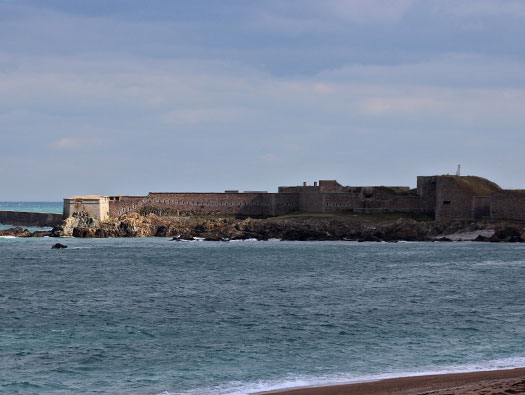

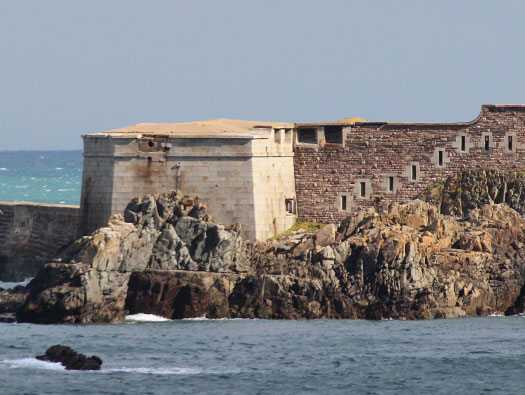

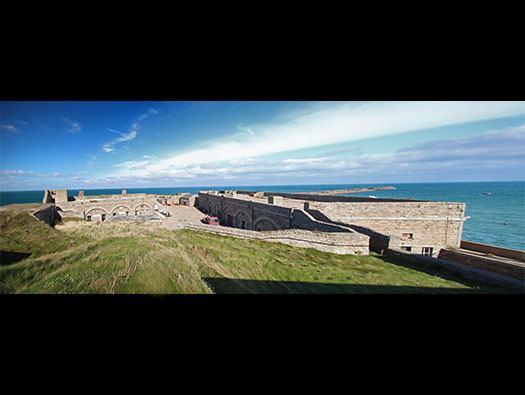

Fort Grosnez from the other side.
Building started 1851 to 1853.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

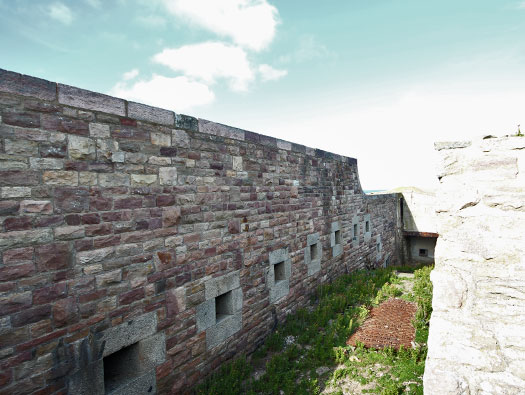

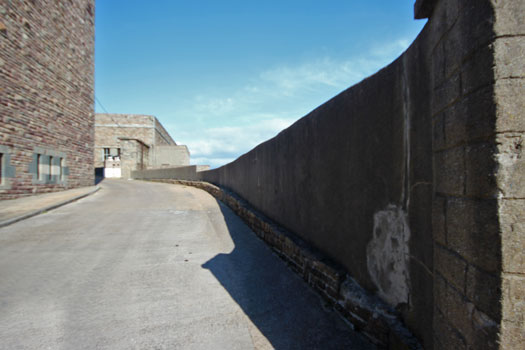

The road towards Fort Grosnez with large Glacés plate of the fort (large grass area on the left) with a row of machine gun embrasures along the top.


Plan. Red the road and yellow machine gun embrasures.


Machine guns.




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

The first 2cm Flak.

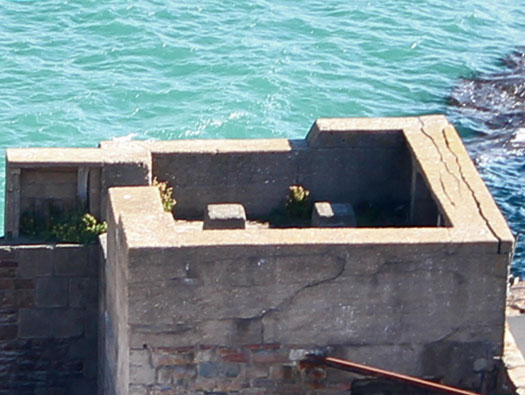

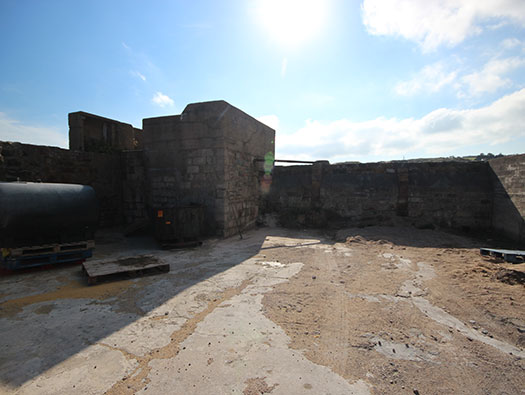

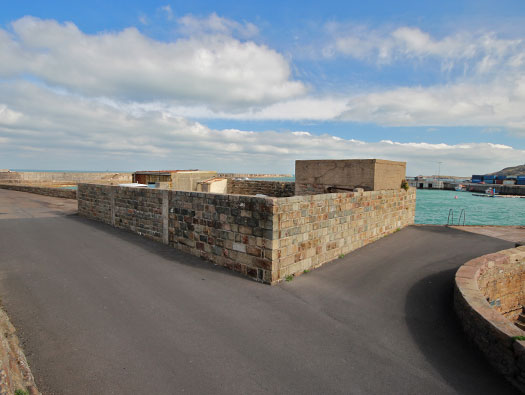

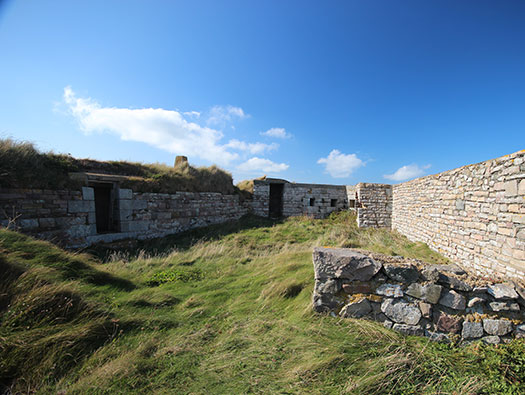

A square compound probably pre occupation but strengthened and a 2cm Flak placed on the top corner.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

The first 2cm Flak.

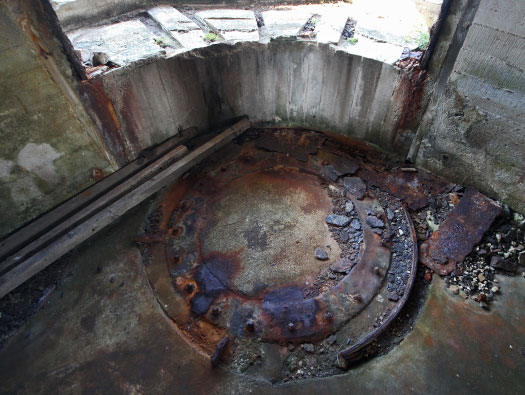

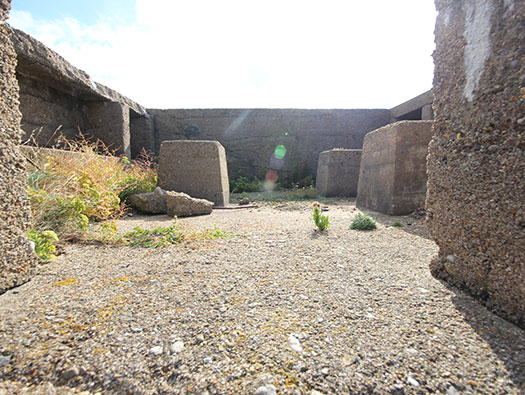

Looking down to the inside you can see the three (two of) pads for the gun to sit. Niches on the right for ready ammunition and also just outside the entrance..


Plan.


2cm Flak 30.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

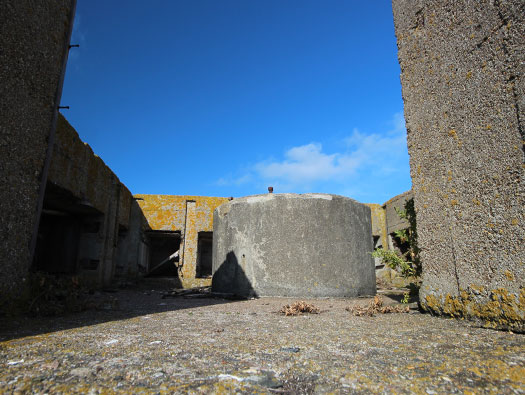

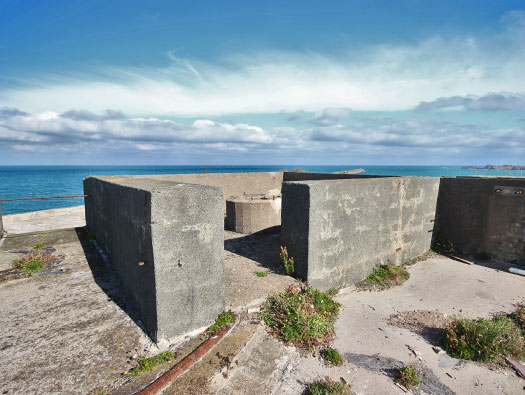

The flak position inside the compound with an ammunition bunker space underneath it.


2cm Flak 30.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

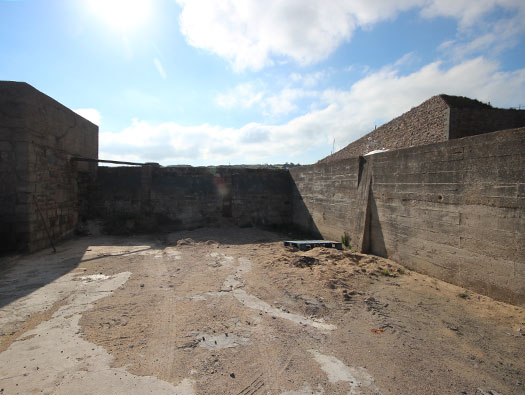

The compound strengthened concrete walls.




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

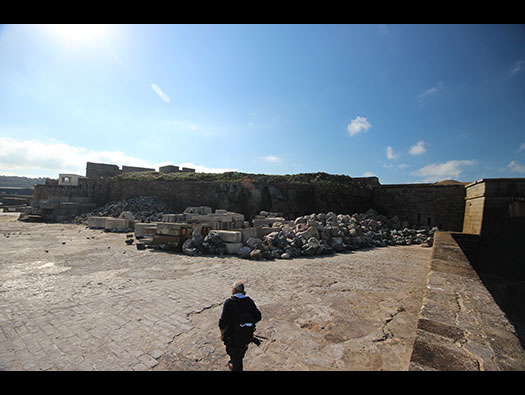

Fort Grosnez from the breakwater pier.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

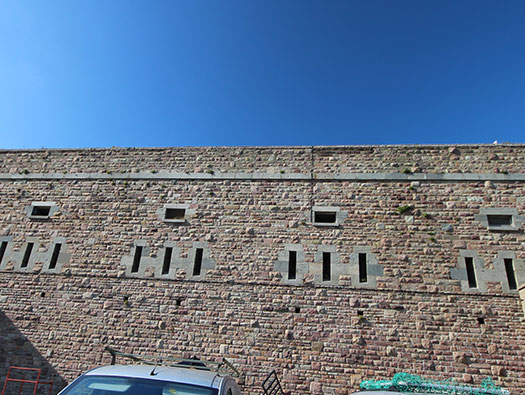

Fort Grosnez. The slits are English rifle embrasures.





Plan.




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Fort Grosnez new entrance. I am not sure when this entrance was opened up.


Plan

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

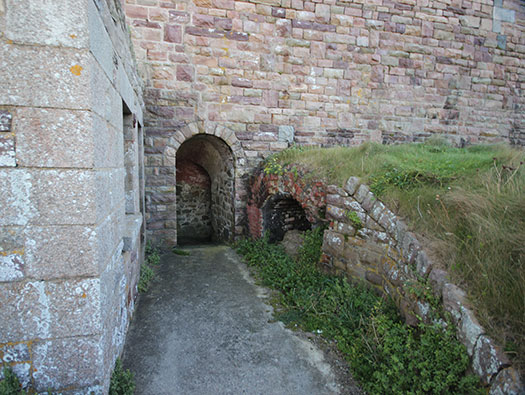

Fort Grosnez I think the old entrance.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

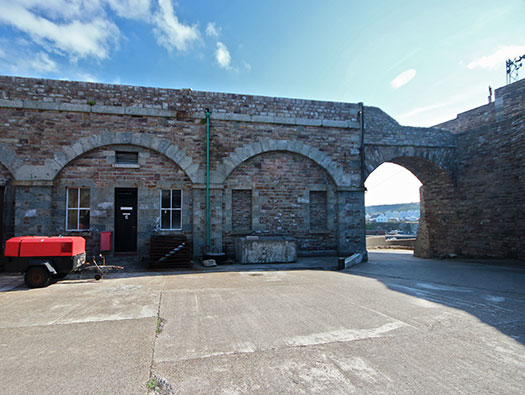

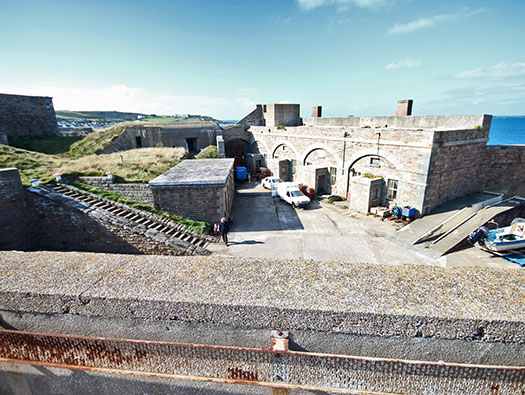

Inside the Fort. Large casemates used for magazines and accommodation.


Corporal of Horse Life Guards 1882.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

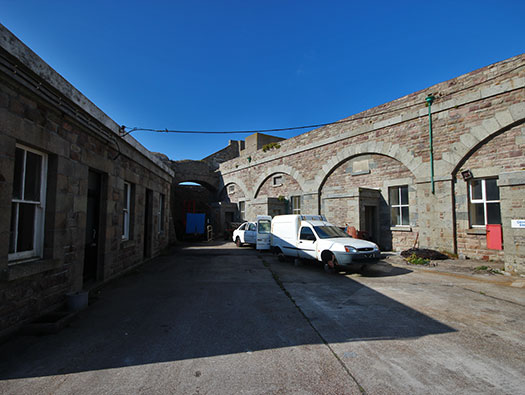

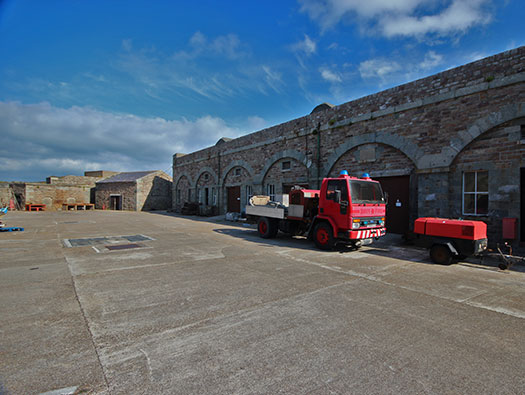

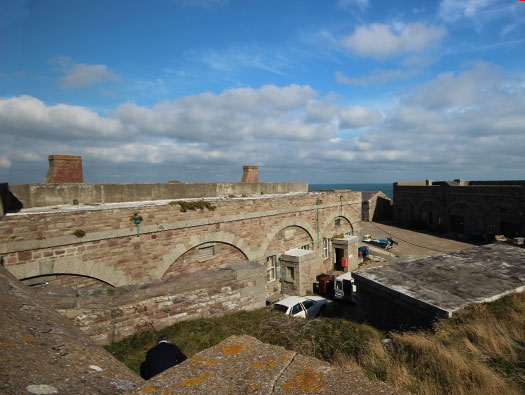

Inside the Fort. Large casemates used for accommodation.


1895 picture of the area.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Another view to the left.


Plan.


1895.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

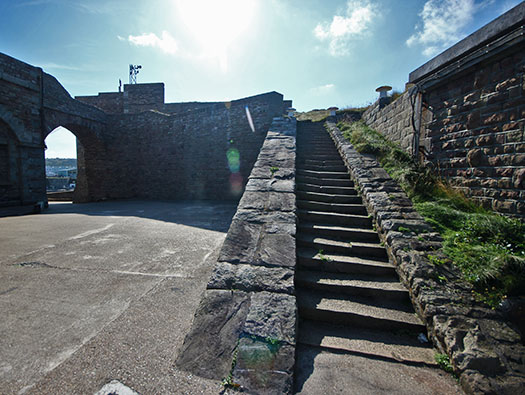

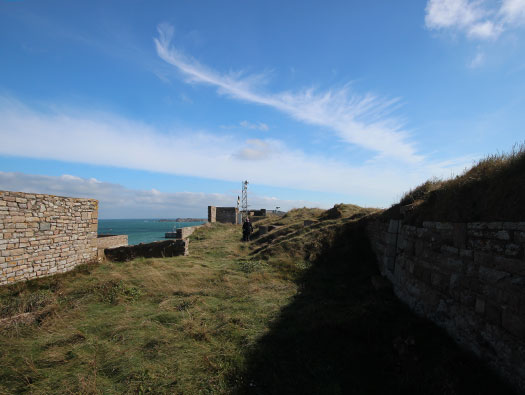

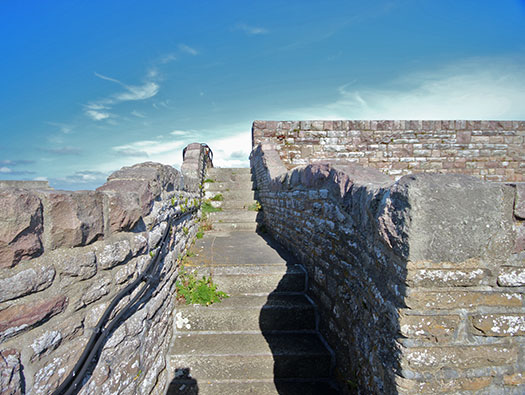

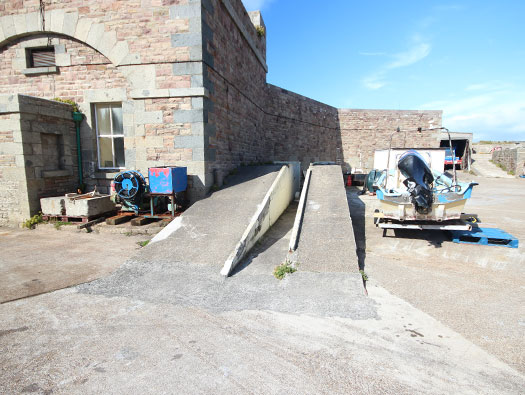

Ramp and steps up to the battlements. A way for troops to access the ramparts and also to draw guns up the ramp pulled by pulley and man power.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

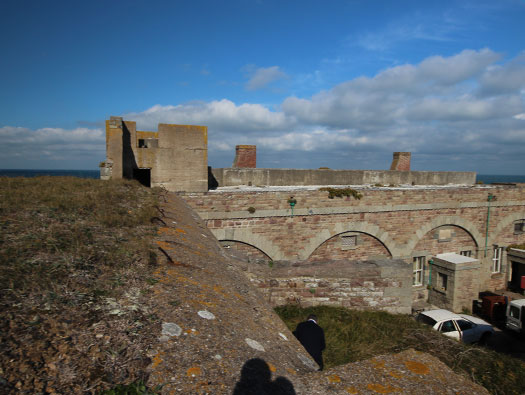

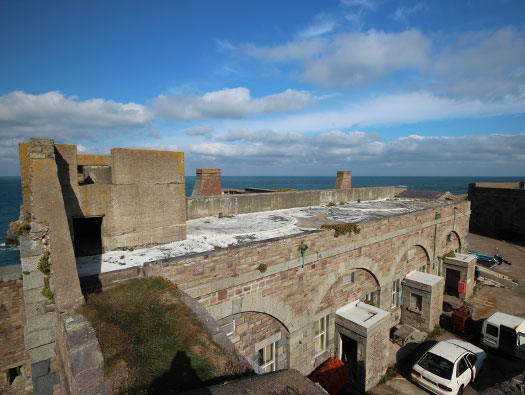

Up on the roof you can see the rear of an R670 casemate for a 10.5cm K331 (f). On the roof is a 2cm Flak position.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

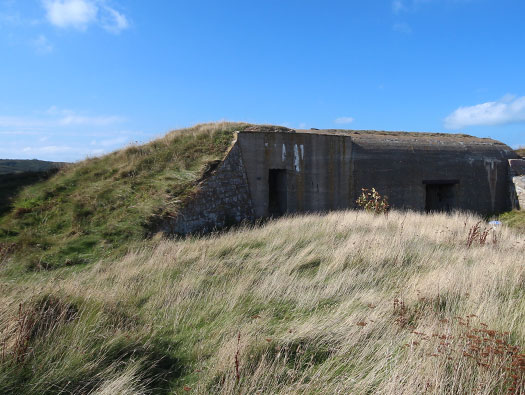

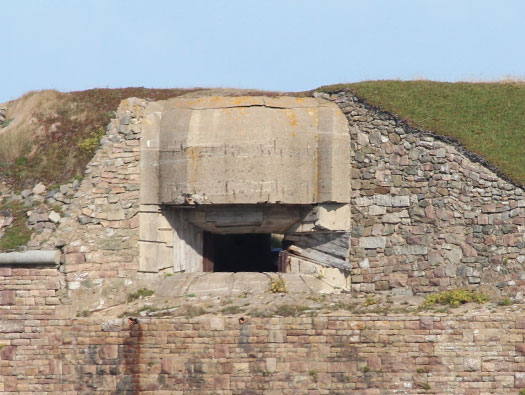

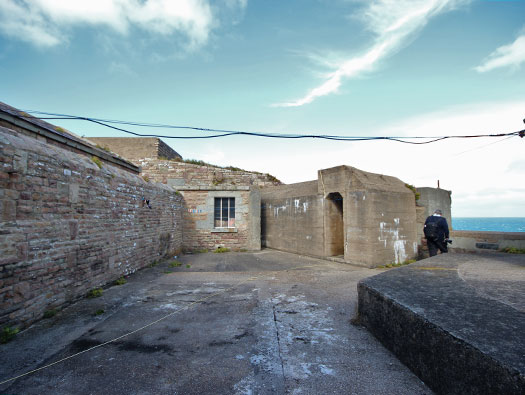

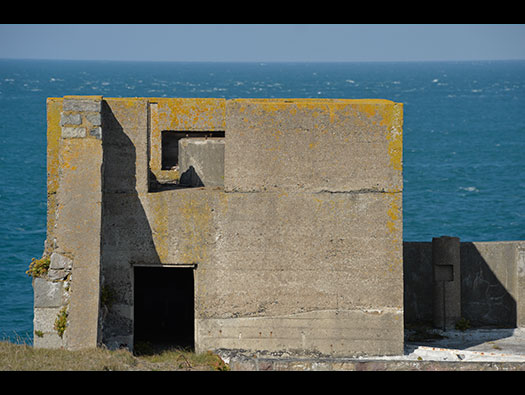

R670 casemate for a 10.5cm K331 (f) with attached Tobruk.


R670 casemate with added Tobruk.




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

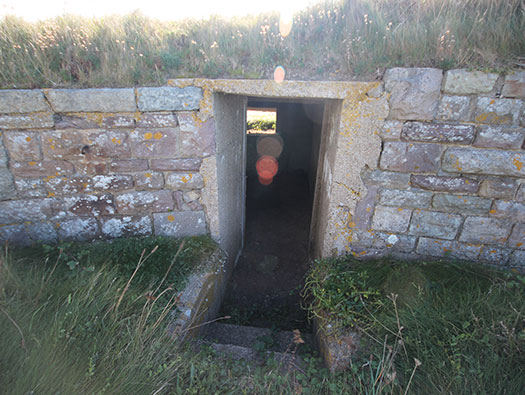

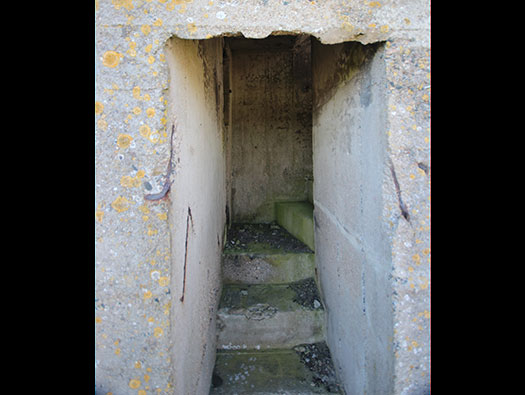

Entrance to the Tobruk.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

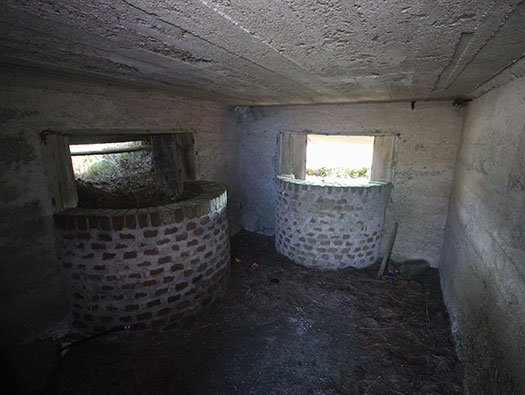

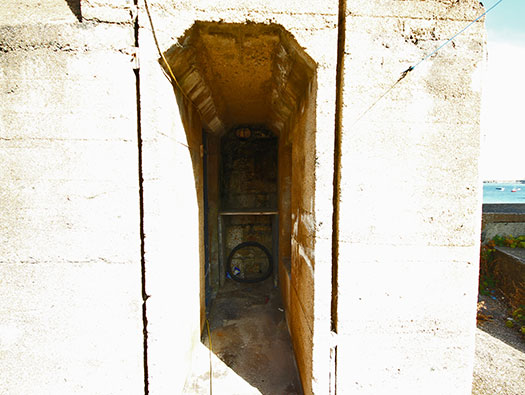

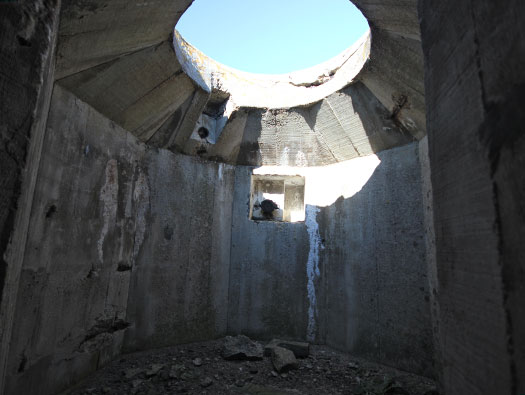

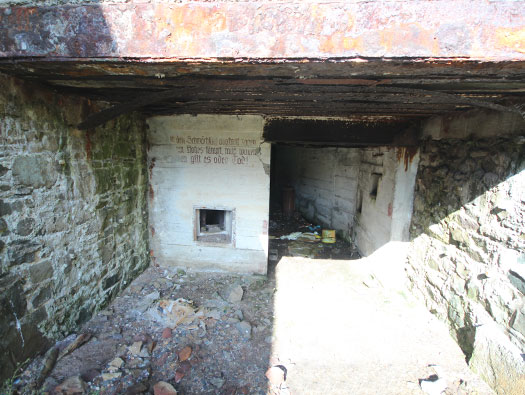

Inside the Tobruk.


Sprachrohr mouthpiece fitting.


Sprachrohr mouthpiece to talk to inside the bunker.

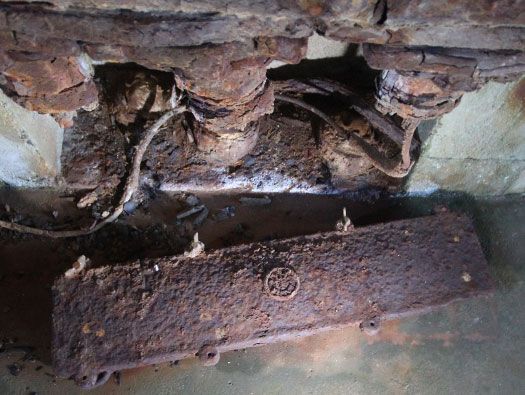

Relay box for a telephone



Relay box telephone.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Tobruk and the Man from the Black Lagoon.


Details2




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

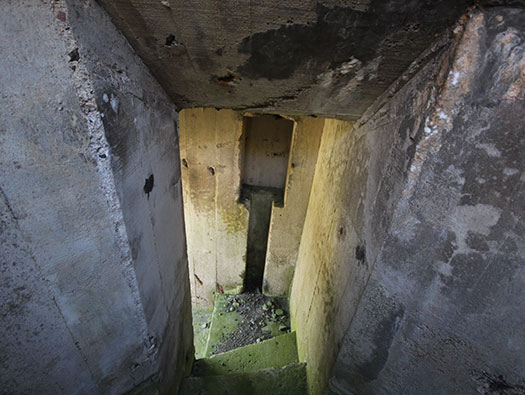

Tobruk and the stairs down. Something we have noticed here on Alderney are the amount of Tobruks with added aerials, that is the vertical slit in the far wall. I have not noticed evidence of an aerial being fitted and I have not noticed a hole in the top of the Tobruks..


Aerial slot in a bunker.


Plan of an aerial fitting.


Small radio.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

The view across the casemate to the 2cm Flak position.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

R670 casemate rear entrance


R670 casemate plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

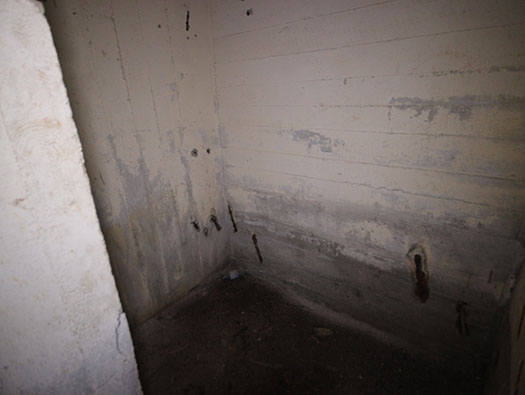

R670 casemate ammunition room.


R670 casemate plan.


10.5cm ammunition box.


10.5cm ammunition box.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

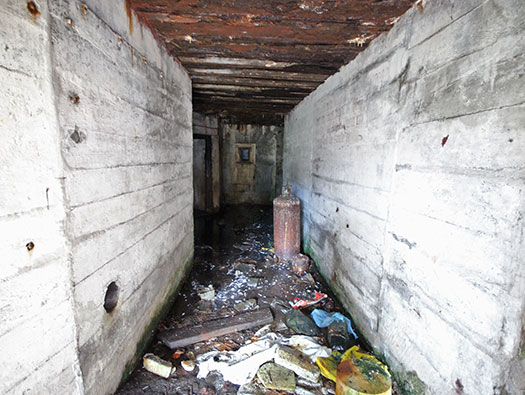

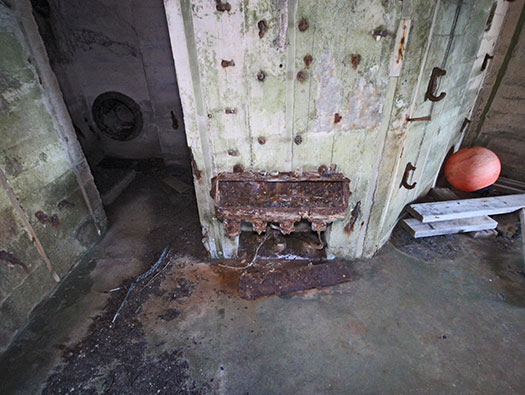

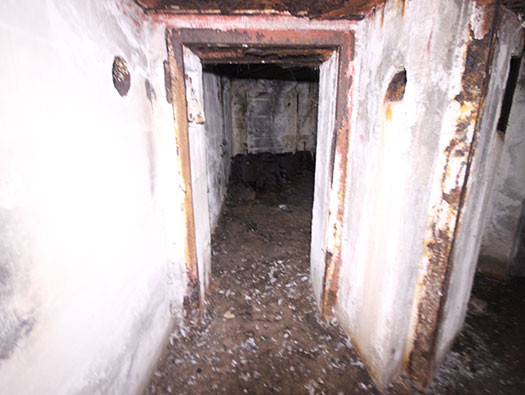

Communications box and second ammunition room with vent pipes.


R670 casemate plan.


How it may have looked on the wall.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

R670 casemate ventilation pipe to suck out the foul gasses when the gun fires.


R670 casemate plan.


Plan of the extraction on an R669 casemate.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

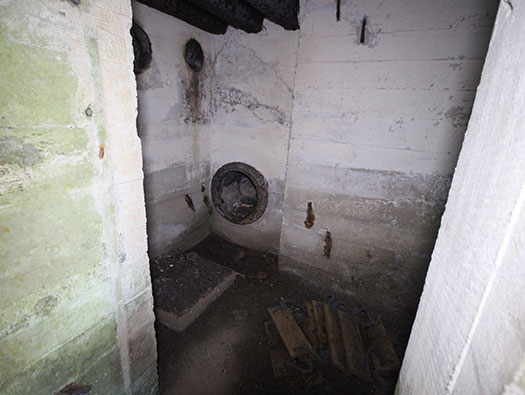

R670 casemate ammunition room and vent pipe where an electrical fan would have been fitted. The fan motor would have sat on the concrete block.


R670 casemate plan.


Extractor electric fan of the type that may have been there.


Extraction pipes on an R669.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

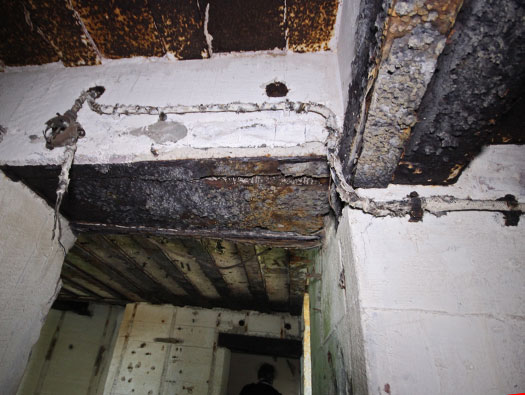

R670 casemate communication cables running around the bunker these are inside the ammunition room.


R670 casemate plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

R670 casemate gun room for a 10.5cm K331 (f) gun.


R670 casemate plan.

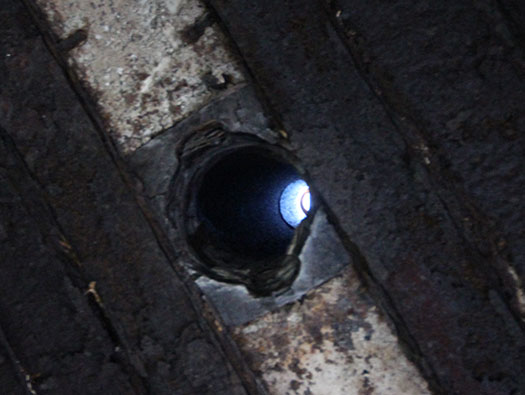

Periscope fitting up in the roof.


How it would have looked, this one is from Guernsey.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

R670 casemate the guns tie down set into the concrete floor and then the gun bolted on to it..


10.5cm K331 (f) gun.


Another 10.5cm K331 (f) gun.




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

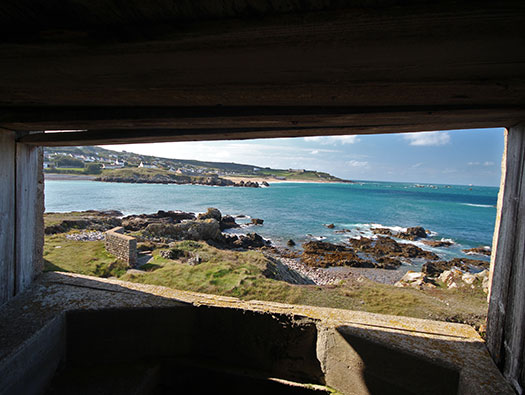

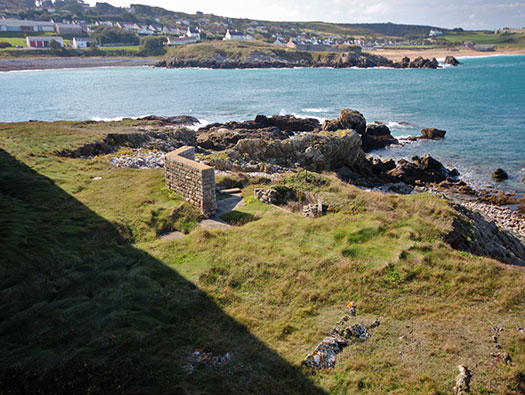

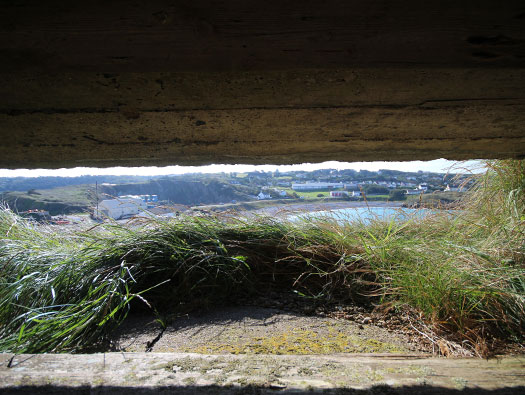

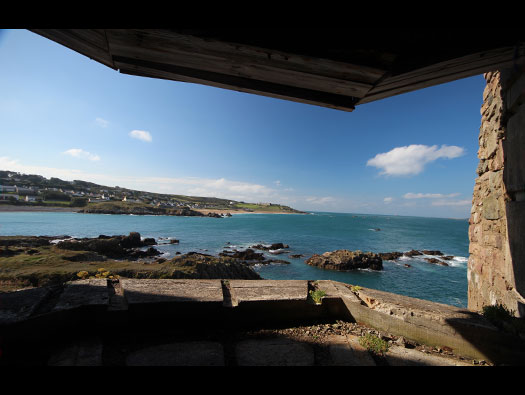

R670 casemate the view out of the embrasure over Crabby Bay and Fort Platte Saline.


R670 casemate plan.


Inside a field gun casemate.




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

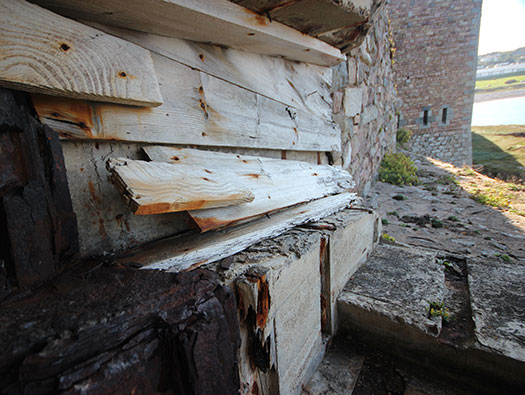

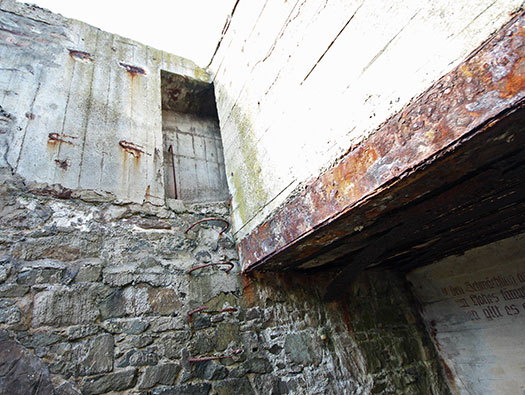

R670 casemate the wood used to make up the shuttering on embrasures was left in or added too to act to stop ricochets rounds bouncing into the embrasure..
here also is this cutaway to allow the gun barrel swing around to keep it safer in a barrage attack.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Periscope fitting..


Bunker periscope.

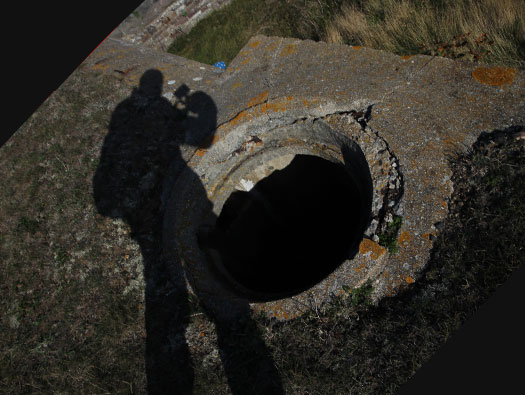

Periscope hole in the top of a bunker.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

R670 casemate the communication box lid.


Batch on the lid.




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

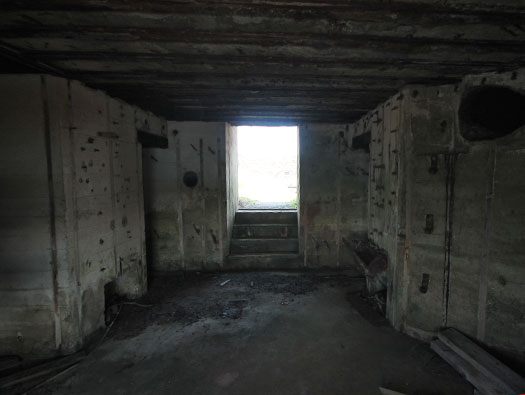

R670 casemate looking back to the entrance steps.


R670 casemate plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

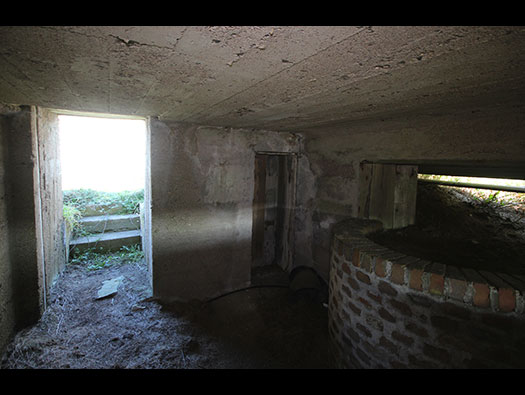

Alderney, M3 StP Josephsburg

Details

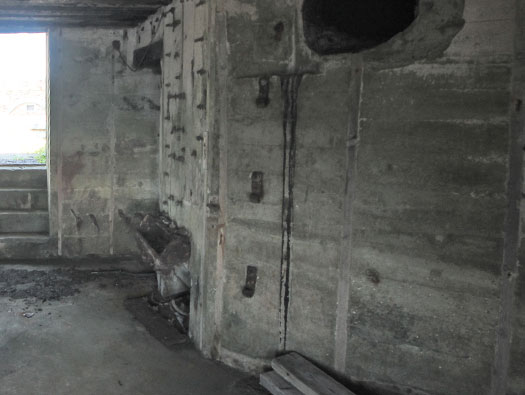

R670 casemate the hooks on the wall are either for bunk beds which seems an odd place to out them or for cleaning rods to hang.


R670 casemate plan.


Cleaning rods on a bunker wall.


If they are for beds they may have been like these.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

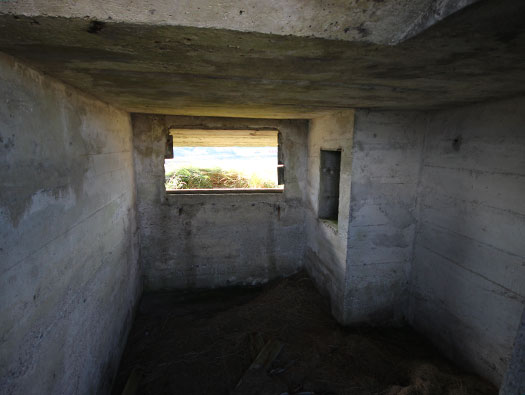

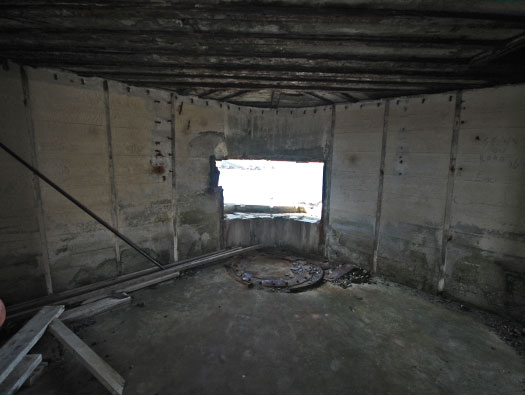

R670 casemate looking at the embrasure.


Plan.


How it would have looked.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

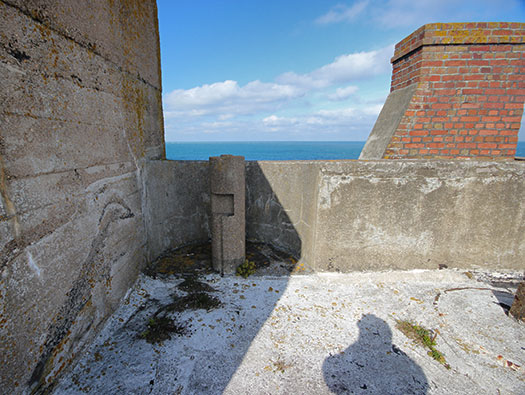

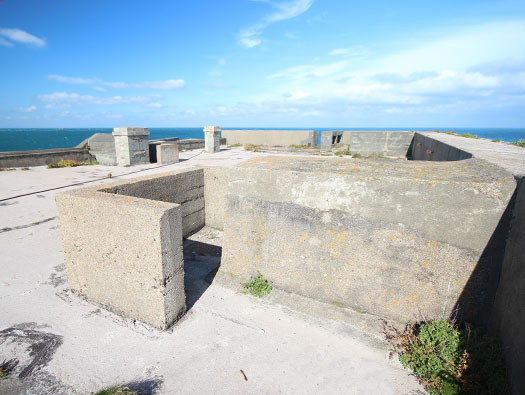

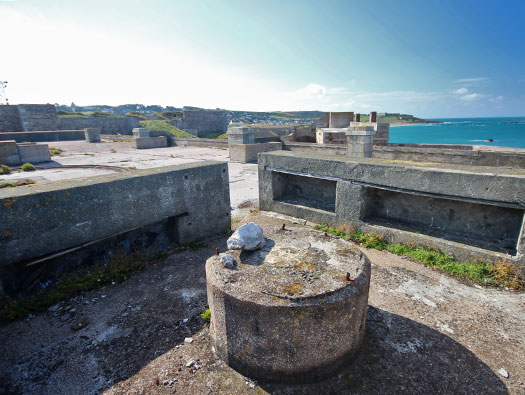

Up on the roof of the R670 casemate looking into the 2cm Flak on the other roof with an ammunition room below.


Plan.


Plan of Flak.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

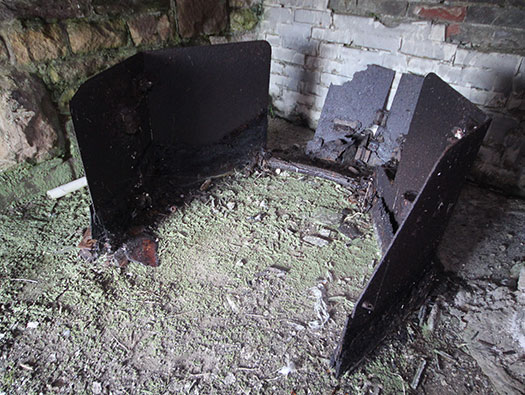

Entering the 2cm Flak ammunition room I found a shield to a 2cm Flak that may have been the gun that was above.


This is a 2cm Flak 30/38 showing the shield around the gun.


2cm Flak 38/02 shield.

Alderney, M3 StP Josephsburg

05 October 2016 JF

Information

Alderney, M3 StP Josephsburg

Details

Flak above and ammunition below.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

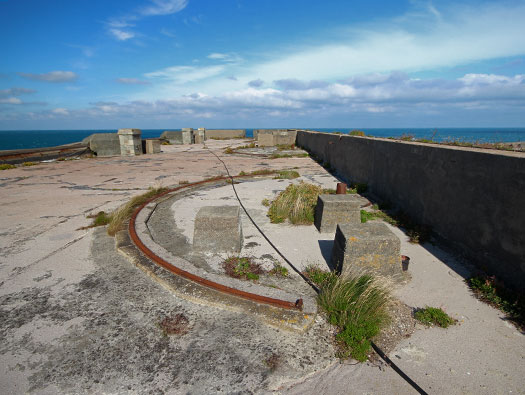

I have been trying to work this one out. The 2cm Flak has a base which can sit on three pads. I wonder if the gun was dismounted from its chassis and bolted directly down?? as the three pads would not fit on a round base.


2cm Flak.


Base plans for 2cm Flak mountings.


This is a round base on the right flank.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

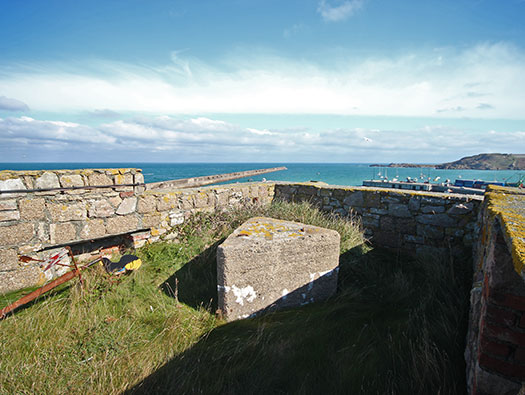

I believe this is an English post to direct the fire of the battery along the roof.


Details2

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Two of the three English gun mountings.


32lbr cannon.


Plan of the 32ldr guns.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

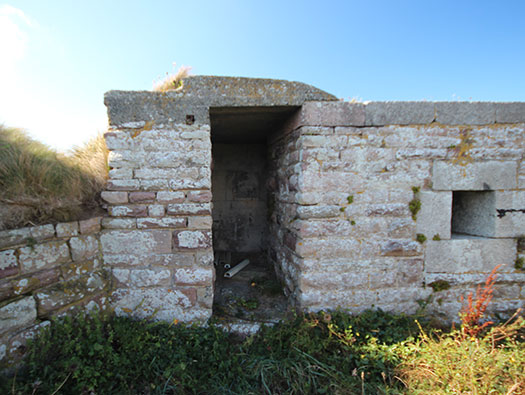

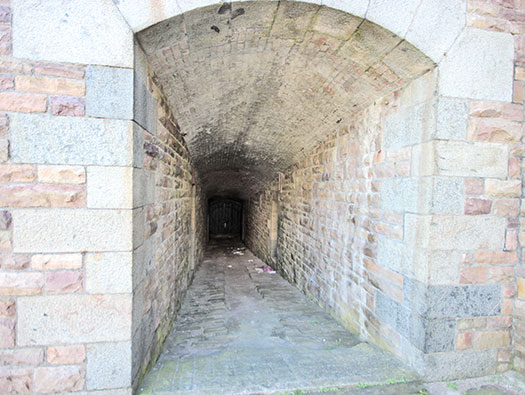

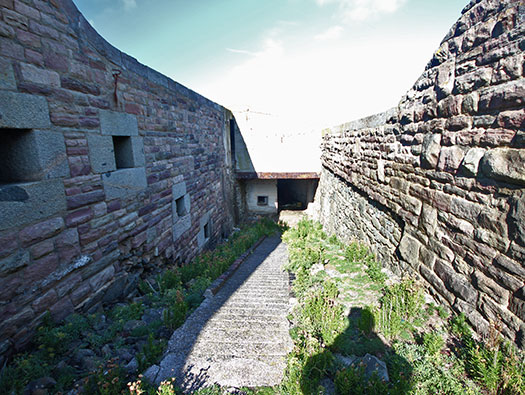

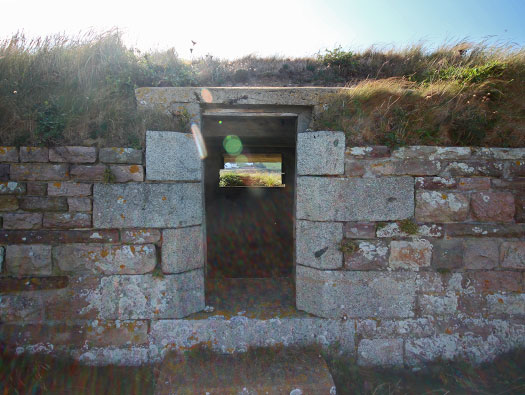

Moving on to an entrance in the old wall.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Turning the corner.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

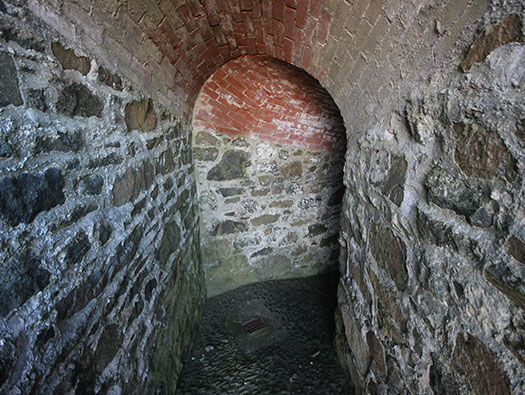

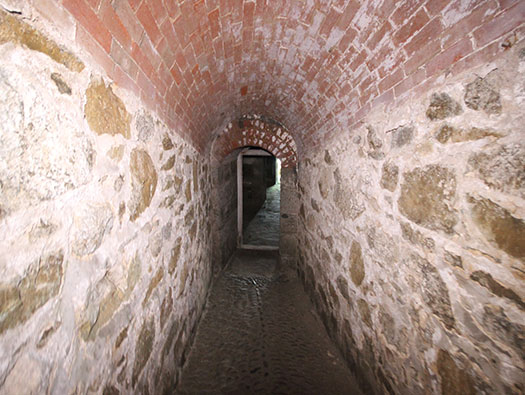

Still going down lovely Victorian stone and brick work..




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

This is an embrasure for a 60cm searchlight that would be fitted with railway style wheels to run on two tracks. Pulled in to clean/maintain and store. Push out to use it.
Electricity came from a generator on the south side of the fort.


60cm search light.




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

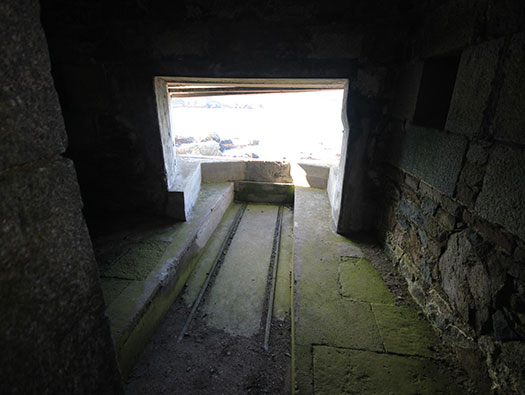

Search light embrasure.


Searchlight embrasure.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

View out of the searchlight embrasure at some maybe extra defence positions???










Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

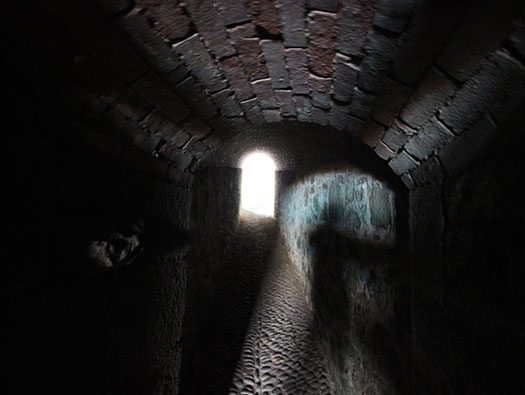

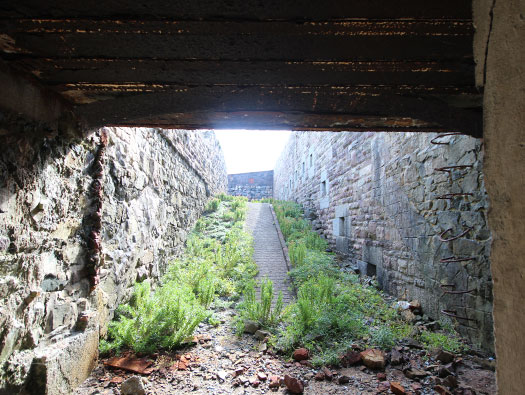

Walking back out of the tunnel. Spookie.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Above the glacés. A row of machine gun positions.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Working from right to left. An English rifle port on the right side.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Large machine gun embrasure and also could be used as an observation post.
Looking under the embrasure there are marks on the wall where a wooden table was to lay the machine gun on it.
A small niche in the wall possibly to hold ammunition.


How it may have looked.


Looking at the wood lined niche.


Boxes of 7.92mm belted rounds for a machine gun.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Large machine gun embrasure and also could be used as an observation post. The nice view nice out over the town and Crabby bay..


Wooden covers over the embrasure.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

One of the middle ones..




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

The view along the top.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

A total mix of ages here.




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Entrance to the left hand machine gun position.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Not one but incredibly two machine gun embrasures. Just imagine what the noise and smells when two guns were fired together.


Details2


Crated Mg34.


WW1 type water cooled MG may also been used here.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Niche cupboard on the side possibly for ammunition.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

2cm Flak position.


2cm Flak with range finder behind.


2cm bases.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

A view of the harbour.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

The view north.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Steps up-to the next roof.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Four 32lpdr cannon sat on the roof here and also 2 x 2cm Flak guns.


Plan.


32lpdr cannon.


2cm Flak 30.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Ammunition niche with protected entrance or it may have been a small air-raid shelter??

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

32lbdr cannon base with chaser ring and pivot mount.


32lbdr cannon.




Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Another 2cm Flak position on a round base.


2cm Flak 30.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

The view from above also showing the ready ammunition niches set into the protected wall.


2cm magazines in their box.


2cm magazines in their box.


2cm Flak tool kit.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

The view down onto the square.







Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Interesting ramp, most British military establishments had a lorry ramp to service and clean the undersides of the vehicles. Was this German or pre -war or post-war British Army??


MT ramp in Dorset.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Heading down into the depths of depravity.


Plan

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

A long ramp down to a close combat defence embrasure.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Close combat embrasure below a


Close combat defence embrasure.


Close combat defence machine gun.



Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Nice Cyrillic writing urging the soldiers on. “Lasst den Schwächling angstvoll zagen! Wer um Hohes kämpft, muss wagen! Leben gilt es oder Tod”.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

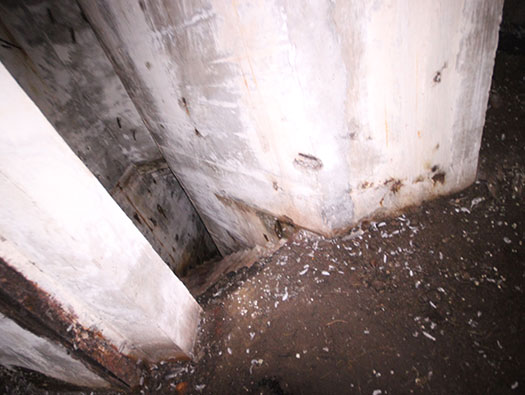

The depths of Depravity. Its pretty grim in here.
Another close combat defence at the far wall.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

the only real detail here I can give is that there was a 19P7 steel door.


19P7 door.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

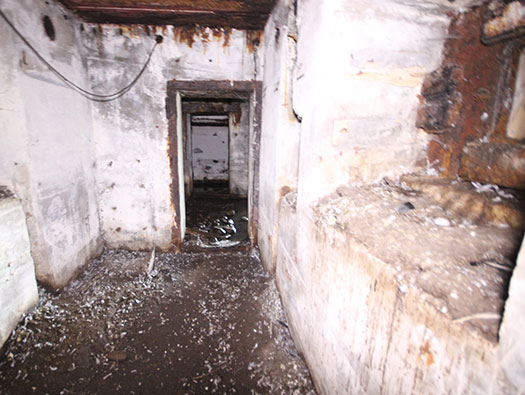

Stairs down to the next floors. The ground floor is accessed by a steel ladder and both floors are flooded with sea water and all have half dead and some not very alive Pigeons. Quite yucky.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

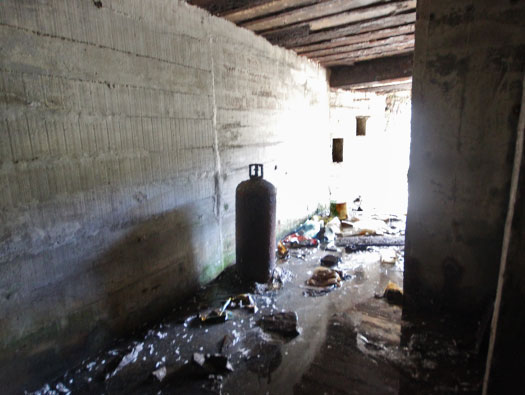

Close combat defence on the right and a lot of Pigeon pooooooo.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Heading out through the mire.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

More writing on the wall.
Herr, lass mich hungern dann und wann, Satt sein macht feig und träge, und schick mir Feinde, Mann um Mann, Kampf hält die Kräfte rege.”

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

R670 set into the Victorian stone work. A steel dome regaled the roof (now removed). Several machine gun positions on three levels..


If it had a dome it may be like this one.


Looking up from the entrance.


The domed roof with six embrasures for a fortress machine gun, a periscope and viewing slots.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

The other side of the tower showing some more machine gun positions.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Coming out.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

The route to a Tobruk up the steel ladder.


Plan.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

Another Flak position I just managed to reach.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

On the right a gun base but was empty by 1945.
In front a shelter bunker.

Alderney, M3 StP Josephsburg

05 October 2016 JF

Information

Alderney, M3 StP Josephsburg

Details

Gun base but was empty by 1945.


Possibly a 10cm or 10.5cm field gun position.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

The entrance into the shelter.

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details

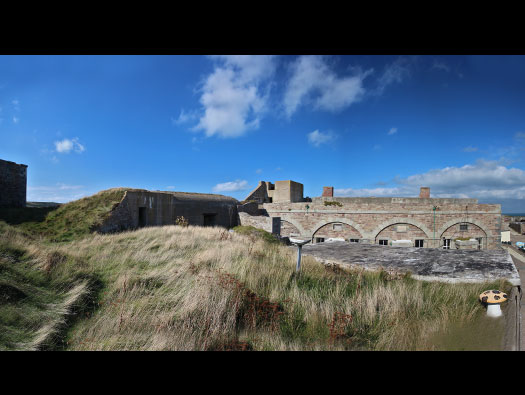

Fort Grosnez

Alderney, M3 StP Josephsburg

05 October 2016

Information

Alderney, M3 StP Josephsburg

Details
