RAF Bolt Head

Information

RAF Bolt Head

Details

As the RAF in WW2 went into its second phase, from defending Britain to attacking occupied France. About six bombers and many fighters was called a Ramrod – short range bomber attacks to destroy ground targets, similar to Circus attacks. They would range far & wide over France, really to annoy and to shoot down as many German fighters as possible. Bombers used were, first Blenheims and then Mitchell´s, several Stirling´s also went out. The Spitfire of the time did not have that much endurance so needed to be stationed as close to France as possible. An advanced landing ground was needed in Devon to reach Brittany and set on top of a cliff was Bolt Head. The runways had to fit into the lay of the land and so does not conform to a standard RAF 'A' type airfield layout. Work started in the summer of 1942 with two grass runways. As time went on the runways were over laid with 'Army' tracking and the aircraft parking area in 'Bar & Track'. Hutting was also built around the N/W side of the airfield, five tarmac circular dispersals and two Blister hangars were constructed. The aircraft came and went and at first RAF Exeter was the home station and one of its Spitfire squadrons would spend a month at a time rotating 'In the country'.

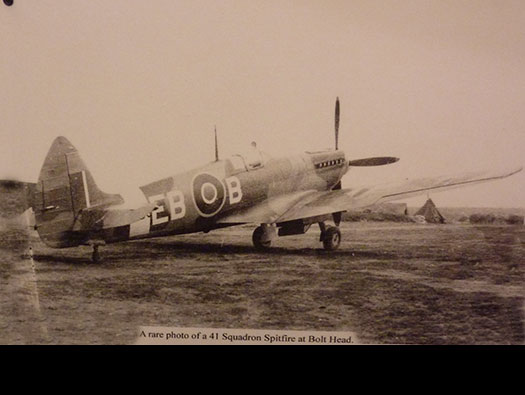

Spitfire.

Spitfire.

Typhoon.

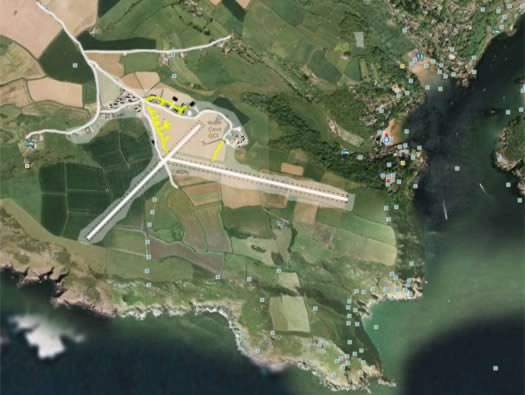

RAF Bolt Head

Google

Information

RAF Bolt Head

Details

RAF Bolt Head

Google

Information

RAF Bolt Head

Details

Opened as a fighter aerodrome 1941 - Closed 1947.
2 x Blister hangars.
5 - Fighter Aircraft Circular Dispersals.
Runways - Army tracking. Also extended with Bar & Track.
RAF - 474.
WAAF - 133.
Accommodation - Temporary.
Mostly - Spitfires and Typhoons.
Also - Lysander, Whirlwind, Anson & Warwick.

Army tracking runway surface.

Two Blister hangars were erected for servicing.

Five circular dispersals for fighter aircraft were installed as well.

RAF Bolt Head

1943

Information

RAF Bolt Head

Details

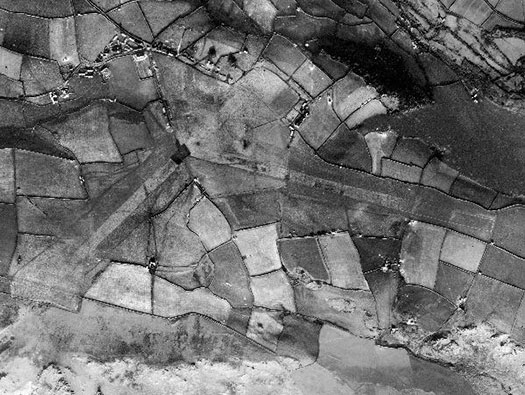

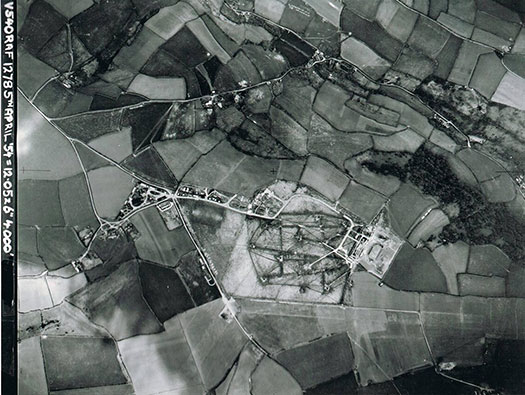

A nice 1943 reconnaissance photo of the airfield.

RAF Bolt Head

Plan

Information

RAF Bolt Head

Details

Plan
In the join between the two runways and the cross over road' was filled in with a tarmac surface. That is still there today and used as a car park.

Plan

Typhoon's rockets.

Loading rockets.

RAF Bolt Head

Google

Information

RAF Bolt Head

Details

The tarmac crossover.
Looking almost due east down the E/W runway with the NE/SW left & right.

Plan

RAF Bolt Head

Google

Information

RAF Bolt Head

Details

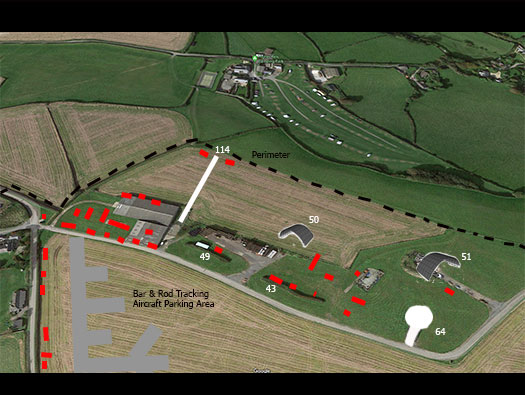

Technical site
43 ----- Store
49 ----- Aviation Petrol instillation 'A' type.
50/51 - Over Blister Hangars.
64 ----- Fighter dispersal F3.
114 ---- Small arms ammunition store with a berm of earth on one side as a blast wall.
The plan I have the numbers and wording is not clear enough to give more details.
Bar & Rod tracking comes in 12ft x 3ft sections and is quite heavy and tough. It sits on the grass and the next section slots together with a sort of tongue and slider.

Bar & Rod tracking section 12ft x 3ft.

Yellow - the Tongues.
Red the sliders to hook into the tongue of the next panel.

Army tracking.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

The airfield today.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

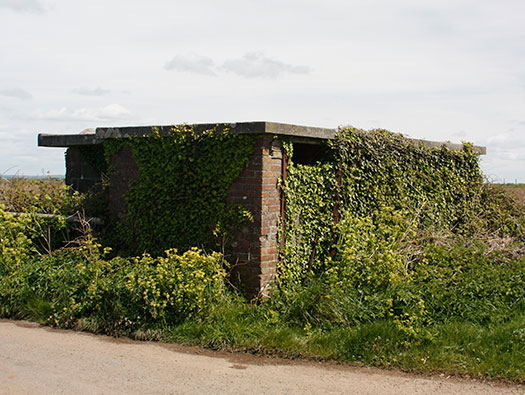

I think this may have been used as a bomb store of some kind.

Plan.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

Another view of a small window or defence embrasure for a rifle??

Attaching 60lb rocket heads to shafts and tail units.

Loading a Typhoon.

Four 60lb rockets firing.

A Panther with its turret blown off by a salvo of rockets..

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

Bomb store.
Looks like some sort of rear opening.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

Bomb store.

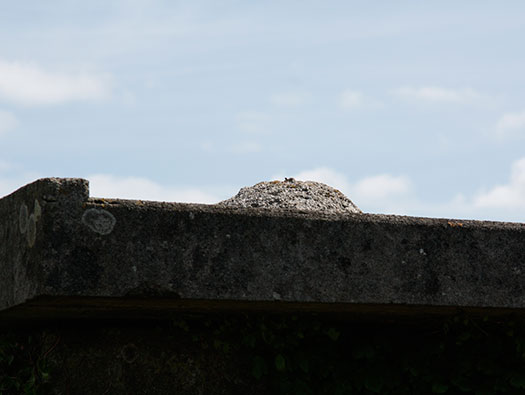

The concrete lump may have had a metal spike set into it and used as a lightening conductor.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

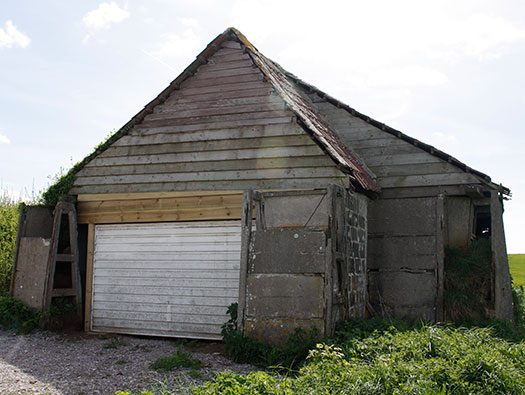

Signal Office Building
The second building, an original farm barn converted with concrete 'A' section blast wall around it.
"Listed on the Air Ministry plan this was the Signal Office Building. The main structure was located within these concrete protected blast walls which were filled with earth to add further blast protection. The signal office would have been one of the most important buildings on the aerodrome". From Gull Perch on Facebook.

Well I got that wrong! "I thought it was a bomb store"

Plan.

From Gull Perch on Facebook.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

Signal Office Building

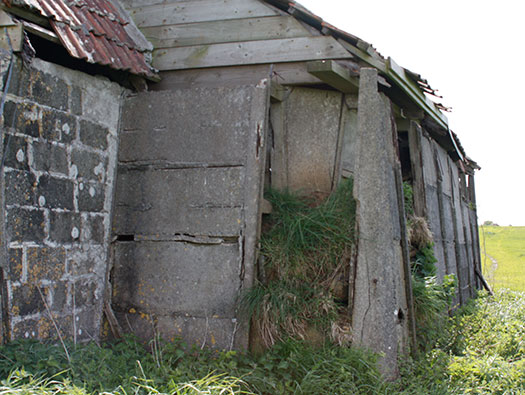

This shows the 'A' section was paneled in concrete sheets and earth placed between.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

Signal Office Building
A better view of the 'A' section.

Armourers at work on a .303 Browning.

Armoury issuing items.

.303 belted rounds.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

Signal Office Building

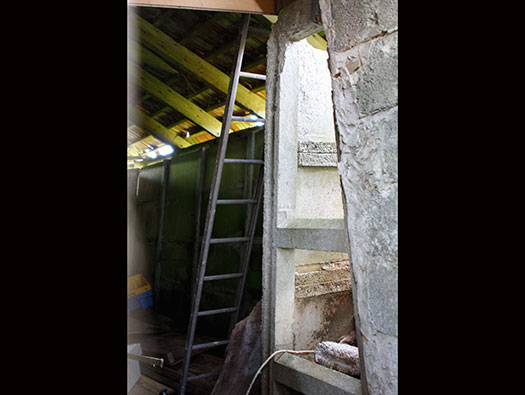

Looking inside but nothing to see I am afraid.

Bomb trolley.

WAAF's.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

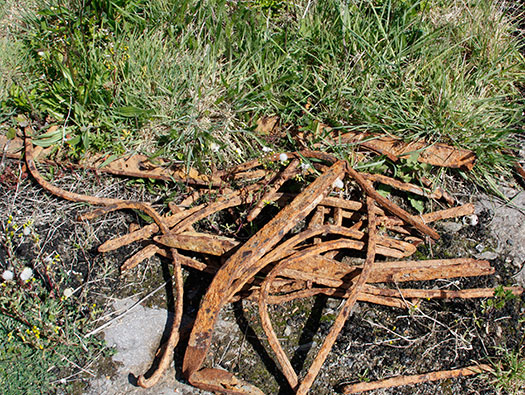

Parts of the runway surfacing left lying around.

Laying down tracking.

RAF Bolt Head

RAF Lasham. 04 June 2006

Information

RAF Bolt Head

Details

12ft x 3ft Bar and Rod tracking at RAF Lasham.

RAF Bolt Head

RAF Lasham. 04 June 2006

Information

RAF Bolt Head

Details

The fittings of Bar & Rod tracking to join two sections together.

Laying out a runway.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

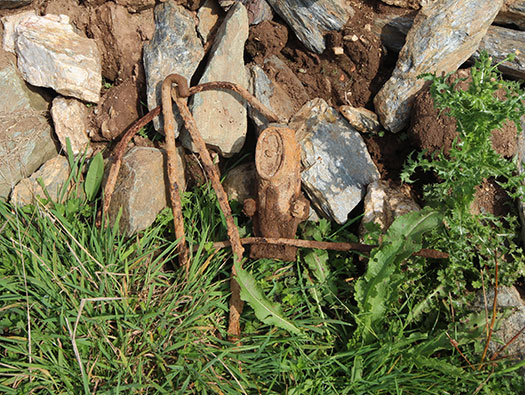

More parts of the runway surfacing left lying around.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

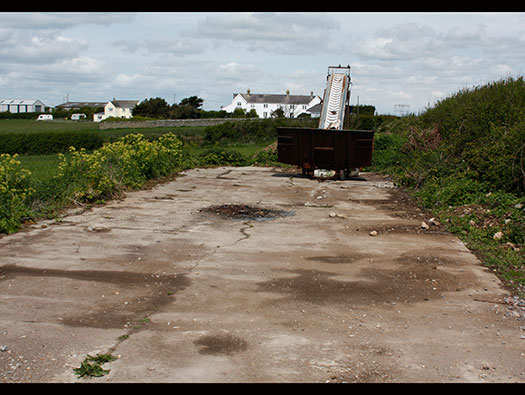

Base of a hut.

Inside a hut that may have been here.

Nissen Hut.

Nissen Hut.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

Handcraft hutting was an asbestos/cement cranked sheeting that could easily be bolted together making a good weather proof hut. Brick up the ends with door and windows and inside some plasterboard or soft board lining, a stove, a very small supply of coal and hay ho a nice worm living accommodation. I am sure that is what the WAAF's and Erks would tell you now.

How they looked inside.

Handcraft hut.

Handcraft hut.

RAF Bolt Head

Air 29-293' Target aerials

Information

RAF Bolt Head

Details

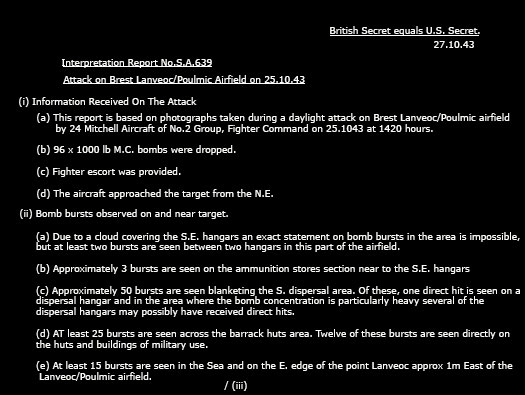

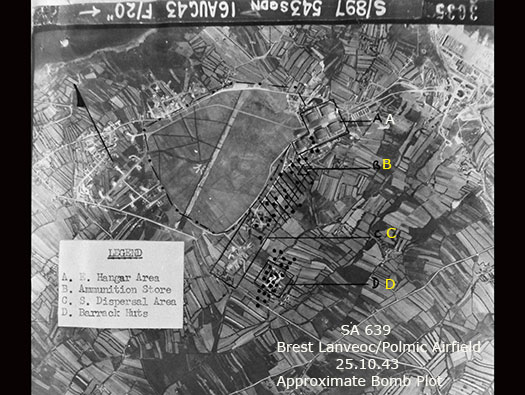

Rhubarb attack on Brest Lanveoc/Poulmic Airfield 25.10.43.
The main picture gives an idea of a report that would have been written after every raid on enemy territory.

RAF Mitchell.

RAF Bolt Head

Air 29-293' Target aerials

Information

RAF Bolt Head

Details

Air photo of Brest airfield.

Arming and checking a Spitfire before take off..

Trundling out to the runway.

Flying on a mission.

RAF Bolt Head

Information

RAF Bolt Head

Details

A Spitfire at Bolt Head. Note the bell tent under its right wing.

Erks the boys that do all the work.

RAF Bolt Head

Information

RAF Bolt Head

Details

A Beaufighter being readied at Bolt Head.

Fuel bowser.

Petrol instillation meter.

Fire crew.

RAF Bolt Head

5th April 1954

Information

RAF Bolt Head

Details

This is post airfield and brings us into the cold war with the Type R6 Rotor/Radar station.

Type R6 Rotor/Radar station.

Hope Cove modulator building.

How the Hope Cove modulator building would have looked with a radar fitted. But at Hope Cove it was never fitted.

RAF Bolt Head

03 May 2009

Information

RAF Bolt Head

Details

A Hurricane that just happened to be parked on one of our visits..
