Ro422 'Isle', K.V.G Süd Ile de Ré, A.O.K.1 Vendée

Page updated: December 11, 2017

Ro422 'Isle', K.V.G Süd Ile de Ré


Information

Ro422 'Isle', K.V.G Süd Ile de Ré

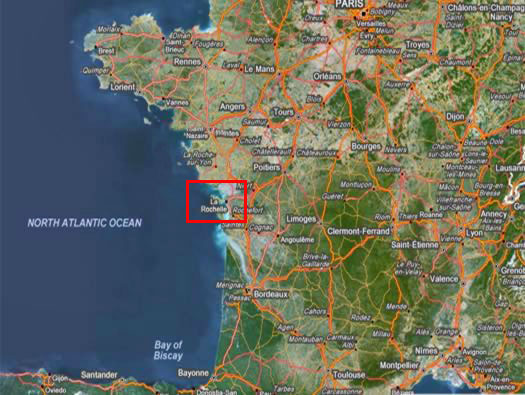

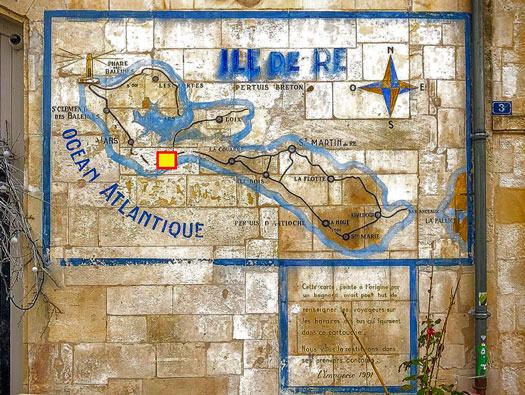

L'ile de Re is situated just off the coast of La Rochelle. To get onto the island there is a toll to pay over the bridge.

Details

LXXX 5./Festungstammsabteilung, Leutnant Ehmann in command.
1 x R139 a 1939 designed casemate for 4.7cm + a heavy machine gun.
1 x R502 twin group bunker due to be built in 1944.
1 x R612 casemate for a field gun.
1 x R667 casemate for the 5cm KwK gun due to be built in 1944 to replace the Vf221.
7 x Vf58c Tobruk's.
1 x Vf221 ringstand for a 5cm KwK 38/39.
1 x Geschützstellung (open emplacement) for the 7.5cm F.K.231(f).
1 x 4.7cm Pak K.36(t) co-axle Vz 37(t) machine gun.
1 x s.MG 34 in a fortress mount.
1 x 5cm KwK 38/39.
1 x 7.5cm F.K.231(f).



The bridge to the Ile de Ré.



R612 casemate.


F.K.231(f).


7 x Vf58c Tobruk's.

Ro422 'Isle', K.V.G Süd Ile de Ré

Google

Information

Ro422 'Isle', K.V.G Süd Ile de Ré

Details



Ro422 'Isle', K.V.G Süd Ile de Ré

Google

Information

Ro422 'Isle', K.V.G Süd Ile de Ré

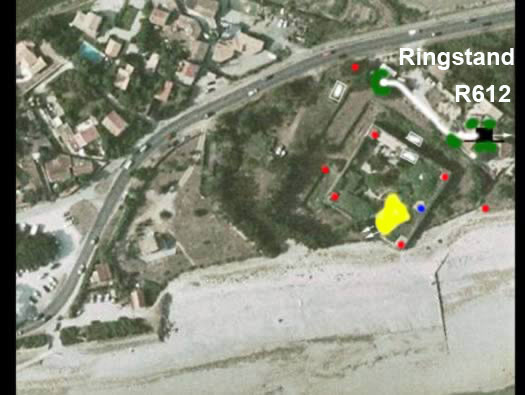

Plan

Details

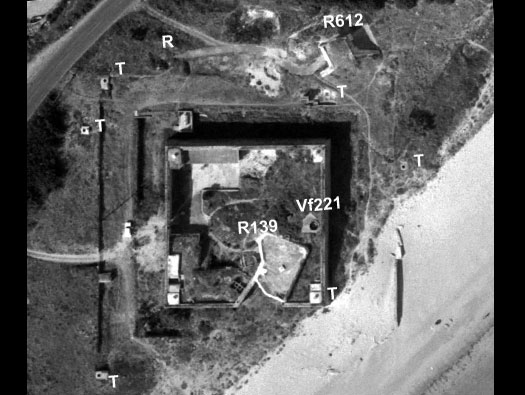

Red : Vf58c ringstands.
Yellow : R139 casemate.
Blue : Vf221 ringstand for a 5cm KwK 38/39.
Black : H612 with adjoining roadway to a gun platform.
Three white squares are the site of barracks (probably wooden).
Also an R502 and an R667 were to be built.


139 casemate in mirror.
1 - Gas lock.
2 - Close combat defence.
3 - Crew
4 - Ammunition.
5 - Gun room.
22 - Ventilation.
26 - Observation Periscope.
32 - Commander.


4.7cm Pak K.36(t) better known as a 4.7cm Skoda gun.


Bunkers heavy machine gun.

Ro422 'Isle', K.V.G Süd Ile de Ré

German defence plan

Information

Ro422 'Isle', K.V.G Süd Ile de Ré
German intelligence map.

Details

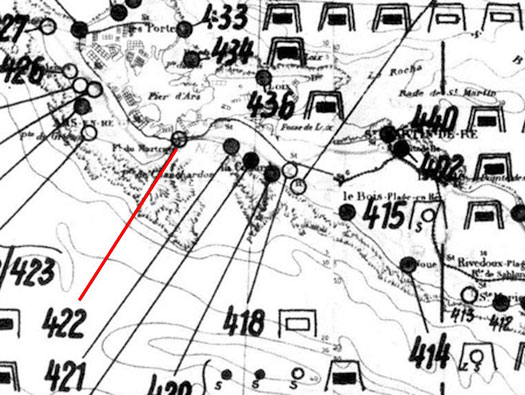

This is a German map of the Ile de Ré showing all the defences.










Ro422 'Isle', K.V.G Süd Ile de Ré

Int

Information

Ro422 'Isle', K.V.G Süd Ile de Ré
Air photo

Details

This defence Ro422 has been superimposed on an old French fort of 1674 vintage that was built would you believe to keep out the English. They have used the four corners with Tobruk's, placed a Vf221 5cm Pak inside and then cut out the corner of the forts wall and placed a very rare bunker in its place. This R139 is a February 1939 designed bunker more for the west wall but as the Kriegsmarine were building bunkers earlier than the Heers (army) they tended to use the older bunker designs. This is the only one left out of possibly four that may have been built. Also it is 'in mirror'. Meaning the design has been flipped horizontally. The plan shows the layout inside with two gun rooms, one for a 4.7cm Skoda Pak and a heavy machine gun behind 78P9 plate.


139 casemate in mirror.
1 - Gas lock.
2 - Close combat defence.
3 - Crew
4 - Ammunition.
5 - Gun room.
22 - Ventilation.
26 - Observation Periscope.
32 - Commander.


78P9 plate for an M.G. 34 machine gun..


7.93mm M.G.34 machine gun behind its 78P9 plate.


4.7cm Skoda mounting inside.


4.7cm Skoda ball joint fitting as seen from the outside..

Ro422 'Isle', K.V.G Süd Ile de Ré

24 November 2007

Information

Ro422 'Isle', K.V.G Süd Ile de Ré
From L to R.

Details

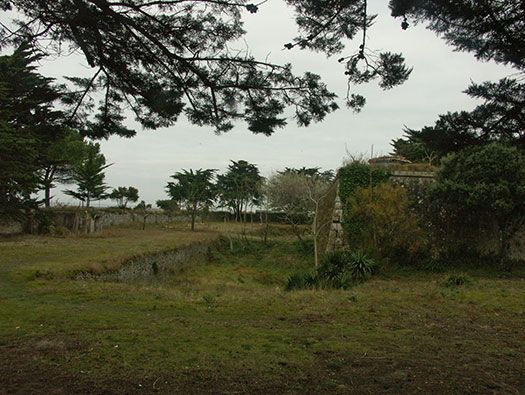

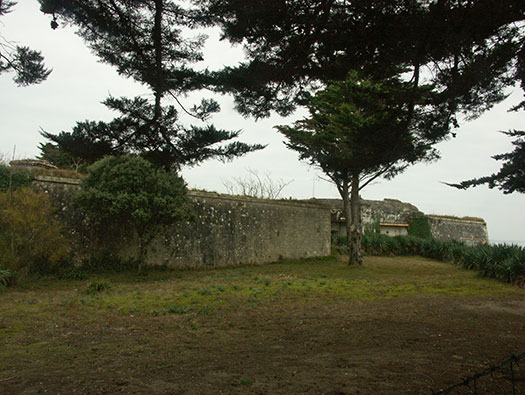

The next four pictures scan from left to right. The outer wall on the far left has a Vf58c Tobruk covering the main gate entrance into the outer fort.


Vf58c Tobruk


Tobruk.


Tobruk.

Ro422 'Isle', K.V.G Süd Ile de Ré

24 November 2007

Information

Ro422 'Isle', K.V.G Süd Ile de Ré
From L to R

Details

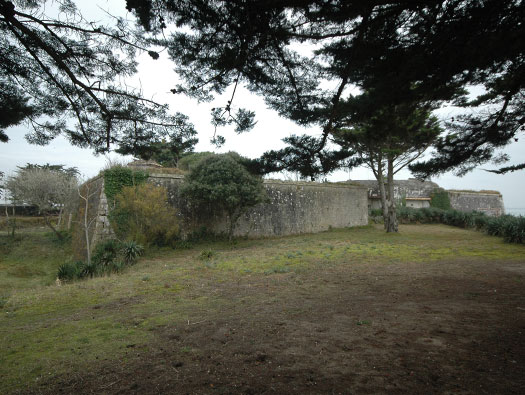

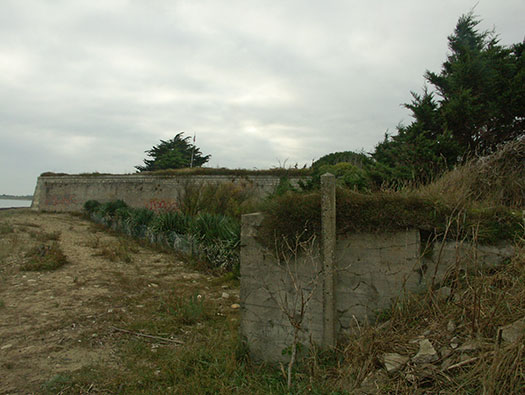

This is the second picture showing the inner forts wall, above the corner is another Tobruk.


Tobruk in the corner.

Ro422 'Isle', K.V.G Süd Ile de Ré

24 November 2007

Information

Ro422 'Isle', K.V.G Süd Ile de Ré
From L to R

Details












Site

24 November 2007

Information

Ro422 'Isle', K.V.G Süd Ile de Ré
From L to R

Details

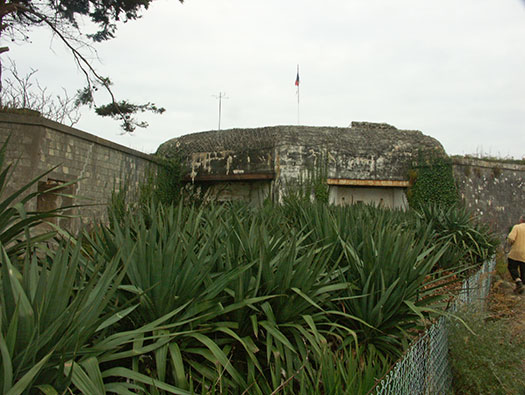

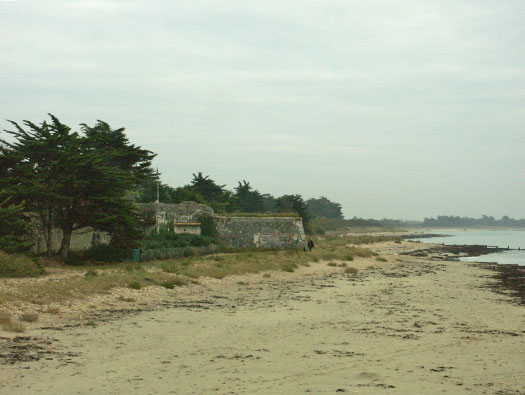

This is the right side with the R139 built into the fort.










Ro422 'Isle', K.V.G Süd Ile de Ré

24 November 2007

Information

Ro422 'Isle', K.V.G Süd Ile de Ré

Details

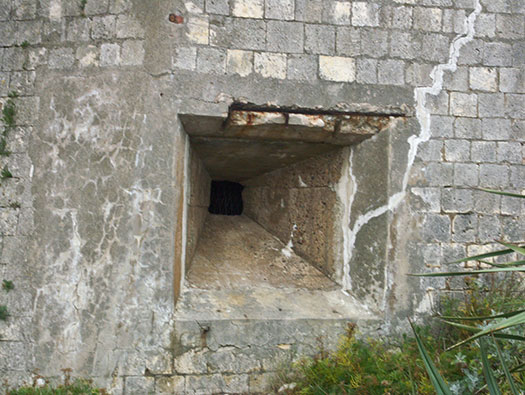

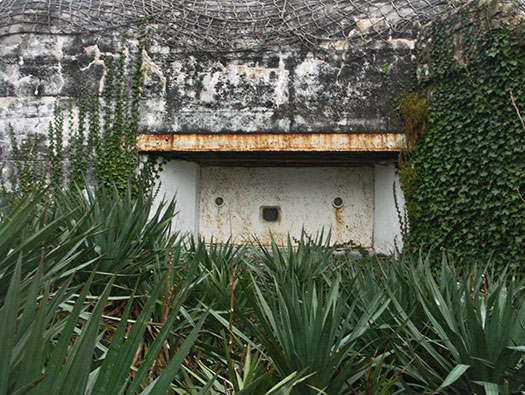

A machine gun embrasure built into the wall.


M.G.34.


Fitting.




Ro422 'Isle', K.V.G Süd Ile de Ré

24 November 2007

Information

Ro422 'Isle', K.V.G Süd Ile de Ré

Details

R139 casemate. Skoda 4.7(t) on the left an M.G.34 machine gun on the right.


Skoda 4.7 Pak gun shield down.


Skoda 4.7 Pak gun shield moving up.


Skoda 4.7 Pak gun shield closed off.


The mechanism to raise and lower the shield.


Bunkers heavy machine gun.

Ro422 'Isle', K.V.G Süd Ile de Ré

24 November 2007

Information

Ro422 'Isle', K.V.G Süd Ile de Ré
79P9 metal plate.

Details




78P9 steel plate.


Commander looking through the viewing slot.


Fitting in a steel plate.

Ro422 'Isle', K.V.G Süd Ile de Ré

24 November 2007

Information

Ro422 'Isle', K.V.G Süd Ile de Ré
Tobruk.

Details

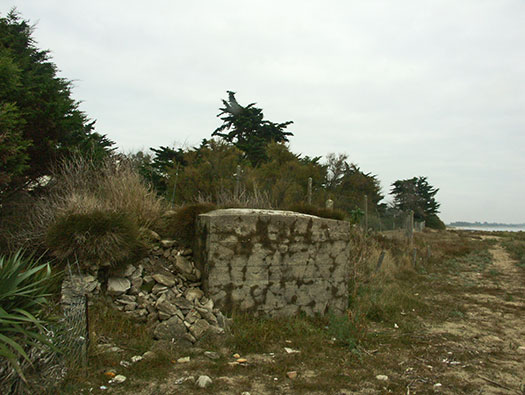

Vf58c Tobruk.








Plan.

Ro422 'Isle', K.V.G Süd Ile de Ré

24 November 2007

Information

Ro422 'Isle', K.V.G Süd Ile de Ré
Tobruk.

Details

Vf58c Tobruk.





AA shooting.

Ro422 'Isle', K.V.G Süd Ile de Ré

1944/5 Moser Jean-Luc

Information

Ro422 'Isle', K.V.G Süd Ile de Ré
Mortar Tobruk.

Details

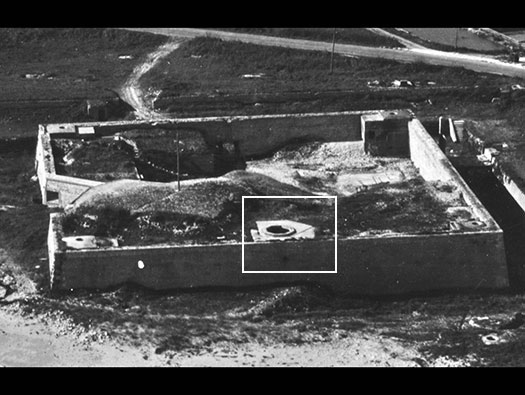

1 x Vf221 ringstand for a 5cm KwK 38/39 Pak.


Plan of a Vf221 mortar Tobruk with an ammunition room and a small crew space.

image5cm KwK 38/39 Pak.


5cm KwK 38/39 Pak.

Ro422 'Isle', K.V.G Süd Ile de Ré

1944/5 Moser Jean-Luc

Information

Ro422 'Isle', K.V.G Süd Ile de Ré

Details

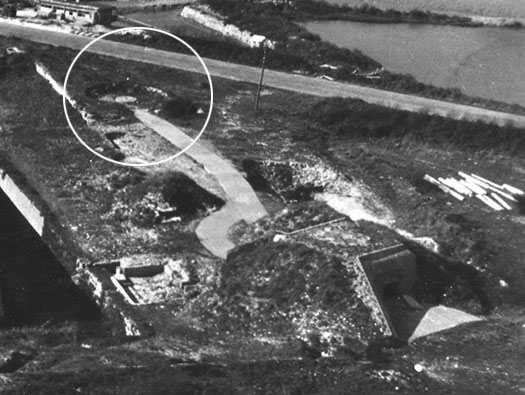

1 x R612 + 1 x Geschützstellung circled .
Circled is the original open emplacement for a 7.5cm F.K.231(f) and in 1944 a casemate R612 was constructed after Hitler’s order to casemate all artillery.


R612 with a flanking wall.


Casemate with its gun in place.


Plan of the pipe work to remove foul gasses from the gun room after it is fired.


A 7.5cm F.K.231(f) in a Geschützstellung (open emplacement).

Ro422 'Isle', K.V.G Süd Ile de Ré

Int

Information

Ro422 'Isle', K.V.G Süd Ile de Ré

Details

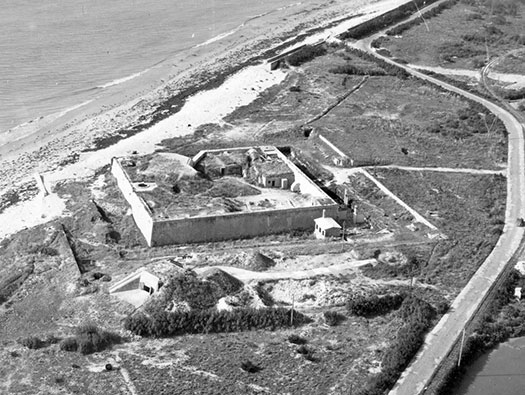

A lovely post war picture of Ro422 from the air, nicely showing the R612 and its Geschützstellung and most of its defences.


Firing inside a casemate.


Gun crew.


Gun firing in an open emplacement (Geschützstellung).

Ro422 'Isle', K.V.G Süd Ile de Ré

24 November 2007

Information

Ro422 'Isle', K.V.G Süd Ile de Ré

Details
