Wn16 Colleville-sur-Orne


Information

Wn16 Colleville-sur-Orne

Details

Batterie 2./A.R.1716
4 x R669 casemate, one under construction.
1 x MG Ringstand.
4 x Vf's positions.
1 x Water cistern.
4 x Geschützstellung [field bunkers].
4 x 10cm le. F.H.14/19(t) guns.




10cm le. F.H.14/19(t) gun at Wn16.


R669 casemate plan.


10cm le. F.H.14/19(t) guns were horse drawn.

Wn16 Colleville-sur-Orne

Google Maps

Information

Wn16 Colleville-sur-Orne

Details



Wn16 Colleville-sur-Orne

Allied Reconnaissance photo

Information

Wn16 Colleville-sur-Orne
Air photo

Details

An air photo of the batterie with the four casemates under construction with at least three open emplacements can be seen.


Ringstand.


Construction.




Wn16 Colleville-sur-Orne

Bigot

Information

Wn16 Colleville-sur-Orne
Bigot map

Details

Bigot map of Wn16 showing the gun position, the minefield defence and trenches.


Wn16 on a German map.


Fire plan for the beach in the event of an Allied invasion. The three call down names here are Freiburg, Füssen, Engers.




Wn16 Colleville-sur-Orne

1947 NA

Information

Wn16 Colleville-sur-Orne
Air photo

Details

A nice air photo taken in 1947 of what remained then. The three casemates and the water reservoir can be seen.


Firing from a field position.


A box of 10cm ammunition.




Wn16 Colleville-sur-Orne

00 00 00

Information

Wn16 Colleville-sur-Orne
Plan

Details

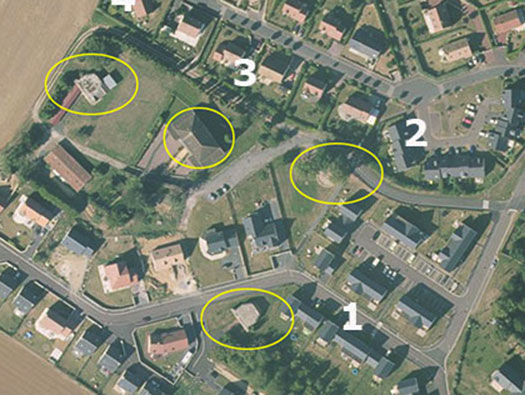

Plan of the batterie.

Wn16 Colleville-sur-Orne

Google

Information

Wn16 Colleville-sur-Orne
R669 casemate Turm 1

Details

R669 casemate, Hitler decided after the constant bombing of open gun emplacements that they needed top cover and one design was the R669. It allows a gun to fire on a 60° angle of fire. With two small ammunition niches behind the gun room. Also the roof of the casemate has extraction vents to allow smoke from the gun to be extracted via an electric fan.


60° angle of fire.


Ammunition niche design.


Plan of the extraction pipe work.

Wn16 Colleville-sur-Orne

Google

Information

Wn16 Colleville-sur-Orne
R669 casemate Turm 1

Details

The rear of the casemate showing the rear door. There is a vent to the left of the door to allow the foul gasses to leave the bunker.


Extraction fan in left hand niche.


200mm vent cover.


Cleaning brushes would be hung on the wall.

Wn16 Colleville-sur-Orne

http://www.atlantikwall.org.uk

Information

Wn16 Colleville-sur-Orne
R669 casemate Turm 1

Details

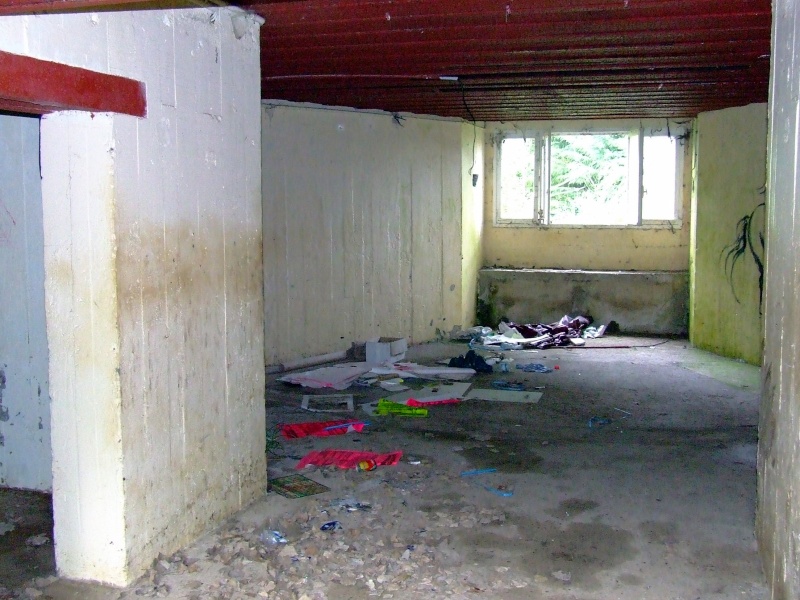

Gun room just showing the left hand ammunition niche.







Wn16 Colleville-sur-Orne

Google

Information

Wn16 Colleville-sur-Orne
Open emplacement, ringstand Turm 2

Details

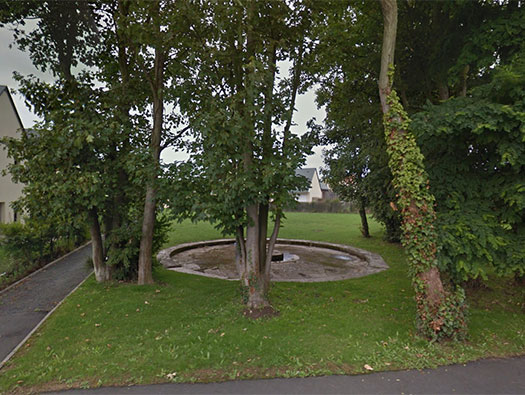

The last ringstand still in place. The gun would sit on the concrete and tied down to the centre and could swivel 360°.


Three batteries of 10cm horse artillery.







Wn16 Colleville-sur-Orne

http://www.atlantikwall.org.uk

Information

Wn16 Colleville-sur-Orne
R669 casemate Turm 3

Details

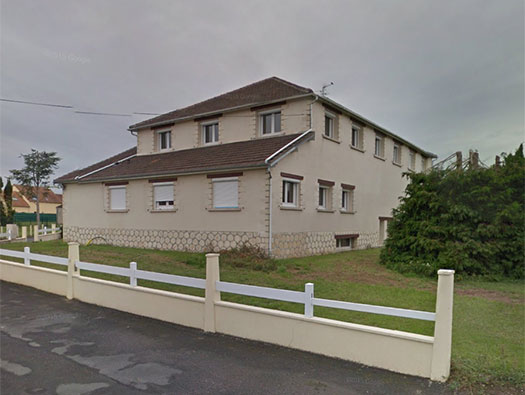

Inside this now very large house is an R669 casemate. Its gradually been built over and just got bigger.


Casemate in house.

Wn16 Colleville-sur-Orne

Google

Information

Wn16 Colleville-sur-Orne
Water reservoir

Details

Water reservoir set behind the batterie position.


Very green from above.

Wn16 Colleville-sur-Orne

03 November 2016

Information

Wn16 Colleville-sur-Orne
R669 Turm 4

Details

Just up the track and the last appears..

Wn16 Colleville-sur-Orne

03 November 2016

Information

Wn16 Colleville-sur-Orne
R669 Turm 4

Details

Looking into the embrasure..

Wn16 Colleville-sur-Orne

03 November 2016

Information

Wn16 Colleville-sur-Orne
R669 Turm 4

Details

Side view.

Wn16 Colleville-sur-Orne

03 November 2016

Information

Wn16 Colleville-sur-Orne
Camouflage

Details

Random camouflage set into the concrete.

Wn16 Colleville-sur-Orne

http://www.atlantikwall.org.uk

Information

Wn16 Colleville-sur-Orne
Ammunition store

Details

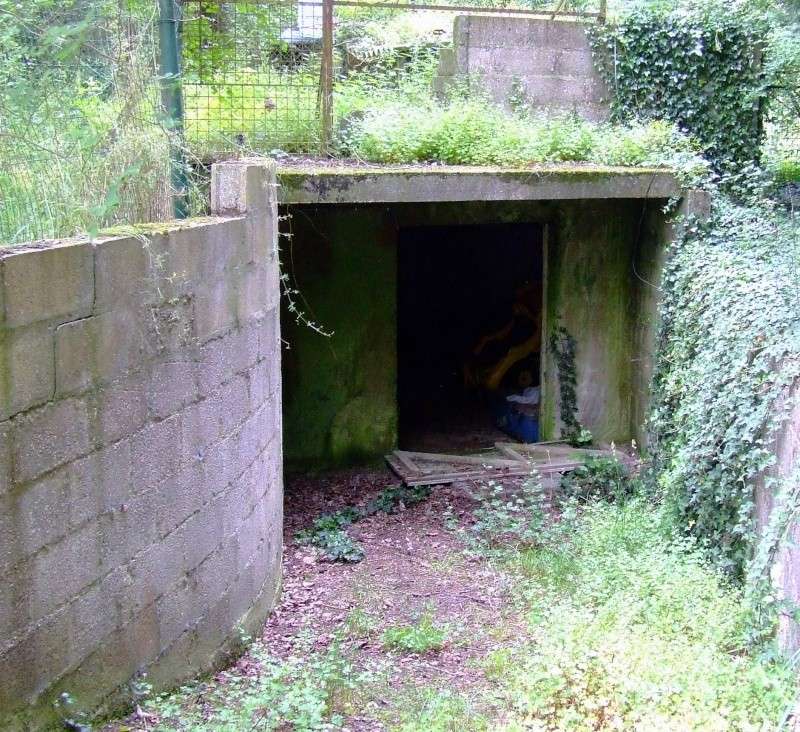

Possibly each gun had a separate ammunition store like this one.










Wn16 Colleville-sur-Orne

NA

Information

Wn16 Colleville-sur-Orne
R669

Details

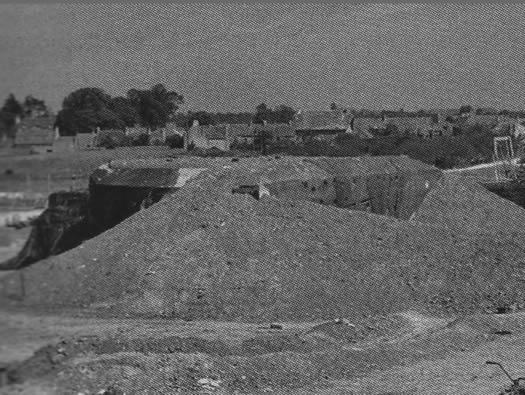

After construction earth was banked up around the casemate to help to camouflage it and also adds a bit more protection/strength when being bombed or shelled.


A casemate at Merville Wn01 with the earth banked around the casemate.

Wn16 Colleville-sur-Orne

NA

Information

Wn16 Colleville-sur-Orne
After capture

Details

After capture what else could a soldier do but hang up his washing.

Wn16 Colleville-sur-Orne

NA

Information

Wn16 Colleville-sur-Orne
R669 The battle for the batterie

Details

The final one under-construction with the timber framework being nailed in place.
The 1st Suffolk Regiment landed between La Breche and Lion-sur-Mer. Advanced across the beach and to their forming up position. 'B' Company advanced on 'Morris', a batterie of four 10cm le. F.H.14/19(t) guns with about three already in casemates but at least one was outside still. 'B' Company arrived at the barbed wire and a call went out for Bangalore Torpedoes. They start blowing the wire only to be confronted by white flags from the bunkers. The soldiers were not die-hard Germans, but Polish forced gunners.







Wn16 Colleville-sur-Orne

NA

Information

Wn16 Colleville-sur-Orne
10cm le. F.H.14/19(t) guns

Details

10cm le. F.H.14/19(t) guns. A 10cm Field Howitzer (t) Czechoslovakian captured gun and re used here. The horses would have been kept near on a farm or a stable and one may be used to bring up stores in a wagon and others bring up spare ammunition from the inland ammunition stores.


.
