Ca05 Cayeux Centre Ville.


Information

Ca05 Cayeux Centre Ville

Details

1 x R610 HQ bunker.
2 x R501 group shelter.
3 x R600 for a 5cm KwK gun.
3 x Feldmassig shelters of some kind.
3 x 5cm KwK 39 L/60 guns.


Plan of an R501 group shelter.


R610 Battle HQ for a strengthened company.


R600 for a 5cm KwK gun.

Ca05 Cayeux Centre Ville.

Information

Ca05 Cayeux Centre Ville

Details



Ca05 Cayeux Centre Ville.

1947

Information

Ca05 Cayeux Centre Ville

Details

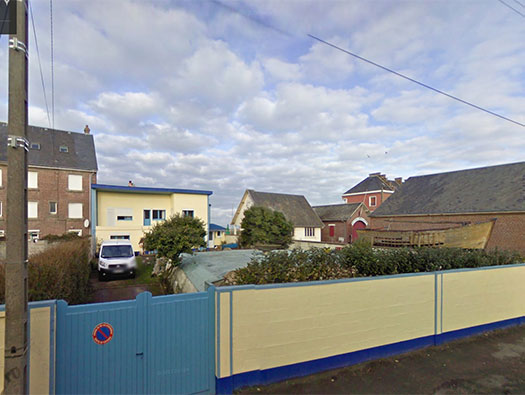

A 1947 air photo of the town with the listed bunkers showing up, the others I could not find anywhere.


R600 type ringstand like the three that would have been here.


5cm KwK 39 L/60.


5cm KwK.

Ca05 Cayeux Centre Ville.

24 February 2014

Information

Centre Ville R501 group shelter.

Details

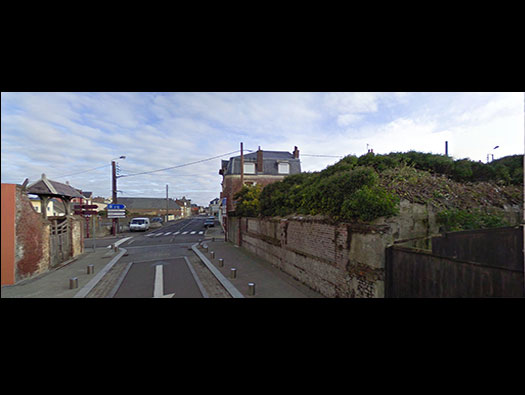

The R501 is behind the wall on the right built in the garden and now covered in vegetation.


Plan of known bunkers.







Ca05 Cayeux Centre Ville.

24 February 2014

Information

Centre Ville R501 group shelter.

Details

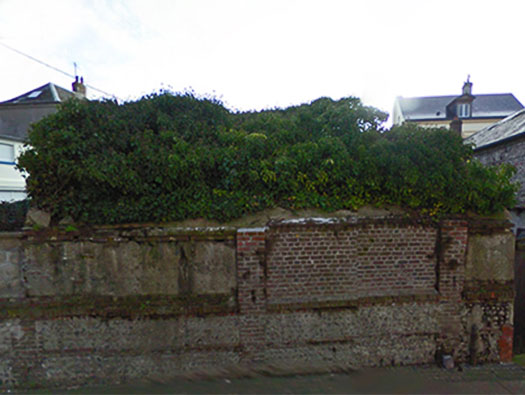

A perfectly camouflage bunker.

Ca05 Cayeux Centre Ville.

24 February 2014

Information

Centre Ville R610 R610 HQ bunker.

Details

About the size of a two twin group bunkers added together to allow for a company Head Quarters. With clockwise: -
Tobruk defence. Gas Lock. Crew room. Crew room. Commander. Wireless. Work room. Gas lock & Close combat defence room.


Plan of an R610, the red dot is a periscope.


Periscope set into the roof through a steel tube.


This is how the tube looks on the top of a bunker, a Periscope Panzerteil.

Ca05 Cayeux Centre Ville.

24 February 2014

Information

Centre Ville R610

Details

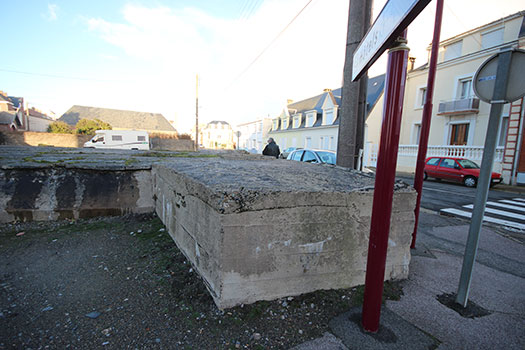

Quite a large bunker semi sunk into the ground.










Ca05 Cayeux Centre Ville.

24 February 2014

Information

Centre Ville R610

Details

I am surprised they have no built on top of it?

Ca05 Cayeux Centre Ville.

24 February 2014

Information

Ca05 Cayeux Centre Ville R610

Details

The Tobruk defence.
This is the only outward defence the bunker has, the machine-gun could fire 360degrees and also as an anti-aircraft gun, so very useful all around. Also either through a speaking tube or a field telephone the soldier in the Tobruk could spot for mortar fire and be the eyes of the bunkers crew.

Ca05 Cayeux Centre Ville.

24 February 2014

Information

Ca05 Cayeux Centre Ville R610

Details

The Tobruk defence.


The sort of machine-gun ring that would fit into the Tobruk.


An Mg34.


This is a Tobruk on an R611 in Brittany and some of the concrete has been cut away to reveal how the Tobruk looks from below.

Ca05 Cayeux Centre Ville.

24 February 2014

Information

Ca05 Cayeux Centre Ville R610

Details

Concrete camouflage.
Note the smooth concrete of the bunker and the stuck on concrete camouflage in a sort of net pattern.

Ca05 Cayeux Centre Ville.

24 February 2014

Information

Ca05 Cayeux Centre Ville R610

Details

Concrete camouflage & the Tobruk defence.

Ca05 Cayeux Centre Ville.

24 February 2014

Information

Ca05 Cayeux Centre Ville R610

Details

Close combat defence.


This is a close combat embrasure and rear entrance of a bunker at Varde in Brittany but it gives the idea of what is there.


The view past an entrance door along a trench out of the bunker showing the gunners view from the embrasure.


A machine-gun set up to fire through a close combat embrasure.

Ca05 Cayeux Centre Ville.

24 February 2014

Information

Ca05 Cayeux Centre Ville R501

Details

Another R501 group shelter. This one has been sunk in more than the last R501 presumably because it is in a more vulnerable position.


Plan of an R501.Entrance & gas lock and crew room with a small close combat embrasure covering the rear door from the crew room.


Close combat window defence.


422po1 close combat window of the type that may have been used here.

Ca06 Cayeux Plage Sud.

DEFE 2/2092

Information

Ca05 Cayeux Centre Ville 5cm KwK L/60

Details

Somewhere along the sea wall was this 5cm KwK L/60 Pak gun in a Vf.600 ringstand.


Vf.600 ringstand.


Vf.600 ringstand.


5cm KwK L/60.
