StP12 Ravenoville St-Hurbert
Details
4./919. Grenadier Regiment, 709th ID.
1 x R667 casemate.
1 x R634 casemate.
1 x R612 casemate + searchlight.
1 x Wellblech bunker.
1 x Munitions bunker.
4 x Pz.Drehturm Bf.67 neu Tobruk.
1 x 5cm KwK L/60.
1 x 7.5cm F.K.
3 x (APX R) R35 3.7cm KwK144(f) co-axle M.G.311 (f)
1 x
(APX 1 CE) S35 4.7cm KwK173 (f) co-axle M.G.311 (f)
1 x Searchlight (Scheinwerfer) 150cm.
All bunkers are actually here on site and only the R612 has had its top removed but it does show its gun room floor very well.
R667 plan.
R612
R634
(APX R) R35 3.7cm KwK144(f) co-axle M.G.311 (f)
StP12 Ravenoville St-Hurbert
Google
Information
StP12 Ravenoville St-Hurbert
Details
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert
Details
I suppose ART not Graffiti.
StP12 Ravenoville St-Hurbert
Geo
Information
StP12 Ravenoville St-Hurbert Plan
Details
Built in 1943/4 as an extra defence between two smaller Wn´s. This StP was built around an R667 casemate very different from any other I have seen. The casemate has extra embrasures for machine guns. Its rather unique. An R634 a six embrasured steel turret covering 360° around the StP. Four Bf.67 neu tank turret Tobruks also able to fire 360°. An R612 finished off the defence with a 7.5cm F.K. horse drawn gun. The red lines are the anti-tank ditches dug all around the rear plus two spurs running out from a Tobruk and the R634. The whole area would be wired in and a mine field added.
R634 bunker
7.5cm F.K.
(APX R) R35 3.7cm KwK144(f) co-axle M.G.311 (f)
StP12 Ravenoville St-Hurbert
German plan of the beach defences.
Information
StP12 Ravenoville St-Hurbert Map
Details
The map shows Wn13 & Wn11 with StP12 in the middle. On the seaward side a mine field Mf.55 along the sea shore.
Teller mine.
StP12 Ravenoville St-Hurbert
Geo 09-05-47
Information
StP12 Ravenoville St-Hurbert Air photo
Details
A very good air photo taken in May 1947 with all the anti-tank ditches filled in but all the bunkers look extant.
StP12 Ravenoville St-Hurbert
21 October 2004
Information
StP12 Ravenoville St-Hurbert Tank turret Bf.67 neu Tobruk
Details
This is the first Tobruk set against a small anti-tank sea wall was an R35 turret from a captured French tank that would have been fitted on its top. There are three Tobruks of this type within the defence.
Bf.67 neu Tobruk.
APX R R35 3.7cm KwK144(f) plus an M.G.311(f).
Renault R35.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert Tank turret Bf.67 neu Tobruk
Details

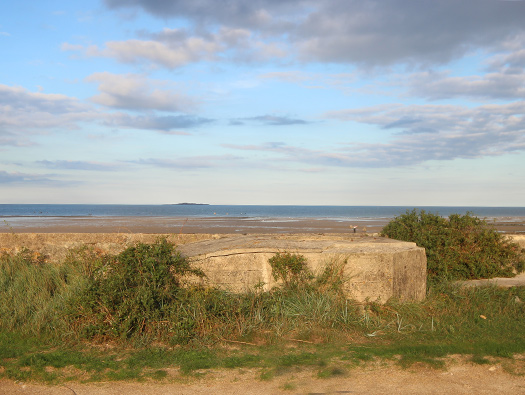

The view out to sea.
Plan.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert R634 six embrasured turret bunker.
Details
This bunker has an M.G.34 machine gun fitted into a 20P7 cupola with six embrasures. Inside the turret the M.G.34 could be moved from one embrasure to another as it is needed.
20P7 not placed in a bunker.
20P7 cupola.
Inside a 20P7 dome.
Plan.
StP12 Ravenoville St-Hurbert
21 October 2004
Information
StP12 Ravenoville St-Hurbert R634 six embrasured turret bunker.
Details
A large crew room for about nine men, commander, gunner, ammunition handlers, one man in the Tobruk and another covering the rear door with the lose combat machine gun.

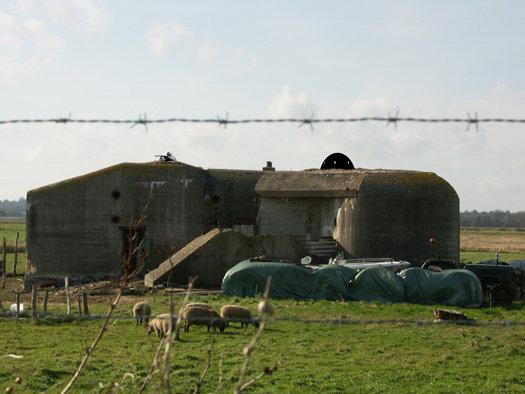

The 20P7 dome has been removed I have added one for effect and a Tobruk gunner in his place.
R634 bunker crew room.
A crew room.
Machine gunner.
StP12 Ravenoville St-Hurbert
Int 1945
Information
StP12 Ravenoville St-Hurbert R634 six embrasured turret bunker.
Details

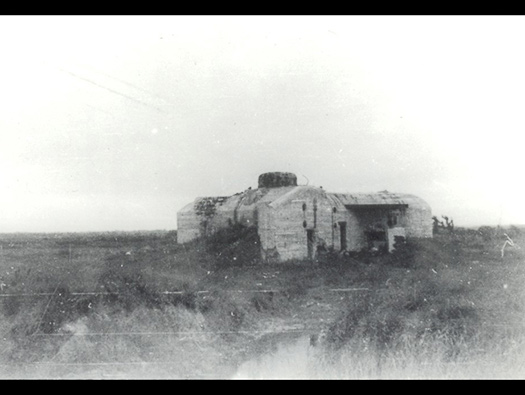

The rear entrance has an embrasure and defence room with a machine gun covering the rear door. A small wall has been added here and at the two other bunkers of this style covering the entrance so they may have found a week spot and filled it with the wall??.
Ventilation room had up to three ventilation pumps, usually hand operated by turning a handle. Anti gas and smoke filters filters can be used. When the gun fires the smoke and fumes would be very high, so the ventilators would be started and fresh air from outside is sucked through the filter and pressurises the bunker, thus no fumes or gas can enter.
Plan R634 close combat defence.
Close combat room.
Ventilation.
StP12 Ravenoville St-Hurbert
R-9751-2 Report on German Concrete Fortifications Sept/Oct 1944 Page190
Information
StP12 Ravenoville St-Hurbert R634 six embrasured turret bunker.
Details
This picture shows a 20P7 dome after the battle hit many times by 3” shells, a 3” shell is a 75mm Sherman's main gun at StP16..
75mm Sherman Tank.
A 75mm Sherman armoured piercing shell.
StP12 Ravenoville St-Hurbert
Plan
Information
StP12 Ravenoville St-Hurbert 20P7 Dome
Details
20P7 dome six embrasure. On three levels, a periscope where the guns commander could spot for the machine gunner, other crew members would carry forward boxed ammunition and brush away spent cartridges or empty a spent cartridge bag. Another crew member would turn the handle on a fan to remove the foul gasses made by the machine gun. So in the heat of battle a lot would be going on.
Gunner sighting the gun.
Embrasure ball joint for a machine gun.
M.G.34.
StP12 Ravenoville St-Hurbert
Report on German Concrete Fortifications Sept-Oct 1944 Confidential Page189
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
Just after capture this photo was taken also showing the battle damage.
R667 casemate plan.
Plan.
StP12 Ravenoville St-Hurbert
Report on German Concrete Fortifications Sept-Oct 1944 Confidential Page190
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
The more I look at this photo the more I believe its from the gun above. The page with the above photo is 189 and this one is 190 so, very coincidental. Except its a 5cm NOT an 8.8cm gun???.
StP12 Ravenoville St-Hurbert
21 October 2004
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
The basic R667 sits on the top of a small embrasure and machine gun room under the lip of the glasses. The sea wall still at the same height running along. Plenty of battle damage can be seen today.
Elevation plan of this R667. 5cm KwK in the embrasure and two probably M.G.34´s in each small embrasures.
5cm KwK L/60 Pak.
M.G.34.
StP12 Ravenoville St-Hurbert
21 October 2004
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
This is looking from the rear with the sea wall looking as though its cutting through the bunker and another embrasure has been built into the rear wall.
Rear machine gun.
Rear machine gun.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
The entrance to the embrasure. also battle damage from the rear.
The coat of arms was cut out of the square on the back of the bunker.
Plan.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details

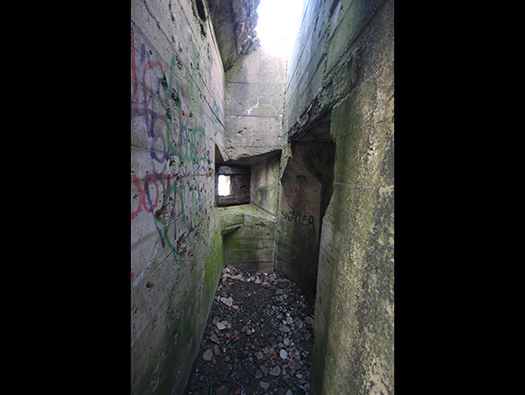

Looking in through the rear passage at the machine gun embrasure and on the right the entrance to the casemates gun room.
Plan.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details

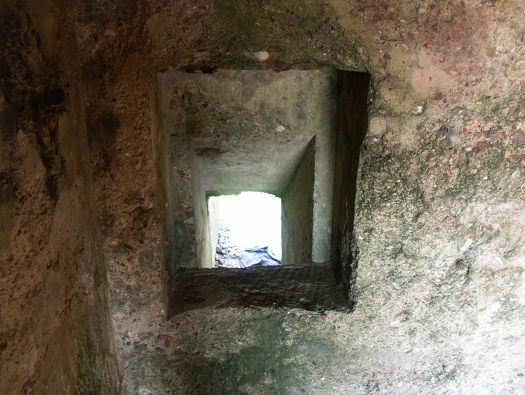

The rear embrasure.
Details2
Could be a 42P01 close combat embrasure window.
Plan.
StP12 Ravenoville St-Hurbert
21 October 2004
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
The view the gunner would have had out of the rear at the sea wall.
StP12 Ravenoville St-Hurbert
21 October 2004
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
Embrasure.
483P2 This is another embrasure that it could be.
StP12 Ravenoville St-Hurbert
21 October 2004
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
Gun room and you can just see where the gun was bolted down a circle on the floor which means the left hand side of the guns embrasure was concreted over so the gun did not have as much traverse to the left.
Plan.
How it would have looked.
StP12 Ravenoville St-Hurbert
R-9751-2 Report on German Concrete Fortifications Sept/Oct 1944 Page189
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details

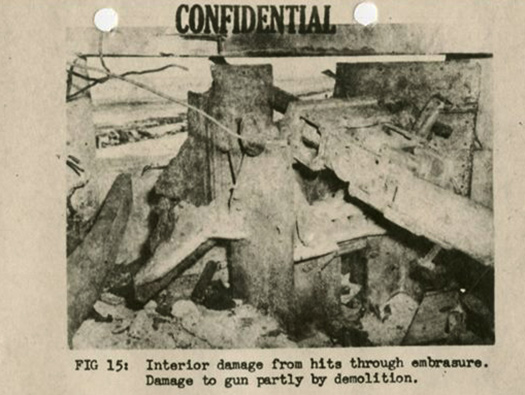

Report on German Concrete Fortifications was a coming together of all forms of intelligence about the beaches and their defence. This shows an after battle picture of a 5cm KwK with its shield very badly damaged at StP16.
Gun.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
Gun room.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
Rear of the gun room this slot is for spent shell cases to be thrown out of the bunker down this shoot. Keeps the place clean and tidy in battle.
5cm ammunition.
5cm ammunition.
Plan.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
The entrance to the small combat room.
Plan.
StP12 Ravenoville St-Hurbert
00 00 00
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
Combat room and another close combat embrasure in place.
Elevation.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details

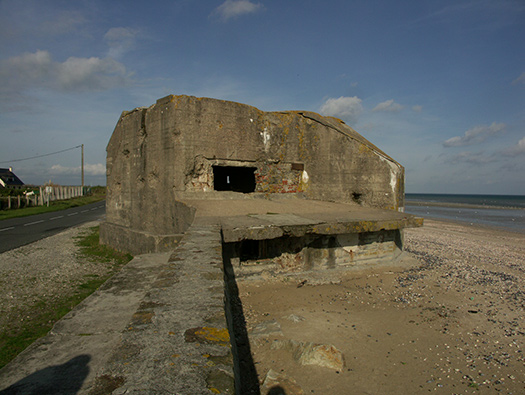

The main casemate again and you can see the embrasure has been bricked up the seward side giving the gun more cover but not allowing the gun full travers. Note the close hit on the flanking wall.
Possibly a Sherman shooting along the beach.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details

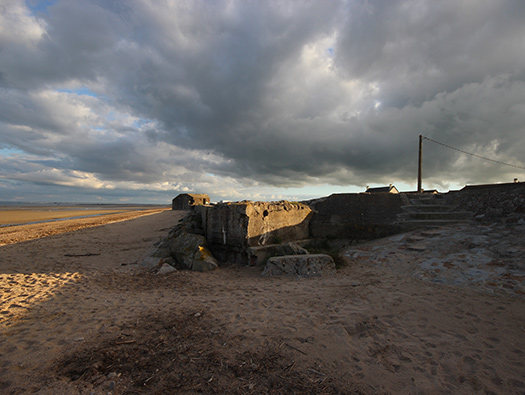

The view from the beach.
Beach defences.
Local soldiers assembling concrete pyramid defences.
StP12 Ravenoville St-Hurbert
Int
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
After its capture and it does look a shambles.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert R667 casemate.
Details
The rear of the casemate.
StP12 Ravenoville St-Hurbert
06 October 2003
Information
StP12 Ravenoville St-Hurbert Bf.67 neu Tobruk with an APX 1 CE S35 Turret
Details
Bf.67 neu Tobruk with an S35 turret on its top. 4.7cm KwK 173 (f).
S35 turret from a post WW1 French tank.
Bf.67 neu Tobruk with a turret ring bolted to it open ringstand. a gunner stands (or sits) in the turret and a second man helps with ammunition.
Inside the rear of a turret.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert Bf.67 neu Tobruk with an APX 1 CE S35 Turret
Details
Bf.67 neu Tobruk.
S35 4.7cm KwK 173 (f).
Plan.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert Bf.67 neu Tobruk with an APX 1 CE S35 Turret
Details
Bf.67 neu Tobruk.
StP12 Ravenoville St-Hurbert
00 00 00
Information
StP12 Ravenoville St-Hurbert Bf.67 neu Tobruk with an APX 1 CE S35 Turret
Details

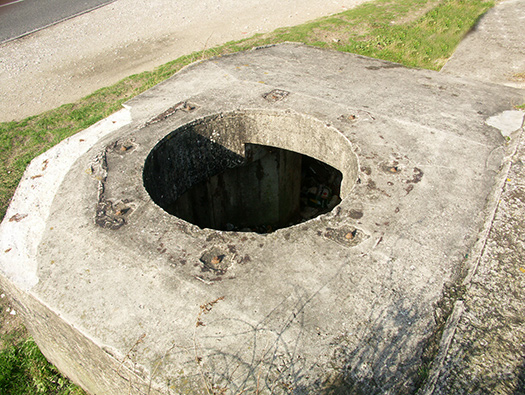

Bf.67 neu Tobruk the turret ring bolted down on the eight bolts still standing..
Turret ring.
Turret ring bolt.
APX 1 CE S35 Turret.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert Bf.67 neu Tobruk with an APX 1 CE S35 Turret
Details

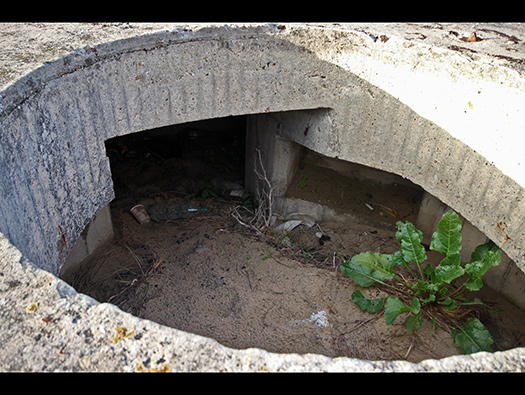

Looking into the ringstand showing ammunition niche and the entrance back into the Tobruk.
4.7cm ammunition.
StP12 Ravenoville St-Hurbert
21 October 2004
Information
StP12 Ravenoville St-Hurbert R612 casemate.
Details
An R612 casemate for an assault gun (anti landing gun).
The gun was an old horse drawn Field Kannon 7.5cm probably from WW1.
R612 complete casemate.
R612 casemate plan.
7.5cm Field Kannon.
StP12 Ravenoville St-Hurbert
1944
Information
StP12 Ravenoville St-Hurbert R612 casemate.
Details

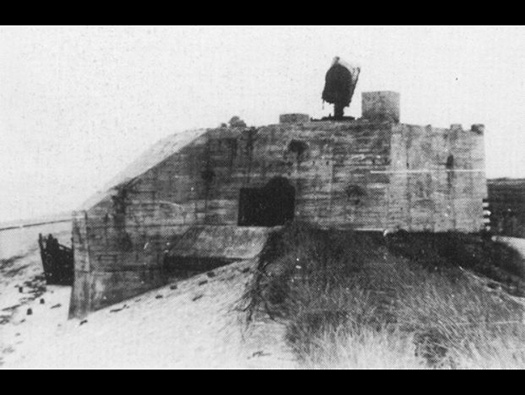

The casemate and the end of the battle showing the 150cm searchlight on its roof. A cable ran back into the StP and to a small generator bunker/shed. The light would have been used to light up targets at sea at night. Rommel had ordered more searchlights.
Plan.
Embrasure.
150cm searchlight.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert R612 casemate.
Details
Just the foot print of the casemate left.
Details2
7.5cm F.K.
StP12 Ravenoville St-Hurbert
Secret Martian Report No.14 02-09-42 Copy No.22 --------- 48 copies only
Information
StP12 Ravenoville St-Hurbert R612 casemate.
Details

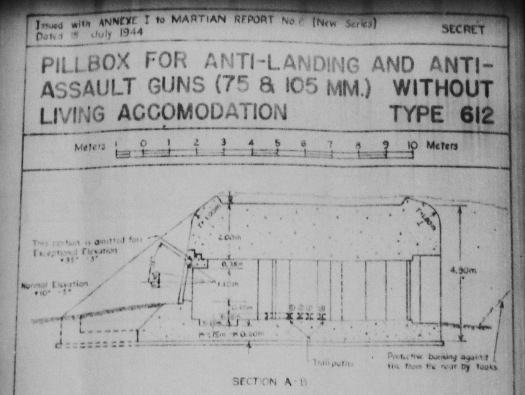

Allied report on the casemate.
StP12 Ravenoville St-Hurbert
Secret Martian Report No.14 02-09-42 Copy No.22 --------- 48 copies only
Information
StP12 Ravenoville St-Hurbert R612 casemate.
Details

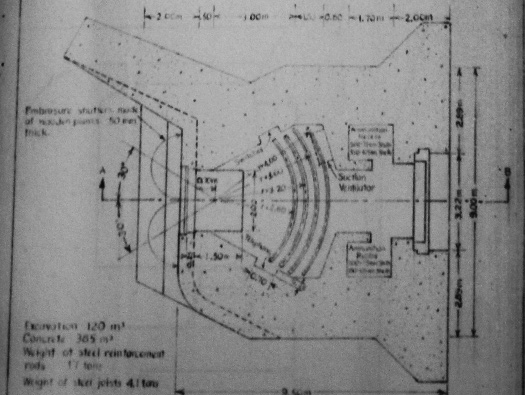

The plan shows two niches for ammunition, usually case and shot. The half round arcs are for the guns trails to sit in to stop the gun from going backwards when fired.
StP12 Ravenoville St-Hurbert
06 October 20113
Information
StP12 Ravenoville St-Hurbert R612 casemate.
Details
The view from the beach.
StP12 Ravenoville St-Hurbert
06 October 2003
Information
StP12 Ravenoville St-Hurbert Bf.67 neu
Details
The third Tobruk in the group.
Plan.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert Bf.67 neu
Details
This one had an APX R R35/H35 turret with a 3.7cm KwK 144(f) main gun and an M.G.
APX R R35/H35 turret.
Inside the turret.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert Bf.67 neu
Details
Looking north.
StP12 Ravenoville St-Hurbert
00 00 00
Information
StP12 Ravenoville St-Hurbert Bf.67 neu
Details
Tobruk No.4 this one also had an APX R R35/H35 turret with a 3.7cm KwK 144(f) main gun and an M.G.
APX R R35/H35 turret.
R35 turret.
3.7cm KwK 144(f) ammunition.
StP12 Ravenoville St-Hurbert
00 00 00
Information
StP12 Ravenoville St-Hurbert Bf.67 neu Tobruk with an APX 1 CE S35 Turret
Details
This is how a Bf.67 neu looked.
StP12 Ravenoville St-Hurbert
Bigot map 12 May 44 Copy No.208
Information
StP12 Ravenoville St-Hurbert Bigot
Details
This is the relevant part of a Bigot map dated 12 May 1944 a moth before D-Day showing the known (known to the Allies that is) defences.
The plan states that a 608? under construction in May 44. They were wrong it is a 634.
StP12 Ravenoville St-Hurbert
00 00 00
Information
StP12 Ravenoville St-Hurbert The US advance
Details
On the evening of June 6, Lieutenant Meidam (the 4th Company of the First Battalion of the 919th GR) moves his men into Wn10 defence site. Then Wn10a and Wn11 and finally to StP12. With the survivors of the garrisons of the Wn10, Wn10a, Wn11 and StP12, StP12 holds out for several days. The anti-tank gun and the anti-landing field Kannon in StP12 are destroyed after June 7, and there is only one twin machine gun in the armoured cupola (the 6 embrasures of the R644 bunker at the back of the StP). Lt Meidam went (left unspecified date) when surrounded by numerous tanks and it has become impossible to leave the bunker in the dome but also because there is no more food and half of Germans are wounded and no ways to treat them. The testimony of Lt. Meidam was collected by Lt. Col. Keil as prisoners when they were in the same camp. EF.
StP12 Ravenoville St-Hurbert
06 October 2013
Information
StP12 Ravenoville St-Hurbert
Details
France
Great Britain
