Wn. Tu27 Point de Penchâteau


Information

Wn. Tu27 Point de Penchâteau

Details

2 x Vf/MG
3 x Vf58c Tobruk's
4 x VfIc116 Tobruk's
1x Vf2a
2 x R611 [under construction]
1 x R622 twin gruppe bunker.
1 x R625 Embrasured emplacement for a 7.5cm Pak 40.
1 x R634 A bunker with a six embrasured turret.
1 x R644 Emplacement with six embrasure turret.
2 x R653 (1) Embrasured emplacement for a 5cm KwK.
3 x R600b Open ringstand for a 5cm KwK.
3 x 5cm KwK L/42.
2 x 7.5cm F.K.235(b)
1 x 7.5cm Pak


Vf2a shelter.


R622 twin gruppe bunker.


R625 Embrasured emplacement for a 7.5cm Pak 40.

Wn. Tu27 Point de Penchâteau

Information

Wn. Tu27 Point de Penchâteau.

Details



Wn. Tu27 Point de Penchâteau

Google maps

Information

Wn. Tu27 Point de Penchâteau.

Details

Coming around the bend you notice the Vf/MG casemate on the left.


R634


R644


Plan.

Wn. Tu27 Point de Penchâteau

NA

Information

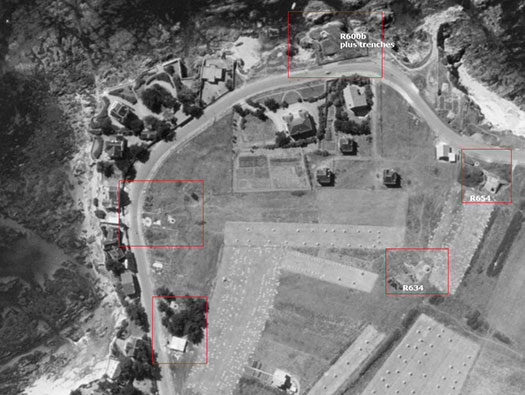

Air photo of Tu27..

Details

I have marked what can be seen on this 1948 photo.










Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau Vf/MG casemate.

Details

A locally built covered machine gun position covering he left flank along the low cliffs.


How it may have looked with an Mg34.


Vf.


Mg34 in pieces.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

Vf/MG casemate.


Info1

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

Vf/MG casemate.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

Vf/MG casemate.
The machine gun covering the low cliffs.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

Vf/MG casemate trenches




Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

Vf/MG casemate trenches.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

The trenches.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

The trenches.




Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

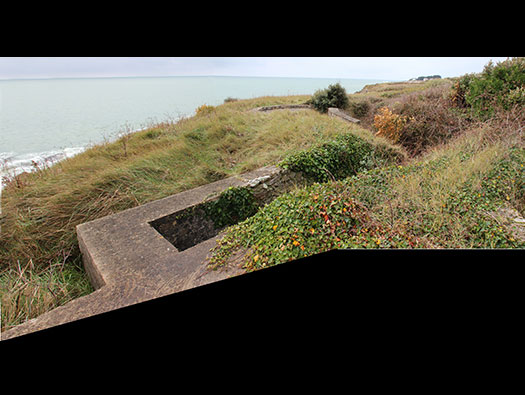

The trenches, the Vf/MG and an R600b in the background all linked by trenches.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

The R600b ringstand for a 5cm KwK L/42 with trenches running into the Vf/MG.


R600b for a 5cm KwK L/42.


5cm KwK L/42.


Ammunition.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

R600b for a 5cm KwK L/42 circular gun base where the gun was mounted.


5cm KwK L/42.


Bolt to hold fast the gun.


A ring of reinforcement to hold a camouflage net.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

5cm KwK L/42.

Details

R600b for a 5cm L/42 showing the base where it was fitted to the concrete.


Ammunition.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

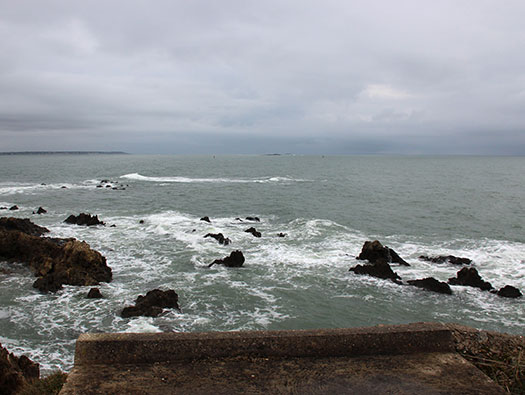

R600b for a 5cm KwK L/42. The view out to sea.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information



Details

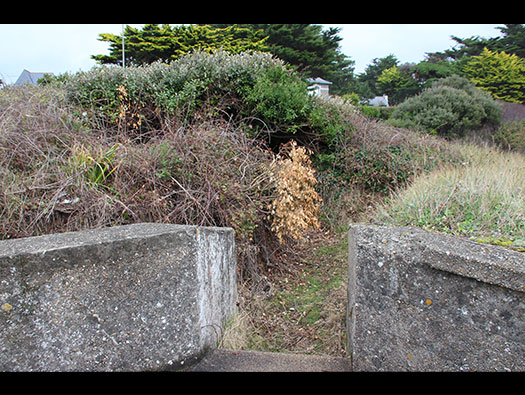

R600b for a 5cm KwK L/42 trench to the rear.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau.

Details

Looking west.


Plan.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

R654 casemate for a 5cm KwK gun this type I have never seen inside and as usual it was sealed up.


R654 plan with gun room and periscope (red dot). L shaped room ammunition,


Boxes of 5cm ammunition.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

R654 casemate for a 5cm KwK gun rear entrance and gas lock.


Info1

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

R654 casemate for a 5cm KwK gun close combat embrasure covering the rear entrance.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

R654 casemate for a 5cm KwK gun the close combat embrasure


It looks like a 57P8 steel embrasure.


Close combat machine gun covering the rear.




Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

R654 casemate for a 5cm KwK gun the embrasure of the main gun now bricked up.


How it may have looked.


How it may have looked inside the gun room.


Plan.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

R654 casemate for a 5cm KwK gun.
You can just see the sea and the gun would have covered an arc of fire about the same as this picture. A good job the house was not there in WW2.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

Garage.
I have no proof but this garage does look contemporary to the defended area. It may have stored a gun or a small vehicle.


3.7cm A/T gun.


Kubelwagen.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

Garage.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

Garage.


Plan.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information



Details

A Tobruk either a Vf58c (x 3) or a VfIc116 (x 4).


Vf58c.


VfIc116


Vf58c.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

A Tobruk either a Vf58c (x 3) or a VfIc116 (x 4).


Plan.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

The second Vf/MG small casemate like the earlier on.


Mg34.


Mg34 tool box.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details

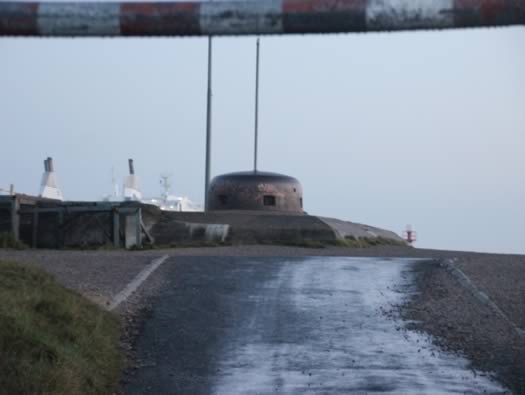

R634 bunker at Wn07 Ouistreham, Pointe du Siége. A bunker with a six embrasured turret.
This gives an idea what an R634 with a 20P7 cloche looks like. I believe the bunker is still in place but we never found it.


Mg34.


20P7 six embrasured turret or cloche.


Machine gunner inside the dome, turret or cloche.

Wn. Tu27 Point de Penchâteau

04 November 2015

Information

Wn. Tu27 Point de Penchâteau

Details
