StP026 Batterie West Ecqueville


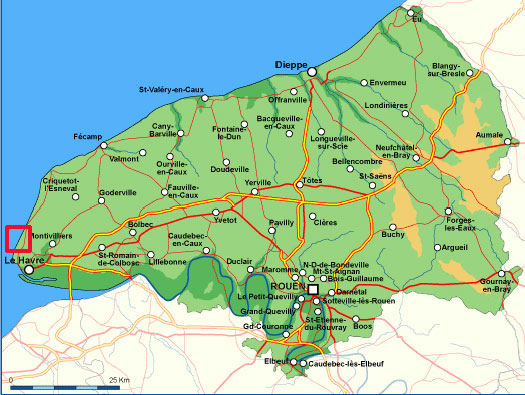

Information

StP026 Batterie West Ecqueville

Details

In 1942 field batterie turned up and located its guns in field positions, 6 x 10.5cm K.35(t). Then four open emplacements (Geschützstellung) were built with underground tunnels to and from the ammunition stores. Many bunkers and barracks, an air raid shelter and also a rifle range all built by the Todt Org. 1943 they started to upgrade the batterie with two R621, one R607, Flak and anti tank guns. Then four R671 casemates were built, a fire control post was built just behind the gun line.
1./I./H.K.A.A 1254.
4 x R671 casemates.
6 x Geschützstelung (open gun emplacements).
1 x Hochleitstand/SK (fire control post).
2 x R621 twin group bunkers.
1 x R607 ammunition bunker.
3 x Vf58c Tobruk's.
2 x Zisterne.
2 x 2cm KwK38 A/T guns.
2 x 2cm Flak 38.
4 x 10.5cm K.35(t).
2 x 7.5cm F.K.16 n.Art.
1 x 60cm searchlight.
1 x 150cm searchlight.



7.5cm F.K.16 n.Art.


A rifle range.


4 x 10.5cm K.35(t).

StP026 Batterie West Ecqueville

Google

Information

StP026 Batterie West Ecqueville

Details



StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

A roundabout on the D942 driving south towards LeHavre.

StP026 Batterie West Ecqueville

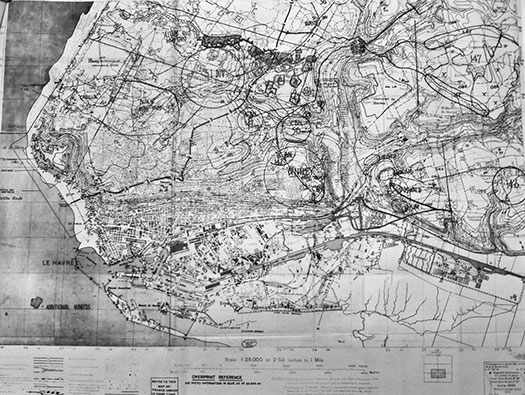

German plan.

Information

StP026 Batterie West Ecqueville

Details

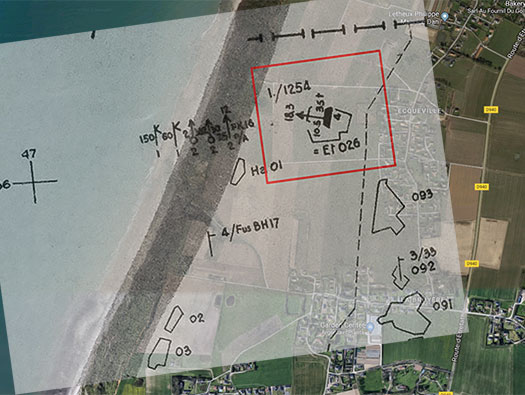

German plan overlaid Google earth.

StP026 Batterie West Ecqueville

1947

Information

StP026 Batterie West Ecqueville

Details

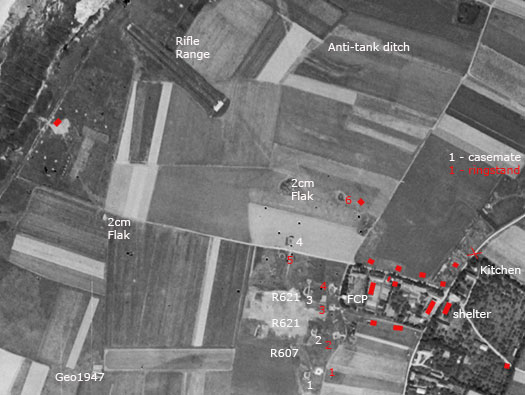

This is a 1947 air photo.

StP026 Batterie West Ecqueville

Google

Information

StP026 Batterie West Ecqueville

Details

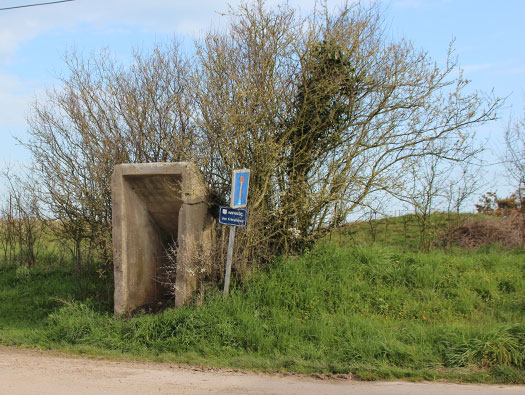

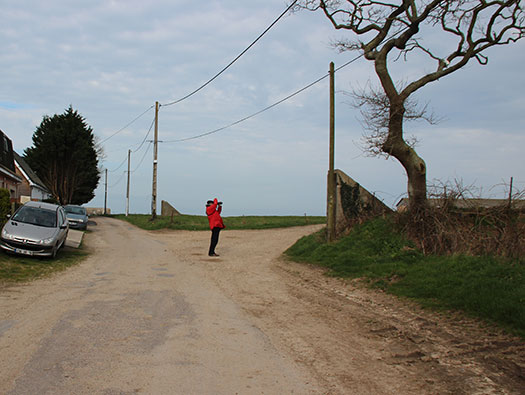

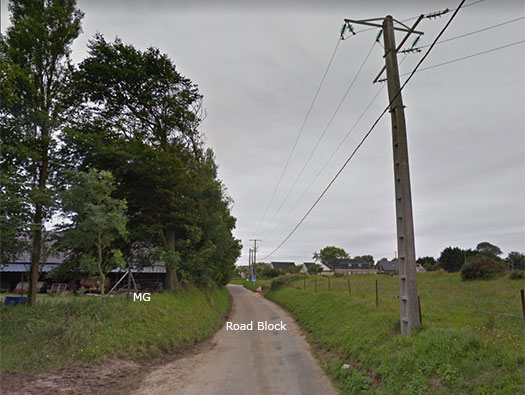

On the left in the bank was a machine gun and in the road a roadblock.


Machine gun.


Road block using a Belgian gate to close off the road.


Plan.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

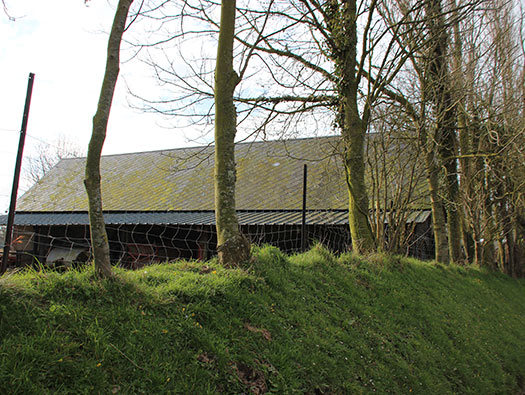

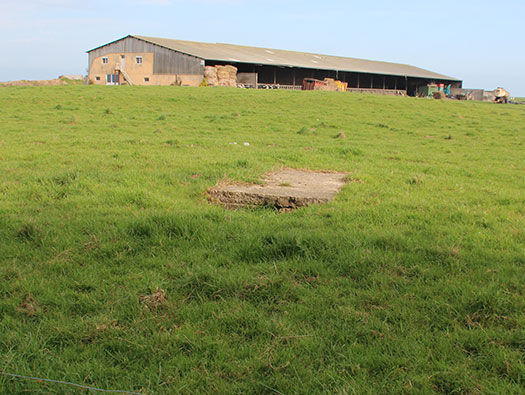

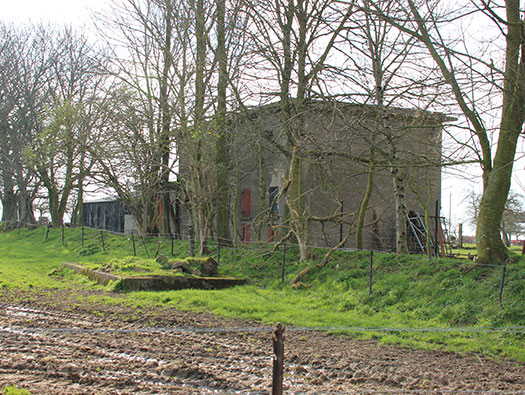

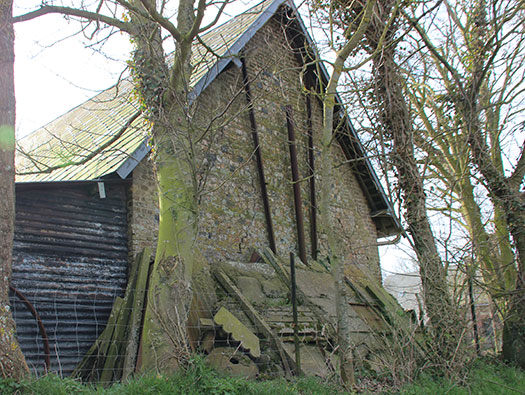

Barn that would have been used as a barracks.










StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

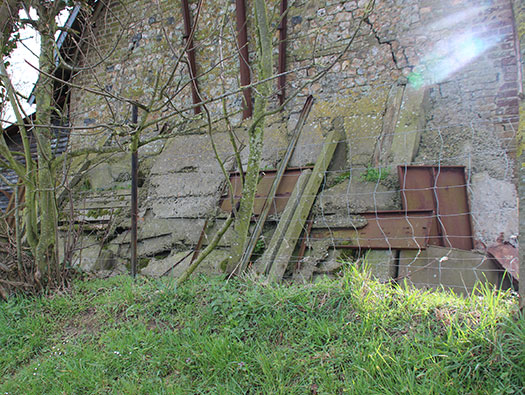

There seems to be some prefabricated concrete added to the outer walls.


Plan.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

There seems to be some prefabricated concrete added to the outer walls.










StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

It would be nice to think I have found something of historical importance from the batterie but I expect its just a piece of farm machinery??

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

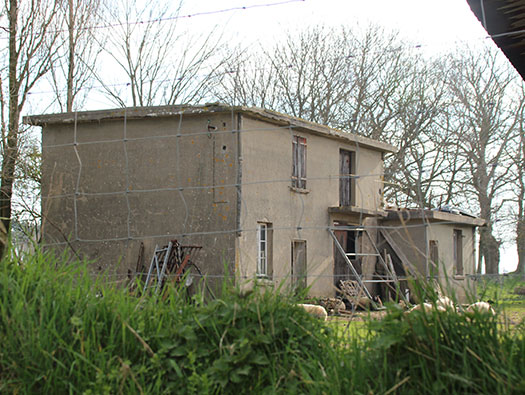

Kitchen and pigsty. Water reservoir in this field and the fence posts are all German Eisenpfahel barbed wire posts.


Plan.












Eisenpfahel fence post.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Kitchen and pigsty.










StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville , L.S. Shelter

Details

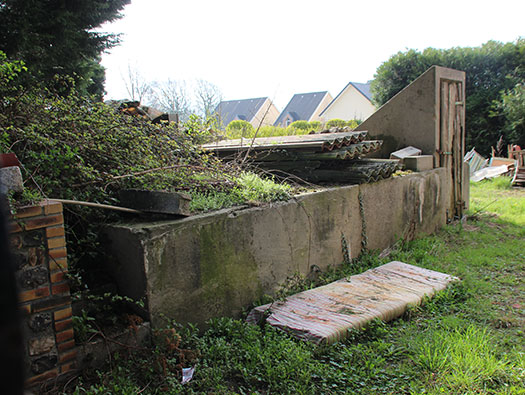

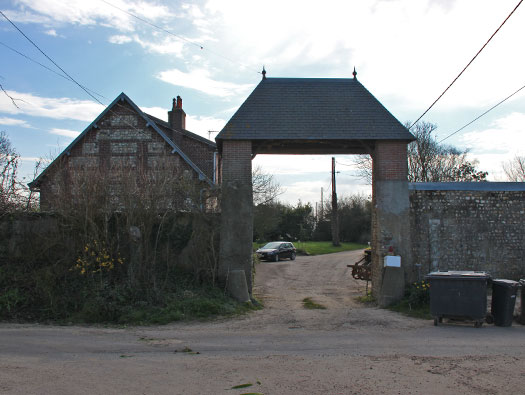

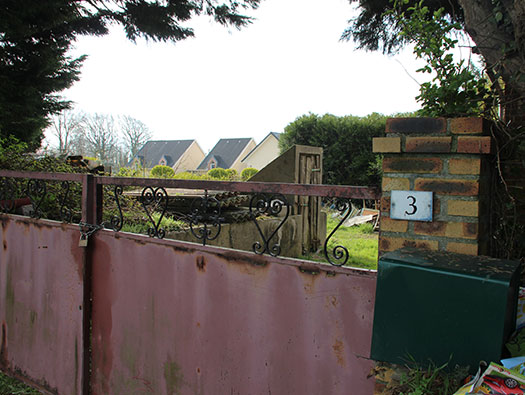

Ferme Dégenétois. Inside the farm is also a Luftchutz bunkers (air raid shelter).


Plan.


Luftchutz arm band.


Luftchutz bunker that was inside the farms yard.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

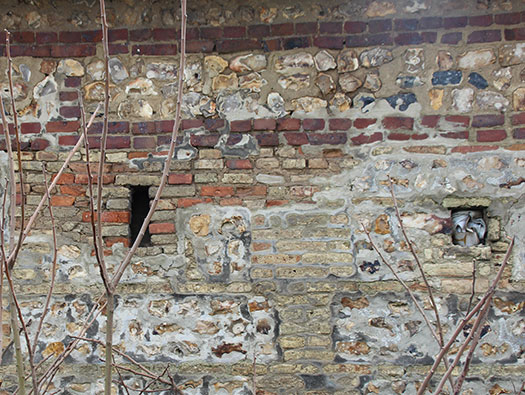

Ferme Dégenétois, may be rifle slits??










StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

More very roughly poured concrete on the side of this barn.


Plan.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

On the right was a stable bunker for four horses ((pour 4 Cheaux).

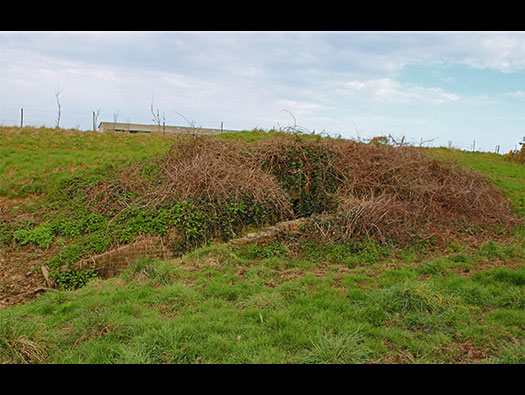

The mound is a one roomed ammunition bunker.


Plan.


Man & Horse.


Horse artillery.





A three horse bunker on the Ile de Ré.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

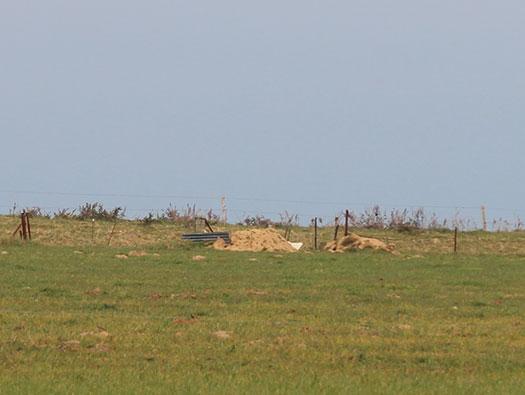

The mound is a one roomed ammunition bunker.










StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

The mound is a one roomed ammunition bunker.





Case.


Case.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Another one roomed ammunition bunker of which there were four down this road.


Plan.







StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

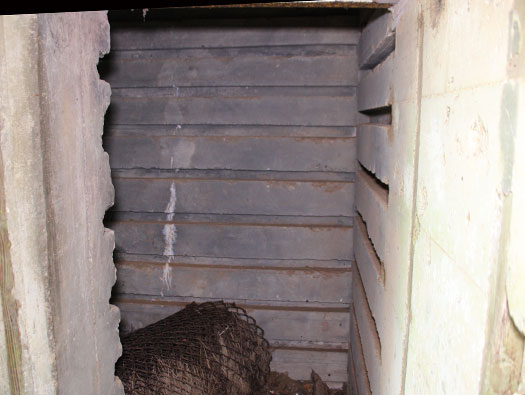

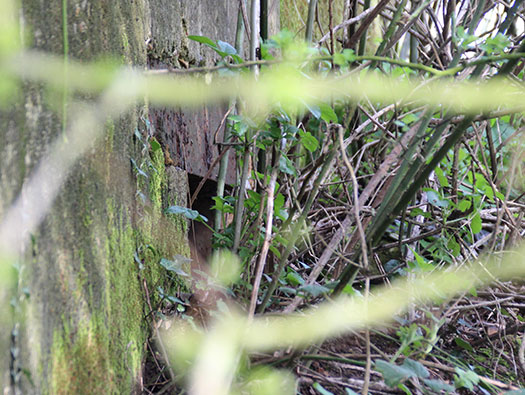

One roomed ammunition bunker.

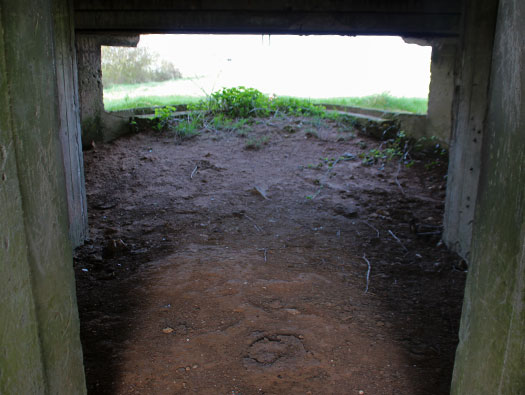

Looking into the entrance.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Paparazzitsi!!


Plan.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

The last of the four single roomed ammunition bunkers.


Plan.







StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

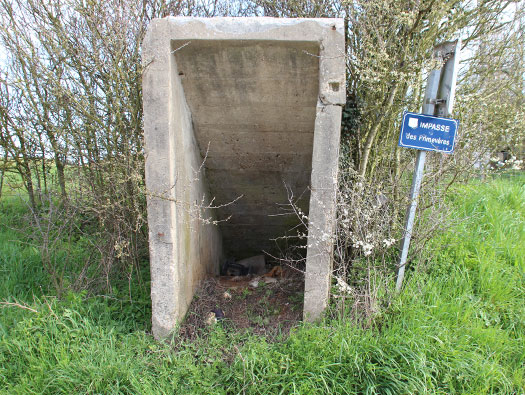

Ammunition bunker.


Plan.


This is how the ammunition bunkers may look.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Unknown on plan so it maybe a fifth one roomed ammunition bunker.


Plan.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Unknown on plan so it maybe a fifth one roomed ammunition bunker.


Plan.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details




Plan.

StP026 Batterie West Ecqueville

1973

Information

StP026 Batterie West Ecqueville

Details

Air photo showing the three R671's and the fourth R671 Turm 3 with an additional room added on.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

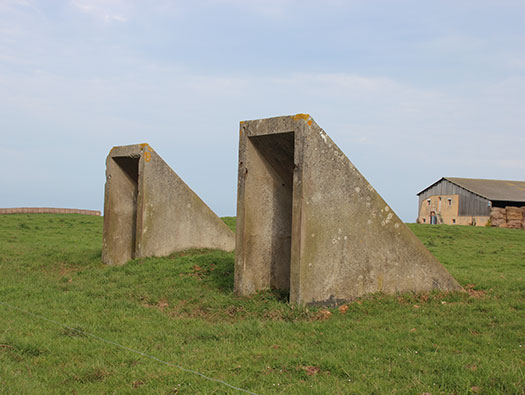

Unknown structure.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

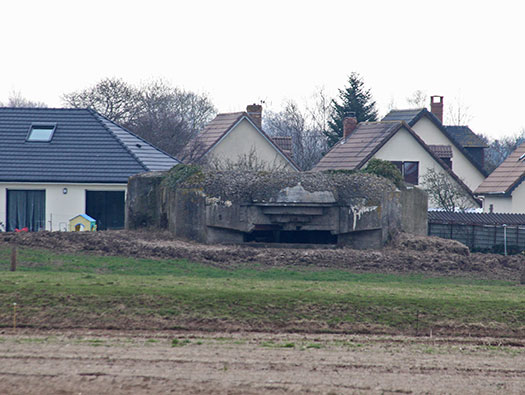

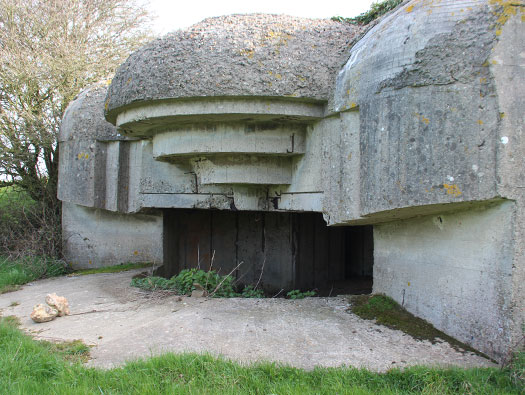

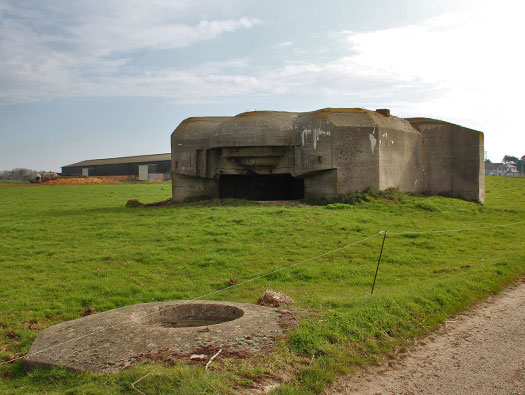

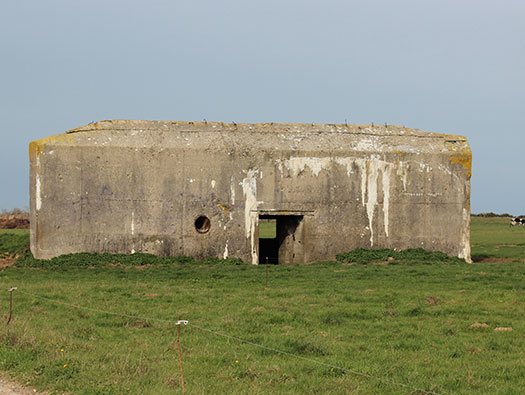

Turm 4 R671 casemate.


Plan.


R671 plan.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

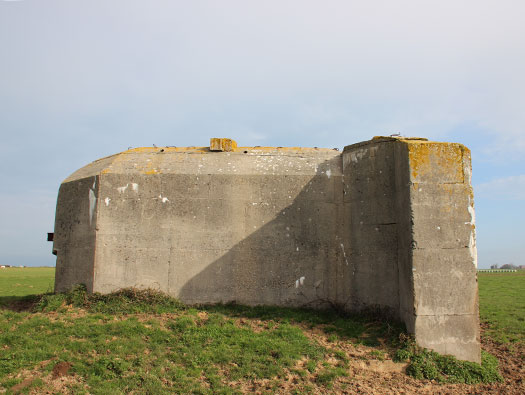

Turm 4 R671 casemate showing the side alls jutting out, earth would have been heaped up to add as camouflage and added protection..


Elevation R671.


Earth heaped up around the sides.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

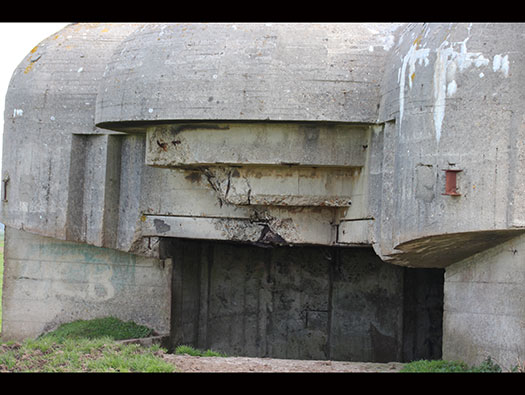

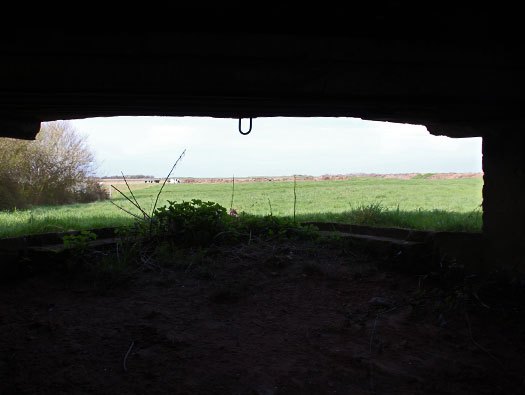

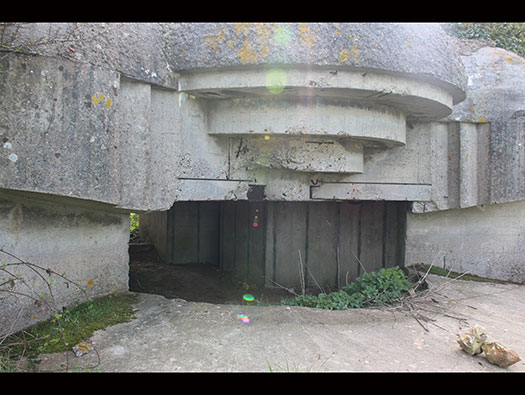

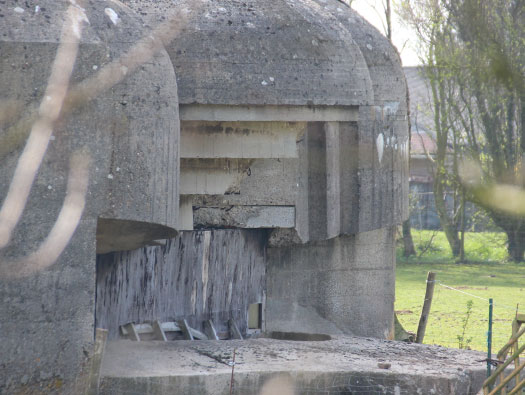

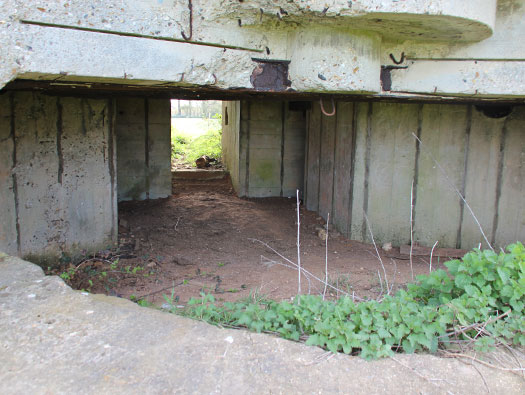

Turm 4 R671 casemate showing the embrasure in the front.


RAD & Todt Org workers.


Building a bunker.


Reinforcement.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

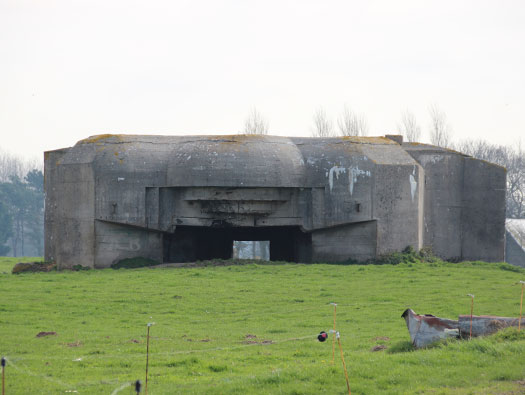

Turm 4 R671 casemate front view.


123° rotation of the gun.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

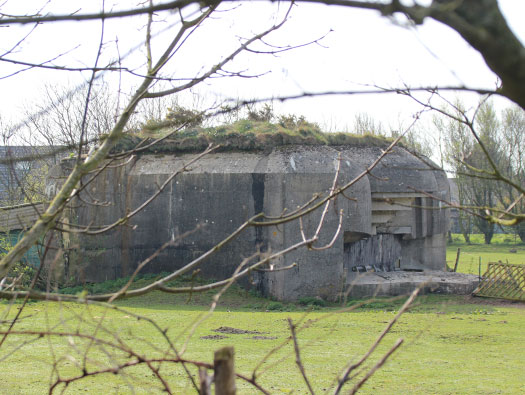

Turm 4 R671 casemate front view. Note the two I beams sticking out, they could hold either camouflage netting or a set of steal (chain mail) to help close off the entrance to stop large shell splinters from entering the casemate.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

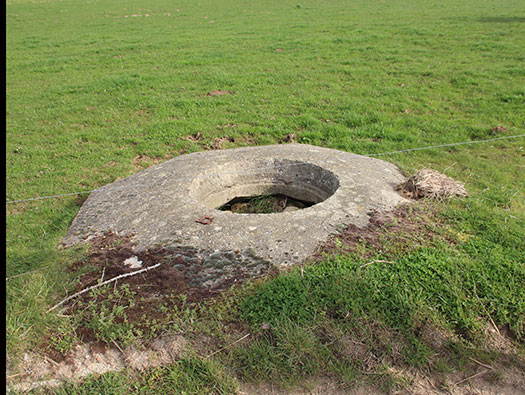

Vf58c Tobruk.


Vf58c Tobruk plan.


Vf58c Tobruk elevation.




StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Tobruk & casemate.


Plan.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Rifle range firing point.


Plan.




StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Firing range butts.


Plan.


Range.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

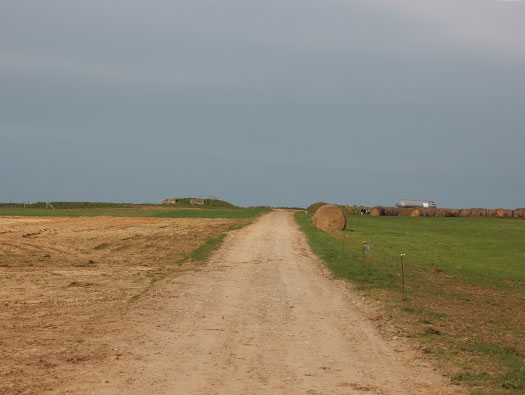

Towards the sea.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

2cm Flak emplacement.


Plan.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

2cm Flak emplacement.
Ammunition niche.


Plan of emplacement.


Flak crew in action.




StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

2cm Flak emplacement.


2cm round.


2cm Flak 38 barrel.




StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

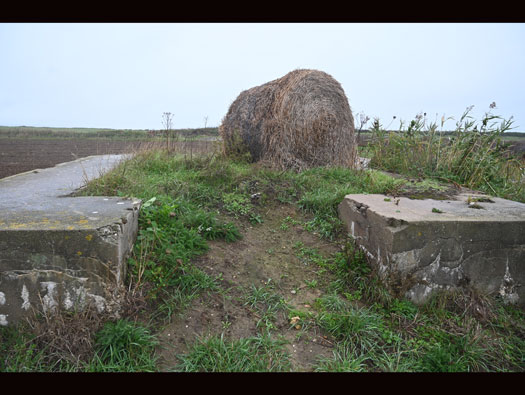

Well from a distance you see a bunker, you get excited, you photograph it with your zoom lens and it looks good on your camera screen. Then you get close and OH boy its a Duck shooters hide. What a let down.




StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Looking down the cliff.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

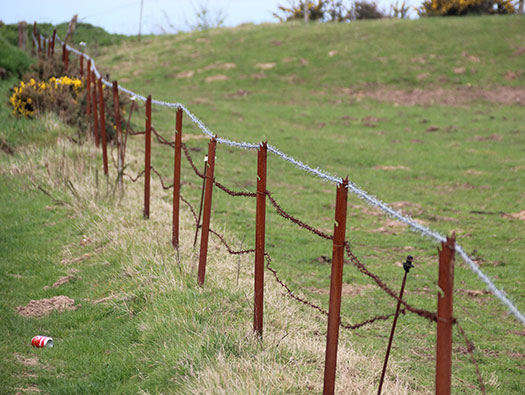

Eisenpfahel German barbed wire fence posts.
There was a barbed wire fence running right around the site, outside the fence a large mine field with anti-tank and anti-personnel mines.


Eisenpfahel.








Laying mines.


Anti-tank ditch also ran from the cliffs inland.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

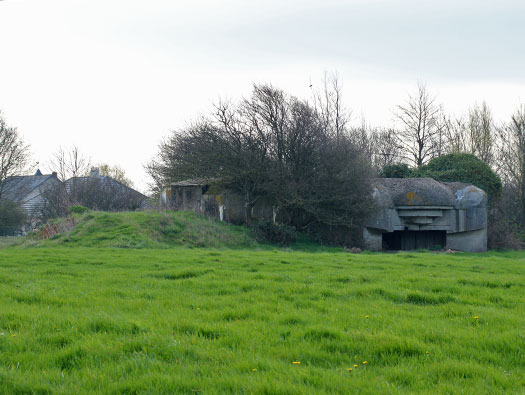

Turm 1 R671 casemate.


Plan.


4 x 10.5cm K.35(t).


R671 plan.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 2 R671 casemate.


Plan.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 2 R671 casemate.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 2 R671 casemate.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 3 R671 casemate.


Plan.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 3 R671 casemate.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 3 R671 casemate.


Plan of Turm 3.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 3 R671 casemate.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 3 R671 casemate.
Rear of the casemate.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 3 R671/SK casemate.
Generator room machinery entrance. This is where the generator would have been pushed into the room and then closed off.


Plan.


Generator fitted inside a bunker.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 3 R671 casemate. Door to the actual generator control room.


Plan.


Working on a generator.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 3 R671 casemate rear entrance.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

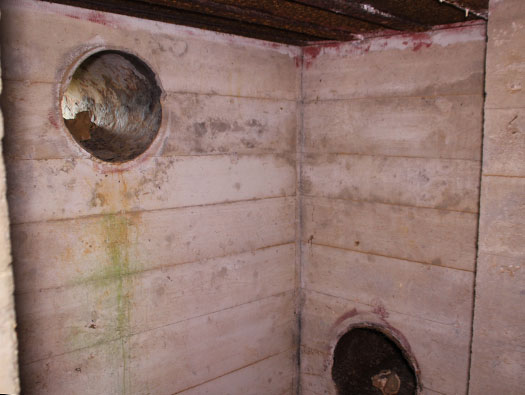

Turm 3 R671 casemate.
Gun room.





A gun crew.


field gun in an emplacement.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 3 R671 casemate.
R/H ammunition room case.


Case.


Cases.


Cordite powder bags.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 3 R671 casemate.
L/H ammunition room shell.


Shell handling.


Shell stack.


Extraction fan.


Extraction pipes.


External vent.


Cleaning rods.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 3 R671 casemate.
Gun room the two maximum ranges of the gun.
17500m = 11 miles. 15000m = 9.5miles.


4 x 10.5cm K.35(t). Captured Czech guns.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Turm 3 R671 casemate.
Gun room.










StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

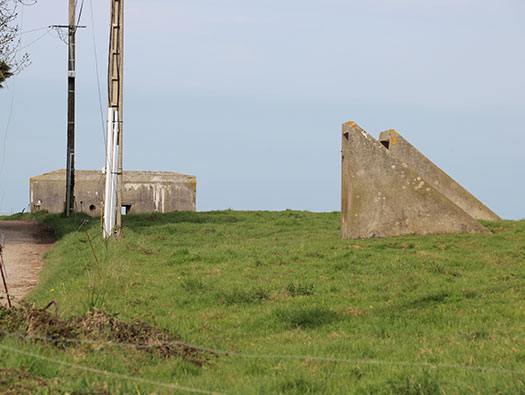

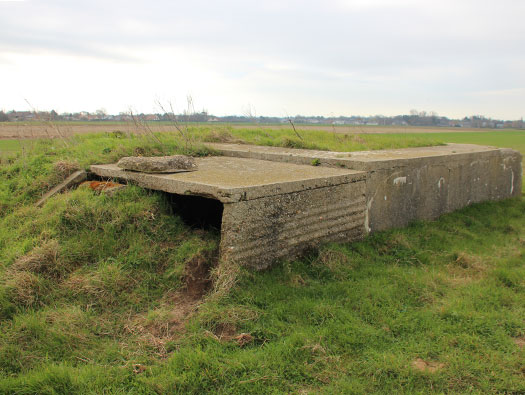

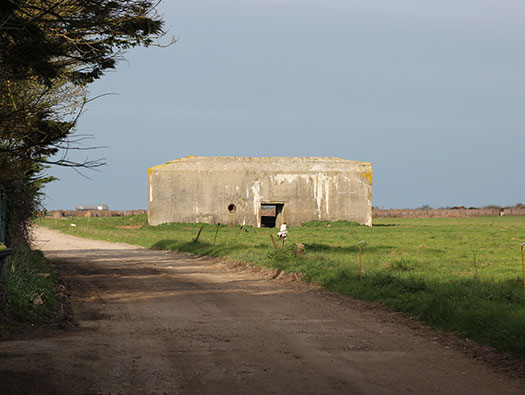

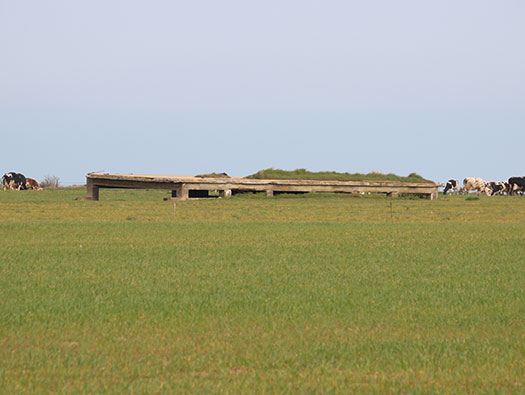

Turm 4 Geschützstelung (open emplacement) possibly the only one left.


Geschützstelung.




StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

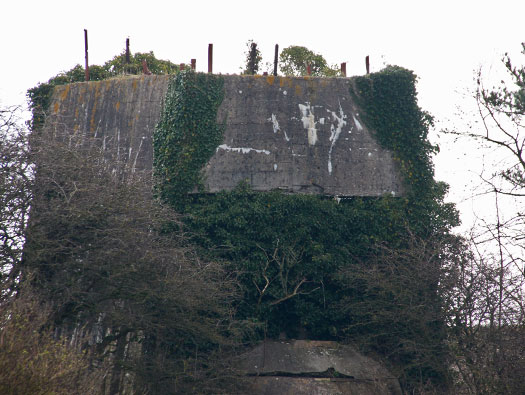

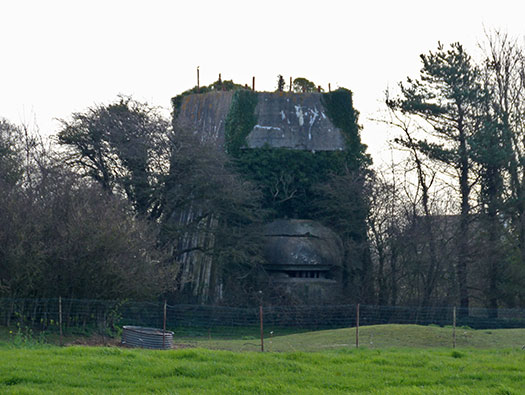

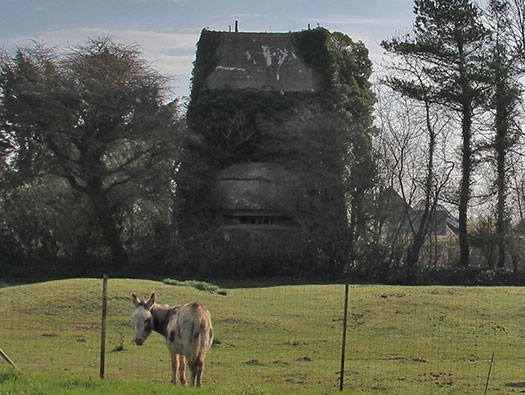

Hochleitstand/SK (high control centre) fire control post. The first post was situated on the cliff edge in a field type position. Later this replaced in 1943 by a full Hochleitstand/SK (fire control tower in special construction SK). 11 meters tall with a roof observation reached by a steel ladder, then two operations rooms with open viewing slits. Then down to a basement and tunnel system to two shelters.










StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

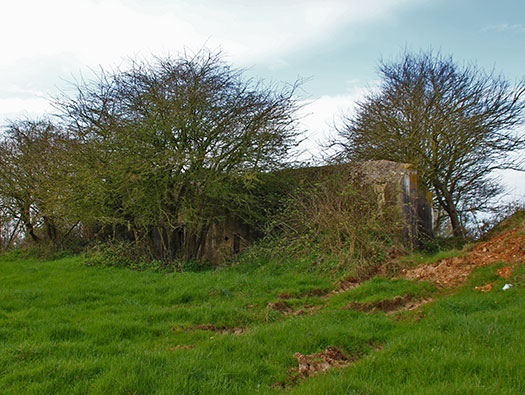

1 - Geschützstelung

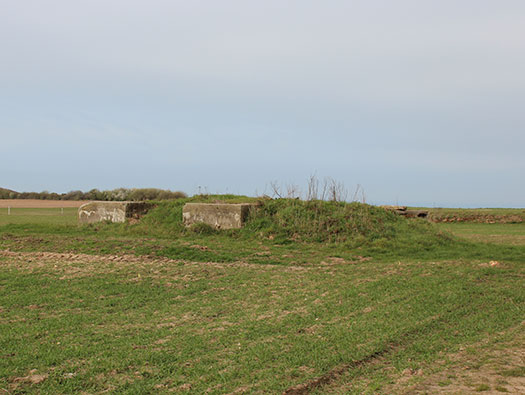

2 - Ammunition.

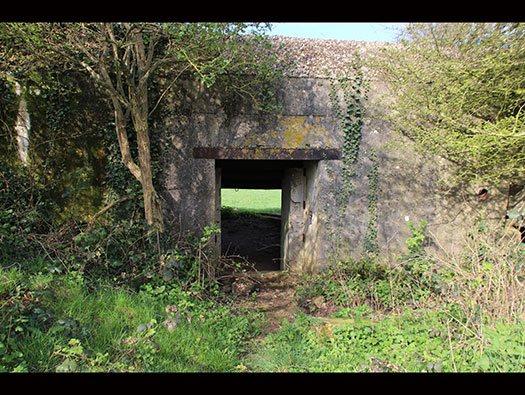

3 - Large infermarie (casualty clearing bunker).
4 - Hochleitstand/SK.
5 - Shelters and batterie offices.
6 - Personnel bunker.
7 - Water bunker.
Red line - tunnels connecting the different buildings.


On the open top was a wooden platform to allow for more height.


Tunnels.




StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Hochleitstand/SK (high control centre) fire control post. Posts sticking up where possibly another observation space was built in wood??

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Hochleitstand/SK (high control centre) fire control post.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Hochleitstand/SK (high control centre) fire control post.
Hard to see the vision slit where batterie officers would have looked out to sea.










StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Hochleitstand/SK (high control centre) fire control post.
The lower observation slit rather low down.





Gun computer to set up the batterie fire plan.


Plotting room.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

Hochleitstand/SK (high control centre) fire control post.
The south side of the post.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

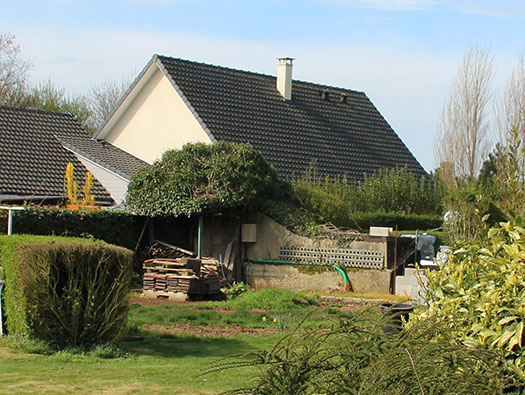

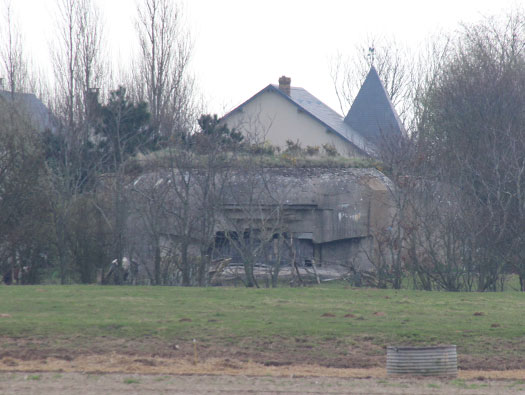

Munitions bunker in a garden. There are many odd bunkers in and around new housing, some have gone but some are well hidden.

StP026 Batterie West Ecqueville

28 March 2017

Information

StP026 Batterie West Ecqueville

Details

German Eisenpfahel barbed wire fence post today holding up the fence.
12 September 1944 due to the attack and advance on LeHavre operation 'Astonia' the crews damaged the guns to stop them falling into the hands of the 2nd Seaforth's.








2nd Seaforth's.

StP026 Batterie West Ecqueville

05 September 1944 Defence overlay of LeHavre. WO 223-82 34 Tank Bde. report on operation Astonia 1944 Sept’

Information

StP026 Batterie West Ecqueville

Details

10 September 1944 Operation 'Astonia' the attack on LeHavre. It started with a 1000 bomber raid, then an artillery barrage of 49th, 51st (H) Div. artillery plus two monitors HMS Erebus & HMS Roberts out at sea and 4th and 9th AGRA's. (Army Group Royal Artillery) then the tanks went in, ending on the 12th.





2nd Seaforth's advancing.


49th iv. The Polar Bears.


4th AGRA.


9th AGRA.


51st (H) Div.


HMS Roberts.

StP026 Batterie West Ecqueville

September 1944

Information

StP026 Batterie West Ecqueville

Details

Artillery barrage.

StP026 Batterie West Ecqueville

September 1944

Information

StP026 Batterie West Ecqueville

Details

Tanks move forward.
