Wn19 Quineville fort Lestre Hameau Simon


Information

Wn19 Quineville fort Lestre Hameau Simon

Details

2 x Vf2a
1 x Vf2c
2 x Vf58c
1 x SK
3 x ringstands 5cm KwK
1 x Pz.T.R35 3.7cm KwK
3 x 5cm KwK L/42.



Vf2a gruppe shelter.


Ringstand 5cm KwK


Pz.T.R35 3.7cm KwK.

Wn19 Quineville fort Lestre Hameau Simon

Google Maps

Information

Wn19 Quineville fort Lestre Hameau Simon

Details



Wn19 Quineville fort Lestre Hameau Simon

Google

Information

Wn19 Quineville fort Lestre Hameau Simon

Details

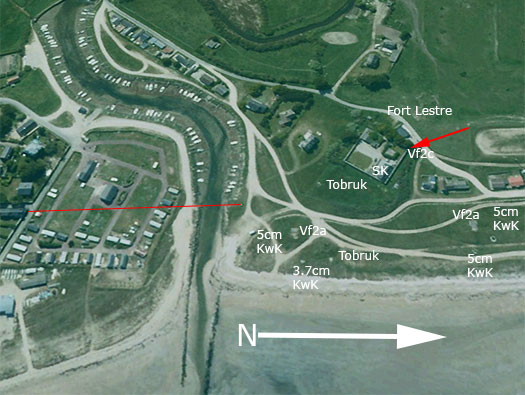

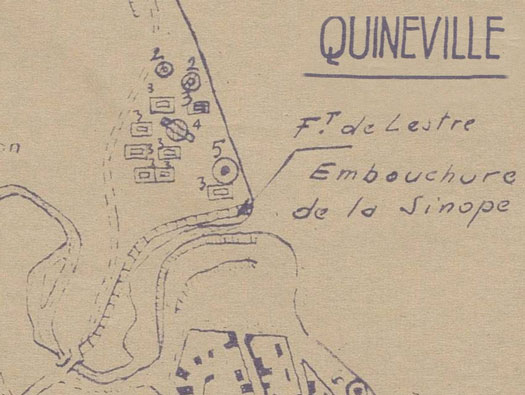

Plan.
The red line is the link between two concrete posts.
I think I have the parts correctly named.


5cm KwK L/42.


5cm KwK L/42.


5cm KwK L/42.

Wn19 Quineville fort Lestre Hameau Simon

Bigot Map

Information

Wn19 Quineville fort Lestre Hameau Simon

Details

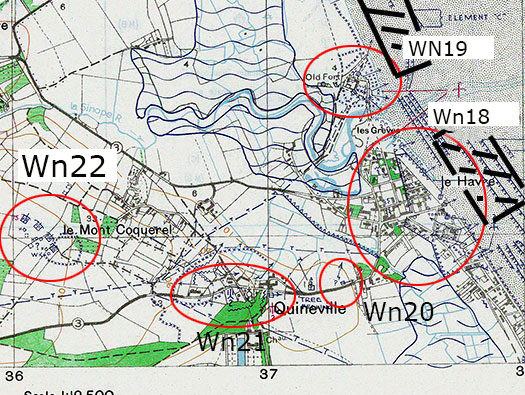

This is an Allied Bigot map of Wn19 and the hashed area is 'Area Odysseus' part of the German fire plan for inland guns to fire onto the beaches in the event of a landing.


Guns at Wn22 Mt. Coquerel 4./H.K.A.R. four 10.5cm K.331(f).

Wn19 Quineville fort Lestre Hameau Simon

05 January 1944

Information

Wn19 Quineville fort Lestre Hameau Simon

Details

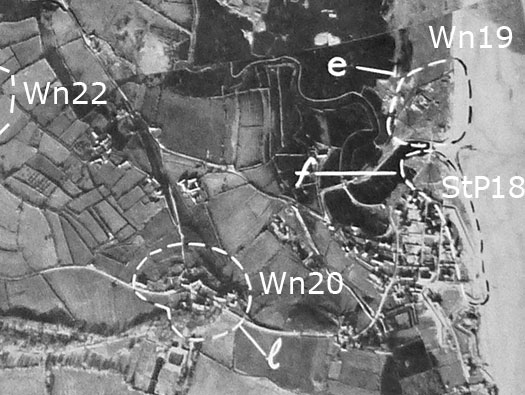

Allied Intelligence Tactical Targets Report Cherbourg.

Wn19 Quineville fort Lestre Hameau Simon

27 July 2008

Information

Wn19 Quineville fort Lestre Hameau Simon

Details

La Sinope river is the boundary between Wn19 left & Wn18 right.

Wn19 Quineville fort Lestre Hameau Simon

27 July 2008

Information

Wn19 Quineville fort Lestre Hameau Simon

Details

This looks as though it was a bridge at some time possibly in the war.


It may have looked very much like this one.

Wn19 Quineville fort Lestre Hameau Simon

27 July 2008

Information

Wn19 Quineville fort Lestre Hameau Simon

Details

This looks as though it was a bridge at some time possibly in the war. If I had been defending this area I would want a bridge here to have quick access from Wn18 and Wn18


A bridge is shown on the Bigot map.

Wn19 Quineville fort Lestre Hameau Simon

27 July 2008

Information

Wn19 Quineville fort Lestre Hameau Simon

Details

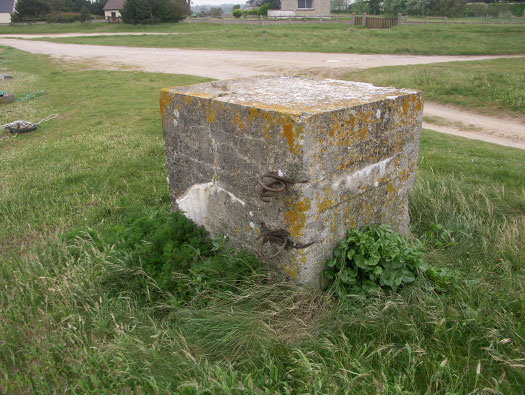

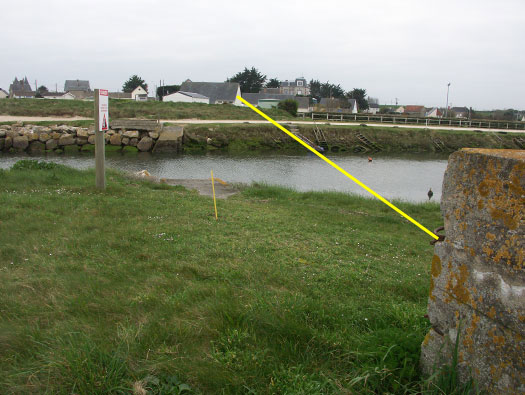

Ankerblock für Sperre [anchor block for a barrier].


This is a line of Belgian gates at Barfleur. I feel that was what was here or something like it.


Belgian gates could be linked or locked together to make a longer block.


Plan. The red line is between the two blocks.

Wn19 Quineville fort Lestre Hameau Simon

00 00 00

Information

Ankerblock für Sperre [anchor block for a barrier].

Details

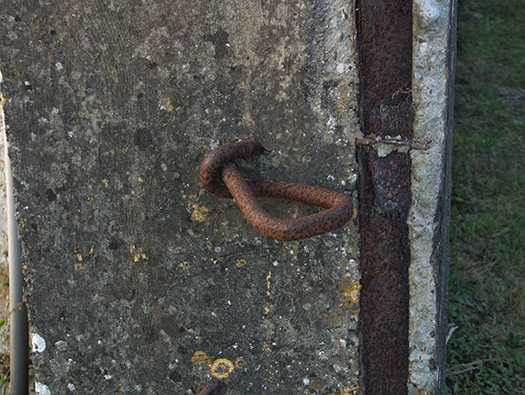

The tie set into the post.


Belian Gates linked together.

Wn19 Quineville fort Lestre Hameau Simon

15 May 2005

Information

Ankerblock für Sperre [anchor block for a barrier].

Details

This is the one on the opposite bank about 66meters apart.


A Belgian gate being positioned.


Plan.

Wn19 Quineville fort Lestre Hameau Simon

05 April 2008

Information

Ankerblock für Sperre [anchor block for a barrier].

Details

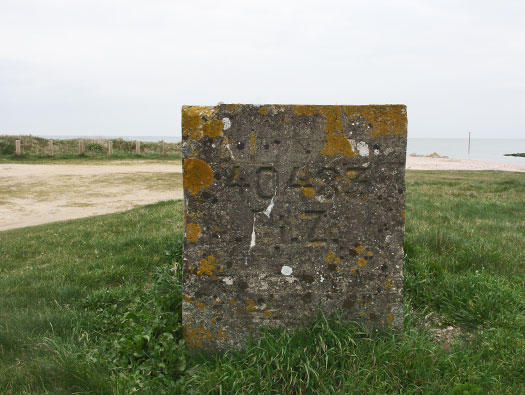

On the other-side of the post is this 40483 I.Z. possibly the unit that built it.

Wn19 Quineville fort Lestre Hameau Simon

05 April 2008

Information

Ankerblock für Sperre [anchor block for a barrier].

Details

Details


How it may have looked.

Wn19 Quineville fort Lestre Hameau Simon

13 April 2003

Information

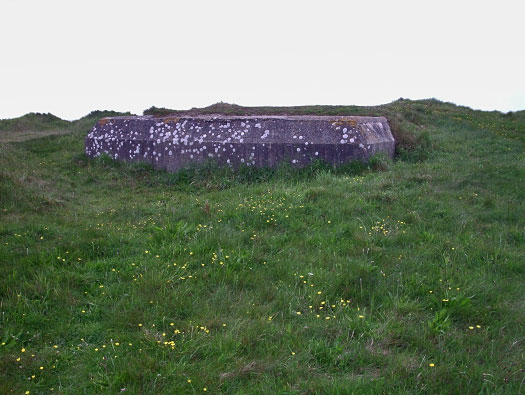

Vf2a Gruppe Shelter.

Details

This would have been the crew bunker for the 5cm KwK gun, the 3.7cm KwK gun and a Tobruk.


Plan Vf2 Gruppe Shelter.

Wn19 Quineville fort Lestre Hameau Simon

13 April 2003

Information

Pz.T.R35 3.7cm KwK

Details

Details


R35 turret.


R35 turret at Varraville.





Plan.

Wn19 Quineville fort Lestre Hameau Simon

13 April 2003

Information

Tobruk.

Details

Tobruk.


Tobruk.


Tobruk plan.


Plan.

Wn19 Quineville fort Lestre Hameau Simon

15 May 2005

Information

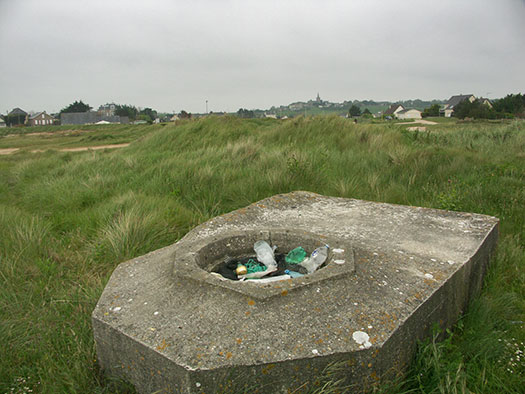

Tobruk.

Details

It always looks in good condition except for being filled with rubbish.


Cut away drawing.


Details2

Wn19 Quineville fort Lestre Hameau Simon

15 May 2005

Information

Vf2a Gruppe shelter.

Details

This is the shelter for two 5cm KwK guns crews.


Plan.


Vf2a side view.




Wn19 Quineville fort Lestre Hameau Simon

15 May 2005

Information

Vf2a Gruppe shelter.

Details




Plan of a Vf2a Gruppe shelter.


A Vf2a inside.

Wn19 Quineville fort Lestre Hameau Simon

15 May 2005

Information

Not too sure what this was but there should have been a 5cm KwK near here.

Details



Wn19 Quineville fort Lestre Hameau Simon

15 May 2005

Information

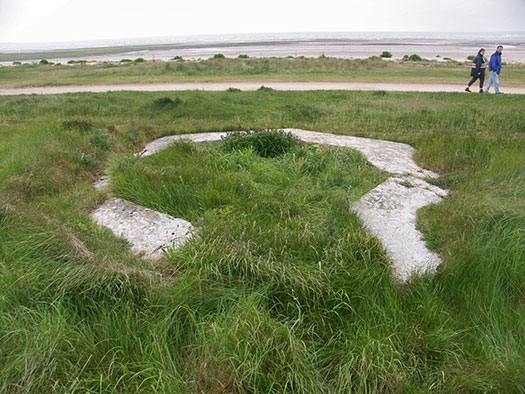

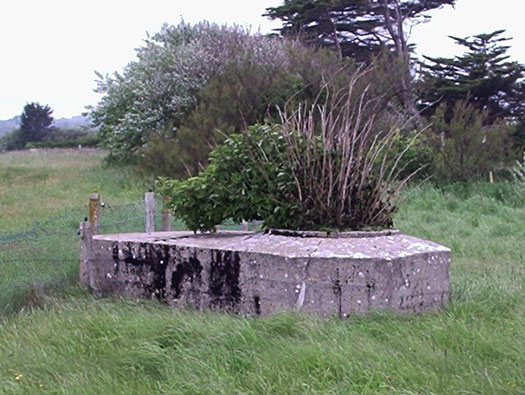

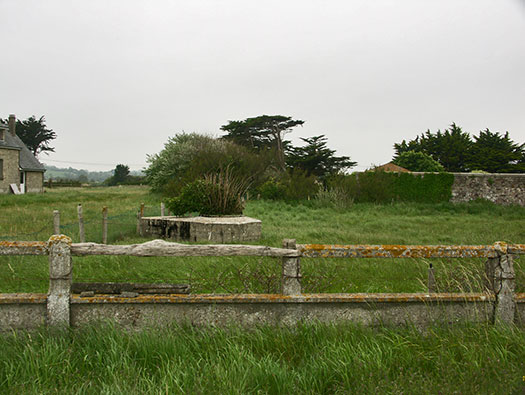

Ringstand for a 5cm KwK L/42 gun.

Details




Plan of a ringstand.


Ringstand for a 5cm KwK L/42 gun.


Plan.

Wn19 Quineville fort Lestre Hameau Simon

15 May 2005

Information

Fort Lestre Hameau Simon

Details

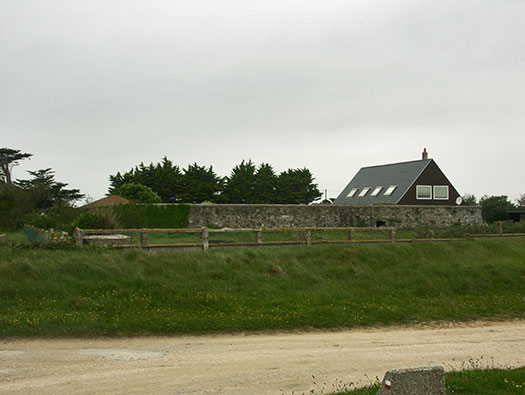

The old fort now a holiday home.


Plan


Inside the Fort.




Wn19 Quineville fort Lestre Hameau Simon

03 April 2011

Information

Fort Lestre Hameau Simon

Details

The outer wall has had a repair to the corner.


Plan.




Wn19 Quineville fort Lestre Hameau Simon

03 April 2011

Information

Fort Lestre Hameau Simon

Details

Repaired wall.

Wn19 Quineville fort Lestre Hameau Simon

03 April 2011

Information

Fort Lestre Hameau Simon

Details

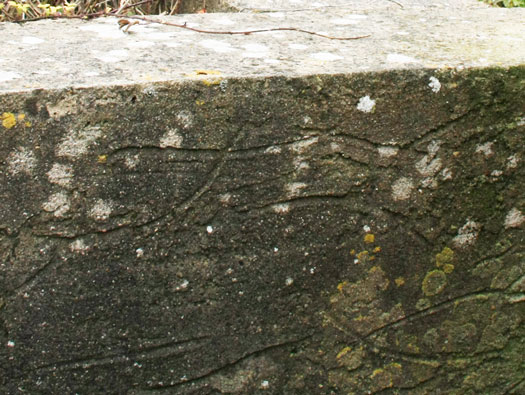

Notice the camouflage on the rendering.

Wn19 Quineville fort Lestre Hameau Simon

03 April 2011

Information

Fort Lestre Hameau Simon

Details

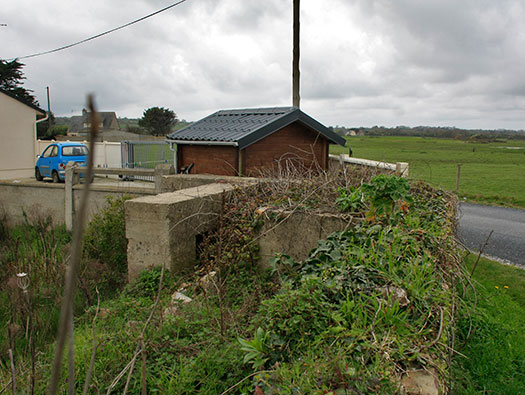

Tobruk


Plan.


Tobruk.


Plan of a Tobruk.

Wn19 Quineville fort Lestre Hameau Simon

00 00 00

Information

Wn19 Quineville fort Lestre Hameau Simon

Details

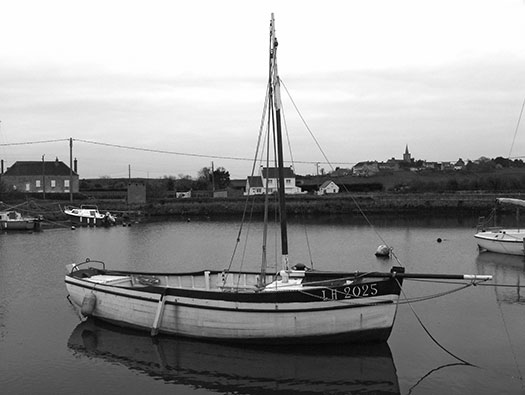

Quineville on the hill, Quineville le Havre by the sea.
