A batterie of two K5 28cm railway guns, one Dom-bunker, one SK large ammunition magazines and an air-raid shelter. In the allotments there are several AA emplacements..










StP89 Fulda, Calais Nieulay

Information

StP89 Fulda, Calais Nieulay

Details



StP89 Fulda, Calais Nieulay

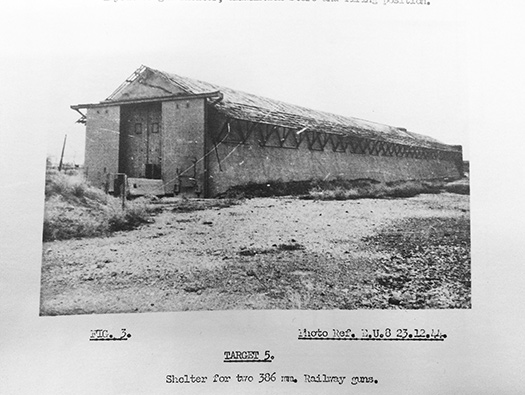

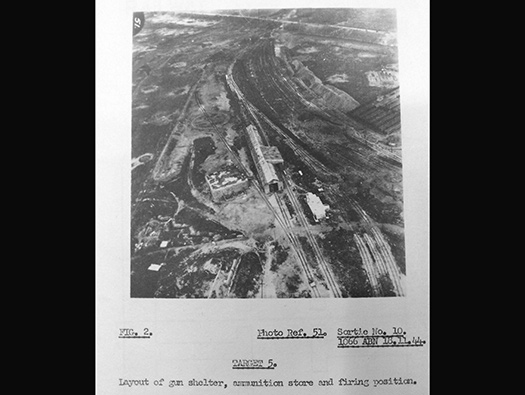

WO 33/1831 Reports on German Coastal Defences in the

Information

StP89 Fulda, Calais Nieulay

Details

E Batterie 710.
2 x R622+Flak
7 x Feldm
20 x R600b
1 x SK/unterstand
2 x SK/munitionsbunker
1 x Dom-Bunker
2 x 28cm K5 railway guns.
1 x 2cm KwK 38
2 x 5cm KwK L/42
4 x 2cm Flak 38
3 x 10cm le F.H.30(t)


On the side of the Dombunker I believe are four large fans to duct out smoke from the railway engines.


28cm K5 railway gun.


Loading a gun.

StP89 Fulda, Calais Nieulay

29 January 2018

Information

StP89 Fulda, Calais Nieulay

Details

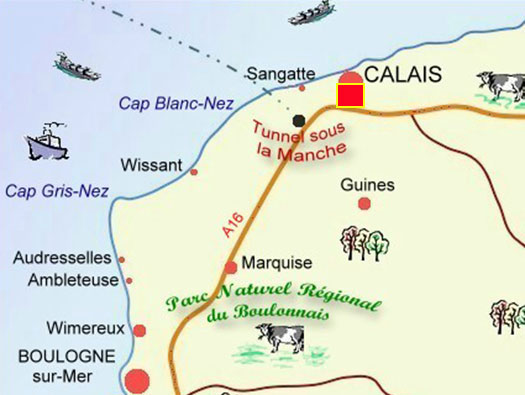

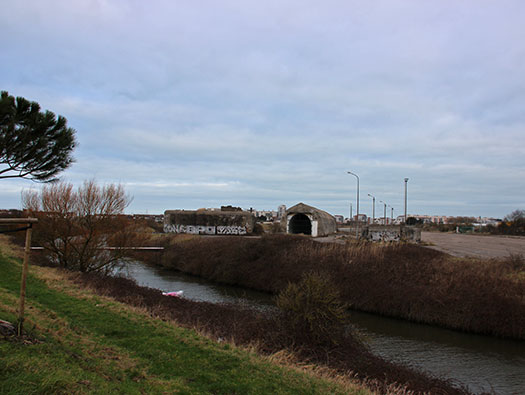

As we came out of the Channel Tunnel and around towards the coast, we passed StP89 Fulda on our right. There is a large parking area on the left and some allotment gardens, in here are several anti-aircraft open emplacements for 10cm AA guns. We did not photograph anything in there.


2 of at least three open emplacement 10cm le F.H.30(t) guns.


This is actually a Japanese 10cm Flak, so a 10cm le F.H.30(t) guns would look like this.

StP89 Fulda, Calais Nieulay

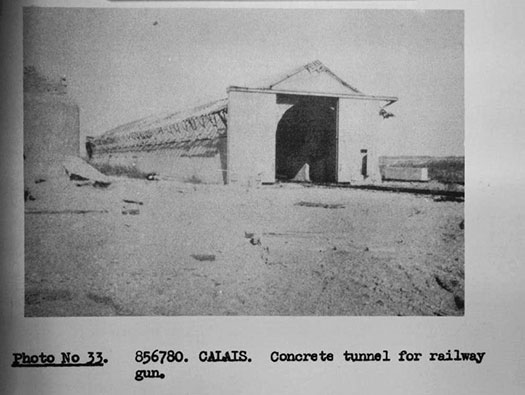

WO 33/1831 Reports on German Coastal Defences in the Pas de Calais area

Information

StP89 Fulda, Calais Nieulay

Details

I believe two gun sets can fit into a Dombunker, one could use the turntable here and the other the one to the far left. Steam engines would be used to move the guns, but they needed time to get up steam to move. So diesel engines may have been used.


Railway gun turntable.







StP89 Fulda, Calais Nieulay


Information

StP89 Fulda, Calais Nieulay

Details

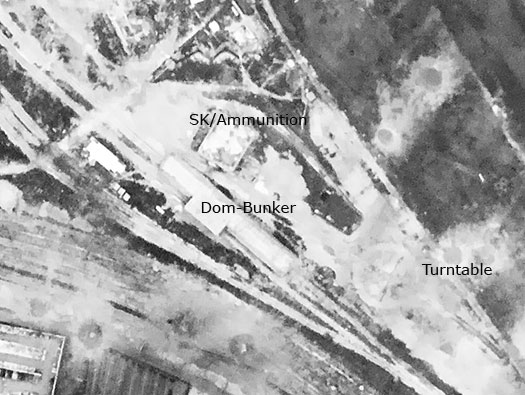

Plan of StP89 Fulda showing the Dombunker No.01 and the two turntables No's. 22/23 and the two large SK/ammunition bunkers. Plus all the other parts that make up the StP


OB 5cm KwK emplacement R600b.


R600b for a 5cm KwK L/42.


5cm KwK L/42.

StP89 Fulda, Calais Nieulay

29 January 2018

Information

StP89 Fulda, Calais Nieulay

Details

On the left the last of two SK/ammunition bunkers.


SK/ammunition bunker plan.





Loading.

StP89 Fulda, Calais Nieulay

29 January 2018

Information

StP89 Fulda, Calais Nieulay

Details

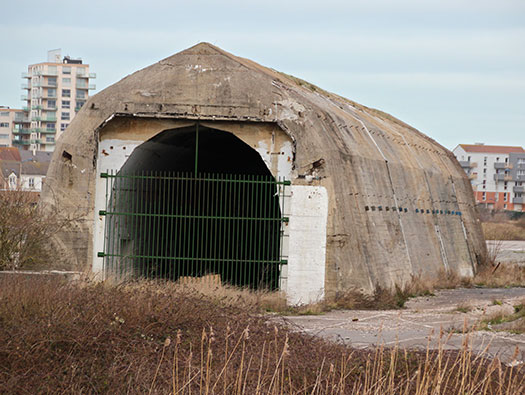

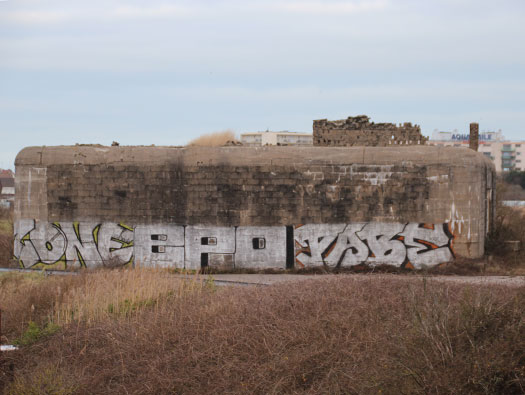

Domebunker showing the strength of concrete to keep the guns safe from heavy bombing.










StP89 Fulda, Calais Nieulay


Information

StP89 Fulda, Calais Nieulay

Details

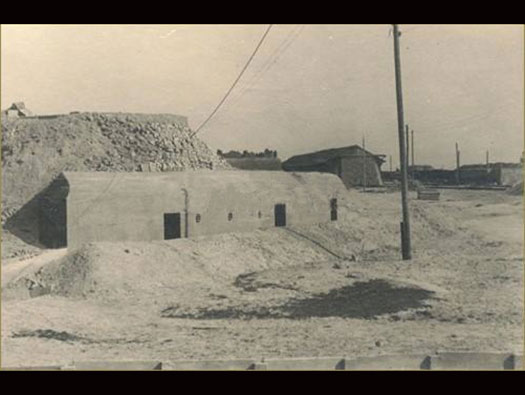

Domebunker seems to have been built and now the site is being tidied up.
The first lorry looks to be a French builders truck, the other looks like a Bedford OY that may have been captured in 1940.


Captured Bedford OY 3ton truck.







StP89 Fulda, Calais Nieulay


Information

StP89 Fulda, Calais Nieulay

Details

Built by OT (Todt Org.) and local builders, this is possibly a propaganda photo to show off the OT workers and how they are ready if attacked. Todt Org. builders were also soldiers as well. Firstly they have to be builders and then a Secondery role as soldiers. In Cherbourg when it was captured, a lot of OT were stuck in the town and were made to fight on the front line.


K98k  Karabiner 98 kurz 7.92mm.







StP89 Fulda, Calais Nieulay

Flight Sergeant Sylvester RAF Bomber Command 27/09/1944

Information

StP89 Fulda, Calais Nieulay

Details

Flight Sergeant Sylvester's bombing run over Calais. Bombing could damage the rails, turntables, etc. but would just chip pieces off the strong concrete roof. The turntables and rails were very easy to repair for the Germans as they had plenty of workers from Todt Org. and local French SNCF employees.


Halifax.


Todt Org. workers.

StP89 Fulda, Calais Nieulay

WO 33/1831 Reports on German Coastal Defences in the Pas de Calais area

Information

StP89 Fulda, Calais Nieulay

Details

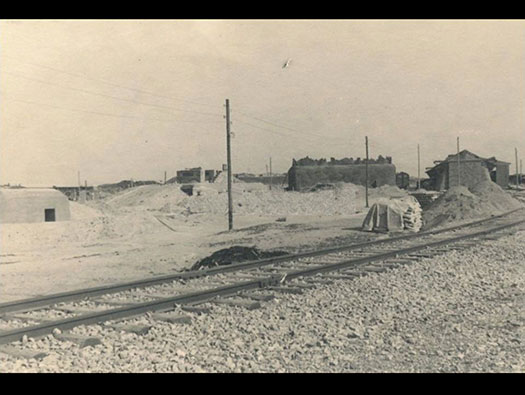

A photo taken just after the area had been captured by Allied soldiers.


Canadian soldiers helped capture Calais.

StP89 Fulda, Calais Nieulay

29 January 2018

Information

StP89 Fulda, Calais Nieulay

Details

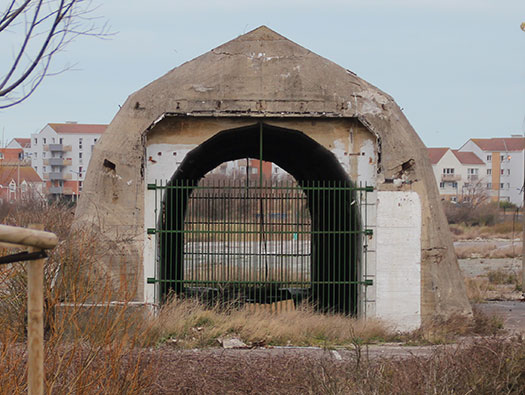

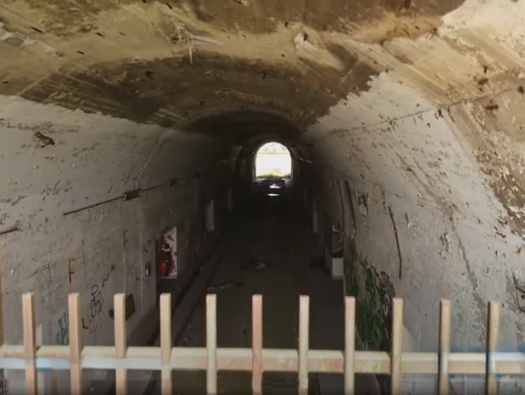

Looking straight through the Dombunker.

StP89 Fulda, Calais Nieulay


Information

StP89 Fulda, Calais Nieulay

Details

As it looked when it was being used. The doors would be heavy steel doors that could roll closed if a bombing raid was imminent.


Plan elevation.

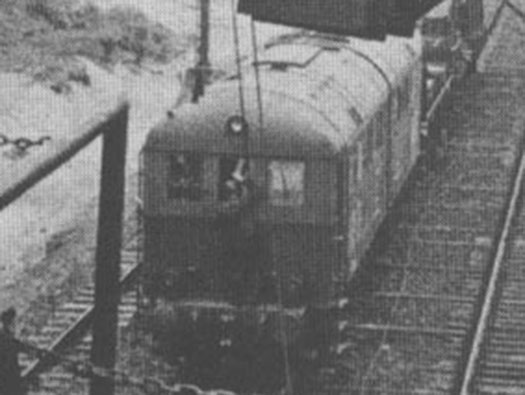

Diesel engine about to be coupled to a K5 gun.

StP89 Fulda, Calais Nieulay

29 January 2018

Information

StP89 Fulda, Calais Nieulay

Details

Domebunker showing the engine (diesel) and the gun in place also showing that two guns and their engines would fit in.


Plan elevation.







StP89 Fulda, Calais Nieulay

29 January 2018

Information

StP89 Fulda, Calais Nieulay

Details

SK/ammunition magazine one of two that were here.


Plan







StP89 Fulda, Calais Nieulay

29 January 2018

Information

StP89 Fulda, Calais Nieulay

Details

Flak on roof may have been 2cm Flak 38's.


Flak on roof.


2cm Flak 38.


2 x open emplacement 10cm IFH 30(t) guns.


This is actually a Japanese 10cm Flak, so a 10cm IFH 30(t) guns would look like this.

StP89 Fulda, Calais Nieulay

29 January 2018

Information

StP89 Fulda, Calais Nieulay

Details

Munitions entrance. A central corridor with five ammunition stores each side, an overhead rail system conveyed the ammunition into each room.


plan.







StP89 Fulda, Calais Nieulay

29 January 2018

Information

StP89 Fulda, Calais Nieulay

Details

Munitions entrance railway siding. A train would pull up and unload ammunition directly into the bunker. There would have been an overhead rail coming out of the door to winch up a shell/case/cordite and it could then be pushed into an ammunition room.


Overhead rail winch.


Overhead rail.


Moving ammunition.

StP89 Fulda, Calais Nieulay

29 January 2018

Information

StP89 Fulda, Calais Nieulay

Details

Air-raid shelter.


Air-raid shelter with four entrances.


Plan.


First aid kit.

StP89 Fulda, Calais Nieulay

Internet

Information

StP89 Fulda, Calais Nieulay

Details

A contemporary picture of an R622 twin group personnel bunker. The two left doors are the entrances into the bunker and the right hand one is the Tobruk defence.


R622 twin group personnel bunker..







StP89 Fulda, Calais Nieulay

Flying Officer Barnett RAF Bomber Command 27/09/44

Information

StP89 Fulda, Calais Nieulay

Details

Red arrow ---- the Dombunker.
Yellow arrow - Calais cemetery.


Lancaster bomber.


Halifax.2


Short Stirling.

StP89 Fulda, Calais Nieulay

Internet

Information

StP89 Fulda, Calais Nieulay

Details

Another contemporary picture of an R622 twin group personnel bunker on the left, then a 5cm KwK L/42 open emplacement (possibly an R600b), the ammunition bunker and the Dombunker..


R622 twin group personnel bunker..


5cm KwK L/42 open emplacement (possibly an R600b).


Plan of the munitions bunker.

StP89 Fulda, Calais Nieulay


Information

StP89 Fulda, Calais Nieulay

Details

Two types of high explosive projectile were used with the K5. The 28cm G35 weighed 255 kilograms (562 lb) and contained a charge of 30.5 kilograms (67 lb) of TNT. The 28cm Gr.39 m. Hbgr. Z. was slightly heavier, weighing 265 kilograms (584 lb) and containing around 44.5 kilograms (98 lb) of TNT (Wiki).

StP89 Fulda, Calais Nieulay

Bundesarchive

Information

StP89 Fulda, Calais Nieulay

Details

This is another way of hiding railway guns in a tunnel.
