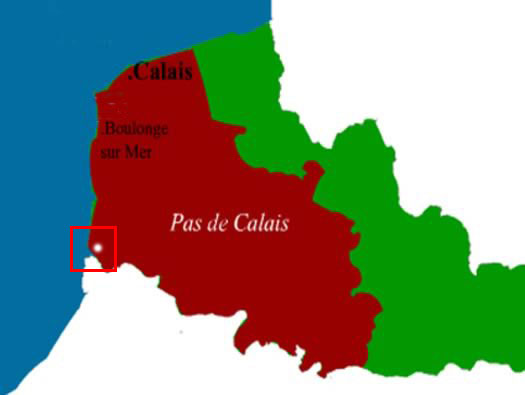

Battery 1./H.A.A.1146.
4 x R669 Casemates.
4 x Geschützstellung open emplacements.
4 x 12.2cm s.F.H.369(r).

1 x Kablebrunnen.

-------

12.2cm s.F.H.369(r).


R669 casemate.


Kablebrunnen.

StP Waben.

Information

StP Waben.

Details



StP Waben.

1946 NA

Information

StP Waben.

Details

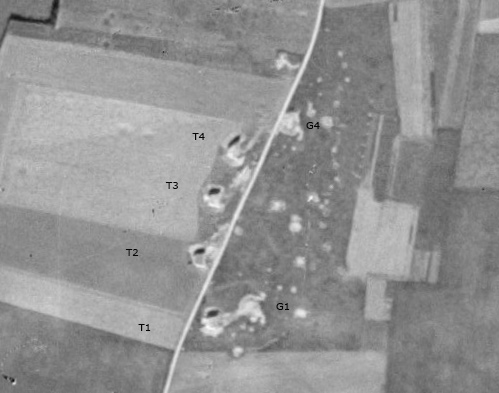

The air photo showing four R669 casemates and several ancillary buildings (bunkers) behind. The four casemates show up as well possibly two Geschützstellung.

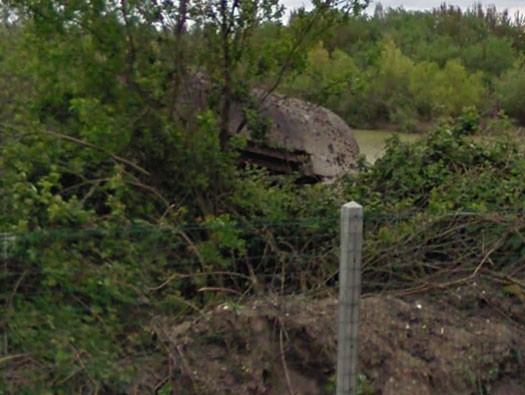

This site is now a gravel pit and all the casemates are still here but I am not sure about any other buildings.


A pair of R669 casemates at another battery site.







StP Waben.

from SHM

Information

StP Waben
Batterie picture SHM

Details

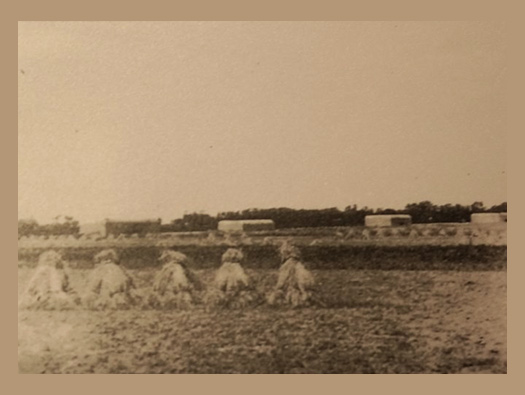

A post war view of the four Waben casemates across the fields now dug out for gravel extraction.
The 12.2cm s.F.H.369(r) guns would have covered the Berck to Fort Mahon.


Fire direction.

StP Waben.

from SHM

Information

StP Waben

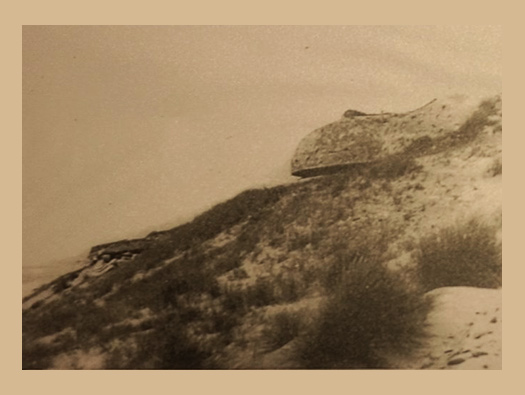

R636a Fire Control Post at StP Berck Nord (it has now been removed)

Details

R636a a command post for an army (Heers) coastal batterie. The Officers & man that were inside this post, would be the lookout for for the batterie and when when they saw a target. They would compute all the information and then send it via a buried armoured telephone cable or in an emergency, by radio. The guns would receive all their information to fire on the targets within range.


R636a FCP plan and elevation..


Observation.


Plotting room.


Armoured cable.



Armoured cable junction box..

StP Waben.

22 February 2014

Information

StP Waben
R669 Turm 1

Details

R669 casemate Turm 1.


Plan.


An R669 front view.

StP Waben.

22 February 2014

Information

StP Waben
R669 Turm 2

Details

R669 casemate Turm 2.


Plan.


R669 gun room.

StP Waben.

22 February 2014

Information

StP Waben
R669 Turm 3

Details

R669 casemate Turm 3


Plan.


Rear view of two R669's on another battery.

StP Waben.

22 February 2014

Information

StP Waben
R669 Turm 4

Details

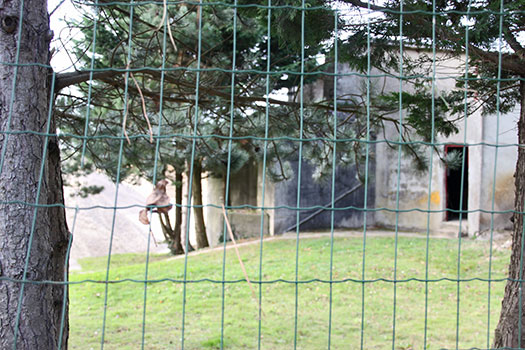

R669 casemate Turm 4 attached to the new building.


Plan.





plan of an R669.

Waben.

Information

Waben Kablebrunnen

Details

Now we move on to a cable bunker we found in a field just west of Waben.

Waben.

22 February 2014

Information

Waben Kablebrunnen

Details

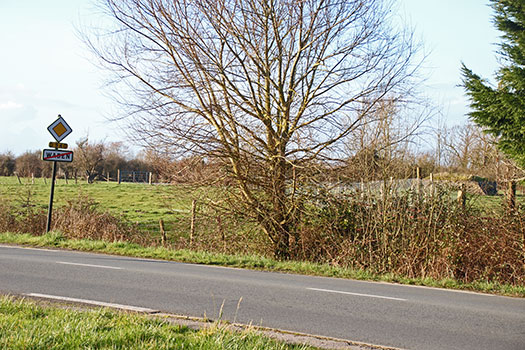

The bunker is in the field on the right.

Waben.

22 February 2014

Information

Waben Kablebrunnen

Details

This cable box could have been a connection the north south cable with cables coming in from the west?

Waben.

22 February 2014

Information

Waben Kablebrunnen

Details

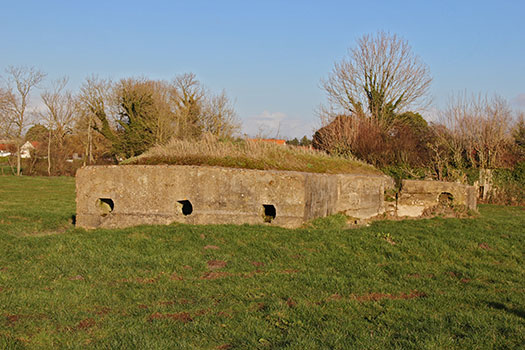

It has these three holes in the front and the extension on the right has another hole.
I am absolutely unaware of what happened inside this Kablebrunnen so its all guesswork.


Armoured cable.

Waben.

22 February 2014

Information

Waben Kablebrunnen

Details

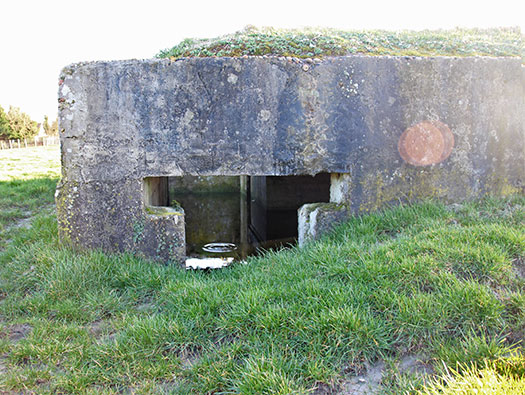

An entrance.


Field telephone.




Waben.

22 February 2014

Information

Waben Kablebrunnen

Details

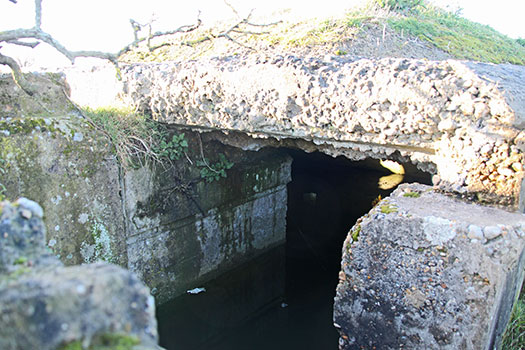

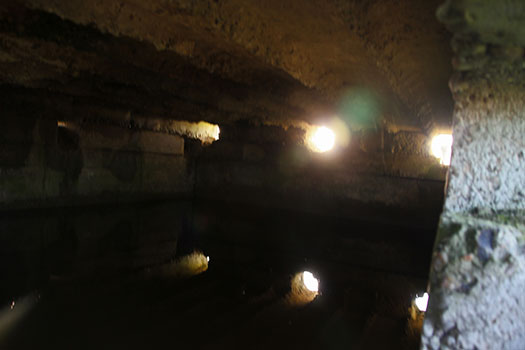

Inside now half full of water. It looks as though tubes/pipes came through the holes and you can see the shapes in the concrete above.


I wonder if it was like this??




Waben.

22 February 2014

Information

Waben Kablebrunnen

Details

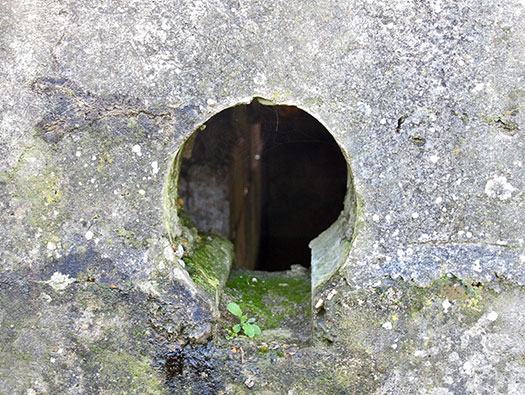

Almost a key hole where a pipe/cable came through.


Cable linesmen.

Waben.

22 February 2014

Information

Waben Kablebrunnen

Details

The other end with the three holes out.

Waben.

22 February 2014

Information

Waben Kablebrunnen

Details

This is a sort of extension adding another cable from three to four.


Funkroom.

Waben.

22 February 2014

Information

Waben Kablebrunnen

Details

The extension on the side.


Wet concrete was moulded around the cable.


These spikes held the cable in place.


This is where the extended cable went out.
