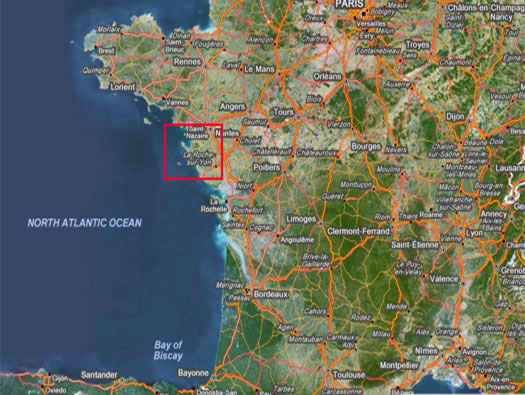

Île de Noirmoutier is an island off the Vendée coast reached by a bridge (which is now free!).
5a/le.M.A.A.684
1 x R600 5cm KwK.
1 x R612.
1 x R668
1 x R668 +R677.
2 x R502.
1 x 58c Tobruk
2 x Wasser
1 Geschütztellung
2 x 10.5cm cm le.F.H.16
1 x 5cm KwK 38


Île de Noirmoutier bridge.


Or the passage which can only be accessed at low tide.


The Passage.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

Google

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

Details



Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

Details

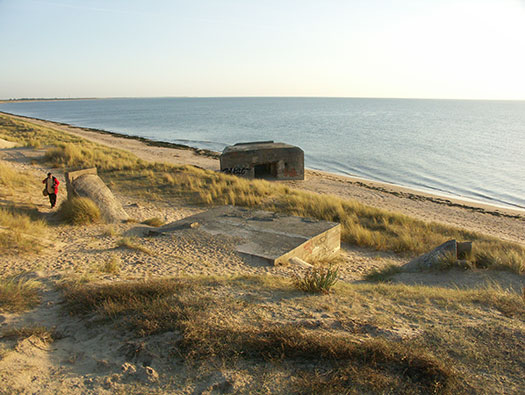

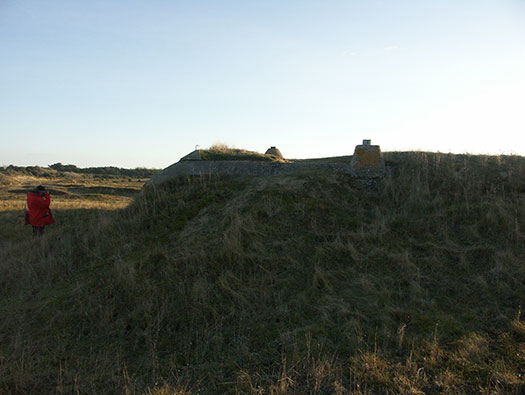

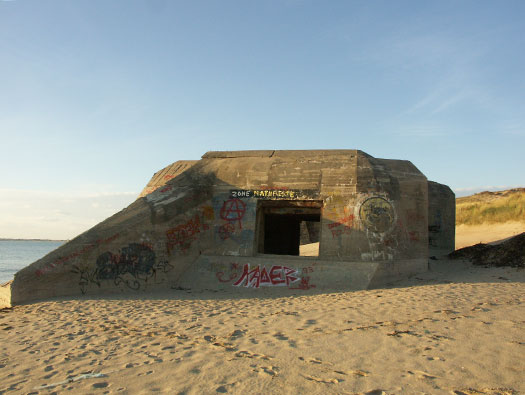

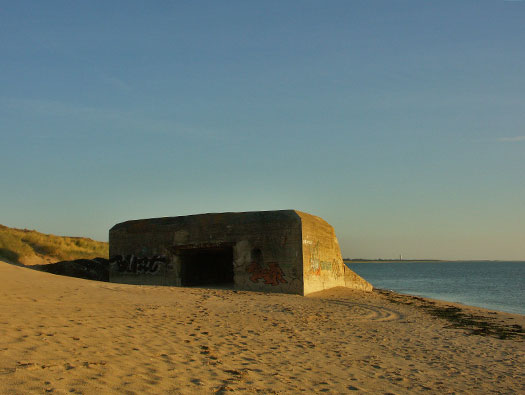

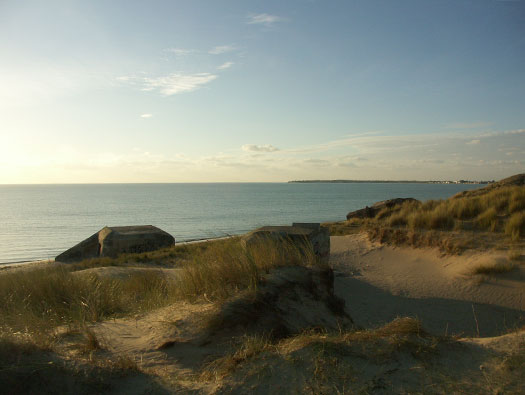

View from a distance.

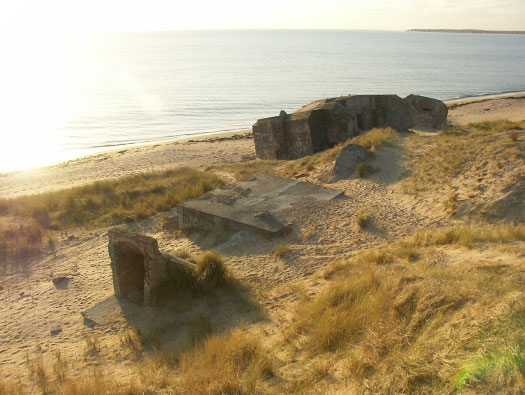

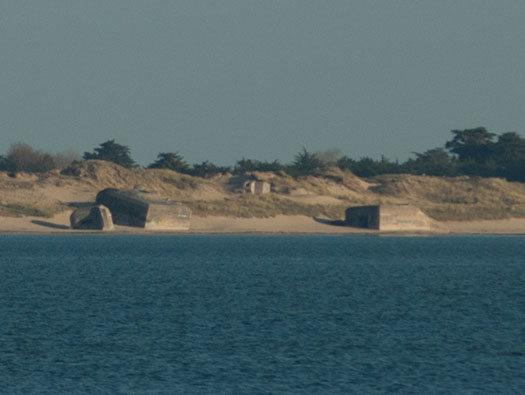

L to R667, R600, Tobruk & an R612.










Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

Details

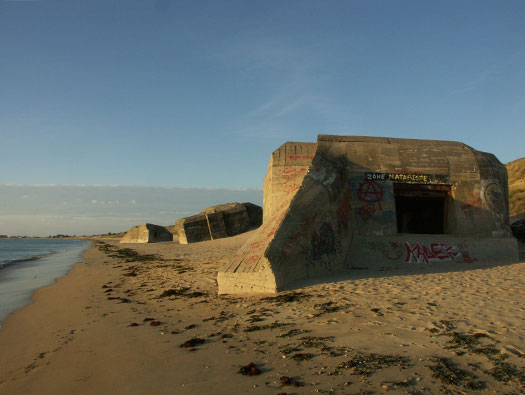

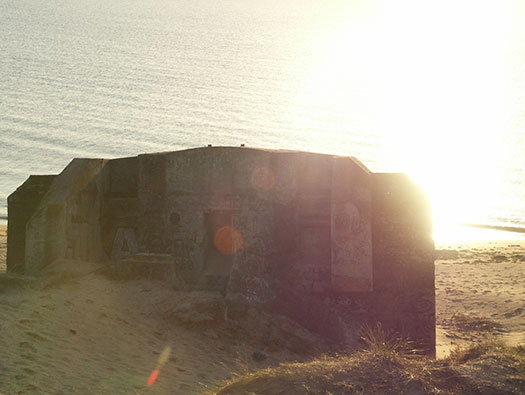

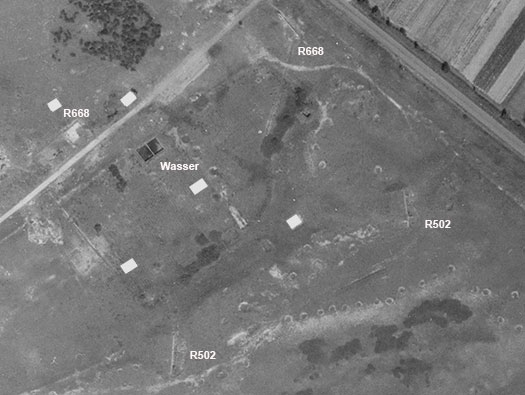

These bunkers have several local additions as water tanks and added Tobruks.


R668 including Tobruk and a water tank.


R502 plus a water tank.


Water tank.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R668 small six man bunker

Details

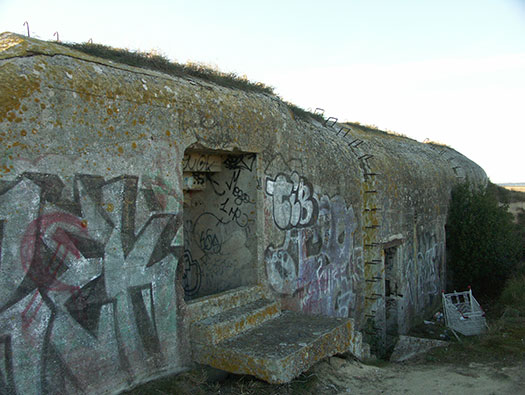

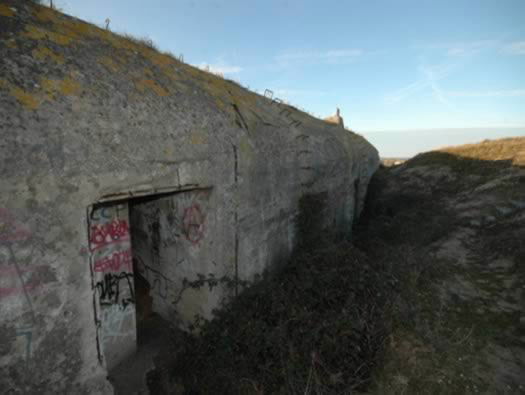

R668 with a Tobruk and water tank.


Details2


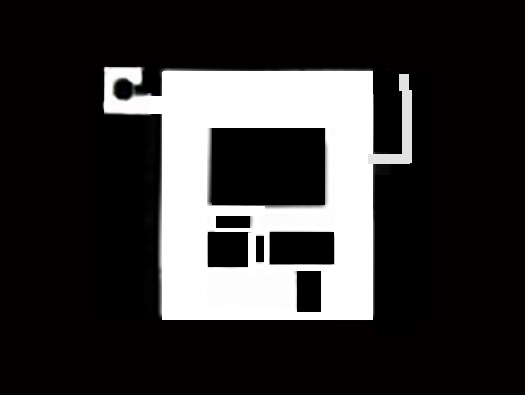

Plan.




Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R668 small six man bunker

Details

R668 with a Tobruk

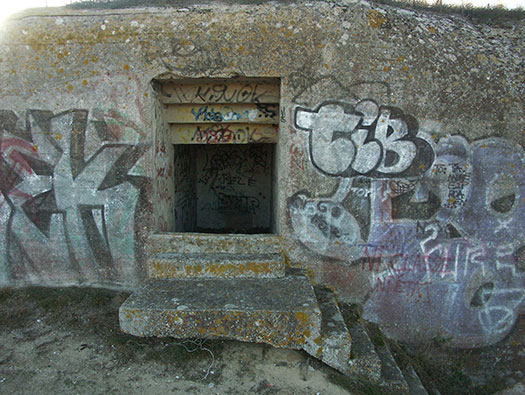

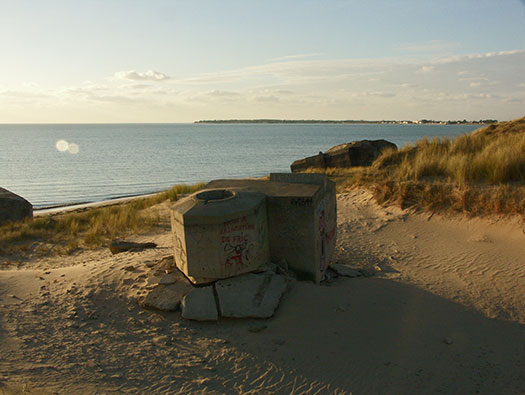

Tobruk.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R668 small six man bunker

Details

Aerial fittings.


Aerial fitting.


Aerial fitting.




Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

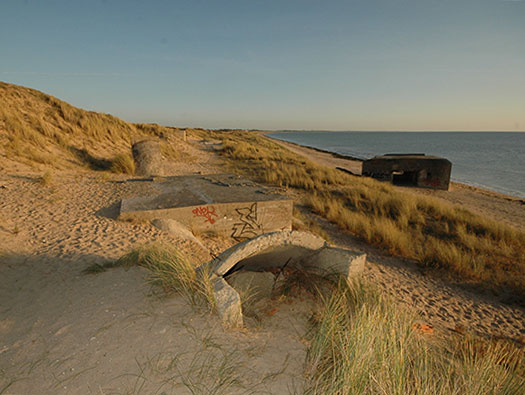

Water tank extension to the bunker.


Water tank.


R502 twin group bunker.


Plan.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

Water tank extension to the bunker.


Water tank.


Field kitchen.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

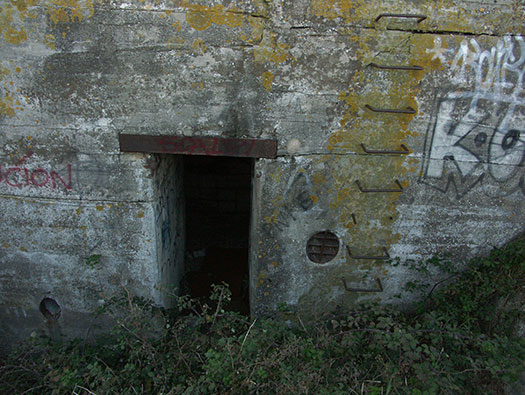

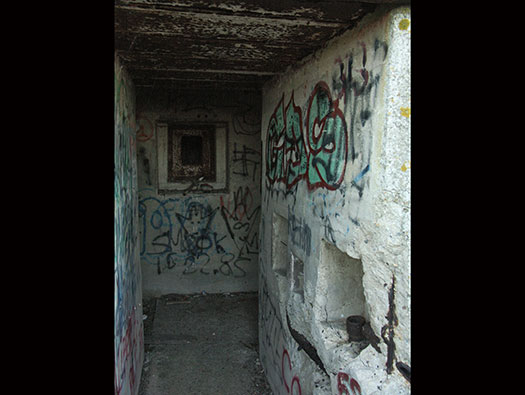

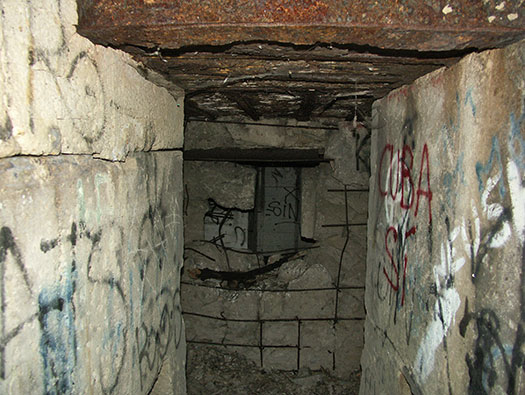

Entrance into the bunker. Speaking tube on the right.


Sprachrohr mouthpiece.


It would have had a 491P2 Gittertür (Screen Door).

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

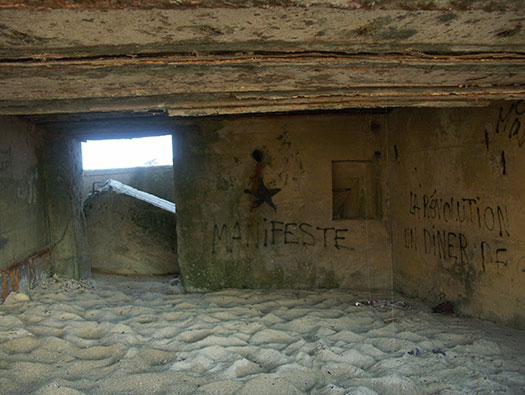

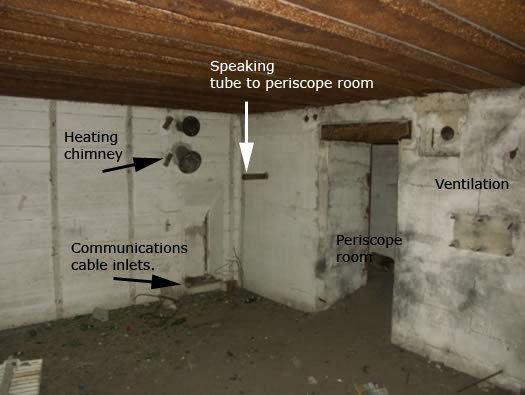

Crew room.


Cable connector.

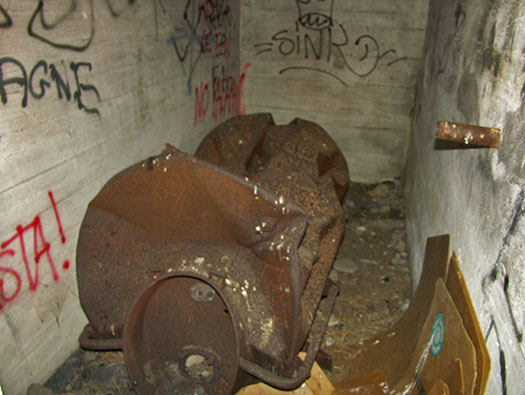

Wt 80k fortification heater.


Anti gas filtration.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

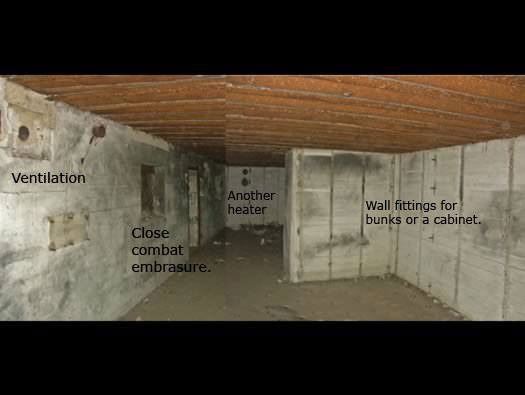

Crew room. An R502 is a twin group bunker for about 20 men and a periscope room often used as a store room for odds and ends and here on Noirmoutier they also added a water storage room.


R502 twin group bunker.




Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

Periscope fitting in the roof.

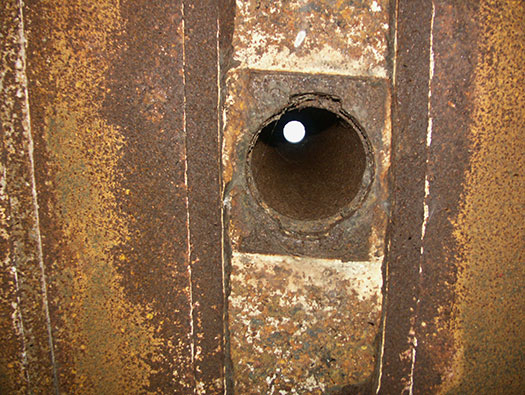

Bunker periscope.


735P3 periscope fitting.




Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

Close combat embrasure covering the entrance.

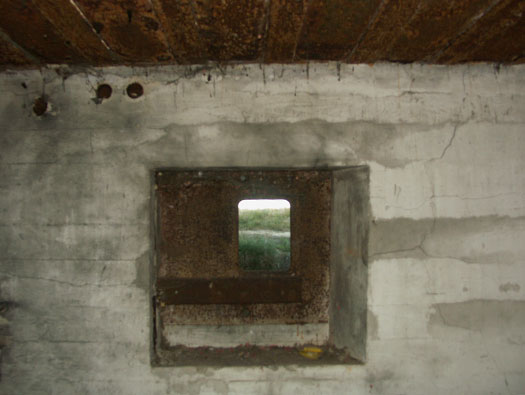

483P2 close combat embrasure.







Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

Another aerial fitting.


Aerial fitting.


Aerial.




Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

Details


Plan.







Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

Wasser tank.


Wasser tank.




Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

Entrance2







Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

Entrance close combat embrasure confronting the attacker on the far wall.


Close combat embrasure.


R502 twin group bunker

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

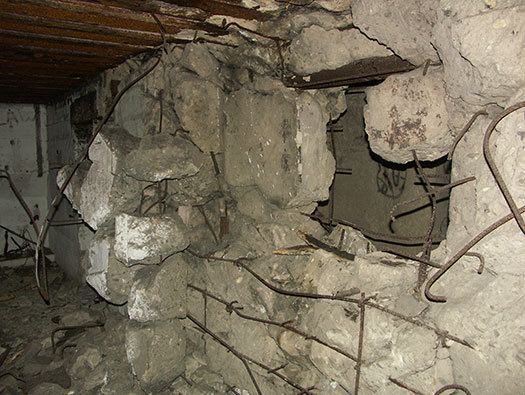

Blown to almost pieces.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R502 twin group bunker

Details

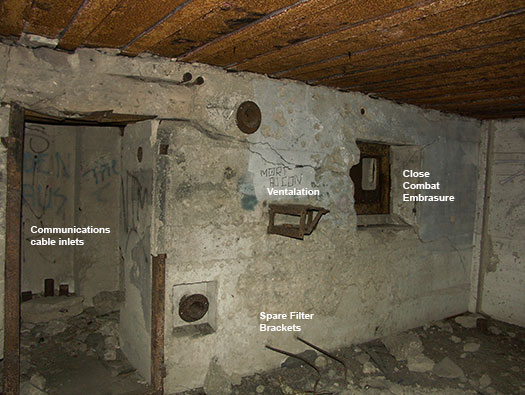

Crew room.


Cable connections.


Gas filtration.


483P2 close combat embrasure.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

Details

Details

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

Details



Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

Details

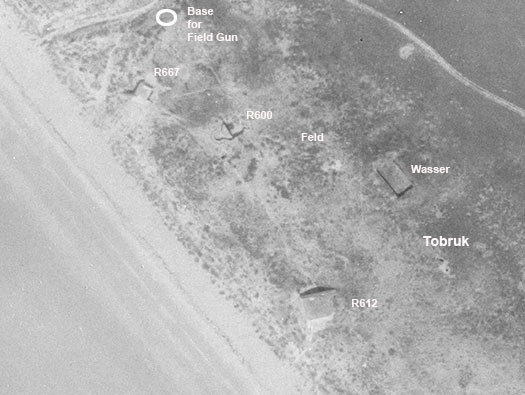

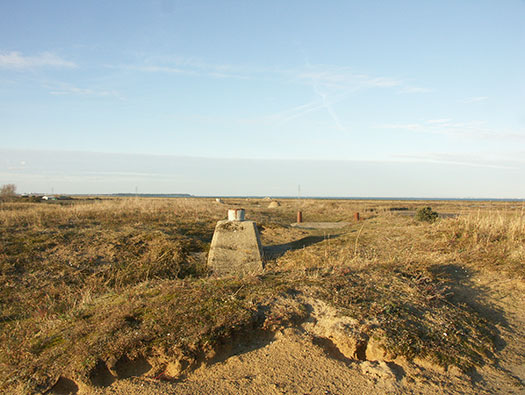

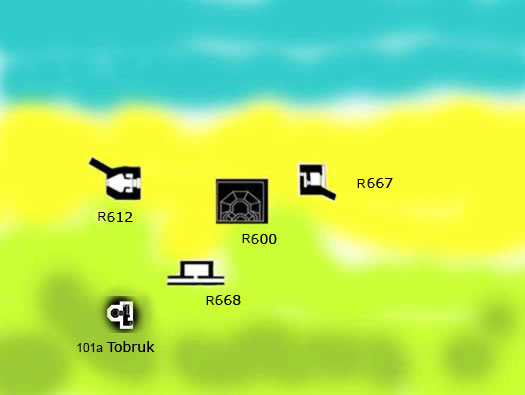

101a Tobruk.
R612 casemate for an assault gun.
R600 emplacement for a 5cm KwK.
R668 eight man bunker.
R667 casemate for a 5cm KwK.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
Defence side of Sa115.

Details

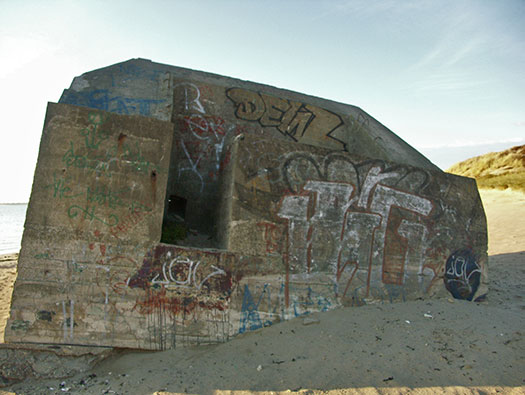

R612 casemate for an assault gun.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
101a Tobruk.

Details

101a Tobruk.


101a Tobruk.





Plan.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R612.

Details

R612 casemate for an assault gun a 10.5cm cm le.F.H.16.


10.5cm cm le.F.H.16.







Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R612 casemate for an assault gun.

Details

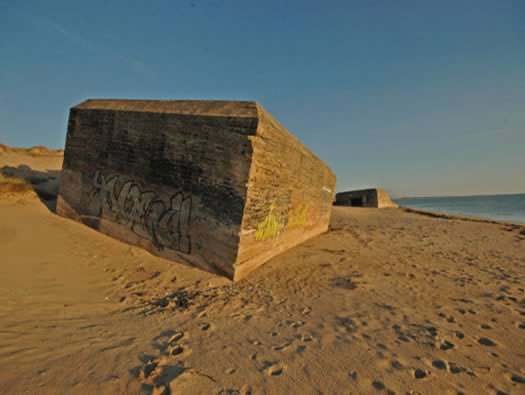

A strong flanking wall covering the embrasure from direct attack from the sea side.


10.5cm cm le.F.H.16.





Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R612 casemate for an assault gun.

Details

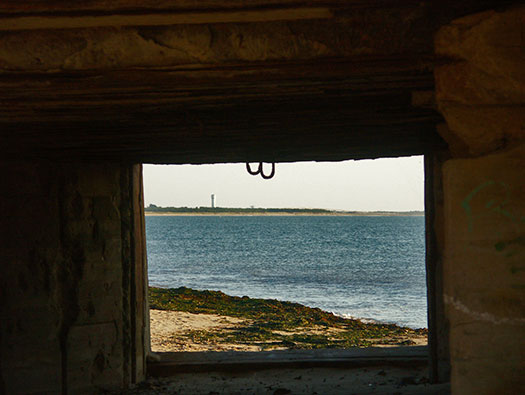

A 10.5cm cm le.F.H.16 would have filled this space and could easily hit any target in front of it..








10.5cm ammunition in a box.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R612 casemate for an assault gun.

Details

There was also one more 10.5cm cm le.F.H.16 in an open emplacement (Geschütztellung) slightly behind the casemates.




Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R600 for a 5cm KwK 38.

Details

5cm KwK 38 was a very handy gun, first fitted to tanks and then as tanks improved they needed a new gun so the 5cm KwK 38 was diverted to coastal defence weapon. It could take out most Allied tanks and certainly damage even large landing craft. The '38' did not have a muzzle break so was a more inferior to the L/60 that did have one.

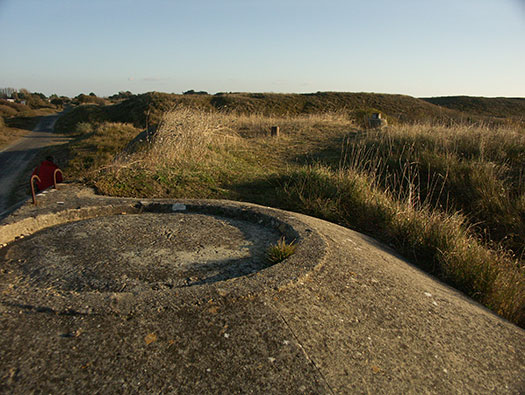

R600 ringstand.


R600 crew and ammunition bunker below the gun.


5cm KwK 38.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R600.

Details

The crew/ammunition room door in the middle and the stairs each side going to the ringstand and gun.


R600 crew and ammunition bunker below the gun.







Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R600.

Details

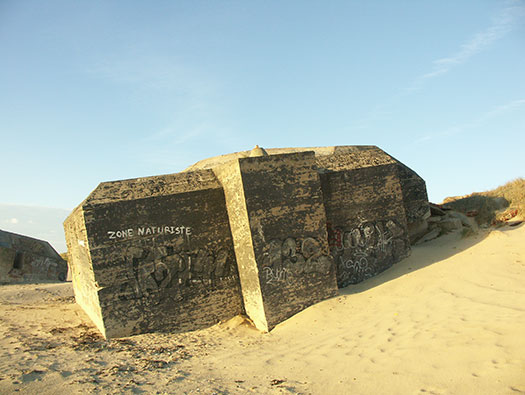

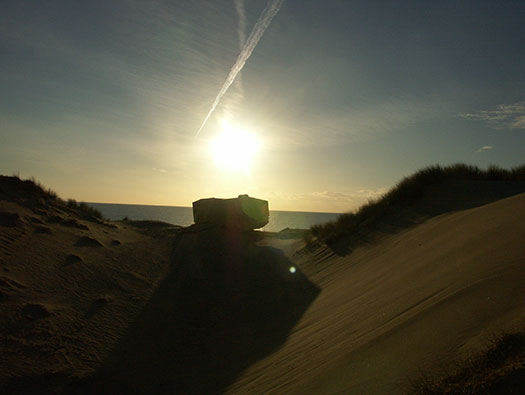

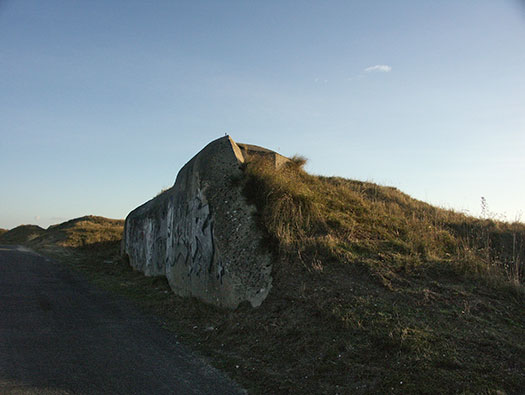

This bunker would be covered in sand up to the top. Due to it being an open emplacement, Hitler’s orders to cover gun in concrete meant that a new casemate was built and the gun transferred to the R667 casemate.


R600.


5cm KwK 38.


5cm KwK 38.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R667.

Details

R667 casemate for a 5cm KwK 38.







Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R667.

Details

The gun room showing the rear entrance and the slot in the right side for fired cases to be passed through out of the bunker.


Plan.




Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R667.

Details



Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R667.

Details

The 5cm KwK 38 would cover this side of the defended area..

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R668.

Details

R668 is an eight man bunker but here I wonder if it was used as extra ammunition, if not it would have been a crew room for the gunners.
It has two entrance passages that take you down to the bunker that was sunk into the sand.


R668.


R668 possibly used as an ammunition bunker to supply 10.5cm and 5cm ammunition to the two casemates.


Plan of this R668.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R668.

Details

You can see the two entrances each side.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R668.

Details

You can see the two entrances each side.

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

24 November 2007

Information

Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
