Wn Nz105 avant port rive est Süd


Information

Nz105 avant port rive est Süd is the left side of the ecluse which was made to allow shipping to enter the Bassin. When the French capitulated in 1940 the German Navy moved down to the French Atlantik ports. They could use them for their large battle ships and also for their submarines (U-Boats). Later due to excessive allied bombing large concrete pens had to be built to stop U-boats from being destroyed in port.

Details

4./Ma.FI.A820.
1 x R623 machine gun casemate with a front plate.
1 x 625/SK casemate for a 7.5cm Pak40.
3 x R630 machine gun casemate with a front plate.
1 x R638 small dressing station.
2 x Vf/Schartenstand LAG.
5 x SK/Flak.
7 x Vf/MG.
3 x Pz.T. tank turret Tobruk.
4 x MG/Schartenstand.
6 x Flakstellung.
1 x R631/SK casemate for a 4.7cm Festungspak(t).
1 x 7.5cm Pak anti-tank gun.
1 x 7.5cm F.K.235(b).
2 x 8.8cm S.K.C./35.
5 x 4cm Flak 28.
1 x 2cm Flak 28.


4cm Flak 28.


2cm Flak 28.


Pz.T. 37variant 144(f) elevation.

Wn Nz105 avant port rive est Süd.

Google Maps

Information

Wn Nz105 avant port rive est Süd

Details



Wn Nz105 avant port rive est Süd.

03 November 2015

Information

Wn Nz105 avant port rive est Süd

Details

Le ecluse.

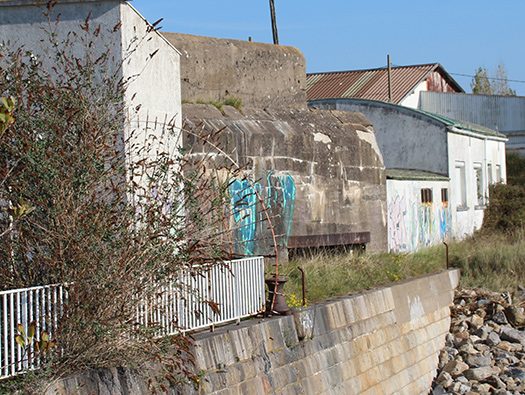

R623 machine gun casemate with a front plate.
