La318 Cap Frehel Pointe du Jas. image

07 November 2013

Information

La318 Cap Frehel Pointe du Jas.

Details

Cap Frehel is located to the west of St Malo/Dinard (40km). A point of land with three fingers jutting out into the Atlantic Ocean with the radar code named 'Froch' on the left, the light house in the centre and Fort La Latte on the right.

Luftwaffe, Kriegsmarine station 'Froch'.
24./Luft.Nachr. Rgt.112.
5./ Luft.Nachr. Rgt.54.
1./3. Funkmess-Abteilung.


Fort La Latte.


Le Cap

La318 Cap Frehel Pointe du Jas.

07 November 2013

Information

La318 Cap Frehel Pointe du Jas.

Details

1 x L479.
1 x R622.
1 x L485 (1).
2 x V229.
1 x Wasser.
4 x Flakstellung.
1 x 5cm KwK ringstand.
4 x Vf58c Tobruk's.
3 x Unterstands.
1 x 5cm KwK gun.
3 x2cm Flak30.
1 x 2cm Flak Vierl.
1 x Mammut Fu.MG 52.
2 x Würzburg Riese Fu.SE 65.
1 x Freya Fu.MG. 401.
1 x Würzburg Anton 39(t) D.
1 x Fu.MG Seetakt Geme Fu.M.O.2.



Freya Fu.MG. 401..


Würzburg Riese Fu.SE. 65.


Fu.MG Seetakt Geme Fu.M.O.2.

La318 Cap Frehel Pointe du Jas. image

07 November 2013

Information

La318 Cap Frehel Pointe du Jas.

Details

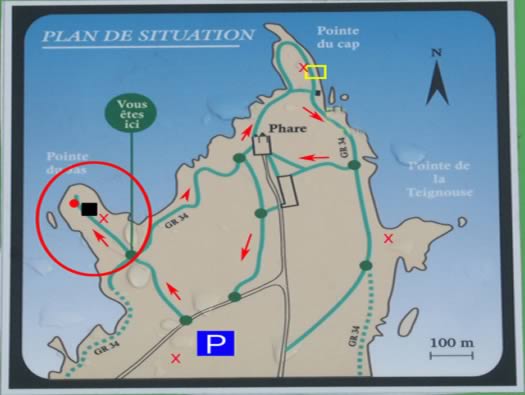

Of the three fingers the main one we are interested in here is on the left.
Red X: Radar sites.
We parked in the road opposite the path to Pointe de Jas GR34 and walked the route of the red arrows.


Pointe du Cap.


Cap less, the view from the Cap.

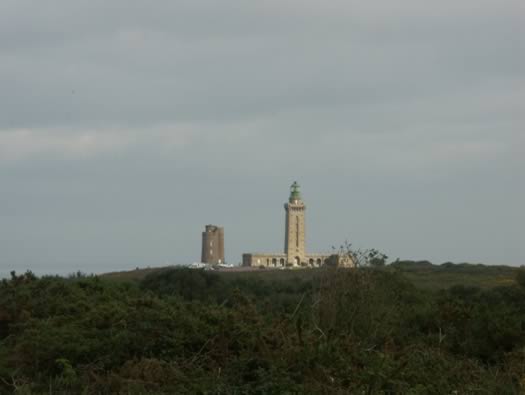

Lighthouse.

La318 Cap Frehel Pointe du Jas. image

Air 40/1667 April 1944

Information

La318 Cap Frehel Pointe du Jas.

Details

An allied plan from Air 40/1667 of the radars at Cap Frehel. This was a document assembled for the run up to D-Day showing all the radars that needed either allowing to work or ones needing attacking all to do with the deception planning. There is still more to find.


Photo reconnaissance Spitfire that went out day after day taking photos of almost the whole of Europe. No guns just its speed to get out of trouble..


The ladies of Medmenham where all the photos were interpreted.


Camera being fitted.

La318 Cap Frehel Pointe du Jas. image

Air 40/1667

Information

La318 Cap Frehel Pointe du Jas.

Details

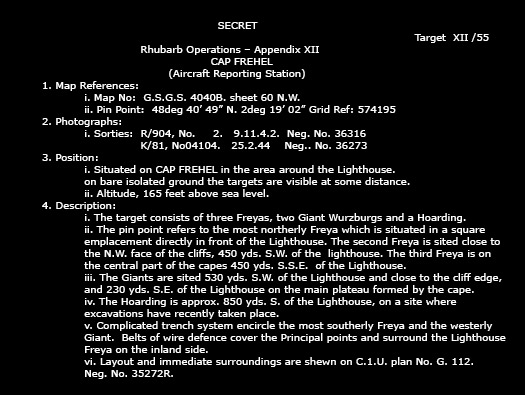

Allied details about Cap Frehel radars. This is a 130 page document on radars from Dunkirk to western Brittany.


Hoarding.


FuMO 215 Seeriece.


Radar screens.

La318 Cap Frehel Pointe du Jas. image

Air 40/1667 25 February 1944

Information

La318 Cap Frehel Pointe du Jas.

Details

An air photagraph of the Cap taken in February 1944.


Coast watcher.


Mamut radar wiring diagram.


Radars through France.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

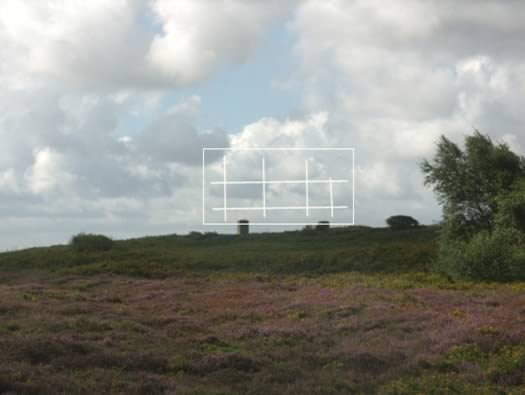

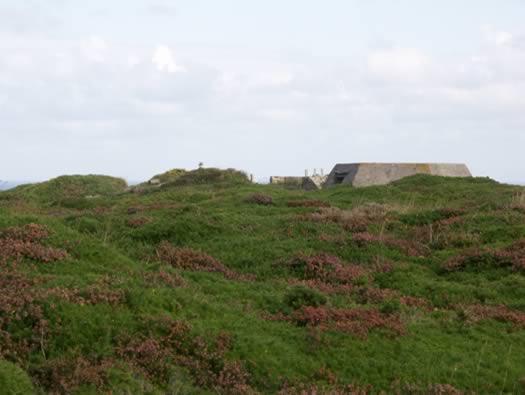

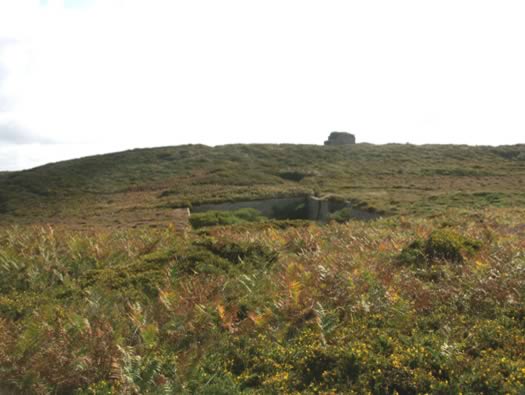

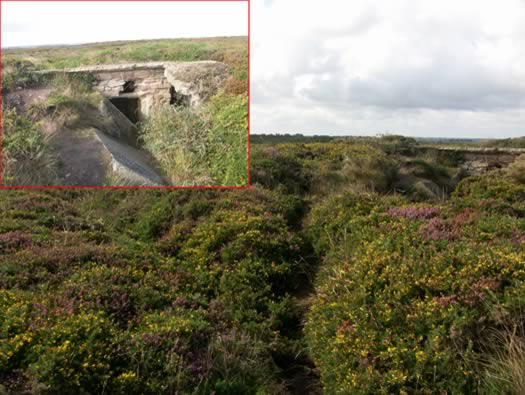

L479 Bunker for Night Fighter Control 'Anton'.

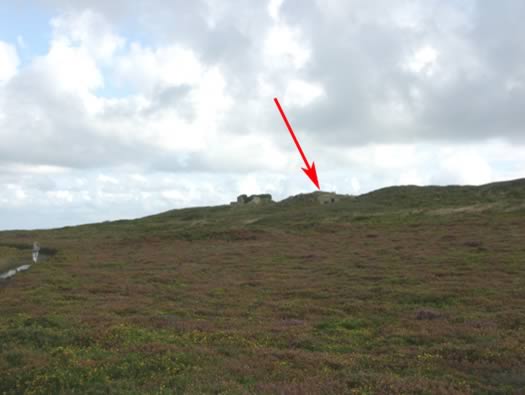

Arrowed is the entrance to an L479 bunker. This is a vast bunker on two levels with two entrances & two machinery entrances.


L479 end on view.


L479 above ground view.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
L479 Night Fighter Control 'Anton' Bunker.

Details

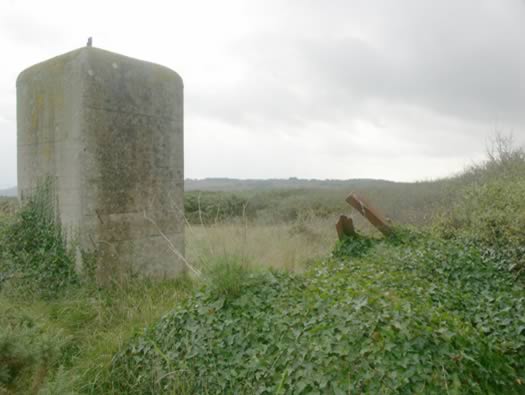

First opening is a re cooling vent. The second is the entrance up to a defence Tobruk.


Re cooling vent.




La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
L479 Night Fighter Control 'Anton' Bunker.

Details

Defence Tobruk.





It looks like this type with a centre post to take the weight of the machine gun.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
L479 Night Fighter Control 'Anton' Bunker.

Details

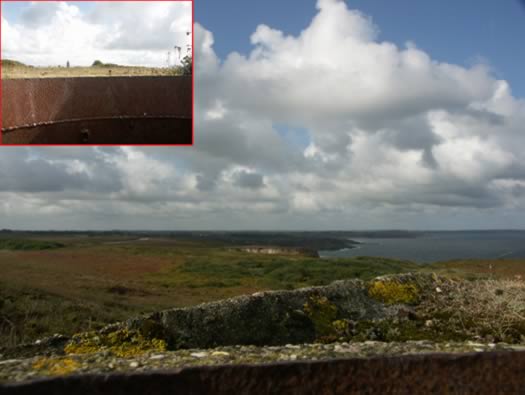

The view from the Tobruk.


Tobruk.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
L479 Night Fighter Control 'Anton' Bunker.

Details

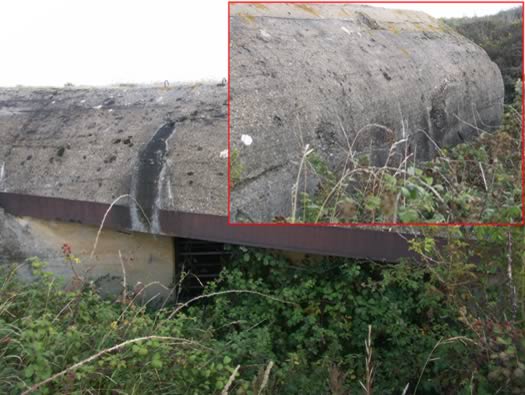

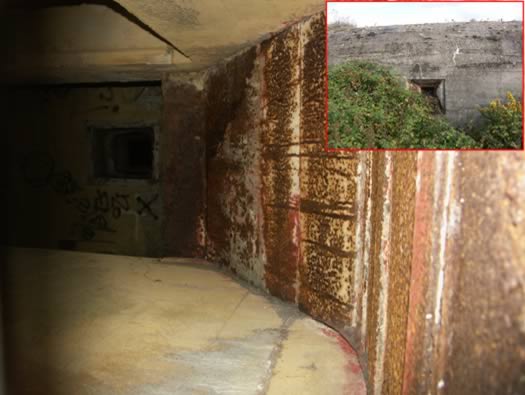

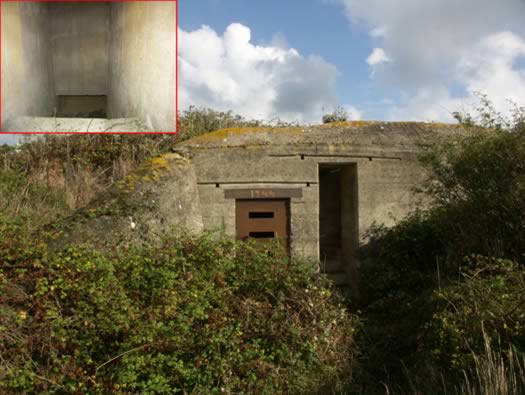

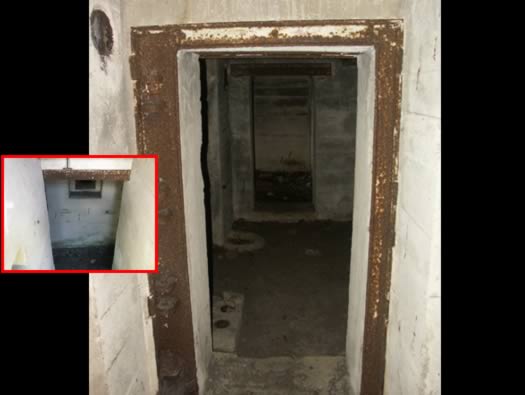

View through the hole Inset.
This was a massive bunker about four to six times the size of an R622 (which we will see later), on two levels with a large double height room for a night fighter control room. Bombers would fly down from airfields in England to bomb the U-Boat bunkers at Brest, Lorient, St Nazaire and La Palace.


B17's bombing Brest.


RAF Halifax.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
L479 Night Fighter Control 'Anton' Bunker.

Details

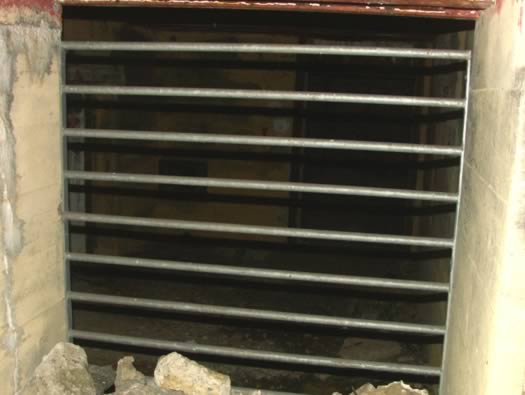

Another machinery entrance with iron bars stopping entry.


A picture of an L479 bunker model showing all the rooms and levels.


Happy drome a British fighter control room, not that much different to an L479.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
L479 Night Fighter Control 'Anton' Bunker.

Details

Another Entrance and close combat defence


Close combat window.


Close combat defence.


Entrance.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

Trenches and Bunker.
A trench system and small local built bunker.







La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

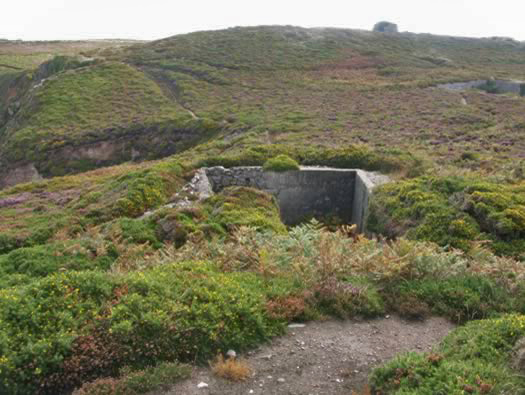

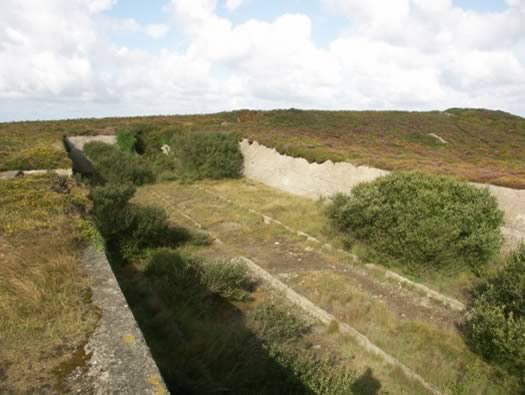

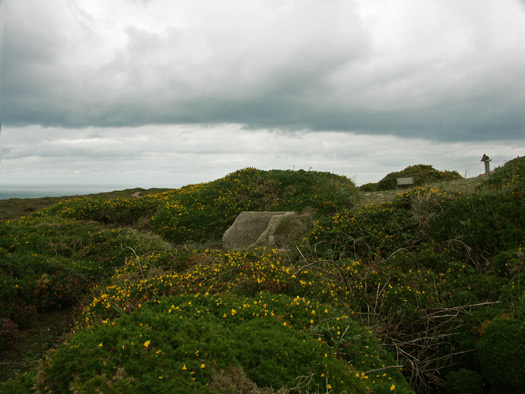

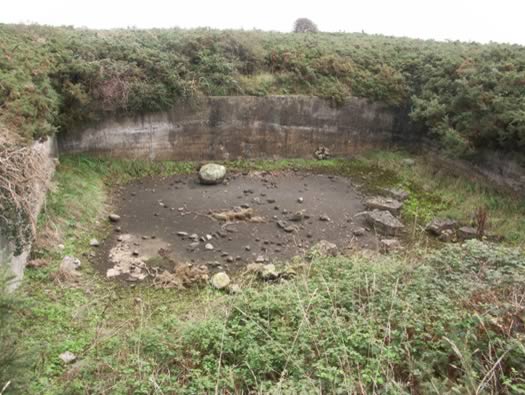

A Large Hole in the Heather.
A very large hole with concrete retaining walls. The consensus is that it housed some large wooden huts?.







La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

A large hole in the Heather.
Possibly a large hut or several small ones either for troop accommodation or to do with the radars in this area?


Some RAF wooden huts very like the ones that could have been here.


One of the sets of steps.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

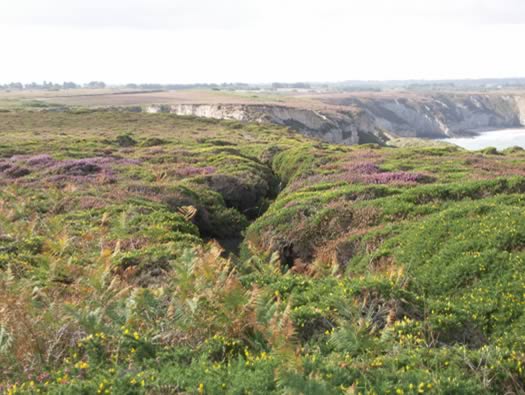

Trenches cut into the rock.







La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

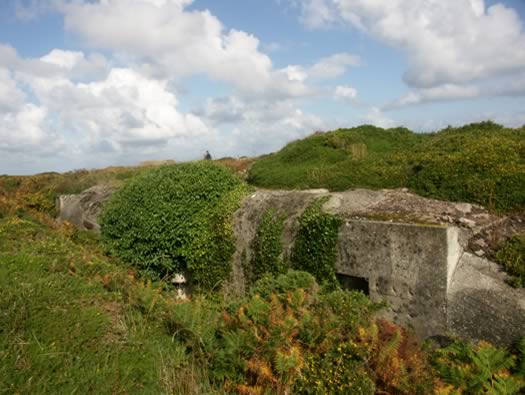

R622 twin Gruppe bunker.

Details

R622: 152 were built in the AOK7 area with two crew rooms a gas lock and a Tobruk defence.


R622 twin Gruppe bunker.




La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
R622 twin Gruppe bunker.

Details

The steps down with a close combat embrasure covering the entrance and the main picture is the gas lock area.


Type 434P01 door.




La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
R622 twin Gruppe bunker.

Details

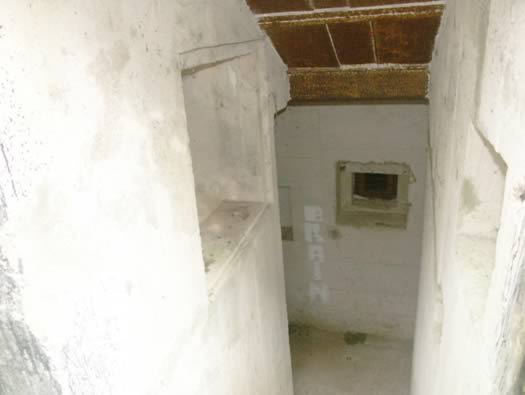

The close combat defence window covering the entrance steps. Some of the internal pipe work still in place and communication wires coming out of the floor. Fittings on the right for the ventilation.


Anti gas ventilation.




La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

R622 twin Gruppe bunker.

Details

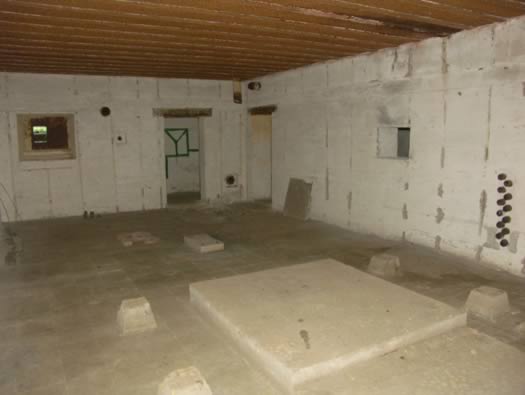

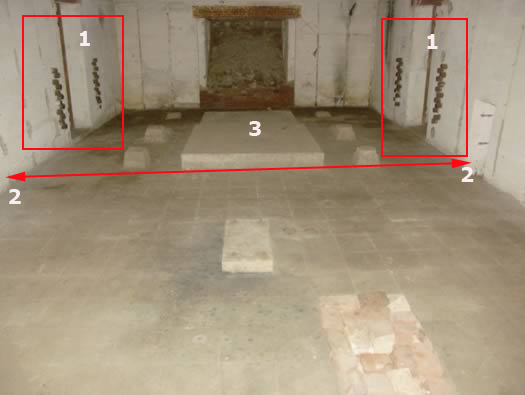

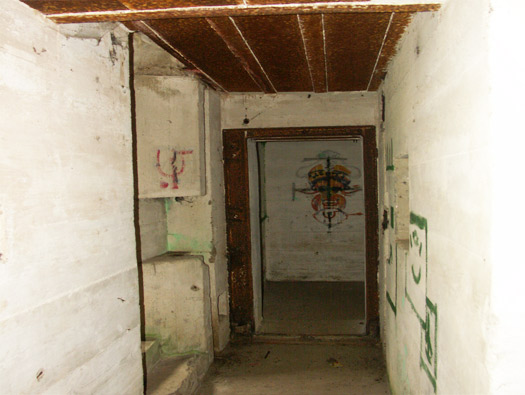

Looking from the left to the right hand room with what looks like communications board fittings on the far wall and the chimney for a heater.


Bunker heater.




La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
R622 twin Gruppe bunker.

Details

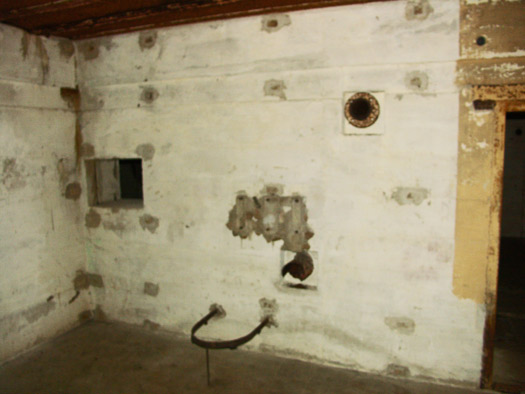

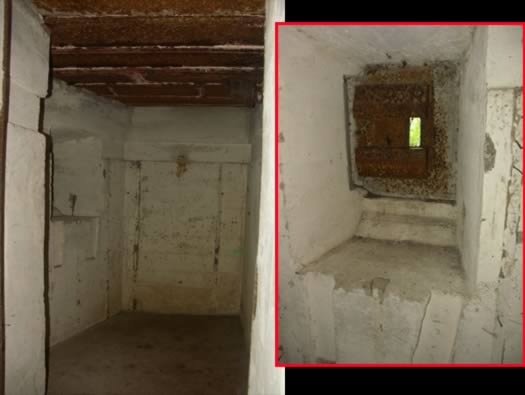

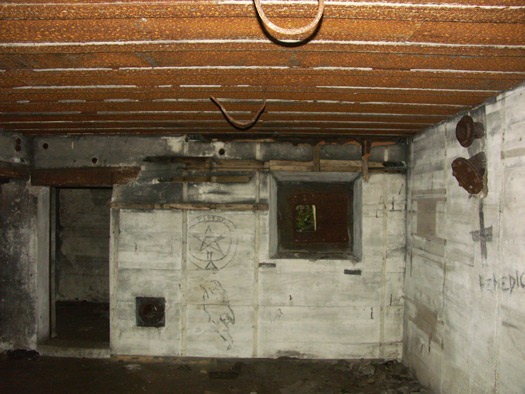

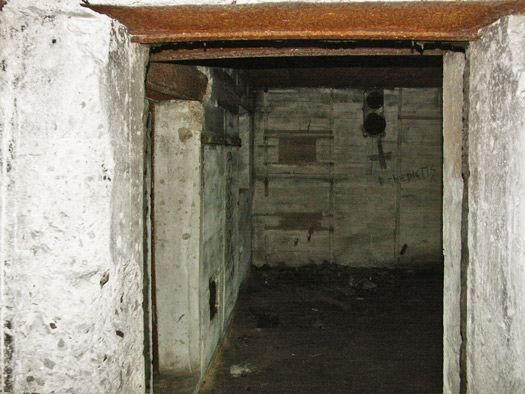

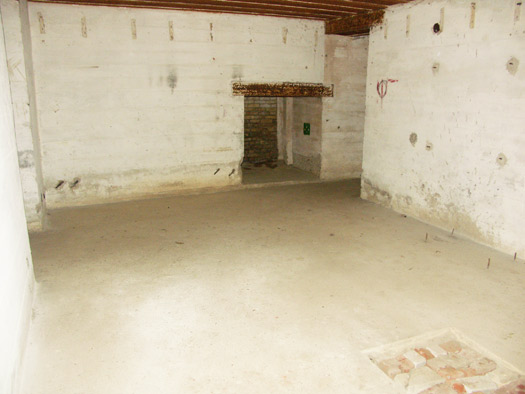

The right hand room with the close combat defence window. Wooden covering on the far wall. The chimney pipes on the right and hoops in tie ceiling for the air pipes.


Inlet pipes for telephones.

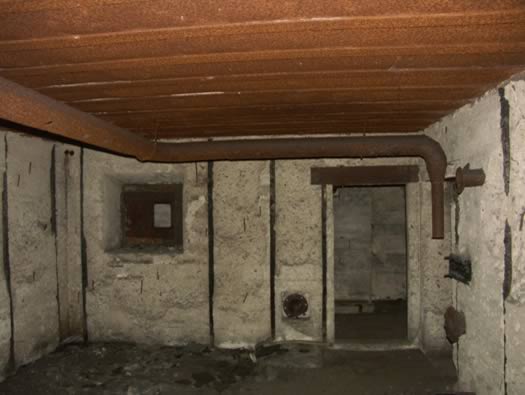

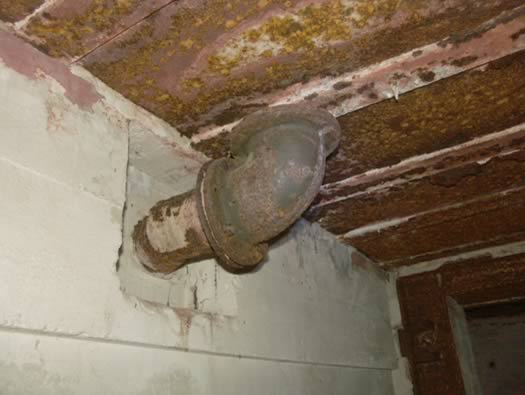

Air pipes in the other room with hoops holding them up to the ceiling.


19P7 doors used inside the bunker.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
R622 twin Gruppe bunker.

Details

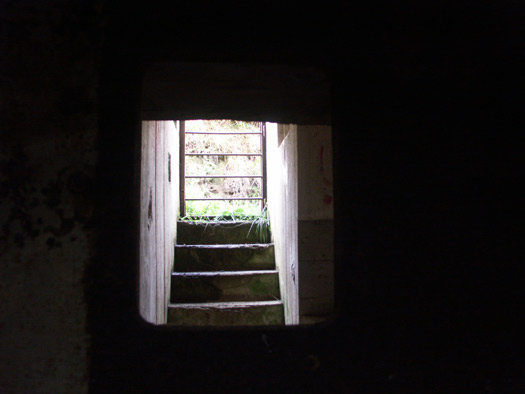

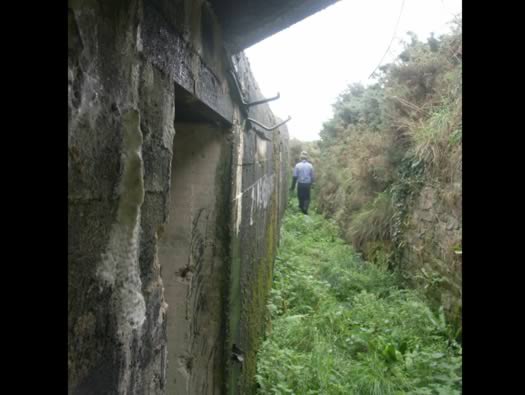

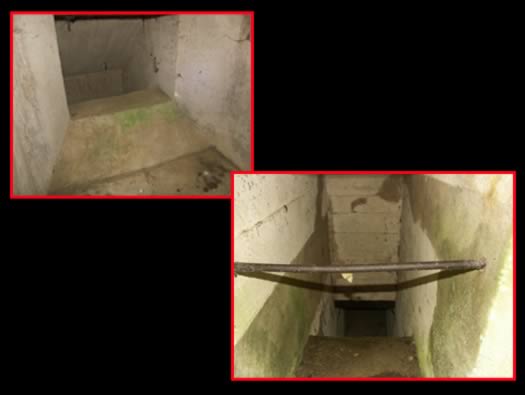

The second set of entrance stairs still with the original paint on the wall.




La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

There are lots of bits with no regular designs but all look to be part of the defence.
Behind is a V226 radar socket.


Water cistern.


V226 radar socket.


V226 radar socket plan.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information



Details

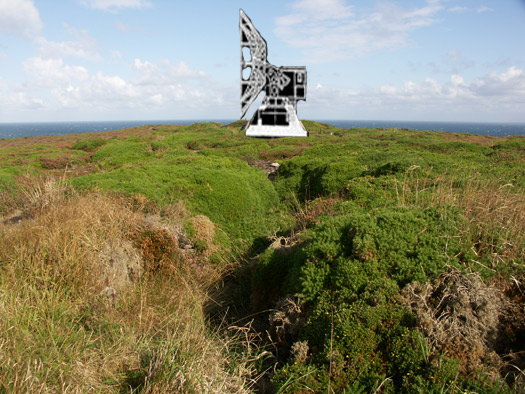

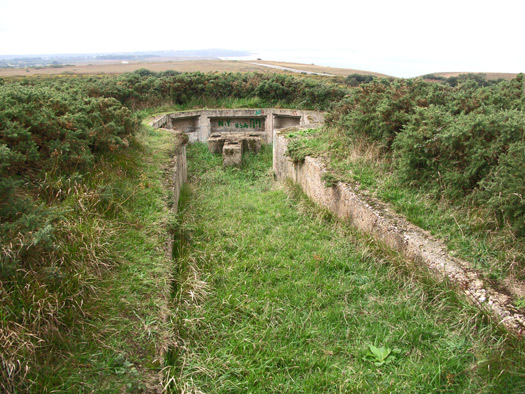

Würzburg radar socket for a Würzburg Riese Fu.SE 65.


Würzburg radar better known to the Allies as Giant Würzburg.




La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Würzburg Riese Fu.SE 65.

Details

And a trench running through the heather.


Inside a damaged cabin on a Würzburg radar.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Würzburg Riese Fu.SE 65.

Details

Views in and around the V229 radar socket.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

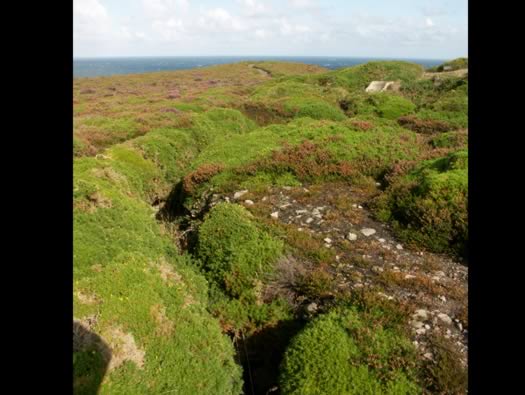

More Trenches as we Walk Around.





Yellow lines are the trenches I can see, red dots Tobruk's.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

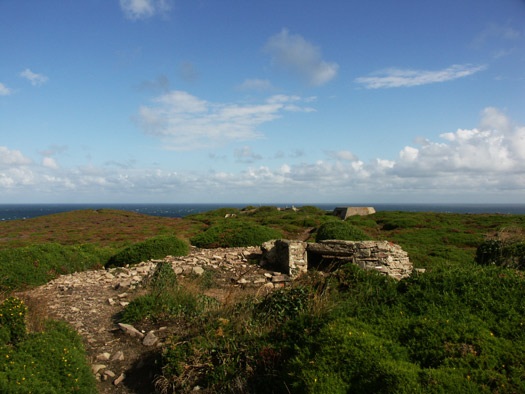

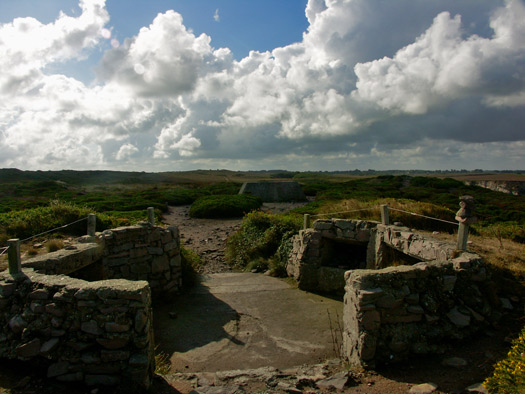

2cm AA Ringstand.
A small but very effective anti-aircraft gun.


2cm Flak 30.


Layouts of bases for 2cm Flak.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

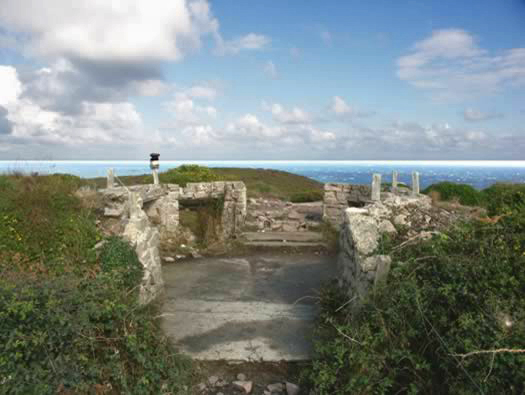

2cm AA Ringstand.
Locally built of concrete and stone from the excavated rock.


2cm Flak 30.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

Part of the trench system.
Its a trench bridge where a path crossed a trench and a large concrete slap was placed.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

Part of the trench system. By September it was all over.




La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

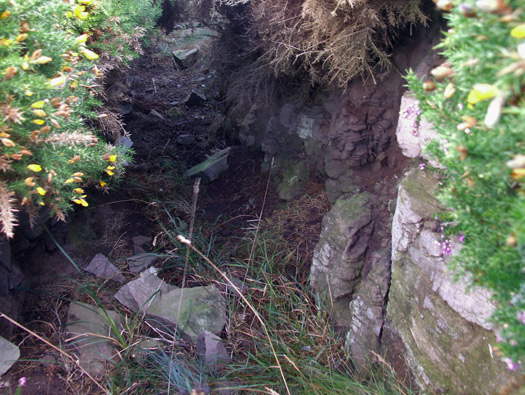

View along the Trench. As you can see its cut out of the rock.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

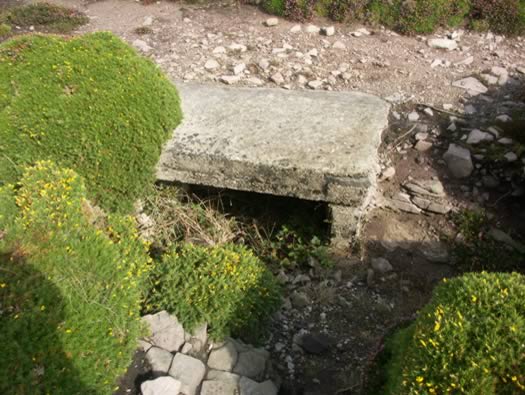

More trench bridges. These are actually trench bridges to allow soldiers to move rapidly across the area without falling in the trenches.

Section La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

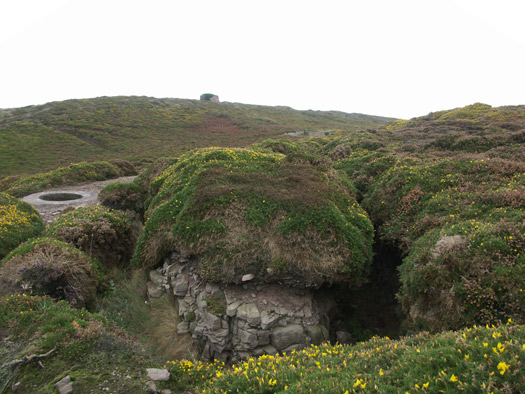

Trenches, defence &Tobruk.


Plan of a Tobruk.

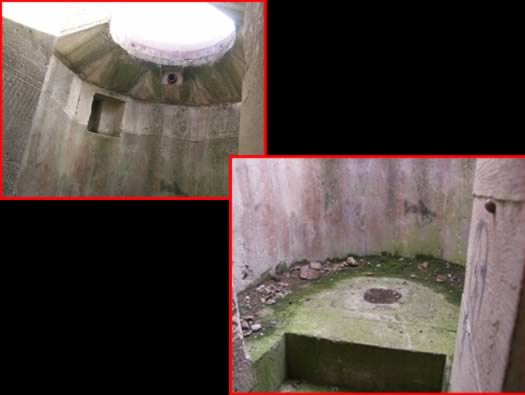

Inside this Tobruk.

Section La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

Another Tobruk with a collar around It. A very Brittany Tobruk.


Close up of the Tobruk.


Trenches.

Section La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

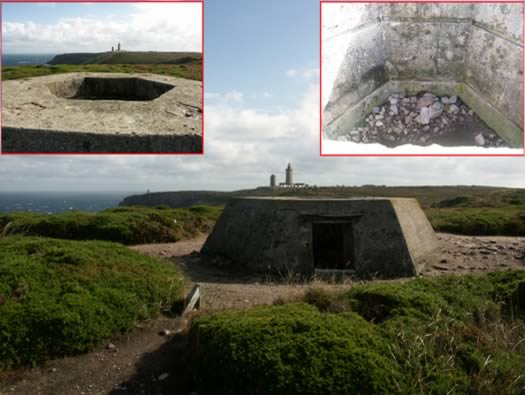

Third Tobruk. Trench leading into the Tobruk door.


Plan of a Tobruk.


Looking into the Tobruk.


Looking into the Tobruk.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

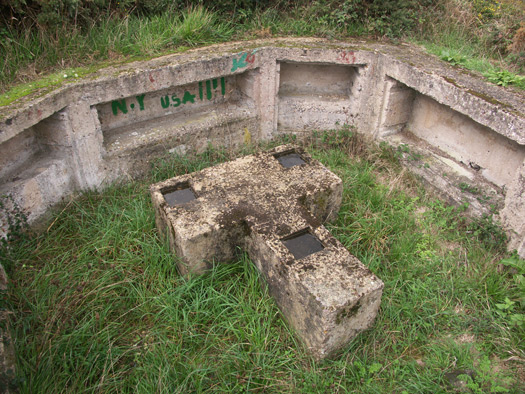

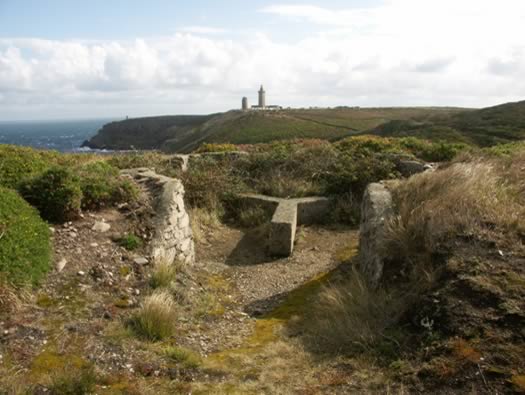

The Second 2cm Flak.
How did the gun stay on the concrete plinth when it was fired?




La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

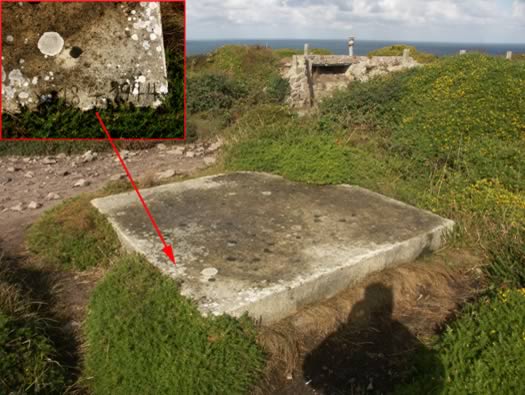

Wasser, water reservoir. A concrete water reservoir.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

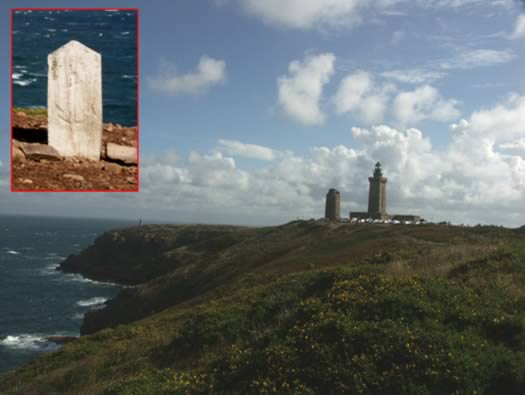

Lighthouses and the Cap.

Details

Inset a French Naval boundary stone.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

Old Lighthouse at the Cap

Details

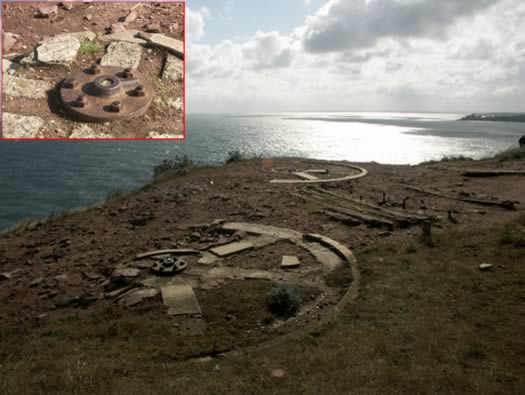

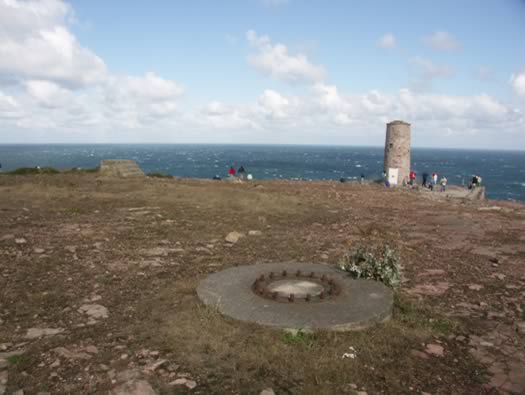

I found this base with a circle of bolts for 9.5cm Canon de Cote de 95 M93 French pre war guns..


Canon de Cote de 95 M93.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

More and heavier gun bases.

Details

All from a pre war French battery position.


French artillery.


French artillery.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

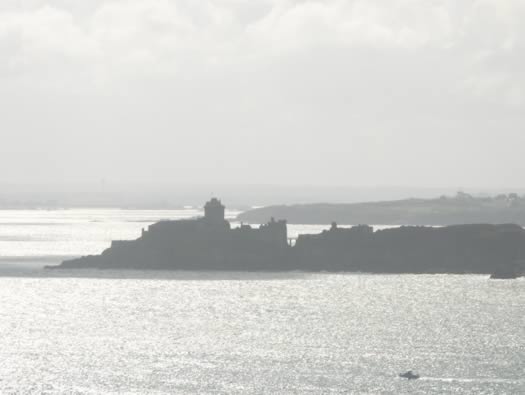

Fort La Latte.

Details

One of the prettiest Norman/13cent. Castles. It was the place where they filmed Vikings with Kirk Douglas.


Fort La Latte.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1)

Details

The allies had code names for this type of radar was 'Large Hoarding' a good name for it.


Mammut FuMO52 on an L485(1) bunker.


Allied drawing of Large Hoarding.





Radar soldiers.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1)

Details

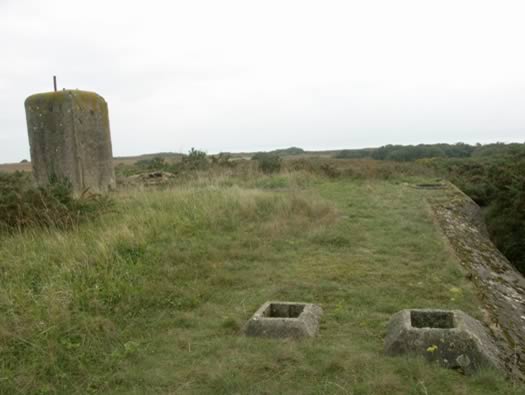

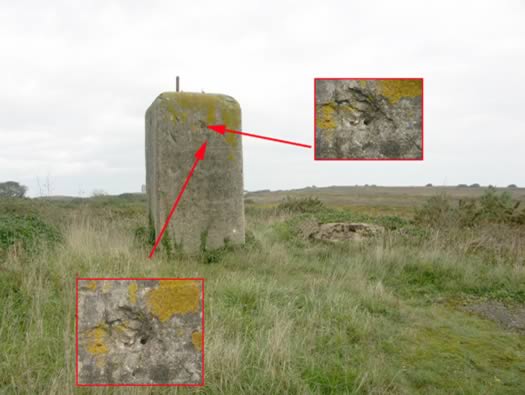

One of the concrete and steel supports for the large radar array.




La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1).

Details

The other concrete support.


Slots for radio aerials.


Aerial in its slot below.


Radar array wiring diagram.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1)

Details

Holes in this concrete support from what look like aircraft machine guns or cannon shells.


RAF Typhoons attacking ground targets.


Or a USAAF Thunderbolt.


Cannon shells being fired.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1)

Details

The view from under the close combat defence along the back wall showing one of the entrances and what looks like telephone cable brackets still in place.


L485(1) bunker plan.


Glass telephone insulators.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1)

Details

Machinery entrance.


Plan of the L485(1).


Not to be mistaken for an L485(2).

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1)

Details

Entrance with the close combat defence where a machine gunner guard would stand and cover the entrance.


Plan.


Close combat defence.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1) gas lock.

Details

Entrance on the left, gas lock in front and left at the gas lock is the close combat/guard room.


Plan.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1) close combat

Details

Close combat defence room or guard room.


Plan.


This is the main close combat defence room or guard room for the bunker could have looked.


This is the close combat outside showing how it covers the back entrance.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1)

Details

One of the pipes inside.


4ML01 equalization valve.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1) crew & ventilation room.

Details

The square hole is to pass messages through. Air filtration hand pump fitting, the metal ring on the wall is for spare filter storage.


Air filtration hand operated.


Filters stacked ready for use.


Filters.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1) Crew & Ventilation Room.

Details

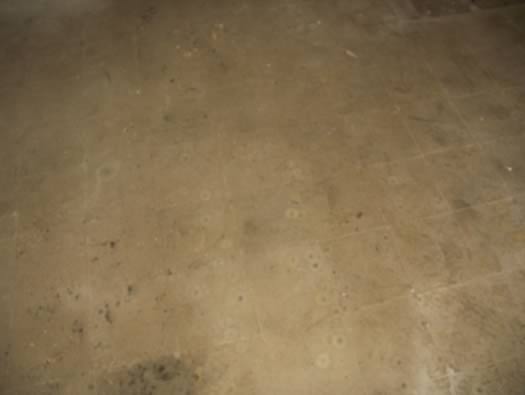

Thermo plastic tiled flooring to absorb shock and feel better on the feet.


Here are some modern thermoplastic tiles that I polish to a high standard (Harts of Stur).

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1) compensator room.

Details

Two compensator's, one for each deflector (that means an awfully lot to me!!). There were many large cables running through the buildings.




La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485 (1) compensator room.

Details

1: Cable pipes for compensator No.1. These cables connect to the radar on the enemies side.
2: Cable pipes for compensator No.2. These cables connect to the radar on the opposite side.
3: Platform for the compensator's. (Axis Forum)


This is a plan I have drawn of a photo on the Axis Forum website of a radar compensator. It looks as though a lot of wires went in one end and out the other


Plan.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1) compensator room.

Details

This is the compensator room looking at the entrance and the close combat window. Door on the right to the crew/ventilation room.


Plan.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1) entrance..

Details

Entrance viewed through the close combat window.


Plan.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1) emergency current room.

Details

Emergency current room. Emergency generating room.


Plan.


8KW generator.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1) re-cooling room.

Details

Re-cooling room.


Plan.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.
Mammut FuMO52 L485(1).

Details

The view along the rear of the bunker with the close combat window embrasure covering the entrance.


Plan.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

Tobruk defence.


Plan.




La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

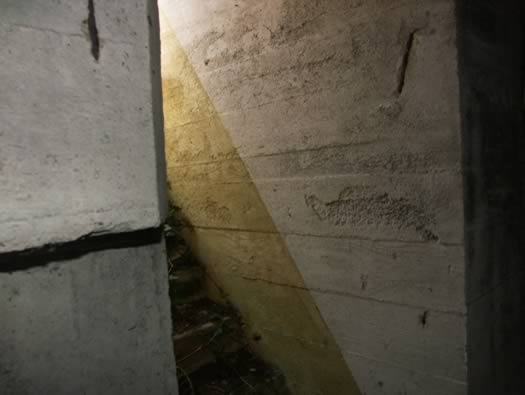

This trench outside the bunker continues away.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

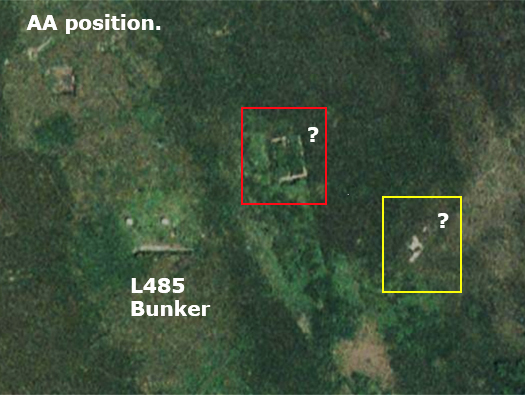

The area around the L485 Bunker.
The trench in the last photo leads away towards the yellow square. We did not venture into the heather and brambles to these buildings.


The Cap, the above picture is the area of the yellow square on the left.


Brickwork on the side of the trench.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

Trench to the Flak.
Trenches were dug out from the L485 to several emplacements, one of these trenches has been cleaned out and you can follow it to a 2cm AA gun emplacement.


a plan of the bunker, trench, AA emplacement & a reservoir. .

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

2cm AA emplacement.


2cm Flak.


2cm Flak bases.


2cm Flak.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas.

Details

2cm AA Emplacement. The gun sat on this mounting.








2cm Flak 30.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

La318 Cap Frehel Pointe du Jas. Wasser reservoir

Details

Water was needed to cool the radars.


Flak position and the water reservoir.


Plan of the Cape.

La318 Cap Frehel Pointe du Jas. image

23 Aug/09 Oct 2006

Information

Cap Frehel.

Details
