RAF Riccall Domestic Sites.

Details

The airfield was built in 1942 and opened in December that year as a satellite to RAF Marston Moor. It consisted of three concrete and asphalt runways, six T2 and one B1 hangers. Although officially opened in December 1942 the Halifax conversion units of 76 Sqn. and 78 Sqn. moved into Riccall 3 months prior in September. In October they formally merged to form 1658 Heavy Conversion Unit (HCU) and in November they were joined by 158 Conversion Unit which formed 'C' Flight 1658, bringing the unit up to 32 Halifax aircraft. The unit prepared thousands of aircrew for service on Halifax squadrons. They paid a high price with loss of 72 aircraft during their time at Riccall. The HCU was disbanded just before the end of the war. Riccall then became home to 1332 Transport Conversion Unit flying Avro Yorks and Short Stirlings RAF Riccall, Yorkshire. converted to a transport role. 1332TCU stopped using the airfield on 7 November 1945 and it was then put on care and maintenance. Various Maintenance Units used it as a sub site for storage until February 1957.





RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire.

Details

RAF Riccall, Yorkshire. Domestic Sites.

Information

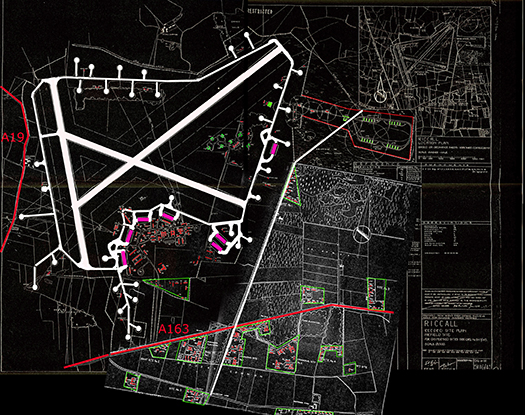

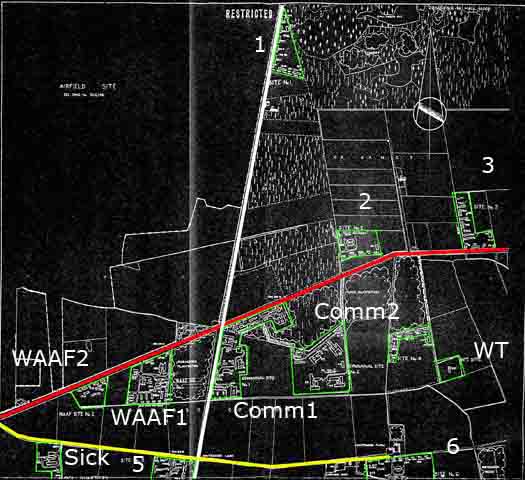

Plan of RAF Riccall.

Details

Green areas to the both sides of the A163 are the domestic sites. Site No1. Site No2. Site No3. Site No4. Site No5. Site No6. Site No7. Communal site No1. Communal site No2. WAAF site No1. WAAF site No2. Sick Qtrs. WT Site. .

Handley Page Halifax.

Handley Page Halifax.

Early Halifax bombers.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire domestic site.

Details

Plan of the domestic sites.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire domestic site.

Details

WAAF site No.2.
Five British Concrete Federation huts and a picket post.
171A to 171E - Airwomens Quarters - BCF - 12404/41
172 - Sgts & A/WS Ablutions, Latrines and Drying room - TB - 6508/42.

BCF -British Concrete Federation.

Plan.

WAAF site No.2.

WAAF at work.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire domestic site.

Details

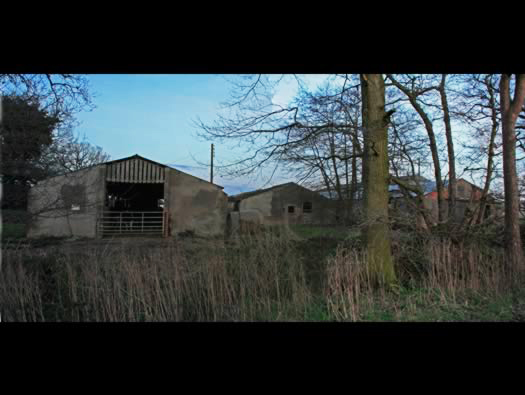

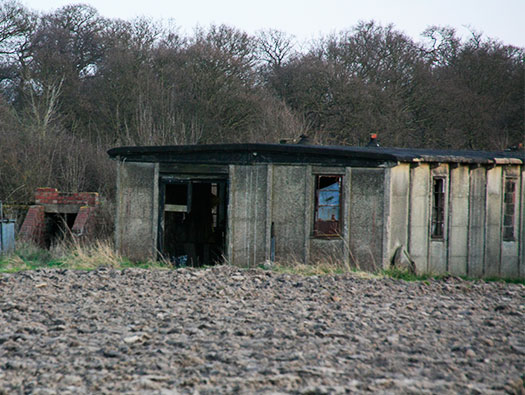

WAAF site No.2.

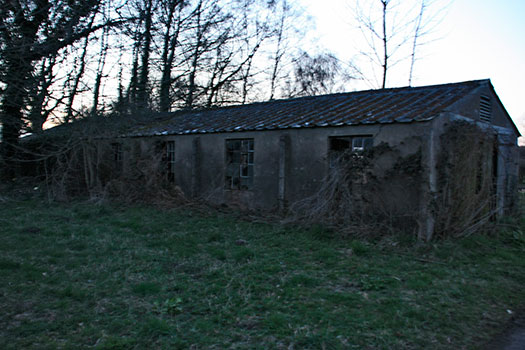

British Concrete Federation hut and an air-raid shelter by its side.

BCF hut inside.





RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire domestic site.

Details

WAAF site No.1.
WAAF Sergeants, Officer & Air women's quarters. Institutes, Dinning Rooms, Latrines, Bathrooms, Decontamination, etc. Quite a large women's site..

Site plan, WAAF site No.1.

WAAF site No.1..

Plan 157 - Combined bath, NSI and decontamination centre - TB - 12861/41.
NSI-?

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire domestic site.

Details

WAAF site No.1.
155 - Institute (for 350 persons) - N - 5776/42-12602/41.

N- Nissen 24ft.

Plan of an institute in TB 9Institute for 350 (5776/42-12602/41).



RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire domestic site.

Details

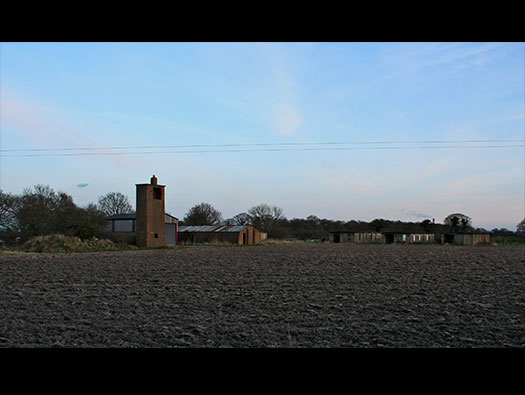

WAAF site No.1.

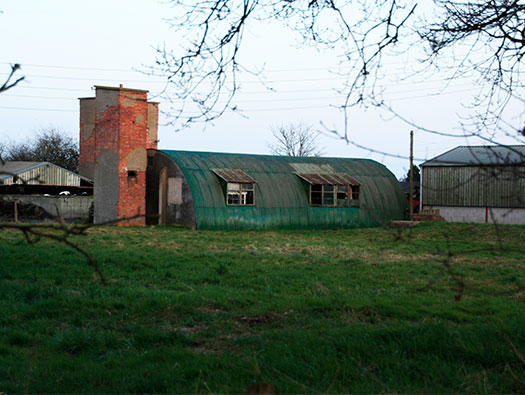

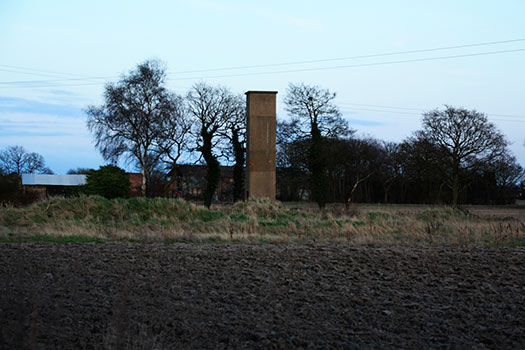

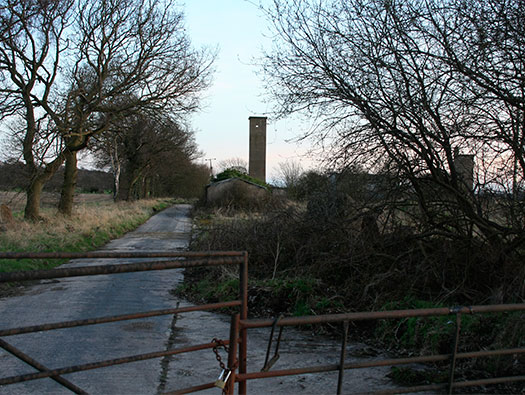

The water tower all that is left of the 155 - Institute (for 350 persons) - N - 5776/42-12602/41.

RAF Riccall, Yorkshire. Domestic Sites.

Information

Details

Communal Site No.1.
8 - Airman's Dining Room - TB - 8221/40.
9 - Fuel Compound - C & Wire - 1943/41.
10 - Ration Store - TB - 8221/40.
11 - Picket post - TB - 8218/40.
12 - Locker Room - TB - 6508/42.
13 - Sgt's & Arman's Ablutions - N - 6508/42.
14 - Airman's Showers & Abl's - TB - 8182/40.
15 - Airman's Latrines - TB - 8182/40.
16 - Gymnasium & Chancel - TB - 14604/40-16429/40.
17 - Barbers,Tailors & Shoemakers W/shop - TB - 8205/40.
18 - Fuel Store - TB - 6890/40.
19 - Standby Set House - 6890/40.
20 - Grocery & Local Produce Store - TB - 822/40.
21 - Institute - TB - 8222/40.

TB - Temporary Brick.
C & Wire - Concrete base & Wire fence.
N - Nissen.

Communal Site No.1.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Communal Site No.1.
21 - Institute - TB - 8222/40.

Beware.

Plan of the institute..

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Communal Site No.1
13 - Sgt's & Arman's Ablutions - N - 6508/42.
24ft Nissen hut.

24ft Nissan hut.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Communal Site No.1

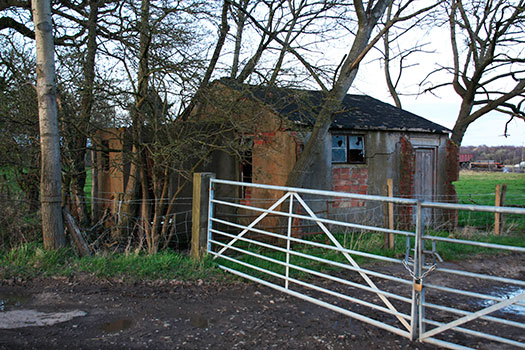

11 - Picket Post - TB - 8218/40.
Picket post where all servicemen & women would have to sign in & out, a sort of police post.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Communal Site No.1
11 - Picket Post - TB - 8218/40.

It looks as though an attached toilet added. It looks as though somebody has tried to turn it into a bathroom?.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Communal Site No.1
14 - Airman's Showers & Abl's - TB - 8182/40.

8182/40 Plan.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Communal Site No.1

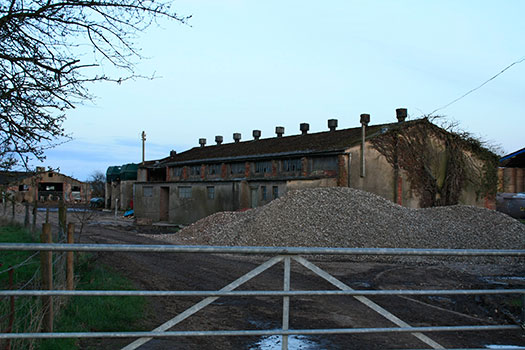

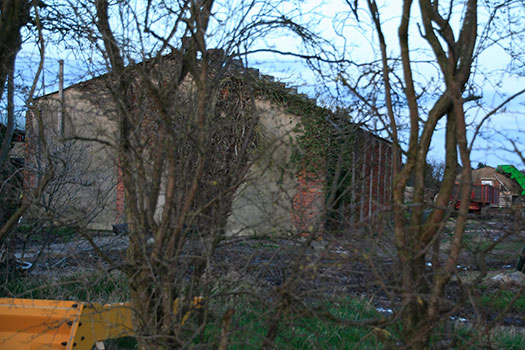

16 - Gymnasium & Chancel Annexe TB - 14604/40-16429/40.
I cannot see a Chancel Annexe which would have been an extended building on this end of the Gym. The nine air vents are all original and the low level buildings on the side are changing rooms and toilets. Here sports would be held to keep the men and officers fit for duty..



Plan.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Communal Site No.1
16 - Gymnasium & Chancel Annexe TB - 14604/40-16429/40.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Communal Site No.1

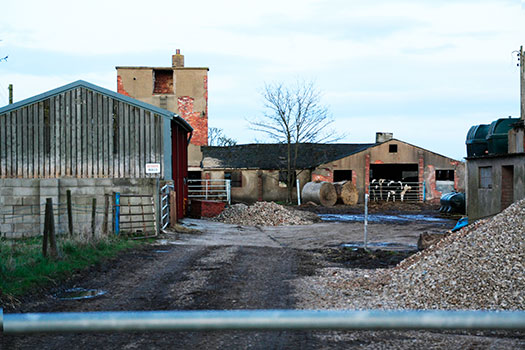

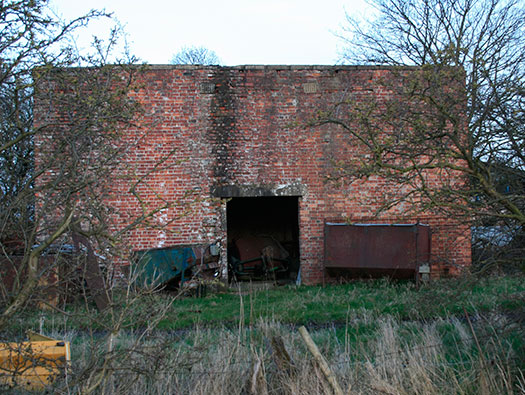

19 - Stand-by-Set House - TB - 5890/40.
It says Temporary Brick but I think this is Perminent Brick.

Plan of a stand by set house would be used to power the camp in the event of loss of mains electricity.

Two set engines side by side with dynamos behind them..

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Communal Site No.1
Left   - 1 - Officers Mess - TB - 8219/40.
Right - 3 - Squash Court - TB - 16888/40.

Plan.

Plan of this section.

A squash court 16888/40.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

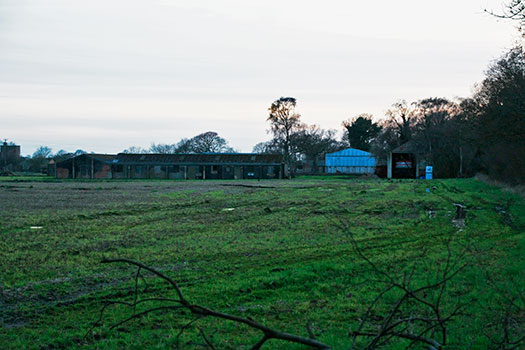

Communal Site No.2.
A mix of Nissen and TB hutting with a fuel compound for coal or coke with a wire mesh and barbed wire fence around it. This was the fuel for all the fire places in huts and main buildings..

Communal Site No.2.

Fuel compound [35] 9108/41.

Fuel compound [35] 9108/41 showing a low brick wall and a chain link fence above.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

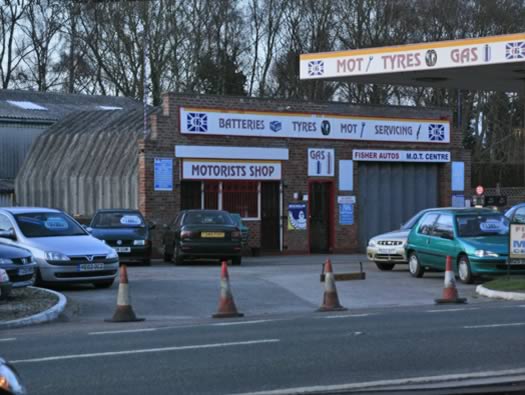

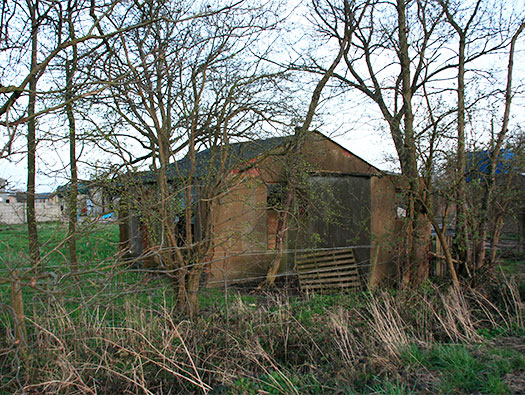

Local Garage & Two half Handcraft Huts.
This garage is not on the plan and there were/are no Handcraft huts used at RAF Riccall that I can see on the plan and they may have come from another camp.

Hand Craft Hut made of asbestos pre formed sheets needing no support and could be bolted together and any form of closure front and back, here brick, in the main picture a brick garage front.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

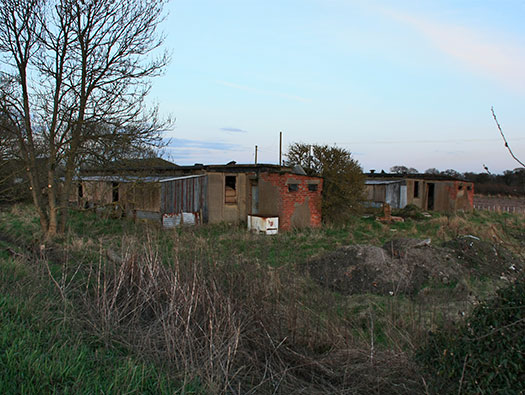

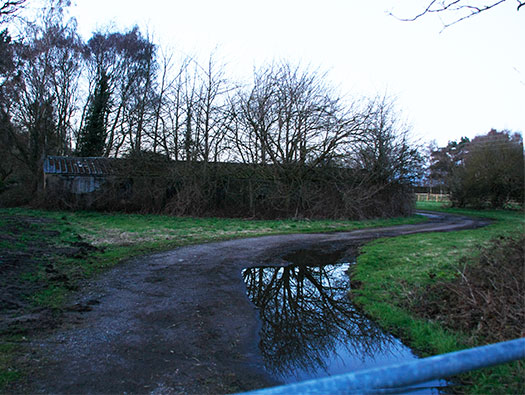

Site No.3 quarters, the idea of dispersing these site around the countryside was so if an airfield was bombed the men would be dispersed all over the place and in these sites officers, sergeants and airmen shared the area.

Plan.

Plan Site No.3.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

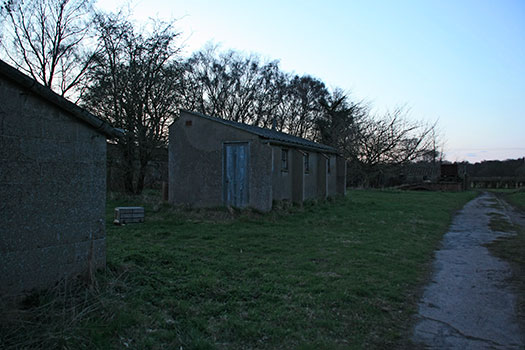

Site No.3.
All temporary brick huts, men would have a bed and a locker space and thats all, Sergeants would have a bed, locker space and a bit more space maybe for a soft leather chair. The officers had a lot more room and may have had a walled room to them selves and an airman servant to look after a few officers to make them tea and then wake them up and clean their rooms and keep their kit washed and ironed. The men did all their own cleaning and tidying..

Some information here.

Inside a hut.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

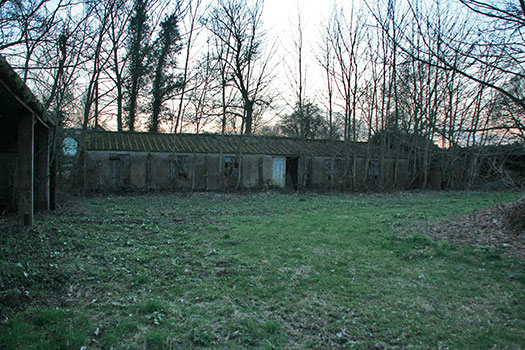

Site No.3.
75B - Airman's Quarters TB - 3217/40.



Plan.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Site No.3.

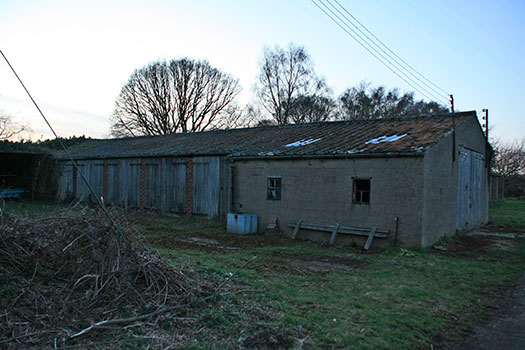

75c - Airman's Quarters TB - 3217/40.
Heavily adjusted to incorporate garages & extended either side but still an 8217/40.
The sets of garage doors may have been put on at a later date, this area I think became a store area after the war and a ramp was built and huts turned into garages.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Site No.3.
Stanton Air-raid Shelter.

Stanton shelter.

A Stanton shelter inside.

Another bad view..

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Site No.3.
75D - Airman's Quarters - TB - 3217/40.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Site No.3.
76B - Airman's Latrines (for two Huts) - TB - 3218/40.

Latrine plan.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Site No.3.
Loading Ramp.
Not on the plan so either post war or just as the war was closing down.

A loading ramp not a vehicle servicing ramp.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Site No.3.
75E - Airman's Quarters - TB - 3217/40.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Site No.3.

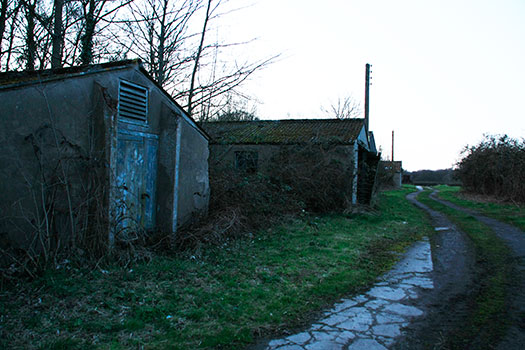

The View back toward the Road.

Air vents in the end walls and the electrical connection.

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

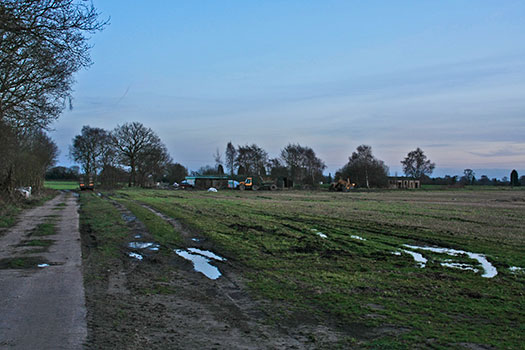

Across the Fields from Site No.3.

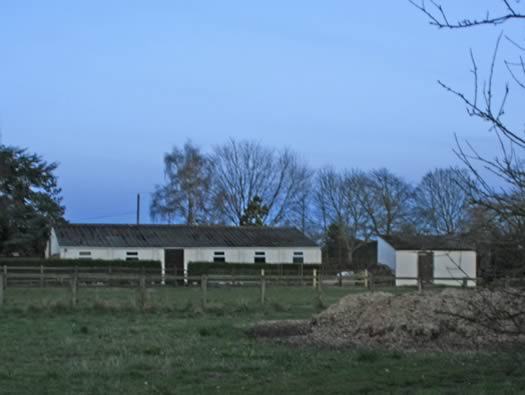

They look like RAF structures but the more I look they seem to be just asbestos garage/sheds, they are not on the plan & I feel nothing to do with the airfield..

RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details

Site No.3.

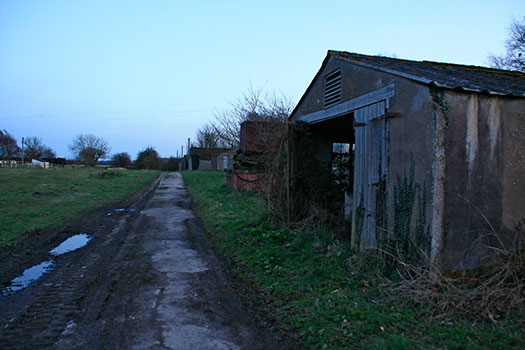

70 - Officers Quarters TB - 8217/40.
71 - Officers Latrine - TB - 8218/40.

Now converted into a garage & shed, a good use for something built for war.





RAF Riccall, Yorkshire. Domestic Sites.

Information

RAF Riccall, Yorkshire. Domestic Sites.

Details
