Several occupied ports were made into Festung's, fortress's and defended by extra troops and guns. A ring of casemates circled the inland side of St Malo and continued around to Dinard. Inside this there were many batteries, this is one of them.
Battery 4./A.R.177.
4 x R611 casemates.
4 x Geschützstellung.
1 x R621.
1 x R610.
4 x 15.5cm s.F.H.18(f).
1 x 2cm Flak 30.


Breach & loading.


Breach & loading.


Breach & loading.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach'

08 December 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach'

Details




R611 casemate.


R621 group bunker.


R610 battle HQ for a strengthened company.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

IGNF

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach'

Details

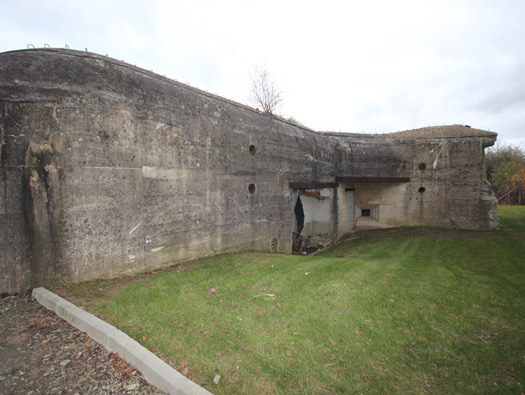

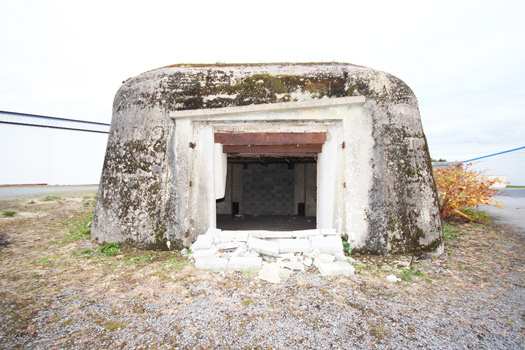

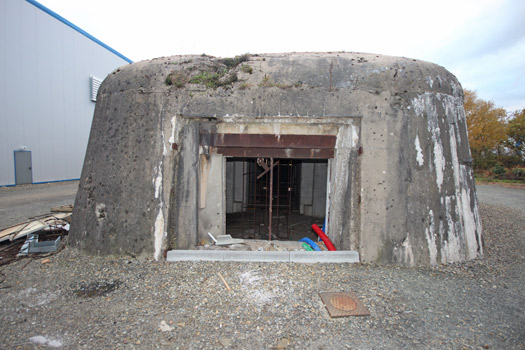

The battery today with factory units places around it and the green field is now gradually filling with housing. The R610 & the R621 have both as far as we could see have been built over. The four main casemates are still in place and in very good condition. Three are open and one is used by the house in front of it.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

1950

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach'

Details

This is how it looked in the late 50's.


Behind each casemate was an open emplacement set behind it, they may have been there before the casemates were built and kept on so they could be used to fie 360deg.


15.5cm in an open position.


Firing inside the casemate.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

R611 a very large casemate with a gun room, a passage through the middle to a rear door, two ammunition rooms, a crew room, close combat defence room and a Tobruk all around defence.


R611 Plan.


15.5cm Field Howitzer a French weapon captured and used in large numbers in the German army.


Turm 2.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

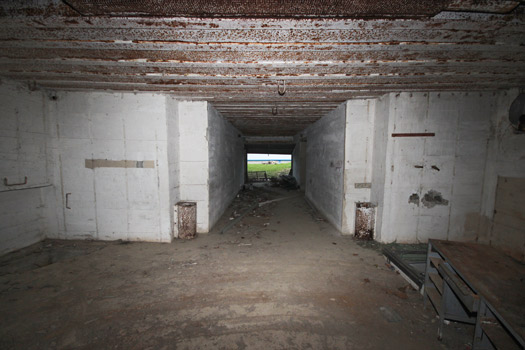

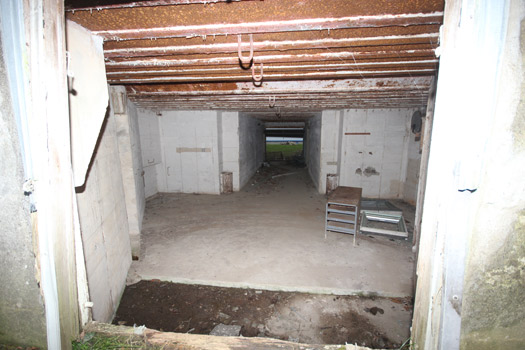

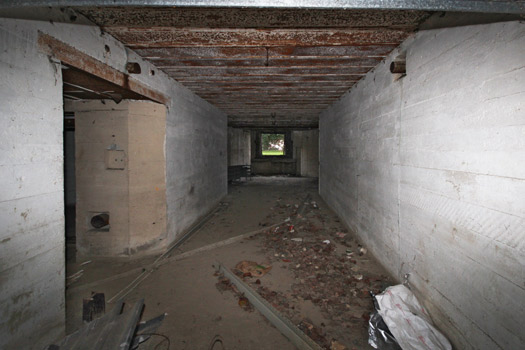

This is where the gun sat with the long passage to the rear door.


R611 Plan.


Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

The rear door in the centre with a close combat defence window covering the rear and a Tobruk nod half cut away due to the a factory being built to its right.


R611 plan.


494P2.large double doors.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

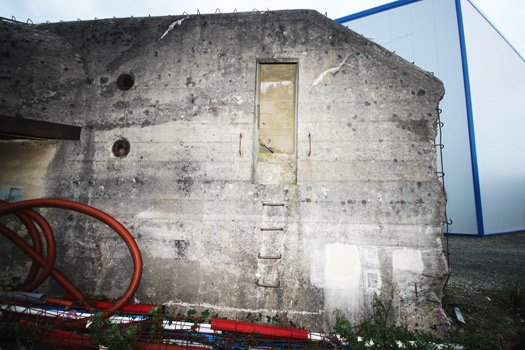

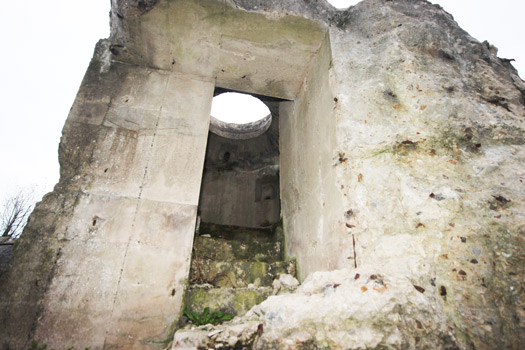

The Tobruk hasbeen cutaway to allow a building to be placed beind it and its quite a good way of showing how they were made.


Tobruk all around defence.


A speaking tube connected the gunner to the bunker below.


Aluminum speaking tube.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

Ammunition rooms to the left and to the right the entrance to the close combat & crew room.


R611 Plan.


Guns crew.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

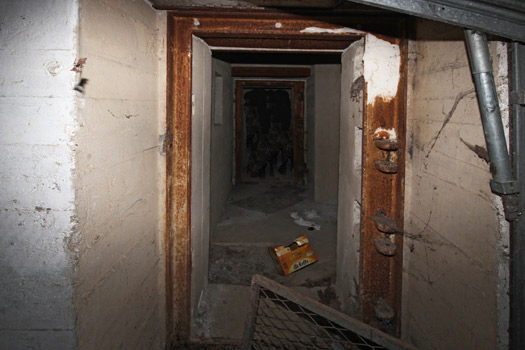

Close combat & crew room passage. A heavy double 434P01 door with half at the top & half at the bottom with a slot in the top section to view through.


434P01 door.


434P01 door with the top door open.


R611 Plan.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

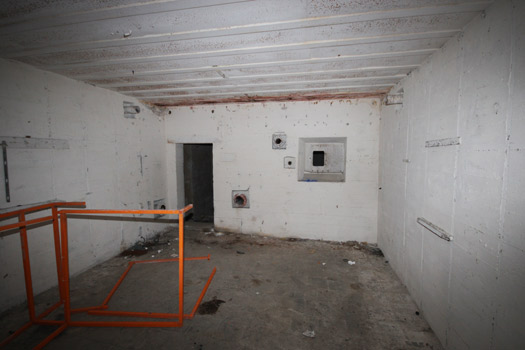

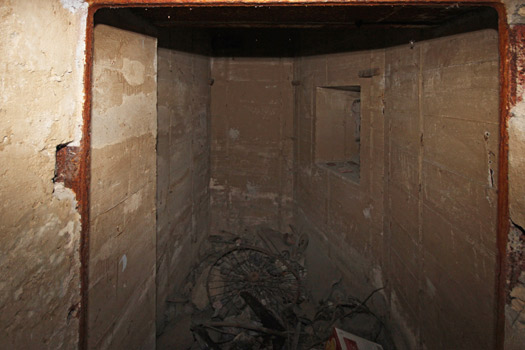

Close combat room. A defence window to cover the rear door and also to act as a small guard room to check crew in and out.


Close combat defence.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

Close combat defence window. As the years go by and you get to know these bunker you notice gradually that small pieces get removed and here there is very little left.


A 48P8 close combat embrasure.


Close combat defence

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach'

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

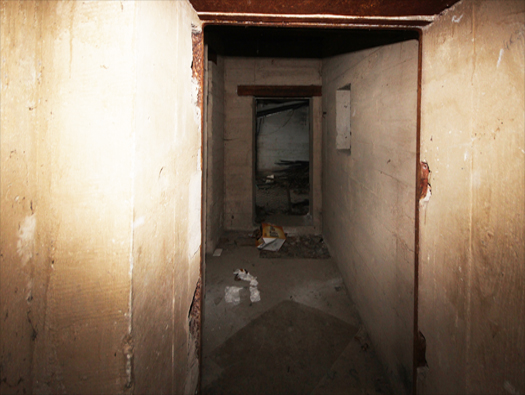

Passageway to crew room. Toilet paper is an added extra!!


R611 Plan


Close combat defence.


Close combat defence plan.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach', image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

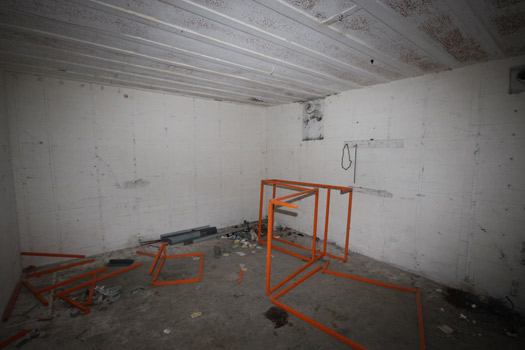

Crew room. Some additional details will go here


R611 Plan.


Crew.


Crew room.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

R611 crew room. Now looking towards the door with the internal close combat window which only covers the back door.


R611 Plan.


Crew room close combat defence.


422po1 close combat window.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

Cable Ducting by the crew room Door.


It may have looked a little like this??


Bunker telephone.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

Cable Ducting by the crew room door.
Now cabling above the crew door. The bunker was built and then all electrics and fittings were added afterwards and funnily enough painted last?


This is an other bunker wall with cabling coming down to fittings that have been painted around.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

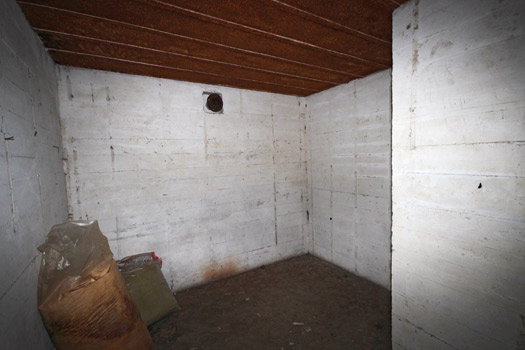

Ammunition room. Two ammunition rooms, the forward one is the shell room.


R611 plan.


It may have looked like this, there would have been shaped wooden pallets fitted between the the shells.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

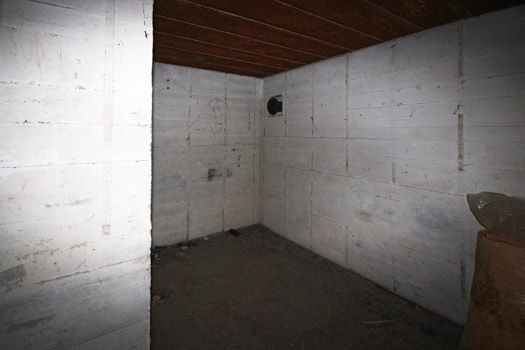

Case room.
This room held the case a brass tube filled with cordite.


R611 plan.


Piled cases.


Wooden boxes would hold cordite powder like the ones here. These were for a 10.5cm gun. I believe seven were used in a 10.0cm case.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

The ammunition room exit.
This is the way out of the two ammunition rooms with individual light switches either side.

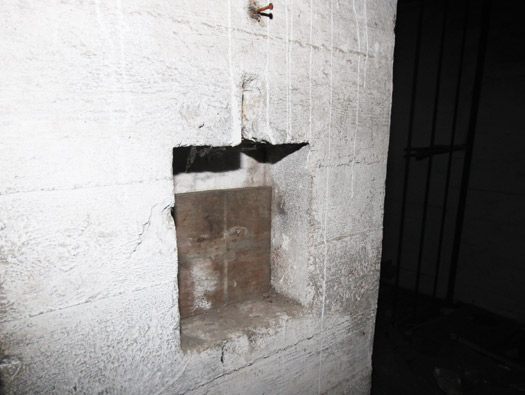

Recess for a light switch.


Bakelite bunker light switch.



Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

The gun would sit here and the trails would fit into the half round slots laid into the floor and the two tubes set either side of the rear passage was for placing the spent cases after they had been fired and they went down into a small basement to be collected later for re-use.


The manhole access to the basement.


Plan of an R611 spent case room or baseman but was never used or designed as a fighting room.




Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

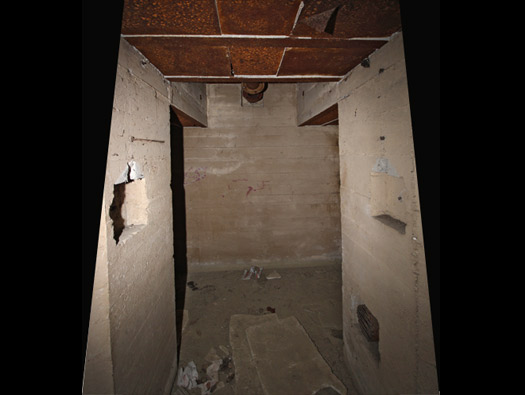

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

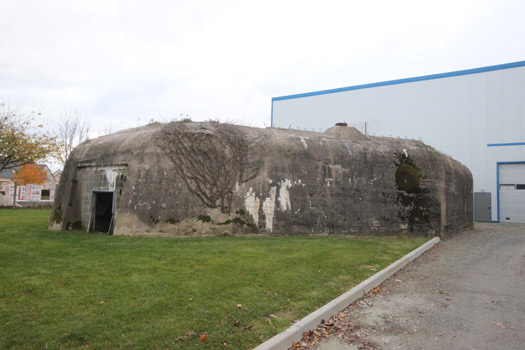

Where the main work of the bunker was to be. The battle for Dinard the attack came in from the rear so I am presuming that these guns never fired inside their bunkers but were removed and placed to the rear to fire on the Americans working up the railway line which runs to the left of this battery.


The four casemates with four emplacements to their rear and the railway line on the left.







Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 2.

Details

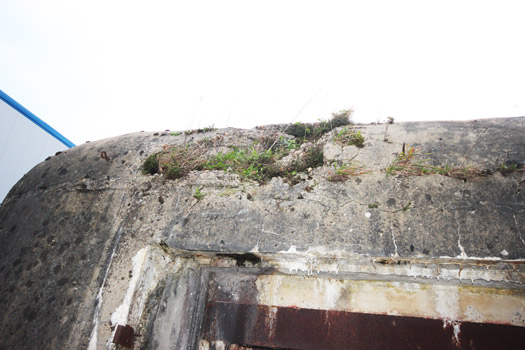

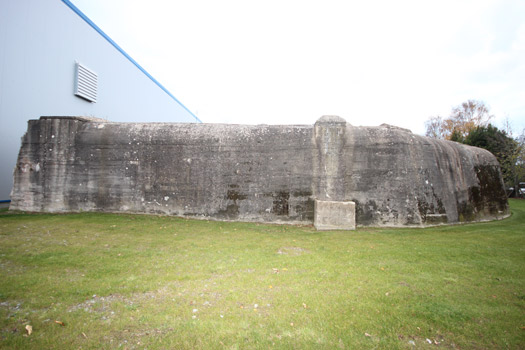

The Side View.
In the rear is the Tobruk. In the middle a chimney for removing the gases when the gun is fired and below it a small what looks like a water tank??? I have no idea what this is for.


The water looking tank??

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 1.

Details

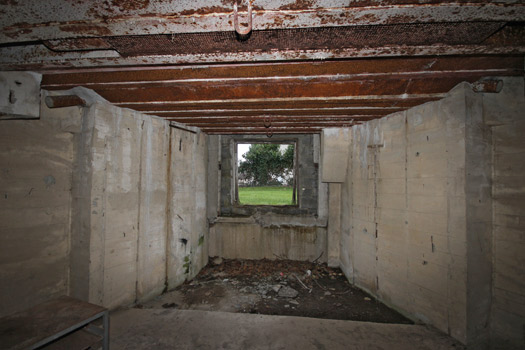

Gun room embrasure. Sloping gutter across the front to allow rain water to drain away.


Turm 1.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 1.

Details

Gun room.
Two steel plates to take the wheels of the gun and the half round slots for the gun trail to fit in to.




Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 4.

Details

Gun room embrasure. No gutter fitted to this one??


Turm 4.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 4.

Details

Looks like a direct hit.





Thunderbolt.




Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 4.

Details

Light switch fitting. This one still has the wood to screw a light switch.


Electric light switch.


As well as electric light carbide lamps were used in great numbers.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' Turm 4.

Details

Tobruk defence.
The step ladders up to the Tobruk and two handles to climb inside all still there.

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Ra155 Ville es Mesneirs, 'Battr. Kahlenbach'Turm 4.

Details

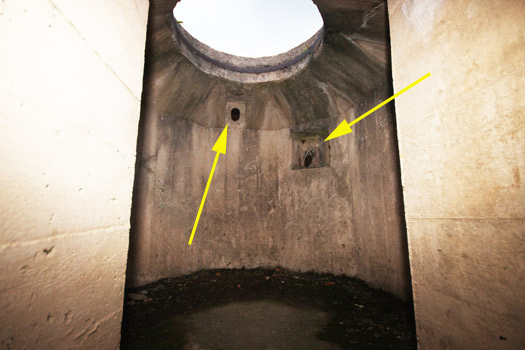

Inside the Tobruk showing the detail of the speaking tube and possibly a sort of phone communication on the right.


Speaking tube.




Ra155 Ville es Mesneirs, 'Battr. Kahlenbach' image

24 November 2013

Information

Jerry Built. Turm 4.

Details

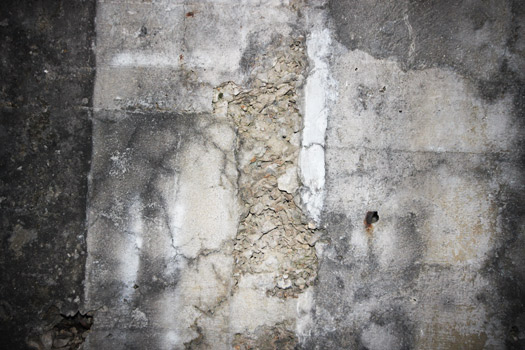

My father would comment 'Jerry built' to poor craftsmanship which is unusual as VW has proved him wrong but the building of bunkers with the use of temporary and unskilled labour meant a lot of German war building was very sub standard. Here where bomb or shell splinters have knocked away the outer skin, the internal mix was very low on sand & cement and is lust flaking away.


Pouring concrete into a bunker.
