Ca02 — Hourdel

WN · StP Gruppe Cayeux · AOK 15 Haute-Normandie · France

Hourdel

Ca02 Hourdel, StP.Gruppe Cayeux

1 x R612 Casemate..
2 x R600 Ringstand.
6 x Vf58c Tobruk's.
1 x Feldm.
1 x Vf67 Tobruk.
1 x Pz.T. 3.7cm KwK 144(f)
2 x 5cm KwK 39 L/42.
1 x 7.5cm F.K.231(f)

7.5cm F.K.231(f).
7.5cm F.K.231(f).
5cm KwK 38.
5cm KwK 38.
Pz.T. 3.7cm KwK 144(f).
Pz.T. 3.7cm KwK 144(f).

Ca02 Hourdel, StP.Gruppe Cayeux

Ca02 Hourdel, StP.Gruppe Cayeux


Ca02 Hourdel, StP.Gruppe Cayeux

Ca02 Hourdel, StP.Gruppe Cayeux

Somme estuary. Ca02 was protecting the entrance to the River Somme estuary on the south bank.

24 February 2014

Ca02 Hourdel, StP.Gruppe Cayeux

Ca02 Hourdel, StP.Gruppe Cayeux

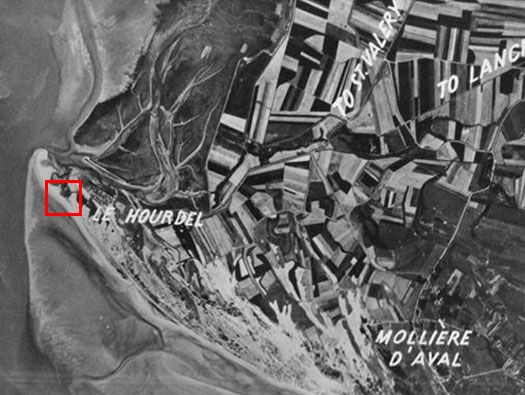

An allied reconnaissance photo 27 August 1942.

27 August 1942

Ca02 Hourdel, StP.Gruppe Cayeux

Ca02 Hourdel, StP.Gruppe Cayeux

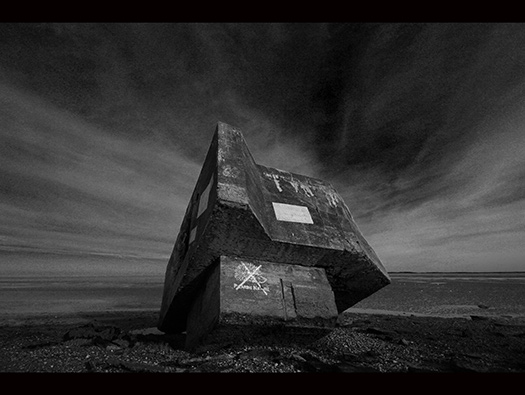

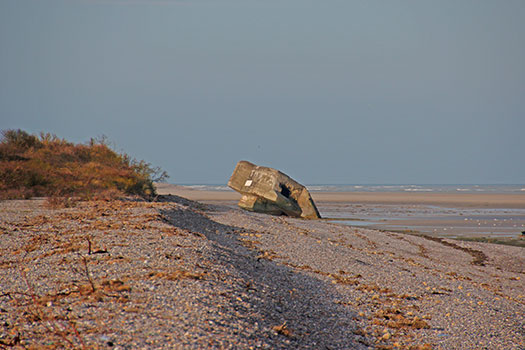

R612 casemate for an 7.5cm Field Kannon 231(f) assault gun. The gun was a 7.5cm cannon taken out of a French arsenals after the capitulation.

24 February 2014

7.5cm Field Kannon 231(f).
7.5cm Field Kannon 231(f).

Ca02 Hourdel, StP.Gruppe Cayeux

Ca02 Hourdel, StP.Gruppe Cayeux

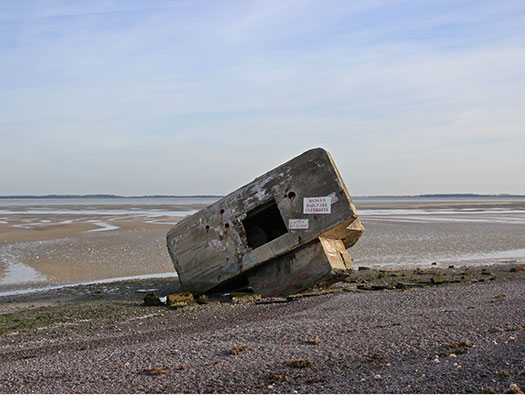

R612 casemate. This is the rear entrance for the gun to access the casemate.

24 February 2014

R612 two small ammunition niches each side of the back door and the gun room in the front.
R612 two small ammunition niches each side of the back door and the gun room in the front.

Ca02 Hourdel, StP.Gruppe Cayeux

Ca02 Hourdel, StP.Gruppe Cayeux

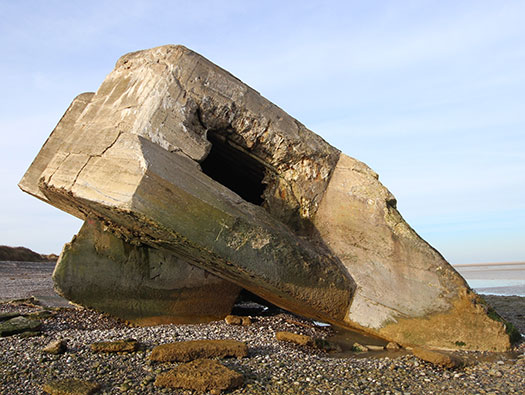

R612 casemate. The front view a quite small embrasure and a flanking wall to protect the gun from being fired at from the sea.

24 February 2014

How the flanking wall protects the guns embrasure.
How the flanking wall protects the guns embrasure.
An R612 after capture.
An R612 after capture.

Ca02 Hourdel, StP.Gruppe Cayeux

Ca02 Hourdel, StP.Gruppe Cayeux

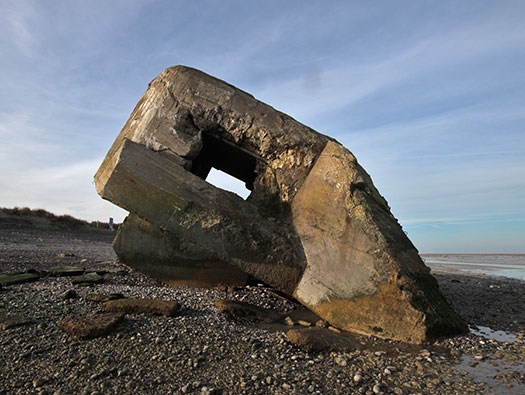

R612 casemate.

24 February 2014

7.5cm F.K.231 (f).
7.5cm F.K.231 (f).

Ca02 Hourdel, StP.Gruppe Cayeux

Ca02 Hourdel, StP.Gruppe Cayeux
Looking north along the coast. A lovely cold morning.

24 February 2014

Ca02 Hourdel, StP.Gruppe Cayeux

Ca02 Hourdel, StP.Gruppe Cayeux

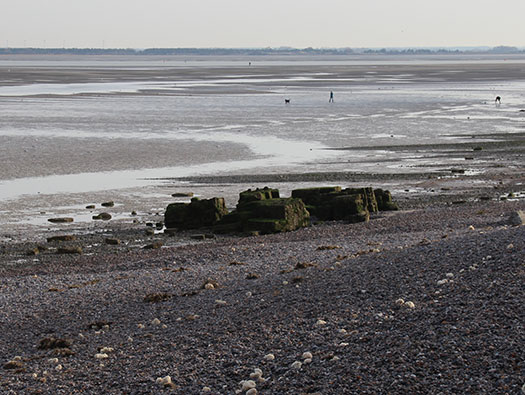

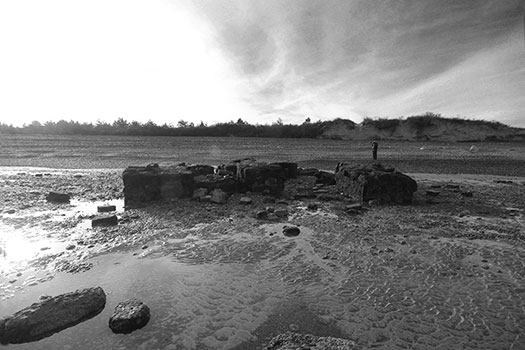

This could be an R600b of which there were two in Ca02. R600b either was a full bunker with crew room and ammunition room underneath and an open emplacement above or just the open emplacement without the rooms below.

24 February 2014

R600 elevation.
R600 elevation.
R600 plan.
R600 plan.
5cm KwK 39 L/42 in a R600 emplacement.
5cm KwK 39 L/42 in a R600 emplacement.
Crew on the left and ammunition on the right and an escape out of the crew room.
Crew on the left and ammunition on the right and an escape out of the crew room.

Ca02 Hourdel, StP.Gruppe Cayeux

Ca02 Hourdel, StP.Gruppe Cayeux
R600b Emplacement for a 5cm KwK anti tank gun. The 5 cm KwK was an obsolete tank gun as the 7.5 & 8.8cm guns had by then taken over and in a ground role set on or in a casemate was an excellent gun and could knock out nearly any allied tank and also landing craft.

24 February 2014

5cm KwK 39 L/42.
5cm KwK 39 L/42.
5cm KwK 39 L/42.
5cm KwK 39 L/42.
5cm KwK 39 L/42. note the leather muzzle cover hanging on the barrel.
5cm KwK 39 L/42. note the leather muzzle cover hanging on the barrel.

Ca02 Hourdel, StP.Gruppe Cayeux

Ca02 Hourdel, StP.Gruppe Cayeux


24 February 2014
