RAF Long Newnton.


Information

RAF Long Newnton

Details

RAF Long Newnton is located north of the B4014 Malmesbury to Tetbury road. Turn right into the village. After passing through it turn right for Chedglow. After this junction look for the pillbox on your right and the dispersed accommodation on your left. On reaching the junction with the Roman road the airfield is about half a mile south along the Roman road. Best to park and walk.


Plan of the aerodrome.





RAF Long Newnton

Information

RAF Long Newnton

Details

Runways x 2 Steel Matting (Sommerfeld Track).
Accommodation - Temporary
Hangars: -
1 x T1
10 x Blisters 69ft & 65ft type.
Officers x 83.
SNCO's x 100.
O.R's x 360.
WAAF
Officers x 3.
O.R's 140.
Parent airfield is Babdown Farm.

RAF Long Newnton. Wiltshire

27 June 2015

Information

RAF Long Newnton

Details

On the 27 of June I had a very lucky chance of flying from RAF Kemble in a light airplane and we passed over Long Newnton. Three large Solar farms have been placed over most of its surface. But for that it has kept its original shape and can be seen very clearly.


G-CEFZ about to take off from Kemble.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Pillbox defence.

Details

This part of RAF Long Newnton defences and the Green Stop Line.
Brick built hexagonal shape. Inside a brick blast wall.


Plan.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Pillbox defence.

Details

Inside with about five embrasures all slightly different and they were not finished properly by the builders. Some still have the wooden shuttering in place. Several have a small well to catch bullet casings in after they have been fired.





RAF Long Newnton. Wiltshire

20 March 2005

Information

Pillbox defence.

Details

Where the Bren sat.




RAF Long Newnton. Wiltshire

20 March 2005

Information

Follow the Roman Road south.

Details

History : RAF Long Newnton started life in WW1 as a aerial gunnery range by the RAAF from Minchinhampton. At the start of WW2 No.11 MU Chilmark used the farm for ammunition storage.


Plan.

RAF Long Newnton. Wiltshire

1945/46

Information

RAF Long Newnton

Details

A post war photo showing the landing ground used as storage for MU bomb storage. So many bombs and shells were left over and had to be dealt with and first stored on disused airfields and then sorted and disposed. Many went into the sea in deeps off the Atlantic coast. It does show the airfield and its buildings very well.





Photo reconnaissance Spitfire.


Camera fitting.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Airfield looking south.

Details

History : after the ammunition had been removed it became a Q site for RAF Kemble.
Expecting attacks by the German Luftwaffe on RAF airfields, the Air Ministry implemented a secret plan for decoy airfields at the onset of World War II, in 1939 designated "Q" sites were secret decoy airfield sites for night use. The decoy "Q" site consisted of adjustable intensity electric night landing lights to simulate from the air a runway flare path as well as other elaborate runway lighting schemes, obstruction lights were also installed to stop RAF aircraft mistakenly landing on the decoy dummy airfield. (Wikipedia)


Plan.


Landing lights Goose Neck flairs.


He111.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Link Trainer Hut [71] 4188/42.

Details

History : Sept to Nov 1940 it becomes an RLG (Relief Landing Ground) for No.9 SFTS (Service Flying Training School) at RAF Hullavington.
Harvard's.


Plan.


Miles Master cockpit.


Hurricane.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Link Trainer Hut [71] 4188/42.

Details

The Link trainer & Edmond's trainer building and housed up to three trainers, they were used as ground training for pilots in the basics of flying and hone their skills of already qualified pilots.


Ink Trainer.


Three bay Link trainer building.


Plan of the Link trainer space.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Link Trainer Hut [71] 4188/42.

Details

The easy way to recognize a Link trainer building is by the side extensions
and a boiler room between bay 2 & 3.
History :
1941 and RAF South Cerney started to use the airfield as an RLG for Airspeed Oxfords.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Link Trainer Hut [71] 4188/42.

Details

Inside the hut that would have been segmented to make three rooms and the three Link trainers would have sat in the middle of the room with a desk for the instructor.


Link trainer and instructors.


Link trainer and instructors.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Link Trainer Hut [71] 4188/42.

Details

The three small extensions and the heating room.
History:
No.14 SFTS (Service Flying Training School) RAF Lyneham.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Link Trainer Hut [71] 4188/42. Original doors.

Details

Internal doors to the small extension.

The Edmond's trainer was an add-on to a standard Link trainer setup to teach fighter pilots deflection shooting.

It instructed fighter pilots in deflection shooting combined with aircraft recognition and range judging, using a standard Link trainer. This was fitted with a reflector sight (modified for the purpose) and a spotlight triggered by a firing a button on the control column. At the required distance from the Link, a 1:48 scale model aircraft was positioned 6.5 ft from the ground and mounted on a castor's trolley. A 'deflection' graph was also positioned 3 ft from the floor

On the floor in front of the 'aircraft' were painted a number of arcs of circles worked out from the pivot point from the Link. These were at intervals of 37.5 in (representing ranges from 150 yds to 600 yds at 50 yds increments).

The trainee flew the Link to ‘attack’ the model which then moved to simulate an aircraft under attack. When the pilot considered he was in range, he pressed his trigger in short bursts and the beam of light from the spotlight registered on the graph, the instructor immediately read off the range from the arcs on the floor and the errors shown on the graph. The instructor was in communication with the pilot, giving advice and correcting his aim throughout the simulation.


Source: AIR20 /6058 Synthetic Training Devices, AIR2 /8785 Synthetic Training Committee (STC) reports and RAF Commands.


Thank you to P Bellamy via a request on AIX and RAF Commands.


RAF Long Newnton. Wiltshire

20 March 2005

Information

Link Trainer Hut [71] 4188/42.

Details

Boiler house.


Keeping the boiler topped up.


Bags of coal.

RAF Long Newnton. Wiltshire

20 March 2005

Information

RAF Long Newnton

Details

The first gap in the hedge to allow aircraft get from the airfield to the T1 hangar. An air photo dated 1942 shows four Blister hangars built off the airfield but none on the airfield and also the T1 hangar had not been built with several of the off site buildings. Green lines were painted onto the airfield to look like hedges as camouflage.


T1 door.


Front face of a T1 hangar.


Gap in the hedge.

RAF Long Newnton. Wiltshire

20 March 2005

Information

The Roman Road.

Details

History : the last flying unit to use Long Newnton was No.15 (P) AFU ([Pilot] Advanced Flying Unit) RAF Andover.


Romans marching.


here

RAF Long Newnton. Wiltshire

21 June 2009

Information

Parachute Store [73] 10825/42.

Details

Temporary half brick construction and a cement asbestos roof.


Parachute Store [73] 10825/42.


Inside a parachute store.


Plan.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Parachute Store [73] 10825/42.

Details

History: 15Fts was the first to use the airfield coming over from Kiddlington, Oxford with Harvard's.


Parachute Store [73] 10825/42.



15 FTS's Harvard.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Parachute Store [73] 10825/42.

Details

The roof had hooks in the roof and parachutes could be hauled up to dry them and also to let the strings hang down to be untangled.


Parachutes hanging from the roof and WAAF's packing chutes on the table.


Harvard.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Parachute Store [73] 10825/42.

Details

On the side wall are the original chalk boards where parachute state would be written up.


WAAF's repairing parachutes.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Parachute Store [73] 10825/42.

Details

Chalk board.


Parachute packing.


Parachute packing.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Parachute Store [73] 10825/42.

Details

Chalk board.





Parachute bag.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Parachute Store [73] 10825/42.

Details

Chalk board.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Parachute Store [73] 10825/42.

Details

Looking out.


Packing.


Pilots chute.


Parachute storage.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Parachute Store [73] 10825/42.

Details



RAF Long Newnton. Wiltshire

20 March 2005

Information

Lubricant & Inflammables Store TB (6) 664/41.

Details

Others and probably I have stated this as the Guard House, but I think that is further down now completely removed.


Plan.


1 - off plan Picket Post.
2 - Guard Post.
3 - Locker & Drying Room.
4 - Latrine.
5 - M&E Plinth.
7 - Sub Station.
8 - AMWD Stores. Also two air-raid blast shelters (green).


Oxford training.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Air-Raid Blast Shelter for 50men 2360/41.

Details

Under attack you could get inside by one of two entrances or just run up the grass covered walls and jump in. In time of attack they could also be used as a brick lined trench.


Plan.


Plan of a blast shelter 50men 2360/41.


Blast shelter entrance 50men 2360/41.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Perimeter track.

Details




Plan.


The south side with two (green) Extra Over Blister hangars (69ft) and the Bulk Petrol Instillation 24,000gal. (46) 6535/41.


Hurricane being refuelled from a bowser trailer.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Perimeter Track.

Details




Blister hangar.


Blister hangar.


Frame of a Blister hangar.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Airfield site.

Details

The owners farm house and the Control tower on the right. Call into the farm for permission to enter.


Plan.


The odd Wellington would have used the airfield in training.

RAF Long Newnton. Wiltshire

20 March 2005

Information

Airfield site.

Details

Perimeter track probably its original width of 50ft.


Plan.






RAF Long Newnton. Wiltshire

20 March 2005

Information

MT Shed 2bay (No Repair Bay) TB (64) 12775/41.

Details




Plan.


Staff car.




RAF Long Newnton. Wiltshire

20 March 2005

Information

MT Shed 2bay (No Repair Bay) TB (64) 12775/41.

Details

The doors were originally made of wood.


MT shed at RAF Ringstead with wooden doors


Petrol pump.




RAF Long Newnton. Wiltshire

21 June 2009

Information

Not sure??

Details



RAF Long Newnton. Wiltshire

21 June 2009

Information

Control Tower, Operations, Floodlight, Fire Tender & Ambulance shed.

Details




Plan.


13726/41 Control Tower.


Chance light (floodlight).

RAF Long Newnton. Wiltshire

21 June 2009

Information

Instructional Operations Room (68) TB 13432/42.
Control Tower 9Watch Office) PB (67) 13726/41 : 15370/41

Details

Doubling up the operations room could also be used as an instructional room.


RAF teaching.


Operations.


Operations.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Instructional Operations Room (68) TB 13432/42.

Details

This hut would have been used a lot at the height of it use for planning flying for the next day and instructional courses.








RAF Long Newnton. Wiltshire

20 March 2005

Information

Instructional Operations Room (68) TB 13432/42.

Details

The paintwork could be original. Either blue/cream or two shades of green.


RAF Long Newnton. Wiltshire

21 June 2009

Information

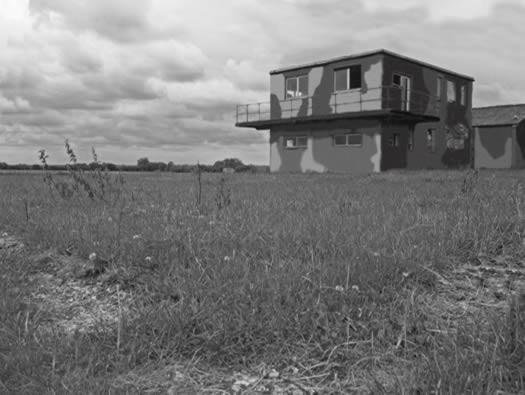

Control Tower (Watch Office) PB (67) 13726/41 : 15370/41

Details

13726/41 is the main building number and 15370/41 could be the drawing number for the small front windows.





Radio room.




RAF Long Newnton. Wiltshire

21 June 2009

Information

Control Tower (Watch Office) PB (67) 13726/41 : 15370/41.

Details

On the top floor at the front was the Watch Office and probably only two rooms at the back, one would probably be the Signals Office and the other the Duty Pilots rest room.
On the bottom a Control Room, Met Office and the PBX room. PBX (private branch exchange) the station telephone system.


First floor plan.



Ground floor plan.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Control Tower (Watch Office) PB (67) 13726/41 : 15370/41.

Details

Watch office at the top and Control room below.


Zeals 13726/41 Control Room..


Zeals 13726/41 Control Room.


Zeals 13726/41 Control Room.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Remains of the signal square.

Details

42ft x 42ft a square where signs could be placed to inform pilots wind direction, runway to use and all sorts of other information.


Signal square.


Working on the signal square.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Wind sock post

Details




Windsock giving the direction of the wind.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Control Tower (Watch Office) PB (67) 13726/41 : 15370/41.

Details

How it may have looked.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Control Tower (Watch Office) PB (67) 13726/41 : 15370/41.
Instructional Operations Room (68) TB 13432/42.

Details







RAF Long Newnton. Wiltshire

21 June 2009

Information

Instructional Operations Room (68) TB 13432/42.

Details



RAF Long Newnton. Wiltshire

21 June 2009

Information

Control Tower (Watch Office) PB (67) 13726/41 : 15370/41.
Fire Tender & Ambulance shed (70) 5352/42.

Details




Morris ambulance.


RAF crash rescue tender co2 and foam unit Crossly.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Control Tower (Watch Office) PB (67) 13726/41 : 15370/41.
Fire Tender & Ambulance shed (70) 5352/42.
Instructional Operations Room (68) TB 13432/42.

Details










RAF Long Newnton. Wiltshire

21 June 2009

Information

Floodlight Trailer & Tractor Shed (69) 12411/41.

Details




Chance Light.


Chance Light.


Chance light (flood light) at work lighting up the direction of the runway to land.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Floodlight Trailer & Tractor Shed (69) 12411/41.

Details

This is a drive through shed with doors either end.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Technical Latrines (23) TB 657/41.

Details

Based on a 1940's plan 14304/40 a large block placed where there would be a lot of men working in the area.


Plan.





RAF Long Newnton. Wiltshire

21 June 2009

Information

Turret instructional Building (98) TB no number.

Details

This un numbered building looks as though later Turret Instructional Buildings were based on this design. TB 10833/42 looks very like this one.


Lewis gun turret trainer.


Lancaster rear turret.


Estimating ranges.

RAF Long Newnton. Wiltshire

21 June 2009

Information

This is an anomaly as all these plans throw up . (102) is a D/R Instructor, R/T trainer & Morse Lecture Room but the plan states its in Seco. Well its in temporary brick for a start???

Details




An R1155 instillation scheme.


Morse code training key.


RAF Long Newnton. Wiltshire

21 June 2009

Information

Main Store (74) R 11279/42. 'R' = Romney Hut.

Details

Main Store is where literally all items passed through that came onto the airfield from aircraft engines to paper clips for the office. (Oh! and toilet rolls).


Plan.


Store man.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Main Workshop (75) R 11279/42. 'R' = Romney Hut.

Details

Exactly the same type of building but this time a lot of the small repairs would be carried out here.


Lathe.


Grinder.


Repairs.

RAF Long Newnton. Wiltshire

21 June 2009

Information

'R' = Romney Hut.

Details

Showing the framework of a Romney hut.


Frame inside.


Inside view.


74 & 75 with road ways entering either end.

RAF Long Newnton. Wiltshire

21 June 2009

Information

The gap in the hedge.

Details

The gap in the hedge from the airfield, across the Roman road and onto the hard standing outside the T1 hangar.


Plan with the roadway through the hedge and circling around the hangar.


Tiger Moth trainers inside a hangar.


Oxford cockpit.

RAF Long Newnton. Wiltshire

21 June 2009

Information

T1 hangar.

Details

Aircraft Shed (T1) 9659/42.


Plan.


T1 hangar.


The T1's 3/4 door. A smaller (lower) than the T2 hangar. This one was mostly used on training stations and replaced the Bellman hangars which was a pre war design.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Now heading out towards the Communal sites.

Details

The concrete road gives it away.


Plan.


Communal site.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Continuing on.

Details

All day and probably all night there would have been a stream of bicycles, airmen and WAAF's and the odd officer in a car.


Plan.


WAAF's on Bikes.




RAF Long Newnton. Wiltshire

21 June 2009

Information

Sewage Site.

Details

A very important place. Set halfway between the airfield and the communal sites.


Sewage site plan.

RAF Long Newnton. Wiltshire

21 June 2009

Information

Sewage Site.

Details



RAF Long Newnton. Wiltshire

21 June 2009

Information

Communal site.

Details

To be continued. I will continue to add communal site after this.


Plan.


Communal site.




RAF Long Newnton. Wiltshire


Information

Long Newnton Church.

Details
